Installation Instructions for
®
STAINLESS STEEL BANDING ASSEMBLY
Unassembled band with buckle
Washer
Carriage Bolt
Fixed Retainer Sliding Retainer
Nut
Assembled band with buckle
Buckle Retainer: End View
1. Measure the circumference of the pole where the band
is to be installed.
2. Cut the band to a length of 8” to 12” beyond the
measured circumference of the pole plus whatever
is necessary for additional hardware that will be
installed.
¾" Slot
1 ¼" Slot
3. Measure 4” to 6” from the end and mark the band.
Bend the band at this mark, then strike band to create
a sharp radius.
Continued on the next page > > > > > >
NOTE: Hubbell has a policy of continuous product improvement.
We reserve the right to change design and specifications without notice.
©
Copyright 2013 Hubbell Incorporated Printed in USA
Part No. PSP2160528
4. Slide the band through the fixed retainer in the
appropriate size slot and fold the band under retainer
where marked.
5. Repeat steps 3 and 4 for the sliding retainer.
6. Bend the band to a 90° angle at the end of each
retainer.

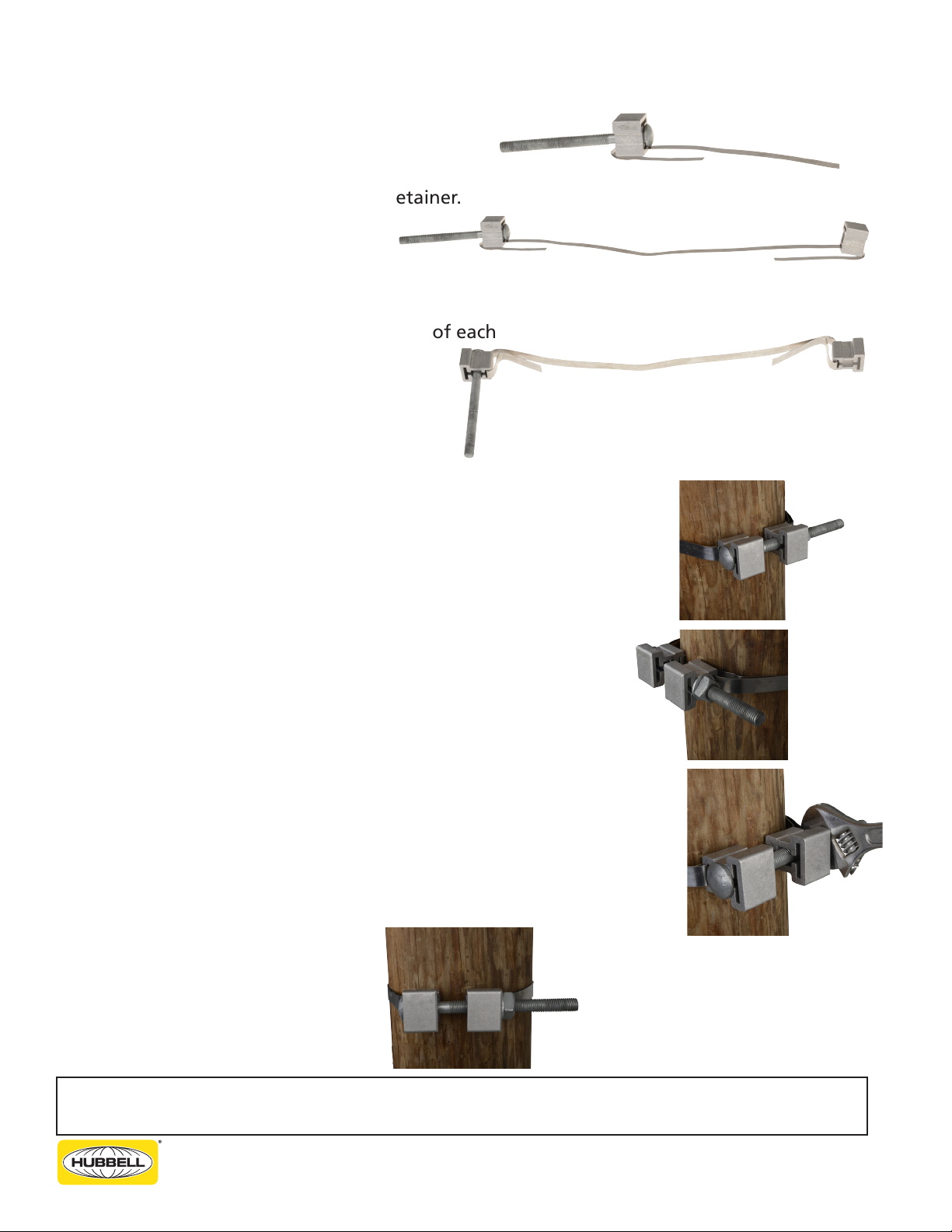

7. Place banded assembly around pole at desired location
and install the carriage bolt through the two
aluminum retainers.
8. Install nut and washer on carriage bolt.
9. Tighten until assembly is secure and all slack has been
taken up.
10. Installation Complete
These instructions do not claim to cover all details or variations in equipment, nor to provide for all possible conditions to be met concerning
installation, operation, or maintenance of this equipment. If further information is desired or if particular problems are encountered which
are not sufficiently covered in this guide, contact Hubbell Power Systems.
