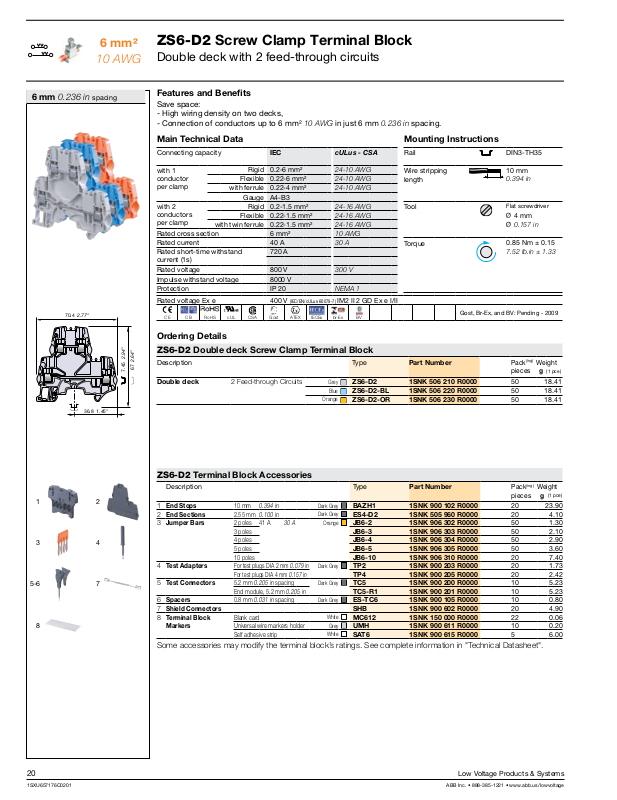

ABB ZS6-D2 Catalog Page
6 mm²
70.4 2.77"
36.8 1.45"
7.45 2.94"
67 2.64"
CE
CB
RoHS
cUL
CSA
Gost
ATEX
IECEx
br-Ex
BV
10 AWG
ZS6-D2 Screw Clamp Terminal Block
Double deck with 2 feed-through circuits
6 mm 0.236 in spacing
Features and Benefits
Save space:
- High wiring density on two decks,
- Connection of conductors up to 6 mm² 10 AWG in just 6 mm 0.236 in spacing.
Main Technical Data Mounting Instructions
Connecting capacity IEC cULus - CSA Rail DIN3-TH35
with 1
conductor
per clamp
Rigid 0.2-6 mm² 24-10 AWG
Flexible 0.22-6 mm² 24-10 AWG 0.394 in
Wire stripping
length
with ferrule 0.22-4 mm² 24-10 AWG
10 mm
Gauge A4-B3
with 2
conductors
per clamp
Rigid 0.2-1.5 mm² 24-16 AWG
Flexible 0.22-1.5 mm² 24-16 AWG
with twin ferrule 0.22-1.5 mm² 24-16 AWG
Tool
Flat screwdriver
4 mm
0.157 in
Rated cross section 6 mm² 10 AWG
Rated current 40 A 30 A
Rated short-time withstand
current (1s)
720 A
Torque
0.85 Nm ± 0.15
7.52 lb.in ± 1.33
Rated voltage 800 V 300 V
Impulse withstand voltage 8000 V
Protection IP 20 NEMA 1
Rated voltage Ex e 400 V
(IEC/EN/cULus 60079-7)
IM2 II 2 GD Ex e I/II
Gost, Br-Ex, and BV: Pending - 2009
Ordering Details
ZS6-D2 Double deck Screw Clamp Terminal Block
Description Type Part Number
Double deck 2 Feed-through Circuits
Grey
ZS6-D2 1SNK 506 210 R0000 50 18.41
Blue
ZS6-D2-BL 1SNK 506 220 R0000 50 18.41
Orange
ZS6-D2-OR 1SNK 506 230 R0000 50 18.41
(ing)
Pack
pieces g
Weight
(1 pce)
1 2
3 4
5-6 7
8
ZS6-D2 Terminal Block Accessories
Description Type Part Number
1
End Stops
End Sections
2
Jumper Bars
3
Test Adapters
4
Test Connectors
5
Spacers
6
Shield Connectors
7
Terminal Block
8
Markers
10 mm 0.394 in
2.55 mm 0.100 in
2 poles 41 A 30 A
3 poles
4 poles
5 poles
10 poles
For test plugs DIA 2 mm 0.079 in
For test plugs DIA 4 mm 0.157 in
5.2 mm 0.205 in spacing
End module, 5.2 mm 0.205 in
0.8 mm 0.031 in spacing
Blank card
Universal wire markers holder
Self adhesive strip
Dark Grey
Dark Grey
Orange
Dark Grey
Dark Grey
Dark Grey
White
Grey
White
BAZH1 1SNK 900 102 R0000 20 23.90
ES4-D2 1SNK 505 960 R0000 20 4.10
JB6-2 1SNK 906 302 R0000 50 1.30
JB6-3 1SNK 906 303 R0000 50 2.10
JB6-4 1SNK 906 304 R0000 50 2.90
JB6-5 1SNK 906 305 R0000 50 3.60
JB6-10 1SNK 906 310 R0000 20 7.40
TP2 1SNK 900 203 R0000 20 1.73
TP4 1SNK 900 205 R0000 20 2.42
TC5 1SNK 900 200 R0000 10 5.23
TC5-R1 1SNK 900 201 R0000 10 5.23
ES-TC6 1SNK 900 105 R0000 10 0.80
SHB 1SNK 900 602 R0000 20 4.90
MC612 1SNK 150 000 R0000 22 0.06
UMH 1SNK 900 611 R0000 10 0.20
SAT6 1SNK 900 615 R0000 5 6.00
Some accessories may modify the terminal block’s ratings. See complete information in "Technical Datasheet".
(ing)
Pack
pieces g
Weight
(1 pce)
20 Low Voltage Products & Systems
1SXU657176C0201 ABB Inc. • 888-385-1221 • www.abb.us/lowvoltage
