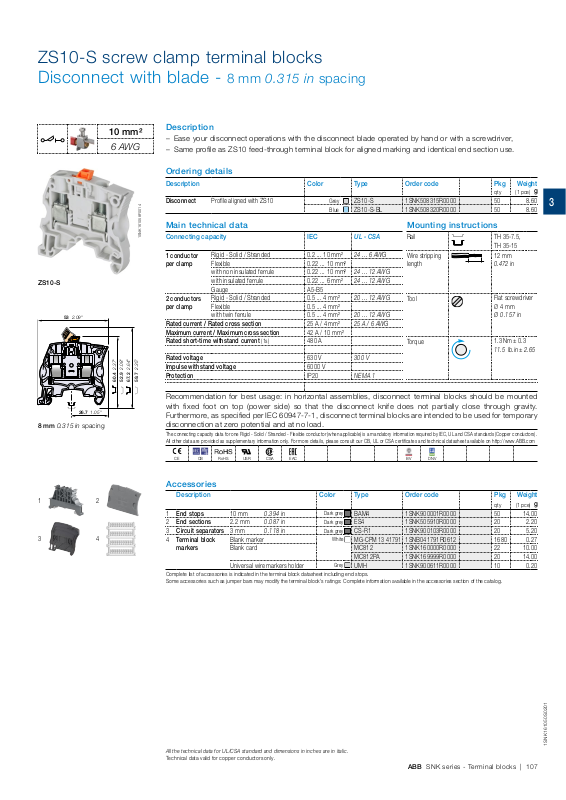

ZS10-S screw clamp terminal blocks

53 2.09"

RoHS

USR

CSA

EAC

DNV

Disconnect with blade -

Description

– Ease your disconnect operations with the disconnect blade operated by hand or with a screwdriver, – Same proﬁle as ZS10 feed-through terminal block for aligned marking and identical end section use.

Ordering details

Description Color Type Order code

Disconnect Proﬁle aligned with ZS10

Main technical data Mounting instructions

1SNK161058F0014

Connecting capacity IEC

1 conductor per clamp

2 conductors per clamp

Rated current / Rated cross section 25 A Maximum current / Maximum cross section 42 A / 10 mm² Rated short-time withstand current

Rated voltage 630 V 300 V Impulse withstand voltage 6000 V Protection IP20 NEMA 1

59.7 2.35"

Rigid - Solid / Stranded 0.2 ... 10 mm² 24 ... 6 AWG Flexible 0.22 ... 10 mm² 0.472 in with non insulated ferrule 0.22 ... 10 mm² 24 ... 12 AWG with insulated ferrule 0.22 ... 6 mm² 24 ... 12 AWG Gauge A5-B5 Rigid - Solid / Stranded 0.5 ... 4 mm² 20 ... 12 AWG Flexible 0.5 ... 4 mm² with twin ferrule 0.5 ... 4 mm² 20 ... 12 AWG

ZS10-S

10 mm²

6 AWG

60.4 2.37"

52.9 2.08"

67.2 2.64"

8 mm 0.315 in spacing

Grey

ZS10-S 1SNK508315R0000 50 8.60

Blue

ZS10-S-BL 1SNK508320R0000 50 8.60

UL - CSA

/ 4 mm² 25 A / 6 AWG

(1s) 480 A

Pkg

Weight

qty (1 pce)

Rail TH 35-7.5,

TH 35-15

Wire stripping

12 mm

length

Tool

Torque

Flat screwdriver

4 mm

0.157 in

1.3 Nm ± 0.3

11.5 lb.in ± 2.65

26.7 1.05"

8 mm 0.315 in spacing

1 2

Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted with ﬁxed foot on top (power side) so that the disconnect knife does not partially close through gravity. Furthermore, as speciﬁed per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary disconnection at zero potential and at no load.

The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors). All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certiﬁcates and technical datasheet available on http://www.ABB.com

Accessories

Description Color Type Order code Pkg Weight

1 End stops 10 mm 0.394 in 2 End sections 2.2 mm 0.087 in 3 Circuit separators 3 mm 0.118 in 4 Terminal block

markers

Blank marker Blank card MC812 1SNK160000R0000 22 10.00

Dark grey Dark grey Dark grey

White

BAM4 1SNK900001R0000 50 14.00 ES4 1SNK505910R0000 20 2.20 CS-R1 1SNK900103R0000 20 5.20 MG-CPM 13 41791

1SNB041791R0612 1680 0.27

qty (1 pce)

MC812PA 1SNK169999R0000 20 14.00

Complete list of accessories is indicated in the terminal block datasheet including end stops.

Universal wire markers holder

Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Grey

UMH 1SNK900611R0000 10 0.20

All the te chnic al data fo r UL/CSA st andard and dime nsion s in inch es are in i talic.

Technical data valid for copper conductors only.

1SNK161050S0201

ABB SNK series - Terminal blocks | 107
