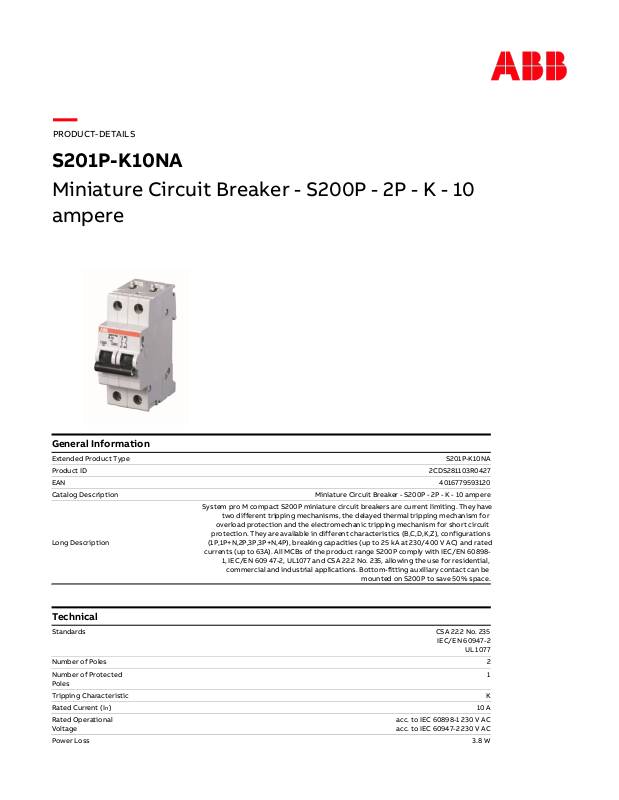

ABB S201P-K10NA Technical data

System pro M compact S200P miniature circuit breakers are current limiting. They have

PRODUCT-DETAILS

S201P-K10NA

Miniature Circuit Breaker - S200P - 2P - K - 10
ampere

General Information

Extended Product Type

Product ID

EAN

Catalog Description

two different tripping mechanisms, the delayed thermal tripping mechanism for

overload protection and the electromechanic tripping mechanism for short circuit

protection. They are available in different characteristics (B,C,D,K,Z), configurations

Long Description

(1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 25 kA at 230/400 V AC) and rated

currents (up to 63A). All MCBs of the product range S200P comply with IEC/EN 60898-

1, IEC/EN 609 47-2, UL1077 and CSA 22.2 No. 235, allowing the use for residential,

commercial and industrial applications. Bottom-fitting auxiliary contact can be

Miniature Circuit Breaker - S200P - 2P - K - 10 ampere

mounted on S200P to save 50% space.

S201P-K10NA

2CDS281103R0427

4016779593120

Technical

Standards

Poles

)

n

Rated Operational
Voltage

acc. to IEC 60898-1 230 V AC
acc. to IEC 60947-2 230 V AC

CSA 22.2 No. 235

IEC/EN 60947-2

UL 1077

2 Number of Poles

1 Number of Protected

K Tripping Characteristic

10 A Rated Current (I

3.8 W Power Loss

S201P-K10NA

at Rated Operating Conditions per Pole 1.9 W

(Ui)

Rated Frequency (f)

Capacity (I

Circuit Breaking
Capacity (I

Circuit Breaking
Capacity (I

Rated Impulse
Withstand Voltage (U
)

Indication

Connecting Capacity

Driver

Mounting on DIN Rail

Terminals

Connection

)

cn

)

cu

)

cs

imp

Failsafe Bi-directional Cylinder-lift Terminal Screw Terminal Type

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

acc. to IEC/EN 60664-1 440 V Rated Insulation Voltage

Maximum (Incl. Tolerance) 253 V AC Operational Voltage

50 Hz
60 Hz

25 kA Rated Short-Circuit

(230 V AC) 25 kA Rated Ultimate Short-

(230 V AC) 12.5 kA Rated Service Short-

3 Energy Limiting Class

III Overvoltage Category

3 Pollution Degree

4 kV

(6.2 kV @ sea level) kV

(5.0 kV @ 2000 m) kV

50 / 60 Hz, 1 min: 2 kV Dielectric Test Voltage

Insulation Group II, RAL 7035 Housing Material

Insulation group II, black, sealable Actuator Type

Insulation Group II, Black, Sealable Actuator Material

I / O Actuator Marking

Red ON / Green OFF Contact Position

IP20 Degree of Protection

IP40 in enclosure with cover Remarks

20000 AC cycle Electrical Endurance

20000 cycle

Screw Terminals Terminal Type

Busbar 10 / 10 mm²

Flexible with Ferrule 0.75 ... 16 mm²

Flexible 0.75 ... 16 mm²

Rigid 0.75 ... 25 mm²

Stranded 0.75 ... 25 mm²

2.8 N·m Tightening Torque

Pozidriv 2 Recommended Screw

Any Mounting Position

69 mm Built-In Depth (t2)

acc. to DIN 43880 1 Installation Size

Right Position of Neutral

Arbitrary Power Supply

2

Environmental

Ambient Air
Temperature

to IEC 60068-2-27

5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In Resistance to Vibrations

acc. to IEC 60068-2-6

Environmental
Conditions

Operation -25 ... +55 °C

Storage -40 ... +70 °C

25g / 2 shocks / 13 ms Resistance to Shock acc.

28 cycles

with 55 °C / 90-96 %

and 25 °C / 95-100 %
