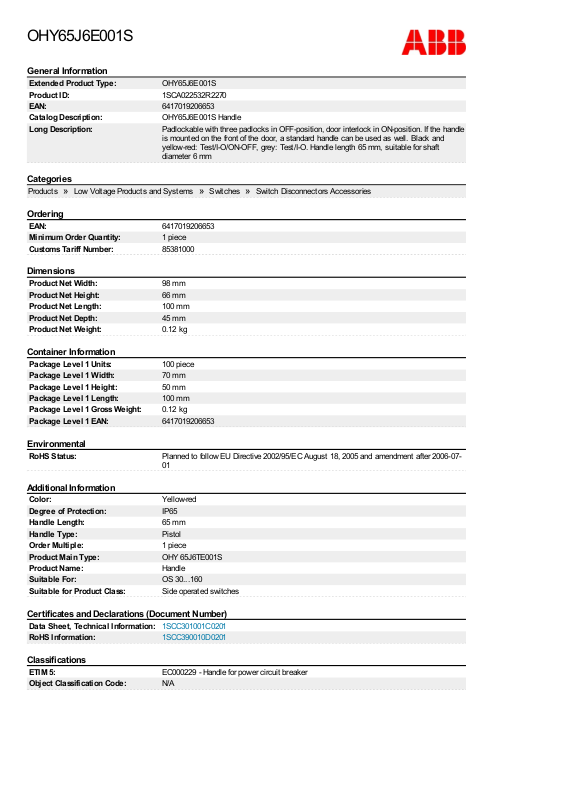

ABB OHY65J6E001S Data sheet

Extended Product Type:

Product ID:

EAN:

Catalog Description:

Long Description:

EAN:

Minimum Order Quantity:

Customs Tariff Number:

Product Net Width:

Product Net Height:

Product Net Length:

Product Net Depth:

Product Net Weight:

Package Level 1 Units:

Package Level 1 Width:

Package Level 1 Height:

Package Level 1 Length:

Package Level 1 Gross Weight:

Package Level 1 EAN:

RoHS Status:

Color:

Degree of Protection:

Handle Length:

Handle Type:

Order Multiple:

Product Main Type:

Product Name:

Suitable For:

Suitable for Product Class:

Data Sheet, Technical Information:

RoHS Information:

ETIM 5:

Object Classification Code:

General Information

OHY65J6E001S

1SCA022532R2270

6417019206653

OHY65J6E001S Handle

Padlockable with three padlocks in OFF-position, door interlock in ON-position. If the handle
is mounted on the front of the door, a standard handle can be used as well. Black and
yellow-red: Test/I-O/ON-OFF, grey: Test/I-O. Handle length 65 mm, suitable for shaft
diameter 6 mm

Categories

Products » Low Voltage Products and Systems » Switches » Switch Disconnectors Accessories

Ordering

6417019206653

1 piece

85381000

Dimensions

98 mm

66 mm

100 mm

45 mm

0.12 kg

Container Information

100 piece

70 mm

50 mm

100 mm

0.12 kg

6417019206653

Environmental

Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-07­01

Additional Information

Yellow-red

IP65

65 mm

Pistol

1 piece

OHY 65J6TE001S

Handle

OS 30...160

Side operated switches

Certificates and Declarations (Document Number)

1SCC301001C0201

1SCC390010D0201

Classifications

EC000229 - Handle for power circuit breaker

N/A

OHY65J6E001S
