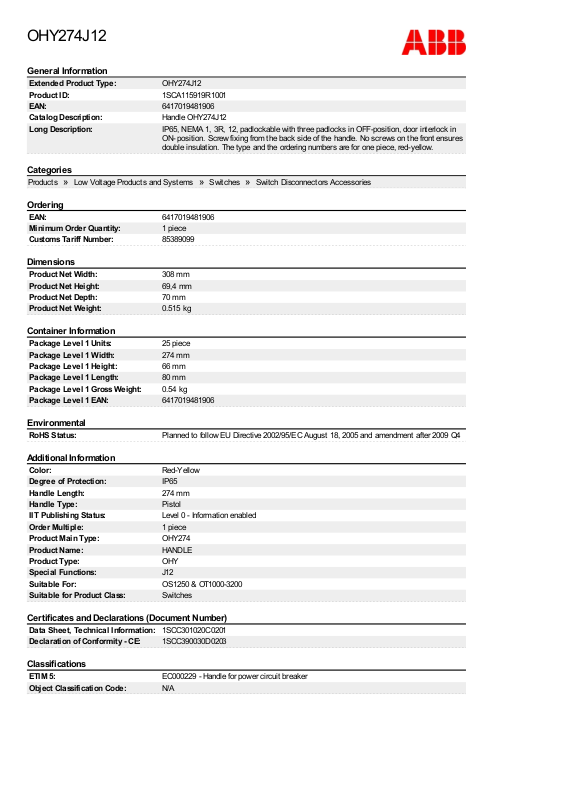

ABB OHY274J12 Data sheet

Extended Product Type:

Product ID:

EAN:

Catalog Description:

Long Description:

EAN:

Minimum Order Quantity:

Customs Tariff Number:

Product Net Width:

Product Net Height:

Product Net Depth:

Product Net Weight:

Package Level 1 Units:

Package Level 1 Width:

Package Level 1 Height:

Package Level 1 Length:

Package Level 1 Gross Weight:

Package Level 1 EAN:

RoHS Status:

Color:

Degree of Protection:

Handle Length:

Handle Type:

IIT Publishing Status:

Order Multiple:

Product Main Type:

Product Name:

Product Type:

Special Functions:

Suitable For:

Suitable for Product Class:

Data Sheet, Technical Information:

Declaration of Conformity - CE:

ETIM 5:

Object Classification Code:

General Information

OHY274J12

1SCA115919R1001

6417019481906

Handle OHY274J12

IP65, NEMA 1, 3R, 12, padlockable with three padlocks in OFF-position, door interlock in
ON- position. Screw fixing from the back side of the handle. No screws on the front ensures
double insulation. The type and the ordering numbers are for one piece, red-yellow.

Categories

Products » Low Voltage Products and Systems » Switches » Switch Disconnectors Accessories

Ordering

6417019481906

1 piece

85389099

Dimensions

308 mm

69,4 mm

70 mm

0.515 kg

Container Information

25 piece

274 mm

66 mm

80 mm

0.54 kg

6417019481906

Environmental

Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4

Additional Information

Red-Yellow

IP65

274 mm

Pistol

Level 0 - Information enabled

1 piece

OHY274

HANDLE

OHY

J12

OS1250 & OT1000-3200

Switches

Certificates and Declarations (Document Number)

1SCC301020C0201

1SCC390030D0203

Classifications

EC000229 - Handle for power circuit breaker

N/A

OHY274J12
