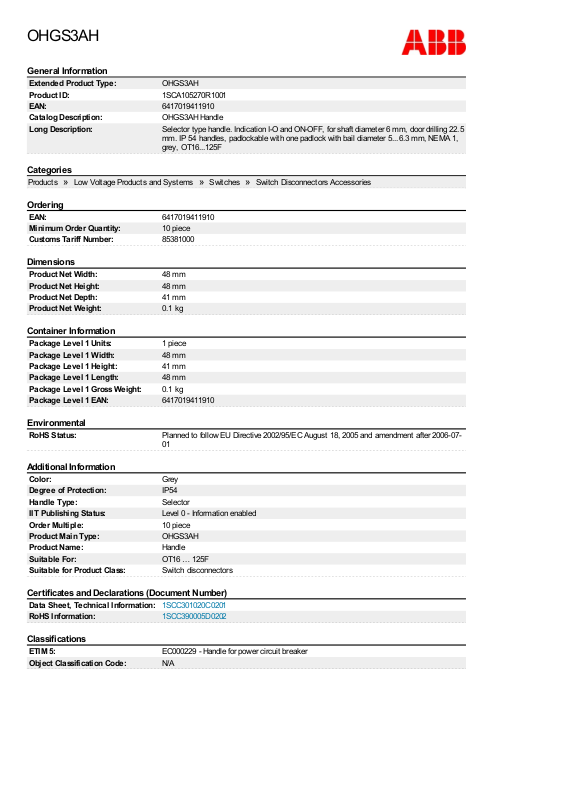

ABB OHGS3AH Data sheet
Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
EAN:
Minimum Order Quantity:
Customs Tariff Number:
Product Net Width:
Product Net Height:
Product Net Depth:
Product Net Weight:
Package Level 1 Units:
Package Level 1 Width:
Package Level 1 Height:
Package Level 1 Length:
Package Level 1 Gross Weight:
Package Level 1 EAN:
RoHS Status:
Color:
Degree of Protection:
Handle Type:
IIT Publishing Status:
Order Multiple:
Product Main Type:
Product Name:
Suitable For:
Suitable for Product Class:
Data Sheet, Technical Information:
RoHS Information:
ETIM 5:
Object Classification Code:
General Information
OHGS3AH
1SCA105270R1001
6417019411910
OHGS3AH Handle
Selector type handle. Indication I-O and ON-OFF, for shaft diameter 6 mm, door drilling 22.5
mm. IP 54 handles, padlockable with one padlock with bail diameter 5...6.3 mm, NEMA 1,
grey, OT16...125F
Categories
Products » Low Voltage Products and Systems » Switches » Switch Disconnectors Accessories
Ordering
6417019411910
10 piece
85381000
Dimensions
48 mm
48 mm
41 mm
0.1 kg
Container Information
1 piece
48 mm
41 mm
48 mm
0.1 kg
6417019411910
Environmental
Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2006-0701
Additional Information
Grey
IP54
Selector
Level 0 - Information enabled
10 piece
OHGS3AH
Handle
OT16 … 125F
Switch disconnectors
Certificates and Declarations (Document Number)
1SCC301020C0201
1SCC390005D0202
Classifications
EC000229 - Handle for power circuit breaker
N/A
OHGS3AH
