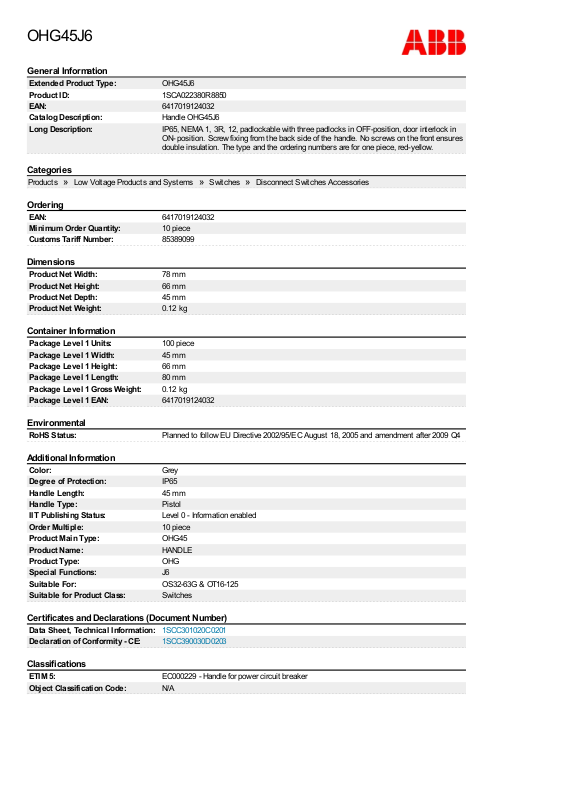

ABB OHG45J6 Data sheet
Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
EAN:
Minimum Order Quantity:
Customs Tariff Number:
Product Net Width:
Product Net Height:
Product Net Depth:
Product Net Weight:
Package Level 1 Units:
Package Level 1 Width:
Package Level 1 Height:
Package Level 1 Length:
Package Level 1 Gross Weight:
Package Level 1 EAN:
RoHS Status:
Color:
Degree of Protection:
Handle Length:
Handle Type:
IIT Publishing Status:
Order Multiple:
Product Main Type:
Product Name:
Product Type:
Special Functions:
Suitable For:
Suitable for Product Class:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
ETIM 5:
Object Classification Code:
General Information
OHG45J6
1SCA022380R8850
6417019124032
Handle OHG45J6
IP65, NEMA 1, 3R, 12, padlockable with three padlocks in OFF-position, door interlock in
ON- position. Screw fixing from the back side of the handle. No screws on the front ensures
double insulation. The type and the ordering numbers are for one piece, red-yellow.
Categories
Products » Low Voltage Products and Systems » Switches » Disconnect Switches Accessories
Ordering
6417019124032
10 piece
85389099
Dimensions
78 mm
66 mm
45 mm
0.12 kg
Container Information
100 piece
45 mm
66 mm
80 mm
0.12 kg
6417019124032
Environmental
Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
Additional Information
Grey
IP65
45 mm
Pistol
Level 0 - Information enabled
10 piece
OHG45
HANDLE
OHGJ6OS32-63G & OT16-125
Switches
Certificates and Declarations (Document Number)
1SCC301020C0201
1SCC390030D0203
Classifications
EC000229 - Handle for power circuit breaker
N/A
OHG45J6
