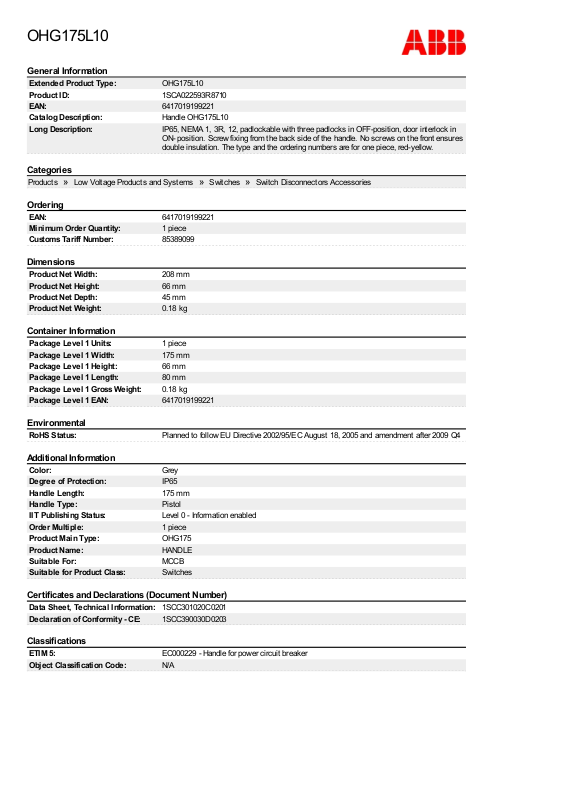

ABB OHG175L10 Data sheet

Extended Product Type:

Product ID:

EAN:

Catalog Description:

Long Description:

EAN:

Minimum Order Quantity:

Customs Tariff Number:

Product Net Width:

Product Net Height:

Product Net Depth:

Product Net Weight:

Package Level 1 Units:

Package Level 1 Width:

Package Level 1 Height:

Package Level 1 Length:

Package Level 1 Gross Weight:

Package Level 1 EAN:

RoHS Status:

Color:

Degree of Protection:

Handle Length:

Handle Type:

IIT Publishing Status:

Order Multiple:

Product Main Type:

Product Name:

Suitable For:

Suitable for Product Class:

Data Sheet, Technical Information:

Declaration of Conformity - CE:

ETIM 5:

Object Classification Code:

General Information

OHG175L10

1SCA022593R8710

6417019199221

Handle OHG175L10

IP65, NEMA 1, 3R, 12, padlockable with three padlocks in OFF-position, door interlock in
ON- position. Screw fixing from the back side of the handle. No screws on the front ensures
double insulation. The type and the ordering numbers are for one piece, red-yellow.

Categories

Products » Low Voltage Products and Systems » Switches » Switch Disconnectors Accessories

Ordering

6417019199221

1 piece

85389099

Dimensions

208 mm

66 mm

45 mm

0.18 kg

Container Information

1 piece

175 mm

66 mm

80 mm

0.18 kg

6417019199221

Environmental

Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4

Additional Information

Grey

IP65

175 mm

Pistol

Level 0 - Information enabled

1 piece

OHG175

HANDLE

MCCB

Switches

Certificates and Declarations (Document Number)

1SCC301020C0201

1SCC390030D0203

Classifications

EC000229 - Handle for power circuit breaker

N/A

OHG175L10
