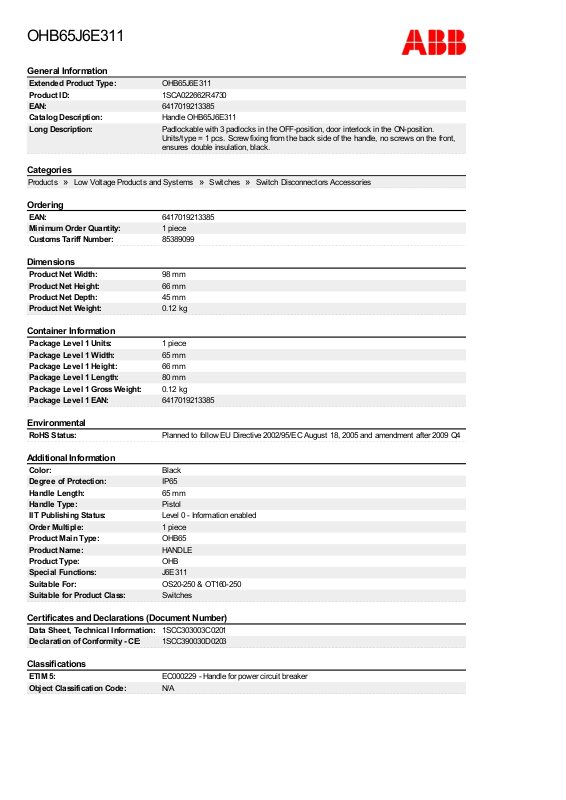

ABB OHB65J6E311 Data sheet
Extended Product Type:
Product ID:
EAN:
Catalog Description:
Long Description:
EAN:
Minimum Order Quantity:
Customs Tariff Number:
Product Net Width:
Product Net Height:
Product Net Depth:
Product Net Weight:
Package Level 1 Units:
Package Level 1 Width:
Package Level 1 Height:
Package Level 1 Length:
Package Level 1 Gross Weight:
Package Level 1 EAN:
RoHS Status:
Color:
Degree of Protection:
Handle Length:
Handle Type:
IIT Publishing Status:
Order Multiple:
Product Main Type:
Product Name:
Product Type:
Special Functions:
Suitable For:
Suitable for Product Class:
Data Sheet, Technical Information:
Declaration of Conformity - CE:
ETIM 5:
Object Classification Code:
General Information
OHB65J6E311
1SCA022662R4730
6417019213385
Handle OHB65J6E311
Padlockable with 3 padlocks in the OFF-position, door interlock in the ON-position.
Units/type = 1 pcs. Screw fixing from the back side of the handle, no screws on the front,
ensures double insulation, black.
Categories
Products » Low Voltage Products and Systems » Switches » Switch Disconnectors Accessories
Ordering
6417019213385
1 piece
85389099
Dimensions
98 mm
66 mm
45 mm
0.12 kg
Container Information
1 piece
65 mm
66 mm
80 mm
0.12 kg
6417019213385
Environmental
Planned to follow EU Directive 2002/95/EC August 18, 2005 and amendment after 2009 Q4
Additional Information
Black
IP65
65 mm
Pistol
Level 0 - Information enabled
1 piece
OHB65
HANDLE
OHB
J6E311
OS20-250 & OT160-250
Switches
Certificates and Declarations (Document Number)
1SCC303003C0201
1SCC390030D0203
Classifications
EC000229 - Handle for power circuit breaker
N/A
OHB65J6E311
