General Info MMP type MS116
General Info MMP type MS325
· Suitable for 3phase motors up to 10 HP @ 480V
· AMP range from 0.16-16A
· UL listed & CSA certi ed for Group
Motor Installation
· Wide range of accessories
· Small width (45mm)Arguments
· Save space
· High short circuit capacity
· Adjustable Overload protection
· Short circuit protection
· Phase failure detection
Technical d ata
Rated current: 0.16-16A
Rated operating voltage:
max. 600V
Tripping class:10
Max. kA IC @ 600V 30kA
Mechanical Life Time:
100,000 switches
· Suitable for 3phase motors up to 15 HP @ 480V
· AMP range from 0.16-25A
· UL listed & CSA certi ed for Group
Motor Installation
· Wide range of accessories
· Save space
· High short circuit capacity
· Adjustable Overload protection
· Short circuit protection
· Phase failure detection
· UL508 (type E) listing available
Technical d ata
Rated current:
0.16-25A
Rated operating voltage:
max. 600V
Tripping class: 10
Max. kA IC @ 600V 50kA
Mechanical Life Time:
100,000 switches
Accessories
· Auxiliary contacts (side & front)
· Under-voltage release
· Shunt trips
· Bell alarm
· Locking device
· Through the door operator
· Enclosures
· Direct contactor mounting adapter
· Suitable for Smissline busbar system up to 200A
· Busbar system
15
ABB
Accessories
· Auxiliary contacts (side & front)
· Under-voltage release
· Shunt trips
· Bell alarm
· Locking device
· Through the door operator
· Enclosures
· Direct contactor mounting adapter
· Suitable for Smissline busbar system up to 200A
· Busbar system
ABB
16
General Info MMP type MS45x
General Info MMP type MS49x
· Suitable for 3phase motors up to 40 HP @ 480V
· AMP range from 11-50A
· UL listed & CSA certi ed for Group
Motor Installation
· Wide range of accessories
· Save space
· High short circuit capacity
· Adjustable Overload protection
· Short circuit protection
· Phase failure detection
· UL508 (type E) listing available
Technical d ata
Rated current: 11-50A
Rated operating voltage:
max. 600V
Tripping class:10/20
Max. kA IC @ 600V 50kA
Mechanical Life Time:
100,000 switches
· Suitable for 3phase motors up to 75 HP @ 480V
· AMP range from 11-100A
· UL listed & CSA certi ed for Group
Motor Installation
· Wide range of accessories
· Save space
· High short circuit capacity
· Adjustable Overload protection
· Short circuit protection
· Phase failure detection
· UL508 (type E) listing available
Technical d ata
Rated current:
11-100A
Rated operating voltage:
max. 600V
Tripping class: 10/20
Max. kA IC @ 600V 100kA
Mechanical Life Time:
100,000 switches
Accessories
· Auxiliary contacts (side & front)
· Under-voltage release
· Shunt trips
· Locking device
· Through the door operator
· Enclosures
· Direct contactor mounting adapter
· Suitable for Smissline busbar system up to 200A
· Busbar system
17
ABB
Accessories
· Auxiliary contacts (side & front)
· Under-voltage release
· Shunt trips
· Locking device
· Enclosures
· Direct contactor mounting adapter
· Suitable for Smissline busbar system up to 200A
ABB
18
Manual Motor Protector MS116
Thermal setting range (Amps) 3-phase horsepower ratings Catalog Number List price
240V 480V 600V
0.10 - 0.16 - - - MS116-0.16
0.16 - 0.25 - - - MS116-0.25 $129
0.25 - 0.40 - - - MS116-0.40
0.40 - 0.63 - - - MS116-0.63
0.63 - 1.0 - 1/2 1/2 MS116-1.0
1.0 - 1.6 - 3/4 3/4 MS116-1.6
1.6 - 2.5 - 1 1.5 MS116-2.5 $148.50
2.5 - 4.0 1/8 2 3 MS116-4.0
4.0 - 6.3 1/4 3 5 MS116-6.3
6.3 - 10 1/2 5 7.5 MS116-10
8.0 - 12 1/2 7.5 10 MS116-12 $172.50
10.0 - 16 1 10 10 MS116-16
ACCESSORIES FOR MS116
DESCRIPTION Catalog Number List price
1 NO & 1 NC Auxiliary contact blocks, side mount
2 NO Auxiliary contact blocks, side mount
2 NC Auxiliary contact blocks, side mount
HK1-11
HK1-20
HK1-02
$33
1 NO & 1 NC Auxiliary contact blocks, front mount HKF1-11 $33
1 NO & 1 NC Bell alarm contact blocks
2 NO Bell alarm contact blocks
2 NC Bell alarm contact blocks
SK1-11
SK1-20
SK1-02
$33
24VAC Undervoltage trip
48VAC Undervoltage trip
60VAC Undervoltage trip
120VAC Undervoltage trip
230VAC Undervoltage trip
400VAC Undervoltage trip
415VAC Undervoltage trip
UA1-24
UA1-48
UA1-60
UA1-120
UA1-230
UA1-400
UA1-415
$82.50
24VAC Shunt trip
110VAC Shunt trip
200 - 240VAC Shunt trip
350 - 415VAC Shunt trip
AA1-24
AA1-110
AA1-230
AA1-400
$75
Busbar for direct mounting of contactors B6/B7
Busbar for direct mounting of contactors A9/A12/A16
Busbar for direct mounting of contactors A26
BEA7/116
BEA16/116
BEA26/116
$12
$13.50
$15
Gray Enclosure with black handle, IP64
Gray Enclosure with red handle, IP64
Gray Enclosure with clear cover, 4 poles, IP55
Gray Enclosure with clear cover, 6 poles, IP55
OTPA116L2P1
OTPA116A2P1
12644
12646
$75
$75
$84
$98
MS116, BEA16/116, A12-30-10-84
MS116, BEA7/116, B7C-1
HK1-11
HKF1-11
UA1-120
AA1-110
BEA7/116
12644
ABB 19 ABB 20
Manual Motor Protector MS325
Thermal setting range (Amps) 3-phase horsepower ratings Catalog Number List price
240V 480V 600V
0.10 - 0.16 - - - MS325-0.16
0.16 - 0.25 - - - MS325-0.25 $144
0.25 - 0.40 - - - MS325-0.40
0.40 - 0.63 - - - MS325-0.63
0.63 - 1.0 - 1/2 1/2 MS325-1.0
1.0 - 1.6 - 3/4 3/4 MS325-1.6
1.6 - 2.5 1/2 1 1.5 MS325-2.5 $165
2.5 - 4.0 1 2 3 MS325-4.0
4.0 - 6.3 1.5 3 5 MS325-6.3
6.3 - 9.0 2.5 5 7.5 MS325-9.0
9.0 - 12.5 3 7.5 10 MS325-12.5 $192
12.5 - 16 5 10 10 MS325-16
16 - 20 5 10 15 MS325-20 $211.50
20 - 25 7.5 15 20 MS325-25 $223.50
ACCESSORIES FOR MS325
DESCRIPTION Catalog Number List price
1 NO & 1 NC Auxiliary contact blocks, side mount
2 NO Auxiliary contact blocks, side mount
2 NC Auxiliary contact blocks, side mount
MS325-HK11
MS325-HK20
MS325-HK02
$33
1 NO & 1 NC Auxiliary contact blocks, front mount
2 NO Auxiliary contact blocks, front mount
MS325-HKF11
MS325-HKF20
$33
1 NO Bell alarm contact blocks
1 NC Bell alarm contact blocks
MS325-SK10
MS325-SK01
$33
24VAC Undervoltage trip
48VAC Undervoltage trip
60VAC Undervoltage trip
120VAC Undervoltage trip
230VAC Undervoltage trip
400VAC Undervoltage trip
415VAC Undervoltage trip
480VAC Undervoltage trip
MS325-UA24
MS325-UA48
MS325-UA60
MS325-UA110
MS325-UA230
MS325-UA400
MS325-UA415
MS325-UA480
$82.50
110 - 240VAC/DC Shunt trip
24 - 60VAC/DC Shunt trip
MS325-ST110
MS325-ST24
$82.50
Busbar for direct mounting of contactors B6/B7
Busbar for direct mounting of reversing contactors VB6/VB7
Busbar for direct mounting of contactors A9/A12/A16
Busbar for direct mounting of contactor A26
BEA7/325
MS325-VB7
BEA16/325
BEA26/325
$12
$12
$13.50
$15
Gray Enclosure with black handle, IP64
Gray Enclosure with red handle, IP64
Gray Enclosure with clear cover, 4 poles, IP55
Gray Enclosure with clear cover, 6 poles, IP55
OTPA325B2P1
OTPA325A2P1
12644
12646
$75
$75
$84
$98
Line Side infeed block - required for UL508 type E
Short circuit trip signal - required for UL 508 type E
S3-M3
CK-11
MS325
UL 580 Type E
MS325, BEA26/325,
A26-30-10-84, S3-M3, CK-11
MS325-HK11
MS325-SK10
MS325-UA110
MS325-AS
BEA16/325
OTPA116A2P1
ABB 21 ABB 22
Manual Motor Protectionm MS45x / MS49x
UA4-120
UA4-120
AA4-110
Thermal setting range (Amps) 3-phase horsepower ratings Catalog Number
List price
230V 480V 575V
11 - 16 5 10 15 MS450-16 $450
14 - 20 7.5 15 20 MS450-20 $450
18 - 25 10 20 25 MS450-25 $450
22 - 32 10 25 30 MS450-32 $450
28 - 40 15 30 40 MS450-40 $510
36 - 45 15 30 40 MS450-45 $510
40 - 50 20 40 50 MS450-50 $510
11 - 16 5 10 15 MS497-16 $450
14 - 20 7.5 15 20 MS497-20 $450
18 - 25 10 20 25 MS497-25 $450
22 - 32 10 25 30 MS497-32 $450
28 - 40 15 30 40 MS497-40 $562.50
36 - 50 20 40 50 MS497-50 $562.50
45 - 63 25 50 60 MS497-63 $562.50
57 - 75 25 60 75 MS497-75 $600
70 - 90 30 75 100 MS497-90 $615
80 - 100 40 75 100 MS497-100 $690

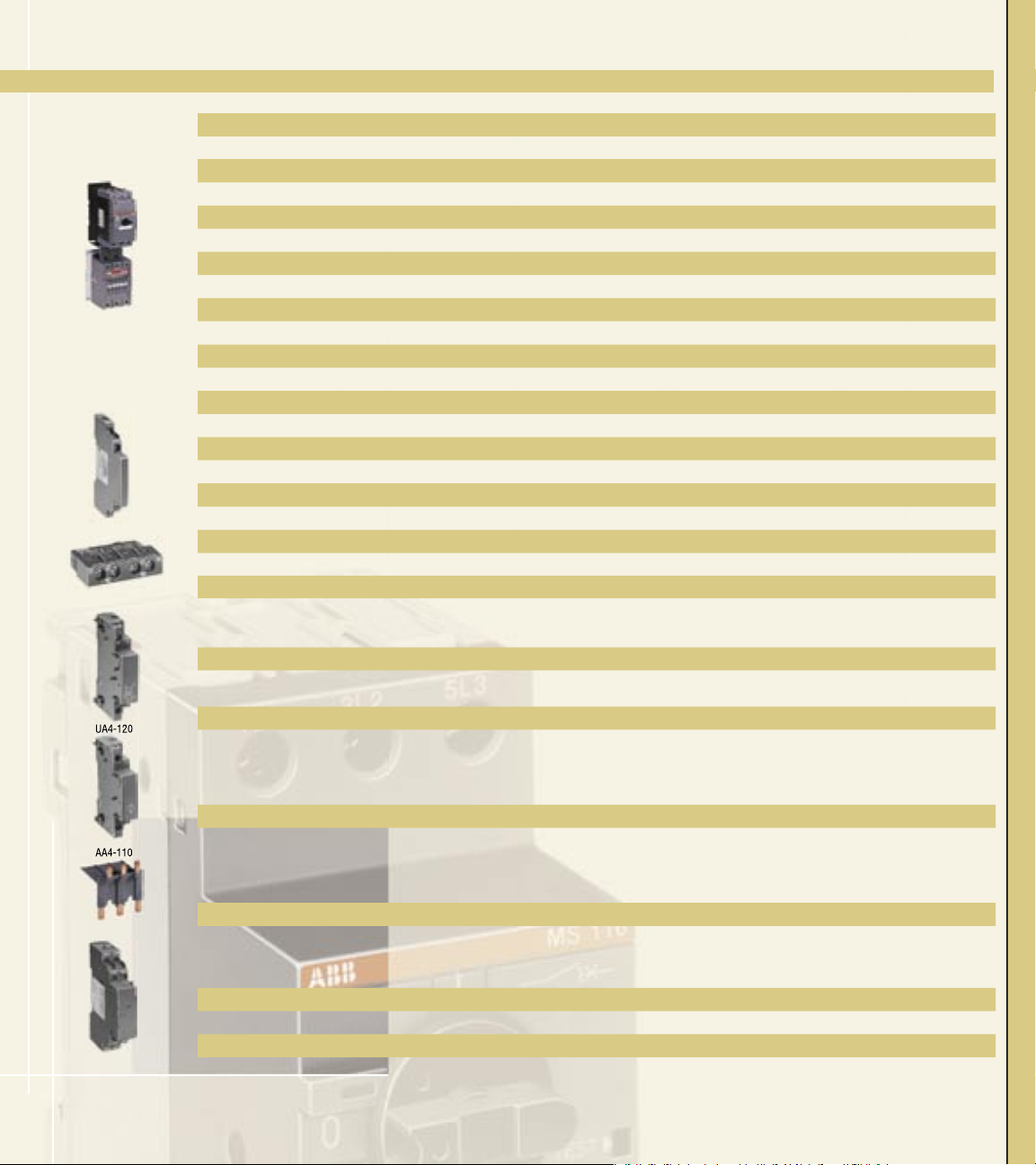

ACCESSORIES FOR MS45x / MS49x
DESCRIPTION Catalog Number List price
1 NO & 1 NC Auxiliary contact blocks, side mount
2 NO Auxiliary contact blocks, side mount
2 NC Auxiliary contact blocks, side mount
HKS4-11
HKS4-20
HKS4-02
$36
1 NO & 1 NC Auxiliary contact blocks, front mount
1 CHANGEOVER Auxiliary contact blocks, front mount
HK4-11
HK4-W
$36
110 - 120VAC Undervoltage trip
208VAC Undervoltage trip
230 - 240VAC Undervoltage trip
400VAC Undervoltage trip
480VAC Undervoltage trip
UA4-120
UA4-208
UA4-240
UA4-400
UA4-480
$93
Voltage continuous 50 - 60 Hz
20 - 24 Shunt trip
30 - 110
210 - 240
350 - 415
Voltage 5 sec. Max.50 - 60 Hz, DC
20 - 70 Shunt trip
70 - 190
190 - 330
330 - 500
AA4-24
AA4-110
AA4-240
AA4-415
$93
MS450 Busbar for direct mounting of contactors A30/A40
MS450 Busbar for direct mounting of contactor A50
MS497 Busbar for direct mounting of contactors A50/A63/A75
MS497 Busbar for direct mounting of contactors A95/A110
BEA40/450
BEA50/450
BEA75/495
BEA110/495
$54
$63
$120
$180
Short circuit trip 1NO & 1NC - required for UL508 Type E applications SK4-11 $60
MS49x Type E Terminal - required forUL508 Type E applications DX495 $45
MS495, BEA110/495, A95-30-11-84
HKS4-11
HK4-11
BEA75/495
SK4-11
ABB 23 ABB 24
