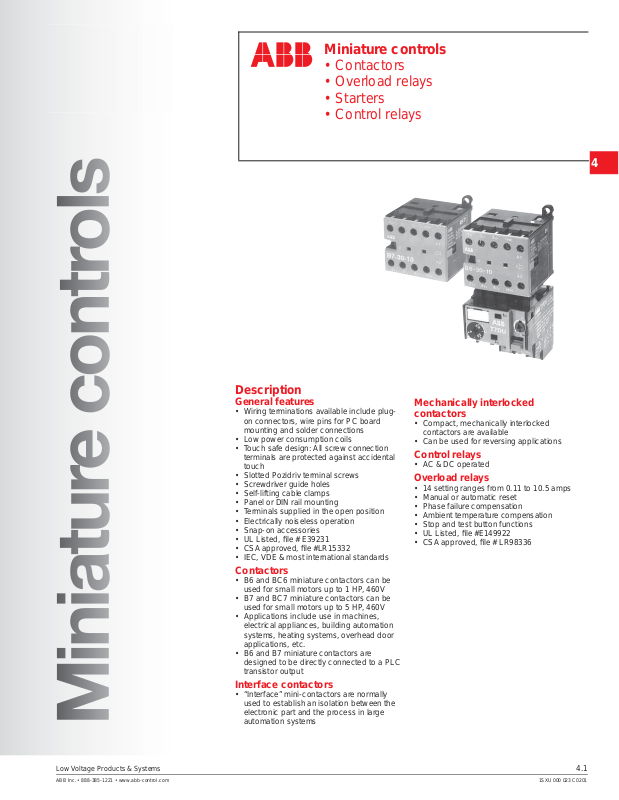

ABB Miniature controls Catalog Page
Miniature controls
• Contactors
• Overload relays
• Starters
• Control relays
Miniature
controls
4
4
Description
General features
• Wiring terminations available include plugon connectors, wire pins for PC board
mounting and solder connections
• Low power consumption coils
• Touch safe design: All screw connection
terminals are protected against accidental
touch
• Slotted Pozidriv terminal screws
• Screwdriver guide holes
• Self-lifting cable clamps
• Panel or DIN rail mounting
• Terminals supplied in the open position
• Electrically noiseless operation
• Snap-on accessories
• UL Listed, fi le # E39231
• CSA approved, fi le #LR15332
• IEC, VDE & most international standards
Contactors
• B6 and BC6 miniature contactors can be
used for small motors up to 1 HP, 460V
• B7 and BC7 miniature contactors can be
used for small motors up to 5 HP, 460V
• Applications include use in machines,
electrical appliances, building automation
systems, heating systems, overhead door
applications, etc.
• B6 and B7 miniature contactors are
designed to be directly connected to a PLC
transistor output
Interface contactors
• “Interface” mini-contactors are normally
used to establish an isolation between the
electronic part and the process in large
automation systems
Mechanically interlocked
contactors
• Compact, mechanically interlocked
contactors are available
• Can be used for reversing applications
Control relays
• AC & DC operated
Overload relays
• 14 setting ranges from 0.11 to 10.5 amps
• Manual or automatic reset
• Phase failure compensation
• Ambient temperature compensation
• Stop and test button functions
• UL Listed, fi le #E149922
• CSA approved, fi le # LR98336
Low Voltage Products & Systems 4.1
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
K640-1
Control relays
Miniature
controls
K622 - K640
AC & DC operated
Control relays with screw connections
Contact confi guration Catalog List
N.O. N.C. number price
AC Operated
4 0 K640-★
3 1 K631-★ $ 48
2 2 K622-
DC Operated
4 0 KC640-★
3 1 KC631-★ 54
2 2 KC622-
Control relays with fl at pin connections
Contact confi guration Catalog List
N.O. N.C. number price
AC Operated
4 0 K640FP-★
3 1 K631FP-★ $ 48
2 2 K622FP-
DC Operated
4 0 KC640FP-★
3 1 KC631FP-★ 54
2 2 KC622FP-
★
★
★
4
★
4
KC631-1
Control relays with soldering pin connections
Contact confi guration Catalog List
N.O. N.C. number price
AC Operated
4 0 K640SP-★
3 1 K631SP-★ $ 48
2 2 K622SP-
DC Operated
4 0 KC640SP-★
3 1 KC631SP-★ 54
2 2 KC622SP-
★
★
Coil voltage selection
★ Coil voltage suffi x. Refer to Coil Voltage Selection Chart and substitute the desired coil voltage suffi x for the ★.
Coil voltage selection chart
Volts
12 24 42 48 110/125 110/120 220 220/240 380/415
AC 40-450 Hz F L G 1 2 M
DC U Y V W P R
Low Voltage Products & Systems 4.9
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 000 023 C0201
Discount schedule MB
