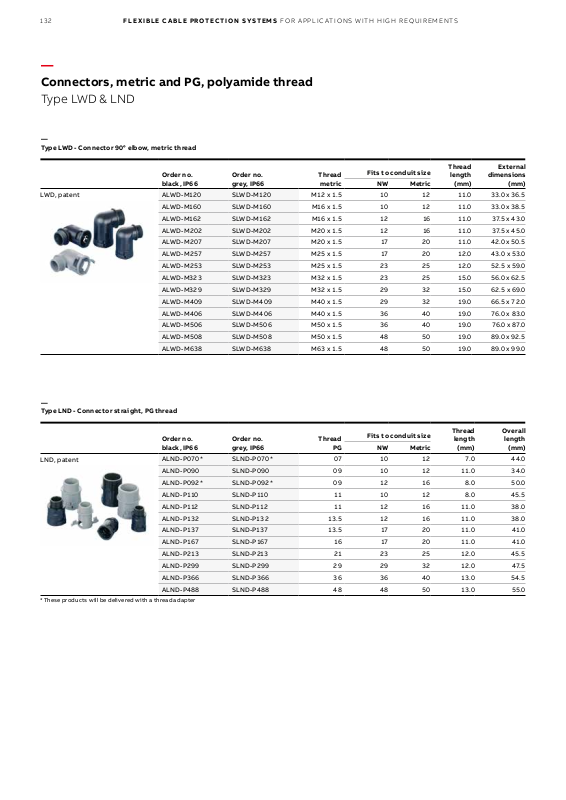

132 FLEXIBLE CABLE PROTECTION SYSTEMS FOR APPLICATIONS WITH HIGH REQUIREMENTS
—
Connectors, metric and PG, polyamide thread
Type LWD & LND
—
Type LWD - Connector 90° elbow, metric thread
LWD, patent
—
Type LND - Connector straight, PG thread
LND, patent
* The se products will b e delivered w ith a thread adapter
Order no.
black, IP66
ALWD -M120 SLWD-M120 M12 x 1.5 10 12 1 1 . 0 33.0 x 36.5
ALWD-M16 0 SLWD-M160 M16 x 1.5 10 12 1 1 . 0 33.0 x 38.5
ALWD-M16 2 SLWD-M162 M16 x 1.5 12 16 1 1 . 0 37.5 x 43.0
ALWD -M202 SLWD-M202 M20 x 1.5 12 16 1 1 . 0 37.5 x 45.0
ALWD -M207 SLWD-M207 M20 x 1.5 17 20 1 1 . 0 42.0 x 50.5
ALWD -M257 SLWD-M257 M25 x 1.5 17 20 1 2 . 0 43.0 x 53.0
ALWD -M253 SLWD-M253 M25 x 1.5 23 25 1 2 . 0 52.5 x 59.0
ALWD -M323 SLWD-M323 M32 x 1.5 23 25 1 5 . 0 56.0 x 62.5
ALWD -M329 SLWD-M329 M32 x 1.5 29 32 1 5 . 0 62.5 x 69.0
ALWD -M40 9 SLWD-M409 M40 x 1.5 29 32 1 9 . 0 66.5 x 72.0
ALWD -M40 6 SLWD-M406 M4 0 x 1.5 36 40 1 9 . 0 76.0 x 83.0
ALWD-M506 SLWD-M506 M50 x 1.5 36 40 1 9 . 0 76.0 x 87.0
ALWD-M508 SLWD-M508 M50 x 1.5 48 50 1 9 . 0 89.0 x 92.5
ALWD -M638 SLWD-M638 M63 x 1.5 48 50 19.0 89.0 x 99.0
Order no.
black, IP66
A LN D- P0 70 * SLND-P070 * 07 10 12 7 . 0 4 4 . 0
ALND-P090 SLND-P090 09 10 12 1 1 . 0 3 4 . 0
A LN D- P0 92 * SLND-P092 * 09 12 16 8 . 0 5 0 . 0
ALND -P110 SLND-P110 11 10 12 8 . 0 4 5 . 5
ALND -P112 SLND-P112 11 12 16 1 1 . 0 3 8 . 0
ALND-P132 SLND-P132 13.5 12 16 1 1 . 0 3 8 . 0
ALND-P137 SLND-P137 13.5 17 20 1 1 . 0 41.0
ALND -P167 SLND-P167 16 17 20 1 1 . 0 4 1 . 0
ALN D-P213 SLND-P213 21 23 25 1 2 . 0 4 5 . 5
ALND-P299 SLND-P299 29 29 32 1 2 . 0 4 7 . 5
ALND-P366 SLND-P366 36 36 40 1 3 . 0 5 4 . 5
ALND -P488 SLND-P488 48 48 50 13.0 55.0
Order no.
grey, IP66
Order no.
grey, IP66
Thread
metric
Thread
PG
Fits to conduit size
Fits to conduit size
Thread
length
(mm)
Thread
length
(mm)
External
dimensions
(mm)NW Metric
Overall
length
(mm)NW Metric
