ABB Fusible disconnect switches Data Sheet
Fusible disconnect switches
OS60 and OS100 Gamma range
OS Gamma fusible disconnect switches
ensure safe operation, protecting both
people and equipment even in extreme
conditions.
Designed for safety
Designed and based on substantial experience of electrical
safety, OS Gamma fusible disconnect switches eliminate the
risk of electrical accidents:
−
The interlocking fuse covers prevent opening while the fusible switch is in the ON-position and can be sealed in the
closed position.
−
Double insulated external operating handle that eliminates
the risk of touching live parts outside the box.
−
Reliable contact position indication in all situations.
−
Frame made of robust plastic, with excellent mechanical
and thermal properties.
−
Voltage output pins as standard.
−
Pole markings as standard.
• You take no risks with OS Gamma range.
Superior performance
−
Smart design, with optimal contact constructions.
−
High insulation ratings
−
OS Gamma fusible disconnect switches meet the requirements to be installed close to the main transformer: up to
200 kA in heavy industry and in ships.
Easy installation
−
Adjustable mounting feet that allow top and side mounting.
−
Mounting the cables is simple thanks to high terminal positioning with space to the back plate. This is also ideal for
double cabling, which in turn saves space.
• Flexible and time-saving installation
Compact construction
−
An intelligent construction in combination with a small number of components results in a very compact mechanism
design.
−
Very small footprint area.
• Space savings mean cost reduction
A wide selection of accessories improves the usability of the
fusible switches.
• Suitable for all applications in low voltage networks
Fusible disconnect switches - OS60 and OS100 Gamma range
Ordering information / Technical data
Ordering information
OS60G_
OS100G_
Catalog
number
OS60GJ03 3 1.3
OS60GJ12 3 1.3
OS60GJ04F 4 1.8
OS60GJ22F 4 1.8
OS100GJ03 3 2.2
OS100GJ12 3 2.2
OS100GJ04F 4 2.7
OS100GJ22F 4 2.7
Number
of poles
Weight/
unit
[kg]
Accessories
Auxiliary Contacts
Item
1NC OA1G10*
1NO OA3G01*
Auxiliary contact module OEA28
* Add suffix “AU” for gold contacts
Lugs
Item
OS100G OZXA-24
Direct mount handles
Item
OS60G & OS100G OSV200BK
DIN rail adapter
Item
OS60G & OS100G OSGZD1
Catalog
number
Catalog
number
Catalog
number
Catalog
number
Technical data
Technical data according to
UL/CUL
General purpose amp rating -40° to 40 °C A 60 100
Max. horsepower rating / motor
Short circuit rating with fuse,
1)
30 lb.in with cable size #14-10, 35lb.in with cable size #8-4
US
Max. operating voltage
240 V HP/A 15/42.0 30/80.0
FLA current
3 and 4-pole types
Min. electrical endurance pf= 0.75...0.8 operation cycles 6000 6000
Mechanical endurance operation cycles 20000 20000
Terminal lug kits Integral OZXA-24
Wire range AWG #14-4 #14-2/0
Torque
UL/CSA fuse size A 60 100
UL/CSA fuse type J J
Wire tightening lb.in 30/35
Lug mounting lb.in N/A 50
480 V HP/A 30/40.0 60/77.0
600 V HP/A 50/52.0 75/77.0
A
VAC 600 600
VDC 250 250
kA 200 200
OS
60G
OS
100G
1)
120

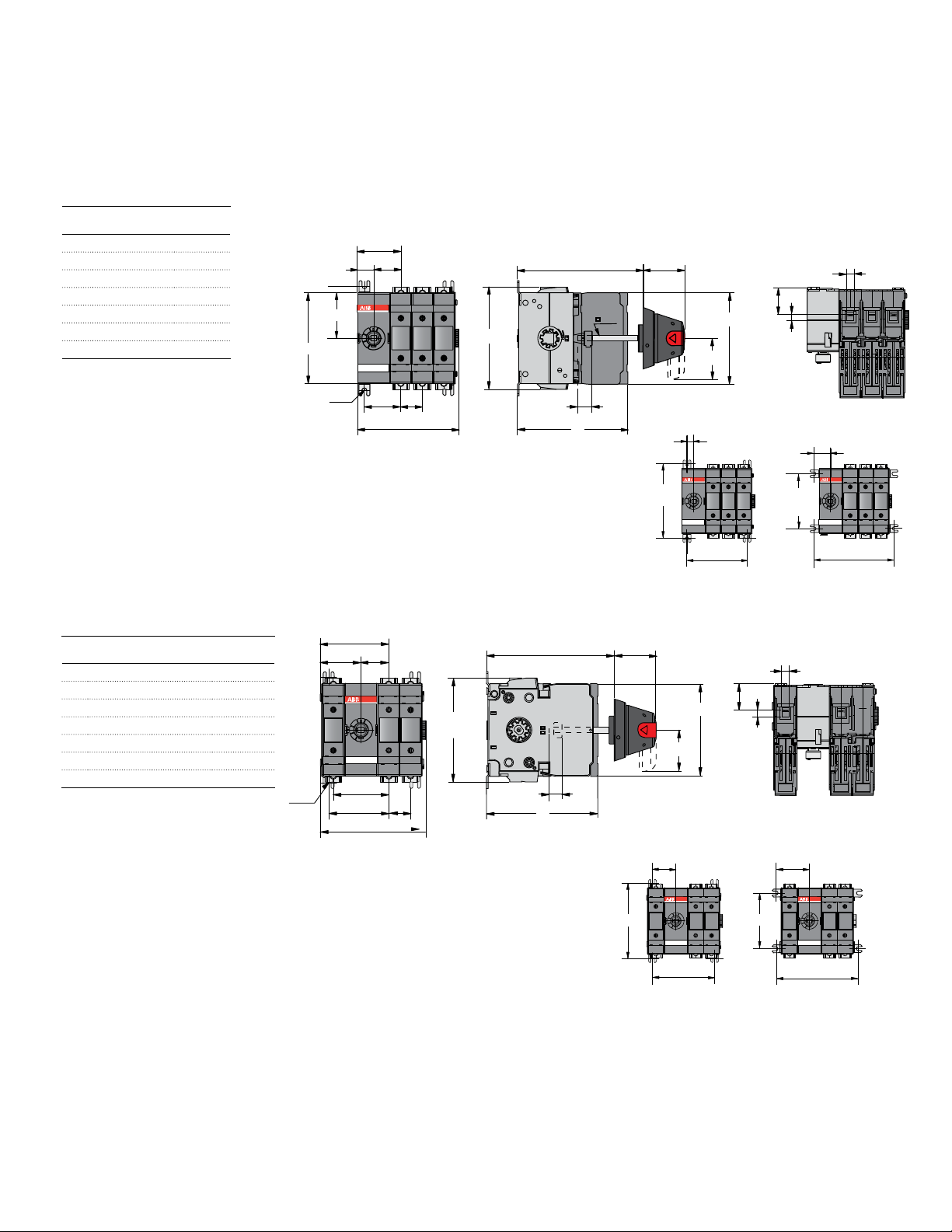

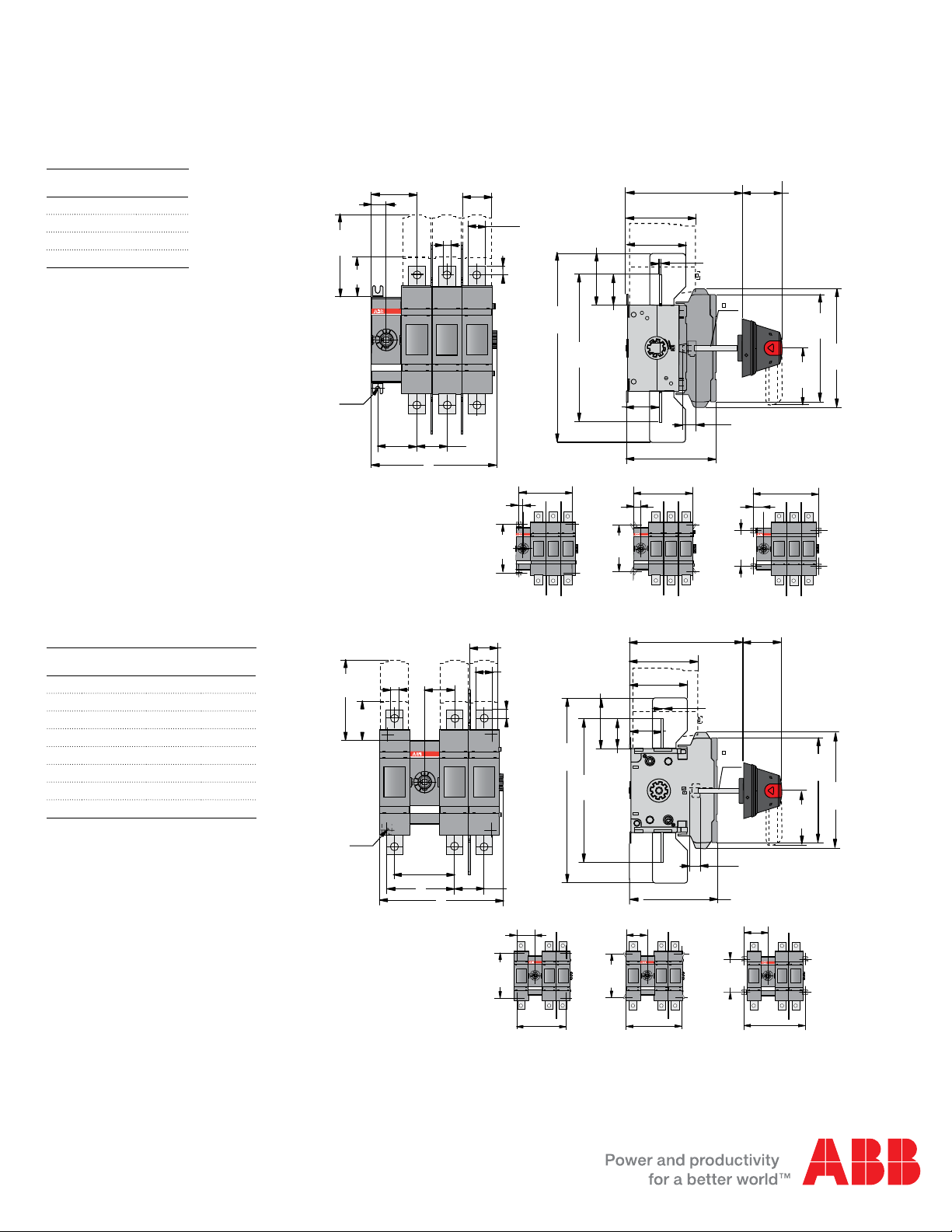

2 - Fusible disconnect switches | OS60 & OS100 Gamma Range
