ABB Ferrules & Tools Catalog
Ferrules & Tools
Ferrules & Tools
Index
Ferrules
Insulated .......................................................................................................................... 2 - 5
Twin ................................................................................................................................. 6 - 7

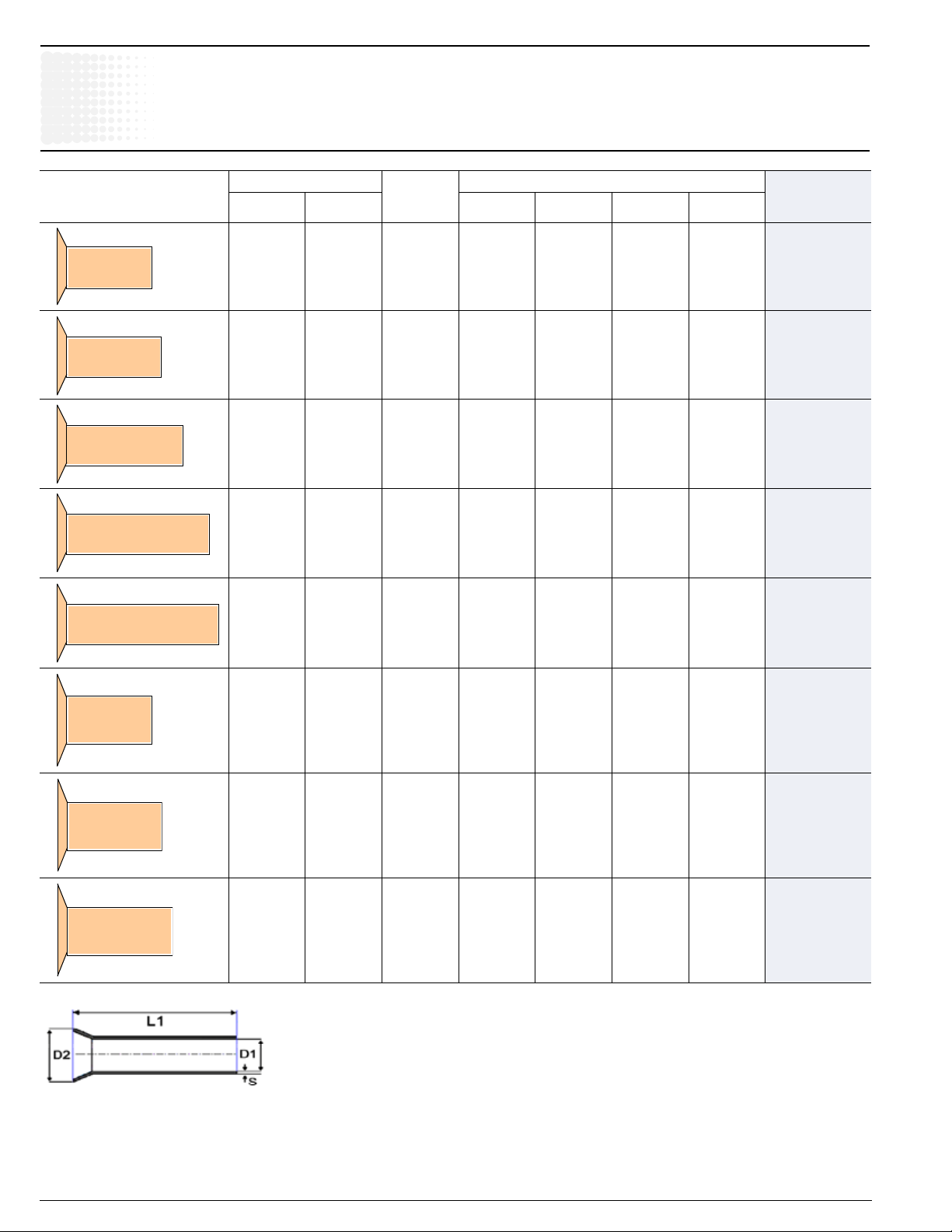

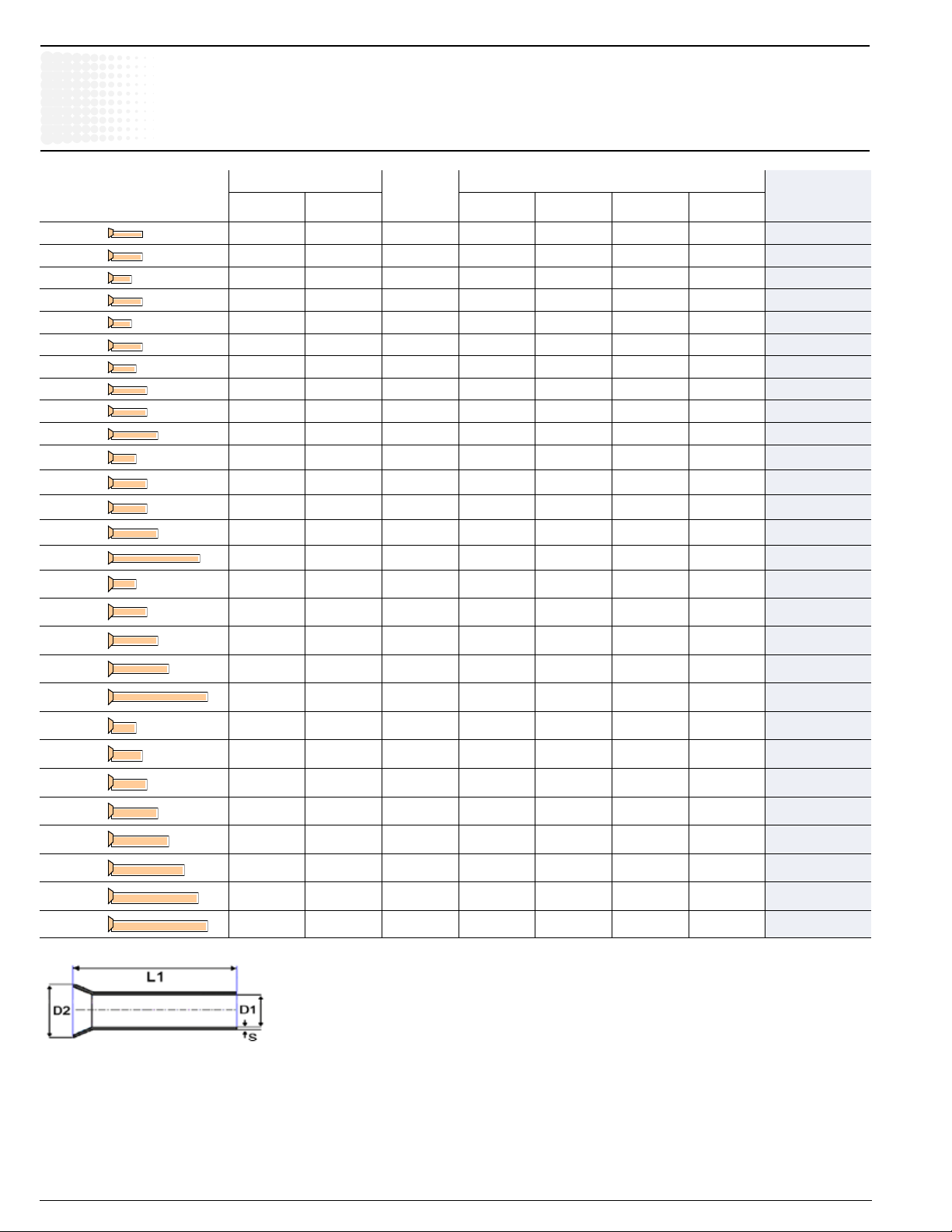

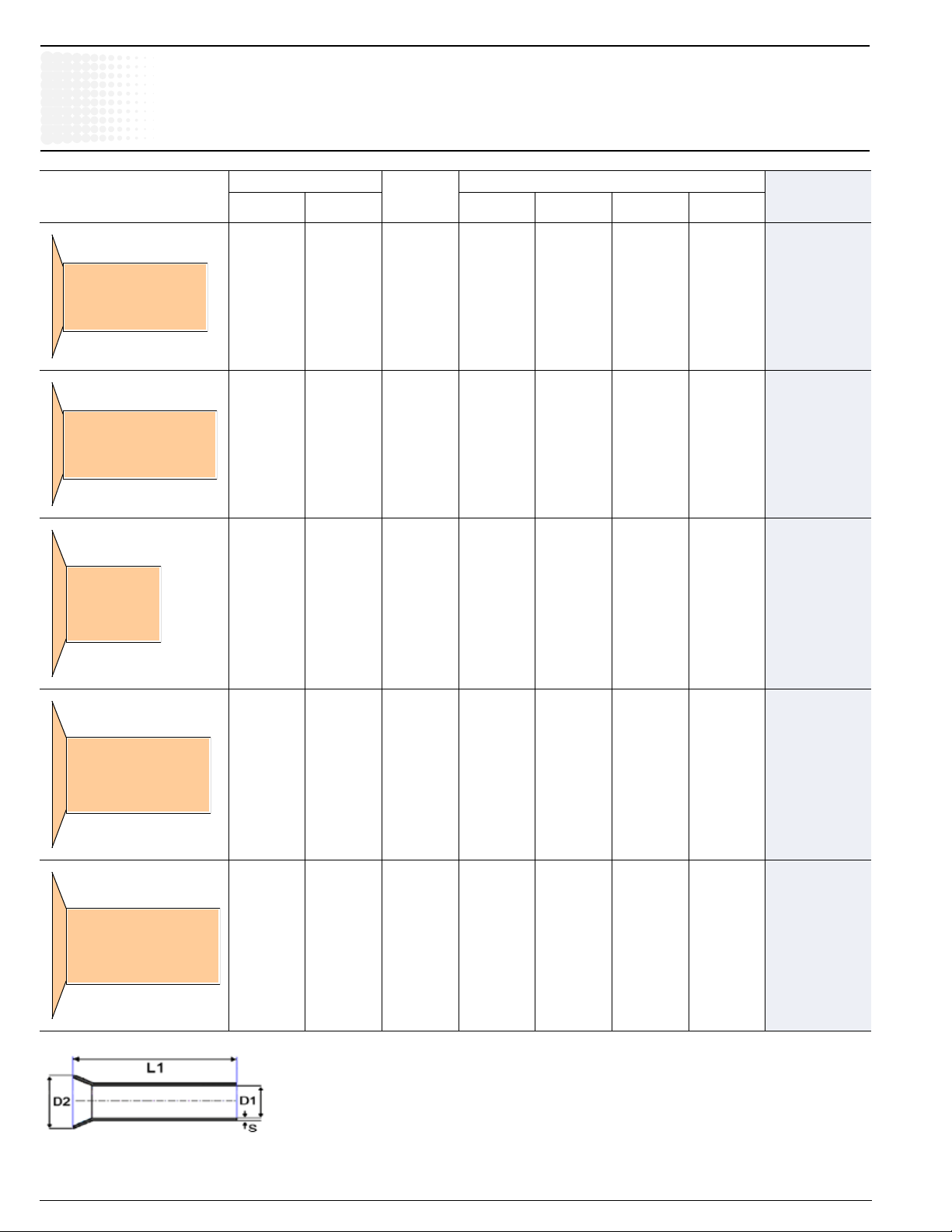

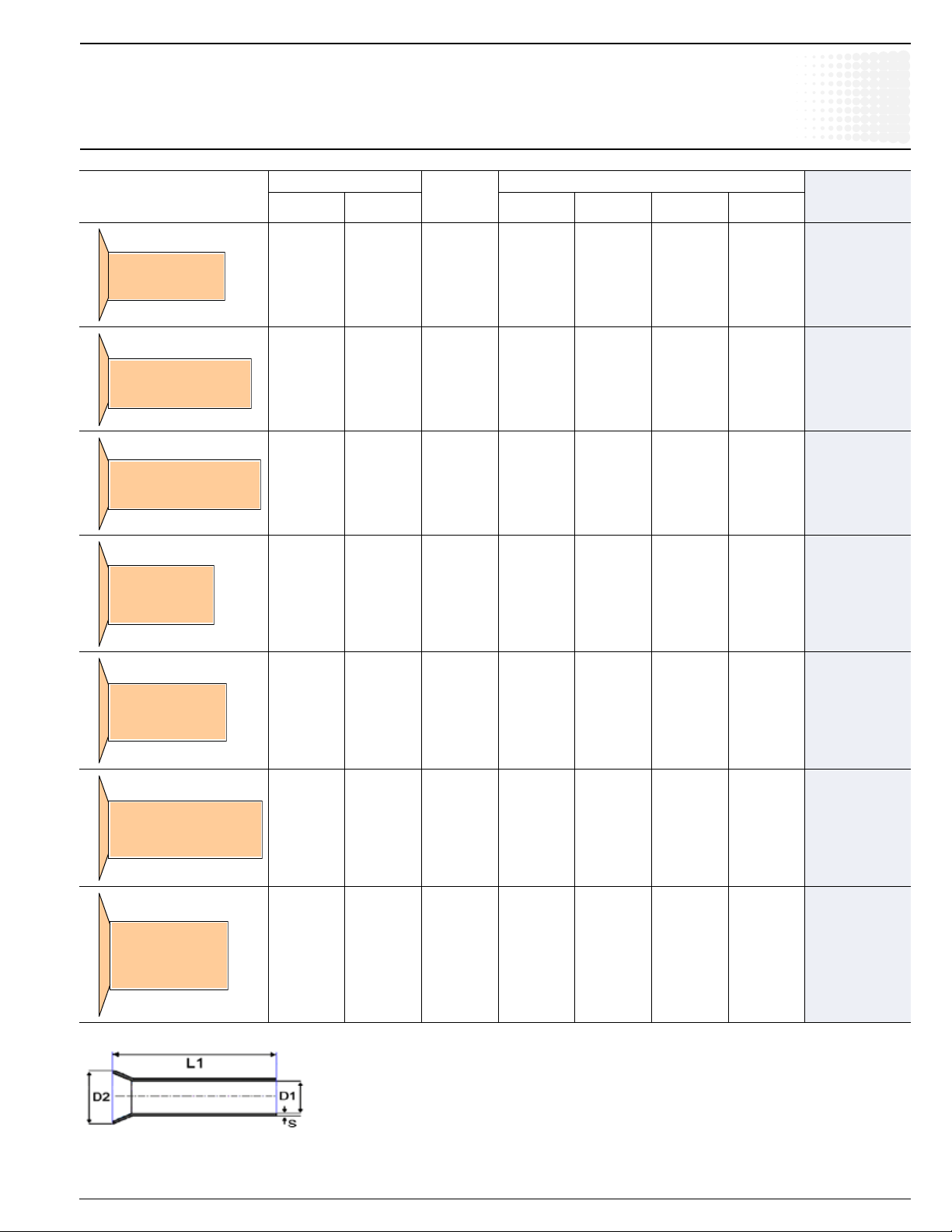

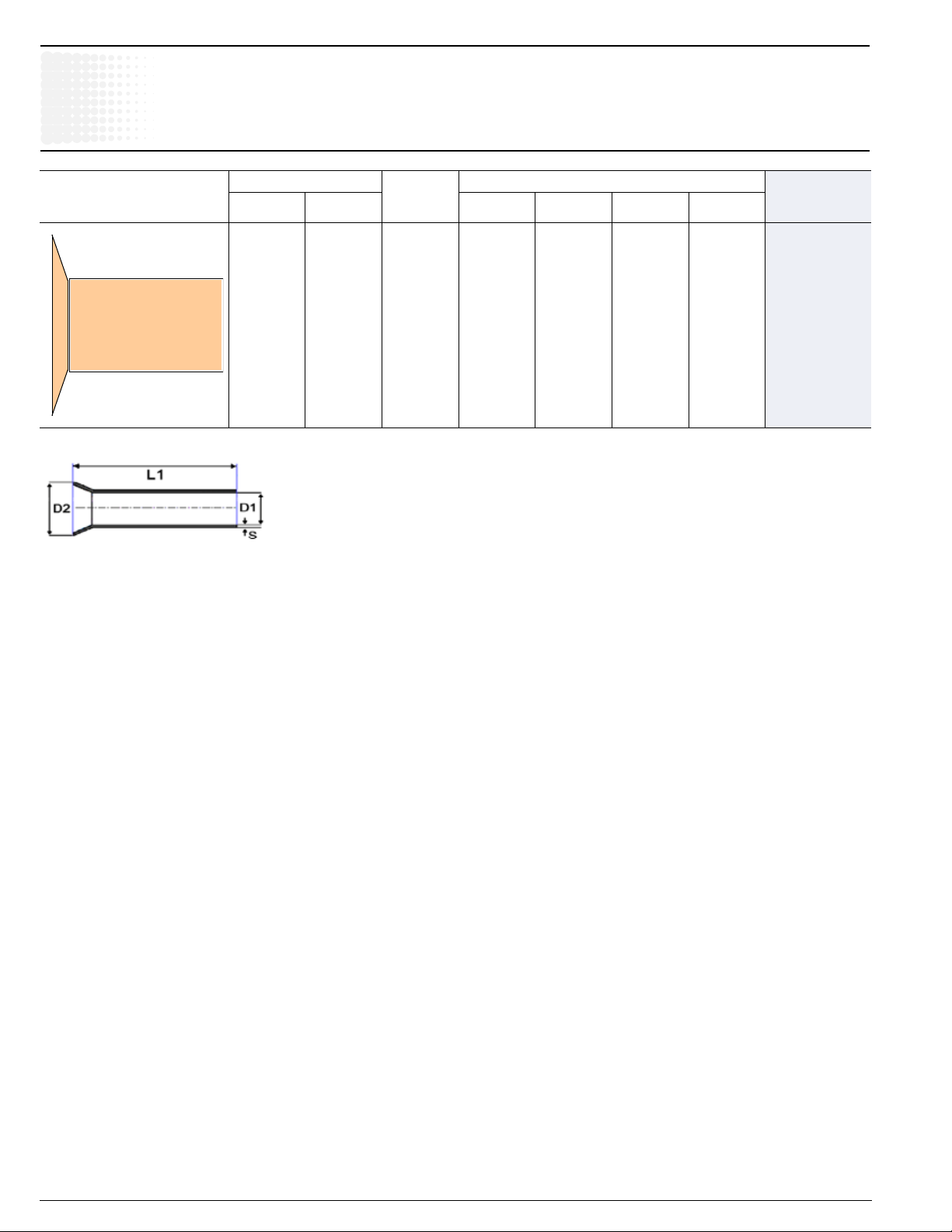

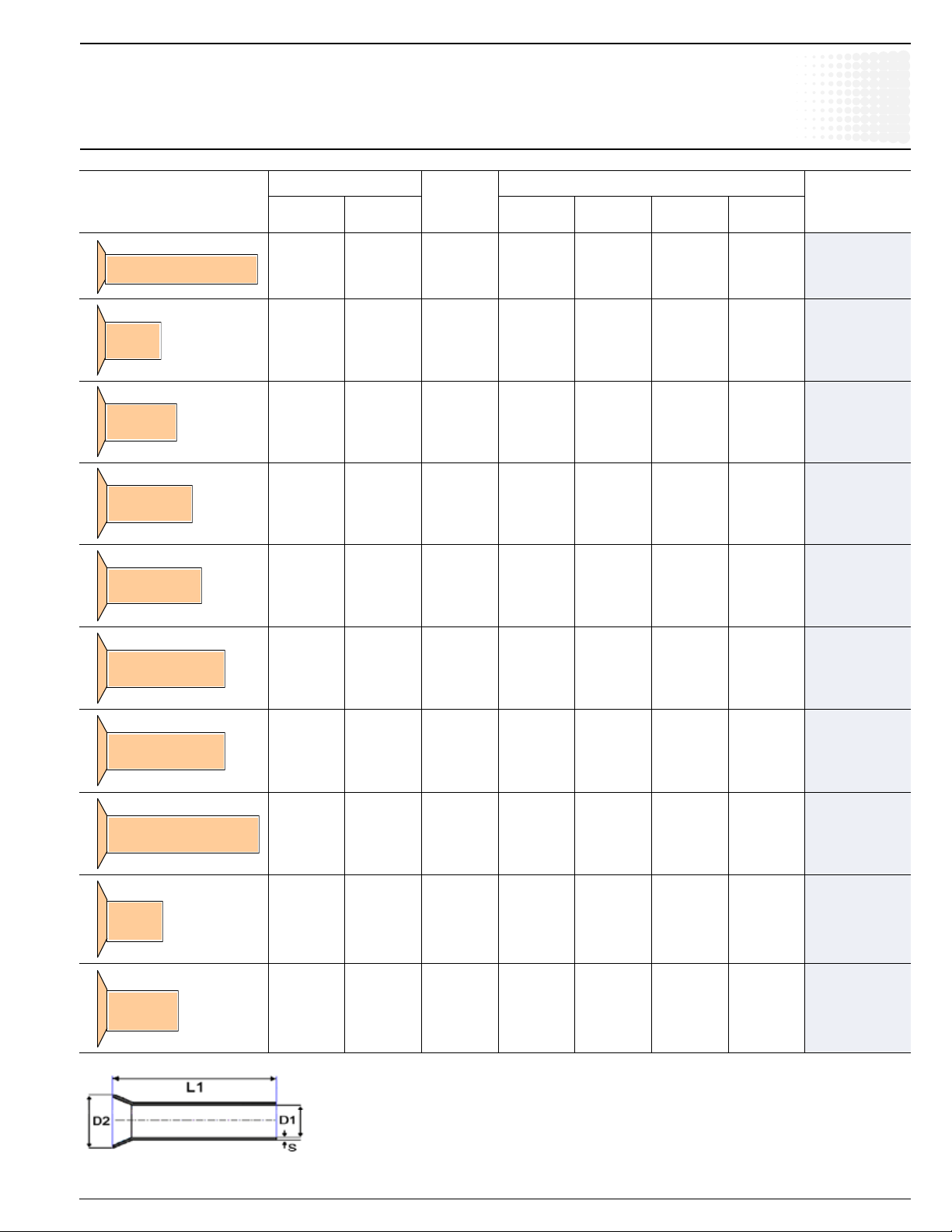

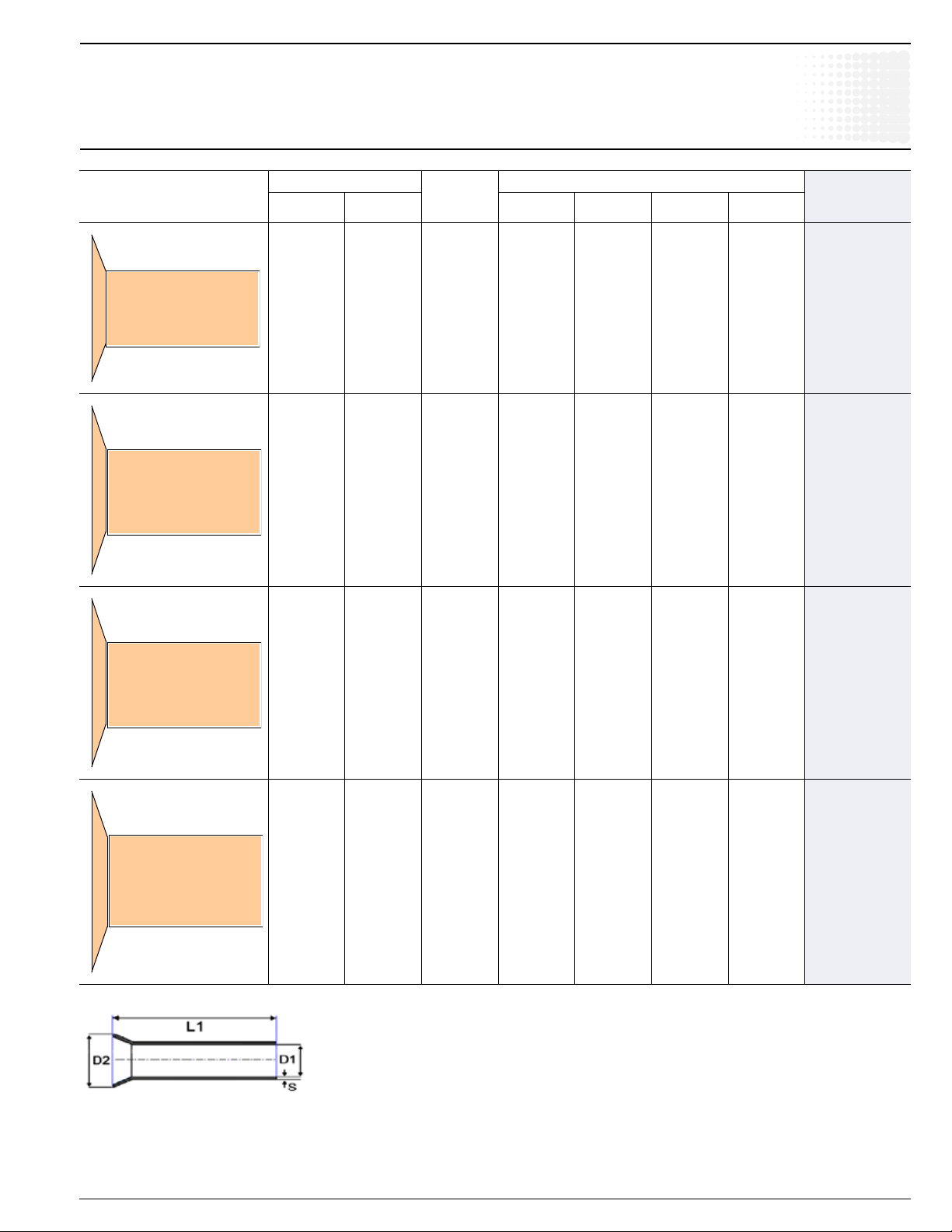

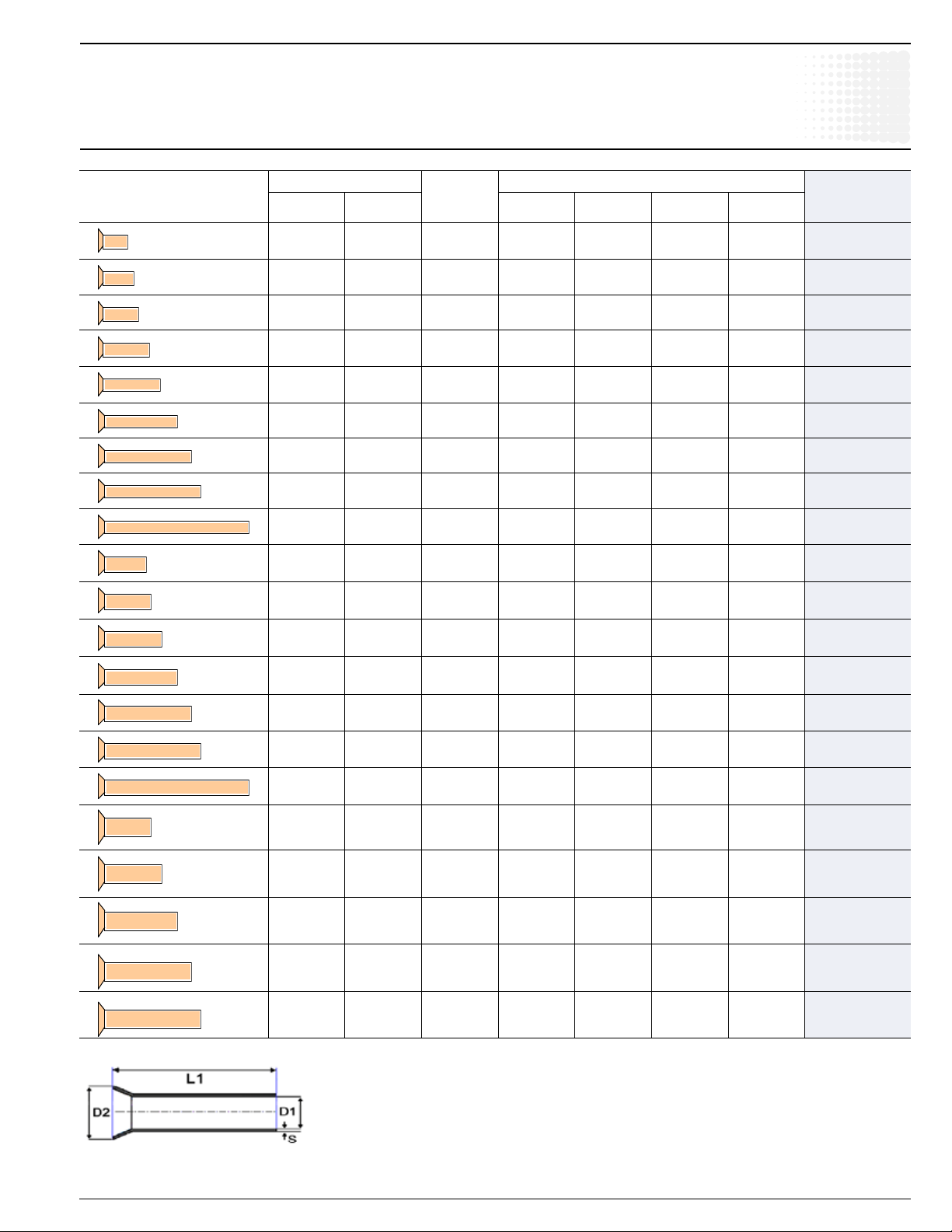

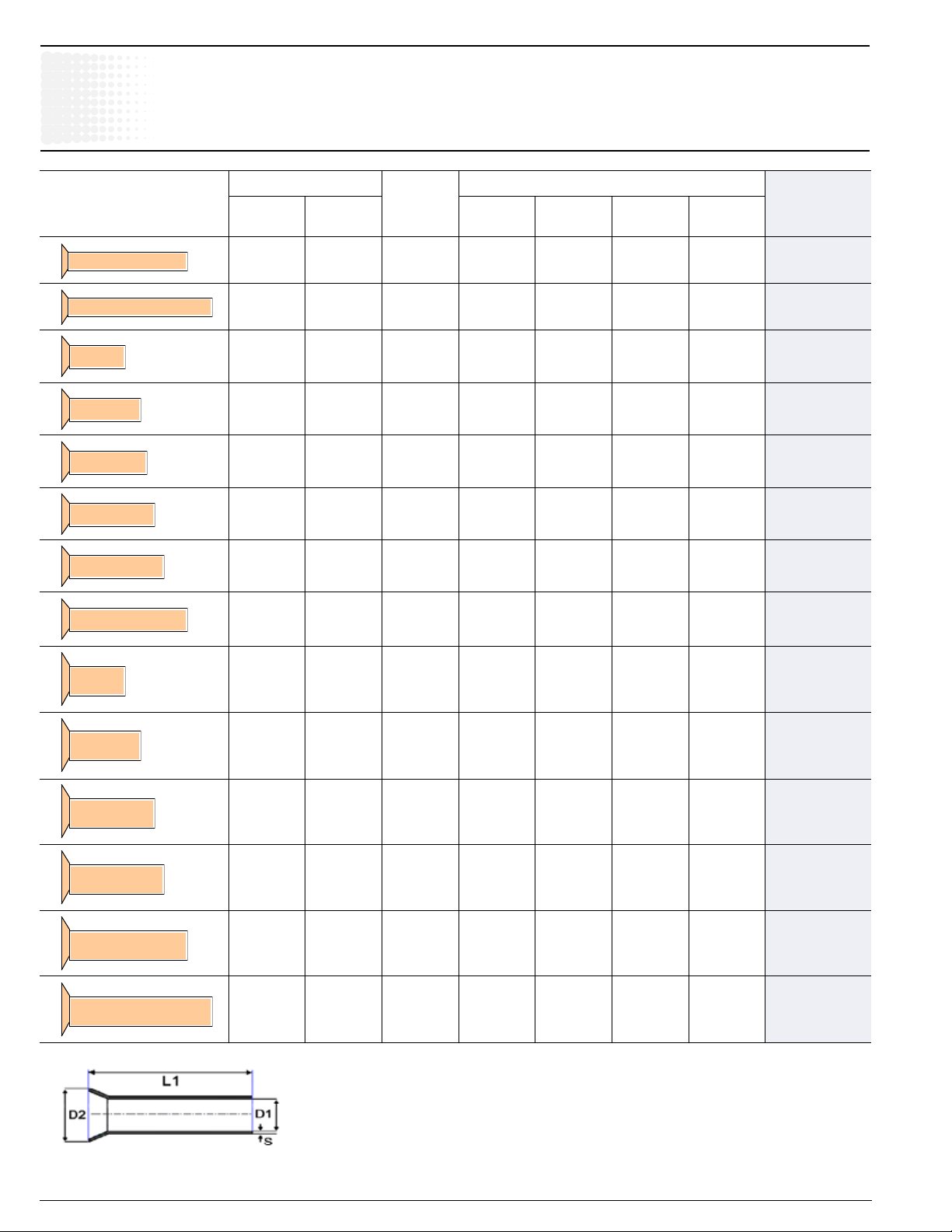

Uninsulated....................................................................................................................8 - 16
Spools & strips ....................................................................................................................... 17

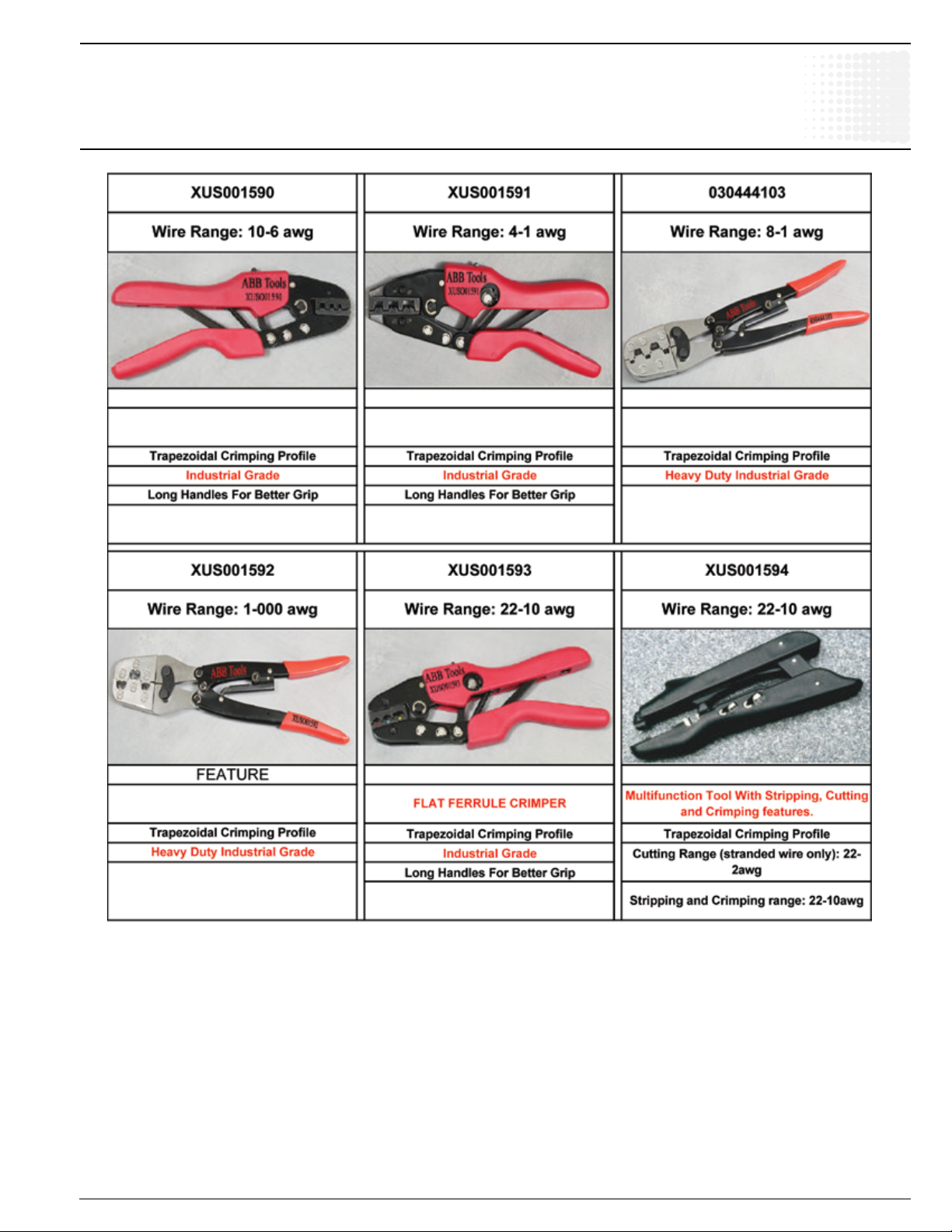

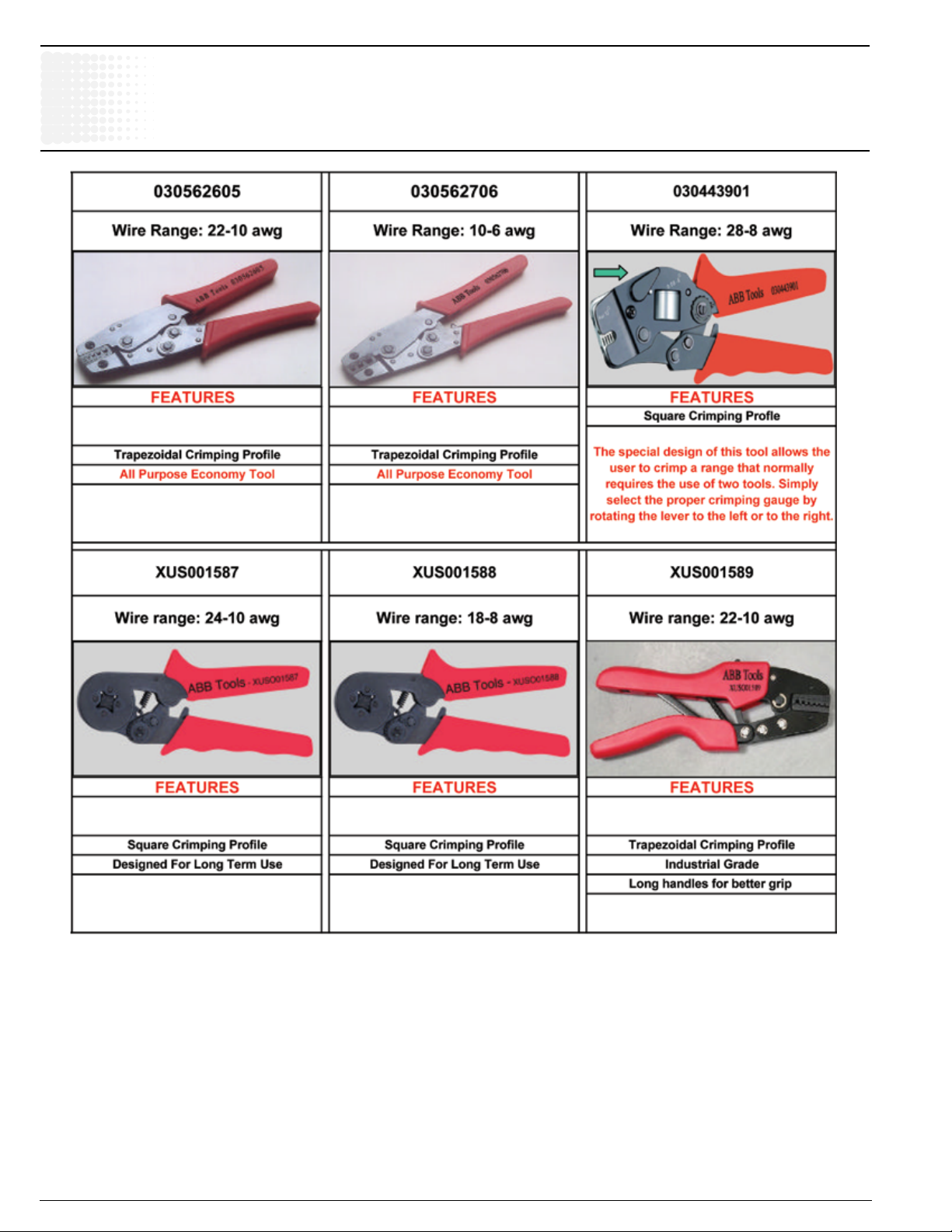

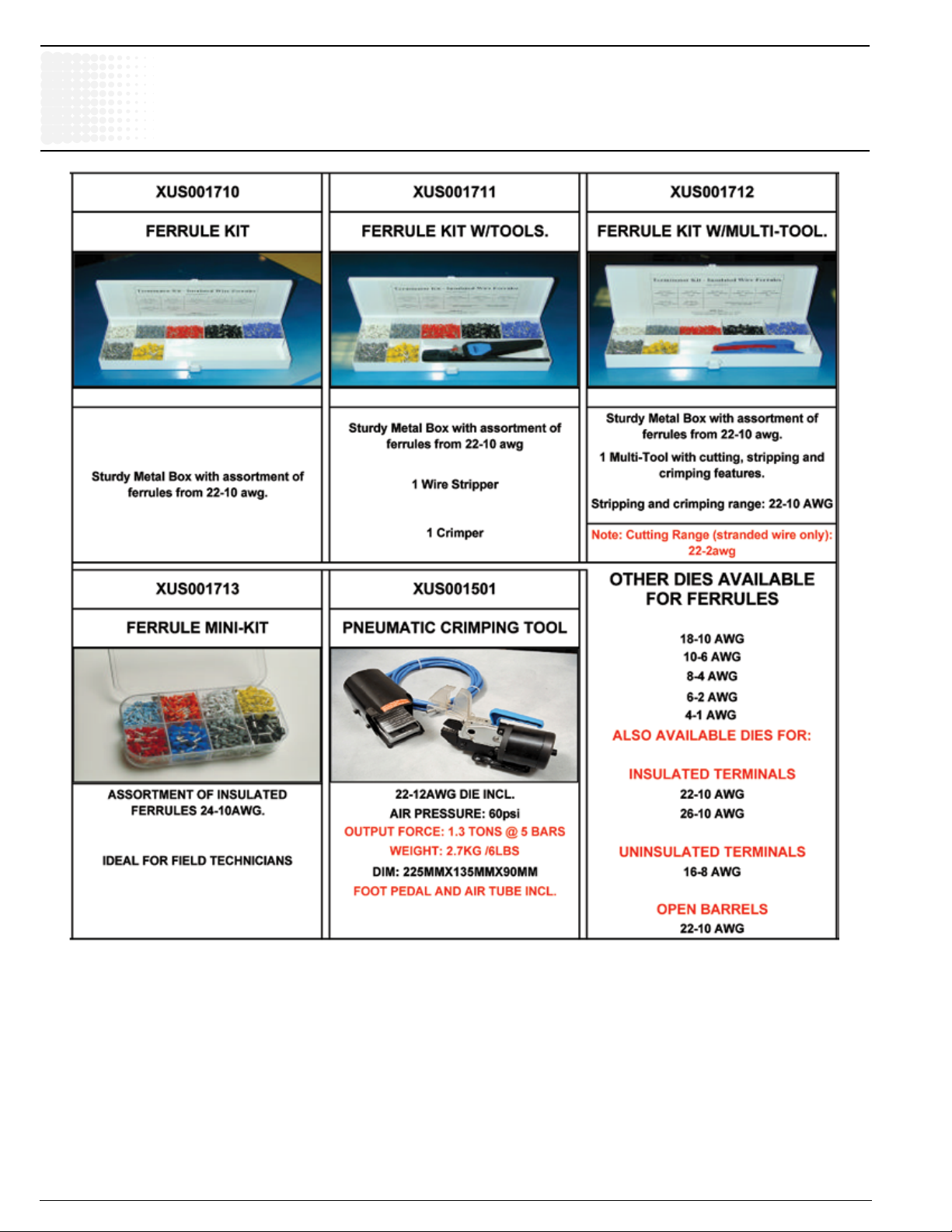

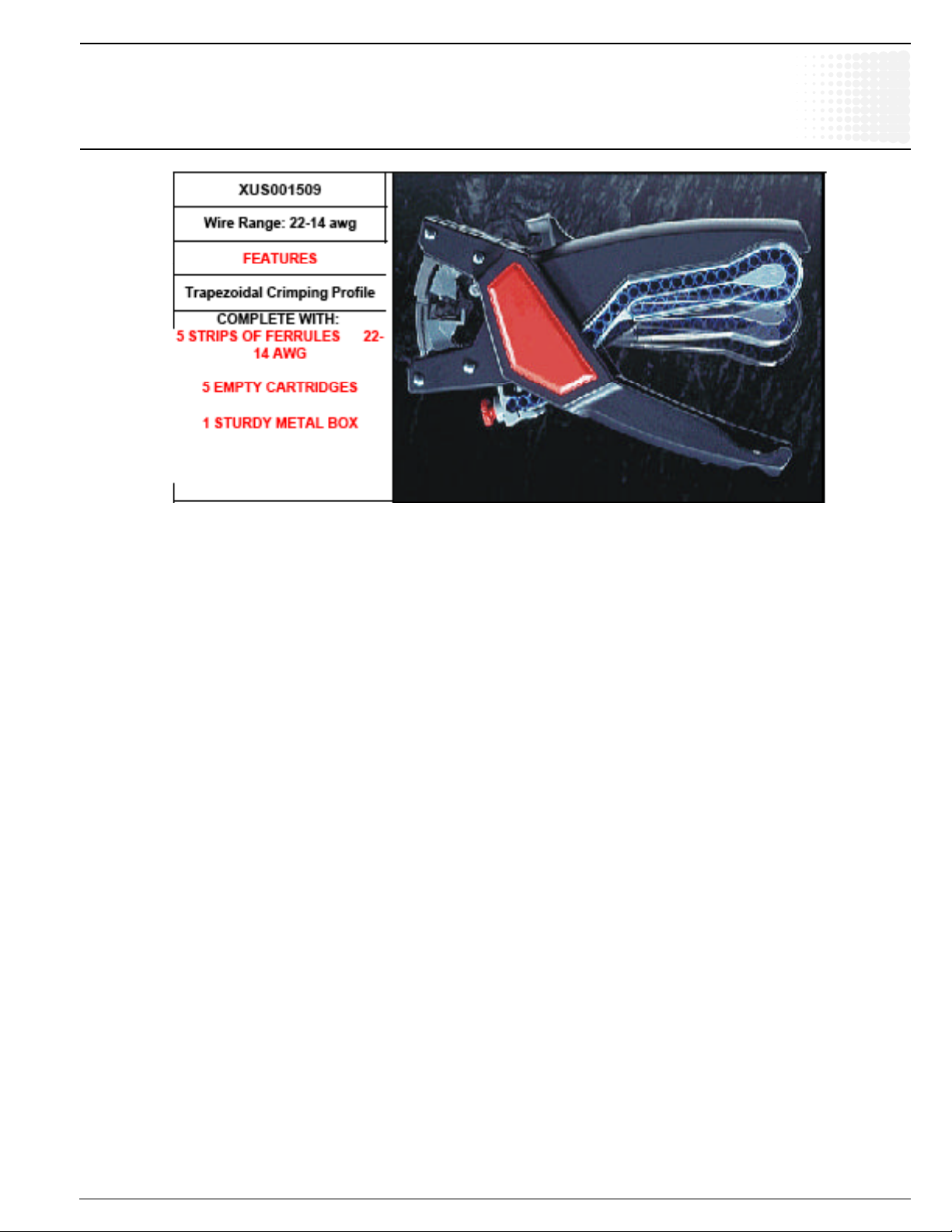

Ferrulee crimping tools .................................................................................................... 18 - 21
Ferrules
Ferrules & Tools
Low Voltage Products & Systems 1
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 160 061 C0201
Ferrules
Insulated
0.14 – 0.75mm
2
INSULATED Wire size
mm2 AWG L1 L2 d1 S1 d2 S2
0.14 28-26 gray 500 10.4 6 0.7 0.12 1.1 0.25 XUSD01800
0.14
0.14 28-26 brown 500 10.4 6 0.7 0.12 1.1 0.25 XUS001802
0.14
0.25 26-24 blue 500 10.4 6 0.8 0.15 1.8 0.25 XUSG01807
0.25 26-24 blue 500 12.4 8 0.8 0.15 1.8 0.25 XUSG01810
0.25 26-24 yellow 500 10.4 6 0.8 0.15 1.8 0.25 XUSD01806
0.25 26-24 yellow 500 12.4 8 0.8 0.15 1.8 0.25 XUSD01809
0.25 26-24 brown 500 10.4 6 0.8 0.15 1.8 0.25 XUS001808
0.25 26-24 brown 500 12.4 8 0.8 0.15 1.8 0.25 XUS001811
0.34 24 turquoise 500 10.4 6 0.9 0.15 2 0.25 XUSD01818
0.34 24 turquoise 500 12.4 8 0.9 0.15 2 0.25 XUSD01821
0.34 24 pink 500 10.4 6 0.9 0.15 2 0.25 XUS001820
0.34 24 pink 500 12.4 8 0.9 0.15 2 0.25 XUS001823
0.5 22 orange 500 12 6 1 0.15 2.6 0.25 XUSG01831
0.5 22 orange 500 14 8 1 0.15 2.6 0.25 XUSG01833
0.5 22 orange 500 16 10 1 0.15 2.6 0.25 XUSG01835
0.5 22 orange 500 18 12 1 0.15 2.6 0.25 XUSG01595
0.5 22 white 500 12 6 1 0.15 2.6 0.25 XUSD01830
0.5 22 white 500 14 8 1 0.15 2.6 0.25 30445400
0.5 22 white 500 16 10 1 0.15 2.6 0.25 XUSD01834
0.5 22 white 500 18 12 1 0.15 2.6 0.25 XUSD01597
0.75 20 white 500 12 6 1.2 0.15 2.8 0.25 XUSG01838
0.75 20 white 500 14 8 1.2 0.15 2.8 0.25 XUSG01840
0.75 20 white 500 16 10 1.2 0.15 2.8 0.25 XUSG01843
0.75 20 white 500 18 12 1.2 0.15 2.8 0.25 XUSG01846
0.75 20 gray 500 12 6 1.2 0.15 2.8 0.25 XUSD01837
0.75 20 gray 500 14 8 1.2 0.15 2.8 0.25 30445501
0.75 20 gray 500 16 10 1.2 0.15 2.8 0.25 XUSD01842
0.75 20 gray 500 18 12 1.2 0.15 2.8 0.25 XUSD01845
0.75 20 blue 500 12 6 1.2 0.15 2.8 0.25 XUS001839
0.75 20 blue 500 14 8 1.2 0.15 2.8 0.25 XUS001841
0.75 20 blue 500 16 10 1.2 0.15 2.8 0.25 XUS001844
0.75 20 blue 500 18 12 1.2 0.15 2.8 0.25 XUS001847
28-26 gray 500 12.4 8 0.7 0.12 1.1 0.25 XUSD01803
28-26 brown 500 12.4 8 0.7 0.12 1.1 0.25 XUS001805
Color
Minimum
order
quantity
Dimensions (mm)
Part
number
2 Low Voltage Products & Systems
1SXU 160 061 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
Insulated
1.00 – 4.00mm
Ferrules
2
INSULATED Wire size
mm2 AWG L1 L2 d1 S1 d2 S2
1.00 18 red 500 12 6 1.4 0.15 3 0.25 XUSD01848
1.00 18
1.00 18 red 500 16 10 1.4 0.15 3 0.25 XUSD01852
1.00 18
1.00 18 yellow 500 12 6 1.4 0.15 3 0.25 XUSG01849
1.00 18
1.00 18 yellow 500 16 10 1.4 0.15 3 0.25 XUSG01853
1.00 18
1.50 16 black 500 12 6 1.7 0.15 3.5 0.25 XUSD01598
1.50 16
1.50 16 black 500 16 10 1.7 0.15 3.5 0.25 XUSD01859
1.50 16
1.50 16 black 500 24 18 1.7 0.15 3.5 0.25 30445814
1.50 16
1.50 16
1.50 16 red 500 16 10 1.7 0.15 3.5 0.25 XUSG01860
1.50 16
1.50 16 red 500 24 18 1.7 0.15 3.5 0.25 XUSG01865
2.00 16 yellow 500 14 8 2.35 0.15 4 0.25 XUSG01867
2.50 14 blue 500 14 8 2.2 0.15 4.2 0.25 30445915
2.50 14 blue 500 14 8 2.2 0.15 3.9 0.25 XUSD01812
2.50 14 blue 500 18 12 2.2 0.15 4.2 0.25 XUSD01870
2.50 14 blue 500 24 18 2.2 0.15 4.2 0.25 30446012
2.50 14 gray 500 14 8 2.2 0.15 4.2 0.25 XUS001869
2.50 14 gray 500 14 8 2.2 0.15 3.9 0.25 XUS001814
2.50 14 gray 500 18 12 2.2 0.15 4.2 0.25 XUS001872
2.50 14 gray 500 24 18 2.2 0.15 4.2 0.25 XUS001873
4.00 12 gray 500 17 10 2.8 0.2 4.8 0.3 30446107
4.00 12 gray 500 20 12 2.8 0.2 4.8 0.3 XUSD01875
4.00 12 gray 200 24 18 2.8 0.2 4.8 0.3 30446200
4.00 12 orange 500 17 10 2.8 0.2 4.8 0.3 XUS001874
4.00 12 orange 500 20 12 2.8 0.2 4.8 0.3 XUS001877
4.00 12 orange 200 24 18 2.8 0.2 4.8 0.3 XUS001878
Color
red 500 14 8 1.4 0.15 3 0.25 30445602
red 500 18 12 1.4 0.15 3 0.25 XUSD01855
yellow 500 14 8 1.4 0.15 3 0.25 XUSG01851
yellow 500 18 12 1.4 0.15 3 0.25 XUSG01856
black 500 14 8 1.7 0.15 3.5 0.25 30445703
black 500 18 12 1.7 0.15 3.5 0.25 XUSD01862
red 500 12 6 1.7 0.15 3.5 0.25 XUSG01596
red 500 14 8 1.7 0.15 3.5 0.25 XUSG01858
red 500 18 12 1.7 0.15 3.5 0.25 XUSG01863
Minimum
order
quantity
Dimensions (mm)
Part
number
Low Voltage Products & Systems 3
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 160 061 C0201

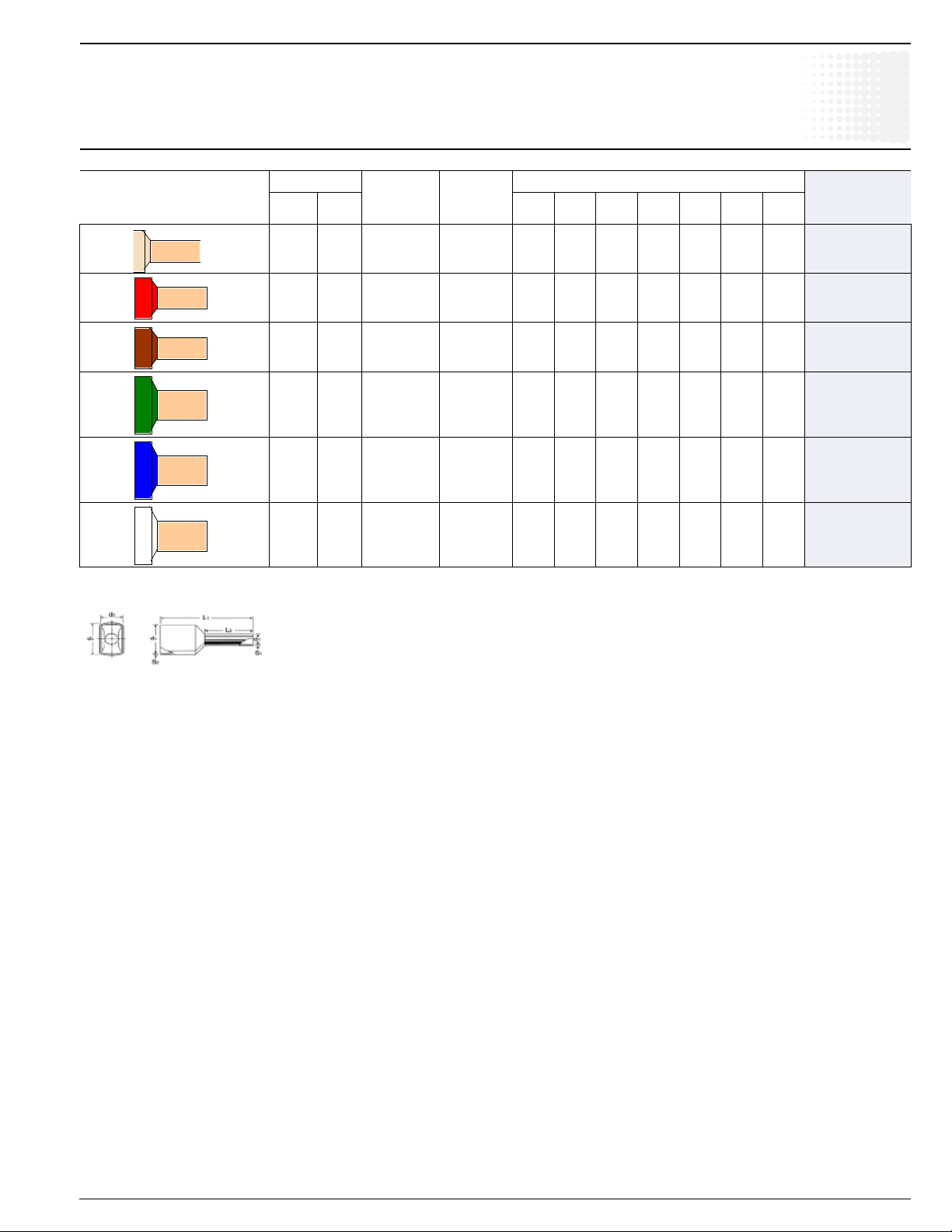

Ferrules
Insulated
6.00 – 25.00mm
2
INSULATED Wire size
mm2 AWG L1 L2 d1 S1 d2 S2
6.00 10 black 100 20 12 3.5 0.2 6.3 0.3 XUSG01879
6.00 10 black 100 26 18 3.5 0.2 6.3 0.3 XUSG01881
6.00 10 yellow 100 20 12 3.5 0.2 6.3 0.3 30446301
6.00 10 yellow 100 26 18 3.5 0.2 6.3 0.3 30446402
6.00 10 green 100 20 12 3.5 0.2 6.3 0.3 XUS001880
6.00 10 green 100 26 18 3.5 0.2 6.3 0.3 XUS001882
10.00
10.00
10.00
10.00
10.00
10.00
16.00
16.00
Color
8 beige 100 22 12 4.5 0.2 7.6 0.4 XUSG01883
8 beige 100 28 18 4.5 0.2 7.6 0.4 XUSG01885
8 red 100 22 12 4.5 0.2 7.6 0.4 30446503
8 red 100 28 18 4.5 0.2 7.6 0.4 30446604
8 brown 100 22 12 4.5 0.2 7.6 0.4 XUS001884
8 brown 100 28 18 4.5 0.2 7.6 0.4 XUS001886
6 green 100 24 12 5.8 0.2 8.8 0.4 XUSG01887
6 green 100 28 18 5.8 0.2 8.8 0.4 XUSG01889
Minimum
order
quantity
Dimensions (mm)
Part
number
16.00
16.00
16.00
16.00
25.00 4 brown 50 30 16 7.3 0.2 11.2 0.4 XUSG01892
25.00 4 brown 50 32 18 7.3 0.2 11.2 0.4 XUSG01894
25.00 4 brown 50 36 22 7.3 0.2 11.2 0.4 XUSG01897
25.00 4 yellow 50 30 16 7.3 0.2 11.2 0.4 XUSD01891
25.00 4 yellow 50 32 18 7.3 0.2 11.2 0.4 30446917
25.00 4 yellow 50 36 22 7.3 0.2 11.2 0.4 XUSD01896
25.00 4 black 50 30 16 7.3 0.2 11.2 0.4 XUS001893
25.00 4 black 50 32 18 7.3 0.2 11.2 0.4 XUS001895
25.00 4 black 50 36 22 7.3 0.2 11.2 0.4 XUS001898
6 blue 100 24 12 5.8 0.2 8.8 0.4 30446705
6 blue 100 28 18 5.8 0.2 8.8 0.4 30446816
6 white 100 24 12 5.8 0.2 8.8 0.4 XUS001888
6 white 100 28 18 5.8 0.2 8.8 0.4 XUS001890
4 Low Voltage Products & Systems
1SXU 160 061 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
Insulated
35.00 – 150.00mm
Ferrules
2
INSULATED
Wire size
mm2 AWG L1 L2 d1 S1 d2 S2
35.00 2 beige 50 30 16 8.3 0.2 13 0.4 XUSG01900
35.00 2 beige 50 32 18 8.3 0.2 12.7 0.4 XUSG01902
35.00 2 beige 50 39 25 8.3 0.2 12.7 0.4 XUSG01905
35.00 2 red 50 30 16 8.3 0.2 12.7 0.4 XUSD01899
35.00 2 red 50 32 18 8.3 0.2 12.7 0.4 30447014
35.00 2 red 50 39 25 8.3 0.2 12.7 0.4 XUSD01904
50.00 1 green 50 36 16 10.3 0.3 15 0.5 XUSG01908
50.00 1 green 50 40 25 10.3 0.3 15 0.5 XUSG01910
50.00 1 blue 50 36 16 10.3 0.3 15 0.5 XUSD01907
50.00 1 blue 50 40 25 10.3 0.3 15 0.5 30447101
Color
Minimum
order
quantity
Dimensions (mm)
Part
number
70.00 2/0 yellow 25 37 21 13.5 0.4 16 0.6 XUSG01912
70.00 2/0 yellow 25 43 27 13.5 0.4 16 0.6 XUSG01915
95.00 3/0 red 25 44 25 14.7 0.4 18 0.6 XUSD01918
120.00
150.00
3/0 blue 25 48 27 16.7 0.45 20 0.7 XUSD01921
4/0 yellow 25 58 32 19 0.5 23 1 XUSD01924
Low Voltage Products & Systems 5
ABB Inc. • 888-385-1221 • www.abb-control.com 1SXU 160 061 C0201

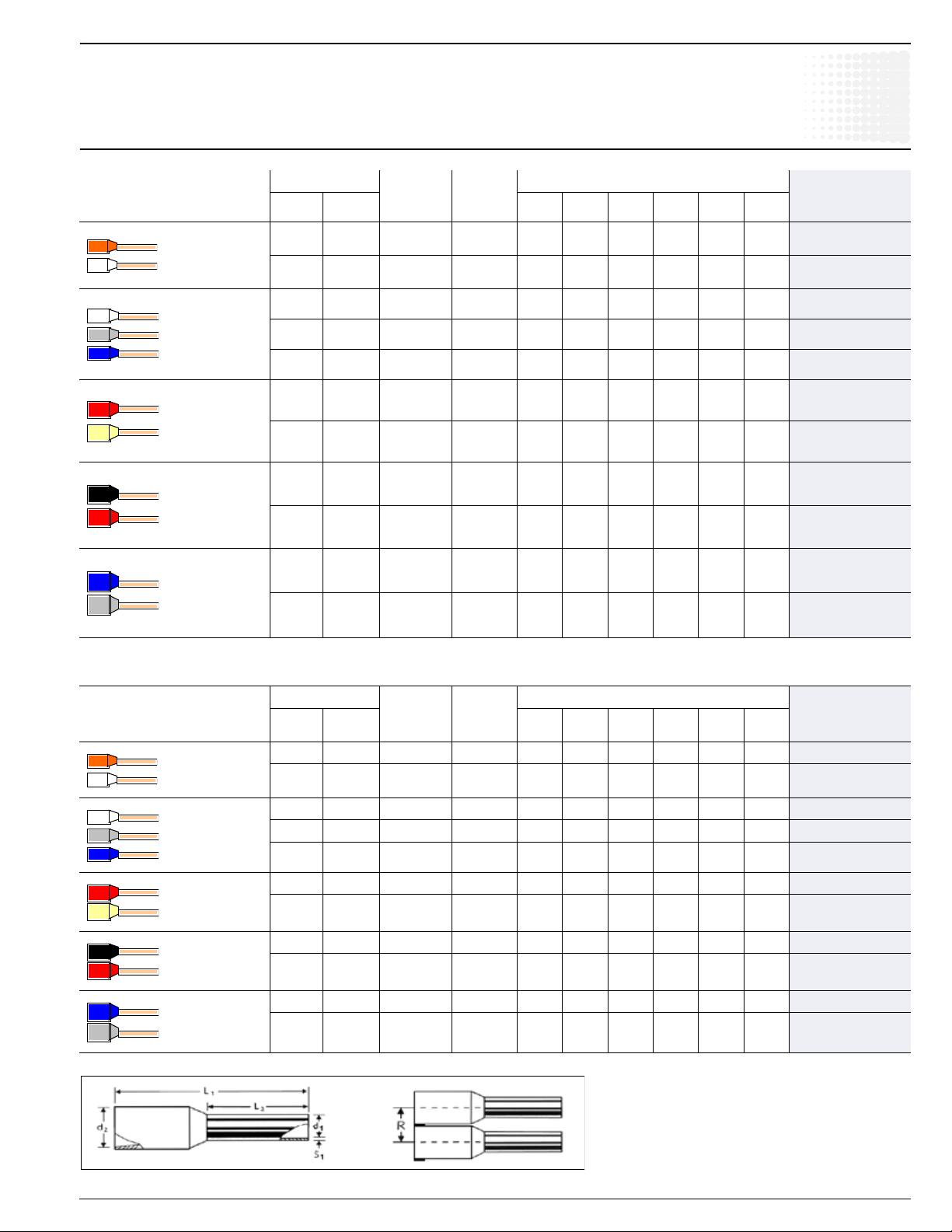

Ferrules
Twin
0.5 – 6.00mm
2
TWIN
Wire size
mm2 AWG L1 L2 d1 S1 d2 d3 S2
0.5 22 orange 500 15 8 1.50 0.15 2.50 4.7 0.25 XUSG01927
0.5 22 orange 500 17 10 1.50 0.15 2.50 4.7 0.25 XUSG01816
0.5 22 white 500 15 8 1.50 0.15 2.50 4.7 0.25 30455810
0.5 22 white 500 17 10 1.50 0.15 2.50 4.7 0.25 XUSD01815
0.75 20 white 500 13 6 1.80 0.15 2.80 5.0 0.25 XUSG01929
0.75 20 white 500 15 8 1.80 0.15 2.80 5.0 0.25 XUSG01931
0.75 20 white 500 17 10 1.80 0.15 2.80 5.0 0.25 XUSG01933
0.75 20 gray 500 13 6 1.80 0.15 2.80 5.0 0.25 XUSD01928
0.75 20 gray 500 15 8 1.80 0.15 2.80 5.0 0.25 30455911
0.75 20 gray 500 17 10 1.80 0.15 2.80 5.0 0.25 30456016
0.75 20 blue 500 13 6 1.80 0.15 2.80 5.0 0.25 XUS001930
0.75 20 blue 500 15 8 1.80 0.15 2.80 5.0 0.25 XUS001932
0.75 20 blue 500 17 10 1.80 0.15 2.80 5.0 0.25 XUS001934
1.00 18
1.00 18 yellow 500 17 10 2.00 0.15 3.40 5.4 0.25 XUSG01936
1.00 18
1.00 18 red 500 17 10 2.00 0.15 3.40 5.4 0.25 30456204
1.50 16
1.50 16
1.50 16
1.50 16
Color
yellow 500 15 8 2.00 0.15 3.40 5.4 0.25 XUSG01935
red 500 15 8 2.00 0.15 3.40 5.4 0.25 30456103
red 500 16 8 2.30 0.15 3.60 6.6 0.25 XUSG01937
red 500 20 12 2.30 0.15 3.60 6.6 0.25 XUSG01938
black 500 16 8 2.30 0.15 3.60 6.6 0.25 30456305
black 500 20 12 2.30 0.15 3.60 6.6 0.25 30456406
Minimum
order
quantity
Dimensions (mm)
Part
number
2.50 14 blue 250 18.5 10 2.90 0.20 4.20 7.8 0.25 30456507
2.50 14 blue 250 21.5 13 2.90 0.20 4.20 7.8 0.25 30456600
2.50 14 gray 250 18.5 10 2.90 0.20 4.20 7.8 0.25 XUS001939
2.50 14 gray 250 21.5 13 2.90 0.20 4.20 7.8 0.25 XUS001940
4.00 12 gray 100 23 12 3.80 0.20 4.90 8.8 0.30 30456701
4.00 12 orange 100 23 12 3.80 0.20 4.90 8.8 0.30 XUS001941
6.00 10 black 100 25 14 4.90 0.20 5.90 10.0 0.30 XUSG01942
6.00 10 yellow 100 25 14 4.90 0.20 5.90 10.0 0.30 30456812
6.00 10 green 100 25 14 4.90 0.20 5.90 10.0 0.30 XUS001943
6 Low Voltage Products & Systems
1SXU 160 061 C0201 ABB Inc. • 888-385-1221 • www.abb-control.com
