Catalog
Enclosed IEC and NEMA starters
Non-combination and combination motor controllers
Page 2
Page 3
Contents
Product overview ..................................................................................................................................................................................... 2
Features and benefits .............................................................................................................................................................................. 3
Product configurator ................................................................................................................................................................................ 4
Catalog number explanation
Non-combination starters ........................................................................................................................................................................... 5
Combination starters .................................................................................................................................................................................. 6
IEC & NEMA Non-combination, non-reversing, three phase ........................................................................................................................ 7
IEC & NEMA Non-combination, non-reversing, single phase ....................................................................................................................... 8
IEC & NEMA Non-combination, non-reversing, three phase, non-fusible disconnect ................................................................................... 9
IEC & NEMA Non-combination, non-reversing, single phase, non-fusible disconnect ................................................................................ 10
IEC & NEMA Combination, non-reversing, three phase, fusible disconnect ............................................................................................... 11
IEC & NEMA Combination, non-reversing, single phase, fusible disconnect .............................................................................................. 12
IEC Combination, non-reversing, three phase, circuit breaker ................................................................................................................... 13
NEMA Combination, non-reversing, three phase, circuit breaker ............................................................................................................... 14
IEC & NEMA Combination, non-reversing, single phase, circuit breaker .................................................................................................... 15
Reversing Starters
IEC & NEMA Non-combination, reversing, three phase ............................................................................................................................. 16
IEC & NEMA Non-combination, reversing, three phase, non-fusible disconnect ........................................................................................ 17
IEC & NEMA Combination, reversing, three phase, fusible disconnect ...................................................................................................... 18
IEC Combination, reversing, three phase, circuit breaker .......................................................................................................................... 19
NEMA Combination, reversing, three phase, circuit breaker ...................................................................................................................... 20
Two speed one winding Starters
IEC Non-combination, two speed one winding, three phase ..................................................................................................................... 21
IEC Non-combination, two speed one winding, three phase, non-fusible disconnect ................................................................................ 22
IEC Combination, two speed one winding, three phase, fusible disconnect .............................................................................................. 23
IEC Combination, two speed one winding, three phase, circuit breaker .................................................................................................... 24
Two speed two winding Starters
IEC Non-combination, two speed two winding, three phase ..................................................................................................................... 25
IEC Non-combination, two speed two winding, three phase, non-fusible disconnect ................................................................................ 26
IEC Combination, two speed two winding, three phase, fusible disconnect .............................................................................................. 27
IEC Combination, two speed two winding, three phase, circuit breaker .................................................................................................... 28
Factory installed modifications
Pilot device kits ......................................................................................................................................................................................... 29
Control circuit transformer ........................................................................................................................................................................ 30
Field modifications kits
Pilot device kits ......................................................................................................................................................................................... 31
Control circuit transformer kits .................................................................................................................................................................. 32
General information
Motor data ............................................................................................................................................................................................... 33
Overload relays
IEC Starter overload relays-thermal .......................................................................................................................................................... 34
IEC Starter overload relays-electronic ....................................................................................................................................................... 35
NEMA Starter overload relays-thermal ..................................................................................................................................................... 36
NEMA Starter overload relays-electronic ................................................................................................................................................... 37
Dimensions and enclosure accessories

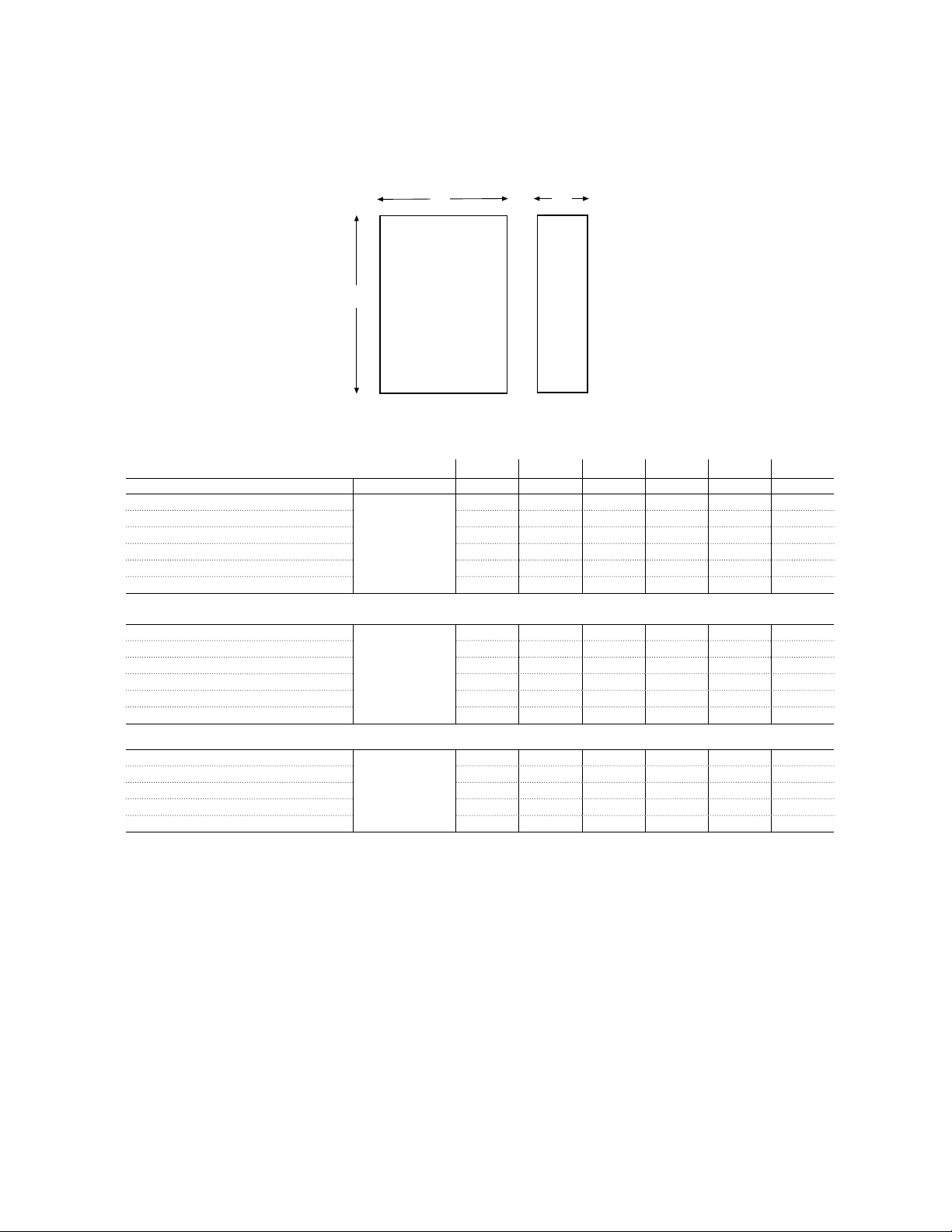

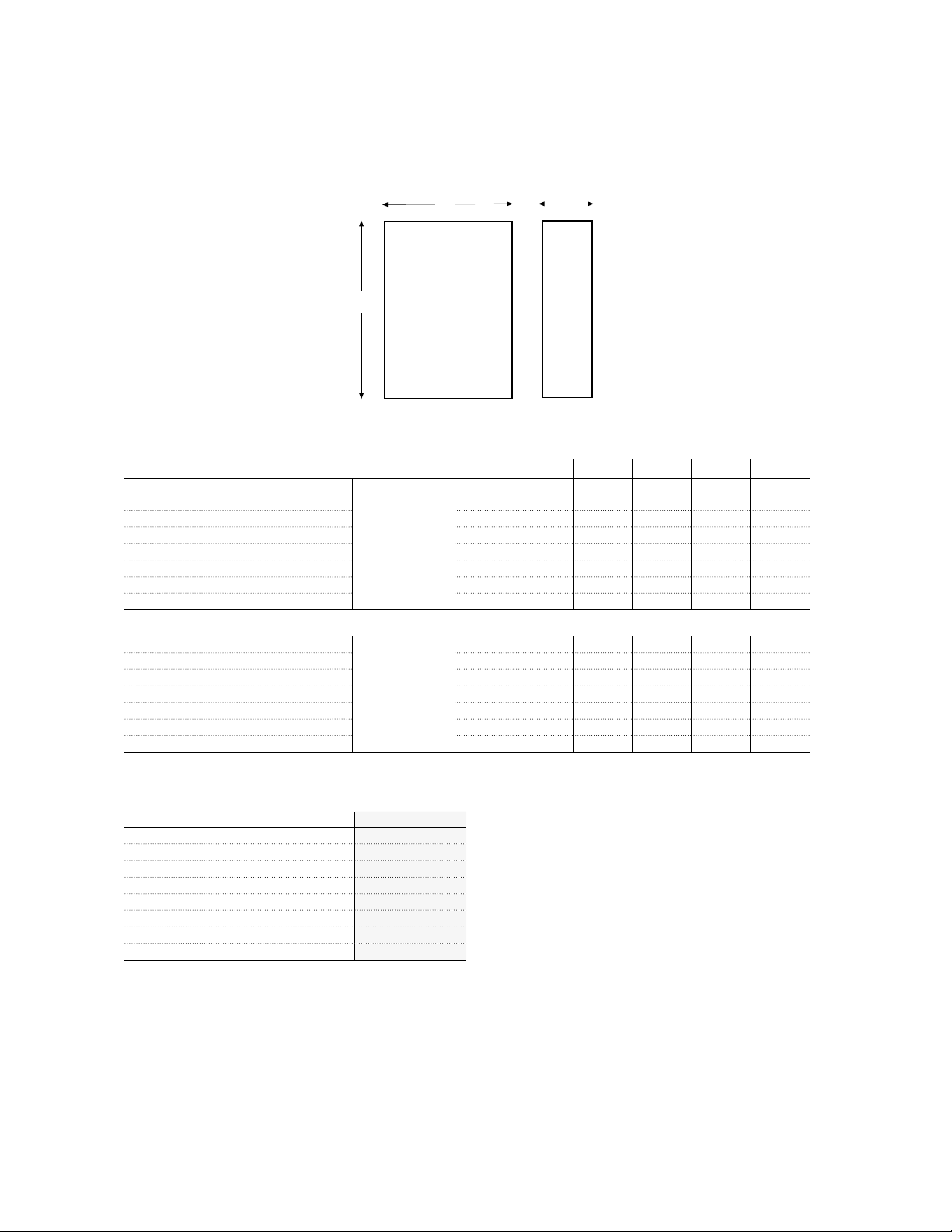

Enclosure dimensions and enclosure accessories ..................................................................................................................................... 38
Wiring diagrams ..................................................................................................................................................................................... 40

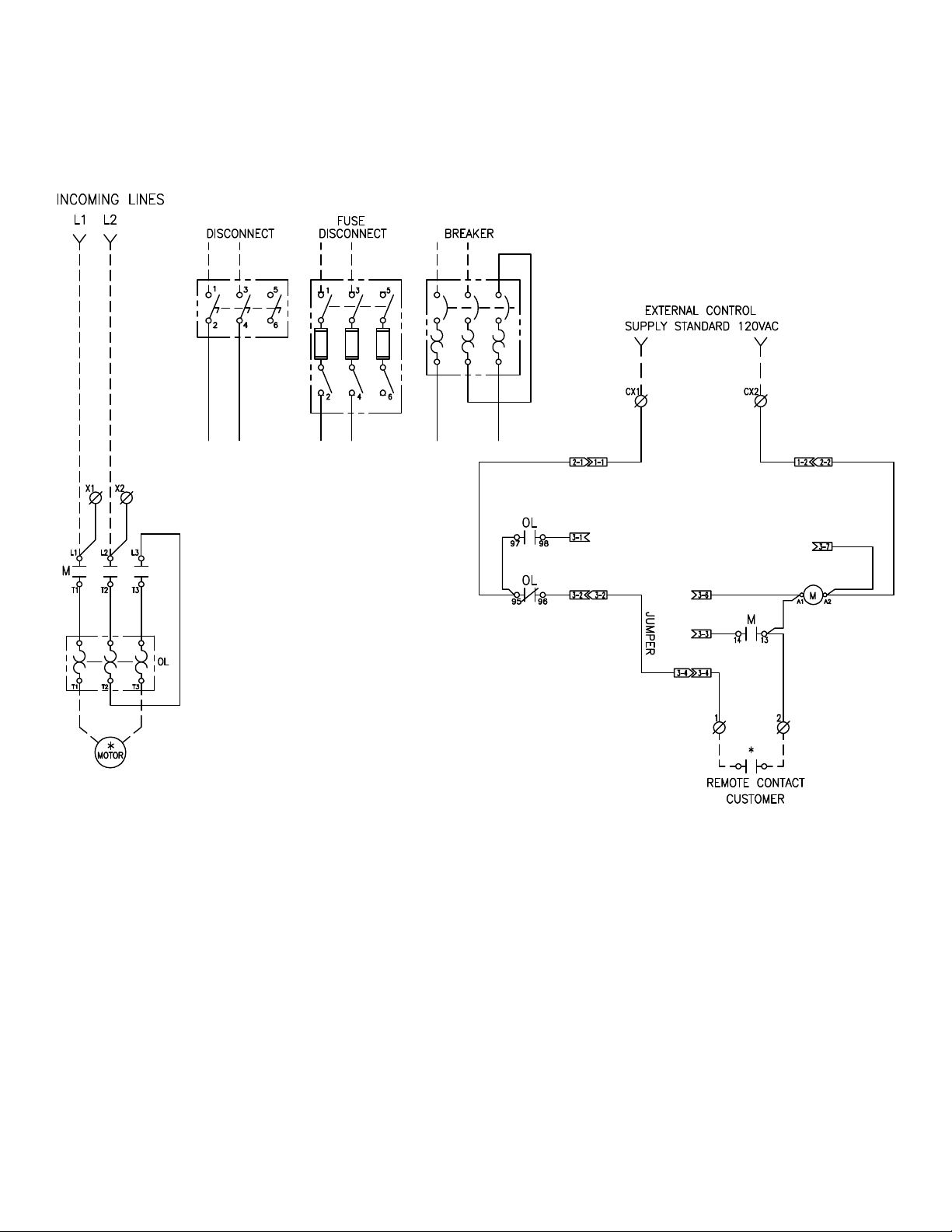

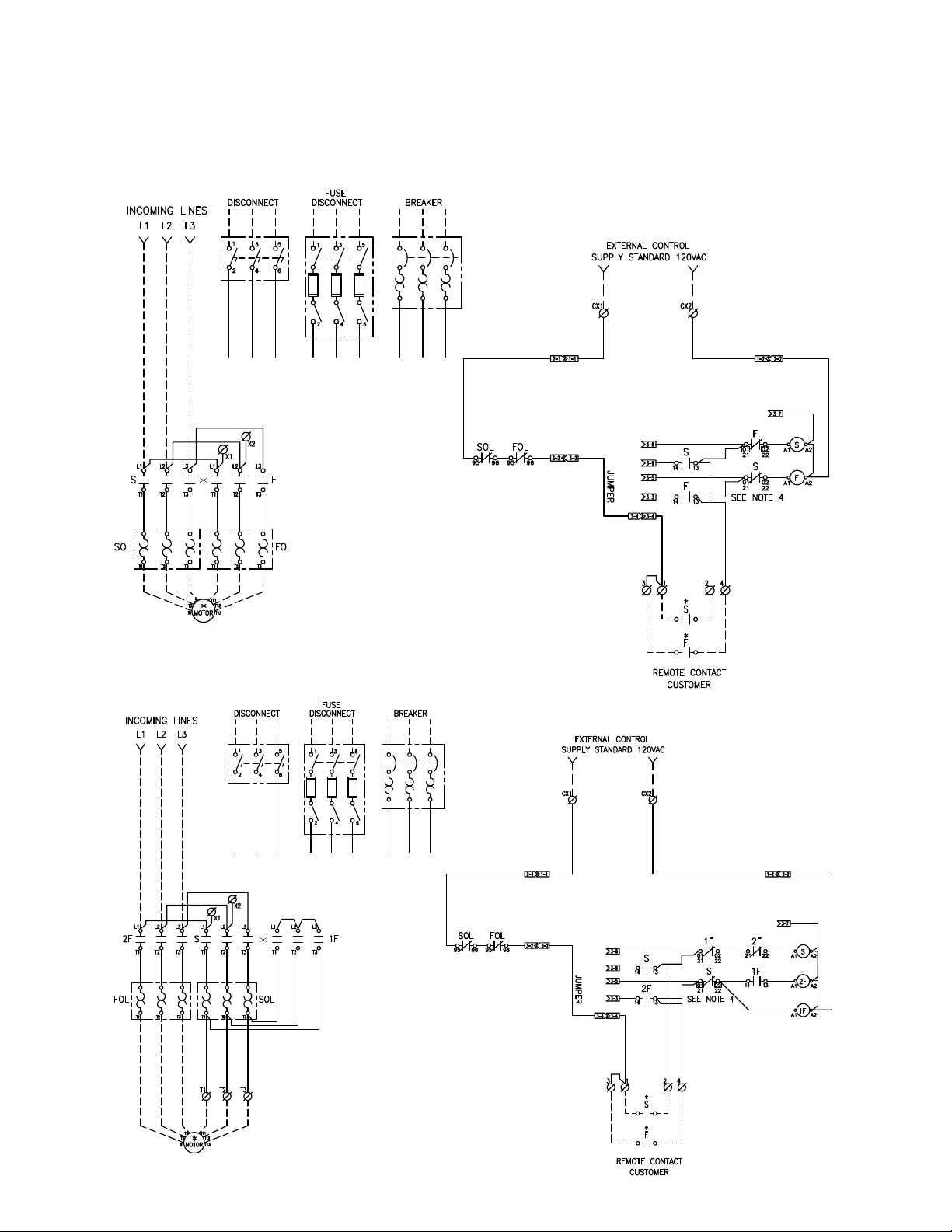

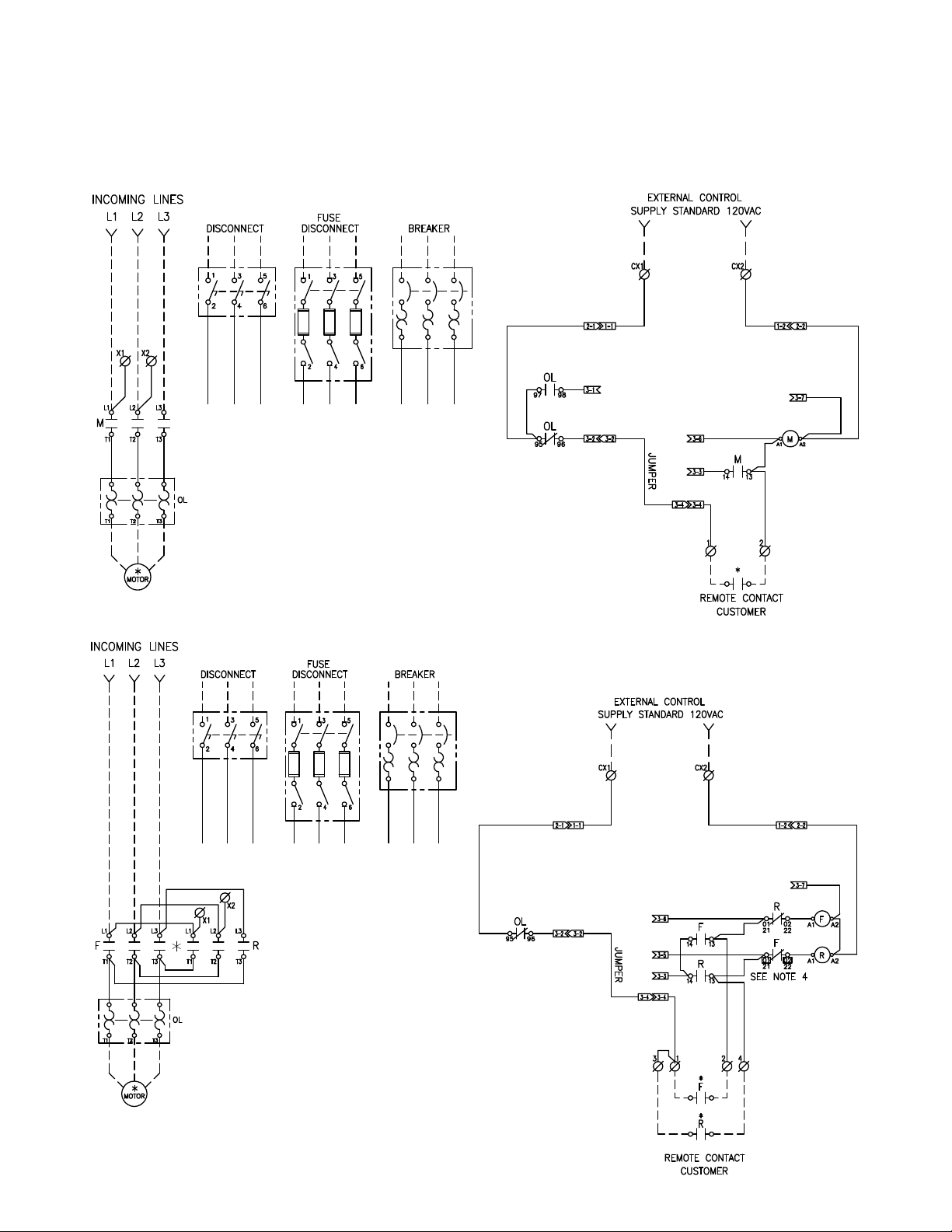

Electrical diagrams ................................................................................................................................................................................... 43

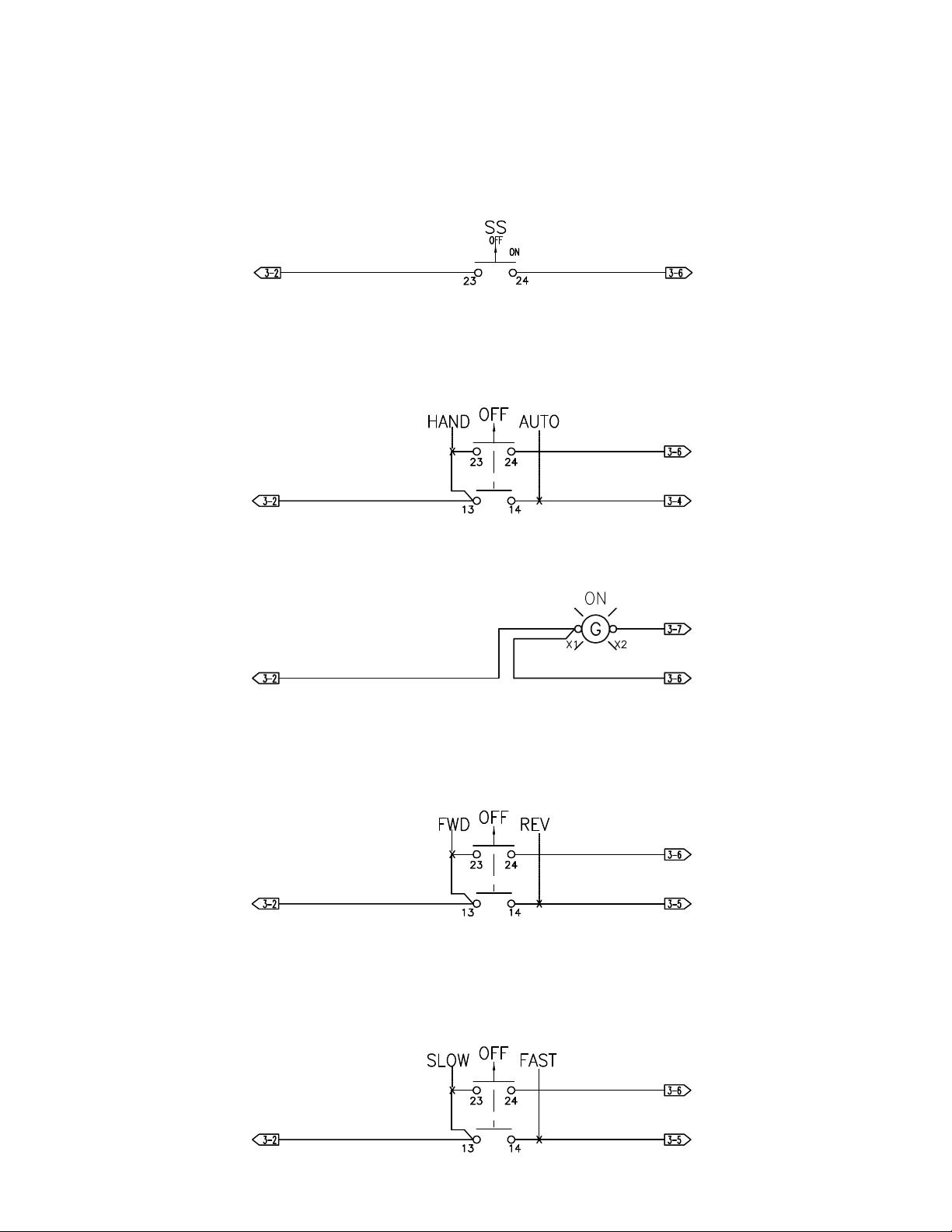

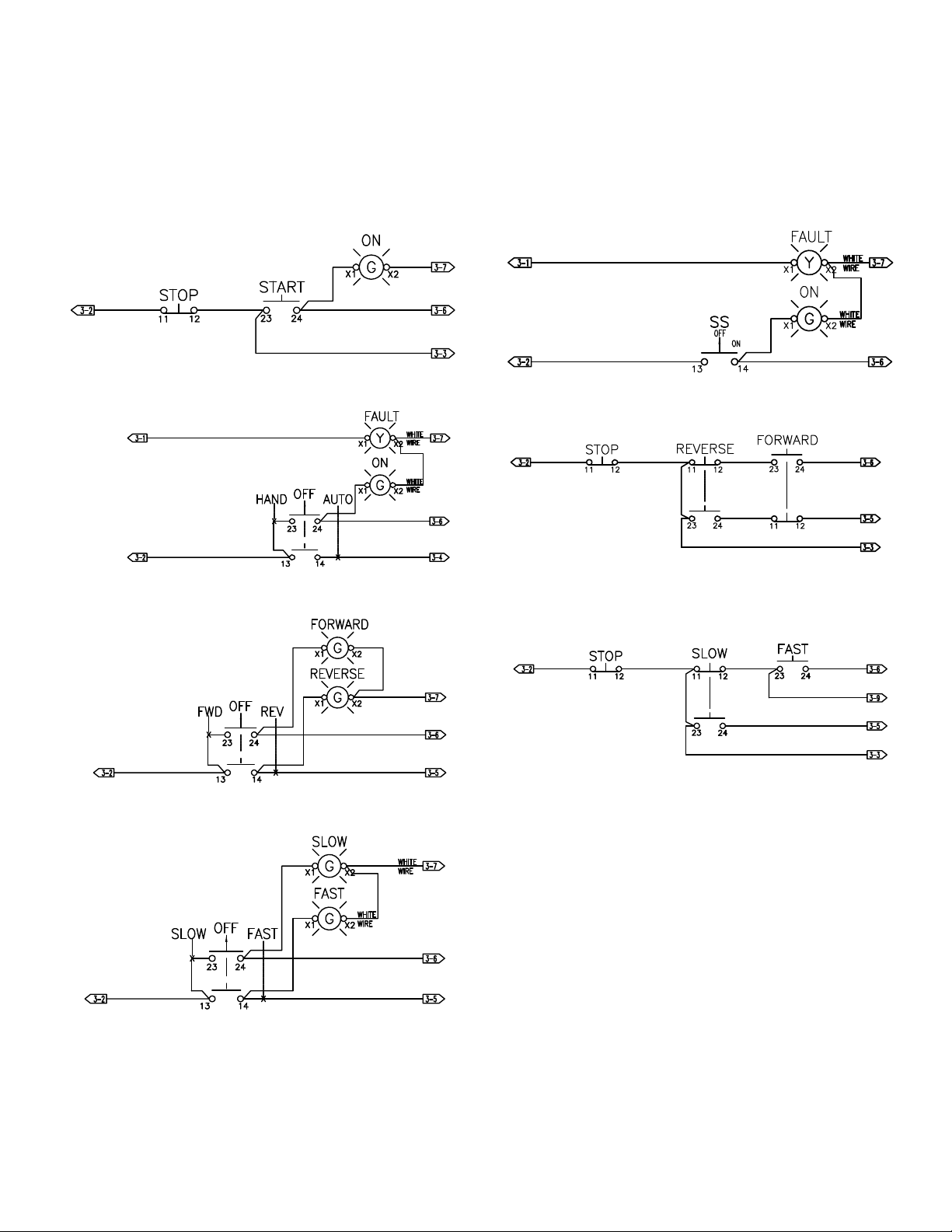

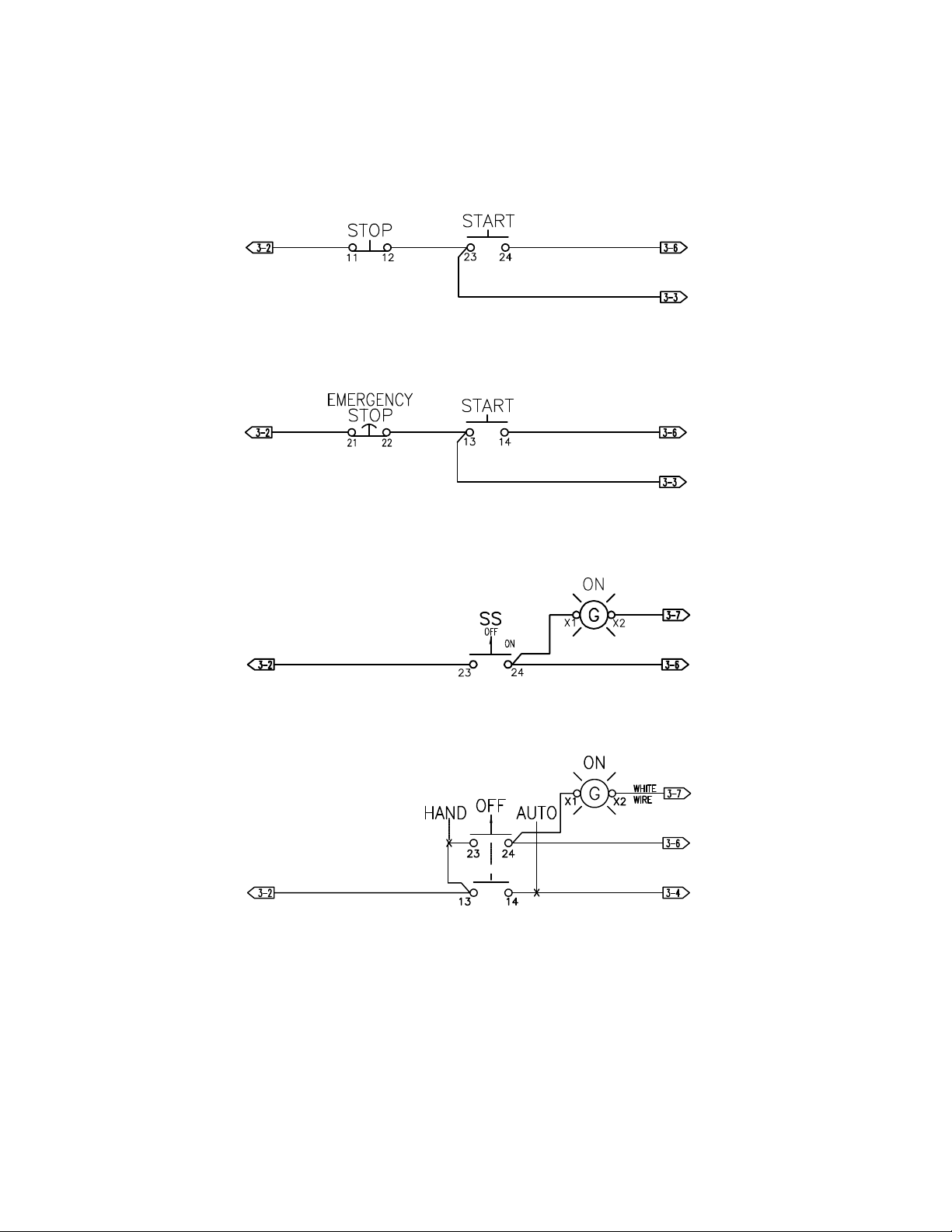

Pilot device kits ......................................................................................................................................................................................... 46

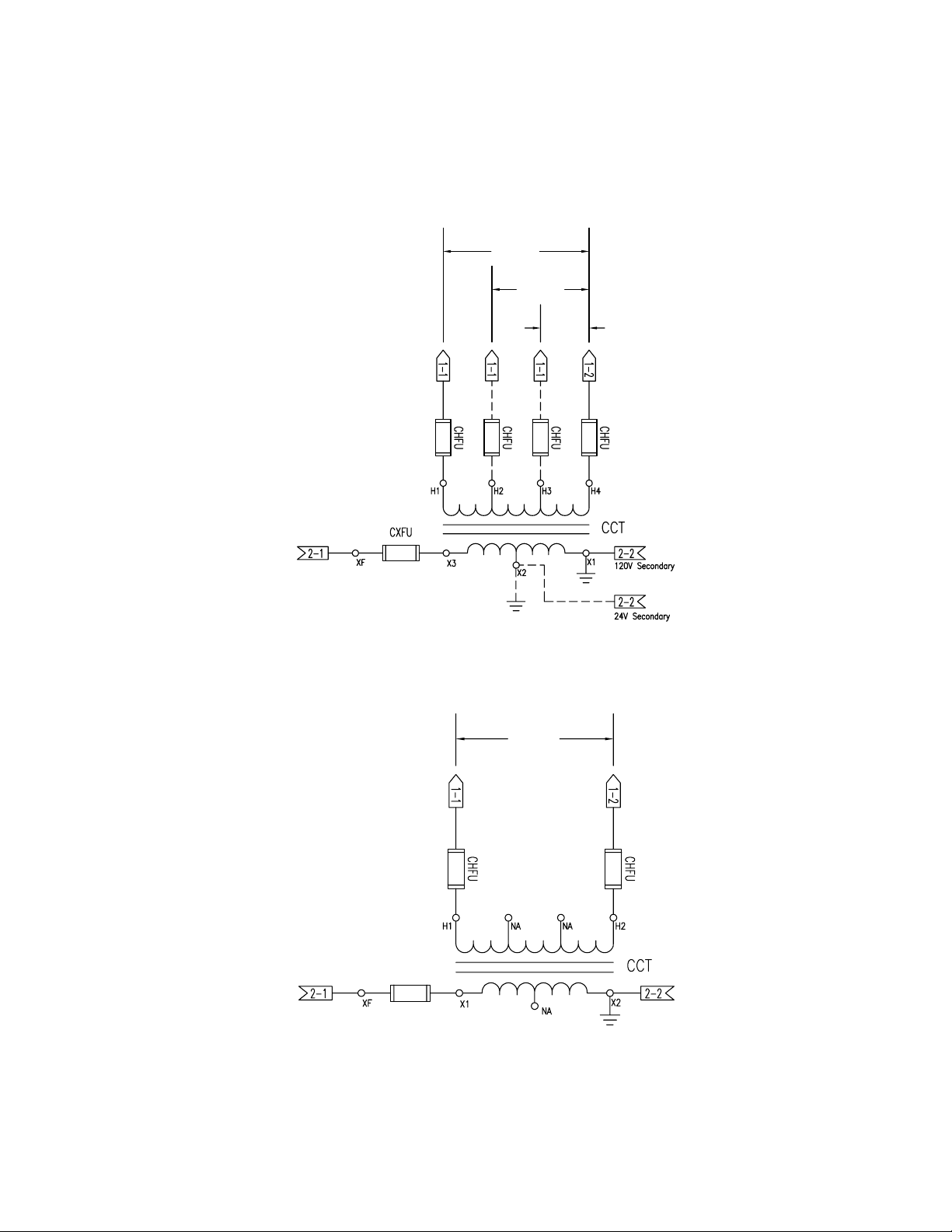

Control circuit transformer kits
Ratings

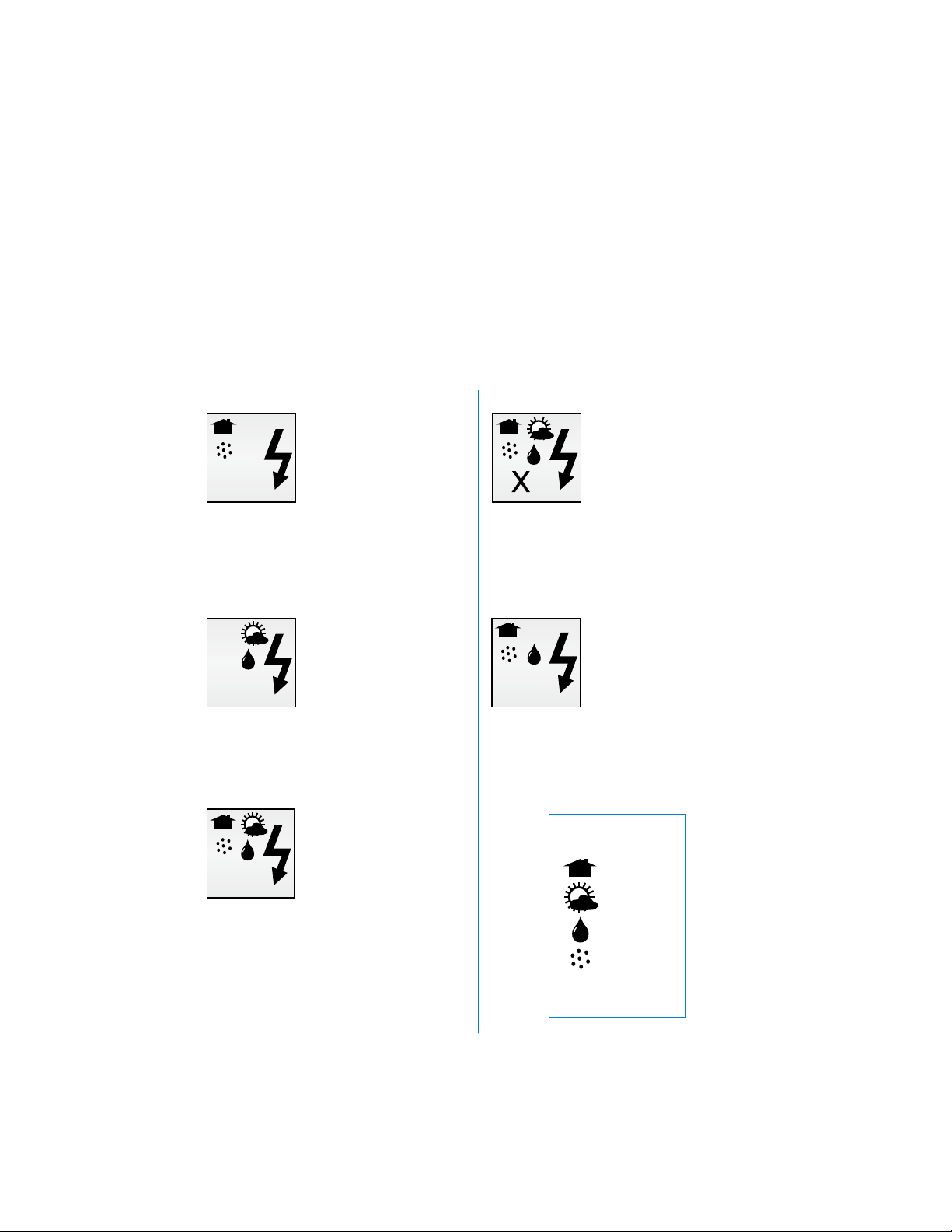

Enclosure rating definitions ....................................................................................................................................................................... 47
SCCR Ratings for combination starters .................................................................................................................................................... 48
IEC & NEMA Enclosed starters | 1
Page 4
General information
Product overview
Description
AF09 – AF750 and AFN00 - AFN4
• Maximum UL/CSA horsepower ratings
• Available with non-reversing, reversing, two speed one winding and two
speed two winding
• Available in non-combination and combination
• Available in UL type 1,3R,12, 4, and 4X stainless steel enclosures
• Available with non-fusible or fusible disconnect switches and thermal
magnetic circuit breaker
• Compact space saving design
• Standard auxiliary contact configurations: AF09 – AF750 (AFN00-AFN4)
1 N.O. & 1 N.C.
• Double break contact design
• Lowest possible contact bounce
• Operates over an extended voltage range of 85% to 110% of rated control
voltage
Overload relay protection
Starters, sizes AF09 – AF300 (AFN00-AFN4), have Class 10 adjustable ther­mal bimetallic overload relay protection as standard.
Sizes AF400 – AF750, have selectable Class 10, 20, 30 adjustable electronic
overload relay protection as standard.
Optional electronic overload relay protection is available for all starter sizes.
Field modification kits
Offers a wide variety of pilot device kits for non-reversing, reversing, two speed one winding and two speed two winding starters.
Control circuit transformer kits are also available with the following voltages:
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
The field kits are pre-wired, ready to operate, making installation easy and reliable
2 | IEC & NEMA Enclosed starters
Page 5
General information
Features and benefits
7
56
1
8 3
Features and benefits
1. Durable protective finish (carbon steel enclosures)
- Industry exclusive electrophoretic dip coat prime
- Power coated surface for added protection
2. Flange trough collar opening
- Channels liquids and dust away from enclosure gasket and enclosure interior
3. Seamless foamed-in-place gasket
- Provide secure seal against contaminates
- Ensures a dust tight and water tight seal
4. Pre-drilled mounting plate
- Easy mounting for control circuit transformer kit
2
4
5. Rugged and compact 22 mm pilot devices
- Meets UL/NEMA Type 1, 3R. 4, 4X. 12, 13
6. Convenient hole plugs for pilot device control
- Allows for quick installation of pilot device kit
7. Disconnect handle accepts 3 -3/8” padlocks in off position for safe
maintenance
8. Quarter turn enclosure latches
- Allows for quick entry and proper sealing of enclosure
IEC & NEMA Enclosed starters | 3
Page 6
Product configurator
1. Login to the LVP CPQ guest login.
2. Configure product.
3. Configure the catalog number using radial buttons and pull down menus to generate a valid catalog number and list price.
4 | IEC & NEMA Enclosed starters
Page 7
Catalog number explanation
Non-combination starter
AF26 1 S N 1 - 2 H A
Contactor size
AF26 AF210 AFN00 AF30 AF260 AFN0 AF50 AF300 AFN1 AF63 AF400 AFN2 AF75 AF460 AFN3 AF110 AF580 AFN4 AF145 AF750 AF185
Starter type
1 - Non reversing 2 - Reversing 3 - 2 Speed, 1 winding 4 - 2 Speed, 2 winding
Single phase
S - Single phase (insert only for single phase)
Disconnect type
Blank - Non-combination (starter only)
N - Non-fusible disconnect
Enclosure type
2 - NEMA/UL Type 1, 3R, 4, 12 X - NEMA/UL Type 4X (Stainless steel)
Coil voltage CCT
Option 1
See factory installed modifications on pages 29 & 30
Overload selection
See overload relay selection on pages 34 - 37
Coil voltage selection
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
AC Volts, 40-60 Hz
CCT Selection
IEC & NEMA Enclosed starters | 5
Page 8
Catalog number explanation
Combination starter
AF09 1 S F 1 - 2 H 1 A
Contactor size
AF09 AF145 AFN00 AF12 AF185 AFN0 AF16 AF210 AFN1 AF26 AF260 AFN2 AF30 AF300 AFN3 AF63 AF460 AFN4 AF75 AF580 AF110 AF750
Starter type
1 - Non reversing 2 - Reversing 3 - 2 Speed, 1 winding 4 - 2 Speed, 2 winding
Single phase
S - Single phase (insert only for single phase)
Disconnect type
B – Thermal magnetic circuit breaker (MCCB) F – Fusible disconnect
IEC Enclosure type
2 - NEMA/UL Type 1, 3R, 4, 12 X - NEMA/UL Type 4X (Stainless steel)
Coil voltage CCT
Coil voltage selection
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
AC Volts, 40-60 Hz
Option 1
See factory installed modifications on pages 29 & 30
Fuse clip rating / voltage fuse type
1 - 30A, 600V Class J 2 - 60A, 600V Class J 3 - 100A, 600V Class J 4 - 200A, 600V Class J 5 - 400A, 600V Class J 6 - 600A, 600V Class J
7 - 800A, 600V Class L 8 - 1200A, 600V Class L
Circuit breaker amp rating (200 - 600V)
1 - 15A B - 150A M - 800A 2 - 20A C - 200A N - 1000A
3 - 25A D - 250A P - 1200A
4 - 30A E - 300A
5 - 35A F - 350A
6 - 40A G - 400A
7 - 50A H - 450A
8 - 80A J - 500A 9 - 100A K - 600A
A - 125A L - 700A
CCT Selection
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
Overload selection
See Overload Relay Selection Chart on pages 34 - 37
6 | IEC & NEMA Enclosed starters
Page 9
IEC & NEMA Non-combination
AF26 - AF750; AFN00 - AFN4
Non-reversing, three phase
IEC Non-combination
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 7.5 7.5 15 20 AF2612-2∆ AF261X-2∆ 34 AF30 10 10 20 25 AF3012-2∆ AF301X-2∆ 54 AF50 15 20 40 50 AF5012-2∆ AF501X-2∆ 68 AF63 20 25 50 60 AF6312-2∆ AF631X-2∆
80 AF75 25 30 60 75 AF7512-2∆ AF751X-2∆ 110 AF110 30 40 75 100 AF11012-2∆ AF1101X-2∆ 130 AF145 40 50 100 125 AF14512-2∆ AF1451X-2∆ 156 AF185 50 60 125 150 AF18512-2∆ AF1851X-2∆ 192 AF210 60 75 150 200 AF21012-2∆ AF2101X-2∆ 248 AF260 75 100 200 250 AF26012-2∆ AF2601X-2∆ 302 AF300 100 - 250 300 AF30012-2∆ AF3001X-2∆ 414 AF400 125 150 350 400 AF40012-2∆ AF4001X-2∆ 480 AF460 150 200 400 500 AF46012-2∆ AF4601X-2∆ 590 AF580 200 250 500 600 AF58012-2∆ AF5801X-2∆ 722 AF750 250 300 600 700 AF75012-2∆ AF7501X-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 34 & 35.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Maximum motor horsepower ratings
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
NEMA Non-combination
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
NEMA
size
00 AFN00 9 1.5 1.5 2 AFN0012-2∆ AFN001X-2∆
0 AFN0 18 3 3 5 AFN012-2∆ AFN01X-2∆ 1 AN1 27 7.5 7.5 10 AFN112-2∆ AFN11X-2∆ 2 AFN2 45 10 15 25 AFN212-2∆ AFN21X-2∆ 3 AFN3 90 25 30 50 AFN312-2∆ AFN31X-2∆ 4 AFN4 135 40 50 100 AFN412-2∆ AFN41X-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 36 & 37.
Contactor Continuous
Maximum motor horsepower ratings
200V 230V 460/575V
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog
number
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF2612-1K
Coil voltage selection chart
Coil voltage
AC Volts, 40-60 Hz
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
1) 24 AC coil voltage is available only with AF26 & AF30, AFN00 - AFN1, For factory modifications, see pages 29 & 30.
Control transformer voltage selection
To select starter with control transformer, substitute the code from the con­trol transformer voltage selector chart after the dash in the catalog number.
Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF2612-CK
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
IEC & NEMA Enclosed starters | 7
Page 10
IEC & NEMA Non-combination
AF26 - AF110; AFN00 - AFN2
Non-reversing, single phase
IEC Non-combination
Maximum ratings - UL Listed UL Type 1 UL Type 4X
UL motor
switching
current
28 AF26 2 3 AF261S2-2∆ AF261SX-2∆ 34 AF30 - 5 AF301S2-2∆ AF301SX-2∆ 54 AF50 - 10 AF501S2-2∆ AF501SX-2∆ 80 AF75 - 15 AF751S2-2∆ AF751SX-2∆
110 AF110 - 25 AF1101S2-2∆ AF1101SX-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34.
Contactor Size
Maximum motor horsepower ratings
120V 240V
NEMA Non-combination
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
NEMA
size
00 AFN00 9 1/3 1 AFN001S2-2∆ AFN001SX-2∆
0 AFN0 18 1 2 AFN01S2-2∆ AFN01SX-2∆ 1 AN1 27 2 3 AFN11S2-2∆ AFN11SX-2∆ 2 AFN2 45 7.5 AFN21S2-2∆ AFN21SX-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on page 36.
Contactor Continuous
Maximum motor horsepower
ratings
120V 230V
Coil voltage selection 1)
All rated AC catalog numbers include a 120V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart for
the suffix code after the dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF261S2-1S
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Control transformer voltage selection
To select starter with control transformer, substitute the code from the con­trol transformer voltage selector chart after the dash in the catalog number.
Ex.: A 230V primary voltage with a 120V secondary voltage is required for an AF12 starter: AF121S2-BS
Coil voltage selection chart
Coil voltage
AC Volts, 40-60 Hz
24 AC 100 - 250 AC
1 2
1) 24 AC coil voltage is available only with AF26 & AF30, AFN00 - AFN1. For factory modifications, see page 29 & 30.
Control transformer voltage selection chart
Control Voltage
120V AC @ 50/60 Hz B
24V AC @ 50/60 Hz F
230-240
8 | IEC & NEMA Enclosed starters
Page 11
IEC & NEMA Non-fusible disconnect switch
AF26 - AF750; AFN00 - AFN4
Non-reversing, three phase
IEC Non-fusible disconnect switch
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 5 7.5 15 20 AF261N2-2∆ AF261NX-2∆ 34 AF30 10 10 20 25 AF301N2-2∆ AF301NX-2∆ 54 AF50 15 20 40 50 AF501N2-2∆ AF501NX-2∆ 68 AF63 20 25 50 60 AF631N2-2∆ AF631NX-2∆
80 AF75 25 30 60 75 AF751N2-2∆ AF751NX-2∆ 110 AF110 30 40 75 100 AF110N2-2∆ AF1101NX-2∆ 130 AF145 40 50 100 125 AF1451N2-2∆ AF1451NX-2∆ 156 AF185 50 60 125 150 AF1851N2-2∆ AF1851NX-2∆ 192 AF210 60 75 150 200 AF2101N2-2∆ AF2101NX-2∆ 248 AF260 75 100 200 250 AF2601N2-2∆ AF2601NX-2∆ 302 AF300 100 - 250 300 AF3001N2-2∆ AF3001NX-2∆ 414 AF400 125 150 350 400 AF4001N2-2∆ AF4001NX-2∆ 480 AF460 150 200 400 500 AF4601N2-2∆ AF4601NX-2∆ 590 AF580 200 250 500 600 AF5801N2-2∆ AF5801NX-2∆ 722 AF750 250 300 600 700 AF7501N2-2∆ AF7501NX-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 34 & 35.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Maximum motor horsepower ratings
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
NEMA Non-fusible disconnect switch
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
NEMA
size
00 AFN00 9 1.5 1.5 2 AFN001N2-2∆ AFN001NX-2∆
0 AFN0 18 3 3 5 AFN01N2-2∆ AFN01NX-2∆ 1 AFN1 27 7.5 7.5 10 AFN11N2-2∆ AFN11NX-2∆ 2 AFN2 45 10 15 25 AFN21N2-2∆ AFN21NX-2∆ 3 AFN3 90 25 30 50 AFN31N2-2∆ AFN31NX-2∆ 4 AFN4 135 40 50 100 AFN41N2-2∆ AFN41NX-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 36 & 37.
Contactor Continuous
Maximum motor horsepower ratings
200V 230V 460/575V
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog
number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF261N2-1K
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
1) 24 AC coil voltage is available only with AF26 & AF30, AFN00 - AFN1. For factory modifications, see pages 29 & 30.
AC Volts, 40-60 Hz
Control transformer voltage selection
To select starter with control transformer, substitute the code from the con­trol transformer voltage selector chart after the dash in the catalog number.
Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF261N2-CK
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
IEC & NEMA Enclosed starters | 9
Page 12
IEC & NEMA Non-fusible disconnect switch
AF26 - AF110; AFN00 - AFN2
Non-reversing, single phase
IEC Non-fusible disconnect switch
Maximum ratings - UL Listed UL Type 1 UL Type 4X
UL motor
switching
current
28 AF26 2 3 AF261SN2-2∆ AF261SNX-2∆ 34 AF30 - 5 AF301SN2-2∆ AF301SNX-2∆ 54 AF50 - 10 AF501SN2-2∆ AF501SNX-2∆ 80 AF75 - 15 AF751SN2-2∆ AF751SNX-2∆
110 AF110 - 25 AF1101SN2-2∆ AF1101SNX-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34.
Contactor Size
Maximum motor horsepower ratings
120V 240V
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
NEMA Non-fusible disconnect switch
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
NEMA
size
00 AFN00 9 1/3 1 AFN001SN2-2∆ A9N001SNX-2∆
0 AFN0 18 1 2 AFN01SN2-2∆ A16N01SNX-2∆
1 AN1 27 2 3 AFN11SN2-2∆ A26N11SNX-2∆
2 AFN2 45 7.5 AFN21SN2-2∆ A50N21SNX-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on page 36.
Contactor Continuous
Maximum motor horsepower ratings
120V 230V
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF12 starter: AF261SN2-1S
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 230V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF261SN2-BS
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
1) 24 AC coil voltage is available only with AF26 & AF30, AFN00 - AFN1. For factory modifications, see page 29 & 30.
AC Volts, 40-60 Hz
Control transformer voltage selection chart
Control Voltage 230-240
120V AC @ 50/60 Hz B
24V AC @ 50/60 Hz F
10 | IEC & NEMA Enclosed starters
Page 13
IEC & NEMA Fusible disconnect switch
AF09 - AF750; AFN00 - AFN4
Non-reversing, three phase
IEC Fusible disconnect switch
Maximum ratings - UL Listed
UL motor
switching
current
9 AF09 2 2 5 7.5 30/600 AF091F2-2∆1 AF091FX-2∆1 11 AF12 3 3 7.5 10 30/600 AF121F2-2∆1 AF121FX-2∆1 17 AF16 5 5 10 15 30/600 AF161F2-2∆1 AF161FX-2∆1 28 AF26 7.5 7.5 15 20 60/600 AF261F2-2∆2 AF261FX-2∆2 34 AF30 10 10 20 25 60/600 AF301F2-2∆2 AF301FX-2∆2 54 AF50 15 20 40 50 100/600 AF501F2-2∆3 AF501FX-2∆3 68 AF63 20 25 50 60 200/600 AF631F2-2∆4 AF631FX-2∆4 80 AF75 25 30 60 75 200/600 AF751F2-2∆4 AF751FX-2∆4
110 AF110 30 40 75 100 200/600 AF1101F2-2∆4 A1101FX-2∆4 130 AF145 40 50 100 125 400/600 AF1451F2-2∆5 AF1451FX-2∆5 156 AF185 50 60 125 150 400/600 AF1851F2-2∆5 AF1851FX-2∆5 192 AF210 60 75 150 200 400/600 AF2101F2-2∆5 AF2101FX-2∆5 248 AF260 75 - - - 400/600 AF2601F2-2∆5 AF2601FX-2∆5 248 AF260 - 100 200 250 600/600 AF2601F2-2∆6 AF2601FX-2∆6 302 AF300 100 - 250 300 600/600 AF3001F2-2∆6 AF3001FX-2∆6 414 AF400 125 150 350 400 800/600 AF4001F2-2∆7 AF4001FX-2∆7 480 AF460 150 200 400 500 800/600 AF4601F2-2∆7 AF4601FX-2∆7 590 AF580 200 250 500 600 1200/600 AF5801F2-2∆8 AF5801FX-2∆8 720 AF750 250 300 600 700 1200/600 AF7501F2-2∆8 AF7501FX-2∆8
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 34 & 35.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Maximum motor horsepower ratings
Fuse clip rating
amp/volts
UL Type 1, 3R, 4, 12 UL Type 4X
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
NEMA Fusible disconnect switch
Maximum ratings - UL Listed
NEMA
size
00 AFN00 9 1.5 1.5 2 30/600 AFN001F2-2∆1 AFN001FX-2∆1
0 AFN0 18 3 3 5 30/600 AFN01F2-2∆1 AFN01FX-2∆1
1 AFN1 27 10 30/600 AFN11F2-2∆1 AFN11FX-2∆1
1 AFN1 27 7.5 7.5 60/600 AFN11F2-2∆2 AFN11FX-2∆2
2 AFN2 45 10 25 60/600 AFN21F2-2∆2 AFN21FX-2∆2
2 AFN2 45 15 100/600 AFN21F2-2∆3 AFN21FX-2∆3
3 AFN3 90 25 30 50 200/600 AFN31F2-2∆4 AFN31FX-2∆4
4 AFN4 135 40 50 100 400/600 AFN41F2-2∆5 AFN41FX-2∆5
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 36 & 37.
Contactor Continuous
Maximum motor horsepower ratings
200V 230V 460/575V
Fuse clip rating
amp/volts
UL Type 1, 3R, 4, 12 UL Type 4X
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF12 starter: AF121F2-1R1
Coil voltage selection chart
Coil voltage
AC Volts, 40-60 Hz
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
1) 24 AC coil voltage is available only with AF09 - AF30, AFN00 - AFN1. For factory modifications, see page 29 & 30.
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF12 starter: AF121F2-CR1
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
IEC & NEMA Enclosed starters | 11
Page 14
IEC & NEMA Fusible disconnect
AF09 - AF110; AFN00 - AFN2
Non-reversing, single phase
IEC Fusible disconnect switch
Maximum ratings - UL Listed UL Type 1 UL Type 4X
UL motor
switching
current
9 AF09 1/2 1 AF091SF2-2∆1 AF91SFX-2∆1 11 AF12 - 2 AF121SF2-2∆1 AF121SFX-2∆1 17 AF16 3/4, 1 - AF161SF2-2∆1 AF161SFX-2∆1 28 AF26 - 3 AF261SF2-2∆1 AF261SFX-2∆1 28 AF26 2 - AF261SF2-2∆2 AF261SFX-2∆2 34 AF30 - 5 AF301SF2-2∆2 AF301SFX-2∆2 54 AF50 - 10 AF501SF2-2∆3 AF501SFX-2∆3 80 AF75 - 15 AF751SF2-2∆4 AF751SFX-2∆4
110 AF110 - 25 AF1101SF2-2∆4 AF1101SFX-2∆4
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34.
Contactor Size
Maximum motor horsepower ratings
120V 240V
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
NEMA Fusible disconnect switch
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
NEMA
size
00 AFN00 9 1/3 1 AFN001SF2-2∆1
0 AFN0 18 1 2 AFN01SF2-2∆1 AFN01SFX-2∆1 1 AFN1 27 - 3 AFN11SF2-2∆1 AFN11SFX-2∆1 1 AFN1 27 2 - AFN11SF2-2∆2 AFN11SFX-2∆2
2 AFN2 45 7.5 AFN21SF2-2∆2 AFN21SFX-2∆2
∆ Overload relay suffix code. Select from the overload relay selection chart on page 36.
Contactor Continuous
Maximum motor horsepower ratings
120V 230V
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
AFN001SFX-2∆
1
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF12 starter: AF121SF2-2R1
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
1) 24 AC coil voltage is available only with AF09 - AF30, AFN00 & AFN1. For factory modifications, see pages 29 & 30.
AC Volts, 40-60 Hz
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 230V primary voltage with a 120V secondary voltage is required for an AF12 starter: AF121SF2-BR1
Control transformer voltage selection chart
Control Voltage 230-240
120V AC @ 50/60 Hz B
24V AC @ 50/60 Hz F
12 | IEC & NEMA Enclosed starters
Page 15
IEC Circuit breaker type
AF26 - AF750
Non-reversing, three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 2 3 5 7.5 15 A AF261B2-2∆1 AF261BX-2∆1 28 AF26 3 - 7.5 10 20 A AF261B2-2∆2 AF261BX-2∆2 28 AF26 - 5 10 - 25 A AF261B2-2∆3 AF261BX-2∆3 28 AF26 5 - - 15 30 A AF261B2-2∆4 AF261BX-2∆4 28 AF26 - 7.5 15 20 35 A AF261B2-2∆5 AF261BX-2∆5 34 AF30 7.5 - - - 40 A AF301B2-2∆6 AF301BX-2∆6 34 AF30 10 10 20 25 50 A AF301B2-2∆7 AF301BX-2∆7 54 AF50 - - - 30 50 A AF501B2-2∆7 AF501BX-2∆7 54 AF50 15 15 40 50 80 A AF501B2-2∆8 AF501BX-2∆8 68 AF63 20 20 50 60 100 A AF631B2-2∆9 AF631BX-2∆9
80 AF75 25 30 60 75 125 A AF751B2-2∆A AF751BX-2∆A 110 AF110 30 - 75 100 150 A AF1101B2-2∆B AF1101BX-2∆B 110 AF110 - 40 - - 200 A AF1101B2-2∆C AF1101BX-2∆C 130 AF145 40 50 100 125 200 A AF1451B2-2∆C AF1451BX-2∆C 156 AF185 50 60 125 150 250 A AF1851B2-2∆D AF1851BX-2∆D 192 AF210 60 - - - 250 A AF2101B2-2∆D AF2101BX-2∆D 192 AF210 - 75 150 200 300 A AF2101B2-2∆E AF2101BX-2∆E 248 AF260 75 - - - 350 A AF2601B2-2∆F AF2601BX-2∆F 248 AF260 - 100 200 250 400 A AF2601B2-2∆G AF2601BX-2∆G 302 AF300 100 - - 300 450 A AF3001B2-2∆H AF3001BX-2∆H 302 AF300 - - 250 - 500 A AF3001B2-2∆J AF3001BX-2∆J 414 AF400 - 125 - - 500 A AF4001B2-2∆J AF4001BX-2∆J 414 AF400 125 150 300 400 600 A AF4001B2-2∆K AF4001BX-2∆K 414 AF400 - - 350 - 700 A AF4001B2-2∆L AF4001BX-2∆L 480 AF460 150 - - - 600 A AF4601B2-2∆K AF4601BX-2∆K 480 AF460 - 200 400 500 800 A AF4601B2-2∆M AF4601BX-2∆M 590 AF580 200 - - - 800 A AF5801B2-2∆M AF5801BX-2∆M 590 AF580 - 250 500 600 1000 A AF5801B2-2∆N AF5801BX-2∆N 722 AF750 250 - - - 1000 A AF7501B2-2∆N AF7501BX-2∆N 722 AF750 - 300 600 700 1200 A AF7501B2-2∆P AF7501BX-2∆P
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 34 & 35.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Maximum motor horsepower ratings
Circuit Breaker
Amp Rating
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF261B2-1K1
Coil voltage selection chart
Coil voltage
AC Volts, 40-60 Hz
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
1) 24 AC coil voltage is available only with AF26 & AF30, For factory modifications, see pages 29 & 30.
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF261B2-CK1
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @
50/60 Hz
24V AC @
50/60 Hz
A B C D
E F G H
IEC & NEMA Enclosed starters | 13
Page 16
NEMA Circuit breaker type
AFN00 - AFN4
Non-reversing, three phase
Maximum ratings - UL Listed
NEMA
size
00 AFN00 9 1.5 1.5 2 2 15 A AFN001B2-2∆1 AFN001BX-2∆1
0 AFN0 18
1 AFN1 27
2 AFN2 45
3 AFN3 90
4 AFN4 135
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 36 & 37.
Contactor Continuous
208V 230V 460V 575V
7.5 - - - 40 A AFN11B2-2∆6 AFN11B2-2∆6
10 10 20 25 50 A AFN21B2-2∆7 AFN21BX-2∆7
15 - - 40 80 A AFN31B2-2∆8 AFN31BX-2∆8
25 30 - - 125 A AFN31B2-2∆A AFN31BX-2∆A
30 - 75 100 150 A AFN41B2-2∆B AFN41BX-2∆B 40 50 100 - 200 A AFN41B2-2∆C AFN41BX-2∆C
Maximum motor horsepower ratings
2 3 5 5 15 A AFN01B2-2∆1 AFN01BX-2∆1 3 - - - 20 A AFN01B2-2∆2 AFN01BX-2∆2
- - - 7.5 15 A AFN11B2-2∆1 AFN11BX-2∆1
- - 7.5 10 20 A AFN11B2-2∆2 AFN11BX-2∆2
- 5 10 - 25 A AFN11B2-2∆3 AFN11BX-2∆3 5 - - - 30 A AFN11B2-2∆4 AFN11BX-2∆4
- 7.5 - - 35 A AFN11B2-2∆5 AFN11B2-2∆5
- - 15 20 40 A AFN21B2-2∆6 AFN21BX-2∆6
- - 25 - 80 A AFN21B2-2∆8 AFN21BX-2∆8
- 15 - - 80 A AFN21B2-2∆8 AFN21BX-2∆8
- - - 30 50 A AFN31B2-2∆7 AFN31BX-2∆7
- - 30 - 80 A AFN31B2-2∆8 AFN31BX-2∆8
- - 40 50 80 A AFN31B2-2∆8 AFN31BX-2∆8
- - 50 - 100 A AFN31B2-2∆9 AFN31BX-2∆9
- - 60 75 125 A AFN41B2-2∆A AFN41BX-2∆A
Circuit breaker
rating Amps
UL Type 1, 3R, 4, 12 UL Type 4X
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless stee
Catalog
number
l
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AFN1B2-1R1
Coil voltage selection chart
Coil voltage
AC Volts, 40-60 Hz
24 AC 100 - 250 AC
1 2
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 230V primary voltage with a 120V secondary voltage is required for an AFN1B2-CR1
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
1) 24 AC coil voltage is available only with AFN00 - AFN1. For factory modifications, see pages 29 & 30.
14 | IEC & NEMA Enclosed starters
Page 17
IEC & NEMA Circuit breaker disconnect
AF26 - AF110; AFN00 - AFN2
Non-reversing, single phase
IEC Circuit breaker disconnect
Maximum ratings - UL Listed
UL motor
switching
current
28 AF26 1/2 1 15 A AF261SB2-2∆1 AF261SBX-2∆1 28 AF26 - 2 20 A AF261SB2-2∆2 AF261SBX-2∆2 28 AF26 1 - 25 A AF261SB2-2∆3 AF261SBX-2∆3 28 AF26 1.5 3 30 A AF261SB2-2∆4 AF261SBX-2∆4
28 AF26 2 - 40 A AF261SB2-2∆6 AF261SBX-2∆6 34 AF30 - 5 50 A AF301SB2-2∆7 AF301SBX-2∆7 54 AF50 - 10 80 A AF501SB2-2∆8 AF501SBX-2∆8 80 AF75 - 15 125 A AF751SB2-2∆A AF751SBX-2∆A
110 AF110 - 20 150 A AF1101SB2-2∆B AF1101SBX-2∆B 110 AF110 - 25 200 A AF1101SB2-2∆C AF1101SBX-2∆C
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34.
Contactor Size
Maximum motor horsepower ratings
120V 240V
NEMA Circuit breaker disconnect
Maximum ratings - UL Listed
NEMA
size
00 AFN00 9 1/3 1 15 A AFN001SB2-2∆1 AFN001SBX-2∆1
0 AFN0 18 1/2 1.5 15 A AFN01SB2-2∆1 AFN01SBX-2∆1 0 AFN0 18 - 2 20 A AFN01SB2-2∆2 AFN01SBX-2∆2 0 AFN0 18 1 - 25 A AFN01SB2-2∆3 AFN01SBX-2∆3 1 AFN1 27 - 3 30 A AFN11SB2-2∆4 AFN11SBX-2∆4 1 AFN1 27 2 - 40 A AFN11SB2-2∆6 AFN11SBX-2∆6 2 AFN2 45 7.5 80 A AFN21SB2-2∆8 AFN21SBX-2∆8
∆ Overload relay suffix code. Select from the overload relay selection chart on page 36.
Contactor Continuous
Maximum motor horsepower ratings
120V 230V
Circuit breaker
amp rating
Circuit breaker
amp rating
UL Type 1 UL Type 4X
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
UL Type 1, 3R, 4, 12 UL Type 4X
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection 1)
All AC operated catalog numbers include a a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF261SB2-1R1
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
1) 24 AC coil voltage is available only with AF26 & AF30, AFN00 - AFN1. For factory modifications, see pages 29 & 30.
AC Volts, 40-60 Hz
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 230V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF261SB2-BR1
Control transformer voltage selection chart
Control Voltage 230-240
120V AC @ 50/60 Hz B
24V AC @ 50/60 Hz F
IEC & NEMA Enclosed starters | 15
Page 18
IEC & NEMA Non-combination
AF26 - AF750; AFN00 - AFN4
Reversing, three phase
IEC Non-combination
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 7.5 7.5 15 20 AF2622-2∆ AF262X-2∆ 34 AF30 10 10 20 25 AF3022-2∆ AF302X-2∆ 54 AF50 15 20 40 50 AF5022-2∆ AF502X-2∆ 68 AF63 20 25 50 60 AF6322-2∆ AF632X-2∆
80 AF75 25 30 60 75 AF7522-2∆ AF752X-2∆ 110 AF110 30 40 75 100 AF11022-2∆ AF1102X-2∆ 130 AF145 40 50 100 125 AF14522-2∆ AF1452X-2∆ 156 AF185 50 60 125 150 AF18522-2∆ AF1852X-2∆ 192 AF210 60 75 150 200 AF21022-2∆ AF2102X-2∆ 248 AF260 75 100 200 250 AF26022-2∆ AF2602X-2∆ 302 AF300 100 - 250 300 AF30022-2∆ AF3002X-2∆ 414 AF400 125 150 350 400 AF40022-2∆ AF4002X-2∆ 480 AF460 150 200 400 500 AF46022-2∆ AF4602X-2∆ 590 AF580 200 250 500 600 AF58022-2∆ AF5802X-2∆ 720 AF750 250 300 600 700 AF75022-2∆ AF7502X-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 34 & 35.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Maximum motor horsepower ratings
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
NEMA Non-combination
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
NEMA
size
00 AFN00 9 1.5 1.5 2 AFN0022-2∆ AFN002X-2∆
0 AFN0 18 3 3 5 AFN022-2∆ AFN02X-2∆ 1 AN1 27 7.5 7.5 10 AFN122-2∆ AFN12X-2∆ 2 AFN2 45 10 15 25 AFN222-2∆ AFN22X-2∆ 3 AFN3 90 25 30 50 AFN322-2∆ AFN32X-2∆ 4 AFN4 135 40 50 100 AFN422-2∆ AFN42X-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 36 & 37.
Contactor Continuous
Maximum motor horsepower ratings
200V 230V 460/575V
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF2622-1K
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
1) 24 AC coil voltage is available only with AF26 & AF30, AFN00 - AFN1. For factory modifications, see pages 29 & 30.
16 | IEC & NEMA Enclosed starters
AC Volts, 40-60 Hz
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF2622-CK
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
Page 19
IEC & NEMA Non-fusible disconnect switch
AF26 - AF750; AFN00 - AFN4
Reversing, three phase
IEC Non-combination
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 7.5 7.5 15 20 AF262N2-2∆ AF262NX-2∆
24 AF30 10 10 20 25 AF302N2-2∆ AF302NX-2∆
54 AF50 15 20 40 50 AF502N2-2∆ AF502NX-2∆
68 AF63 20 25 50 60 AF632N2-2∆ AF632NX-2∆
80 AF75 25 30 60 75 AF752N2-2∆ AF752NX-2∆
110 AF110 30 40 75 100 AF110N2-2∆ AF1102NX-2∆ 130 AF145 40 50 100 125 AF1452N2-2∆ AF1452NX-2∆ 156 AF185 50 60 125 150 AF1852N2-2∆ AF1852NX-2∆ 192 AF210 60 75 150 200 AF2102N2-2∆ AF2102NX-2∆ 248 AF260 75 100 200 250 AF2602N2-2∆ AF2602NX-2∆ 302 AF300 100 - 250 300 AF3002N2-2∆ AF3002NX-2∆ 414 AF400 125 150 350 400 AF4002N2-2∆ AF4002NX-2∆ 480 AF460 150 200 400 500 AF4602N2-2∆ AF4602NX-2∆ 590 AF580 200 250 500 600 AF5802N2-2∆ AF5802NX-2∆ 722 AF750 250 300 600 700 AF7502N2-2∆ AF7502NX-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 34 & 35.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Maximum motor horsepower ratings
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
NEMA Non-combination
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
NEMA
size
00 AFN00 9 1.5 1.5 2 AFN002N2-2∆ AFN002NX-2∆
0 AFN0 18 3 3 5 AFN02N2-2∆ AFN02NX-2∆ 1 AN1 27 7.5 7.5 10 AFN12N2-2∆ AFN12NX-2∆ 2 AFN2 45 10 15 25 AFN22N2-2∆ AFN22NX-2∆ 3 AFN3 90 25 30 50 AFN32N2-2∆ AFN32NX-2∆ 4 AFN4 135 40 50 100 AFN42N2-2∆ AFN42NX-2∆
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 36 & 37.
Contactor Continuous
Maximum motor horsepower ratings
200V 230V 460/575V
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF262N2-1K
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
1) 24 AC coil voltage is available only with AF26 & AF30, AFN00 - AFN1. For factory modifications, see pages 29 & 30.
AC Volts, 40-60 Hz
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF262N2-CK
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
IEC & NEMA Enclosed starters | 17
Page 20
IEC & NEMA Fusible disconnect switch
AF09 - AF750; AFN00 - AFN4
Reversing, three phase
IEC Fusible disconnect switch
Maximum ratings - UL Listed
UL motor
switching
current
9 AF9 2 2 5 7.5 30/600 AF092F2-2∆1 AF092FX-2∆1
11 AF12 3 3 7.5 10 30/600 AF122F2-2∆1 AF122FX-2∆1 17 AF16 5 5 10 15 30/600 AF162F2-2∆1 AF162FX-2∆1 28 AF26 7.5 7.5 15 20 60/600 AF262F2-2∆2 AF262FX-2∆2 34 AF30 10 10 20 25 60/600 AF302F2-2∆2 AF302FX-2∆2 54 AF50 15 20 40 50 100/600 AF502F2-2∆3 AF502FX-2∆3 68 AF63 20 25 50 60 200/600 AF632F2-2∆4 AF632FX-2∆4
80 AF75 25 30 60 75 200/600 AF752F2-2∆4 AF752FX-2∆4 110 AF110 30 40 75 100 200/600 AF1102F2-2∆4 AF1102FX-2∆4 130 AF145 40 50 100 125 400/600 AF1452F2-2∆5 AF1452FX-2∆5 156 AF185 50 60 125 150 400/600 AF1852F2-2∆5 AF1852FX-2∆5 192 AF210 60 75 150 200 400/600 AF2102F2-2∆5 AF2102FX-2∆5 248 AF260 75 - - - 400/600 AF2602F2-2∆5 AF2602FX-2∆5 248 AF260 - 100 200 250 600/600 AF2602F2-2∆6 AF2602FX-2∆6
302 AF300 100 100 250 300 600/600 AF3002F2-2∆6 AF3002FX-2∆6 414 AF400 125 150 350 400 800/600 AF4002F2-2∆7 AF4002FX-2∆7 480 AF460 150 200 400 500 800/600 AF4602F2-2∆7 AF4602FX-2∆7 590 AF580 200 250 500 600 1200/600 AF5802F2-2∆8 AF5802FX-2∆8 722 AF750 250 300 600 700 1200/600 AF7502F2-2∆8 AF7502FX-2∆8
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 34 & 35.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Maximum motor horsepower ratings
Fuse clip rating
amp/volts
UL Type 1, 3R, 4, 12 UL Type 4X
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
NEMA Fusible disconnect switch
Maximum ratings - UL Listed
NEMA
size
00 AFN00 9 1.5 1.5 2 30/600 AFN002F2-2∆1 AFN002FX-2∆1
0 AFN0 18 3 3 5 30/600 AFN02F2-2∆1 AFN02FX-2∆1 1 AFN1 27 10 30/600 AFN12F2-2∆1 AFN12FX-2∆1 1 AFN1 27 7.5 7.5 60/600 AFN12F2-2∆2 AFN12FX-2∆2 2 AFN2 45 10 25 60/600 AFN22F2-2∆2 AFN22FX-2∆2 2 AFN2 45 15 100/600 AFN22F2-2∆3 AFN22FX-2∆3 3 AFN3 90 25 30 50 200/600 AFN32F2-2∆4 AFN32FX-2∆4 4 AFN4 135 40 50 100 400/600 AFN42F2-2∆5 AFN42FX-2∆5
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 36 & 37.
Contactor Continuous
Maximum motor horsepower ratings
200V 230V 460/575V
Fuse clip rating
amp/volts
UL Type 1, 3R, 4, 12 UL Type 4X
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF12 starter: AF122F2-1K1
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
1) 24 AC coil voltage is available only with AF09 - AF30, AFN00 - AFN1. For factory modifications, see pages 29 & 30.
18 | IEC & NEMA Enclosed starters
AC Volts, 40-60 Hz
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF12 starter: AF122F2-CR1
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
Page 21
IEC Circuit breaker type
AF26 - AF750
Reversing, three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 2 3 5 7.5 15 A AF262B2-2∆1 AF262BX-2∆1 28 AF26 3 - 7.5 10 20 A AF262B2-2∆2 AF262BX-2∆2 28 AF26 - 5 10 - 25 A AF262B2-2∆3 AF262BX-2∆3 28 AF26 5 - - 15 30 A AF262B2-2∆4 AF262BX-2∆4 28 AF26 - 7.5 15 20 35 A AF262B2-2∆5 AF262BX-2∆5 34 AF30 7.5 - - - 40 A AF302B2-2∆6 AF302BX-2∆6 34 AF30 10 10 20 25 50 A AF302B2-2∆7 AF302BX-2∆7 54 AF50 - - - 30 50 A AF502B2-2∆7 AF502BX-2∆7 54 AF50 15 15 40 50 80 A AF502B2-2∆8 AF502BX-2∆8 68 AF63 20 20 50 60 100 A AF632B2-2∆9 AF632BX-2∆9
80 AF75 25 30 60 75 125 A AF752B2-2∆A AF752BX-2∆A 110 AF110 30 - 75 100 150 A AF1102B2-2∆B AF1102BX-2∆B 110 AF110 - 40 - - 200 A AF1102B2-2∆C AF1102BX-2∆C 130 AF145 40 50 100 125 200 A AF1452B2-2∆C AF1452BX-2∆C 156 AF185 50 60 125 150 250 A AF1852B2-2∆D AF1852BX-2∆D 192 AF210 60 - - - 250 A AF2102B2-2∆D AF2102BX-2∆D 192 AF210 - 75 150 200 300 A AF2102B2-2∆E AF2102BX-2∆E 248 AF260 75 - - - 350 A AF2602B2-2∆F AF2602BX-2∆F 248 AF260 - 100 200 250 400 A AF2602B2-2∆G AF2602BX-2∆G 302 AF300 100 - - 300 450 A AF3002B2-2∆H AF3002BX-2∆H 302 AF300 - - 250 - 500 A AF3002B2-2∆J AF3002BX-2∆J 414 AF400 - 125 - - 500 A AF4002B2-2∆J AF4002BX-2∆J 414 AF400 125 150 300 400 600 A AF4002B2-2∆K AF4002BX-2∆K 414 AF400 - - 350 - 700 A AF4002B2-2∆L AF4002BX-2∆L 480 AF460 150 - - - 600 A AF4602B2-2∆K AF4602BX-2∆K 480 AF460 - 200 400 500 800 A AF4602B2-2∆M AF4602BX-2∆M 590 AF580 200 - - - 800 A AF5802B2-2∆M AF5802BX-2∆M 590 AF580 - 250 500 600 1000 A AF5802B2-2∆N AF5802BX-2∆N 722 AF750 250 - - - 1000 A AF7502B2-2∆N AF7502BX-2∆N 722 AF750 - 300 600 700 1200 A AF7502B2-2∆P AF7502BX-2∆P
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 34 & 35.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Maximum motor horsepower ratings
Circuit Breaker
Amp Rating
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF262B2-1K1
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
1) 24 AC coil voltage is available only with AF26 & AF30, For factory modifications, see page 29 & 30.
AC Volts, 40-60 Hz
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF261B2-CK1
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
IEC & NEMA Enclosed starters | 19
Page 22
NEMA Circuit breaker type
AFN00 - AFN4
Reversing, three phase
Maximum ratings - UL Listed
NEMA
size
00 AFN00 9 1.5 1.5 2 2 15 A AFN002B2-2∆1 AFN002BX-2∆1
0 AFN0 18
1 AFN1 27
2 AFN2 45
3 AFN3 90
4 A145N4 135
∆ Overload relay suffix code. Select from the overload relay selection chart on pages 36 & 37.
Contactor Continuous
208V 230V 460V 575V
7.5 - - - 40 A AFN12B2-2∆6 AFN11B2X-2∆6
10 10 20 25 50 A AFN22B2-2∆7 AFN22BX-2∆7
15 - - 40 80 A AFN32B2-2∆8 AFN32BX-2∆8
25 30 - - 125 A AFN32B2-2∆A AFN32BX-2∆A
30 - 75 100 150 A AFN42B2-2∆B AFN42BX-2∆B 40 50 100 - 200 A AFN42B2-2∆C AFN42BX-2∆C
Maximum motor horsepower ratings
2 3 5 5 15 A AFN02B2-2∆1 AFN02BX-2∆1 3 - - - 20 A AFN02B2-2∆2 AFN02BX-2∆2
- - - 7.5 15 A AFN12B2-2∆1 AFN12BX-2∆1
- - 7.5 10 20 A AFN12B2-2∆2 AFN12BX-2∆2
- 5 10 - 25 A AFN12B2-2∆3 AFN12BX-2∆3
5 - - - 30 A AFN12B2-2∆4 AFN12BX-2∆4
- 7.5 - - 35 A AFN12B2-2∆5 AFN11BX-2∆5
- - 15 20 40 A AFN22B2-2∆6 AFN22BX-2∆6
- 15 25 - 80 A AFN22B2-2∆8 AFN22BX-2∆8
- - - 30 50 A AFN32B2-2∆7 AFN32BX-2∆7
- - 30 - 80 A AFN32B2-2∆8 AFN32BX-2∆8
- - 40 50 80 A AFN32B2-2∆8 AFN32BX-2∆8
- - 50 - 100 A AFN32B2-2∆9 AFN32BX-2∆9
- - 60 75 125 A AFN42B2-2∆A AFN42BX-2∆A
Circuit breaker
rating
Amps
UL Type 1, 3R, 4, 12 UL Type 4X
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AFN0 starter: AFN12B2-1K1.
Coil voltage selection chart
Coil voltage
AC Volts, 40-60 Hz
24 AC 100 - 250 AC 250 - 500 AC
1 2 3
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AFN0 starter: AFN12B2-CK1.
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
1) 24 AC coil voltage is available only with AFN00 - AFN1. For factory modifications, see pages 29 & 30.
20 | IEC & NEMA Enclosed starters
Page 23
IEC Non-combination
AF26 - AF75 2 Speed, 1 winding; three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 7.5 7.5 15 20 AF2632-2∆∆ AF263X-2∆∆ 34 AF30 10 10 20 25 AF3032-2∆∆ AF303X-2∆∆ 54 AF50 15 20 40 50 AF5032-2∆∆ AF503X-2∆∆ 68 AF63 20 25 50 60 AF6332-2∆∆ AF633X-2∆∆ 80 AF75 25 30 60 75 AF7532-2∆∆ AF753X-2∆∆
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34. 1st ∆ low speed; 2nd ∆ high speed.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF2632-1KP
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
AC Volts, 40-60 Hz
Maximum motor horsepower ratings
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF2632-CKP
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
1) 24 AC coil voltage is available only with AF26 & AF30, For factory modifications, see pages 29 & 30.
IEC & NEMA Enclosed starters | 21
Page 24
IEC Non-fusible disconnect switch
AF26 - AF75 2 Speed, 1 winding; three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 7.5 7.5 15 20 AF263N2-2∆∆ AF263NX-2∆∆ 34 AF30 10 10 20 25 AF303N2-2∆∆ AF303NX-2∆∆ 54 AF50 15 20 40 50 AF503N2-2∆∆ AF503NX-2∆∆ 68 AF63 20 25 50 60 AF633N2-2∆∆ AF633NX-2∆∆ 80 AF75 25 30 60 75 AF753N2-2∆∆ AF753NX-2∆∆
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34. 1st ∆ low speed; 2nd ∆ high speed.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF263N2-1KP
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
AC Volts, 40-60 Hz
Maximum motor horsepower ratings
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF263N2-CKP
Control transformer voltage selection chart
Control Voltage
120V AC @ 50/60 Hz
24V AC @ 50/60 Hz
200-208 230-240 460-480 575-600
A B C D
E F G H
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
1) 24 AC coil voltage is available only with AF26 & AF30, For factory modifications, see pages 29 & 30.
22 | IEC & NEMA Enclosed starters
Page 25
Fusible disconnect switch
AF09 - AF75 2 Speed, 1 winding; three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
9 AF09 2 2 5 7.5 30/600 AF093F2-2∆∆1 AF093FX-2∆∆1 11 AF12 3 3 7.5 10 30/600 AF123F2-2∆∆1 AF123FX-2∆∆1 17 AF16 5 5 10 15 30/600 AF163F2-2∆∆1 AF163FX-2∆∆1 28 AF26 7.5 7.5 15 20 60/600 AF263F2-2∆∆2 AF263FX-2∆∆2 34 AF30 10 10 20 25 60/600 AF303F2-2∆∆2 AF303FX-2∆∆2 54 AF50 15 20 40 50 100/600 AF503F2-2∆∆3 AF503FX-2∆∆3 68 AF63 20 25 50 60 200/600 AF633F2-2∆∆4 AF633FX-2∆∆4 80 AF75 25 30 60 75 200/600 AF753F2-2∆∆4 AF753FX-2∆∆4
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34. 1st ∆ low speed; 2nd ∆ high speed.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF09 starter: AF093F121KP1
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
AC Volts, 40-60 Hz
Maximum motor horsepower ratings
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF09 starter: AF093F2-CKP1
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
Fuse clip rating
amp/volts
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog
number
1) 24 AC coil voltage is available only with AF09 - AF30, For factory modifications, see pages 29 & 30.
IEC & NEMA Enclosed starters | 23
Page 26
IEC Circuit breaker type
AF26 - AF75 2 Speed, 1 winding; three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 2 3 5 7.5 15 A AF263B2-2∆∆1 AF263BX-2∆∆1 28 AF26 3 - 7.5 10 20 A AF263B2-2∆∆2 AF263BX-2∆∆2 28 AF26 - 5 10 - 25 A AF263B2-2∆∆3 AF263BX-2∆∆3 28 AF26 5 - - 15 30 A AF263B2-2∆∆4 AF263BX-2∆∆4 28 AF26 - 7.5 15 20 35 A AF263B2-2∆∆5 AF263BX-2∆∆5 34 AF30 7.5 - - - 40 A AF303B2-2∆∆6 AF303BX-2∆∆6 34 AF30 10 10 20 25 50 A AF303B2-2∆∆7 AF303BX-2∆∆7
54 AF50 - - - 30 50 A AF503B2-2∆∆7 AF503BX-2∆∆7 54 AF50 15 15 40 50 80 A AF503B2-2∆∆8 AF503BX-2∆∆8 68 AF63 20 20 50 60 100 A AF633B2-2∆∆9 AF633BX-2∆∆9 80 AF75 25 30 60 75 125 A AF753B2-2∆∆A AF753BX-2∆∆A
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34. 1st ∆ low speed; 2nd ∆ high speed.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF263B2-1KP1
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
AC Volts, 40-60 Hz
Maximum motor horsepower ratings
Control transformer voltage selection
To select starter with control transformer, substitute the code from the con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF263B2-CKP1
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
Circuit Breaker
Amp Rating
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
1) 24 AC coil voltage is available only with AF26 & AF30, For factory modifications, see pages 29 & 30.
24 | IEC & NEMA Enclosed starters
Page 27
IEC Non-combination
AF26 - AF75 2 Speed, 2 winding; three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 7.5 7.5 15 20 AF2642-2∆∆ AF264X-2∆∆ 34 AF30 10 10 20 25 AF3042-2∆∆ AF304X-2∆∆ 54 AF50 15 20 40 50 AF5042-2∆∆ AF504X-2∆∆ 68 AF63 20 25 50 60 AF6342-2∆∆ AF634X-2∆∆ 80 AF75 25 30 60 75 AF7542-2∆∆ AF754X-2∆∆
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34. 1st ∆ low speed; 2nd ∆ high speed.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF2642-1KP
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
AC Volts, 40-60 Hz
Maximum motor horsepower ratings
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF2642-CKP
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog
number
1) 24 AC coil voltage is available only with AF26 & AF30, For factory modifications, see pages 29 & 30.
IEC & NEMA Enclosed starters | 25
Page 28
IEC Non-fusible disconnect switch
AF26 - AF75 2 Speed, 2 winding; three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 7.5 7.5 15 20 AF264N2-2∆∆ AF264NX-2∆∆ 34 AF30 10 10 20 25 AF304N2-2∆∆ AF304NX-2∆∆ 54 AF50 15 20 40 50 AF504N2-2∆∆ AF504NX-2∆∆ 68 AF63 20 25 50 60 AF634N2-2∆∆ AF634NX-2∆∆ 80 AF75 25 30 60 75 AF754N2-2∆∆ AF754NX-2∆∆
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34. 1st ∆ low speed; 2nd ∆ high speed.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF264N2-1KP
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
AC Volts, 40-60 Hz
Maximum motor horsepower ratings
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF264N2-CKP
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog
number
1) 24 AC coil voltage is available only with AF26 & AF30, For factory modifications, see pages 29 & 30.
26 | IEC & NEMA Enclosed starters
Page 29
IEC Fusible disconnect switch
AF09 - AF75 2 Speed, 2 winding; three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
9 AF09 2 2 5 7.5 30/600 AF094F2-2∆∆1 AF094FX-2∆∆1 11 AF12 3 3 7.5 10 30/600 AF124F2-2∆∆1 AF124FX-2∆∆1 17 AF16 5 5 10 15 30/600 AF164F2-2∆∆1 AF164FX-2∆∆1 28 AF26 7.5 7.5 15 20 60/600 AF264F2-2∆∆2 AF264FX-2∆∆2 34 AF30 10 10 20 25 60/600 AF304F2-2∆∆2 AF304FX-2∆∆2 54 AF50 15 20 40 50 100/600 AF504F2-2∆∆3 AF504FX-2∆∆3 68 AF63 20 25 50 60 200/600 AF634F2-2∆∆4 AF634FX-2∆∆4 80 AF75 25 30 60 75 200/600 AF754F2-2∆∆4 AF754FX-2∆∆4
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34. 1st ∆ low speed; 2nd ∆ high speed.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF12 starter: AF124F2-1KP1
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
AC Volts, 40-60 Hz
Maximum motor horsepower ratings
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF12 starter: AF124F2-CKP1
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
Fuse clip rating
amp/volts
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
1) 24 AC coil voltage is available only with AF09 - AF30, For factory modifications, see pages 29 & 30.
IEC & NEMA Enclosed starters | 27
Page 30
IEC Circuit breaker type
AF26 - AF75 2 Speed, 2 winding; three phase
Maximum ratings - UL Listed UL Type 1, 3R, 4, 12 UL Type 4X
UL motor
switching
current
28 AF26 2 3 5 7.5 15 A AF264B2-2∆∆1 AF264BX-2∆∆1 28 AF26 3 - 7.5 10 20 A AF264B2-2∆∆2 AF264BX-2∆∆2 28 AF26 - 5 10 - 25 A AF264B2-2∆∆3 AF264BX-2∆∆3 28 AF26 5 - - 15 30 A AF264B2-2∆∆4 AF264BX-2∆∆4 28 AF26 - 7.5 15 20 35 A AF264B2-2∆∆5 AF264BX-2∆∆5 34 AF30 7.5 - - - 40 A AF304B2-2∆∆6 AF304BX-2∆∆6 32 AF30 10 10 20 25 50 A AF304B2-2∆∆7 AF304BX-2∆∆7 54 AF50 - - - 30 50 A AF504B2-2∆∆7 AF504BX-2∆∆7 54 AF50 15 15 40 50 80 A AF504B2-2∆∆8 AF504BX-2∆∆8 68 AF63 20 20 50 60 100 A AF634B2-2∆∆9 AF634BX-2∆∆9 80 AF75 25 30 60 75 125 A AF754B2-2∆∆A AF754BX-2∆∆A
∆ Overload relay suffix code. Select from the overload relay selection chart on page 34. 1st ∆ low speed; 2nd ∆ high speed.
Overload relays are required for all combination starters.
Contactor Size
200/208V 230/240V 460V/480V 575/600V
Coil voltage selection 1)
All AC operated catalog numbers include a 100-250V AC coil. To select other coil voltages, substitute the code from the Coil Voltage Selection Chart
for the suffix code after the last dash in the catalog number. Ex.: A 24V AC coil is required for an AF26 starter: AF264B2-1KP1
Coil voltage selection chart
Coil voltage
24 AC 100 - 250 AC
1 2
AC Volts, 40-60 Hz
Maximum motor horsepower ratings
Control transformer voltage selection
To select starter with control transformer, substitute the code from the Con­trol transformer voltage selector chart for the two digits after the last dash
in the catalog number. Ex.: A 480V primary voltage with a 120V secondary voltage is required for an AF26 starter: AF264B2-CKP1
Control transformer voltage selection chart
Control Voltage 200-208 230-240 460-480 575-600
120V AC @ 50/60 Hz A B C D
24V AC @ 50/60 Hz E F G H
Circuit Breaker
Amp Rating
General Purpose,
Rainproof,
Waterproof, Dusttight
Catalog number
Watertight Corrosion
Resistant
Stainless steel
Catalog number
1) 24 AC coil voltage is available only with AF26 & AF30, For factory modifications, see pages 29 & 30.
28 | IEC & NEMA Enclosed starters
Page 31
General information
Factory installed options
Control cover factory modifications - NEMA/UL Type 1, 3R, 4, 4X & 12
Pilot device kits
One
operator
Two
operators
Three
operators
Starter type Description Nameplate Suffix code
DOL 2-Position Switch OFF-ON C DOL 3-Position Switch HAND-OFF-AUTO D DOL Pilot Light "ON" Red pilot light E
REV 3-Position Switch FOR-OFF-REV L
2 Speed 3-Position Switch SLOW-OFF-FAST M
DOL Push Buttons START/STOP A DOL Push Buttons START/ EMERGENCY STOP N
DOL 2 Position Switch & Pilot Light OFF-ON/"ON" H DOL 3 Position Switch & Pilot Light HAND-OFF-AUTO/"ON" J
DOL Push Buttons & Pilot Light START/STOP/"ON" F DOL 2 Position Switch & Pilot Lights OFF-ON/"ON"/"FAULT" P DOL 3 Position Switch & Pilot Lights HAND-OFF-AUTO/"ON"/"FAULT" Q
REV Push Buttons FORWARD- REVERSE-STOP B
REV 3 Position Switch & Pilot Lights FOR-OFF-REV/"FORWARD"/"REVERSE" G 2 Speed Push Buttons FAST-SLOW-STOP K 2 Speed 3 Position Switch & Pilot Lights SLOW-OFF-FAST/"SLOW"/"FAST" R
IEC & NEMA Enclosed starters | 29
Page 32
General information
Factory installed options
Control circuit transformers
Contactor size Description Option
50VA, 200-208/120 VAC A 50VA, 230-240/120 VAC B
AF09 -AF30
AFN00 & AFN1
AF50 -AF75
AFN2 & AFN3
AF110
AF145 - AF185
AF400-AF460
AFN4
AF210 - AF300
AF580-AF750
50VA, 460-480/120 VAC C
50VA, 575-600/120 VAC D
50VA, 200-208/24 VAC E
50VA, 230-240/24 VAC F 50VA, 460-480/24 VAC G
50VA, 575-600/24 VAC H
75VA, 200-208/120 VAC A 75VA, 230-240/120 VAC B 75VA, 460-480/120 VAC C
75VA, 575-600/120 VAC D
100VA, 200-208/120 VAC A 100VA, 230-240/120 VAC B 100VA, 460-480/120 VAC C
100VA, 575-600/120 VAC D 150VA, 200-208/120 VAC A 150VA, 230-240/120 VAC B 150VA, 460-480/120 VAC C
150VA, 575-600/120 VAC D 250VA, 200-208/120 VAC A 250VA, 230-240/120 VAC B 250VA, 460-480/120 VAC C
250VA, 575-600/120 VAC D
30 | IEC & NEMA Enclosed starters
Page 33
General information
Field modification kits
Pilot device field modifications kits- NEMA/UL Type 1, 3R, 4, 4X & 12
Starter type Description Nameplate Catalog number
DOL 2-Position Switch OFF-ON SS2P-1
One
operator
Two
operators
Three
operators
DOL 3-Position Switch HAND-OFF-AUTO SS3P-2 DOL Pilot Light (120V AC) "ON" Green pilot light PL-120VAC DOL Pilot Light (24V AC) "ON" Green pilot light PL-24VAC
REV 3-Position Switch FOR-OFF-REV SS3P-3
2 Speed 3-Position Switch SLOW-OFF-FAST SS3P-4
DOL Push Buttons START/STOP PB-SS DOL Push Buttons START/ EMERGENCY STOP PB-SES
DOL 2 Position Switch & Pilot Light (120V AC) OFF-ON/"ON" SS2PPL-120VAC
DOL 2 Position Switch & Pilot Light (24V AC) OFF-ON/"ON" SS2PPL-24VAC
DOL 3 Position Switch & Pilot Light (120V AC) HAND-OFF-AUTO/"ON" SS3PPL-120VAC
DOL 3 Position Switch & Pilot Light (24V AC) HAND-OFF-AUTO/"ON" SS3PPL-24VAC
DOL Push Buttons & Pilot Light (120V AC) START/STOP/"ON" PBPL-SS120VAC
DOL Push Buttons & Pilot Light (24V AC) START/STOP/"ON" PBPL-SS24VAC
DOL 2 Position Switch & Pilot Lights (120V AC) OFF-ON/"ON"/"FAULT" SS2PPL-FLT-120VAC
DOL 2 Position Switch & Pilot Lights (24V AC) OFF-ON/"ON"/"FAULT" SS2PPL-FLT-24VAC
DOL 3 Position Switch & Pilot Lights (120V AC) HAND-OFF-AUTO/"ON"/"FAULT" SS3PPL-FLT-120VAC
DOL 3 Position Switch & Pilot Lights (24V AC) HAND-OFF-AUTO/"ON"/"FAULT" SS3PPL-FLT-24VAC
REV Push Buttons FORWARD- REVERSE-STOP PB-FRS REV 3 Position Switch & Pilot Lights (120V AC) FOR-OFF-REV/"FORWARD"/"REVERSE" SS3PPL-FR-120VAC
REV 3 Position Switch & Pilot Lights (24V AC) FOR-OFF-REV/"FORWARD"/"REVERSE" SS3PPL-FR-24VAC 2 Speed Push Buttons FAST-SLOW-STOP PB-FSS 2 Speed 3 Position Switch & Pilot Lights(120V AC) SLOW-OFF-FAST/"SLOW"/"FAST" SS3PPL-SF-120VAC 2 Speed 3 Position Switch & Pilot Lights (24V AC) SLOW-OFF-FAST/"SLOW"/"FAST" SS3PPL-SF-24VAC
IEC & NEMA Enclosed starters | 31
Page 34
General information
Field modification kits
Control circuit transformer field modifications kits
Contactor size Description Catalog number
50VA, 200-208/120 VAC CCT50-208/120
50VA, 230-240/120 VAC CCT50-240/120
AF9 - AF30
AFN00 - AFN1
AF50 - AF75
AFN2 & AFN3
AF110
AF145 - AF185
AF400 - AF460
AFN4
AF210 - AF300
AF580 - AF750
50VA, 460-480/120 VAC CCT50-480/120
50VA, 575-600/120 VAC CCT50-600/120
50VA, 200-208/24 VAC CCT50-208/24
50VA, 230-240/24 VAC CCT50-240/24
50VA, 460-480/24 VAC CCT50-480/24
50VA, 575-600/24 VAC CCT50-600/24
75VA, 200-208/120 VAC CCT75-208/120
75VA, 230-240/120 VAC CCT75-240/120
75VA, 460-480/120 VAC CCT75-480/120
75VA, 575-600/120 VAC CCT75-600/120
100VA, 200-208/120 VAC CCT100-208/120
100VA, 230-240/120 VAC CCT100-240/120
100VA, 460-480/120 VAC CCT100-480/120
100VA, 575-600/120 VAC CCT100-600/120
150VA, 200-208/120 VAC CCT150-208/120
150VA, 230-240/120 VAC CCT150-240/120
150VA, 460-480/120 VAC CCT150-480/120
150VA, 575-600/120 VAC CCT150-600/120
250VA, 200-208/120 VAC CCT250-208/120
250VA, 230-240/120 VAC CCT250-240/120
250VA, 460-480/120 VAC CCT250-480/120
250VA, 575-600/120 VAC CCT250-600/120
32 | IEC & NEMA Enclosed starters
Page 35
General information
Motor data
Ampere ratings of 3 phase, AC induction motors
110 – 120V 200 – 208V 220 – 240V 380 – 415V1 440 – 480V 550 – 600V
Horse Single Two Three Single Two Three Single Two Three Single Three Single Two Three Single Two Three
power phase phase phase phase phase phase phase phase phase phase phase phase phase phase phase phase phase
1/10 3.0 1.65 1.5 1.0
1/8 3.8 2.1 1.9 1.2
1/6 4.4 2.4 2.2 1.4
1/4 5.8 3.2 2.9 1.8
1/3 7.2 4.0 3.6 2.3
1/2 9.8 4.0 4.4 5.4 2.2 2.4 4.9 2.0 2.2 3.2 1.3 2.5 1.0 1.1 2.0 0.8 0.9
3/4 13.8 4.8 6.4 7.6 2.6 3.5 6.9 2.4 3.2 4.5 1.8 3.5 1.2 1.6 2.8 1.0 1.3
1 16.0 6.4 8.4 8.8 3.6 4.6 8.0 3.2 4.2 5.1 2.3 4.0 1.6 2.1 3.2 1.3 1.7
1 1/2 20.0 9.0 12.0 11.0 5.0 6.6 10.0 4.5 6.0 6.4 3.3 5.0 2.3 3.0 4.0 1.8 2.4
2 24.0 11.8 13.6 13.2 6.5 7.5 12.0 5.9 6.8 7.7 4.3 6.0 3.0 3.4 4.8 2.4 2.7
3 34.0 16.6 19.2 18.7 9.2 10.6 17.0 8.3 9.6 10.9 6.1 8.5 4.2 4.8 6.8 3.3 3.9
5 56.0 26.4 30.4 30.8 14.5 16.8 28.0 13.2 15.2 17.9 9.7 14.0 6.6 7.6 11.2 5.3 6.1
7 1/2 80.0 38.0 44.0 44.0 21.0 24.2 40.0 19.0 22.0 27.0 14.0 21.0 9.0 11.0 16.0 8.0 9.0
10 100.0 48.0 56.0 55.0 26.4 30.8 50.0 24.0 28.0 33.0 18.0 26.0 12.0 14.0. 20.0 10.0 11.0
15 135.0 72.0 84.0 75.0 39.6 46.2 68.0 36.0 42.0 44.0 27.0 34.0 18.0 21.0 27.0 14.0 17.0
20 — 94.0 108.0 96.8 52.0 60.0 88.0 47.0 54.0 56.0 34.0 44.0 23.0 27.0 35.0 19.0 22.0
25 — 118.0 136.0 121.0 65.0 75.0 110.0 59.0 68.0 70.0 44.0 55.0 29.0 34.0 44.0 24.0 27.0
30 — 138.0 160.0 150.0 76.0 88.0 136.0 69.0 80.0 87.0 51.0 68.0 35.0 40.0 54.0 28.0 32.0
40 — 180.0 208.0 194.0 100.0 115.0 176.0 90.0 104.0 112.0 66.0 88.0 45.0 52.0 70.0 36.0 41.0
50 — 226.0 260.0 238.0 125.0 143.0 216.0 113.0 130.0 139.0 83.0 108.0 56.0 65.0 86.0 45.0 52.0
60 — — — — 147.0 160.0 — 133.0 154.0 — 103.0 — 67.0 77.0 — 53.0 62.0
75 — — — — 183.0 212.0 — 166.0 192.0 — 128.0 — 83.0 96.0 — 66.0 77.0
100 — — — — 240.0 273.0 — 218.0 248.0 — 165.0 — 109.0 124.0 — 87.0 99.0
125 — — — — — 344.0 — — 312.0 — 208.0 — 135.0 156.0 — 108.0 125.0
150 — — — — — 396.0 — — 360.0 — 240.0 — 156.0 180.0 — 125.0 144.0
200 — — — — — 528.0 — — 480.0 — 320.0 — 208.0 240.0 — 167.0 192.0
250 — — — — — 663.0 — — 602.0 — 403.0 — — 302.0 — — 242.0
300 — — — — — — — — — — 482.0 — — 361.0 — — 289.0
350 — — — — — — — — — — 560.0 — — 414.0 — — 336.0
400 — — — — — — — — — — 636.0 — — 477.0 — — 382.0
500 — — — — — — — — — — 786.0 — — 590.0 — — 472.0
IEC & NEMA Enclosed starters | 33
Page 36
General information - IEC Starter
Standard thermal overload relays
Standard - Thermal, Type TF and TA, Class 10 Correct sizing of overload relay per motor HP
* Note: AF26 contactor used with non-combination and circuit breaker disconnect.
1-phase 3-phase
120V 240V 208V 240V 480V 600V
- - - - - - TF42-0.13 A 0.10-0.13
- - - - - - TF42-0.17 B 0.13-0.17
- - - - - - TF42-0.23 C 0.17-0.23
- - - - - - TF42-0.41 D 0.31– 0.41
- - - - - - TF42-0.55 E 0.41-0.55
- - - - - - TF42-0.74 F 0.55-0.74
- - - - - 1/2 TF42-1.0 G 0.74-1.0
- - - - 1/2 3/4 TF42-1.3 H 1.0-1.3
- 1/10 - - 3/4 1 TF42-1.7 J 1.3-1.7
- 1/8, 1/6 - 1/2 1 - TF42-2.3 K 1.7-2.3
1/10 1/4 1/2 - 1 1/2 1 1/2, 2 TF42-3.1 L 2.3-3.1
1/8 1/3 3/4 3/4,1 2 3 TF42-4.2 M 3.1-4.2 1/6 1/2 1 - 3 - TF42-5.7 N 4.2-5.7
1/4, 1/3 3/4 1 1/2, 2 1 1/2, 2 5 5 TF42-7.6 P 5.7-7.6
1/2 1 - - - 7.5
- - - 3 - -
- 1 1/2, 2 3 - 7.5 10 TF42-13 R 10-13
3/4,1 - - 5 10 - TF42-16 S 13-16
3
- 5 - - 15
1 1/2, 2 - - 7.5 15 20 TF42-24 U 20-24
- 5 7.5 10 20 25 TF42-29 V 24-29
- - 10 - - - TF42-35 W 29-35
- - - - - - TA75DU25 A 18-25
- - - - - - TA75DU32 B 22-32
- 7 1/2 - 15 25, 30 30, 40 TA75DU42 C 29-42
- 10 15 - 40 50 TA75DU52 D 36-52
- - - 20 - -
- - 20 - - 60
- - - 25 50 -
- 15 25 30 60 75 AF75
- 20 30 - - - TA110DU90 A 65-90
- 25 - 40 75 100 TA110DU110 B 80-110
- - - - - - TA200DU90 A 65-90
- - 40 50 100 125 TA200DU135 C 100-135
- - - - - - TA200DU150 D 110-150
- - 50 60 125 150 TA200DU175 E 130-175
- - 60 - 150 - TA450DU185 A 130-185
- - - 75 - 200
- - 75 - - -
- - - 100 200 250
- - 100 - 250 300 AF300
- - - 125 300 350
- - 125 150 350 400
- - - 200 400 500 AF460
- - 200 250 500 600 AF580
- - 250 300 600 700 AF750
Catalog Number Code
TF42-10 Q 7.6-10
TF42-20 T 16-20
TA75DU63 E 45-63
TA75DU80 F 60-80
TA450DU235 B 165-235
TA450DU310 C 220-310
Only available with an electronic overload
Setting Range
(A)
Contactor Size
AF09/AF26*
AF12/AF26*
AF16/AF26*
AF26*
AF30
AF50
AF63
AF110
AF145- - - - - - TA200DU110 B 80-110
AF185
AF210
AF260
AF400
34 | IEC & NEMA Enclosed starters
Page 37
General information - IEC Starter
Electronic overload relays
Optional - Electronic, Type E, Class 10, 20 & 30 Selectable Correct sizing of overload relay per motor HP
3-phase
208V 240V 480V 600V
- - - - EF19-0.32 A1 0.10-0.32
- - - - EF19-1.0 B1 0.3-1.0
- - 1/2 1/2, 3/4
- 1/2 1 1 1/2
1/2 - 1 1/2 2
1 1 3 -
1 1/2 1 1/2 - 5
2 2 5 7.5 3 3 7.5 10 AF12/AF26*
- 5 10 - AF16/AF26*
5 7.5 15 15, 20
7.5 10 20 25 10 - - - EF45-45 E3 15-45
- - 25 30
15 20 40 50 20 25 50 60 AF63 25 30 60 75 AF75 30 40 75 100 E140DU140 E1 50-140 AF110 40 50 100 125 50 60 125 150 AF185 60 75 150 200 75 100 200 250 AF260
100 - 250 300 AF300
- 125 300 350 125 150 350 400 150 200 400 500 AF460 200 250 500 600 250 300 600 700 AF750
* Note: AF26 contactor used with non-combination and circuit breaker disconnect.
Catalog Number Code
EF19-2.7 C1 0.80-2.7- - 3/4 1
EF19-6.3 D1 1.9-6.33/4 3/4 2 3
EF19-18.9 E1 5.7-18.9
EF45-30 E2 9-30
E80DU80 E1 27-80
E200DU200 E2 65-200
E320DU320 E3 105-320
E500DU500 E5 170-500
E800DU800 E8 270-800
Setting Range
(A)
Contactor Size
AF09/AF26*
AF26*
AF30
AF50- 15 30 40
AF145
AF210
AF400
AF 580
IEC & NEMA Enclosed starters | 35
Page 38
General information - NEMA Starter
Standard thermal overload relays
Standard - Thermal, Type TF and TA, Class 10
Correct sizing of overload relay per motor HP
1-phase 3-phase
120V 240V 208V 240V 480V 600V
- - - - - - TF42-0.13 A 0.10-0.13
- - - - - - TF42-0.17 B 0.13-0.17
- - - - - - TF42-0.23 C 0.17-0.23
- - - - - - TF42-0.41 D 0.31– 0.41
- - - - - - TF42-0.55 E 0.41-0.55
- - - - - - TF42-0.74 F 0.55-0.74
- - - - - 1/2 TF42-1.0 G 0.74-1.0
- - - - 1/2 3/4 TF42-1.3 H 1.0-1.3
- 1/10 - - 3/4 1 TF42-1.7 J 1.3-1.7
- 1/8 - 1/2 1 - TF42-2.3 K 1.7-2.3
1/10 1/6, 1/4 1/2 - 1 1/2 1 1/2, 2 TF42-3.1 L 2.3-3.1
1/8 1/3 3/4 3/4 2 - TF42-4.2 M 3.1-4.2
1/6 1/2 1 1 - - TF42-5.7 N 4.2-5.7
1/4 3/4 1 1/2 1 1/2 - - TF42-7.6 P 5.7-7.6 1/3 1 - - - - TF42-10 Q 7.6-10
- - - - - 3 TF42-4.2 M 3.1-4.2
- - - - 3 TF42-5.7 N 4.2-5.7
- - 2 2 5 5 TF42-7.6 P 5.7-7.6
1/2 1 1/2 - 3 - - TF42-10 Q 7.6-10
- 2 3 - - - TF42-13 R 10-13
3/4, 1 - - - - - TF42-16 S 13-16
- - - - - 7.5 TF42-10 Q 7.6-10
- - - - 7.5 10 TF42-13 R 10-13
- - - 5 10 - TF42-16 S 13-16
- 3 5 - - - TF42-20 T 16-20
2 - - 7.5 - - TF42-24 U 20-24
- - 7.5 - - - TF42-29 V 24-29
- - - - 15 20 TA75DU25 A 18-25
3 7 1/2 - 15 25 - TA75DU42 C 29-42
- - - - - 30 TA75DU42 C 29-42
- - 15 30 40 TA75DU52 D 36-52
- - 20 20 40 50 TA75DU63 E 45-63
- - 25 25, 30 50 - TA75DU80 F 60-80
- - 30 - 60 75 TA200DU90 A 65-90
- - 40 50 100 - TA200DU135 C 100-135
Catalog Number Code
Setting
Range (A)
Contactor
Size
AFN00
AFN0
AFN1 1)
AFN2- - 10 10 20 25 TA75DU32 B 22-32
AFN3
AFN4- - - 40 75 100 TA200DU110 B 80-110
1) AFN1 contactor can use AFN00 and AFN0 overloads.
36 | IEC & NEMA Enclosed starters
Page 39
General information - NEMA Starter
Electronic overload relays
Optional - Electronic, Type E, Class 10, 20, & 30 Selectable
Correct sizing of overload relay per motor HP
208V 240V 480V 600V
- - - - EF19-0.32 A1 0.10-0.32
- - - - EF19-1.0 B1 0.3-1.0
- - 3/4, 1/2 3/4, 1/2
- 1/2 1 1, 1.5
1/2 - - -
1 1 1.5, 2 2
1.5 1.5 - -
- - 3 3
3 3 5 5 5 5 7.5 7.5
7.5 7.5 10 10
- 10,15 20 20 10 - 25 25 15 20, 25 30, 40 30, 40
20, 25 30 50 50
30 40 60 ­40 50 75, 100 75, 100
3-phase
Catalog Number Code
EF19-2.7 C1 0.9-2.7
EF19-6.3 D1 1.9-6.33/4 3/4 - -
EF19-18.9 E1 5.7 -18.9
E45DU30 E1 9-30 AFN1 1)
E80DU80 E1 27-80
E200DU200 E2 40-140 AFN4
Setting
Range (A)
Contactor
Size
AFN00
AFN02 2 - -
AFN2
AFN3
1) AFN1 contactor can use AFN00 and AFN0 overloads.
IEC & NEMA Enclosed starters | 37
Page 40
Approximate dimensions
H
W D
Non-combination starters
IEC and NEMA starters
Non reversing and reversing
Two speed 1 winding & 2 winding
Contactor Size Enclosure Type (in) (mm) (in) (mm) (in) (mm)
AF09-AF30, AFN00-AFN1
AF50-AF75, AFN3 16 400 12 300 8 200
AF110 24 600 20 500 10 250
AF145-AF185, AFN4 36 900 30 760 10 250
AF210-AF300 48 1200 36 900 12 300 AF400-AF460 48 1200 36 900 16 400 AF580-AF750 60 1500 60 1500 18 449
AF09-AF30 AF50-AF75 20 500 16 400 8 200
AF110 24 600 20 500 10 250 AF145-AF185 36 900 30 760 10 250 AF210-AF300 48 1200 36 900 12 300 AF400-AF460 48 1200 36 900 16 400 AF580-AF750 60 1500 60 1500 18 449
1, 3R, 4, 4X, 12
1, 3R, 4, 4X, 12
H H W W D D
12 300 12 300 6 150
16 400 12 300 8 200
Enclosure accessories for non-combination and combination controllers
Description Catalog number
12Hx16D Floormount Kit RC-FSK1212C
12Hx16D Floormount Kit RC-FSK1216C
12Hx12D Floormount Kit Type 304 SS RC-FSK12124
12Hx12D Floormount Kit Type 304 SS RC-FSK12164
Padlock lockout carbon steel 1) RC-WMPADRCS
Padlock lockout stainless steel 1) RC-WMPADRS6
Wallmount Bracket Kit RC-2508.200 Wallmount Bracket Kit Type 304 SS RC-2433.000
Exact dimensions can be obtained using the on line configurator
1) Used on enclosures below 36” in height.
38 | IEC & NEMA Enclosed starters
Page 41
Approximate dimensions
H
W D
Combination starters
IEC and NEMA starters
Non reversing
Contactor Size Enclosure Type (in) (mm) (in) (mm) (in) (mm)
AF09-AF30, AFN00-AFN1
AF50-AF75, AFN2-AFN3 20 500 16 400 8 200
AF110 24 600 20 500 10 250
AF145-AF185, AFN4 36 900 30 760 10 250
AF210-AF460 48 1200 36 900 16 400 AF580-AF750 60 1500 60 1500 18 449
H H W W D D
16 400 12 300 8 200
1, 3R, 4, 4X, 12
Reversing
AF09-AF30, AFN00-AFN1
AF50-AF75, AFN2-AFN3 24 600 20 500 10 250
AF110-AF185, AFN4 30 760 30 760 10 250
AF210-AF300 36 900 48 1200 12 300 AF400-AF460 60 1500 60 1500 18 449 AF580-AF750 60 1500 60 1500 18 449
Two speed 1 winding & 2 winding
AF09-AF30
AF50-AF110 30 760 30 760 10 250
AF145- AF300 36 900 48 1200 12 300
AF400-AF460 72 900 60 1500 18 449 AF580-AF750 72 900 60 1500 18 449
20 500 16 400 8 200
1, 3R, 4, 4X, 12
24 600 20 500 10 250
1, 3R, 4, 4X, 12
Exact dimensions can be obtained using the on line configurator
IEC & NEMA Enclosed starters | 39
Page 42
Circuit diagrams
Non-reversing, reversing
AF09 - AF750, AFN00 - AFN4
All units ship with a NO & NC contacts. Additional contacts can be added in the field.
40 | IEC & NEMA Enclosed starters
Page 43
Circuit diagrams
Non-reversing, single phase
AF09 - AF110, AFN00 - AFN2
All units ship with a NO & NC contacts. Additional contacts can be added in the field.
IEC & NEMA Enclosed starters | 41
Page 44
Circuit diagrams
2 Speed, 1 winding; 2 speed, 2 winding AF09 - AF75
42 | IEC & NEMA Enclosed starters
All units ship with a NO & NC contacts. Additional contacts can be added in the field.
Page 45
Circuit diagrams
Pilot device kits, one operator
SS2P-1
SS3P-2
PL - (120VAC or 24VAC)
SS3P-3
SS3P-4
IEC & NEMA Enclosed starters | 43
Page 46
Circuit diagrams
Pilot device kits, two operators
PB-SS
PB-SES
SS2PPL - (120VAC or 24VAC)
SS3PPL - (120VAC or 24VAC)
44 | IEC & NEMA Enclosed starters
Page 47
Circuit diagrams
Pilot device kits, three operators
PBPL-SS - (120VAC or 24VAC)
SS3PPL-FLT - (120VAC or 24VAC)
SS3PPL-FR - (120VAC or 24VAC)
SS2PPL-FLT - (120VAC or 24VAC)
PB-FRS
PB-FSS
SS3PPL-SF - (120VAC or 24VAC)
IEC & NEMA Enclosed starters | 45
Page 48
Circuit diagrams
Control circuit transformer
Primary voltages: 208V, 240V & 480V
480V
240V
208V
Primary voltages: 600V
600V
46 | IEC & NEMA Enclosed starters
Page 49
X
– Indoors
– Outdoors
– Water
– Dirt/dust
– Corrosion
Legend
Enclosure rating definitions
Introduction
An enclosure is a surrounding case constructed to provide a degree of protection to personnel against accidental contact with the enclosed equipment and to provide a degree of protection to the enclosed equip­ment against specified environmental conditions.
Definitions pertaining to nonhazardous locations
Type 1
Enclosures are intended for indoor use primarily to provide a degree of protec­tion against limited amounts of falling dirt.
(NEMA Standard 7-15-1991.)
A brief description of the more common types of enclosures used by the electrical industry relating to their environmental capabilities follows. Refer to NEMA Standards Publication for more information regarding applications, features and design tests.
Individual NEMA product Standards Publications or third party certifica­tion standards may contain additional requirements for product testing and performance.
Type 4X
Enclosures are intended for indoor or outdoor use primarily to provide a degree of protec­tion against corrosion, windblown dust and rain, splashing water, hose-directed water
and damage from external ice formation. (NEMA Standard 1-10-1979)
Type 3R
Enclosures are intended for outdoor use primar­ily to provide a degree of protection against
rain, sleet and damage from external ice forma­tion. (NEMA Standard 7-15-1991.)
Type 4
Enclosures are intended for indoor or out­door use primarily to provide a degree of protection against windblown dust and rain, splashing water, hose-directed water
and damage from external ice formation. (NEMA Standard 1-10-1979.)
Type 12
Enclosures are intended for indoor use primar­ily to provide a degree of protection against circulating dust, falling dirt, and dripping noncor-
rosive liquids. (NEMA Standard 7-15-1991.)
IEC & NEMA Enclosed starters | 47
Page 50
Short circuit current ratings
Maximum short circuit current ratings for combination starters
Fusible disconnect
Contactor Size Switch @ 600 VAC
AF09, AFN00
AF12
AF16, AFN0
AF26, AFN1
AF30
AF50, AFN2 OS100GJ12 100
AF63
AF110
AF145, AFN4
AF210
AF260
AF300
AF400
AF460
AF580 AF750 42
OS30 30
OS60GJ12 60
OS200J12 200AF75, AFN3
OS400J12 400AF185
OS600J12 600
OS800L12 800
OS1200L12 1200
Fuse size
(A)
UL Fuse type
Circuit breaker disconnect
Contactor Size Circuit breaker
AF26, AFN00-AFN1 Ts3L040TW
AF30 Ts3L050TW
AF50, AFN2 Ts3L090TW
AF75, AFN3 Ts3L125TW
AF110 T4H200TW
AF145, AFN4 T4H200TW
AF185 T4H250TW
AF210 T5L300TW
AF260 T5L400TW
AF300 T6L600TW
AF400 T6L800TW
AF460 T6L800TW AF580 T7L1000BW 30 30 AF750 T7L1200BW 42 42
kA
@ 480 VAC
65 25
50 25AF63 Ts3L100TW
65
100 42
@ 600 VACkA@ 600 VAC
J
100
L
30
kA
@ 600 VAC
25
35
48 | IEC & NEMA Enclosed starters
Loading...
