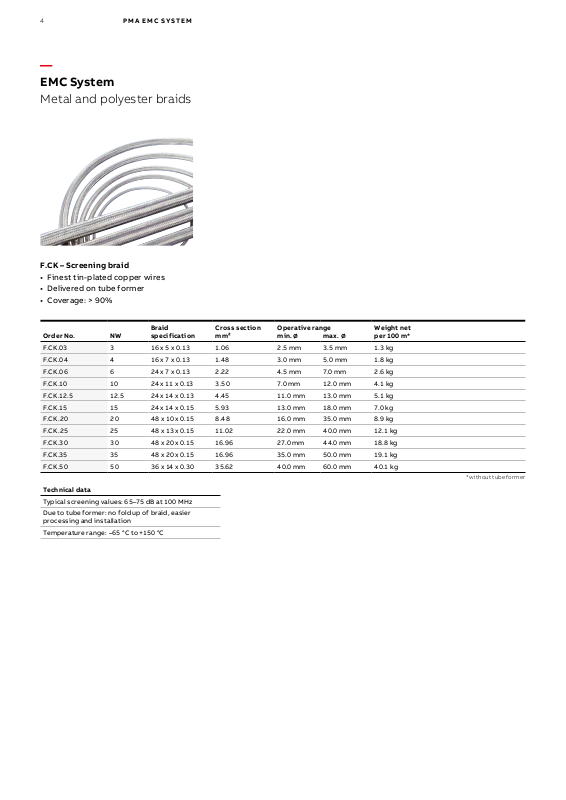

4 PMA EMC SYSTEM

—

EMC System

Metal and polyester braids

F.CK – Screening braid

• Finest tin-plated copper wires

• Delivered on tube former

• Coverage: > 90%

Order No. NW

F.CK.03 3 16 x 5 x 0.13 1.06 2.5 mm 3.5 mm 1.3 kg

F.C K .0 4 4 16 x 7 x 0.13 1.48 3.0 mm 5.0 mm 1.8 kg

F.C K .0 6 6 24 x 7 x 0.13 2.22 4.5 mm 7.0 mm 2.6 kg

F.C K .10 10 24 x 11 x 0.13 3.50 7.0 mm 12.0 mm 4.1 kg

F.C K .12. 5 12.5 24 x 14 x 0.13 4.45 11.0 mm 13.0 mm 5.1 kg

F.C K .15 15 24 x 14 x 0.15 5.93 13.0 mm 18.0 mm 7.0 kg

F.C K .20 20 48 x 10 x 0.15 8.48 16.0 mm 35.0 mm 8.9 kg

F.C K .25 25 48 x 13 x 0.15 11.02 22.0 mm 40.0 mm 12.1 kg

F.CK.30 30 48 x 20 x 0.15 16.96 27.0 mm 44.0 mm 18.8 kg

F.CK.35 35 48 x 20 x 0.15 16.96 35.0 mm 50.0 mm 19.1 kg

F.C K .5 0 50 36 x 14 x 0.30 35.62 40.0 mm 60.0 mm 4 0.1 kg

Technical data

Typical screening values: 65–75 dB at 100 MHz

Due to tube former: no fold up of braid, easier
processing and installation

Temperature range: –65 °C to +150 °C

Braid
specification

Cross section
mm²

Operative range

min. ∅ max. ∅

Weight net

per 100 m*

* without tube former
