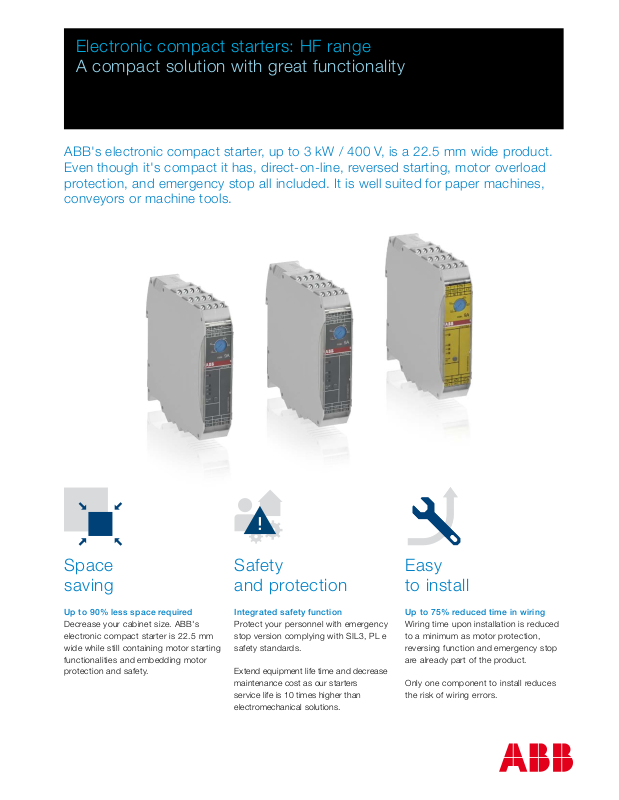

Electronic compact starters: HF range

A compact solution with great functionality

ABB's electronic compact starter, up to 3 kW / 400 V, is a 22.5 mm wide product.
Even though it's compact it has, direct-on-line, reversed starting, motor overload
protection, and emergency stop all included. It is well suited for paper machines,
conveyors or machine tools.

Space
saving

Up to 90% less space required

Decrease your cabinet size. ABB's
electronic compact starter is 22.5 mm
wide while still containing motor starting
functionalities and embedding motor
protection and safety.

Safety
and protection

Integrated safety function

Protect your personnel with emergency
stop version complying with SIL3, PL e
safety standards.

Extend equipment life time and decrease
maintenance cost as our starters
service life is 10 times higher than
electromechanical solutions.

Easy
to install

Up to 75% reduced time in wiring

Wiring time upon installation is reduced
to a minimum as motor protection,
reversing function and emergency stop
are already part of the product.

Only one component to install reduces
the risk of wiring errors.

Electronic compact starters: HF range

Direct-on-line / reversing starter with motor protection

Using our electronic compact starter will save space in

22.5 mm

your cabinet, especially when it comes to group mounting.
Separate overload protection is no longer needed and the
wiring time is shortened.
The safety version enables the use in applications complying
with Atex, SIL3 and PL e.

Wide setting range of motor current
allow reduced product variants

Description

– 0.6 A, 2.4 A and 6.5 A, for motors up to 3 kW - 400 V AC

Up to 9 A for resistive loads

–
– Rated operational voltage: 500 V AC
– Rated control supply voltage: 24 V DC

Easy to read starter status
with LED indicators

– Emergency stop (Atex, SIL3, PL e) for selected reference
– Automatic, manual or remote reset after thermal trip
– Electrical life: 30 millions operating cycles
– IEC / EN 60947-1, IEC / IEN 60947-4-2.

Reset button
for error acknowledgement

Ordering details

IEC UL / CSA Type Order code

Current range Rated operational Current range FLA

AC-53a

A kWAAA

Direct-on-line starter with overload protection

0.075 … 0.6 0.18

0.18 … 2.4 0.75

1.5 … 6.5 3.0

Direct-on-line starter with overload protection and emergency stop

0.075 … 0.6 0.18 0.6 0.075 … 0.6 0.6 HF0.6-DOLE-24VDC 1SAT113000R1011

0.18 … 2.4 0.75 2.4 0.18 … 2.4 2.4 HF2.4-DOLE-24VDC 1SAT123000R1011

1.5 … 6.5 3.0 9.0 1.5 … 6.5 6.5 HF9-DOLE-24VDC 1SAT143000R1011

Reversing starter

6.5 3.0 9.0 1.5 … 6.5 6.5 HF9-R-24VDC 1SAT144000R1011

Reversing starter with overload protection

0.075 … 0.6 0.18 0.6 0.075 … 0.6 0.6 HF0.6-ROL-24VDC 1SAT115000R1011

0.18 … 2.4 0.75 2.4 0.18 … 2.4 2.4 HF2.4-ROL-24VDC 1SAT125000R1011

1.5 … 6.5 3.0 9.0 1.5 … 6.5 6.5 HF9-ROL-24VDC 1SAT145000R1011

Reversing starter with overload protection and emergency stop

0.075 … 0.6 0.18 0.6 0.075 … 0.6 0.6 HF0.6-ROLE-24VDC 1SAT116000R1011

0.18 … 2.4 0.75 2.4 0.18 … 2.4 2.4 HF2.4-ROLE-24VDC 1SAT126000R1011

1.5 … 6.5 3.0 9.0 1.5 … 6.5 6.5 HF9-ROLE-24VDC 1SAT146000R1011

power
400V
AC-53a

current

AC-51

0.6

2.4

9.0

0.075 … 0.6

0.18 … 2.4

1.5 … 6.5

500V

0.6

2.4

6.5

HF0.6-DOL-24VDC 1SAT112000R1011
HF2.4-DOL-24VDC 1SAT122000R1011
HF9-DOL-24VDC 1SAT142000R1011
