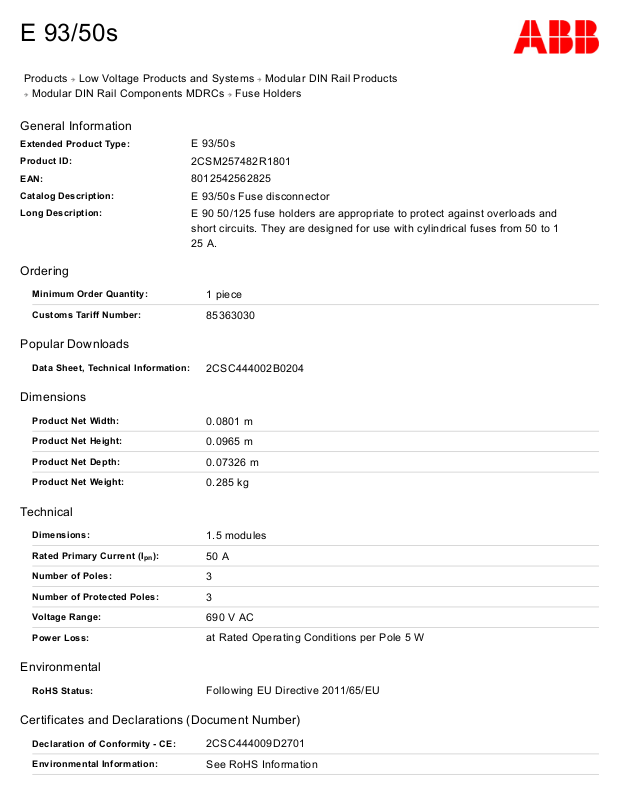

ABB E93/50S Data Sheet

E 93/50s

General Information

Extended Product Type:

E 93/50s

Product ID:

2CSM257482R1801

EAN:

8012542562825

Catalog Description:

E 93/50s Fuse disconnector

Long Description:

E 90 50/125 fuse holders are appropriate to protect against overloads and

short circuits. They are designed for use with cylindrical fuses from 50 to 1 25 A.

Ordering

Minimum Order Quantity:

1 piece

Customs Tariff Number:

85363030

Popular Downloads

Data Sheet, Technical Information:

2CSC444002B0204

Dimensions

Product Net Width:

0.0801 m

Product Net Height:

0.0965 m

Product Net Depth:

0.07326 m

Product Net Weight:

0.285 kg

Technical

Dimensions:

1.5 modules

Rated Primary Current (I ):

50 A

Number of Poles:

Number of Protected Poles:

Voltage Range:

690 V AC

Power Loss:

at Rated Operating Conditions per Pole 5 W

Environmental

RoHS Status:

Following EU Directive 2011/65/EU

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:

2CSC444009D2701

Environmental Information:

See RoHS Information

Products Low Voltage Products and Systems Modular DIN Rail Products

Modular DIN Rail Components MDRCs Fuse Holders

RoHS Information:

2CSC444011K2701

Container Information

Package Level 1 Units:

1 piece

Package Level 1 Width:

0.1 m

Package Level 1 Height:

0.074 m

Package Level 1 Length:

0.107 m

Package Level 1 Gross Weight:

0.285 kg

Package Level 1 EAN:

8012542574828

Classifications

Object Classification Code:

ETIM 4:

EC000036 - Miniature fuse holder

ETIM 5:

EC000036 - Miniature fuse holder

ETIM 6:

EC002705 - Holder for cylindrical fuse
