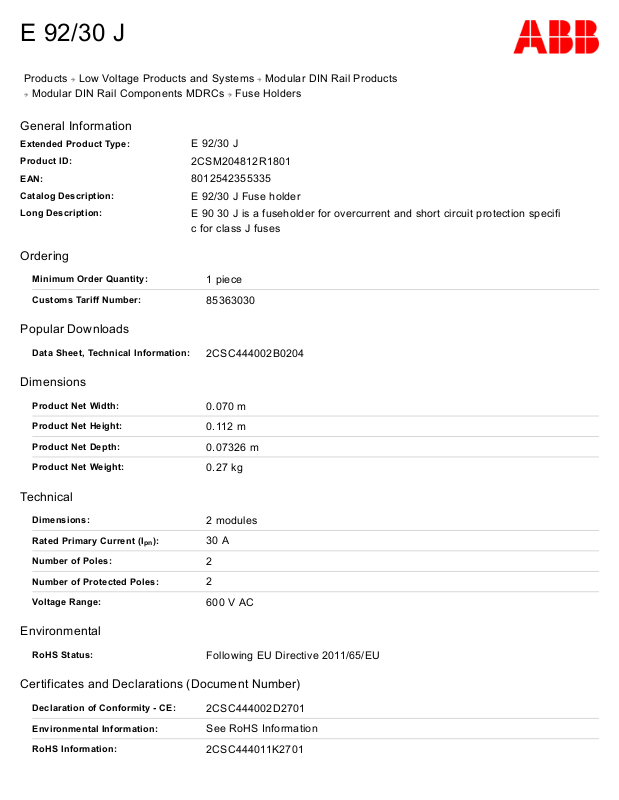

ABB E92/30J Data Sheet
E 92/30 J
General Information
Extended Product Type:
E 92/30 J
Product ID:
2CSM204812R1801
EAN:
8012542355335
Catalog Description:
E 92/30 J Fuse holder
Long Description:
E 90 30 J is a fuseholder for overcurrent and short circuit protection specifi
c for class J fuses
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85363030
Popular Downloads
Data Sheet, Technical Information:
2CSC444002B0204
Dimensions
Product Net Width:
0.070 m
Product Net Height:
0.112 m
Product Net Depth:
0.07326 m
Product Net Weight:
0.27 kg
Technical
Dimensions:
2 modules
Rated Primary Current (I ):
30 A
Number of Poles:
2
Number of Protected Poles:
2
Voltage Range:
600 V AC
Environmental
RoHS Status:
Following EU Directive 2011/65/EU
Certificates and Declarations (Document Number)
Declaration of Conformity - CE:
2CSC444002D2701
Environmental Information:
See RoHS Information
RoHS Information:
2CSC444011K2701
Products Low Voltage Products and Systems Modular DIN Rail Products
Modular DIN Rail Components MDRCs Fuse Holders
pn
Container Information
Package Level 1 Units:
2 piece
Package Level 1 Width:
0.113 m
Package Level 1 Height:
0.07 m
Package Level 1 Length:
0.140 m
Package Level 1 Gross Weight:
0.54 kg
Package Level 1 EAN:
8012542048121
Classifications
Object Classification Code:
F
ETIM 4:
EC000036 - Miniature fuse holder
ETIM 5:
EC000036 - Miniature fuse holder
ETIM 6:
EC002705 - Holder for cylindrical fuse
