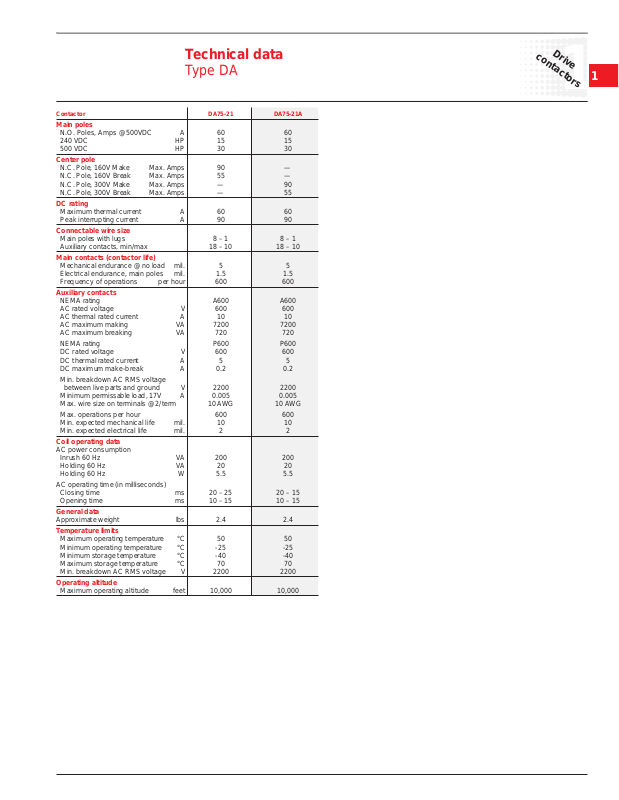

Technical data |
||
|
|
|
Type DA |
|
|
|
|
|
|
|
|
Contactor |
|
|
|
DA75-21 |
DA75-21A |
Main poles |
|
|
|
|
|
N.O. Poles, Amps @ 500VDC |
A |
|
60 |
60 |
|
240 VDC |
|
HP |
|
15 |
15 |
500 VDC |
|
HP |
|
30 |
30 |
Center pole |
|
|
|
|
|
N.C. Pole, 160V Make |
Max. Amps |
|
90 |
— |
|
N.C. Pole, 160V Break |
Max. Amps |
|
55 |
— |
|
N.C. Pole, 300V Make |
Max. Amps |
|
— |
90 |
|
N.C. Pole, 300V Break |
Max. Amps |
|
— |
55 |
|
DC rating |
|
|
|
|
|
Maximum thermal current |
|
A |
|
60 |
60 |
Peak interrupting current |
|
A |
|
90 |
90 |
Connectable wire size |
|
|
|
|
|
Main poles with lugs |
|
|
|
8 – 1 |
8 – 1 |
Auxiliary contacts, min/max |
|
|
|
18 – 10 |
18 – 10 |
Main contacts (contactor life) |
|
|
|
|
|
Mechanical endurance @ no load |
mil. |
|
5 |
5 |
|
Electrical endurance, main poles |
mil. |
|
1.5 |
1.5 |
|
Frequency of operations |
per hour |
|
600 |
600 |
|
Auxiliary contacts |
|
|
|
|
|
NEMA rating |
|
|
|
A600 |
A600 |
AC rated voltage |
|
V |
|
600 |
600 |
AC thermal rated current |
|
A |
|
10 |
10 |
AC maximum making |
|
VA |
|
7200 |
7200 |
AC maximum breaking |
|
VA |
|
720 |
720 |
NEMA rating |
|
|
|
P600 |
P600 |
DC rated voltage |
|
V |
|
600 |
600 |
DC thermal rated current |
|
A |
|
5 |
5 |
DC maximum make-break |
|
A |
|
0.2 |
0.2 |
Min. breakdown AC RMS voltage |
|
|
|
|
|
between live parts and ground |
V |
|
2200 |
2200 |
|
Minimum permissable load, 17V |
A |
|
0.005 |
0.005 |
|
Max. wire size on terminals @ 2/term |
|
10 AWG |
10 AWG |
||
Max. operations per hour |
|
|
|
600 |
600 |
Min. expected mechanical life |
mil. |
|
10 |
10 |
|
Min. expected electrical life |
|
mil. |
|
2 |
2 |
Coil operating data |
|
|
|
|
|
AC power consumption |
|
|
|
|
|
Inrush 60 Hz |
|
VA |
|
200 |
200 |
Holding 60 Hz |
|
VA |
|
20 |
20 |
Holding 60 Hz |
|
W |
|
5.5 |
5.5 |
AC operating time (in milliseconds) |
|
|
|
|
|
Closing time |
|
ms |
|
20 – 25 |
20 – 15 |
Opening time |
|
ms |
|
10 – 15 |
10 – 15 |
General data |
|
|
|
|
|
Approximate weight |
|
lbs |
|
2.4 |
2.4 |
Temperature limits |
|
|
|
|
|
Maximum operating temperature |
°C |
|
50 |
50 |
|
Minimum operating temperature |
°C |
|
-25 |
-25 |
|
Minimum storage temperature |
°C |
|
-40 |
-40 |
|
Maximum storage temperature |
°C |
|
70 |
70 |
|
Min. breakdown AC RMS voltage |
V |
|
2200 |
2200 |
|
Operating altitude |
|
|
|
|
|
Maximum operating altitude |
|
feet |
|
10,000 |
10,000 |
|
|
|
|
|
|
1 |
|
Drive |
|
contactors |
1 |
|
