PRODUCT-DETAILS
Minimum Order Quantity
SD203/40

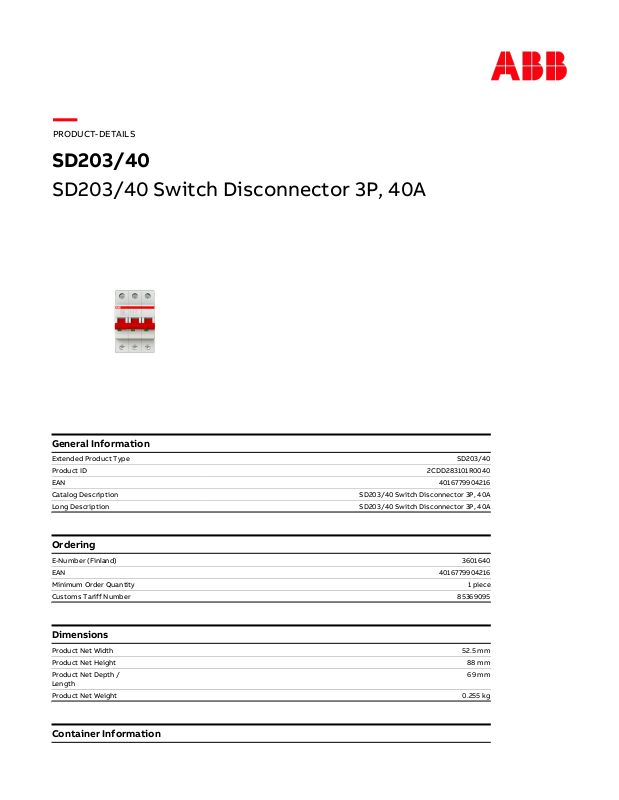

SD203/40 Switch Disconnector 3P, 40A
General Information
Extended Product Type
Product ID
EAN
Catalog Description
Long Description
SD203/40 Switch Disconnector 3P, 40A
SD203/40 Switch Disconnector 3P, 40A
SD203/40
2CDD283101R0040
4016779904216
Ordering
3601640 E-Number (Finland)
4016779904216 EAN
1 piece
85369095 Customs Tariff Number
Dimensions
52.5 mm Product Net Width
88 mm Product Net Height
Length
69 mm Product Net Depth /
0.255 kg Product Net Weight
Container Information
Page 2
SD203/40
1 piece Package Level 1 Units
92 mm Package Level 1 Width
80 mm Package Level 1 Height
58 mm Package Level 1 Depth /
Length
0.27 kg Package Level 1 Gross
Weight
4016779904698 Package Level 1 EAN
36 piece Package Level 2 Units
275 mm Package Level 2 Width
210 mm Package Level 2 Height
395 mm Package Level 2 Depth /
Length
10.12 kg Package Level 2 Gross
Weight
4016779905176 Package Level 2 EAN
2
Environmental
Ambient Air
Temperature
5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In Resistance to Vibrations
acc. to IEC 60068-2-6
to IEC 60068-2-27
Following EU Directive 2011/65/EU RoHS Status
Operation -25 ... +55 °C
Storage -40 ... +70 °C
25g / 2 shocks / 13 ms Resistance to Shock acc.
Technical UL/CSA
10000 AC cycle Electrical Endurance
20000 cycle
Additional Information
Toggle Actuator Type
Connecting Capacity
Code
Operational Voltage
at Rated Operating Conditions per Pole 2.27 W Power Loss
)
n
Rated Impulse
Withstand Voltage (U
)
Voltage
imp
Busbar 10 / 10 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
IP20 Degree of Protection
Insulation Group I, RAL 7035 Housing Material
Any Mounting Position
3 Number of Poles
Q Object Classification
Maximum 462 V AC
Minimum 12 V AC
III Overvoltage Category
3 Pollution Degree
SD200 Product Main Type
Switch Disconnectors Product Name
40 A Rated Current (I
50 / 60 Hz Rated Frequency (f)
4 kV
at 2000 m 5 kV
at Sea Level 6.2 kV
440 V AC Rated Operational
Page 3
SD203/40
3
Driver
Pozidriv 2 Recommended Screw
20170302 RoHS Date
IEC/EN 60947-3 Standards
Screw Terminals Terminal Type
2.8 N·m Tightening Torque
Certificates and Declarations (Document Number)
Information
Conformity - CE
Information
Manuals
2CDC441015D0201 Data Sheet, Technical
2CDK440034D2703 Declaration of
2CDK400618D0201 Environmental
2CDC441015D0201 Instructions and
2CDK440036D0202 RoHS Information
Classifications
EC001545 - Main switch for distribution board ETIM 4
EC001545 - Main switch for distribution board ETIM 5
EC001545 - Main switch for distribution board ETIM 6
EC001545 - Main switch for distribution board ETIM 7
Code
5. Small Equipment (No External Dimension More Than 50 cm) WEEE Category
V11.0 : 27142301 eClass
Q Object Classification
Accessories
Page 4
SD203/40
4
IdentifierDescriptionTypeQuantity
2CDS200922R0001S2C-S/H6R - S2C - S/H 6R- 1NA+1NC (1/2 mod.)S2C-S/H6R1piece
2CDS200912R0001S2C-H6R - S2C - H 6R- 1NA+1NC (1/2 mod.)S2C-H6R1piece
2CDS200936R0001
2CDS200936R0002
2CDS200936R0003
2CDS200946R0001S2C-H6-11R - Auxiliary ContactS2C-H6-11R1piece
2CDS200946R0002S2C-H6-20R - Auxiliary ContactS2C-H6-20R1piece
2CDS200946R0003S2C-H6-02R - Auxiliary ContactS2C-H6-02R1piece
2CDS200909R0001S2C-A1 - S2C - A1- 12-60V c.a./c.c. (1 mod.)S2C-A11piece
2CDS200909R0002
2CSS200911R0001S2C-UA 12 DC - S2C - UA 12 DC- 12V c.c. (1 mod.)S2C-UA 12 DC1piece
2CSS200911R0002
2CSS200911R0003
2CSS200911R0004
2CSS200911R0005
2CSS200911R0006
2CSS200911R0007
2CSS200911R0008
2CSS200911R0009
2CSS200911R0010
2CSS201997R0013S2C-CM1 - S2C-CM1- S200 1PS2C-CM11piece
2CSS203997R0013S2C-CM2/3 - S2C-CM2/3-S200 2P-3PS2C-CM2/31piece
2CSS204997R0013S2C-CM4 - S2C-CM4- S200 4PS2C-CM41piece
GHS2001901R0003S2C-DH - S2C-DHS2C-DH1piece
2CSS200998R0001S2C-BP - Mechanical tripping deviceS2C-BP1piece
2CSS200999R0001S2C-EST - S2C-ESTS2C-EST1piece
2CDS200918R0001S2C-NT - Hand Operated NeutralS2C-NT1piece
2CCA880100R0001sistema misura multipartenze CMSCMS-100PS1piece
2CCA880101R0001sistema misura multipartenze CMSCMS-101PS1piece
2CCA880102R0001sistema misura multipartenze CMSCMS-102PS1piece
S2C-H11L - S2C-H11L- 1NA+1NC montaggio a
sinistra (1/2 mod.)
S2C-H20L - S2C-H20L- 2NA montaggio a
sinistra (1/2 mod.)
S2C-H02L - S2C-H02L- 2NC montaggio a
sinistra (1/2 mod.)
S2C-A2 - S2C - A2- 110-415V c.a./110-250 V c.c.
(1 mod.)
S2C-UA 24 AC - S2C - UA 24 AC- 24V c.a. (1
mod.)
S2C-UA 48 AC - S2C - UA 48 AC- 48V c.a. (1
mod.)
S2C-UA 110 AC - S2C - UA 110 AC- 110V c.a. (1
mod.)
S2C-UA 230 AC - S2C - UA 230 AC- 230V c.a. (1
mod.)
S2C-UA 400 AC - S2C - UA 400 AC- 400V c.a. (1
mod.)
S2C-UA 24 DC - S2C - UA 24 DC- 24V c.c. (1
mod.)
S2C-UA 48 DC - S2C - UA 48 DC- 48V c.c. (1
mod.)
S2C-UA 110 DC - S2C - UA 110 DC- 110V c.c. (1
mod.)
S2C-UA 230 DC - S2C - UA 230 DC- 230V c.c. (1
mod.)
S2C-H11L1piece
S2C-H20L1piece
S2C-H02L1piece
S2C-A21piece
S2C-UA 24 AC1piece
S2C-UA 48 AC1piece
S2C-UA 110 AC1piece
S2C-UA 230
AC
S2C-UA 400
AC
S2C-UA 24 DC1piece
S2C-UA 48 DC1piece
S2C-UA 110 DC1piece
S2C-UA 230
DC
1piece
1piece
1piece
Unit Of
Measure
Categories
Low Voltage Products and Systems → Modular DIN Rail Products → Command and Signalling Devices → Switch Disconnectors
