AAXA M1 Standard User Manual

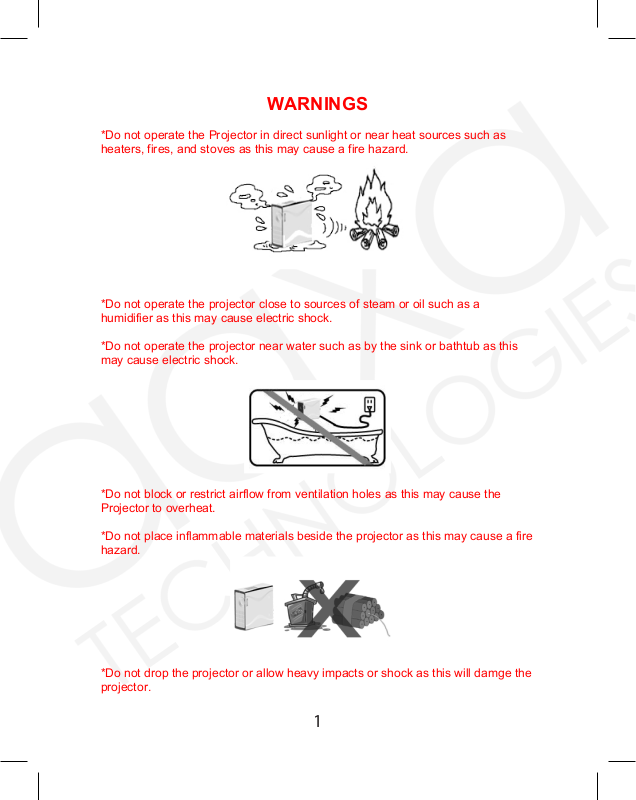

WARNINGS

*Do not operate the Projector in direct sunlight or near heat sources such as
heaters, fires, and stoves as this may cause a fire hazard.

*Do not operate the projector close to sources of steam or oil such as a
humidifier as this may cause electric shock.

*Do not operate the projector near water such as by the sink or bathtub as this
may cause electric shock.

*Do not block or restrict airflow from ventilation holes as this may cause the
Projector to overheat.

*Do not place inflammable materials beside the projector as this may cause a fire
hazard.

*Do not drop the projector or allow heavy impacts or shock as this will damge the
projector.

1

TABLE OF CONTENTS

Page

Warnings 1
Table of Contents 2
Overview 3
Remote Control Functions 4
Packing List 5
General Operation 6
a. Startup and control 6
b. Shutdown 6
c. Positioning / Throw Distance / Focus 6-7
d. Connecting to A/V Source 8
e. Connecting to Computer 8
(USB – VGA Input)
f. Using onboard Video player 9
i. Accessing SD Card 9
ii. Accessing Flash Memory 10
iii. Loading files onto flash memory 10
iv. Viewing pictures / Video 10-11
Settings 12-13
Trouble Shooting 14
Specifications 15-16

2

3

OVERVIEW

Projection

Lens

Zoom Adjust

Mini USB Input

Power Button

A/V Input

Headphone Output

Power Supply

Receptacle

SD Card Slot

REMOTE CONTROL FUNCTIONS

4

PACKING LIST

5
