QUICK SET-UP INSTRUCTIONS

Technical Data Sheet No. TD-TIO-0312-QS

Date of Issue: March 2012

Totalizer-Input/Output Flow
Monitor/Controller

TIO

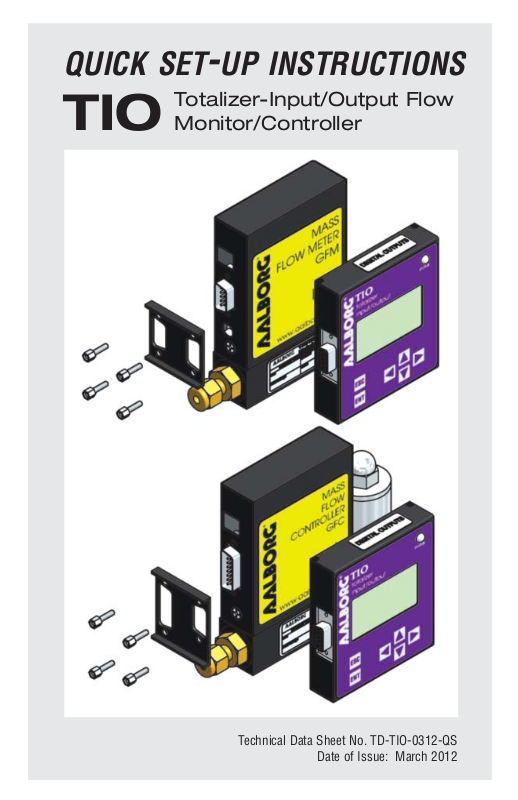

STEP 1: TIO Mounting

1. Using a 3/16" hex nut driver unscrew the 4 original screws (A) from the TIO and

GFM/GFC D-connectors.

2. Use the 4 screws (C) from the mounting kit to attach the mounting bracket (B) to the
TIO and GFM/GFC. Make sure the bracket is properly aligned with both D-connectors.

STEP 2: TIO Parameters Configuration

2.1 “Device Function” parameter must be set according to mated device function:

2.1.1 From the TIO main PI screen press “ESC” button.

2.1.2 Highlight “Program Protection” menu option and press the “ENT” button.

2.1.3 Highlight “Disable” menu selection and press “ENT” button.

2.1.4 Using “Dn” button, scroll down to highlight “General Settings” menu
selection and press “ENT” button.

2.1.5 Select “Device Function” menu selection and press “ENT” button.

a) If the TIO is mated to the GFM flow meter select “Meter” and press

“ENT” button.

b) If the TIO is mated to the GFC flow controller select “Controller” and

press “ENT” button.

c) If the TIO is mated to third party device set “Device Function”

parameter according to mated device function.

2.2 “Full Scale Range” parameter must be set according to mated device Full Scale Range.

2.2.1 From “General Settings” menu scroll down to select “Device

Calibration” menu selection and press “ENT” button.

2.2.2 Select “Full Scale Range” menu selection and press “ENT” button.

2.2.3 Using “Up”, “Dn”, “Left”, “Right” buttons, adjust Full Scale Range

parameter to be equal to the Full Scale Range of the mated device converted to

litr/min units. When done, press “ENT” button to save new settings.

2.3 “Fluid Std. Density” parameter must be set according to mated device Operating

Fluid density. This parameter is required only when mass based engineering units
are selected.

2.3.1 From “Calibration Menu” scroll down to select “Fluid Std. Density”

menu selection and press “ENT” button.

2.3.2 Using “Up”, “Dn”, “Left”, “Right” buttons, adjust the Fluid Std. Density

parameter according to mated device Operating Fluid density in gram/litr.
When done, press “ENT” button to save new settings.

TIO MOUNTING AND PARAMATER CONFIGURATION

INSTRUCTIONS

NOTE: If “Full Scale Range”, “Device Function” and “Fluid Std.
Density” parameters are not set properly the device may have
erroneous readings and unpredictable behavior.

,

Mounting
TIO for GFC

Mounting
TIO for GFM

remove

screws

remove

screws

aalborg

 CAUTION:

This product is not intended to be used in life support applications!
