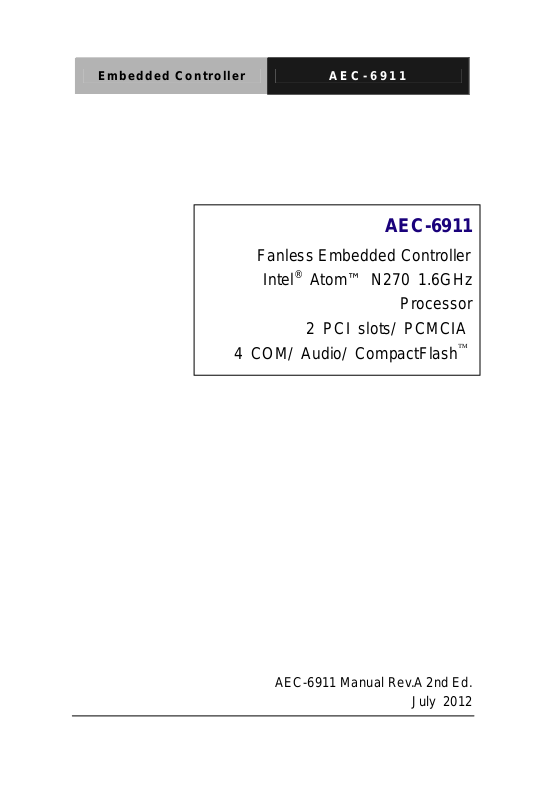

Embedded Controller AEC-6911

Fanless Embedded Controller

Intel® Atom™ N270 1.6GHz

2 PCI slots/ PCMCIA

4 COM/ Audio/ CompactFlash

AEC-6911

Processor



AEC-6911 Manual Rev.A 2nd Ed.

July 2012

Embedded Controller AEC-6911

This document is copyrighted, 2012. All rights are reserved. The original manufacturer reserves the right to make improvements to the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of the original manufacturer. Information provided in this manual is intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its use, or for any infringements upon the rights of third parties that may result from its use.

The material in this document is for product information only and is subject to change without notice. While reasonable efforts have been made in the preparation of this document to assure its accuracy, AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein.

AAEON reserves the right to make changes in the product design without notice to its users.

Embedded Controller AEC-6911

Acknowledgments

All other products’ name or trademarks are properties of their respective owners.

 Award is a trademark of Award Software International, Inc.  CompactFlash

Association.

 Intel

, Atom™ are trademarks of Intel® Corporation.

 Microsoft Windows

Corp.

 PC/AT, PS/2, and VGA are trademarks of International

Business Machines Corporation.

All other product names or trademarks are properties of their respective owners.

™

is a trademark of the Compact Flash

is a registered trademark of Microsoft

Embedded Controller AEC-6911

Packing List

Before you begin operating your PC, please make sure that the following materials are enclosed:

 1 AEC-6911 Embedded Controller  1 Phoenix Power Connector  2 Wallmount Brackets  1 Audio Cable  1 Screw Package  1 CD-ROM for manual (in PDF format) and

drivers

If any of these items should be missing or damaged, please contact your distributor or sales representative immediately.

iii

Embedded Controller AEC-6911

Safety & Warranty

1. Read these safety instructions carefully.

2. Keep this user's manual for later reference.

3. Disconnect this equipment from any AC outlet before clea ning. Do not use liquid or spray detergents for cleaning. Use a damp cloth.

4. For pluggable equipment, the power outlet must be installed near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a firm surface during installation. Dropping it or letting it fall could cause damage.

7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.

9. Position the power cord so that people cannot step on it. Do not place anything over the power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient over-voltage.

12. Never pour any liquid into an opening. This could cause fire or electrical shock.

13. Never open the equipment. For safety reasons, only qualified service personnel should open the equipment.

14. If any of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

Embedded Controller AEC-6911

b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it

to work according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breaka ge.

15. DO NOT LEA VE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW -15°C (5°F) OR ABOVE 55°C (131°F). IT MAY DAMAGE THE EQUIPMENT.

FCC

This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may

cause undesired operation.

Embedded Controller AEC-6911

Below Table for China RoHS Requirements

产品中有毒有害物质或元素名称及含量

AAEON Boxer/ Industrial System

有毒有害物质或元素

部件名称

印刷电路板

及其电子组件

外部信号

连接器及线材

外壳 × ○ ○ ○ ○ ○

中央处理器

与内存

硬盘 × ○ ○ ○ ○ ○ 电源 × ○ ○ ○ ○ ○

O：表示该有毒有害物质在该部件所有均质材料中的含量均在

SJ/T 11363-2006 标准规定的限量要求以下。

X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出

SJ/T 11363-2006 标准规定的限量要求。

备注：一、此产品所标示之环保使用期限，系指在一般正常使用状况下。二、上述部件物质中央处理器、内存、硬盘、电源为选购品。

铅

(Pb)汞 (Hg)镉 (Cd)

× ○ ○ ○ ○ ○

六价铬

(Cr(VI))

多溴联苯

(PBB)

多溴二苯醚

(PBDE)

Embedded Controller AEC-6911

Contents

Chapter 1 General Information

1.1 Introduction................................................................ 1-2

1.2 Features....................................................................1-4

1.3 Specifications............................................................1-5

Chapter 2 Hardware Installation

2.1 Jumper and Connector.............................................. 2-2

2.2 Dimension ................................................................. 2-5

2.3 USB1,2 (J1) & USB3,4 (J2) Power Selection ........... 2-7

2.4 FAN Power Selection (JP1) (For special usage) ...... 2-7

2.5 PS2 Keyboard/ Mouse Power Selection (JP2) ......... 2-7

2.6 RTC Battery Selection (JP3)..................................... 2-7

2.7 COM1, COM3, COM4 Pin 9 Selection (JP6, JP4, JP5)

.........................................................................................2-7

2.8 COM2 RS-232/422/485 Selection............................. 2-8

2.9 COM2 RS-232/422/485 Serial Port Connector......... 2-8

2.10 Hard Disk Drive Installation.....................................2-9

2.11 PCI Card Installation ...............................................2-15

2.12 Wallmount Kit Installation........................................2-19

Chapter 3 Award BIOS Setup

3.1 System Test and Initialization. ..................................3-2

3.2 Award BIOS Setup....................................................3-3

vii

Embedded Controller AEC-6911

Chapter 4 Driver Installation

4.1 Installation.................................................................4-3

Appendix A Programming The Watchdog Timer

A.1 Programming ........................................................A-2

A.2 IT8712 Watchdog Timer Initial Program ..............A-6

Appendix B I/O Information

B.1 I/O Address Map ..................................................B-2

B.2 1

MB Memory Address Map ...............................B-3

B.3 IRQ Mapping Chart ..............................................B-4

B.4 DMA Channel Assignments .................................B-4

viii

Embedded Controller AEC-6911

Information

Chapter

General

Chapter 1 General Information 1- 1

Embedded Controller AEC-6911

1.1 Introduction

The AEC-6911 BOXER α Advanced Embedded Control system continues the BOXER design concept but focuses on the fast expanding Machine Automation market. The AEC-6911 can provide two PCI slots for expansion. Therefore AEC-6911’s expandable function, compact size combined with fanless design and highly efficient heat conduction mechanism can fulfill any rugged technical application in industrial automation, factory control, test instrumentation and safety surveillance.

Low Power Consumption Design

Intel’s

Atom™ N270 1.6GHz processor combined with fanless design and high performance is widely acceptable and dependable in this market. USB 2.0, Ethernet and 4 Serial ports allow communication with diverse devices with a high transfer rate. Furthermore, the AEC-6911 can concurrently support both tiers of expansion interfaces – PCI and PCMCIA. These interfaces are fully integrated within the BOXER series and allow an upgrade to their usefulness. It is a leading-edge thermal and vibration design (up to 55°C operation and 5g rms vibration) and also an innovation for Machine Automation in the IPC industry. AEC-6911 plays a role in connecting all subsystems in common

Chapter 1 General Information 1- 2

Embedded Controller AEC-6911

applications. AAEON not only enhances your competitive value but also gives you an excellent solution for the future.

Strict Quality Control Process

AAEON ret

ains the perfect product design and management team. Our Quality Control through multiple level experience and test has earned a good reputation in IPC field. AAEON’s whole product series are subjected to high-level standards which make them our best guarantee and assurance to customers. Excellent product quality will always be AAEON’s best advertisement.

24-hour FAE System

AAEON’s e-RMA and e-FAE 24-hour a day systems for all customers’ prompt request was formally launched in 2005. No matter if it is a holiday or weekend; we can handle all kinds of requests and give you a satisfactory response in 10 days. AAEON is proud of our quick service and professional teamwork to provide our customers with continual support.

Great design, great value and great service are hallmarks of the AAEON BOXER embedded control PCs. There really is no other choice for your application than AAEON if you want the best performance and best value!

Chapter 1 General Information 1- 3

Embedded Controller AEC-6911

1.2 Features

 Fanless Design with Intel® Atom™ N270 1.6GHz Processor  Supports 2 PCI slots for expansion  PCMCIA x 2  Gigabit Ethernet  COM x 4, USB 2.0 x 4, RJ-45 x 2  Operating Temperature: -15°C~55

°C(CFD); -15°C~50°C

(HDD)

 Anti-vibration up to 5g rms / Anti-shock up to 50 G  Low Power Consumption

Chapter 1 General Information 1- 4

Embedded Controller AEC-6911

1.3 Specifications

System

 CPU Intel® Atom™ N270 1.6GHz Processor  System Memory DDR2 SDRAM SODIMM x 1, Max. 2

 Expansion PCI slot x 2, PCMCIA x 2  VGA DB-15 VGA connector,

Max. Resolution: 2048x1536

 Keyboard/Mouse PS/2 Keyboard & Mouse  Ethernet 10/100/1000Base-TX;

RJ-45 Connector x 2

 SSD CompactFlash  Device Bay Internal 2.5” Slim HDD Bay  Serial Port RS-232 x 3, RS-232/422/485 x 1

™

slot x 1

 Audio Line-in / Line-out / MIC-in by external

cable

 USB 4 USB 2.0 ports  Watchdog Timer Generates a time-out system reset,

setting via software

 Power Supply 1. DC Input -- Internal DC-DC onverter

(Default) Input voltage: DC 9V/1.91A~ DC 30V/0.69A

2. AC Input -- External Power Adapter

Chapter 1 General Information 1- 5

Embedded Controller AEC-6911

(Optional) Input voltage: 100V AC ~ 240V AC @ 50 ~ 60Hz

 System Control Power on / of f switch x 1; Reset button

x 1

 Indicators Power LED x 1; HDD active LED x 1

Mechanical and Environmental

 Construction Rugged Aluminum Alloy chassis  Color Mustard  Mounting Wallmount  Dimension 8.4”(W) x 4.1”(H) x 9.4”(D)

(214mm x 104.3mm x 237.8mm)

 Net Weight 12.4 lb (5.63 kg)  Operating

Temperature

 Storage

5°F ~ 131°F (-15°C~55°C) (CFD) 5°F ~ 122°F (-15°C~50°C) (HDD) 5~90%@40°C, non-condensing

Humidity

 Vibration 5g rms / 5~500Hz / random

operation (CFD); 1g rms / 5~500Hz / random operation (Internal HDD active Module)

 Shock 50G peak acceleration (11msec.

duration)(CFD) 20G peak acceleration (11 msec.

Chapter 1 General Information 1- 6

Embedded Controller AEC-6911

duration) (HDD)

 EMC CE/FCC class A

Front side

Rear Side

Chapter 1 General Information 1- 7

Embedded Controller AEC-6911

Hardware

Installation

Chapter

Chapter 2 Hardware Installation 2-1

Embedded Controller AEC-6911

2.1 Jumper and Connector

JP1

Chapter 2 Hardware Installation 2 - 2

JP1

+12V

+5V

Embedded Controller AEC-6911

JP2

JP3

JP2

VCC5

5VDUAL (Default)

JP3

Normal (Default)

Clear CMOS

Chapter 2 Hardware Installation

2 - 3

Embedded Controller AEC-6911

JP4/JP5/JP6

JP4

JP5 JP6

J1/J2

JP4

+12V

+5V

COM3

(Default)

JP5

+12V

+5V

COM4

(Default)

JP6

+12V

+5V

COM1

(Default)

J1,J2

VCC5

Chapter 2 Hardware Installation 2 - 4

5VDUAL (Default)

Embedded Controller AEC-6911

2.2 Dimension

Chapter 2 Hardware Installation

2 - 5

Embedded Controller AEC-6911

Chapter 2 Hardware Installation 2 - 6

Embedded Controller AEC-6911

2.3 USB1, 2 (J1) & USB3, 4 (J2) Power Selection

J1 Function

1-2 Normal Æ VCC5

2-3 Standby (Default) Æ 5VDUAL

J2 Function

1-2 Normal Æ VCC5

2-3 Standby (Default) Æ 5VDUAL

2.4 FAN Power Selection (JP1) (For special usage)

JP1 Function

1-2 +12V

2-3 +5V

2.5 PS2 Keyboard/ Mouse Power Selection (JP2)

JP2 Function

1-2 Normal Æ VCC5

2-3 Standby (Default) Æ 5VDUAL

2.6 RTC Battery Selection (JP3)

JP3 Function

1-2 Normal (Default)

2-3 Clear CMOS

2.7 COM1, COM3, COM4, Pin 9 Selection (JP6, JP4, JP5)

JP6 Function

1-2 +12V

3-4 +5V

Chapter 2 Hardware Installation

2 - 7

Embedded Controller AEC-6911

5-6 RI for COM1 (Default)

JP4 Function

1-2 +12V

3-4 +5V

5-6 RI for COM3 (Default)

JP5 Function

1-2 +12V

3-4 +5V

5-6 RI for COM4 (Default)

2.8 COM2 RS-232/422/485 Selection

COM2 RS-232/422/485 selection for AAEON BOXER α series is

set in BIOS setting as following:

Entering BIOS Setting Menu: Choose "Integrated Peripherals

Super IO device

COM2 select". (Default setting is at "RS-232")

2.9 COM2 RS-232/422/485 Serial Port Connector

Different devices implement the RS-232/422/485 standard in

different ways. If you have problems with a serial device, check

the pin assignments below for the connector.

Chapter 2 Hardware Installation 2 - 8

Embedded Controller AEC-6911

Pin Signal Pin Signal

1 DCD (422TXD-/485DATA-) 2 RXD (422RXD+)

3 TXD (422TXD+/485DATA+) 4 DTR (422RXD-)

5 GND 6 DSR

7 RTS 8 CTS

9 RI 10 N.C.

2.10 Hard Disk Drive Installation

Disassemble the AEC-6911

For Hard Disk Drive (HDD) installation, you have to disassemble

the bottom lid of AEC-6911 and some components and covers in

the AEC-6911.

Step 1: Unfasten the two screws on the rear panel.

Chapter 2 Hardware Installation

2 - 9

Embedded Controller AEC-6911

Step 2: Unfasten the screws in blue circle on the front panel.

Step 3: Unfasten the six screws on the bottom lid.

Chapter 2 Hardware Installation 2 - 10

Embedded Controller AEC-6911

Assemble the HDD Module

After disassembling the AEC-6911, you have to get the HDD

module ready for the proceeding installation.

Step 1: Fasten the four HDD screws and cover with the four black

damper

Black DamperBlack Damper

Chapter 2 Hardware Installation

2 - 11

Embedded Controller AEC-6911

Step 2: Assembly the HDD chassis

Step 3: Assembly the damper bracket

Chapter 2 Hardware Installation 2 - 12

Embedded Controller AEC-6911

Step 4:

Connect the HDD cable (for IDE Type HDD)

Connect the HDD cable (for SATA Type HDD)

W/LOCK

HDD DISK

SATA Power

I/O Board Side

Chapter 2 Hardware Installation

2 - 13

Embedded Controller AEC-6911

Step 5: Fasten the six screws on the back of the AEC-6911

Step 6: Fasten the screw

Chapter 2 Hardware Installation 2 - 14

Embedded Controller AEC-6911

Step 7: Fasten the screw

2.11 PCI Card Installation

Step 1: Unfasten the screw on the front panel.

Chapter 2 Hardware Installation

2 - 15

Embedded Controller AEC-6911

Step 2: Unfasten the screw on the rear panel.

Step 3: Unfasten the six screws on the bottom lid.

Chapter 2 Hardware Installation 2 - 16

Embedded Controller AEC-6911

Step 4: Remove the screw with your finger and get the PCI card ready to

install. You should keep the shield and screw for use later.

Step 5: Insert the PCI card into the PCI slot and reattach the screw.

Chapter 2 Hardware Installation

2 - 17

Embedded Controller AEC-6911

Step 6: Unfasten the screws and push the tenon to lock the PCI card in

position.

Step 7: Close the bottom lid of the AEC-6911 and fasten six screws on

bottom lid.

Chapter 2 Hardware Installation 2 - 18

Embedded Controller AEC-6911

Step 8: Fasten the one screw on the rear panel and one screw on the

front panel

2.12 Wallmount kit Installation

Step 1: Get the brackets ready and fasten appropriate three screws on

each bracket. After fastening the two brackets on the bottom lid of

AEC-6911, the wallmount kit installation is finished

Chapter 2 Hardware Installation

2 - 19

Embedded Controller AEC-6911

Chapter 2 Hardware Installation 2 - 20

Embedded Controller AEC-6911

Chapter

Award

BIOS Setup

Chapter 3 Award BIOS Setup 3-1

Embedded Controller AEC-6911

3.1 System Test and Initialization

These routines test and initialize board hardware. If the routines encounter an error during the tests, you will either hear a few short beeps or see an error message on the screen. There are two kinds of errors: fatal and non-fatal. The system can usually continue the boot up sequence with non-fatal errors. Non-fatal error messages usually appear on the screen along with the following instructions:

Press <F1> to RESUME Write down the message and press the F1 key to continue the

boot up sequence.

System configuration verification

These routines check the current system configuration against the values stored in the CMOS memory. If they do not match, the program outputs an error message. You will then need to run the BIOS setup program to set the configuration information in memory.

There are three situations in which you will need to change the CMOS settings:

1. You are starting your system for the first time

2. You have changed the hardware attached to your system

3. The CMOS memory has lost power and the configuration information has been erased.

The AEC-6911 CMOS memory has an integral lithium battery backup for data retention. However, you will need to replace the complete unit when it finally runs down.

Chapter 3 Award BIOS Setup 3-2

Embedded Controller AEC-6911

3.2 Award BIOS Setup

Awards BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration. This type of information is stored in battery-backed CMOS RAM so that it retains the Setup information when the power is turned off.

Entering Setup

Power on the computer and press <Del> immediately. This will allow you to enter Setup.

Standard CMOS Features

Use this menu for basic system configuration. (Date, t ime, IDE, etc.)

Advanced BIOS Features

Use this menu to set the advanced features available on your system.

Advanced Chipset Features

Use this menu to change the values in the chipset registers and optimize your system performance.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals. (Primary slave, secondary slave, keyboard, mouse etc.)

Note: COM3, COM 4 cannot support LapLink V.5.0(LL5)

Power Management Setup

Use this menu to specify your settings for power management. (HDD power down, power on by ring, KB wake up, etc.)

PnP/PCI Configurations

This entry appears if your system supports PnP/PCI.

Chapter 3 Award BIOS Setup 3-3

Embedded Controller AEC-6911

PC Health Status

This menu allows you to set the shutdown temperature for your system.

Frequency/Voltage Control

Use this menu to specify your settings for auto detect DIMM/PCI clock and spread spectrum.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values for the minimal/stable performance for your system to operate.

Load Optimized Defaults

Use this menu to load the BIOS default values that are factory settings for optimal performance system operations. While AWARD has designated the custom BIOS to maximize performance, the factory has the right to change these defaults to meet their needs.

Set Supervisor/User Password

Use this menu to set Supervisor/User Passwords.

Save and Exit Setup

Save CMOS value changes to CMOS and exit setup.

Exit Without Saving

Abandon all CMOS value changes and exit setup.

You can refer to the "AAEON BIOS Item Description.pdf" file in the CD for the meaning of each setting in this chapter.

Chapter 3 Award BIOS Setup 3-4

Embedded Controller AEC-6911

Installation

Chapter

Driver

Chapter 4 Driver Installation 4 - 1

Embedded Controller AEC-6911

The AEC-6911 comes with a CD-ROM that contains all drivers and utilities that meet your needs.

Follow the sequence below to install the drivers:

Step 1 – Install INF Driver Step 2 – Install VGA Driver Step 3 – Install LAN Driver Step 4 – Install Audio Driver

USB 2.0 Drivers are available for download using Windows Update for both Windows XP and Windows 2000. For additional information regarding USB 2.0 support in Windows XP and Windows 2000, please visit

www.microsoft.com/hwdev/usb/.

Please read instructions below for further detailed installations.

Chapter 4 Driver Installation 4 - 2

Embedded Controller AEC-6911

4.1 Installation

Insert the AEC-6911 CD-ROM into the CD-ROM Drive. The Autorun program will run automatically. You also can choose the drivers to install from step 1 to step 4 in order as following instructions.

Step 1 – Install INF Driver

1. Click on the Step 1-INF folder and then double click on the Setup.exe

2. Follow the instructions that the window will show you

3. The system will help you install the driver automatically

Step 2 – Install VGA Driver

1. Click on the Step 2-VGA folder and select the OS folder your system is

2. Double click on the Setup.exe located in each OS folder

3. Follow the instructions that the window shows you

4. The system will help you install the driver automatically

Caution:

In AAEON products with Intel embedded graphics chipset, when system booting before CRT / LCD monitor has disconnected to VGA, it will caus e Intel graphics chipset automatically detected without CRT / LCD connection and set CRT output to disable. Therefore, CRT / LCD screen will go black and never recovered on Windows.

Because it's a limitation on application for Intel em bedded graphics driver under Windows XP. Therefore, there is a simply way to recover CRT / LCD

Chapter 4 Drivers Installat ion 4 - 3

Embedded Controller AEC-6911

output through Hot-Key function by Intel suggestion as follows:

You need to press <CTRL><ALT><F1> key simultaneously to recover VGA output again. This hot-key function is only in the Windows driver version 6.14.10.4497 or later.

Step 3 – Install LAN Driver

1. Click on the Step 3-LAN folder and select the OS folder your system is

2. Double click on the .exe file located in each OS folder

3. Follow the instructions that the window shows you

4. The system will help you install the driver automatically

Step 4 – Install Audio Driver

1. Click on the Step 4-AC97 folder and then click on the folder of Win98ME2KXP

2. Double click on the wdm_a371.exe

3. Follow the instructions that the window shows you

4. The system will help you install the driver automatically

Note:

Under the Window OS environment, if the CRT connector is connected to display monitor by the data switch device, the user need to set the color and resolution from Intel Graphic utility (VGA driver) instead of setting from the control panel in case of the wrong display appearance.

Chapter 4 Driver Installation 4 - 4

Embedded Controller AEC-6911

Appendix

Programming the

Watchdog Timer

Appendix A Programming the Watch dog Timer A-1

Embedded Controller AEC-6911

A.1 Programming

AEC-6911 utilizes ITE 8712 chipset as its watchdog timer controller.

Below are the procedures to complete its configuration and the AAEON intial watchdog timer program is also attached based on which you can develop customized program to fit your application.

Configuring Sequence Description

After the hardware reset or power-on reset, the ITE 8712 enters the normal mode with all logical devices disabled except KBC. The initial state (enable bit ) of this logical device (KBC) is determined by the state of pin 121 (DTR1#) at the falling edge of the system reset during power-on reset.

Appendix A Programming the Watch dog Timer A-2

Embedded Controller AEC-6911

There are three steps to complete the configuration setup: (1) Enter the MB PnP Mode; (2) Modify the data of configuration registers; (3) Exit the MB PnP Mode. Undesired result may occur if the MB PnP Mode is not exited normally.

(1) Enter the MB PnP Mode

To enter the MB PnP Mode, four special I/O write operations are to be performed during Wait for Key state. To ensure the initial state of the key-check logic, it is necessary to perform four write opera -tions to the Special Address port (2EH). Two different enter keys are provided to select configuration ports (2Eh/2Fh) of the next step.

(2) Modify the Data of the Registers

All configuration registers can be accessed after entering the MB PnP Mode. Before accessing a selected register, the content of Index 07h must be changed to the LDN to which the register belongs, except some Global registers.

(3) Exit the MB PnP Mode

Set bit 1 of the configure control register (Index=02h) to 1 to exit the MB PnP Mode.

Appendix A Programming the Watchdog Timer A-3

Embedded Controller AEC-6911

WatchDog Timer Configuration Registers

Configure Control (Index=02h)

This register is write only. Its values are not sticky; that is to say, a hardware reset will automatically clear the bits, and does not require the software to clear them.

WatchDog Timer Control Register (Index=71h, Default=00h)

Appendix A Programming the Watch dog Timer A-4

Embedded Controller AEC-6911

WatchDog Timer Configuration Register (Index=72h,

Default=00h)

WatchDog Timer Time-out Value Register (Index=73h,

Default=00h)

Appendix A Programming the Watchdog Timer A-5

Embedded Controller AEC-6911

A.2 IT8712 Watchdog Timer Initial Program

.MODEL SMALL .CODE

Main:

CALL Enter_Configuration_mode CALL Check_Chip mov cl, 7 call Set_Logic_Device ;time setting mov cl, 10 ; 10 Sec dec al

Watch_Dog_Setting:

;Timer setting mov al, cl mov cl, 73h call Superio_Set_Reg ;Clear by keyboard or mouse interrupt mov al, 0f0h mov cl, 71h call Superio_Set_Reg ;unit is second. mov al, 0C0H mov cl, 72h call Superio_Set_Reg

Appendix A Programming the Watch dog Timer A-6

Embedded Controller AEC-6911

; game port enable mov cl, 9 call Set_Logic_Device

Initial_OK: CALL Exit_Configuration_mode MOV AH,4Ch INT 21h

Enter_Configuration_Mode PROC NEAR MOV SI,WORD PTR CS:[Offset Cfg_Port]

MOV DX,02Eh MOV CX,04h Init_1: MOV AL,BYTE PTR CS:[SI] OUT DX,AL INC SI LOOP Init_1 RET Enter_Configuration_Mode ENDP

Exit_Configuration_Mode PROC NEAR MOV AX,0202h CALL Write_Configuration_Data

Appendix A Programming the Watchdog Timer A-7

Embedded Controller AEC-6911

RET Exit_Configuration_Mode ENDP

Check_Chip PROC NEAR

MOV AL,20h CALL Read_Configuration_Data CMP AL,87h JNE Not_Initial

MOV AL,21h CALL Read_Configuration_Data CMP AL,12h JNE Not_Initial

Need_Initial:

STC RET

Not_Initial:

CLC RET Check_Chip ENDP Read_Configuration_Data PROC NEAR MOV DX,WORD PTR CS:[Cfg_Port+04h] OUT DX,AL

Appendix A Programming the Watch dog Timer A-8

Embedded Controller AEC-6911

MOV DX,WORD PTR CS:[Cfg_Port+06h] IN AL,DX RET Read_Configuration_Data ENDP

Write_Configuration_Data PROC NEAR MOV DX,WORD PTR CS:[Cfg_Port+04h] OUT DX,AL XCHG AL,AH MOV DX,WORD PTR CS:[Cfg_Port+06h] OUT DX,AL RET Write_Configuration_Data ENDP

Superio_Set_Reg proc near push ax MOV DX,WORD PTR CS:[Cfg_Port+04h] mov al,cl out dx,al pop ax inc dx out dx,al ret Superio_Set_Reg endp.Set_Logic_Device proc near Set_Logic_Device proc near

Appendix A Programming the Watchdog Timer A-9

Embedded Controller AEC-6911

push ax push cx xchg al,cl mov cl,07h call Superio_Set_Reg pop cx pop ax ret Set_Logic_Device endp

;Select 02Eh->Index Port, 02Fh->Data Port Cfg_Port DB 087h,001h,055h,055h

DW 02Eh,02Fh

END Main

Note: Interrupt level mapping

0Fh-Dh: not valid 0Ch: IRQ12

. 03h: IRQ3 02h: not valid 01h: IRQ1

00h: no interrupt selected

Appendix A Programming the Watch dog Timer A-10

Embedded Controller AEC-6911

Appendix

I/O Information

Appendix B I/O Information B-1

Embedded Controller AEC-6911

B.1 I/O Address Map

Appendix B I/O Information B-2

Embedded Controller AEC-6911

B.2 1st MB Memory Address Map

Appendix B I/O Information B-3

Embedded Controller AEC-6911

B.3 IRQ Mapping Chart

B.4 DMA Channel Assignments

Appendix B I/O Information B-4

AAEON AEC-6911 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
