MeetingMan
Wireless Mouse
User Manual
Model: G10-700F
www.a4tech.com
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE
MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING I NTERFERENCE
THAT MAY CAUSE UNDESIRED OPERATION.
Federal Communications Commission Requirements
The equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
●Reorient of relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and receiver.
(2) This device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement
The equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65. The equipment has very low levels of RF energy that it is deemed to comply without testing of specific absorption ratio (SAR).
- 1 -
1. Hardware Installation
1). Connect the 10-Link receiver
Take out the 10-Link receiver from bottom of the mouse and connect it to your computer or
Notebook.
Notes:
1. If you are using the receiver in a long range meeting room or there is strong wireless
conflicts nearby, adopting the receiver with a USB extension cable to keep it away from the
computer or any interfering sources.
2. Connect receiver on the same side with the mouse, it may avoid potential wireless
conflicts from the notebook computer.
2). Insert the batteries
Push down the mouse cover to open the battery cover and insert the supplied batteries.
Please make sure the positive (+) and negative (-) ends of the battery match the polarity
indicators inside the battery compartment.
3). Turn on your Mouse
Push the power switch to ON position and turn on your mouse. >>Then LED light at the
bottom of the mouse is on immediately.
- 2 -
2. Software Installation(Note: The software is applicable to Windows 2000/ XP/ 2003/ Vista/ Windows 7)
The G10 MeetingMan offers 2 flexible ways to install the driver, Normal Installation and Mobile Execution. The MeetingMan
main program has a special feature that it can be executed directly without the need to install the software to Windows
system. This is convenient when you are using a public computer and installing mouse driver to the system is prohibited or
restricted. In such circumstances, you do not need to install the mouse driver, but just run the MeetingMan＇s main
program directly from your storage device, e.g., a memory stick.
Normal Installation
1). Uninstall any mouse software on your system.
2). Insert enclosed CD to start installation and follow the on-screen instructions to finish the
software installation. You may manually double click the “auto-run＂ program if execution
does not automatically start.
3). The shortcut icon "
installed the software. (Otherwise, installation is failed and you have to remove the software
and re-install.)
To remove the driver, follow the steps:
Go to START>> PROGRAMS >>A4TECH Software >> "G10 MeetingMan" >> "Uninstall G10
MeetingMan, see figure on the right.
" will appear on your desktop screen, and then you have successfully
Mobile Execution:
You may copy and store the Mobile Edition files to your storage device, e.g., a memory stick,
and plug it into any public systems to execute the Mobile Edition directly without installation.
Or, you may copy all the files to the system, and then run the Mobile Edition main program
- 3 -
directly. This is convenient when you are using a public computer in the school or net bar,
where installation any new program is prohibited or restricted.
Usage:
1). Copy all the files in the folder “G10＂ to your memory stick, and if needed, copy the files
to the public system.
2). Double-click the icon to run Mobile Edition.exe
(1) Knowing the G10 MeetingMan Software
The basic principles
and design concepts of
G10 MeetingMan
Functions Descriptions Figures
Before you are getting started to use this product, it is vital to understand the basic principles
and design concepts of MeetingMan.
For each of MeetingMan’s script file, it will contain 5 different working modes, and each
working mode can setup 7 buttons on the mouse with various functionalities. Those preset
modes can be accessed by pressing the “mode-shift” button, and each button’s functionality
can be activated by clicking the appropriate mouse button according to various applications.
Thus, it turns a simple mouse into a very unique and powerful tool with individual’s innovation.
For instance, there are 5 preset working modes available for Office, TutorPen Meeting, Open
file, LaserPointer Meeting and Gaming respectively, and after the MeetingMan software being
installed, those 5 working modes can be shifted using a “mode-shift” button and make your
jobs well done effortlessly!
Mobile Edition.exe
- 4 -
. Mode Name/Select
Click on “Mode Name/Select” on the Main Menu, the mode setup
screen will pop up as shown on the right.
You may tick off the modes you would not need temporarily from
bottom to top order, or tick the mode you need from top to bottom
order.
You may enter a new mode name on the blank, or edit existing mode
names.
. Selected Mode to
Edit
③. Mode Name
It displays the current mode number in editing. You may select other
mode numbers if needed.
There are 5 modes you can select to edit; with each mode you can
define a number of new button settings. Remember to click “Apply” on
the main menu to save the new settings to the receiver before taking
effect.
The current mode name in editing. You may edit the mode name as
described in the “1.Mode Name/Select” section.
- 5 -
④. Default
Click the "Default" a reminder will pop up as shown on the right. Click
"OK" will resume all the buttons to the original settings, or click
"Cancel" to exit the screen without any change.
- 6 -
(2) Button Settings and Relevant Functions
Functions Descriptions Figures
Button
Settings

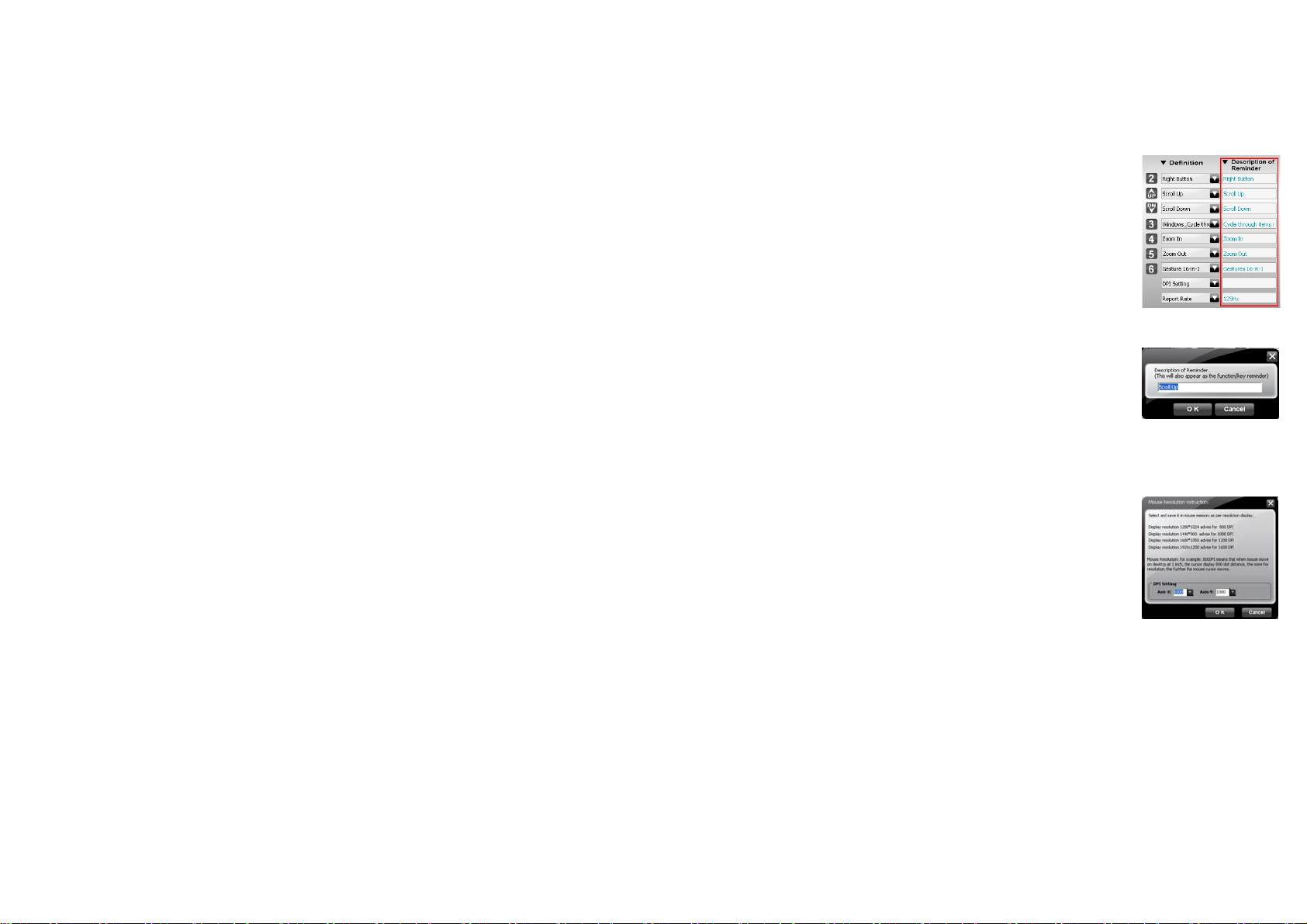

Click any “button definition area” on the main menu; you will see the function listing
as shown on the right. According to your preference, you may select one of them as
the button setting. You also can enter a short description on the “Description of
reminder” area, which will be displayed on the screen when it is activated as the
reminder.
No Setting There is no button setting being defined.
Keyboard You may setup the mouse button to simulate a keyboard's
Mouse Except mouse left button, you may setup any of mouse buttons to
Open a File
keystroke, or a key combination with "Win", "Ctrl", "Shift" and "Alt",
then followed with any keystroke on the keyboard, and then assign it
to the designated mouse button.
be one of "mouse left button, mouse right button, mouse middle
button, mouse 4th button, mouse 5th button, wheel up and wheel
down".
One click to open a program file or a document. You may setup any
of mouse buttons of 2, 3, 4, 5, 6, wheel up(UP) and wheel down(DN)
with “Open a File” function.
Usage:

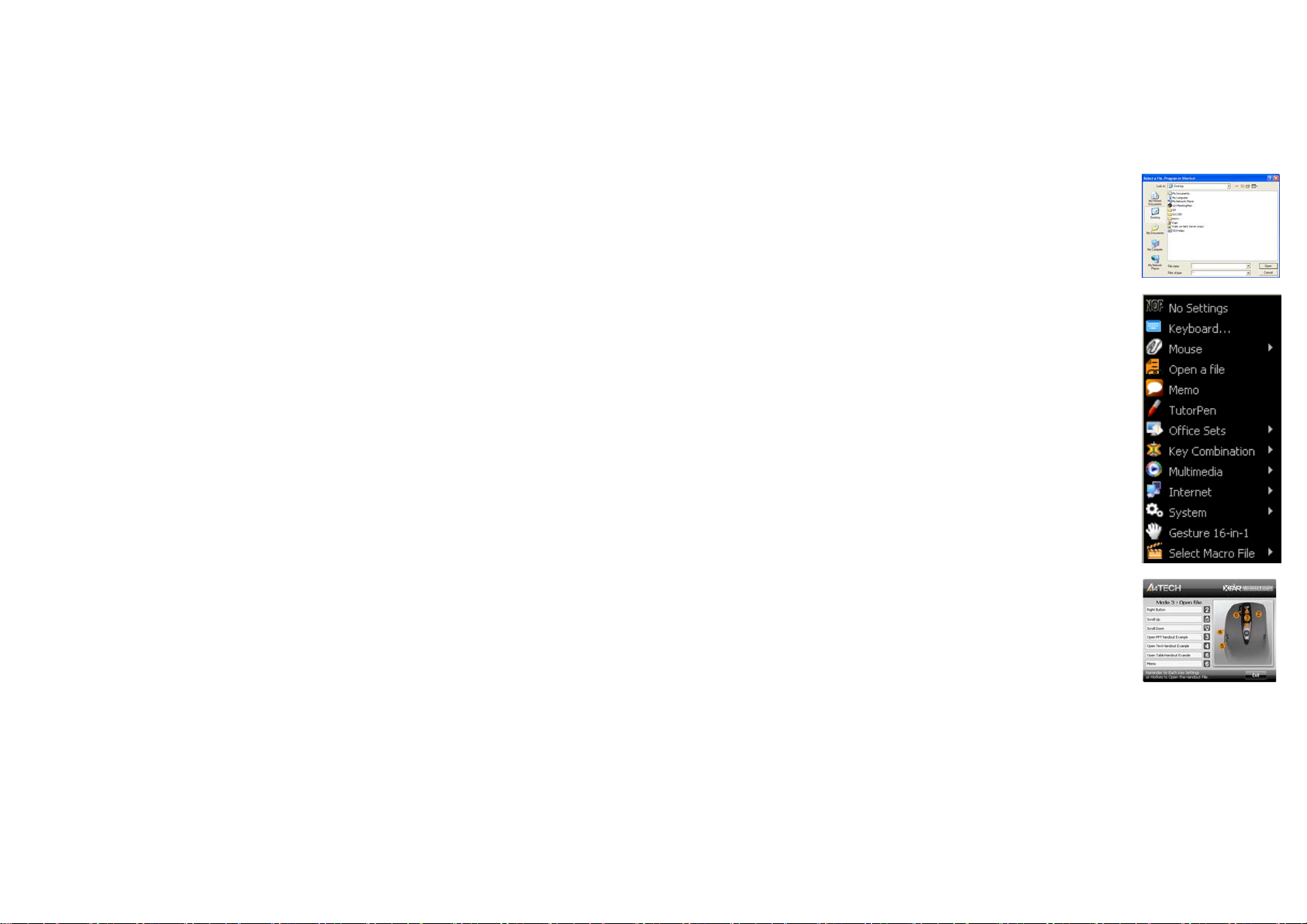

1). Select “Open a file” from the pull-down button menu as figure 1
shows.
2). A screen of file listings will pop up as figure 2 shows.
3) Select one of the files that you would open it with the associated
button and click “Open”.
4) Now you can see the file you selected has been assigned to the
button.
5) Click “Apply” to save the new button setting.
Figure 1
- 7 -
Memo
Example:
While in the session of a meeting or teaching, it is embarrassing to
keep others waiting due to searching for a document, or look up for
a program or a shortcut. With “Open a File” function, you may have
better way to resolve this issue. By setting up each button in
association to the document, program or shortcut, all you need to do
is to shift to the mode and click each mouse button to open all the
files instantly. You may also open an on-line reminder to check each
mouse button association details.
See below “Memo” section in more details.
One click to open the Memo screen and list out all the current button
settings as the reminder. You may setup any of mouse buttons of 2,
3, 4, 5, 6, wheel up(UP) and wheel down(DN) with “Memo” function.
Usage:
1). Select “Memo” from the pull-down button menu of G10
MeetingMan main menu as figure 3 shows.
2). Click “Apply” to save button setting.
Example:
This function is useful during the session of a meeting or teaching,
when you are not very sure which button is associated with the
function you need.
Click the “Memo” button will bring the “Memo” screen as figure 4
shows. Now you can check each button setting and activate them
immediately.
For instance, the teacher can open all the handout documents in
seconds by clicking the button in association with the mouse
buttons.
The Memo function is available for mouse button 2, 3, 4, 5, 6, Wheel
up(UP) and Wheel down (DN).
- 8 -
Figure 2
Figure 3
Figure 4
Office Sets You may setup any one of Office command sets such as: “Zoom In,
Zoom Out, Paste Text, Double Click and Treble Click”to the mouse
buttons.
Zoom In/Out：One click to perform zoom in or zoom out function,
applicable to CAD, ACDSee, Windows or text editing programs.
Paste Text：One click to perform “Select, Copy & Paste” texts, it
turns office jobs can never be so simple.
Key
Combination
Multimedia Quick access to Multimedia commands, such as: Media Player
Internet Quick access to usually used Internet commands, such as:
System Quick access to Windows commands, such as: Open Calculator,
Gesture
16-in-1
LaserPointer
(By Model)
Quick access to Office commands of key combinations, such as:
Cut, Copy, Paste, Delete, Search, Select All, Redo, Undo, New File,
Open File, Save File, Print…etc.
(Open), Previous, Next, Stop, Play/Pause, Mute, Volume+,
Volume-…et c.
Backward, Forward, Stop, Refresh, Search, My Favorite, Web
Browser, E-mail...etc.
Open My Computer, Sleep, Power Off...etc.

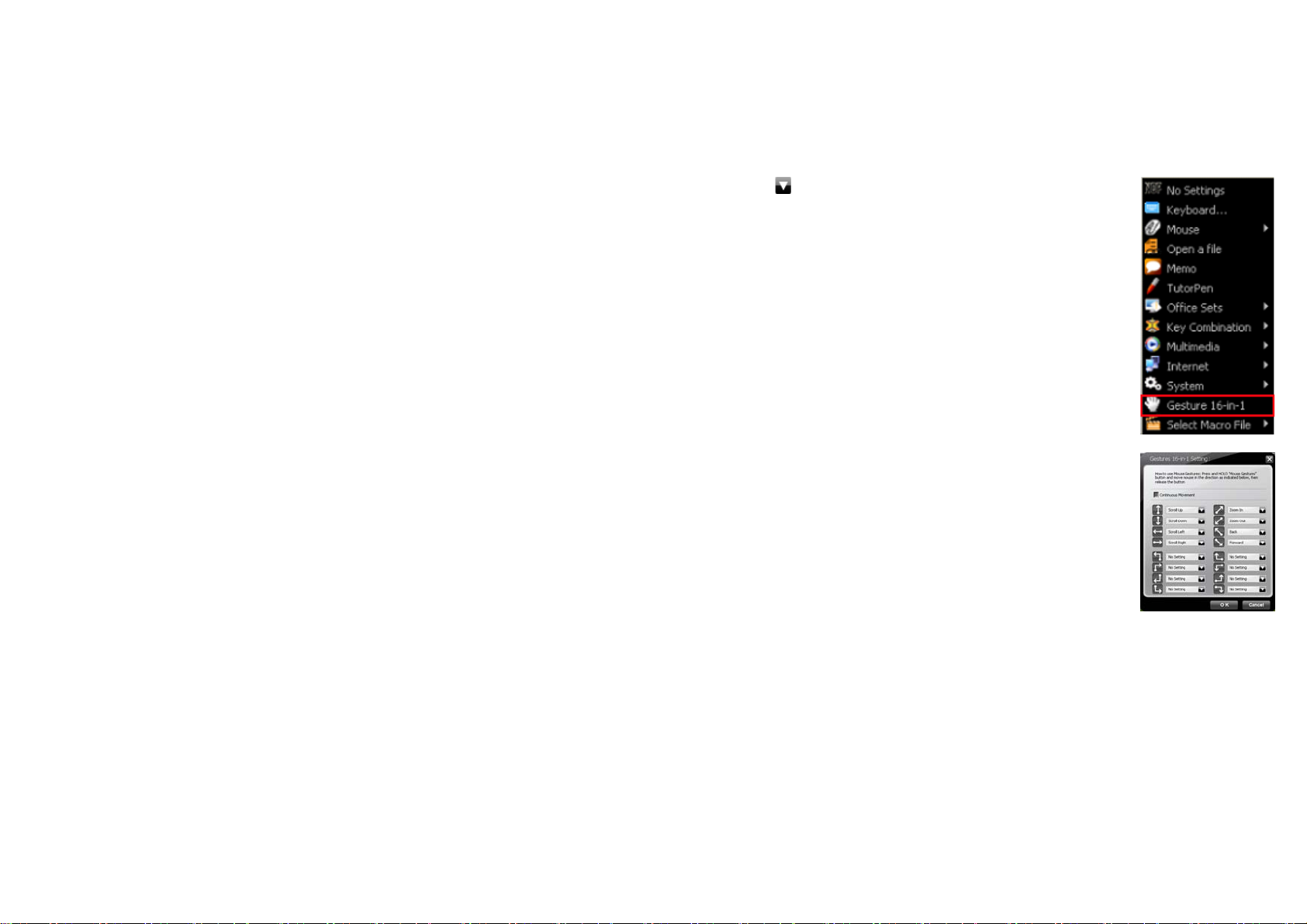

This 16-in-1 mouse utility offers 16 directions to draw the lines with
the mouse and the preset commands will be executed immediately.
Note that this gesture function is only available for mouse button
and . See more details on the Gesture 16-in-1 section.
The LaserPointer is only available by models, if your model does not
have LaserPointer, please use TutorPen instead. (Note that the
LaserPointer switch will still in working even when the computer is
power off, remember to switch off the mouse power on your long
journey)
- 9 -
TutorPen This TutorPen function is available for mouse button 2,3,4,5, and 6.
Usage:

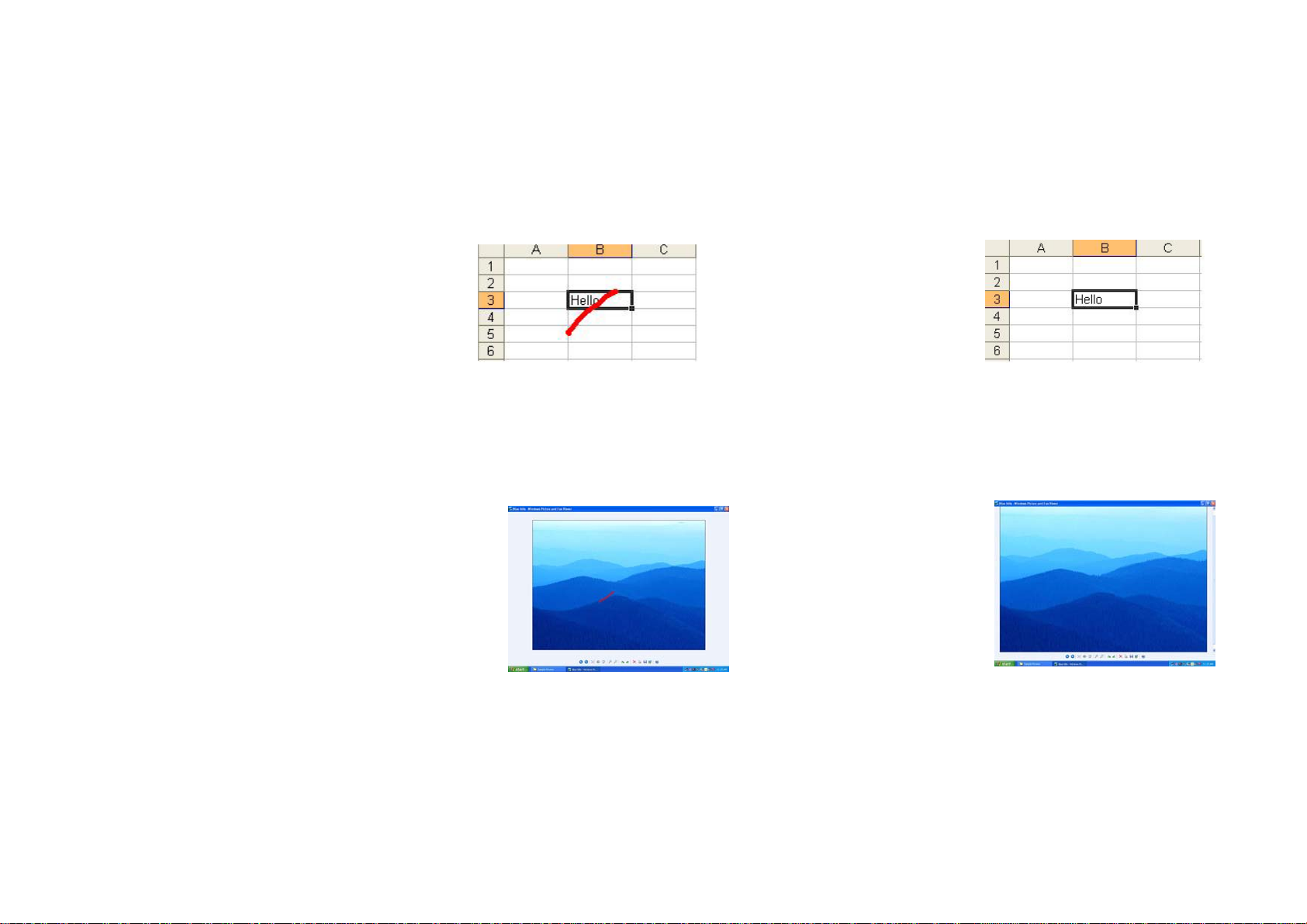

Press "Mode Shift " button to switch to Mode 2, then press and hold
the mouse 6th button to draw lines. You can double-click on the
same button to erase lines you just drew, triple-click on the same
button will erase all lines on the screen. You can set line width and
color by left-clicking the mouse on "
the system tray and select "TutorPen Settings" as shown.
Red color will be used as default if you are using the TutorPen
alone, and Red, Blue, Green, Orange and Purple colors will be used
in the order for multiple users.
Unlike laser pointer’s light point, which is difficult to trace, the
TutorPen offers a handy tool to remark key points and catches more
attention. And with individual line color and width, it makes
identification within the attendees can never be so clear.
Select Macro
File
There are many useful macro functions you may choose from,
including commands for PowerPoint(PPT) / Media Center
Edition(MCE) / Gaming(CS) ...etc. They are backward compatible
with X7 Oscar file format, and can be downloaded from the website:
http://www.x7.cn.
" at the right-down corner of
- 10 -
⑥
Description
of Reminder
DPI Setting
.
Click the Description of Reminder area on the main menu, a reminder screen will
appear as shown on the right. Enter the reminder description, which will be
displayed on the right-down corner of your screen as the key setting reminder.
Customizable and independent 2,000 DPI resolution for each X and Y axes.
G10 MeetingMan offers customizable and independent resolution for each X and Y
axes that best suits various LCD resolutions, in particular, it is crucial for some game
plays.
- 11 -
Report Rate Mouse Report Rate is the term that how many times the mouse sends data to the
computer in one second. For instance, "Report Rate 500Hz" means "the mouse
sends 500 times of data to the computer in one second". The G10 MeetingMan
offers 3 report rates, e.g., 125Hz, 250Hz and 500Hz respectively. The higher times
stands for the smoother the cursor movement and precise click response, especially
suitable for game play, which requires high speed and quick response. (For a
conventional mouse, the report rate is 125Hz). For the 5 working modes that
MeetingMan offers, the report rates are preset according to various applications, as
shown below:
Mode No. Report Rate Power
Consumption
Mode 1: Office 125 Hz Low Presentation
Mode 2: TutorPen
Meeting
Mode 3: Open File 125 Hz Low Meeting/Teachin
Mode 4: LaserPointer
Meeting
Mode 5: Gaming 250 Hz High Game Plays
G10 MeetingMan is A4Tech’s latest innovation. According to various applications,
the bandwidth is divided into 3 report rate levels:
1X bandwidth: USB report rate is 125Hz, suitable for office and general users,
power consumption is the lowest.
2X bandwidth: USB report rate is 250Hz, suitable for CAD users, power
consumption is normal.
4X bandwidth: USB report rate is 500Hz, suitable for heavy-duty game players,
power consumption is high.
Apply There is 48K on-board memory in the receiver of G10 MeetingMan; click “Apply” will
download the new settings to receiver before it is taking effect.
125 Hz Low Meeting/Teachin
125 Hz Low Presentation
Applications
g
g
- 12 -
(3) Gesture 16-in-1
On the button definition area of Main menu, click “ ” of button or , you will see the
“Gesture 16-in-1” on the function listing as shown on the right.
Select “Gesture 16-in-1 Setting” from the listing; the setup screen will pop up as shown on the
right.
The “Gesture 16-in-1” offers customizable 16 functions in 1 click with gesture button. You may
setup 16 most-frequently-used commands to the Gesture buttons or from 6 categories,
more than 30 commands, including Keyboard, Mouse, Hyperlink, Office, Text, Multimedia,
Internet and Key Setting Reminder. Using the mouse to draw the lines as any of 16 preset
directions, the corresponding command will be executed immediately. It adds powerful and
handy tools in Windows operation, and increases your working efficiency dramatically.
- 13 -
Usage:
Press and hold the gesture button to draw any of 16 lines and directions as shown on the right,
then release the button. The corresponding commands will be executed immediately, including
Keyboard, Mouse, Hyperlink, Office, Text, Multimedia, Internet and Key Setting Reminder,
which can be preset and store to your receiver memory.
Example 1:
Diagrams of 16 mouse
gestures
Using
as “Zoom In” command by default, when you are viewing a picture with ACDSee, or browsing a PPT file in the
Office, or Reading a PDF file…etc, just pressing the “Gesture Button” and draw the line as shown below, then release the
button, the picture or the document will be zoomed in immediately.
a. Start: Press the "Gesture Button"
b. Track of the drawing line: Draw the line as the
arrow direction.
c. End: Release the "Gesture Button"
d. Then the picture has been zoomed in.
Example 2:
See the contrast in EXCEL after drawing the line.
Now let's take "
1. Select "
2. Click "
3. Click “
" as example to show you how to use these functions：
" icon to represent "Zoom In" as shown:
" to close the setup screen.
” to save to receiver’s memory.
4. Draw the line in Excel.
- 14 -
Original After drawing the line, the column has been enlarged
4. Draw the line in Windows Picture and Fax Viewer.
Original After drawing the line, the column has been enlarged
- 15 -
(4) Task Listing of G10 MeetingMan
There are 2 ways will display the working mode number when it is shifted:
Display 1: When the mode is shifted, the memo screen will be displayed on the screen center to
remind current mode number information as shown on the right.
Display 2: Meanwhile, the small MeetingMan icon on the system tray will shift with mode
numbers
Meeting” as shown on the right.
. For example, implies current working mode is in “Mode 2, TutorPen
Left or Right click on the icon " " at the right-down corner of your system tray, you will see “G10
MeetingMan Task Listing” pops up as shown on the right.
Following will brief each task and its functionality.
1. Auto Launch on Boot:
If this task is selected, the G10 MeetingMan will be auto-executed when the system boots up.
- 16 -
Loading...
