Before You Use
It is important to carefully examine the contents with the Chapter Package Contents
after opening the package. If there is anything missing, contact your reseller. Read the
Chapter Physical Description
before assembling and operating the device and
peripherals. Understanding the physical description can prevent damage caused by
abnormal usage and reduce most problems during installation.
Basically Network Camera is a network device and should be easy to use for those who
already have basic network knowledge. If there is a system error and it does not recover
easily due to erroneous configuration, read the System recovery
Troubleshooting
to restore factory default settings and perform installation again.
section in Appendix
Network Camera has been designed for various environments and can be used to build
various applications for general security or demonstration purposes. For standard
applications, find the appropriate section in the Chapter How to Use
for your application
and follow the steps to setup the system. To make best use of Network Camera, read
Chapter Advanced Functions
to get creative ideas and review Chapter System
Configuration for detailed explanations of system configurations. To those professional
developers, the Appendix URL Commands of Network Camera
will be a very helpful
reference to develop a W eb-based application.
Surveillance devices may be prohibited by law in your country . Though Network Camer a
is not only a high performance surveillance system but also a networked video server,
ensure that the operations of such devices are legal before installing this unit for
surveillance.
Those paragraphs preceding with
must be fully understood and cautioned.
Ignoring the warnings may result in serious hazards.
1
Table of Contents
Before You Use.......................................................1
Table of Contents ...................................................2
Package Contents...................................................4
Features and Benefits.............................................5
Physical Description...............................................7
Front Panel ......................................................................7
Rear Panel .......................................................................8
How to Install ......................................................10
Ethernet Environment......................................................11
How to Use...........................................................16
Authentication................................................................16
Installing Plug-in.............................................................17
Main Page......................................................................18
System Configuration...........................................21
Introduction...................................................................21
Setup Wizard..............................................................22
Application Wizard.......................................................22
Definitions of Configuration ..............................................23
Advanced Functions .............................................32
Capture Up-to-date Still Images........................................32
Uploading Snapshots Periodically ......................................35
Customize Graphics in Homepage .....................................36
Command Script for Complex Applications..........................37
URL for External Device Control ........................................40
URL of System Maintenance .............................................41
2
Configure System via FTP ................................................42
Telnet Commands ...........................................................47
Appendix..............................................................49
A. Troubleshooting ..........................................................49
B. Frequently Asked Questions..........................................49
B. Frequently Asked Questions..........................................50
C. Upgrade System Firmware ...........................................54
D. URL Commands of Network Camera ..............................55
E. Time Zone Table..........................................................64
G. Technical Specifications ...............................................67
3
Package Contents
If any of the following items are missing, please contact your reseller.
Network Camera IPCAMW35
Power adapter
CS Ring and wrench
I/O Connector
Camera Stand
Software CD
4
Features and Benefits
Network Camera is a high-performance networking video transmitter. With powerful
VLIW DSP core and fully optimized algorithm, it can compress an d transmit the high
quality real-time video through standard TCP/IP inter-network. In addition to meet the
basic needs of video feed, many advanced features are added to help building
applications of surveillance or web attraction. The state-of-art design well compromises
among stable, robust, simple-to-use and flexibility.
☆ Real-time motion-JPEG compression
Video input can be efficiently compressed into packets of JPEG image s without delay.
Optimal compression engine makes the equivalently excellent image with much smaller
size. There is no more sacrifice in remote monitoring and storage. Five levels of
compression ratio and three sizes of image resolutions are easy to meet your
requirement.
☆ Robust system operation
Industrial real-time operating system prevents from malicious hackers and virus that
threat Windows or Linux systems. The on-board watchdog eternally monitors the system
operations for dead-proof.
☆ Easy Web access via standard browser
You don’ t have to install a ny software to access Network Camera. The embedded Web
server makes users can access Network Camera anywhere over Internet with any
popular Web browser. As long as you are connected to network, you can cast your eyes
on your precious property.
☆ Password protection of system access
Password level protection is provided by the system to prevent from malicious intruders
from network. Once the password of administrator is entered, any user will need
password authentication to access Network Camera. Each user can have individual
access right to view video or control external devices.
☆ Built-in motion detection
No more external sensors are required. The video channel can be setup to d etect any
motion with customized settings. By tuning the object size and sensitivity, it is more
reliable to fit into your environment. With this built-in facility, you can easily setup a
5
security system in your home or office.
☆ Weekly schedule for automatic surveillance
The user-defined time period will repeat weekly to check any security settings and
accordingly sending notification or drive external devices. It is easy to install in SOHO,
retail shop and home as a security system.
☆ Flexible I/O control for external devices
There is one opto-isolated sensor input and one relay output to control external devices.
System integrators can easily replace the current analog systems to build an advanced
security system.
☆ Remote system upgrade
T o achieve the promise we made to support our valuable customers in life-time, the most
up-to-date firmware is always put on our web site to add new functions or solve known
bugs. A free upgrade wizard is included to facilitate the job.
☆ Developer’s technical support
The high-performance Network Camera can be integrated into many applications under
perfect control of budget. The complete programming interface and standard JPEG
format can ease and speed developers’ task. More creative ideas can be found on our
Web site.
6
Physical Description
Front Panel
Manual focus ring
Status LED
Internal ring screw
Status LED
The dual color LED indicates system and network status including power-on-self-test and
system activity. Refer to the Appendix for details.
Manual focus ring
The ring of the lens can be rotated to fine tune the focus. The video output at the rear
panel can be used to monitor.
Internal ring screw
If another special lens is needed to replace the bundled one, the imag e may be out of
focus for new lens and not able to fine tune by the manual focus ring. Use the included
wrench to loose the screw to adjust the internal ring to get the best focus. Then tighten
the internal ring to fix the focus.
7
Rear Panel
BNC video output connector
A 75Ohms-resistance video connector can be connected to a TV for monitoring the video
from the front CCD sensor.
Ethernet 10/100 socket
Connect to an Ethernet network with a UTP category 5 cable of length shorter than 100
meters according to the standard.
Reset and restore button
There is a button hidden in the pinhole beside the Ethernet socket. It is used to reset the
system or restore the factory default settings.
General I/O terminal block
1 Å DI+ INPUT (Max. 50mA, 12VDC)
2 Å DI- INPUT
3 Å SW_COMMON OUTPUT (short with NC at initial state)
4 Å SW_NOPEN OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC)
8
Network Camera provides a general I/O terminal block with one digital input and one
relay switch for device control. Pin 1 an d pin 2 can be conne ct ed to an externa l se nso r
and the state of voltage will be monitored from the initial state 'LOW'. The relay switch
of pin 3 and pin 4 can be used to turn on or off the external device.
Power cord socket
Connect the power jack of the included power adapter. Connecting the power adapter
should be the last operation while physically installing Network Camera.
9
How to Install
To easily fit into various environments, Network Camera automatically detects the
attached interfaces and configures itself to the best condition. The high performance
built-in CCD and lens always give users delicate image quality.
In the following content, "user" refers to those who can access Network Camera and
"administrator" means the supervisor who has the root password to configure Network
Camera in addition to general access. Administrators should carefully read this manual,
especially during installation.
10
Ethernet Environment
Hardware installation
Before installing multiple Network Cameras at the well-chosen locations, the
administrator should memorize the serial numbers on the packages respectively for
future use.
Cable connection
Connect the supplied cables from Network Camera to related devices according to the
above diagram. Note that the power adaptor must be kept unplugged until other cables
are firmly connected.
Power on
Make sure all cables are correctly and firmly connected before turning on Network
Camera. T urn on cameras, sensors, alarm devices, and then attach the power adaptor of
Network Camera to the electric power socket. After the POST (power-on self test) is
complete and the result is successful, Network Camera is ready for software
configuration as described in this manual. At this stage, network speed and video
modulation type are automatically detected. Refer to the configuration section for
further information.
Connect the power jack of the power adapter to Network Camera prior to plugging
the utility end into the utility power socket. It will reduce accidental electric surge shock.
11
Software installation
Easy way with installer program
In order to configure Network Camera’s remotely, administrators should keep the serial
numbers of the new Network Camera’s for identification and initial passwords. After
successfully mounting Network Camera’s in the proper position, run the Installer
program on the PC in the same network to locate the newly mounted Network Camera’s.
Network Camera’s also support manual setup procedures to non-Windows based
environments. The manual procedure is described next.
After the POST is done, Network Camera will try to configure itself by detecting the
network environment. If there is DHCP service over the network, the Installer program
will catch the given information, then display the serial number and given IP address for
each Network Camera as the figure above. To install the IP address, follow the steps.
1
○
Click on the entry with the serial number you want to install. If the "Assigned" field of
the entry is labeled "Yes", that means the Network Camera has already been installed.
2
T ype the desired IP address if it is other than the IP address given by the DHCP server.
○
3
○
Check the box to fix the IP address of the Network Camera. Otherwise the Network
Camera will lose the network address at next system boot and you have to run this
installer again.
4
○
Click to progress the installation.
5
○
After successful notification, administrators may keep the address information and
12
click directly on to access the Network Camera in the default browser .
If the IP address is taken by another network device in the network, the Installer
program will pop out another message window to warn that the assigned IP conflicts. In
this case, administrators should ask the network supervisor for a vacant IP address.
While “Use this IP whenever system
boots", is checked, a dialog window may
pop out to ask for “Server FTP Port” and
“Root Password” because they are
already changed by administrators to
other than default settings. If the original
settings are lost, restore default settings
and run software installation again.
Once the installation is complete, administrators should follow the First access to
Network Camera section for necessary checks and configurations.
13
Manual way with existing programs
For those environments such as MAC, Linux, Unix or other operating systems, whose
installer is not yet available, some common network tools including ARP and PING can be
used to install Network Camera. Before proceeding further, make sure ARP and PING
programs exist.
First, type arp –s “assigned IP address” “Ethernet address” to add an entity in the
system’s name table. The Ethernet address is identical to the serial number of Network
Camera and should be typed in the appropriate format like “uu-vv-ww-xx-yy-zz” or
“uu:vv:ww:xx:yy:zz”, which depends on the operating system.
Once the name entity is added, type ping "assigned IP address” to invite the new
Network Camera. If it replies, that means Network Camera has accepted the assigned IP
address and is ready for access. The first several ping requests may fail during the
self-configuration period of Network Camera. Since the accurate grammar of ARP and
PING depends on the operating system, refer to its related help manual.
Example of DOS prompt in Windows 2000
14
First access to Network Camera
Change initial password of administrator
Starting the Web browser to connect to the assigned IP address of Network Camera,
users will be asked for user name and password by an authentication message window.
A root password, identical to the Network Camera's serial number, is needed for the
initial access to a newly installed Networ k Camera. The admin istrator must change th e
root password immediately after the initial installation to ensure security. The new root
password should be well memorized since there is no way to retrieve or recover it. After
changing the password, the browser will display an authentication window again to ask
for the new password. If the root password is deleted as blank, the authentication
mechanism will be disabled.
Manage user privilege
For complete protection from illegal usage, Network Camera provides three privileges
and always needs user name and password before access. The lowest level is DEMO
mode whose services are subject to administrator's permission. The standard level is the
USER mode that consists of twenty user profiles. Each user is able to access Network
Camera under the given privilege, except for system configuration. The twenty user
profiles are also maintained by the administrator. The highest level is ROOT mode that
only opens to administrators for initial setup, system configuration, user administration
and software upgrade. The user name of the administrator is internally assigned to
“root”.
Complete the network settings
Although Network Camera already can be accessed after software installation in local
area network, administrators should complete the network settings in the configuration
page. The complete network configurations including subnet mask as well as the IP
address of default gateway and DNS are provided by your network administrator or
Internet service provider . Once the wrong network settings make Network Camera fail to
work, refer to Appendix A to restore factory default settings.
By default Network Camera will need administrator's installation every time it reboots. If
the network settings are sure to work all the time, disable the install option in network
configuration Web page or Installer program.
Details about configurations are described in the relative category of the Chapter
Definitions of Configuration
.
15
How to Use
Open your familiar web browser and connect to Network Camera just like any general
web site and the video will present on demand. Make sure the web address of the target
Network Camera is accurate.
Authentication
After opening the Web browser and typing in the URL of Network Camera, a dialogue
window will pop out to request a username and password. For administrator’s initial
usage of Network Camera, enter the username as “root” and the password as the serial
number in capital letters. The serial number can be found on the labels under the body
of Network Camera and the top side of the carton. The primary users will be allowed to
enter as soon as the administrator finishes adding user profiles. Upon successful
authentication, the main page will be displayed.
For demonstration purpose, enter the Security
demo account and choose permitted services. Once the demo account is setup, any one
may watch the video by using “demo” as user name while ignoring the password.
Different from primary users, the demo account has certain limitations that are
determined by administrators.
In the figure, the foreground is the
login window and the background
shows the message when
authentication fails. The user may
check the option to save the
password for future convenience.
Web page of configuration to activate the
16
Installing Plug-in
If it is initial access to Network Camera via the Web browser supporting server push, the
motioned pictures will display directly. If the Web browser is Internet Explorer in
Windows, users will be asked to install a new plug-in that is provided by Network Camera.
This plug-in has been registered for certificate and is used to display motioned pictures
in the Internet Explorer. Users may click on
to install the plug-in. If the web
browser does not allow the user to insta ll, check the security option to lower security
levels or contact network supervisors.
17
Main Page
Basic functions are displayed in main entrance page of Network Camera. The first figure
below is graphic mode that has better visual effect and the second one is text mode that
will shorten download time. The main page may look different depending on the PT
scanner or the privilege of the user.
Graphic mode
Compress Level
Image Size
System Configuration
18
Text mode
T ext mode is default
if any image button is
not available.
Network Camera
Video quality selection
It allows users to adjust the video quality for speed or smoothness. The performance is
also subject to the network bandwidth and the number of users. Five options are
available to be chosen from “Medium” to “Excellent”. “ Medium” quality means the
picture has the quickest refresh rate but the worst image quality and “Excellent” quality
means the picture has the slowest refresh rate but the best image quality.
Video size selection
It allows users to adjust the image size with consideration of bandwidth and image
resolution. Five options are available including “Half”, “Half×2”, “Standard”,
“Standard×2” and “Double”. “ Half×2” consumes the same bandwidth as “Half” but
has the same size with “Standard”. Of course the visual effect is worse than “Standard”.
“Standard×2” compared to “Double” is similar to the case. “Half×2” is especially suits
in the low bandwidth environment like a dial-up network. T o fit into the small image area,
timestamp will be skipped in “Half” and “Half×2” modes.
19
System configuration
There is a button or text link in the left side of the system configuration that only appears
in administrators’ main page.
External digital output control
There may be two remote control buttons for the each digital output on the main page.
If there are external devices attached to the digital output, administrators or permitted
users can click on
or click on
to short “Common” and “Normal Close” pins of th e digital output. To
to short “Common” and “Normal Open” pins of the digital output
know more about the digital output for external devices, refer to the rear panel
introduction of the Chapter Physical Description
.
20
System Configuration
Introduction
The system configuration can be easily done remotely on Internet Explorer through the
Web interface. There are two wizards in addition to classified categories of system
configurations. They can give friendly instructions and facilitate the setup job.
Alternately administrators may type directly the URL of system configuration,
“http://<IP address of Network Camera>/setup/config.html”, to directly enter the
configuration page. If administrators also want to set certain options through the URL,
read the relative section in the Chapter Advanced Usage
also supports FTP to modify the system configuration file, CONFIG.INI, for technical
usage. The details are described in the Chapter Advanced Usage
Since it is a networking video server, administrators should run “Setup wizard” or well
configure “Security”, “Network” and “Video” at least. T o utilize the built-in features of
security and web attraction, run “Application wizard” or configure “Application” and
“Demo”. Besides these features, administrators can adjust the system date and time in
“System”, or have different homepage layout by configuring “Homepage layout”.
Network Camera also provides some system maintenance like “View log file”, “View
parameters” and “Factory default”.
for reference. Network Camera
.
21
Setup Wizard
The setup wizard will guide administrator to enter necessary information including
system name, current date and time, administrator’s password, video configuration and
captions, and network settings. Administrators can exit the procedures anytime to
reserve the current configur ation. Finally the s etup wizard will ask f or reboot to va lidate
the changes and administrators can decide to reboot later.
Application Wizard
There are two main applications including surveillance system and web attraction by
means of Network Camera. The former one will utilize the built-in motion detection and
external sensors to integrate with the existing e-mail or FTP server or external alarms to
construct a security system. It also possesses the weekly schedule for timed monitoring.
The later one will customize the main page to your personal style and setup accounts for
your possible visitors. The application is perfectly constructed and performed on several
clicks by your fingertip. Administrators can additionally configure the application
parameters in the Application
Application wizard.
page of configuration for more advanced usage after using
22
Definitions of Configuration
System parameters
Change host name
The “host name” is used for the homepage title of main page and disp lays a s the title
over the video window on the main page. The maximum string length is 40 characters or
20 characters in double-byte-character-systems like Chinese or Japanese.
Adjust date and time
There are three ways to adjust system date and time. The easiest is to make Network
Camera "Sync with computer time". The second “Manual” is to set the date and time
manually by entering new values. Notice the format in the related field while typing. The
third “Automatic” is to make Network Camera automatically synchronize with
timeservers over the Internet every month. It may fail if the assigned NTP server
cannot be reached or Network Camera is within a local network. Leaving the NTP server
blank will let Network Camera connect to default timeservers. Domain name or IP
address format is acceptable as long as DNS server is available. Do not forget setting the
"Time zone" offset for local settings. Refer to the Appendix E for the time zone of your
region. It only affects the hour in NTP method. “Update interval” can make the server
to synchronize the system time to NTP server every hour, every day, every we ek or
every month.
Once the settings are changed, click on
to validate changes.
23
Security privilege
Change root password
To change the administrator’s password, type the new password in both text boxes
identically. What is typed will be displayed as asterisks for security purposes. The
maximum password is 16 characters. After pressing
administrators for the new password for access.
, the web browser will ask
Add new users
To add a new user, type the new user's name and password, check respective privilege,
and then press
user can have independent access right of the video channel and external I/O access.
to insert the entry. There are a total of twenty user accounts. Each
Edit user’s privilege
If the permitted rights of some user has to be changed, pull down the user list to find the
user name and press
password and choose different privilege.
. A new window will pop out for administrators to change
Delete existing users
To delete a user, pull down the user list to find the user name to be deleted and press
. A message window will pop up for confirmation.
Demonstration account
T o setup Network Camera for demonstration to the public, administrators need to choose
the service(s) to be permitted. After checking “view” in Security page, users may use
“demo” as general user name and password is not required. Administrator also can
assign “ I/O access” option to demo account. T o separate the demo account from primary
users can prevent from interfering with the normal operations.
Enable snapshot mode for more users
The maximum users that can view Network Camera at the same time are twenty.
Administrators can check “Allow more guests with snapshot mode” to enable the
snapshot mode for more users. Then the users over twenty will have the main page with
snapshot mode instead of normal motion picture. It is practical for web attraction. In
such case, configure the “Snapshot interval” to achieve better performance. The
bigger interval between snapshots, the more users can have snapshot mode work.
24
Network settings
Fix the IP address
To eliminate incautious mistakes during installation, Network Camera will stay in
installation mode whenever it starts unless "Reset network at next boot" is disabled.
This option can also be disabled using the Installer program. Once the option is disabled,
Network Camera will skip installation at the next boot and the Installer program will not
find the installed units. That implies that Network Camera cannot be accessed if no one
remembers the IP address, except for restoring factory default settings. However, with
this option disabled Network Camera can automatically operate normally after restarting
in case of losing power.
Basic network settings
Administrators may need to modify the network settings to fit into existing networks.
The subnet mask in some broadband service may differ from the default value
255.255.255.0 and service providers may assign more specific network settings.
Administrators should change the configuration to what given by the service provider.
The configuration may include "IP address", "Subnet mask", "Default router",
"Primary DNS server" and "Secondary DNS server". After changing network settings,
be sure to leave "Reset network at next boot" blank to skip next installation when the
system restarts. Otherwise those network settings will be erased at the next start.
Bandwidth utilization limit
Each Network Camera can be limited in bandwidth utilization by administrators
according to its priority and importance of location. "Bandwidth limit" is most useful to
balance network utilization when multiple Network Camera’s are installed in the same
network. It is more effective than changing image quality only and achieves better
performance with adequate image size and quality.
Changing port number of servers
For security or network integration, administrators also can hide the ser ver from the
general HTTP port by changing "HTTP port" to other than default 80. “Local FTP
server port” can also be changed to other than default 21. Administrators should have
enough network knowledge to change the default port.
E-mail settings
Network Camera not only plays the role of server, it will also actively connect to servers
outside to send out messages or snapshots. When Network Camera starts, it will send
out a system log via e-mail as long as the settings are correct rather than upload it via
25
FTP. Even in modem application, Network Camera will send out a connection log
whenever it dials out to an ISP or dialup server outside. If the administrator has setup
some applications in either event mode or sequential mode, Network Ca mera will send
out snapshots once conditions are met. To activate e-mail function, enter correct
settings of "SMTP (mail) server" and "Recipient email address". "Secondary SMTP
(mail) server" and "Secondary email address" are provided for backup connection
when the primary one fails. “Return email address” is whom the mail will return when
the SMTP server rejects upon any failure. Some ISP may reject the mail if the address is
invalid.
FTP settings
T o send the log files described in the above paragraph via FTP , the SMTP server should be
erased. Administrators must enter correct "Primary FTP Server", "Primary FTP user
name" and "Primary FTP password". "Primary FTP remote folder" is the relative
sub-folder in the remote FTP server . If the port of the remote FTP server is changed other
than 21, set the real port to “Primary FTP server port”. If the local network is
protected by a firewall to prevent from initiating FTP connection from the remote FTP
server, you may be able to connect to the FTP server but unable to put a ny file due to
data channel connection failure. Check “Primary FTP passive mode” for passive
transfer solution. Another set of "Secondary" server settings is also provided for backup
connection.
In either e-mail or FTP, the primary server information should be entered first. If the
primary server is not set, the re lated FTP or email will be cancelled. Note that it may take
time to connect to the secondary server after the first one fa ils and it may affe ct som e
applications when conditions happen too often.
After everything is set, cl i ck on
After clicking on
, Network Camera will automatically restart. If "Reset network
. A warning message will pop out for confirmation.
at next boot" is kept checked, perform software installation again. Otherwise Network
Camera will boot up according to the new configuration automatically.
Any change made to this page will make the system restart to validate. Make sure
every field is correctly typed before clicking on
. If Network Camera fails to respo nse
due to erratic settings, perform the restore procedures and run software installation.
26
Administrators should notice that the basic network settings including IP address,
subnet mask, default router and DNS servers will be cleared when the network interface
is switched to the other between Ethernet and modem.
Video and motion detection
Adjust image settings
"Time stamp" and "Text on image" will be enclosed in image for reference. The
timestamp is captured from date and t ime of Network Camera that is maintained by an
on-board real-time clock. "Color" setting is independent of the connected camera and
“B/W” option can speed up the encoder a little. “Default size” option here will be the
default size of video window when users first connect to Network Camera. “Default
quality” option here will be the default quality when users first connect to Network
Camera. To adjust image settings for best visual quality, press
and a
motion picture window will pop up for your reference. There are four fields including
"Brightness", "Contrast", "Hue" and "Saturation" for video compensation. Each field
has eleven levels ranged from -5 to +5. While adjusting, administrators can click on
to check prior to the setting in memory. If the adjustment is not good,
administrators can click on
to restore the original settings without change. After
configuration done, click on to close this window. If parameters are changed
without saving, they will be used until the next system startup.
Configure motion detection
The channel can have its own settings of motion detection independently. The settings
including “Object size” and “Sensitivity” allow administrators fine tune to fit into the
environment. The “Object size” decides the space ratio of motioned obj ects over the
monitored screen. The “Sensitivity” sets the measurable difference between two
sequential images that would indicate motion. The larger object size and lower
sensitivity will make Network Camera ignore small variations in images. While the
motion amplitude of some object in the monitored screen is over the settings, a white M
in red background will indicate at the upper-right corner of the window.
Motion detection is provided as reference because it is very environment-dependent.
Especially working by the very sensitive settings, some triggered events may be
considered as false alarms though there is tiny difference happening indeed. It can be
affected by florescent light flashing, shadow shifting, and so on.
27
Application constitution
Administrators can use combinations of options on the application page to perform many
useful security applications. Network Camera provides two application modes; one i s
performed according to the settings on the web page, the other is performed according
to the external command script. Though most settings will automatically be done by the
Application Wizard
, administrators still can adjust the settings from this page.
Weekly schedule
A useful weekly schedule is provided for d aily security application. Administrators can
select weekdays from Monday to Friday with the daily schedule from 9:00 am to 6:00 pm
that no one is at home to perform any event checking. If the security system needs to be
installed in office that no one is there during the nights or weekend, administrators just
set the time period as above, then check “All the time except for the above
schedule” for opposite operations.
External command script
Administrators can write a script named SCRIPT.TXT to perfectly match the additional
software according to the Command Script for Complex Applications
Chapter Advanced Functions
. After uploading this script to Network Camera via FTP,
check the option “Enable the external script file to exclude the following settings”.
Otherwise Network Camera will operate according to the settings below.
section in the
Event operation
Network Camera provides general options for two basic applications, event operation
for security and sequential operation for web attraction. In event operation,
administrators have to setup some conditions to check and some actions to happen
consequently. The conditions include motion detection and the status of digital input.
While checking “Detect motion” box, administrators should click “Motion Detection”
button on Video page or click “Motion Detection” link in Application page to configure
the appropriate parameters. In the newly opened window, percentage of object size
over whole window and sensitivity can be fine tuned to fit into the environment. If any
motion is over the settings, an ‘M’ will appear on the upper-right corner of image for
indication. The ‘M’ will appear in the image to indicate some motion is detected as long
as “Show alert in image” is checked. If there are any sensors attached to the digital
input, administrators can set the state to fire alarm. There are four states of “Input is
High”, “Input is Low”, “Input is Rising” and “Input is Falling”. The edge trigger like
“Rising” or “Falling” is generally used to detect the emerging signal from the extern al
sensor. Once any event happens, administrators can select “Delay second(s ) after
28
event” option to drive some device attached to the digital output several seconds after
the event happens and/or send snapshots that are taken right at the moment. . If
administrators want to receive some snapshots to check the event, please check the
“Upload snapshot while input condition match” box to get snapshots when
inputting condition is matched the setting or check the “
Upload snapshots while
motion detected” box to get snapshot when motion has been detected. Network
Camera will take three snapshots of pre-event, the moment of event, and post-event for
video channel. Three snapshots of the channel can also be downloaded via FTP or HTTP
URL. Refer to the Download Event-triggered Snapshots
section for details.
Sequential operation
With this feature, Network Camera can upload snapshots periodically to external server
as a live video source. The interval can be set from tenth second to several hours. The
external server must be setup correctly in the Network
configuration page.
Sending method
Either event mode or sequential mode can select one method between email and FTP.
The companied external server must be setup corre ctly in advance. If email i s chosen ,
the snapshots of the video channel will be attached in the emails. If FTP is chosen,
administrators can choose to add date and time in the file name of snapshots. If the
snapshots are used as the live video source, the date and time suffix can be eliminated
to update the same source file.
The option “Show alert in image” may be set when running application wizard or
configuring motion detection. Administrators should manually uncheck it if no indication
of motion detection is needed in the image.
29
Homepage layout
There are two homepage display modes. One is "Image mode" that uses graphics for
links; the other is "Text mode" that mostly uses text for links.
Administrators ma y easily giv e Network Came ra a dif ferent presen ce of homepa ge. The
"logo graph" for the system logo at the upper-left corner can be hidden; or the default
image from the system memory can be used; or an external resource can be used by
assigning a URL. The "Background graph" is similar. Default images of the system can
be customized but limited by memory size. Images from external resources can be
larger and more beautiful but will need more time to load. If the background is skipped,
the background color will fill the browser window. Administrators also can give the
system logo a "Logo link" to connect to another web site while clicked. The "Font color"
and "Background color" can be chosen from sixteen colors as you like. See the
Customize graphics in homepage
section in the Chapter Advanced Functions for how to
replace the default images of log, background and buttons of video switch.
If any necessary image is lost while homepage layout is image mode, Network
Camera will switch to text mode automatically.
30
View log file
There is some useful information in the system log including current system
configuration and activity history with timestamp for tracking.
View parameters
The whole system parameters will be categorized listed for administrators to check. The
content is the same as CONFIG.INI.
Factory default
It is used to restore the factory default settings. This means any changes made before
will be lost and the system will be reset to the initial status as shipping out of the factory .
After confirmation, the system will restart and require the software installation to setup
the network.
31
Advanced Functions
Capture Up-to-date Still Images
Get snapshot via URL
Administrator and users can use the specific URL to capture the current still image.
URL
http://<IP of Network Camera>/cgi-bin/video1.jpg[?<param>=<value>]
param
quality 1 Medium
2 Standard
3 Good
4 Detailed
5 Excellent
size 1 Half
2 Standard
3 Double
value
Description
Get snapshot via FTP
Administrator and users can log-in the FTP daemon of Network Camera to download the
refreshed JPEG image named video.jpg. The user name and password are as same as
what in web access. The zero file size in file directory means it is captured by request.
32
Video Embedded in Customers’ Homepage
In additional to the URL, some scripts should be added to download a plug-in for motion
pictures. The following example simply displays title text and a real-time video window
in Internet Explorer or Netscape. The user name and password should be configured in
advance. Those who are familiar with HTML can easily add more components or rewrite
a more vivid and useful homepage.
<html>
<head><title>Network Camera Sample Page</title></head>
<body>
<h2>Network Camera Sample Page</h2>
<script language="JavaScript">
<!-if ((navigator.appName == "Microsoft Internet Explorer")&&(navigator.platform != "MacPPC"))
{
document.write("<OBJECT ID=\"MjpegControl\" WIDTH=352 HEIGHT=288");
document.write("CLASSID=\"CLSID:EAA105FE-7BBD-4196-8B96-D46743894195\" ");
document.write("CODEBASE=\"http://root:<root_spassword>@<IP_Address>/plugin/mjpegcontro
l.cab#version=2,0,0,0\">");
document.write("<PARAM NAME=\"VSize\" VALUE=\"2\">");
document.write("<PARAM NAME=\"Url\"
VALUE=\"http://root:<root’s_password>@<IP_Address>/cgi-bin/video.jpg");
document.write("?cam=1&quality=3&size=2\">");
document.write("</OBJECT>");
} else {
document.write("<img width=352 height=240");
document.write("src=\"http://root:<root_password>@<IP_Address>/cgi-bin/video.jpg?ca
m=1&quality=3&size=2\">");
}
//-->
</script>
</body>
</html>
33
Download Event-triggered Snapshots
There are three video image files for the video channel of three stages: pre-alarm, th e
moment when triggered and post-alarm. Only the snapshots captured by the last event
are preserved. Administrator and users can use FTP or URL to get the saved snapshots.
They can also be browsed from the application page in system configuration.
Get triggered snapshots via URL
/cgi-bin/snapshot.jpg?file=<value>
Video channel
Snapshot stage
snapshot before event pre
snapshot upon event trg
snapshot after event pos
Video
Get triggered snapshots via FTP
File name Pre-alarm Upon alarm Post-alarm
Video vpre.jpg vtrg.jpg vpos.jpg
34
Uploading Snapshots Periodically
Upload snapshots to external FTP server
In sequential mode, Network Camera will send out snapshots according to interval and
period settings. If snapshot files are intended for quick updates, it is better to skip date
and time suffix. The file name will then be video.jpg. If the snapshots are used for
occasional monitoring, suffix with dat e and time can help administrators classify the m
easily.
Send snapshots to external SMTP (email) server
Comparing to the FTP method, email will induce more delay. But the email can n otify
users for prompt action.
35
Customize Graphics in Homepage
While in text mode, there is a small ico n named B TN_TEXT.GIF preceding with each link
that can be changed by administrators. While in image mode, the default method will use
the image stored in Flash memory. The followings are the referenced file name and size
limitation of each stored images. Administrators may customize preferred image under
the size limit and put to the specific name via FTP. Administrators can download the
original images before upload for backup.
Object File name Maximal size
Logo logo.gif Logo and background share 8000
bytes
Background back.gif Logo and background share 8000
bytes
Link icon btn_text.gif 2000 bytes
Configuration btn_conf.gif 5000 bytes
Usage via FTP is illustrated as below.
36
Command Script for Complex Applications
Besides the application wizard, Network Camera provides a more professional command
script for advanced applications. The command script will be executed exclusively with
the settings in Application page of system configuration except for the weekly schedule.
To build the advanced application, follow the steps below.
1. Use any text editor to edit the appropriate command script according to the command
format. The script size cannot exceed 500 bytes.
2. Save the script as a file named “SCRIPT.TXT”.
3. Use FTP with administrator’s privilege to upload the script file.
4. Enter the Application page in system configuration to define the time period in weekly
schedule. If it is supposed to run any time, keep the original settings but check the
option “All the time except for the above schedule”.
5. Check the option “Enable the ex te r nal scr ipt fi le to exclude the following settings” to
activate the command script.
Command format
[Event][“Operator”Event]……=[Action][+Action]……;
Event
[“Digital Input Number””Digital Input State”]
[“M” “Channel Number…”]
[“Channel Number””Video Input State”]
Operator
“+”: (OR)
“*”: (AND)
Action
[(“Delay Time”)“Digital Output Number””Digital Output State”]
[“V”“Channel Number”“P”“Preset Location Number”]
[“W”{“IP”:“Port”}{“Message”}]
[“U”“Method”]
[“S”“Channel Number…”]
[“N”{“filename”}];
Parameter explanation
Item between brackets means optional but at least one item should exist.
“Digital input number”: always 1
37
“Digital input state”: H (high), L (low), / (low to high), \ (high to low)
“M”: motion detection event.
“Channel Number”: always A
“Video input state”: / (signal from loss to presence), \ (signal from presence to
loss), X (as long as signal loss)
“Delay time”: seconds of delay for the following actions after events happen
“Digital output number”: always 1
“Digital output state”: C (NC), O (NO)
“V”: set video channel to go to preset location
“P”: set preset location number to go to preset location
“W”: send warning to server
“IP”: server IP
“Port”: server port
“Message”: texts to be sent to the server
“U”: upload snapshots
“Method”: ‘F’ is by FTP, ‘M’ is by e-mail
“S”: take snapshot
“N”: define the format of the filename
“;”: end of line
The filename format is,
%a image characterization (pre, trg, pos)
%y year
%M month
%d day
%h hour
%m minute
%s second
%t tenth second
38
Practical examples
Command line Description
M1=1C; When any motion is detected, “Normal Close” of relay output will
short with “Common”.
1\=(5)1O; When DI transients from high to low, “Normal Open” of relay
output will short with COMMON in 5 seconds.
A\=W{192.168.0.1
:6000}{no
If there is no video signal, a message “no signal!” will be sent to
port 6000 of 192.168.0.1 once.
signal!};
1H=V1P15; When sensor input 2 is high, drive the camera mapped to video
1 to go to preset location 15.
M1=UF+S1+N{vid
eo%c%a@%y%M
%d%h%m%s};
If any motion is detected, upload snapshots. If an event
triggered at 19:05:30 2002/10/15, the snapshot files will be
named as,
videopre@20021015190530.jpg,
videotrg@20021015190530.jpg,
The script file is limited to maximum 500 characters. The actual performance will
depend on the complexity of the command script. Administrators should reduce the
redundant check as possible. Overload conditional check and heavy actions may retard
the system operation.
39
URL for External Device Control
Query status of digital input
/cgi-bin/getdi.cgi
Network Camera will return the status of digital input.
Drive digital output
/cgi-bin/setdo.cgi?do1=<state>
<state>: C, O denoting Normal Close or Normal Open respectively.
40
URL of System Maintenance
Download System Log via FTP
Besides viewing the system log from the web page, administrators can download the
system log file, SYSTEM.LOG, via FTP. To log into the FTP daemon, enter “root ” as the
user name and the same administrator’s password used in Web access.
Restart System via URL
/cgi-bin/reset.cgi
Restart Network Camera without warning.
Restore Factory Default Settings via URL
/cgi-bin/restore.cgi
Network Camera will automatically restart after restoring factory default configurations.
41
Configure System via FTP
Administrators can use FTP to configure Network Camera much quicker than Web page
especially for multiple targets. T o configure system via FTP , first download the parameter
file, CONFIG.INI, to customize each field according to the environment and then upload
back to validate the new settings. To log into the FTP daemon, enter “root” as the user
name and the same password used when connecting to the Web server. The serial
number of Network Camera is the password for the initial access.
The file is composed of eight categories: [SYSTEM], [LAYOUT], [NETWORK], [VIDEO],
[ALERT], and [DEMO]. The category name in brackets should be in upper case. The item
name in angle braces should be in lower case. Some items related to disable/enable
should use the keywords “YES”/“NO” . The number zero entry in <user name> and <user
password> is for administrators, i.e. “root”. Basically Network Camera will restart
automatically as soon as the file is accepted. If administrators want to cancel the reboot
procedure, set the first item, <reset system> to NO. It will take effect once only and
always show YES in the download file.
A sample CONFIG.INI is attached below. The italic text following each line describes the
characteristic of the field and the bold italic characters are the options of the field.
Network Camera Initial Configuration File
[SYSTEM]
<reset system>
YES or NO
<host name>
Network Camera string of maximum 40 characters
<serial number>
0002D1040011 read-only
<software version>
IP2112-VVTK-0200C read-only
<current date>
2003/01/01 read-only
<current time>
12:34:56 read-only
<time zone>
0 from 12 to -12
<user name>
(0)root read-only
(1) string of maximum 16 characters
(2) the followings are as same as the above
(3)
(4)
(5)
(6)
42
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
<user password>
(0)0002D1040011 string of maximum 16 characters
(1) the followings are as same as the above
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
<more guests enabled>
NO or YES to enable snapshot mode
<more guests interval>
0 seconds of snapshot interval
[LAYOUT]
<layout type>
1 image mode or 0 for text mode
<font color> 0-black, 1-white, 2-green, 3-maroon, 4-
1 olive, 5-navy, 6-purple, 7-gray, 8-yellow,
<background color> 9-lime, 10-aqua, 11-fuchsia, 12-silver,
0 13-red, 14-blue, 15-teal,
<logo type>
1 default image, or 0 for blank, or 2 from URL
<background type>
1 default image, or 0 for blank, or 2 from URL
<logo source>
http:// URL of logo type 2, maximum 80 characters
<background source>
http:// URL of logo type 2, maximum 80 characters
<logo link>
http:// reference link of logo, max. 80 characters
43
string of maximum 8 characters
[NETWORK]
<install enabled>
YES reset IP whenever system boots or NO
<ppp enabled>
NO obsolete
<ethernet address>
00-02-D1-04-00-11 read-only
<host ip>
192.168.0.207 standard IP format
<subnet mask>
255.255.255.0 standard IP format
<gateway ip>
0.0.0.0 standard IP format
<primary name server>
0.0.0.0 standard IP format
<secondary name server>
0.0.0.0 standard IP format
<ntp enabled>
NO or YES
<network timing server>
IP address or domain name
<smtp mail server>
IP address or domain name
<mail recipient address>
string of maximum 80 characters
<mail return address>
Network Camera string of maximum 80 characters
<backup smtp mail server>
IP address or domain name
<backup mail recipient address>
string of maximum 80 characters
<local ftp port>
21 or 1024 ~ 65535
<ftp server>
IP address or domain name
<ftp port>
21 or 1024 ~ 65535
<ftp username>
string of maximum 16 characters
<ftp password>
string of maximum 16 characters
<ftp init path>
string of maximum 40 characters
<ftp passive>
NO or YES
<backup ftp server>
IP address or domain name
<backup ftp port>
21 or 1024 ~ 65535
<bacup ftp username>
string of maximum 16 characters
<backup ftp password>
string of maximum 16 characters
<backup ftp init path>
44
string of maximum 40 characters
<backup ftp passive>
NO or YES
<http server port>
80 or 1024 ~ 65535
<bandwidth limit>
0 or 64000, 128000, 256000, 512000,
768000, 1000000, 1500000, 2000000
[VIDEO]
<overlay timestamp>
NO or YES
<caption text>
<colored video>
YES or NO
<video quality>
4 8,6,4,3,2 representing Medium, Standard,
GOOD, DETAILED, EXCELLENT
<default size>
1 0,1,2,3,4, representing Double, Standard,
Half , Standard x2, Half X2
<brightness>
0 among 5 and -5
<contrast>
0 among 5 and -5
<hue>
0 among 5 and -5
<saturation>
0 among 5 and -5
[ALERT]
<script file enabled>
NO or YES to activate external script
<motion detection channel enabled>
NO or YES
<snapshot channel enabled>
NO or YES
<series snapshot channel enabled>
NO or YES
<application mode>
0 disabled, 1 for Sequential, 10 for motion
detection event, 12 for DI event
<visual alert>
NO or YES
<upload method>
0 FTP, 1 for email
<file with time suffix>
YES or NO
<percentage of object size over screen>
10 1~99
45
<percentage of sensitivity>
90 1~99
<tenth seconds to snapshot after event>
5
<snapshots taken after event>
1
<time to start snapshot>
00:00:00 24 hours format
<time to stop snapshot>
00:00:00 24 hours format
[DEMO]
<demo enabled>
NO or YES
<video is open>
NO or YES
46
Telnet Commands
Network Camera has a Telnet daemon for only administrators to access some sel dom
used functions. Using any general terminal program to connect to Network Camera will
prompt the user for a password. Username is not requested here since only
administrators can access the Telnet daemon. The password is as same as that used in
web access. After logging in, type "help" for the command list. If "debug" or "dinote" is
not executed, Telnet will disconnect automatically after being idle for 1 minute.
System core debugging
General activities are recorded into SYSTEM.LOG continuously, but information about
abnormal status is not. T o look deep into the core debugging information, administrators
may type the “debug” command. This will cause Network Camera to start dumping the
detailed debugging information while the system is running. This is useful to examine if
any error has occurred when the system operates abnormally. The stored in formation
will be cleared automatically after the dump. Network Camera will continue to dump new
messages unless the connection is broken. If Telnet is not connected, any messages will
be stored until administrators re-login.
Monitor changed status of digital input
Typing "dinote" will make Network Camera send the current status of digital input. After
that Network Camera will continuously monitor DI status and send messages only when
the state has changed. For example, after typing "dinote" the terminal will display
DI1=L
and after DI1 changes to H, terminal will display
DI1=H
Stop information dumping
Typing "stop" will cease dumping debug information and the digital input status.
Query status of digital input
Typing "diquery" will display the status of all digital input once.
Set digital output
To set digital output to connect NO with COMMON, type "DO1=L".
To set digital output to connect NC with COMMON, type "DO1=H".
47
Erase snapshots stored in Flash memory
Typing "erase image" will clear all snapshots saved in Flash memory.
Erase logo and graphic buttons
Typing "erase graph" will clear all images used on the homepage. If no new images are
uploaded, the system will switch to text mode and use default images instead.
Skip installation at next boot
Ty p i ng " lock" will inform Network Camera to fix curr ent network settings. It need not
wait for installation during the next boot.
Reset network for new settings
Typing "unlock" will make Network Camera give up current settings and wait for
installation.
Restore factory default settings
Ty p i ng " clear" will make Network Camera restore factor y settings but not restart. To
validate new settings, type "reset" to make the system restart.
Reset system
Typing "reset" will make Network Camera perform a software reset.
48

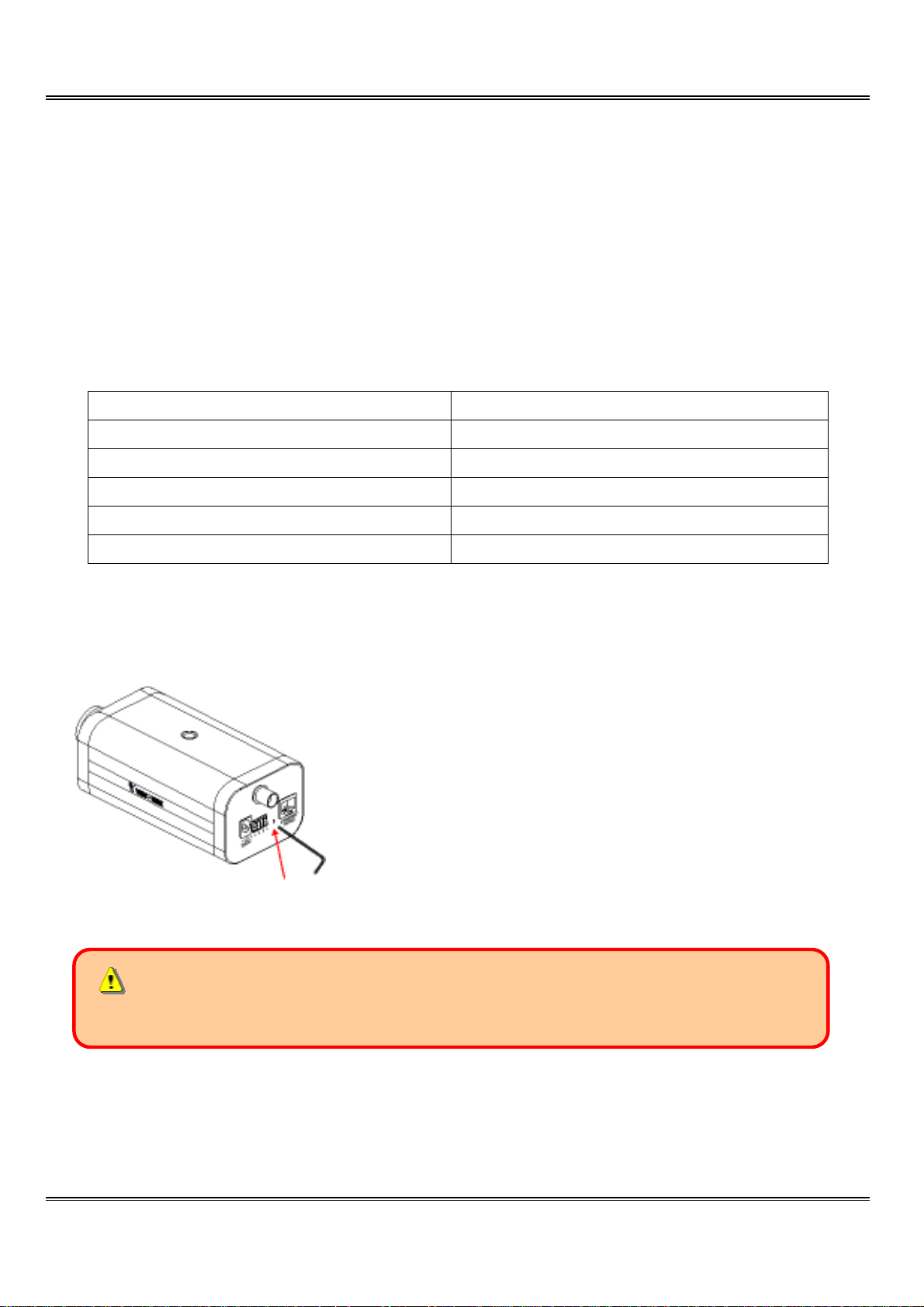

Appendix
A. Troubleshooting
Status LED
After the power has been turned on, Network Camera will perform a self-diagnostic to
detect any hardware defects. The following table lists the LED patterns in general
conditions. In case of any fatal error, the LED will blink in another pattern.
Condition LED color
During self-diagnostic after power on Blink in interchanged green and red
Ethernet signal is lost Steady red till Ethernet is detected
Before network is setup No LED sign till IP address is set
After network is setup Blink green once per second
Any hardware failure Other patterns
Reset and restore
Sometimes resetting the system can make the system
back to normal state. If the system still has problems after
reset, restore the factory settings and install again.
RESET: Poke the wrench to click on the button.
RESTORE:
1. Poke the wrench to press on the button continuously.
2. Wait for self-diagnostic to run twice.
3. Withdraw the wrench as soon as the second
self-diagnostic starts.
Restore the factory defaults will lose any previous settings. Reset or restore the
system after power on.
49
B. Frequently Asked Questions
Q Why can’t I see the Network Camera in the installer after reboot?
A The installer is only used to install the IP address of Network Camera. If the IP address
is fixed by checking the option in the installer , the Network Camera will no longer appear
in the installer.
Q Why can’t I connect the Network Camera after reboot?
A If the IP address is not fixed, Network Camera will always wait for installing command
for a valid IP address. That means the previous IP address will not be used if the option
in the installer is not checked; or the option in the network configuration is not cleared.
The benefit of waiting for a valid IP address by default is that administrators can find the
Network Camera in the installer to prevent IP conflict. As long as the IP address is
confirmed, it is suggested to fix the IP address to make Network Camera automatically
start up whenever regaining power.
Q What if I forget my password?
A Every access to Network Camera needs authentication. If you are not a permitted user ,
you may view the images or control the camera as long as the demo account is opened.
The demo account user may use username as “demo” without any password to access
limited features. If you are one of the managed users, you have to ask the administr ators
for the password. If you are the administrator, there is no way to recover the root
password. The only way to regain access to Network Camera is to restor e the factory
settings and reinstall it.
Q Why can’t I watch video from Network Camera after it is authenticated?
A There are many possible scenarios regarding this problem,
1. If you have just installed Network Camera and are unable to watch the video, check if
the video input is enabled and the video modulation in Configuration page.
2. If Network Camera is well installed and you are accessing Network Camera for the first
time using Internet Explorer, adjust the security level of Internet Explorer to allow
installation of the plug-in.
3. If the problem still exists after adjusting, the curre nt users may be over the system
allows.
4. In case that you use demo account, the administrator may protect the video from the
public.
50
Q How can I use a name instead of the IP address to connect Network Camera?
A To allow users to connect to Network Camera through an easily memorized name, the
administrators must first configure the name server in his network. Here is an example:
the administrator installs the Network Camera with a reserved IP address and assigns it
with a name in the domain name service, then users can connect to Network Camera by
typing a name instead of IP address. If there is DH CP service in the network, the IP
address must be excluded in the DHCP service to prevent from IP conflict.
Q What is the plug-in for?
A The plug-in provided by Network Camera is used to display motion pictures on Internet
Explorer that does not support server push technology. If your system does not allow
installation of any plug-in software, the security level of web browser may need t o be
lowered. It is recommended that you consult your network supervisor in your office
regarding the adjustment of the security level.
Q Why is the timestamp different from the system time of my PC or notebook?
A The timestamp is based on the system time of Network Camera. It is maintained by a
real-time clock inside and automatically synchronizes with the time server if Network
Camera is connected to the Internet and the function is enabled. Differences of several
hours may result from the time zone setting.
Q Why does the image not refresh regularly?
A In a modem environment, it is becau se the bandwidth of PPP connection is far less
than Ethernet. If the difference of the timestamp is not stable, adjust the UART FIFO
lower in both receiving and transmitting from modem property in the control panel.
While in Ethernet, it may be due to time taken in storing snap shots into memory upo n
events occurring.
Q How many users are allowed to watch Network Camera at the same time?
A To achieve the best effect, Network Camera will allow twenty users to connect at the
same time. Excess users can get an auto-refreshed still image in homepage instead. It is
recommended to build another web server to host a large quantity of users by retrieving
images from Network Camera periodically.
Q How fast is the video rate of Network Camera?
A The JPEG codec can process 30 frames per second internally. However the total
performance is subject to many coefficients as follows,
1. network throughput,
51
2. bandwidth share,
3. number of users,
4. number of video input is accessed at one time,
5. the complicated objects in view results in larger image file,
6. the level of your PC or notebook which is responsible of displaying images.
In general, the tr ansfer rate i n general loc al network enviro nment can achiev e over 200
kilobytes per second and approximately 10 to 20 pictures of normal environment per
second. The general frame size is illustrated in the follow table for reference.
Quality setting Size of each frame Bandwidth demand for 30fps
Medium 9.3 kbyte 2246 kbps
Standard 11.15 kbyte 2676 kbps
Good 13.76 kbyte 3303 kbps
Detailed 16.35 kbyte 3925 kbps
Excellent 20.3 kbyte 4886 kbps
Q How can I keep Network Camera as private as possible?
A Network Camera is designed for surveillance purpose and has many flexible interfaces.
The user authentication and special confirmation in installation can keep Network
Camera from unauthorized access. You may also change the HTTP port to non-public
number. You can check system log to examine any abnormal activities and trace the
origins.
Q Why can I see image files when I use dir in FTP even if the alarm is not triggered?
A Every time Network Camera starts, it will capture the images as vpre.jpg. If there are
previously saved image files that are not retrieved, Network Camera will keep them until
they are accessed.
Q How will the stored images be processed if Network Camera loses power?
A If user has defined the snapshot interval, Network Camera will capture images
periodically . Once the pre-defined condition is match, the pre- alarm images will be kept
and the current images will be saved. The subsequent images will be stored as
post-alarm stage. User may retrieve these files either by downloading via FTP or direct
Network Camera send them in e-mails. That means after monitoring conditions are met,
Network Camera will keep these image files until user retrieval ev en if power is lost.
Q If I set Network Camera to send e-mails of images whenever the conditions are met,
will my e-mail account overflow?
A It is recommended to use transient state rather than steady state. For instance, use
52
‘Input is Rising’ and ‘Input is Falling’ rather than ‘Input is High’ and ‘Input is Low’ to let
the condition be triggered only when state is changed.
Q The image is not clear enough. Is anything broken?
A The lens can be fine adjusted by rotating the outer ring. Please rotate it clockwise or
counter-clockwise to focus near or far.
53
C. Upgrade System Firmware
Customers can frequently check the appropriate product folder on our web site to
download the latest firmware. Only administrators can upgrade the system firmware of
Network Camera.
Easy way via Upgrade Wizard
Run the Upgrade Wizard included in the product CDROM and proceed by the prompts.
Refer to the user's guide of Upgrade Wizard for details.
Alternative via FTP
1. Decompress the compressed file in a local folder. A file named FLASH.BIN should
appear.
2. Use the FTP program and change the working directory to the local folder where
FLASH.BIN exists.
3. Connect to Network Camera with user name as “root” and password.
4. Use the PUT command to upload FLASH.BIN to Network Camera. The file size is near
1.5 mega bytes. It will take approximately 2 seconds in a local networ k, 2 minutes by
null modem connection or 6 minutes by modem, but still subject to user's network.
5. After upload is complete, close the connection.
6. If the received FLASH.BIN is checked without error, Network Camera will update the
software in Flash memory and restart automatically. When Network Camera starts
writing firmware, both status LED indicators will stay on until system restarts. It takes
about 30 to 40 seconds. User must keep the power stable during the update pro cess.
After the system restarts, Network Camera may need installation depending on whether
the “Reset network at next boot” option is enabled or not. After Network Camera boots
up, reload the web page in the browser.
If power fails during the software upgrade, the program in the me mo ry of Net wor k
Camera may be destroyed permanently . If Network Camer a cannot restart properly , ask
the dealer for technical service.
54
D. URL Commands of Network Camera
For some customers who already have their own web site or web control application,
Network Camera can be easily integrated through convenient URL. This section lists the
commands in URL format corresponding to the basic functions of Network Camera. Some
RFC standards related to HTML may be a good reference for implementation of the
customized homepage.
Page URL
The configuration page has a frame layout including option list frame and an option page
frame. Referenced URL except for the configuration page directs to option page frame
only. Some pages, like image quality setting and preset setting, are opened in new
windows for preview.
These URLs can be accessed only by administrators.
Homepage name Referenced URL
configuration page /setup/config.html
system option /setup/system.html
security option /setup/security.html
network option /setup/network.html
video option /setup/video.html
image quality option /setup/image.html
application option /setup/app.html
motion detection setting /setup/motion.html
view snapshots /setup/snap.html
demo option /setup/demo.html
homepage layout option /setup/layout.html
system log /setup/logfile.html
system parameters /setup/parafile.html
set factory default /setup/factory.html
System resource URL
There are some images used on the homepage when the home page layout is in image
mode. Administrators may use the following links to show the images saved in Network
Camera on another page. To change the logo or the background images referenced by
the URL, refer to the homepage layout
section in configuration.
55
Resource name Referenced URL
system logo image /logo.gif
background image /back.gif
button image for configuration /btn_conf.gif
icon image for link indicator /btn_text.gif
56
General format of command URL
Every configuration can be set through URL with POST method by administrators only.
<general format>
URL[?[name=value][&name=value]……]
<method>
POST
<authorized user>
root
System configuration URL
URL: /cgi-bin/system.cgi
NAME VALUE DESCRIPTION
host <text string shorter than 15
characters>
method
date <yy/mm/dd> year, month and date separated by
time <hh:mm:ss> hour, minute and second separated
ntp <domain name or IP address> NTP server
zone GMT±<n>:00 time zone, n ranged from 0 to 12
keep keep date and time unchanged
auto use NTP server to synchronize
manu directly adjust date and time
system name
slash
by colon
Security configuration URL
URL: /cgi-bin/security.cgi
NAME VALUE DESCRIPTION
rootpass <text string shorter than 15
characters>
username <text string shorter than 15
characters>
userpass <text string shorter than 15
characters>
ioallowed <not required> allow user to control DO
ptzallowed <not required> allow user to view PT scanner panel
deluser <text string shorter than 15 Existing user name
57
change root password
add new user
new user's password
characters>
slow <not required> Snapshot mode
open <not required> enable demo account
demoioallowed <not required> allow demo user to control the I/O
access
slow <not required> snapshot mode
delay <integer> refresh time in snapshot mode
Network configuration URL
URL: /cgi-bin/network.cgi
NAME VALUE DESCRIPTION
yes enable installation at next boot reset
<other than yes> disable installation at next boot
ip <IP address> Network Camera's IP address
subnet <IP address> subnet mask
router <IP address> default gateway
domain <text string shorter than 40
domain name of Network Camera
characters>
dns1 <IP address> primary DNS server
dns2 <IP address> secondary DNS server
limit
Not limited use full network bandwidth
64Kbits/second use only 64Kbps of bandwidth
128Kbits/second use only 128Kbps of bandwidth
256Kbits/second use only 256Kbps of bandwidth
512Kbits/second use only 512Kbps of bandwidth
768Kbits/second use only 768Kbps of bandwidth
1Mbits/second use only 1Mbps of bandwidth
1.5Mbits/second use only 1.5Mbps of bandwidth
2Mbits/second use only 2Mbps of bandwidth
http <number less than 65535> HTTP port
smtp1 <domain name or IP address> primary SMTP server
mailto1 <text string shorter than 80
mail recipient address
characters>
smtp2 <domain name or IP address> secondary SMTP server
mailto2 <text string shorter than 80
mail recipient address
characters>
58
returnmail <text string shorter than 80
return address
characters>
ftp1 <domain name or IP address> primary FTP server
ftprp1 <number less than 65535> FTP server port
ftpuser1 <text string shorter than 15
user name for primary FTP server
characters>
ftppass1 <text string shorter than 15
password for primary FTP server
characters>
ftpfolder1 <text string shorter than 40
upload folder in primary FTP server
characters>
ftp2 <domain name or IP address> secondary FTP server
ftprp2 <number less than 65535> secondary FTP server port
ftpuser2 <text string shorter than 15
user name for secondary FTP server
characters>
ftppass2 <text string shorter than 15
password for secondary FTP server
characters>
ftpfolder2 <text string shorter than 40
upload folder in secondary FTP server
characters>
Video configuration URL
URL: /cgi-bin/video.cgi
NAME VALUE DESCRIPTION
time <not required> enclose timestamp
text <text string shorter than 15
characters>
B/W set encoder to monochrome color
<other than B/W> set encoder to color
size
Half set size to half
Standard set size to standard
Double set size to double
Half x 2 set size to half x 2
enclose caption
Standard x 2 set size to standard x 2
quality
Medium lowest resolution
Standard lower resolution
Good normal setting
Detailed higher resolution
59
Excellent highest resolution
60
Image quality configuration URL
URL: /cgi-bin/imagesetting.cgi
NAME VALUE DESCRIPTION
brightness <-5 ~ 5> adjust brightness of image
contrast <-5 ~ 5> adjust contrast of image
hue <-5 ~ 5> adjust hue of image
saturation <-5 ~ 5> adjust saturation of image
preview <not required> not save the parameters
restore <not required> recall the original settings
save <not required> save the parameters
Motion detection configuration URL
URL: /cgi-bin/motion.cgi
NAME VALUE DESCRIPTION
per <integer> object size percentage
sen <integer> sensitivity percentage
Application configuration URL
URL: /cgi-bin/app.cgi
NAME VALUE DESCRIPTION
sun <not required> set Sunday in weekly schedule
mon <not required> set Monday in weekly schedule
tue <not required> set Tueday in weekly schedule
wed <not required> set Wednesday in weekly schedule
thu <not required> set Thursday in weekly schedule
fri <not required> set Friday in weekly schedule
sat <not required> set Saturday in weekly schedule
sbegin <hh:mm:ss> time to start in weekly schedule
send <hh:mm:ss> time to stop in weekly schedule
inv <not required> set inverse mode in weekly schedule
enfile <not required> enable script file
emode <not required> event operation
showalert <not required> show alert in image
mdmode <not required> Enable motion detection
dihigh <not required> Enable DI is high
dilow <not required> Enable DI is low
61
dirise <not required> Enable DI is rising
difall <not required> Enable DI is falling
delay <integer> delay time of DO after event
ioalarm <not required> trigger DO when DI condition matched
mdalarm <not required> trigger DO when motion detected
ioupload <not required> upload snapshot when DI condition
matched
mdupload <not required> upload snapshot when motion detected
resetdo <not required> Clear the DO status
smode <not required> sequential mode application
sinter <integer> tenth seconds interval for sequential mode
mail upload snapshots by email smethod
ftp upload snapshots by FTP
suffix <not required> FTP file with date and time suffix
62
Homepage layout configuration URL
URL: /cgi-bin/layout.cgi
NAME VALUE DESCRIPTION
cuslogo
logourl <text string shorter than 80
linkurl <text string shorter than 80
cusback
backurl <text string shorter than 80
fcolor <0 ~ 15> color index for font
bcolor <0 ~ 15> color index for background
blank hide logo
def use default logo
url use image from URL
URL of image for logo
characters>
URL to link when clicking on logo
characters>
blank hide background image
def use default background
url use image from URL
URL of image for background
characters>
image display homepage in image mode dismode
text display homepage in text mode
63
E. Time Zone Table
While setting the time zone in automatic date/time synchronization, find the hour offset
in the followings for your region. GMT stands for G reenwich Mean Time, which is the
global time that all time zones are measured from.
(GMT–12:00) International Date Line West
(GMT-11:00) Midway Island, Samoa
(GMT-10:00) Hawaii
(GMT-09:00) Alaska
(GMT-08:00) Pacific Time (US & Canada), Tijuana
(GMT-07:00) Arizona
(GMT-07:00) Chihuahua, La Paz, Mazatlan
(GMT-07:00) Mountain Time (US & Canada)
(GMT-06:00) Central America
(GMT-06:00) Central Time (US & Canada)
(GMT-06:00) Guadalajara, Mexico City, Monterrey
(GMT-06:00) Saskatchewan
(GMT-05:00) Bogota, Lima, Quito
(GMT-05:00) Eastern Time (US & Canada)
(GMT-05:00) Indiana (East)
(GMT-04:00) Atlantic Time (Canada)
(GMT-04:00) Caracas, La Paz
(GMT-04:00) Santiago
(GMT-03:30) Newfoundland
(GMT-03:00) Brasilia
(GMT-03:00) Buenos Aires, Georgetown
(GMT-03:00) Greenland
(GMT-02:00) Mid-Atlantic
(GMT-01:00) Azores
(GMT-01:00) Cape Verde Is.
(GMT) Casablanca, Monrovia
(GMT) Greenwich Mean Time: Dublin, Edinburgh, Lisbon, London
(GMT+01:00) Amsterdam, Berlin, Bern, Stockholm, Vienna
(GMT+01:00) Belgrade, Bratislava, Budapest, Ljubljana, Prague
(GMT+01:00) Brussels, Copenhagen, Madrid, Paris
(GMT+01:00) Sarajevo, Skopje, Warsaw, Zagreb
64
(GMT+01:00) West Central Africa
(GMT+02:00) Athens, Istanbul, Minsk
(GMT+02:00) Bucharest
(GMT+02:00) Cairo
(GMT+02:00) Harare, Pretoria
(GMT+02:00) Helsinki, Kyiv, Riga, Sofia, Tallinn, Vilnius
(GMT+02:00) Jerusalem
(GMT+03:00) Baghdad
(GMT+03:00) Kuwait, Riyadh
(GMT+03:00) Moscow, St. Petersburg, Volgograd
(GMT+03:00) Nairobi
(GMT+03:30) Tehran
(GMT+04:00) Abu Dhabi, Muscat
(GMT+04:00) Baku, Tbilisi, Yerevan
(GMT+04:30) Kabul
(GMT+05:00) Ekaterinburg
(GMT+05:00) Islamabad, Karachi, Tashkent
(GMT+05:30) Chennai, Kolkata, Mumbai, New Delhi
(GMT+05:45) Kathmandu
(GMT+06:00) Almaty, Novosibirsk
(GMT+06:00) Astana, Dhaka
(GMT+06:00) Sri Jayawardenepura
(GMT+06:30) Rangoon
(GMT+07:00) Bangkok, Hanoi, Jakarta
(GMT+07:00) Krasnoyarsk
(GMT+08:00) Beijing, Chongqing, Hongkong, Urumqi
(GMT+08:00) Taipei
(GMT+08:00) Irkutsk, Ulaan Bataar
(GMT+08:00) Kuala Lumpur, Singapore
(GMT+08:00) Perth
(GMT+09:00) Osaka, Sapporo, Tokyo
(GMT+09:00) Seoul
(GMT+09:00) Yakutsk
(GMT+09:30) Adelaide
(GMT+09:30) Darwin
(GMT+10:00) Brisbane
(GMT+10:00) Canberra, Melbourne, Sydney
(GMT+10:00) Guam, Port Moresby
65
(GMT+10:00) Hobart
(GMT+10:00) Vladivostok
(GMT+11:00) Magadan, Solomon Is., New Caledonia
(GMT+12:00) Auckland, Wellington
(GMT+12:00) Fiji, Kamchatka, Marshall Is..
(GMT+13:00) Nuku’alofa
66
A
G. Technical Specifications
System
CPU: Trimedia PNX1300
RAM: 16MB SDRAM
ROM: 2MB FLASH ROM
Networking
Adjustable bandwidth limit
Protocol
TCP/IP, HTTP, SMTP, FTP, Telnet, NTP, DNS and
DHCP
Modem
PPP (dial-up, direct cable connection)
Physical
10BaseT Ethernet or 100BaseT Fast Ethernet
Video
lgorithm Supported
MJPEG
Features
Adjustable image size and quality
B/W or color control
Timestamp and text overlay
Resolution
IP2112
Up to 30 frames at 176x112
Up to 30 frames at 352X240
Up to 9 frames at 704X480
IP2122
Up to 25 frames at 176x144
Up to 25 frames at 352X288
Up to 8 frames at 704X576
Camera Specification
1/4 inch color CCD image sensor
1 Lux/F2.0
AGC, AWB, AES
IP2112
- Resolution: 512(H)x492(V)
- Electroic shutter. 1/60 ~ 1/100.000sec
IP2122
- Resolution: 512(H)x492(V)
- Electroic shutter. 1/50 ~ 1/100.000sec
General I/O
1 sensor inputs (max. 12VDC 50mA)
1 relay outputs (max. 24VDC 1A, 125VAC 0.5A)
LED Indicator
System status indicator
Dimension
168.5mm(L) *73.6mm(W) * 57.3mm(H)
Weight
Net. 376 g.
Power
Consumption: near 5.4W
Input: 100-240VAC, 50/60Hz, 0.4A
Output: 12VDC, 1.5A
Operating Environment
Temperature: 0-65°C/32-149°F
Humidity: 95%RH
EMI & Safety
CE, FCC, BSMI
Viewing System Requirement
Internet Explorer 4.x or above,
Netscape Navigator 4.x or above
67
Loading...
