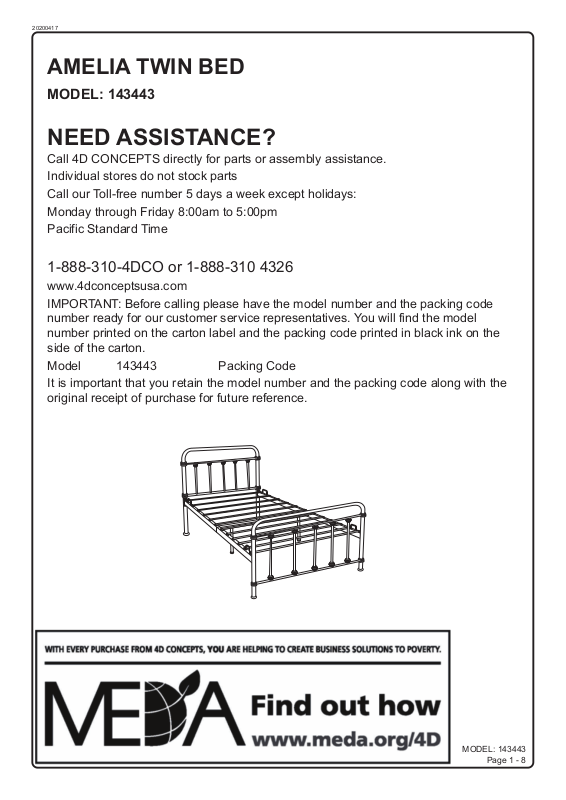

4D Concepts 143443 User Manual
20200417
AMELIA TWIN BED
MODEL: 143443
NEED ASSISTANCE?
Call 4D CONCEPTS directly for parts or assembly assistance.
Individual stores do not stock parts
Call our Toll-free number 5 days a week except holidays:
Monday through Friday 8:00am to 5:00pm
Pacific Standard Time
1-888-310-4DCO or 1-888-310 4326
www.4dconceptsusa.com
IMPORTANT: Before calling please have the model number and the packing code
number ready for our customer service representatives. You will find the model
number printed on the carton label and the packing code printed in black ink on the
side of the carton.
Model 143443 Packing Code
It is important that you retain the model number and the packing code along with the
original receipt of purchase for future reference.
MODEL: 143443
Page 1 - 8
AMELIA TWIN BED
Assembly Instructions - Please keep for future reference
Safety and Care Advice
MODEL: 143443
• Important: Please read these instructions fully before
starting assembly.
• Do not discard any of the packaging until you have
checked that you have all the parts and the pack of
fittings.
• Discard all extra fittings and keep fittings out of reach
of children.
• Assemble this product on a flat and protected surface.
• Assemble all parts and bolts loosely during assembly,
only once the product is complete should you fully
tighten the bolts.
• Assemble this product as close to its final position (in
the same room) as possible.
• At least 2 people are required to assemble this
product.
Warnings:
• This product should only be used on firm, level
ground.
• Make sure the legs remain in contact with the ground.
• Do not stand on the product.
Care and maintenance:
• Please clean the product using either damp (not wet)
cloth and a mild domestic soap solution or by using an
appropriate polish.
• Do not use abrasive materials when cleaning.
• From time to time, check that there are no loose bolts
on this unit.
MODEL: 143443
Page 2 - 8
Parts List:
1
HEADBOARD
Fittings List:
QTY.DESCRIPTIONCODE
1
A
BOLT M6 x 45mm
QTY.DESCRIPTIONCODE
4
2
FOOTBOARD
3
LONG SIDE RAIL
4
SHORT SIDE RAIL
5
SLAT
6
CENTER RAIL
7
CENTER LEG
8
HEADBOARD LEG
1
2
2
12
1
2
2
B
C
D
E
ADJUSTABLE FOOTING
F
G
H
BOLT M6 x 15mm
NUT
WASHER
MATTRESS STOPPER
ALLEN KEY
TOOL
14
4
4
2
4
1
1
1
5
8
8
3
4
3
6
7
7
2
4
MODEL: 143443
Page 3 - 8
