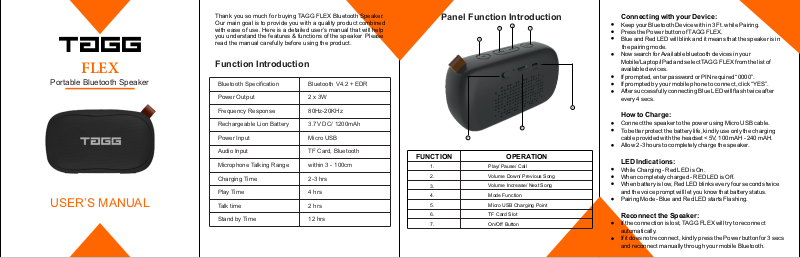

4COM Technologies TAGGFLEX User Manual
TAGG
FLEX
Portable Bluetooth Speaker
USER’S MANUAL
Thank you so much for buying TAGG FLEX Bluetooth Speaker.
Our main goal is to provide you with a quality product combined
with ease of use. Here is a detailed user’s manual that will help
you understand the features & functions of the speaker Please
read the manual carefully before using the product.
Function Introduction
Bluetooth Specification
Power Output
Frequency Response
Rechargeable Lion Battery
Power Input
Audio Input
Microphone Talking Range
Charging Time
Play Time
Talk time
Stand by Time
Bluetooth V4.2 + EDR
2 x 3W
80Hz-20KHz
3.7V DC/ 1200mAh
Micro USB
TF Card, Bluetooth
within 3 - 100cm
2-3 hrs
4 hrs
2 hrs
12 hrs
Panel Function Introduction
4
7
2
3
1
6
FUNCTION OPERATION
1. Play/ Pause/ Call
2.
3.
4.
5.
6.
7.
Volume Down/ Previous Song
Volume Increase/ Next Song
Mode Function
Micro USB Charging Point
TF Card Slot
On/Off Button
Connecting with your Device:
Keep your Bluetooth Device with in 3 Ft. while Pairing.
Press the Power button of TAGG FLEX.
Blue and Red LED will blink and it means that the speaker is in
the pairing mode.
Now search for Available bluetooth devices in your
Mobile/Laptop/iPad and select TAGG FLEX from the list of
available devices.
If prompted, enter password or PIN required “0000”.
If prompted by your mobile phone to connect, click “YES”.
After successfully connecting Blue LED will flash twice after
5
every 4 secs.
How to Charge:
Connect the speaker to the power using Micro USB cable.
To better protect the battery life, kindly use only the charging
cable provided with the headset < 5V, 100 mAH - 240 mAH.
Allow 2-3 hours to completely charge the speaker.
LED Indications:
While Charging - Red LED is On.
When completely charged - RED LED is Off.
When battery is low, Red LED blinks every four seconds twice
and the voice prompt will let you know that battery status.
Pairing Mode- Blue and Red LED starts Flashing.
Reconnect the Speaker:
If the connection is lost, TAGG FLEX will try to reconnect
automatically.
If it does not reconnect, kindly press the Power button for 3 secs
and reconnect manually through your mobile Bluetooth.
Common Problems and Solution
Mobile Can’t Find the Speaker:
Kindly restart your phone and the speaker.
There’s always noise and the Bluetooth keeps
disconnecting:
The Speaker needs to be charged.
Make sure you are not beyond the signal distance.
Bluetooth is connected but you are unable to listen
to music:
Check your setting to adjust the sound of speaker.
Some mobiles require you to select the device twice.
Some mobile devices do not have compatibility with stereo
bluetooth speaker kindly connect the speaker with another
device to check if it is functioning properly.
Bluetooth Password:
“0000”
Maximum Distance:
10 ft.
Red LED is not ON while charging:
This could be due to lack of use of Speaker. It needs to be
charged for 30 min before the Red LED occurs.
Restore To Factory Setting:
To restore to factory settings, hold the Power Button for about
three seconds when charging until the red and blue LED
flashes three times.
Accessories List:
1 x TAGG FLEX Bluetooth Speaker
1 x Micro USB Charging Cable
1 x User’s Manual
Safety Rules:
Avoid Overcharging
Do not keep the speaker in closed area and avoid exposing to hot
temperature.
Never disassemble or modify your speaker because of
any reason.
Make sure the speaker does not get wet.
EXCEPTIONAL WARRANTY:
We offer simply the best, customer support that will never rest until
you are absolutely satisfied! Plus, the TAGG all products comes with
12 months Replacement warranty. Product Registration is mandatory
at TAGG Digital website within 15 days of your purchase to claim
the warranty.
Write us : support@taggdigital.com
Call us : 011-41012060
Designed By : 4COM Technologies
Thank you very much for choosing TAGG as your trusted brand of
Bluetooth Speaker and sincerely hope you enjoy the great sound
and comfort TAGG provides. We love making our customers
happy by providing true value with our products. If for any reason
you are not completely satisfied with your purchase let us know
immediately and we will do anything to make sure you are happy.
Contact Us : support@taggdigital.com
Website : www.taggdigital.com
