3M 16961 User Manual

THE COMPLETE CATALOG

3M Welding

3M™Speedglas

™

and Adflo™Systems

2

CONTENTS

3M Welding Products

What’s New! . . . . . . . . . . . . . . . . . . . . . . . . . .3

Introduction to Auto-Darkening

Welding Filters . . . . . . . . . . . . . . . . . . . . . . .6

3M

™

Speedglas™Helmet 9000 . . . . . . . . . . . .8

Speedglas

™

SideWindows Helmets . . . . . . .10

Speedglas

™

Utility Filter and Helmet . . . . . .12

Speedglas

™

Filter and Helmet 9000F . . . . . .14

Speedglas

™

Filter and Helmet 9000XF . . . .16

Speedglas

™

Filter and Helmet 9002V . . . . .18

Speedglas

™

Filter and Helmet 9002X . . . . .20

Speedglas

™

FlexView Helmet System . . . . .22

Speedglas

™

ProTop Hard Hat System . . . . .24

Speedglas

™

with Adflo

™

System . . . . . . . . . . .26

Speedglas

™

FlexView with Adflo™ System . .30

ClearVisor with Adflo

™

System . . . . . . . . . .32

3M

™

Fresh-air II Supplied-Air System with

3M™ Speedglas™Helmet 9000 HWR . . . . . .34

Portable Compressed Air

Filter and Regulator Panels . . . . . . . . . . . . .36

Compressed Air Filter

and Regulator Panels . . . . . . . . . . . . . . . . . .38

Replacement Parts for Speedglas

™

Helmets Utility and 9000 Series . . . . . . . . .40

Replacement Parts for Speedglas

™

FlexView and ProTop Systems . . . . . . . . . .42

Replacement Parts for Speedglas

™

9000 HWR Helmets with Adflo™ System . . .44
Replacement Parts for ClearVisor

with Adflo

™

System . . . . . . . . . . . . . . . . . . .46

Replacement Parts for 3M

™

Fresh-air II

Supplied Air (SA) Systems 9000 . . . . . . . . .48

Warranty and Customer Support . . . . . . . . .50

Team Torch . . . . . . . . . . . . . . . . . . . . . . . . . .52

Filter Selector Tables . . . . . . . . . . . . . . .54-55

WARNING

These welding safety products must be used only by qualif ied
persons trained in their use and maintenance and only in strict
accordance with and adherence to the detailed instructions
and precautionary statements provided in the instruction
manual which accompanies each product. Failure to comply

with these instructions could result in sickness, serious
bodily injury or loss of life.

For proper use of these products read user instructions and
warnings on the package. Any questions concerning proper
use should be directed to your supervisor, on-site training
specialist, industrial hygienist or 3M Occupational Health
and Environmental Safety Division (OH&ESD) Technical
Service in the U.S.A. at 1-800-243-4630. In Canada, call
1-800-267-4414.

WARNING

WHAT’S NEW

Now Available:

3M™ Speedglas™with
Adflo™System

3M™ClearVisor
with
Adflo™System

New “stackable” configuration allows welders to
quickly add a vapor cartridge to the high efficiency
particle filter. See page 26.

The ergonomically designed
Powered Air-Purifying
Respirator (PAPR) for welders.

HE Filter

Vapor Cartridge

6

AUTO-DARKENING FILTERS

Independent arc-detectors instantly sense the
welding arc, immediately triggering the
Speedglas filter to change from the light state
to the dark state.

Safety Products That Help Increase
Your Performance

Now welders can see their work, at comfortable
light levels, with constant eye and face protection.
Speedglas filters turn dark the moment an arc is
struck and transparent again when welding
stops–all the time with full UV/IR protection.

Auto-darkening eliminates the neck-strain of
“helmet nodding” while helping increase the
accuracy of electrode placement.

This, in turn, reduces the need for grinding and
rework. In addition, welders can get into tight,
cramped spaces with full protection and have a
clear view, making extremely awkward welds a
lot easier.

Introduction to
Auto-Darkening
Welding Filters (ADF’s)

®

8

FILTERS AND HELMETS

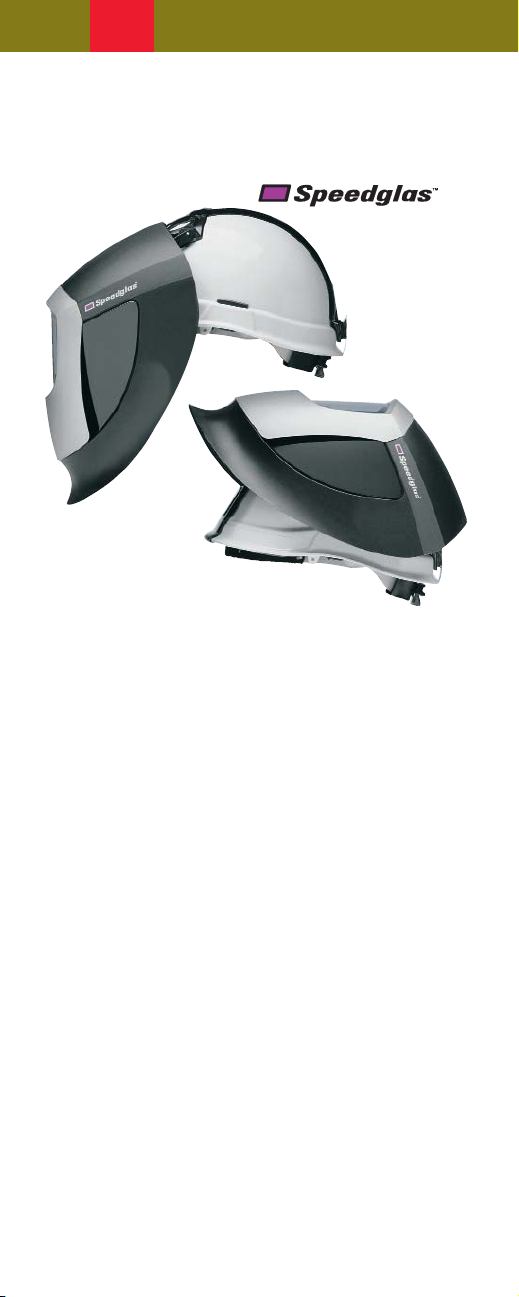

The revolutionary 3M™Speedglas™Helmet 9000
features patented aerodynamic exhaust vents that
help to remove exhaled air.

Welders experience lower humidity, less heat, and
reduced “stuffiness.” The welder’s natural
breathing action directs the exhaust airflow; no
moving parts are involved. Fresh, incoming air is
not drawn through the special vents; instead, it
chooses the path of least resistance—the area
around the welder’s neck, which is typically further
away from the smoke plume.

A Welding Helmet
that Breathes!

Exhaled air is directed through the four aerodynamic
vents. It then exhausts through two thin openings
created between the double-shell construction of the
heat-reflecting silver front panel and the black helmet.

10

FILTERS AND HELMETS

3M™SideWindows Helmets Improve
Visibility, Safety and Comfort

3M™Speedglas™SideWindows Helmets allow for
peripheral vision. The two shade 5 side f ilters
increase the peripheral viewing area by over 100%.

SideWindows f ilters allow welders to see
potentially-hazardous peripheral objects, such as
protruding beams, vehicles, and other welders,
with the helmet down.

SideWindows also permit welders to easily move
around their work area with constant protection
from UV/IR radiation.

The two side filters are designed solely for
peripheral vision; the welder continues to view his
own arc through the center (auto-darkening) filter.

Peripheral Vision
for Welders

12

AUTO-DARKENING FILTERS

An Entry-Level
Auto-Darkening
Filter and Helmet:
Utility

3M™Speedglas™Utility
Filter and Helmet

Our most affordable auto-darkening filter! The
Speedglas Utility is especially designed for MIG
(GMAW) and stick (SMAW) welding only.

The Speedglas Utility is perfect for the serious
part-time welder, as well as for maintenance
welding on farm equipment, automobiles, and
any other MIG or stick project. Two f ilter models:
dark shade 10 or 11.

It’s the affordable auto-darkening filter and helmet.

14

AUTO-DARKENING FILTERS

A Filter for Multiple
Arc Welding Processes:
9000F

3M™Speedglas™Filter 9000F
and Helmet

Do stick, MIG, and most TIG welding
processes with one filter!

The 9000F (“F” for “Fixed” dark shade) provides
improved performance, greater ease-of-use, and
remarkable optical clarity. Available in three
factory-set dark shades: 10, 11 or 12.

Plus, all Speedglas helmets 9000 have four exhaust
vents for reduced stuffiness (see page 8).

16

AUTO-DARKENING FILTERS

An X-tra Large Filter:
9000XF

3M™Speedglas Filter 9000XF
and Helmet

For welders that want a really big view...
the 9000XF (“X-tra Large, Fixed Dark Shade”).

It’s larger than most auto-darkening filters, with
outstanding optical clarity and very low angle
dependency.

The 9000XF can also be used on all stick and
MIG and most TIG processes. Available in three
factory-set dark shades: 10, 11 or 12.

18

AUTO-DARKENING FILTERS

“V” for Variable
Dark Shades: 9002V

3M™Speedglas™Filter 9002V
and Helmet

For welders handling a variety of amperages and
different arc welding processes, we introduce the
9002V . . . the most versatile auto-darkening filter
ever! Choose from 61 control combinations to
achieve the most efficiency and comfort, no matter
what you are welding.

Greater sensitivity! The 9002's newly-developed
detectors increase sensitivity to provide reliable
switching for a wide range of welding methods, even
extremely stable arcs like those from TIG inverters at
low amp settings.

Greater comfort! The 9002 introduces a new Delay
function that lets you decide how quickly the f ilter
changes from dark-to-light.

Adjust with gloves on! The 9002's new membrane­covered control buttons let you change settings or
turn on/off with your gloves on. The buttons are
faster than analog knobs, and the membrane seals
the filter from dirt.

20

AUTO-DARKENING FILTERS

The Top-Of-The-Line
3M™Speedglas™Filter
9002X

3M™Speedglas™Filter 9002X
and Helemt

An X-tra large viewing area is combined with
advanced electronics to deliver the most versatile auto­darkening filter ever!

For welders handling a variety of amperages and
different arc welding processes, this is the best!

The 9002X has a big 4.09" x 2.13" viewing area, with
clear, sharp optics and consistent shading across the
entire viewing area.

A solar panel on the front of the filter cassette helps to
power the unit, extending battery life to approximately
3000 hours.

Greater sensitivity! The 9002’s newly-developed
detectors increase sensitivity to provide reliable
switching for a wide range of welding methods, even
extremely stable arcs like those from TIG inverters at
low amp settings.

Greater comfort! The 9002 introduces a new Delay
function that lets you decide how quickly the f ilter
changes from dark-to-light.

Adjust with gloves on! The 9002's new membrane­covered control buttons let you change settings or turn
on/off with your gloves on. The buttons are faster
than analog knobs, and the membrane seals the
filter from dirt.

22

AUTO-DARKENING FILTERS

3M™Speedglas™FlexView System

The new FlexView has a big, 4.75" x 3.6" (120mm
x 90 mm) clear polycarbonate faceshield that’s
ideal for precision weld preparation under a variety
of light conditions.

The user simply lifts up the spring-mounted filter
assembly for weld prep. The spring holds the auto­darkening filter securely on top of the helmet,
giving the welder a big, clear view behind the
FlexView faceshield.

The faceshield allows for precision grinding and
cleaning, the careful alignment of electrodes and
the inspection of newly-completed welds…all with
constant eye and face protection, even in the
darkest workshop.

The faceshield meets the ANSI Z87.1-2003
industrial eye and face protection standard, which
does not recommend “…filter or tinted f ilters that
restrict light transmittance…” when chipping or
grinding (American National Standard Institute
Z87.1 Selection Chart, Impact Protectors).*

Ideal for Weld
Preparation/Grinding:
FlexView

*Impact resistant, primary eye protection, spectacles or
goggles that meet current ANSI specifications, must be
worn at all times when using any welding helmet.

24

AUTO-DARKENING FILTERS

A Balanced Hard Hat
Designed for Welders:
ProTop

3M™Speedglas™ProTop System

The new ProTop combination hard hat, welding
helmet, and auto-darkening filter system is
especially designed for welders working in areas
with overhead hazards.

The key to the Speedglas ProTop system is the
exclusive pivot mechanism that connects the
welding helmet to the hard hat. Traditional welding
hard hats create a very high center-of-gravity when
the welding helmet is raised; as a result, the user
feels off-balance, and the leveraged weight may put
additional strain on neck muscles. On the other
hand, the ProTop pivot mechanism has two sets of
axes: one to lift the welding helmet away from the
welder’s face, and another axis to “nest” the
welding helmet down low over the hard hat, in a
balanced, secure position.

In addition to having a much more comfortable
(lower) center-of-gravity, the nested welding helmet
is much less likely to bump into obstacles as the
welder moves around the work area.

26

RESPIRATORY PROTECTION

A Highly Advanced
Powered Air
Purifying Respirator
(PAPR)

28

ADF’S WITH RESPIRATORY
PROTECTION

Two Respirators In One!

3M™Speedglas™9000 HWR with
Adflo

™

System
Auto-Darkening Filters (ADF’s) with
Respiratory Protection

We’ve reinvented the powered air-purifying respirator
(PAPR) for welders. The result is 3M

™

Speedglas™with

Adflo

™

System: a lightweight, compact, all-in-one
system. Its exclusive “stackable” conf iguration means
that the Adflo cartridge can be “stacked” onto the high
efficiency (HE) particle filter for additional protection
against organic, sulfur dioxide, chlorine, and hydrogen
chloride vapors.

In effect, it’s two systems in one, allowing increased user
flexibility to adapt to changing welding applications. And
you can selectively replace either the particle filter or the
Adflo OV/SD/CL/HC cartridge as needed: you don’t have
to change both filters at the same time!

The Adflo system has no external batteries, no battery
cables, and no sharp corners. Its slim profile is designed
to go into tight spaces. And it’s designed to be
ergonomically compatible for welders.

High Efficiency (HE)
Particle Filter.

Adflo cartridge for
OV/SD/CL/HC vapors.

High Efficiency
(HE) filter

Adflo turbo
filter cover

Spark
Arrestor

Prefilter

30 31

ADF’S WITH RESPIRATORY
PROTECTION

Eye, Face and
Respiratory
Protection for
Weld Prep/Grinding

3M™Speedglas™FlexView with Adflo

™

System

The new FlexView system combines full eye and
face protection (for both welding and low light
weld preparation) with a slim, lightweight, powered
air purifying respirator. For chipping, grinding, or
preparation, the user simply lifts up the spring­mounted Speedglas filter assembly. The spring
holds the auto-darkening filter securely on top of
the helmet, giving the welder a big clear view
through the clear polycarbonate faceshield.

The faceshield allows for precision grinding and
cleaning, the careful alignment of electrodes and
the inspection of newly-completed welds…all with
constant eye and face protection, even in dark
conditions.

The faceshield meets the ANSI Z87.1-2003
industrial eye and face protection standard, which
does not recommend “…filter or tinted f ilters that
restrict light transmittance…” when chipping or
grinding (American National Standard Z87.1-2003).*

*Important Note: Impact resistant, primary eye
protection, spectacles or goggles that meet current ANSI
specifications, must be worn at all times when using any
welding helmet.

3M™ClearVisor with Adflo™System

The new ClearVisor with Adflo system combines
eye and face protection (ANSI Z87.1-2003) with a

slim, lightweight, powered
air-purifying respirator
(PAPR).

The polycarbonate
ClearVisor faceshield has
exceptional clarity and a
wide viewing area. The
ClearVisor meets the high
impact test requirements of
ANSI Z87.1-2003.

The system can be used in
a variety of industrial
settings, including
woodworking, metal
grinding, injection
molding, petrochemical,
pharmaceutical, pulp and
paper processing, sanding
and refinishing, foundries,
grain and flour processing,
and other dusty
environments.

32

RESPIRATORY PROTECTION

Eye, Face and
Respiratory Protection

34

ADF’S WITH RESPIRATORY
PROTECTION

3M™Fresh-air II Supplied Air
System with 3M

™

Speedglas

™

Helmet 9000 HWR

The NIOSH-approved supplied air (SA) 9000
system provides respiratory protection from
airborne particulates and gases. The lightweight,
belt-mounted valves permit the welder to adjust
the temperature of the air entering the headpiece
±45°, making it ideal for very hot or strenuous
jobs.

Supplied Air
Protection

NOTE: Final

determination of respirator
applicability and filter
selection must be made by
an on-site safety specialist
or industrial hygienist.

REGULATOR PANELS

3M™Portable
Compressed Air Filter
and Regulator Panel
256-02-00

The 3M™Portable Compressed Air Filter and
Regulator Panel 256-02-00 can filter and regulate air
delivered to your supplied air respirator. This system
can help to remove limited amounts of carbon
monoxide (CO) from the incoming air as well.

This system offers a number of unique
benefits to you.

• Compatible with 3M’s full line of supplied air

respirators

• Four-stage filtration

• Can monitor for carbon monoxide in incoming air

• Patented “low-temperature catalyst” converts

dangerous CO to CO2

• Portability

– Comes in a durable carrying case
– This unit can be easily moved to different areas
of the plant
– It can be permanently mounted to the wall if

desired

• Intrinsically safe system

1

1

The carbon monoxide monitor in the 3M portable compressed air
filter and regulator panels is CSA Certif ied Intrinsically Safe for Class
1, Div. 1, Groups A, B, C and D Hazardous Locations when utilizing
the two 9 volt batteries to power the monitor. If the monitor is
powered by the optional 120 VAC adapter, the Intrinsically Safe
Certification is voided. The Intrinsically Safe Certification is also
voided when the remote alarm is used.

REGULATOR PANELS

This panel is designed to filter and regulate air
being delivered to the supplied air respirator. It has
a maximum capacity of 50 cfm at 105 psig. This is
an economical system that provides single step
filtration. It is designed to be permanently mounted
to the wall. It provides a maximum of 50 cfm to
3-5 outlets.

NOTE: This unit will NOT remove carbon
monoxide (CO) from compressed air source.

3M™ Compressed Air
Filter and Regulator
Panel W-2806

40

REPLACEMENT PARTS

Replacement Parts for
3M

™

Speedglas™Helmets
and Filters Utility and
9000 Series

Complete Helmets and Filters

04-0012-(shade 10, 11 or 12) Complete Speedglas f ilter and

helmet 9000F

04-0012-(shade 10, 11 or 12)X Complete Speedglas filter and

helmet 9000XF

04-0012-31 Complete Speedglas filter and

helmet 9002V

04-0012-21 Complete Speedglas filter and

helmet 9002X

For any of the above part numbers, add “H” for hard hat
and/or “SW” for SideWindows option

04-0014-(shade 10 or 11)U Complete Speedglas Utility

filter and helmet

Filters

04-0000-(shade 10, 11 or 12) Speedglas f ilter only 9000F
04-0000-(shade 10, 11 or 12)X Speedglas filter only 9000XF
04-0000-31 Speedglas filter only 9002V
04-0000-21 Speedglas filter only 9002X

Filter Replacement Parts

04-0270-00 Outside protection plate standard-

package of 10

04-0270-10X100 Outside protection plate standard-

package of 100

04-0290-00 Speedglas 9000 Series F and V inside

protection plate (5 Pack)

04-0280-00 Speedglas 9000 Series XF and X inside

protection plate (5 Pack)

04-0480-00 9000XF and 9002X accessory kit

(10 outside, 5 inside plates and 2 batteries)

04-0490-00 Utility, 9000F and 9002V accessory kit

(10 outside, 5 inside plates and 2 batteries)
04-0320-00 Battery-package of 2
04-0380-00 Battery holders (blue)-package of 2
04-0390-00 Battery holders (black)-package of 2

Filter Accessories

04-0290-01 Inside protection plate, passive filter #1,

for Utility and 9000F models-package of 5*

04-0290-02 Inside protection plate, passive filter #2,

for Utility and 9000F models-package of 5*

04-0280-01 Inside protection plate, passive filter #1,

for 9000XF-package of 5*

04-0280-02 Inside protection plate, passive filter #2,

for 9000XF-package of 5*

04-0270-03 Outside protection plate HD

(heavy duty)-package of 5

04-0270-04 Outside protection plate

high heat-package of 5

*Total shade level must not exceed shade #13. Do not use
shaded inside protection plates for either 9002V or 9002X
filters.

42

REPLACEMENT PARTS

Replacement Parts for
3M™Speedglas

™

FlexView System

*

04-0016-(filter options) Complete Speedglas FlexView system
04-0016-00 Complete Speedglas FlexView system with no f ilter

Add “SW” for SideWindows option.

04-0116-00 Speedglas FlexView shell only
04-0116-00SW Speedglas FlexView shell only

with SideWindows option

04-0126-00 Speedglas FlexView helmet/headband

“S” stop left-package of 10
04-0216-00 Speedglas FlexView silver front panel only
04-0360-00 Speedglas FlexView welding filter holder
04-0361-00 Speedglas FlexView middle helmet panel
04-0260-00 Speedglas FlexView faceshield-package of 10

*Parts on this page are unique to the FlexView system. See page
40 for additional standard parts which are also used in the
FlexView system.

04-0216-00

04-0360-00

04-0361-00

04-0126-00

04-0260-00

04-0116-00
or
04-0116-00SW

04-0026-00

®

44

REPLACEMENT PARTS

Replacement Parts For
3M

™

Speedglas™9000 HWR

Helmets with Adflo

™

System

Replacement Filters and Cartridges

15-0099-99X06 6-pack Adflo prefilter
15-0099-99X12 12-pack Adflo prefilter

15-0199-99X02 2-pack Adflo HE particle filter
15-0199-99X06 6-pack Adflo HE particle filter
15-0199-99X36 36-pack Adflo HE particle filter

15-0399-99X02 2-pack Adflo OV/SD/CL/HC cartridge
15-0399-99X06 6-pack Adflo OV/SD/CL/HC cartridge
15-0009-99X02 2-pack Adflo spark arrestor

3M™Adflo™Turbo System Replacement
Parts

15-1099-01 Adflo turbo assembly and f ilter cover

without filter or cartridge or battery
15-1099-81 Adflo turbo filter cover
15-5401-01 Adflo turbo, complete with breathing tube

assembly, flow indicator, belt, spark arrestor,

Adflo turbo filter cover, prefilter, HE particle

filter, battery and smart charger.

Miscellaneous Replacement
Parts and Accessories

15-0099-05 Flow indicator
15-1099-07 Adflo battery pack
15-0099-08 Adflo battery smart charger
15-0099-10 Adflo breathing tube assembly (rubber)

15-0099-16 Adflo leather belt
15-0099-06 Adflo leather belt front piece replacement
18-0099-33 Carry bag

18-0099-33

04-0000-(Filter)

15-0399-99

15-0099-10

Tur bo

15-0099-06

15-0099-16

15-0199-99

15-0099-99

15-0009-99

15-1099-81

15-1099-07

15-0099-08

15-0099-05

15-1099-01

14-0099-35

46

REPLACEMENT PARTS

Replacement Parts for
3M™ClearVisor with
Adflo

™

System

Complete Systems

16-1101-40 ClearVisor with Adflo HE particle filter system
16-3301-40 ClearVisor with Adflo HE filter +

OV/SD/CL/HC cartridge system

Replacement Parts

16-0099-30 Head cover
16-0099-35 ClearVisor faceshield headband

assembly complete

16-0099-29 ClearVisor faceshield headband assembly

with air duct

16-0099-28 ClearVisor face seal
16-0099-27 Brow guard
16-0099-32 Clear window with Velcro

®

16-0300-99X05 Clear window strip off shielding film (5 pack)
02-0660-00 Mounting hardware (APC, ClearVisor)

16-0099-29

16-0300-99
(Accessory)

16-0099-30

16-0099-27

16-0099-32

16-0099-28

REPLACEMENT PARTS

Replacement Parts for
3M™Fresh-air II
Supplied Air (SA)
Systems 9000

Complete Fresh-air II SA systems 9000

Cool-air: 14-5701-(f ilter options)
Temp-air: 14-5801-(filter options)

Filter Options:

10, 11 or 12 = Speedglas filter 9000F shade 10, 11 or 12
10X, 11X or 12X = Speedglas filter 9000XF shade 10, 11 or 12
31 = Speedglas filter 9002V
21 = Speedglas filter 9002X

Add “SW” for SideWindows option. For hardhat version
order separate components (see page 35).

Replacement Valves and Valve Parts

18-0099-47 Cool-air valve assembly
18-0099-48 Temp-air valve assembly
18-0099-55 Valve shield
18-0099-63 Breathing tube (supplied air) hard hat

Air Supply Hoses

18-0099-40 25 feet breather hose, with couplings
18-0099-41 50 feet breather hose, with couplings
18-0099-42 100 feet breather hose, with couplings
18-0099-43 25 feet Nycoil™ hose, with couplings
18-0099-44 50 feet Nycoil™ hose, with couplings
18-0099-45 100 feet Nycoil™ hose, with couplings

Miscellaneous Replacement Parts and
Accessories

18-0099-16 Comfort belt
18-0099-33 Carry bag

For 9000 Helmet Assembly with Respiratory
Protection (HWR) Replacement Parts and
Accessories, see page 45.

50

WARRANTY INFORMATION

Customer Support

If you have any questions about your Speedglas
products, contact Customer Care at: 800-328-1667
or Fax: [phone]. (Canada: 800-267-4414 or
Fax: [phone].)

Speedglas™Filter Warranty

3M warrants all Speedglas filters for 24 months
from the date of purchase against all
manufacturing defects resulting from materials or
workmanship.

Adflo™ System Warranty

3M warrants all Adflo products obtained hereunder
to be free from defects in material and
workmanship in normal service and under normal
conditions for 12 months from the date of delivery.

Speedglas™Fresh-air II Supplied Air
(SA) 9000 Warranty

3M warrants all Fresh-air products obtained
hereunder to be free from defects in material and
workmanship in normal service and under normal
conditions for 180 days from the date of delivery.

Portable Compressed Air Filter
Warranty

3M warrants its Portable Compressed Air Filter
and Regulator Panel with Carbon Monoxide
Filtration and Monitor for a period of one (1) year
and its Carbon Monoxide Sensor for a period of
two (2) years from the original shipping date, to be
free from defects in material and workmanship in
normal service and under normal conditions.

These warranties are void in the case of
operator misuse, abuse, or neglect. Read your
instruction manual to avoid certain situations
which could void this warranty (for example,
cracked filters and filters covered with weld
spatter are not covered under the warranty
policy).

52

TEAM TORCH

Team Torch
Exclusive Welder
for NHRA Events

Since 1987, Paul Le Sage, aka Team Torch, has been
the exclusive welder for all National Hot Rod
Association (NHRA) events. Currently equipped with
a heavily-modified, low-riding Chevy S-10 Xtreme
truck and a 9000kVA generator/welder, Torch can
quickly buzz in and out of crowded pit areas.

“I’m doing some very extreme repairs on 300 mph
race cars in the course of my day at a NHRA
National event,” says Le Sage. “With a 75-minute
turnaround between making
another race down the drag
strip, time is not on my side.
The 3M

™

Speedglas™Auto­Darkening Helmet is a must in
my world.”

3M™SPEEDGLAS™SELECTOR TABLE

FILTER TYPE Fixed Fixed Fixed Variable Variable

10 10 10

SHADE 11 11 11 9-13 9-13

12 12

VIEWING AREA 3.58" x 1.68" 3.58" x 1.68" 4.09" x 2.12" 3.58" x 1.68" 4.09" x 2.12"

SOLAR ASSIST No No No No Yes

WELDING FILTER

BATTERY LIFE

2000 hrs 2000 hrs 1750 hrs 1500 hrs 3000 hrs

MIG & STICK

APPLICATIONS

Yes Yes Yes Yes Yes

ADJUSTABLE

SENSITIVITY

No No Yes Yes Yes

TIG APPLICATIONS No Yes* Yes Yes Yes

EXHALATION VENTING No Yes Yes Yes Yes

No, only available SH-04-0000-10 SH-04-0000-10X 04-0000-31 04-0000-21

FILTER ONLY with Helmet 9000 SH-04-0000-11 SH-04-0000-11X

SH-04-0000-12 SH-04-0000-12X

HELMET 9000 SH-04-0014-10U SH-04-0012-10 SH-04-0012-10X

WITH FILTER SH-04-0014-11U SH-04-0012-11 SH-04-0012-11X 04-0012-31 04-0012-21

SH-04-0012-12 SH-04-0012-12X

HELMET 9000 SH 10: 04-0012-10SW SH 10: 04-0012-10XSW

WITH FILTER AND No SH 11: 04-0012-11SW SH 11: 04-0012-11XSW 04-0012-31SW 04-0012-21SW

SIDEWINDOWS SH 12: 04-0012-12SW SH 12: 04-0012-12XSW

FLEXVIEW HELMET SH 10: 04-0016-10 SH 10: 04-0016-10X

WITH FILTER No SH 11: 04-0016-11 SH 11: 04-0016-11X 04-0016-31 04-0016-21

SH 12: 04-0016-12 SH 12: 04-0016-12X

FLEXVIEW HELMET SH 10: 04-0016-10SW SH 10: 04-0016-10XSW

WITH FILTER AND No SH 11: 04-0016-11SW SH 11: 04-0016-11XSW 04-0016-31SW 04-0016-21SW

SIDEWINDOWS SH 12: 04-0016-12SW SH 12: 04-0016-12XSW

SH 10: 04-0015-10 SH 10: 04-0015-10X

PROTOP WITH FILTER No SH 10: 04-0015-11 SH 10: 04-0015-11X 04-0015-31 04-0015-21

SH 10: 04-0015-12 SH 10: 04-0015-12X

PROTOP WITH SH 10: 04-0015-10SW SH 10: 04-0015-10XSW

FILTER AND No SH 10: 04-0015-11SW SH 10: 04-0015-11XSW 04-0015-31SW 04-0015-21SW

SIDEWINDOWS SH 10: 04-0015-12SW SH 10: 04-0015-12XSW

Utility 9000F 9000XF 9002V 9002X

Speedglas™Products

*Will function in TIG applications of over 50 Amps.

FILTER TYPE Fixed Fixed Variable Variable

10 10

SHADE 11 11 9-13 9-13

12 12

VIEWING AREA 3.58" x 1.68" 4.09" x 2.12" 3.58" x 1.68" 4.09" x 2.12"

SOLAR ASSIST No No No Yes

WELDING FILTER

BATTERY LIFE

2000 hrs 1750 hrs 1500 hrs 3000 hrs

ADFLO BATTERY LIFE up to 10 hrs/ charge up to 10 hrs/ charge up to 10 hrs/ charge up to 10 hrs/ charge

MIG & STICK APPLICATIONS Yes Yes Yes Yes

ADJUSTABLE SENSITIVITY No Yes Yes Yes

TIG APPLICATIONS Yes** Yes Yes Yes

HELMET 9000 HWR SH 10: 15-1101-10 SH 10: 15-1101-10X

WITH FILTER SH 11: 15-1101-11 SH 11: 15-1101-11X 15-1101-31 15-1101-21

SH 12: 15-1101-12 SH 12: 15-1101-12X

HELMET 9000 HWR SH 10: 15-1101-10SW SH 10: 15-1101-10XSW

WITH FILTER SH 11: 15-1101-11SW SH 11: 15-1101-11XSW 15-1101-31SW 15-1101-21SW

AND SIDEWINDOWS SH 12: 15-1101-12SW SH 12: 15-1101-12XSW

FLEXVIEW SH 10: 16-1101-10 SH 10: 16-1101-10X

HELMET 9000 HWR SH 11: 16-1101-11 SH 11: 16-1101-11X 16-1101-31 16-1101-21

WITH FILTER SH 12: 16-1101-12 SH 12: 16-1101-12X

FLEXVIEW HELMET SH 10: 16-1101-10SW SH 10: 16-1101-10XSW

9000 HWR WITH FILTER SH 11: 16-1101-11SW SH 11: 16-1101-11XSW 16-1101-31SW 16-1101-21SW

AND SIDEWINDOWS SH 12: 16-1101-12SW SH 12: 16-1101-12XSW

HE with 9000F ADF* HE with 9000XF ADF HE with 9002V ADF HE with 9002X ADF

3M™SPEEDGLAS™ WITH ADFLO

Speedglas™with Adflo

™

Product

Helmet 9000 HWR with Adflo HE cartridge (no filter) 15-1101-00

WHAT’S NEW

3M reserves the right to make changes in specifications at any time
without prior notice. Speedglas, and Adflo are trademarks of 3M. All
other trademarks are property of their respective owners. Speedglas
products are protected by U.S. Patents 4,039,254; 4,240,709;
Re. 29,684; 5,191,468; also protected by international patents.

Velcro is a registered trademark of DuPont.

Nycoil is a trademark of Nycoil Co.

For More Information

In U.S.

Technical Assistance 1-800-243-4630
Customer Care Center 1-800-328-1667

In Canada

Technical Assistance 1-800-267-4414
Customer Care Center 1-800-364-3577

Internet www.Speedglas.com www.3M.com/Occsafety

General Offices

3M Center
St. Paul, MN 55144-1000

3M Canada Company
OH&ES

P.O. Box 5757
London, Ontario N6A 4T1
Canada

Printed in Canada © 3M 2005 70-0710-9390-3 Rev. N
