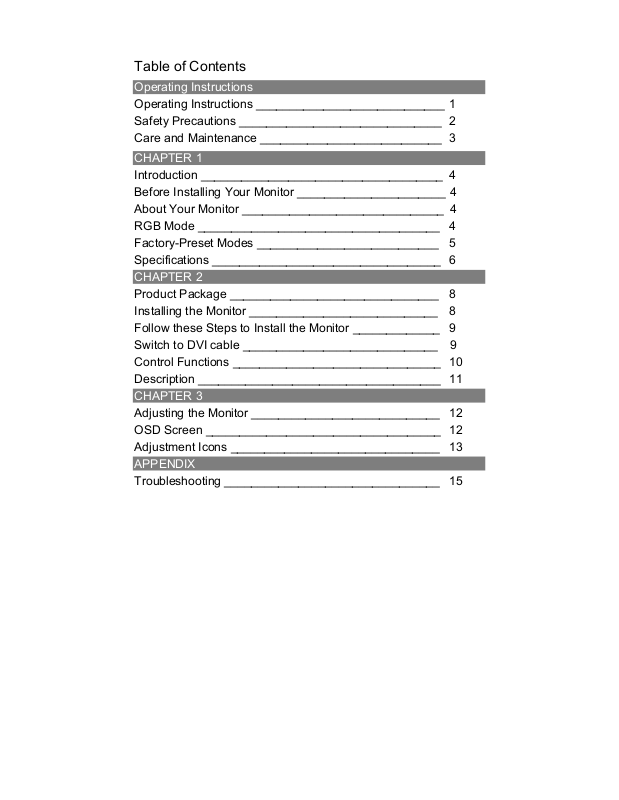

Table of Contents
Operating Instructions
Operating Instructions ____________________________ 1
Safety Precautions ______________________________ 2
Care and Maintenance ___________________________ 3
CHAPTER 1
Introduction ____________________________________ 4
Before Installing Your Monitor ______________________ 4
About Your Monitor ______________________________ 4
RGB Mode ____________________________________ 4
Factory-Preset Modes ___________________________ 5
Specifications __________________________________ 6
CHAPTER 2
Product Package _______________________________ 8
Installing the Monitor ____________________________ 8
Follow these Steps to Install the Monitor _____________ 9
Switch to DVI cable _____________________________ 9
Control Functions _______________________________ 10
Description ____________________________________ 11
CHAPTER 3
Adjusting the Monitor ____________________________ 12
OSD Screen ___________________________________ 12
Adjustment Icons _______________________________ 13
APPENDIX
Troubleshooting ________________________________ 15
Operating Instructions
Thank you for purchasing this high-resolution multi-scan color monitor.
Please read this guide thoroughly before installation.
FCC RADIO FREQUENCY INTERFERENCE STATEMENT
WARNING: (FOR FCC CERTIFIED MODELS)
This monitor has been tested and found compliant with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide proper protection against harmful
interference to a residential installation. This monitor generates, uses,
and can radiate radio frequency energy. Harmful interference to radio
communication may result if it is not properly installed and used.
However, there is no guarantee that interference will not occur in a
particular installation. If this monitor does cause serious interference to
radio or television reception, resetting the monitor may resolve the
problem. Moreover, users are encouraged to correct interference by
doing one or more of the following:
Reposition or relocate the receiving antenna.
Move the monitor and the receiver further away from each other.
Connect the monitor into an outlet on a circuit different from that
to which the receiver is connected.
Consult your local dealer or a qualified technician.
FCC Warning:
To assure a continued FCC compliance, a user must use a grounded
power supply cord and the provided shielded video interface cable with
bonded ferrite cores. Also, any unauthorized changes or modifications
to this monitor will void the user’s authority to operate this device.
Note: If necessary, shielded interface cables and the A.C. power cord
must be used to meet the emission level limits.
EMI Certification
The Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulation. Cet appareil numerique
de class B respecte toutes les exigences du Reglement sur Ic materiel
brouilleur du Canada.
Safety Precautions
1
This monitor is manufactured and tested on the principle that the
user’s safety comes first. However, improper use or installation may
not only damage the monitor but endanger the user as well. As a
safety precaution, go over the following WARNINGS carefully before
installation, and keep this guide handy.
Warnings:
This monitor should be operated only at the correct power
sources indicated on the label at the rear end of the monitor. If
you are unsure of the power supply in your residence, consult
your local dealer or Electricity Supplier.
Do not try to repair the monitor yourself, as it contains no
user-serviceable parts. The monitor should only be repaired by a
qualified technician.
Do not remove the monitor cabinet. There are high-voltage parts
inside that may cause an electric shock even when the power
cord is disconnected.
Stop using the monitor if the cabinet is damaged. Have it checked
by a service technician.
Put your monitor only in a clean, dry environment. Unplug the
monitor immediately if it gets wet, and consult your service
technician.
Always unplug the monitor before cleaning it. Clean the cabinet
with a clean, dry cloth. Apply non-ammonia-based cleaner onto
the cloth, not directly onto the glass screen.
Keep the monitor away from magnetic objects, motors, TV sets,
and transformers.
Do not place heavy objects on the cable or power cord.
For PLUG CABLE EQUIPMENT, the socket outlet should be
installed near the equipment and should be easily accessible.
2
Care and Maintenance
Care
Avoid exposing your monitor directly to sunlight or other heat
sources. Place your monitor away from the sun to reduce glare.
Put your monitor in a well-ventilated area. Do not place anything
heavy on top of your monitor.
Make certain that your monitor is installed in a clean and
moisture-free area.
Keep your monitor away from magnets, motors, transformers,
speakers, and TV sets.
Safety Tips
If smoke, an abnormal noise or an odor comes out of your
monitor, switch off the power immediately and call our service
center.
Never remove the rear cover of your monitor cabinet. The display
unit inside contains high-voltage parts and may cause an electric
shock.
Never try to repair the monitor yourself. Always call your service
center or a qualified technician to fix it.
Note: This user’s manual contains graphics and information that is for
reference purposes only and is subject to change without notice.
3
CHAPTER 1
INTRODUCTION
BEFORE INSTALLING YOUR MONITOR
Read this manual cover to cover.
PAY ATTENTION to all WARNING and CAUTIONS
DO NOT use computer components not recommend by the
manufacture.
Do not attempt to service the monitor your self. If a problem
occurs, contact the manufacture's authorized service center.
ABOUT YOUR MONITOR
This monitor is a microprocessor-controlled, color monitor that
uses a TFT LCD panel. The monitor conforms to EPA Energy Star
and VESA DPMS (Display Power Management Signaling) power
management standards. Our monitors also provide one option to
accept the video input (like NTSC or PAL signal), you can switch
these input signal through OSD and the video OSD setting please
refer to the Chapter 3.
RGB AND DVI MODE
This monitor is equipped with a microprocessor that identifies your
computer's video mode and allows user to adjust the settings.
I can support the traditional analogue signal or the new DVI-D
signal.
4
FACTORY-PRESET MODES
Table 1 shows standard video mode setting that have been
pre-adjusted at the factory for accurate video display. These
setting are stored in the monitor's memory
Table 1. Factory-Preset Modes
Mode Resolution H-Freq.(KHz) V-Freq(Hz)
NEC 640x400 24.83 56.4
VGA 640x350
720x400
640x480
640x480
640x480
SVGA 800x600
800x600
800x600
800x600
XGA
SXGA 1280x1024
Macintosh 640x480
1024x768
1024x768
1024x768
1280x1024
832x624
1024x768
1024x768
31.47
31.47
31.47
37.86
37.5
35.16
37.88
48.08
46.87
48.36
56.47
60
63.98
80
35
49.7
48.78
60.241
70
70
60
72
75
56.3
60.3
72.2
75
60
70
75
60
75
66.7
74.55
60
74.927
5
SPECIFICATIONS
19” LCD Monitor
Overall Dimension (HxWxD): 426 x 444 x 215 mm
Shipping Weight
Gross/Net Weight: 13Kg/14Kg
Effective Display area (H/V): 376.32 x 301.56 mm
Display colors: 16.7M colors
Scan Frequencies:
Horizontal 31.47K to 80KHz
Vertical 60Hz to 75Hz
Number of Pixels: 1280x1024 pixels
Pixel pitch: 0.294x0.294 mm
Picture Tube: 19" TFT LCD panel
Power:
Input 110-240VAC
Frequency: 48-62Hz
Consumption 45Watts maximum
3 Watts
Video Connector: 15pin Mini D-sub (Standard)
Audio connector (optional) 1 x stereo input
Speaker (optional) 2Watts x 2
RGB Signals:
Video Analog RGB 0.7Vp-p/75Ω
Sync Separate
DVI Signal TMDS
Display Data Channel:
Compatibility VESA DDC 1/2B
(auto-sensing)
(on)
(Power saving off mode)
6
Operations:
User Controls On/Off Power Button
Sel and adjust button
Auto-adjustment
On Screen Display Contrast, Brightness
Adjustment H-position, V-position
Color temperature
Multi-language
Auto Adjustment
Volume, Mute
Control Type: Digital
Compatibility: IBM and compatible, Apple
Macintosh, NEC
Environmental Limits:
Operating Temp 32° to 113°F ( 0° to 45°C )
Storage Temp. -4° to 140°F ( -20° to 60°C )
Operating Humidity 10 to 85% without condensation
Storage Humidity 10 to 95% without condensation
Agency Approval
EMI FCC-B and CE
Emissions MPR-II
Energy Saving EPA energy star, VESA DPMS
Safety UL, TUV, TCO 99’
7
CHAPTER 2
PRODUCT PACKAGE
Open the shipping carton and check the contents. If any
items are missing or damaged, contact your dealer
immediately.
The package should include the following items
Analog Color TFT LCD Monitor
Accessory Box:
1. DVI-A to PC RGB cable x 1
2. AC to DC adapter x 1
3. Audio cable
4. Power Cord x 1
5. User’s manual x 1
INSTALLING THE MONITOR
The monitor is equipped with an auto sensing power supply
for voltage ranges from 110~240VAC, 60/50Hz. Confirm the
line voltage designation on the rear panel of the monitor.
8
FOLLOW THESE STEPS TO INSTALL THE
MONITOR
This monitor equipped with DVI-D to PC DVI cable and power
adapter, you only need to plug the power cord and DVI-D
connector to your display card in PC.
the cable connector, otherwise the screen will be abnormal
and LED light is yellow color, not the normal green color.
Tighten the two screws on
Switch to DVI cable.
Please follow the following step to remove the DVI-D to PC DVI
cable to DVI-A to PC RGB cable.
9
ONTROL FUNCTIONS
C
The Monitor control functions are located on the lower center of
the front view side. They are shown in the figure below and
described in the following paragraphs.
The control key description
1. : Power Switch
2. - / + : Decrement/Increment or Volume control
3. Sel : Cursor Down
4. MENU : Activate the on screen display function
5. Auto : Auto adjustment
10
Descriptions
1. : Power switch
Use the power switch to turn ON or OFF power. We
recommend turning your system power on first, then the
LCD monitor
2. - & + : decrement & increment/ Volume Control keys
The two keys have two functions, controlled by the MENU
key. When activating OSD screen, the two keys are
defined to decrement or increment the values of each
selected items. When de-activating OSD screen, these
two keys are used to change the speaker volume value.
3. Sel : Select key
This key is used to select the wanted adjustment items.
4. Menu
Press the Menu key to activate the on screen display
screen. It is a toggle key. Press twice to turn off the on
screen display screen. After 30 sec idle time, the OSD
screen will automatically turn off.
5. Auto adjustment
Pressing this key to get the better visual performance.
11
CHAPTER 3
ADJUSTING THE MONITOR
The LCD monitor is designed to work with a range of
compatible video adapters on the market. Due to the possible
deviations between these video adapters, you may make
some adjustment to fit the monitor for adapter used.
ADJUSTMENT PROCEDURE
1. First, you must activate the OSD screen through pressing
the MENU key, the screen will show in the center of screen
as below: It will tell you the current resolution and our
firmware version number
OSD MAIN SCREEN
2. Use the ∇ & ∆ key to move to the desired item, then press
Sel to select the highlight the desired change item.
3. Use the ∇ & ∆ key to select the item, and then press Sel
to the desired item.
4. Use the + & - to change the value.
12
5. Use the menu key to exit OSD screen
AUTO-ADJUSTMENT
WE STRONGLY RECOMMEND THAT YOU USE THIS
ITEM TO GET THE OPTIMIZED VISUAL QUALITY.
Brightness and Contrast Adjustment
: Adjust the Brightness value
: Adjust the Contrast value
: Return the main menu screen
Volume adjustment
: adjust the speaker volume
: Mute the speaker
: Return to the main menu screen
Color temperature adjustment
: Enable the sRGB or disable the sRGB
: Let user change the RGB color value
: Set the color temperature to 6500K
13
: Set the color temperature to 9300K
: Return to the main menu screen
Adjust the screen size and screen quality
: Auto-adjust to the optimized display quality
: Change the screen viewing size
: Adjust phase tracking to reduce the display flicker
: Move the whole screen right or left
: Move the whole screen up or down
: Return to the main screen
: OSD setting
: Load the factory default setting
: Set OSD off timer
: Move horizontally the OSD location
: Move vertically the OSD location
: Return to the main menu
14
Appendix
Troubleshooting Procedures
This LCD Monitor was pre-adjusted in the factory with standard
VGA timing. Due to output timing differences among various
VGA cards, you may initially experience an unstable or unclear
display when a new display mode or new VGA card is selected.
This LCD Monitor Supports Multiple VGA Modes. Refer to timing table
for a listing of the factory-preset modes supported by this LCD Monitor.
PROBLEM: There is no LCD Display
If there is no display on the LCD, please perform the following
steps:
1. Make sure that the power indicator on the LCD
Monitor is lit, all connections are secure, and the
system is running on the correct timing. Refer to
the Addendum for information on timing.
2. Turn off the LCD Monitor and then turn it back on
again. Press the upper Function Control button
(refer to Chapter 2) once and then press either the
upper or lower Adjustment Control button several
times. If there is still no display, press the other
Adjustment Control button several times.
3. If step 2 doesn’t work, connect your PC system to
another external CRT. If your PC System functions
properly with a CRT Monitor but it does not function
with the LCD Monitor, and the LCD Monitor’s power
LED is blinking, the output timing of the PC’s VGA
card may be out of the LCD’s synchronous range.
Please change to an alternate mode listed in
Addendum or replace the VGA card and repeat
steps 1 and 2.
4. If the PC doesn’t function with the CRT monitor
neither, check BIOS to see if there is a dual scan
setting under the display mode item. Set the BIOS
15
display mode to Dual Scan or CRT and try again. If
there is still no display, then there may be a problem
with your system. Contact technical support.
5. If the power LED is not lit, check to see if the AC
power connector is securely connected. Verify that
the AC adapter LED is lit. If the AC adapter LED is
not lit, please contact your dealer for assistance
16
Loading...
