Introduction
Congratulations on your purchase of the
wireless RF Keyboard & Mouse, which
combines an innovative ergonomic design
with all the features and convenience of
wireless technology:
The wireless RF Keyboard has advanced
multimedia features that enable you to
play audio CDs, VCDS,DVDs, and MPEG
files. You can use the keyboard hot keys
to raise, lower and mute audio.
Backspa
ce
Other hot keys let you open your
default Web browser and refresh
Web pages, browse forward and
backwards,open a search page,
Wireless RF Keyboard
Wireless RF Mouse
and send e-mail, the Windows
calculator and entering power savings mode.There are also extra 2 hotkeys Word &
Excel for your easily operating.
The bundled software further enhances your keyboard by supplying an onscreen
display(OSD) and onscreen menus to control audio and Web functions.
RF Receiver
The Wireless RF Mouse has a scroll wheel/middle button that can be assigned
various functions such as Web page or word processing software scrolling,or
launching applications such as Windows Explorer.
Package Contents
After you have unpacked the Wireless RF Keyboard & Mouse, check the contents to
make sure the following items are included.
One Wireless RF Mouse
One Wireless RF Keyboard
One RF Receiver
2xAA for Keyboard and 2xAAA for Mouse
One CD driver combined with this quick guide together
1
If any of the above items are missing or appear damaged, contact your dealer
immediately. Do not throw the shipping carton away in case you need to ship
your Wireless RF Keyboard & Mouse.
System Requirements
To use the mouse software and the hot keys on your multimedia keyboard, you need
the following:
Windows XP/ME/2000/98/NT 4.0 or later
PS/2 mouse and keyboard ports
Sound Blaster compatible sound card (for CD/VCD/DVD, and MPEG operation)
CD-ROM drive (for software installation and CD/VCD operation)
DVD-ROM drive (for DVD operation)
Features
Wireless radio frequency (RF) technology
Scroll wheel mouse enables scrolling in Web pages and text editors
Onscreen display (OSD) provides status information
Keyboard multimedia and web hot keys provide convenient access to often
used commands
Compatible with Windows XP/ME/2000/98/NT4.0
Keyboard and Mouse Components
Wireless RF Keyboard
The following illustration shows the wireless RF Keyboard and hot keys:
Backspace
2
Butt on Funct ion
Searc h :open s a searc h
wind ow in Nets cape or
Win dows IE
My Favo rite: open s the IE
favo rites fold er ,or th e Netscap e bookm arks folde r
Back: goes to the previ ous
page in your We b bro wser
Forw ard: goes to the ne xt
page in your Web browser
XXX
Sto p: stops loadin g a Web
page
Refr esh: relo ads th e Web
page
Volume Down: decrease s
audio volume
Play/ Pause :plays or
===
pause s a CD/D VD/VC D
Volume UP: incr eases
audio volum e
Previ ous Track: se arches
back ward throu gh tra cks
on a CD/D VD/VCD
Butt on Functio n
Stop : stop s playi ng a
CD/D VD/VCD
Next Track: searches
forw ard throu gh tra cks
on a CD/DVD/VCD
Mute : turn s off the audio
outp ut
E-ma il:launches the default
e-ma il applic ation
Worl d Wide Web: opens
your de fault Web brow ser
Calc ulator: opens the
calc ulator win dow
Powe r off : turn s off the
comp uter
Susp end: enters the compute r into power saving
mode
Word : Opens the word
wind ow
Exce l: Opens the Excel
win dow
Wireless RF Mouse
The following illustration shows the RF mouse components:
Left button
Scroll wheel/middle button
Right button
3
RF Receiver
The following illustration shows the RF receiver components:
keyboard
PS/2
connector(purple)
Mouse/keyboard
connect button
PS/2 mouse
connector (green)
Flash during
data transmission
Inserting Batteries
Refer to the following instructions and illustrations for inserting the batteries:
Mouse
1.Turn the mouse over.
2. Open the battery compartment. Press
the edge(A) with your thumb and pull
up (B).
3.Insert two AAA batteries into the
compartment. Ensure that you orient
the batteries according to the polarity
markings inside the battery
compartment.
4.Replace the battery compartment
cover. Insert the tab into the slot
(A) and flip the cover into place (B).
ck
lo
Un
B
A
A
2
AX
AA
+
-
-
+
+
-
-
B
4
Keyboard
1.Turn the keyboard over.
2.Open the battery compartment. Slide
the cover in the direction of the arrows.
3.Insert two AA batteries into the
compartment. Ensure that you orient
the batteries according to the
polarity markings inside the battery
Compartment.
4.Replace the battery compartment
cover.
+
-
-
+
+
-
Setting up Your Keyboard and Mouse
-
+
Connect R F keyboard and mouse to the keyboard and mouse PS/2 ports on
your computer.
Refer to the following instructions and illustrations to connect the keyboard and
mouse to your PC:
1.Turn off your computer.
2.Plug the purple PS/2 connector on
the RF receiver cable into the PS/2
keyboard port on your computer.
3.Plug the green PS/2 connector on
the RF receiver cable into the PS/2
mouse port on your computer.
5
4.Place the RF receiver in a good
location.
5.Place the keyboard and the mouse
in the proper location for your
computer.
6.Turn on the computer.
Place the receiver at least
8 inches (20 cm) from
electrical devices such
as the computer or monitor.
8 in (20 cm)
Backspace
7.Press the Receiver connect button,
then press the Mouse connect switch.
Mouse ID will link with Receiver ID.
Repeat by pressing the Receiver
connect button, then press the
Keyboard Connect switch, keyboard
ID will link with Receiver ID
A
B
Ensure that the mouse and keyboard are working. If they do not respond, pls.move the
mouse or press keystrokes. If not working yet, pls. keep intermission for 30 seconds
or more, then repeat Step 7 to ensure a connection has been made. For any further
solution, pls. refer to the Troubleshooting section at the end of this guide.
C
6
Installing the Software
The RF mouse and multimedia keyboard come with software to enhance their functions.
The software is located on the bundled CD.
Insert the software CD into the CD-ROM drive. The auto-installation screen appears.
A menu provides you with the option of installing the mouse and keyboard.
Follow these instructions to install the keyboard and mouse sofware:
1.Press "Install Mouse Driver"
2.From the software CD installation
menu, choose the installation
language the click Next.
3. Click Next.
7

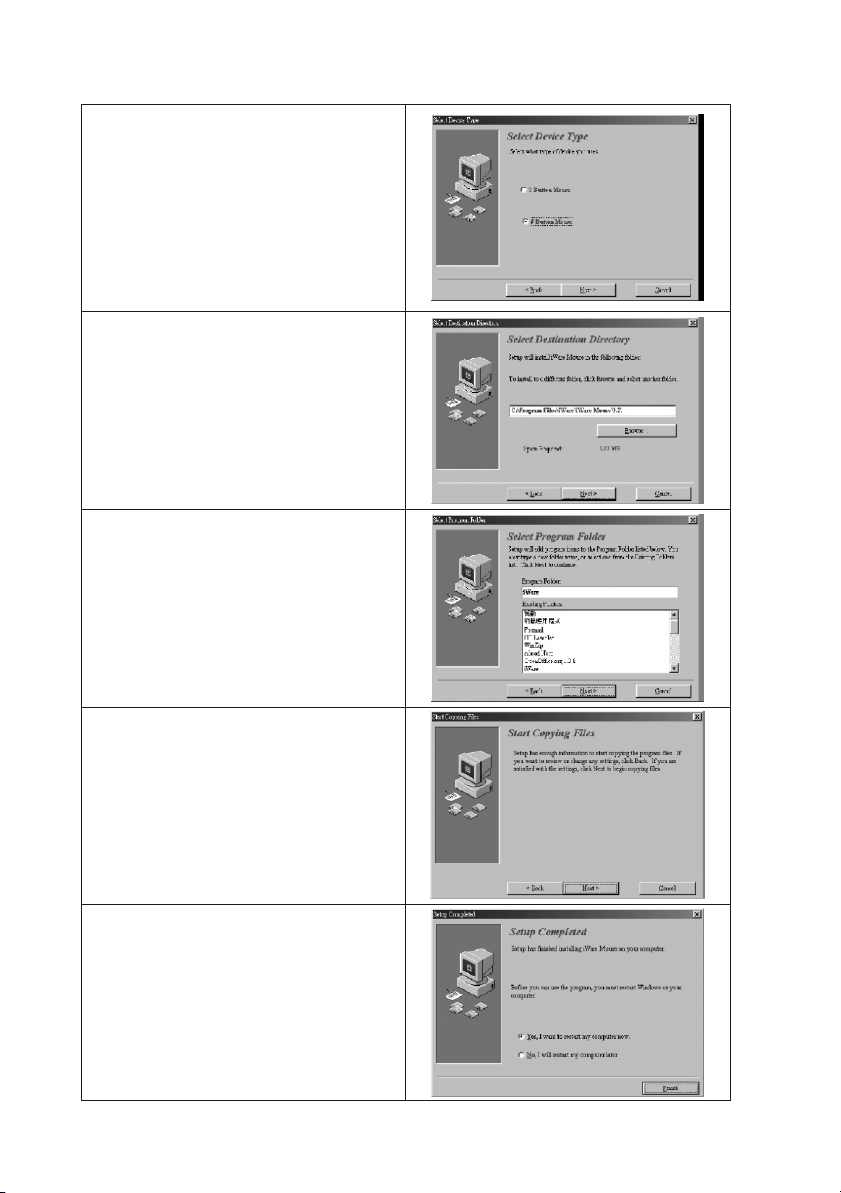

4.Select "3 Button Mouse,"
and click Next.
5.Click Next to accept the default
directory or browse to the desired
Directory
6.Click Next TO ACCEPT
THE DEFAULT FOLDER OR TYPE
A new folder name.
7.Click Next to start copying files to
your computer.
8.Click Finish to complete the
installation.
8
Keyboard
1.Press "Install Keyboard Driver"
2.From the software CD installation
menu, choose the installation
Language.
2.Agree with installation press Next.
3.Click Finish and reset computer .
9
Wireless RF keyboard & Mouse not detected
If the keyboard and mouse don't respond to activity, follow these steps:
1.Ensure that the receiver cable is properly connected to the PS/2 mouse and
keyboard ports(refer to setting up your Keyboard and Mouse on page 5),
ensure that the purple connector is connected to the keyboard port, and the
green connector is connected to the mouse port.
2.Ensure that the batteries have been installed correctly (refer to Inserting
Batteries page 4).
3.Ensure that there are no IRQ or I/O address conflicts. Refer to your operating
system user's manual for information on resolving IRQ and I/O address
conflicts.
4.Ensure that you have established a connection between the therefore receiver and
the keyboard/mouse (refer to Setting up Your Keyboard and Mouse on page 5)
.
Wireless RF Keyboard & Mouse don't work after changing batteries
If the keyboard and mouse don't respond to activity after replacing the batteries,
follow the sesteps:
1.Ensure that the batteries have been installed correctly (refer to Inserting
batteries page 4).
2.Ensure that the batteries are not discharged.
3.Ensure that you have established a connection between the R F receiver and
the keyboard/mouse(refer to Setting up Your Keyboard and Mouse on page 5).
Cursor doesn't move properly on the screen
If the cursor doesn't move or the motion is erratic, follow these steps:
1.Ensure that you have established a connection between the R F receiver and
the keyboard/mouse (refer to Setting up Your Keyboard and Mouse on page 5).
2.Change the position of the R F receiver. There should be a distance of at least8
inches (20cm) between the receiver and any electrical appliance (such as
speakers, monitor, or computer).
3.Ensure that the mouse batteries are not discharged. If they are discharged, pls.
replace them (refer to Inserting Betteries page 4).
10
After pressing the sleep button, the computer doesn't wake up
After pressing the sleep button to place the computer into suspend mode,the
computer doesn't wake up after pressing another key (other than the sleep button).
There may be a problem with power management. Some systems are unable to wake
up after being placed into suspend mode.
Follow these steps to fix this problem:
1.Refer to your computer hardware documentation regarding power-manage
ment operation.
2.Ensure that the power-management settings for your operating system are
correct, as described in Windows Help.
A Word about Ergonomics
Ergonomics is the study of how people with their different physical characteristics and
ways of function relate to their working environment (the furnishings and machines
they use).The goal of Ergonomics is to incorporate comfort, efficiency, and safety into
the design of keyboards, computer desks, chairs, and other items in an effort to prevent
physical discomfort and health problems in the working environment.
If your budget permits,buy ergonomically designed furniture such as chairs,shelves,
and desks that fit your physical characteristics and work methods.
You can create an ergonomically improved workstation without spending much money.
Following are a few tips to help you work effectively without a lot of physical discomfort:
Keep your forearms, wrists, and hands in a relaxed position, with your elbows at
your side.
Position the keyboard and mouse so that you do not have to reach for them.
Don't strike the keys too hard; type with a soft touch.
Keep your thighs parallel to the floor and your feet flat on the floor or on a
footrest.
Use a chair that provides good back support.
Try to place the monitor so that there is a little glare from the sun on the monitor.
Walk around the room every hour.
Every half-hour look away from the computer screen for a few minutes.
Vary your tasks throughout the day.
Avoid resting your wrists on sharp edges.
11
