3Gen FFH2 User Manual

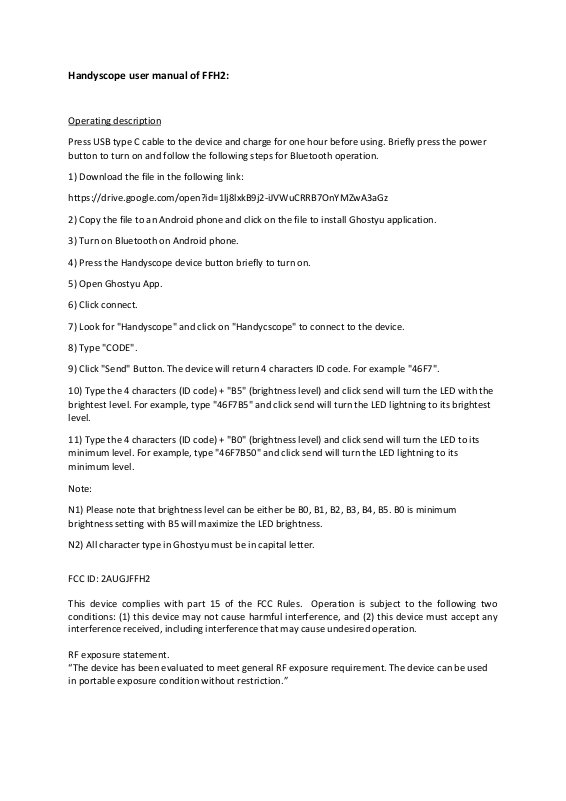

Handyscope user manual of FFH2:

Operating description

Press USB type C cable to the device and charge for one hour before using. Briefly press the power
button to turn on and follow the following steps for Bluetooth operation.

1) Download the file in the following link:

https://drive.google.com/open?id=1lj8lxkB9j2-iJVWuCRRB7OnYMZwA3aGz

2) Copy the file to an Android phone and click on the file to install Ghostyu application.

3) Turn on Bluetooth on Android phone.

4) Press the Handyscope device button briefly to turn on.

5) Open Ghostyu App.

6) Click connect.

7) Look for "Handyscope" and click on "Handycscope" to connect to the device.

8) Type "CODE".

9) Click "Send" Button. The device will return 4 characters ID code. For example "46F7".

10) Type the 4 characters (ID code) + "B5" (brightness level) and click send will turn the LED with the
brightest level. For example, type "46F7B5" and click send will turn the LED lightning to its brightest
level.

11) Type the 4 characters (ID code) + "B0" (brightness level) and click send will turn the LED to its
minimum level. For example, type "46F7B50" and click send will turn the LED lightning to its
minimum level.

Note:

N1) Please note that brightness level can be either be B0, B1, B2, B3, B4, B5. B0 is minimum
brightness setting with B5 will maximize the LED brightness.

N2) All character type in Ghostyu must be in capital letter.

FCC ID: 2AUGJFFH2

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

RF exposure statement.
“The device has been evaluated to meet general RF exposure requirement. The device can be used
in portable exposure condition without restriction.”

NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.
