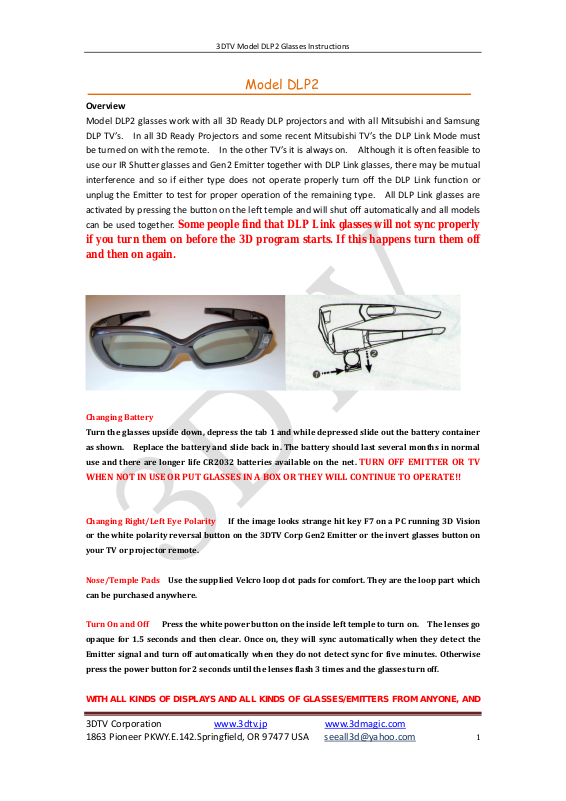

3DTV Model DLP2 Glasses Instructions

Model DLP2

Overview

Model DLP2 glasses work with all 3D Ready DLP projectors and with all Mitsubishi and Samsung

DLP TV’s. In all 3D Ready Projectors and some recent Mitsubishi TV’s the DLP Link Mode must

be turned on with the remote. In the other TV’s it is always on. Although it is often feasible to

use our IR Shutter glasses and Gen2 Emitter together with DLP Link glasses, there may be mutual

interference and so if either type does not operate properly turn off the DLP Link function or

unplug the Emitter to test for proper operation of the remaining type. All DLP Link glasses are

activated by pressing the button on the left temple and will shut off automatically and all models

can be used together. Some people find that DLP Link glasses will not sync properly

if you turn them on before the 3D program starts. If this happens turn them off and then on again.

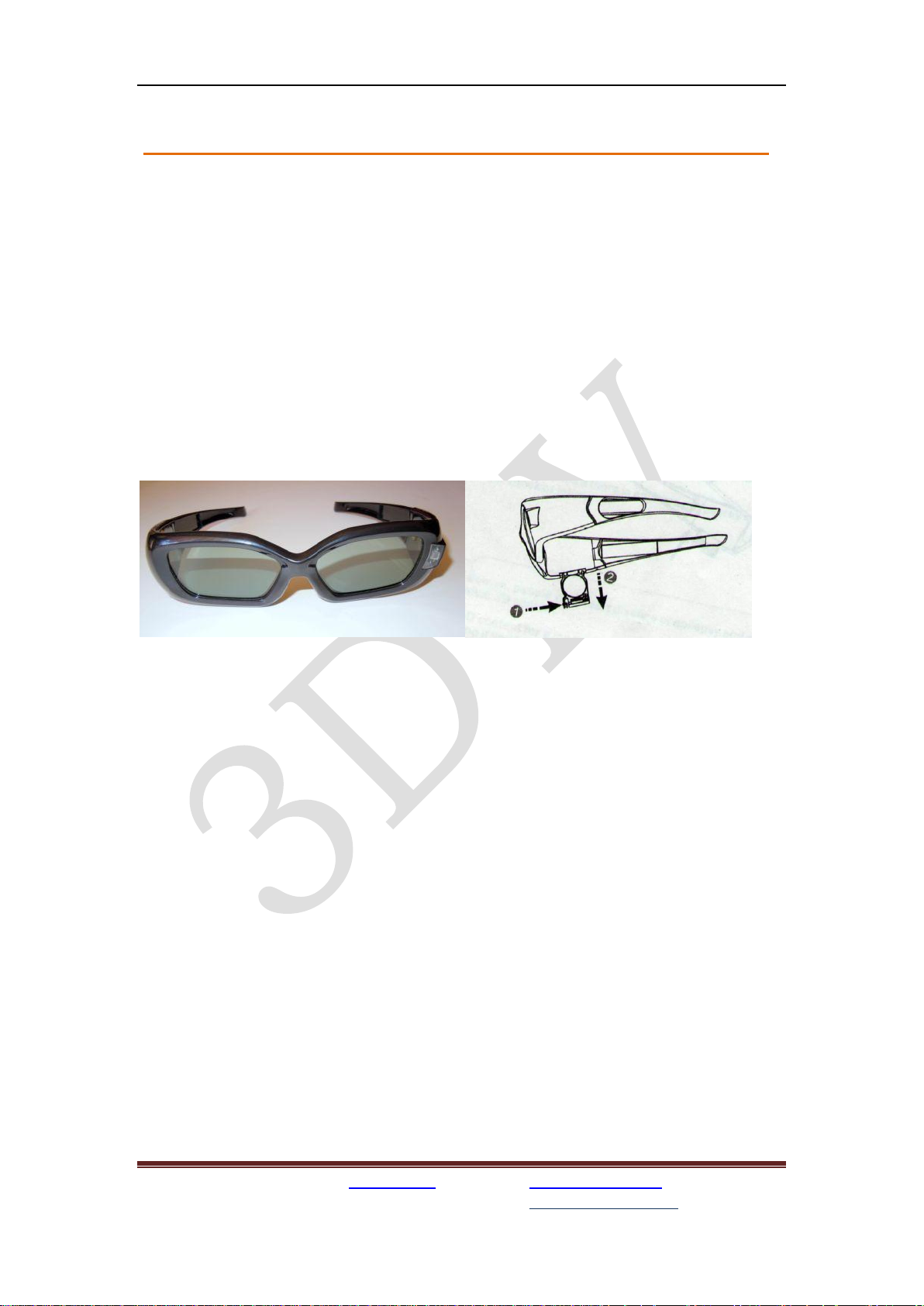

Changing Battery

Turn the glasses upside down, depress the tab 1 and while depressed slide out the battery container

as shown. Replace the battery and slide back in. The battery should last several months in normal

use and there are longer life CR2032 batteries available on the net. TURN OFF EMITTER OR TV

WHEN NOT IN USE OR PUT GLASSES IN A BOX OR THEY WILL CONTINUE TO OPERATE!!

Changing Right/Left Eye Polarity If the image looks strange hit key F7 on a PC running 3D Vision

or the white polarity reversal button on the 3DTV Corp Gen2 Emitter or the invert glasses button on

your TV or projector remote.

Nose/Temple Pads Use the supplied Velcro loop dot pads for comfort. They are the loop part which

can be purchased anywhere.

Turn On and Off Press the white power button on the inside left temple to turn on. The lenses go

opaque for 1.5 seconds and then clear. Once on, they will sync automatically when they detect the

Emitter signal and turn off automatically when they do not detect sync for five minutes. Otherwise

press the power button for 2 seconds until the lenses flash 3 times and the glasses turn off.

WITH ALL KINDS OF DISPLAYS AND ALL KINDS OF GLASSES/EMITTERS FROM ANYONE, AND

3DTV Corporation www.3dtv.jp www.3dmagic.com 1863 Pioneer PKWY.E.142.Springfield, OR 97477 USA [email protected] 1

Page 2

3DTV Model DLP2 Glasses Instructions

ESPECIALLY WITH PC SYSTEMS (E.G., NVIDIA 3D VISION OR 3D PLAY) YOU MAY GET PULSING, FLICKERING OR ERRATIC BEHAVIOR DUE TO INTERFERENCE BY LIGHTS, ESPECIALLY FLUORESCENTS, FANS, HEATERS AND IN ADDITION TO MINIMIZING THESE, YOU SHOULD ALSO TRY CHANGING THE FREQUENCY OF THE MONITOR AND TIMING FUNCTIONS, GAMMA, CONTRAST ETC OF THE VIDEO CARD. IF YOU LIVE IN A COUNTRY WITH 50HZ ELECTRICITY,

TRY CHANGING REFRESH TO 100HZ. WITH ANY SYSTEM TRY OTHER

FREQUENCIES IN THE RANGE OF 95 TO 130 IF YOU EXPERIENCE IMAGE QUALITY ISSUES. Of course with any glasses it's also feasible to

tape or glue a small piece of filter (e.g., colored paper or plastic) over the

glasses receiver to deal with fluorescent lights etc.

Troubleshooting and FAQs ---I don’t see any 3D effect. --Be sure the programming

you are watching is 3D. If the programming is 3D, you should see two overlapped

identical images without the glasses and one image through each eye when you

close the other eye. Make sure you are using glasses in the Emitter’s or working

range (ca. 10M x 10M for our Gen2 Emitter). If using the Gen2 Emitter, make

sure the Emitter Central LED is the orange steady (i.e., NOT blinking) as described

in the Instructions. Lights, heaters, IR wireless Headphones, Remote control

amplifiers such as the IR Blaster etc. may interfere with the glasses OR the Emitter

may interfere with your REMOTES for any such devices. I sometimes notice a

slight flicker---There may be some slight flicker when watching with bright lights

on, especially fluorescents. Eliminate this by turning them down or off. The 3D

images do not look correct.--You may need to reverse the right/left polarity with

the Gen2 button, the TV remote control, video game or PC software player or F7

key on your PC keyboard.

WARNING: Under normal operating conditions, the 3D shutter glasses systems are perfectly safe to use for any

duration you would normally view 3D images on your screen. However, some people may experience discomfort

that could signal problems with the hardware, software and /or physical problem with your visual system.

Discontinue use of the 3D glasses and consult a physician if you experience any of the following: headache,

eyestrain, blurry vision, double vision, involuntary movements, eye or muscle twitching, confusion, loss of

awareness of your surroundings, dizziness or disorientation. To minimize the potential for any of the above

symptoms to arise, adjust the ambient lights darker. If you are using a computer system, set the monitor refresh

rate to the highest possible setting. EPILEPSY WARNING: IF YOU OR ANY MEMBER OF YOUR FAMILY HAS A

HISTORY OF EPILEPSY, CONSULT A PHYSICIAN BEFORE USING THIS OR ANY OTHER 3D PRODUCTS.
