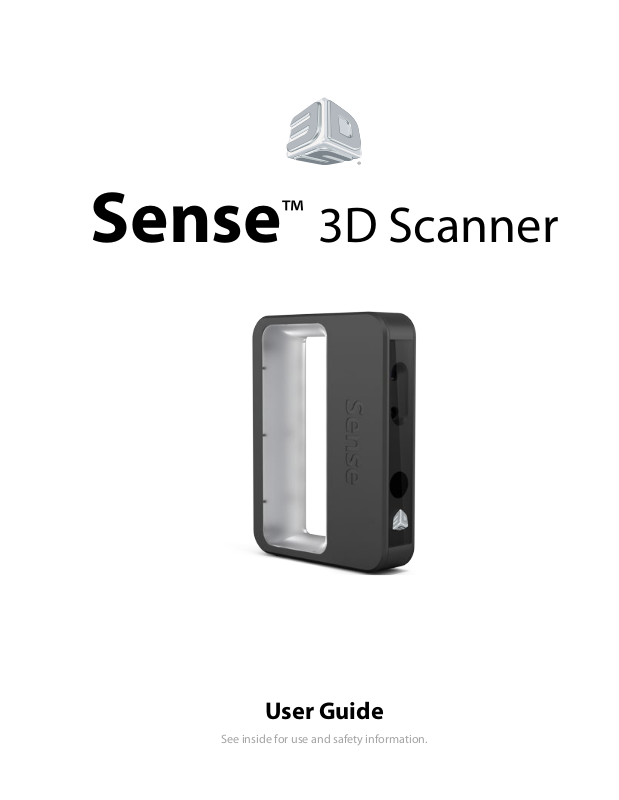

Sense 3D Scanner
User Guide
See inside for use and safety information.
1
CONTENTS
INTRODUCTION ..............................................................................3
IMPORTANT SAFETY INFORMATION
Safety Guidelines................................................................................4
SENSE 3D SCANNER FEATURES AND PROPERTIES................................................4
SPECIFICATIONS AND REQUIREMENTS FOR YOUR SENSE 3D SCANNER .............................5
Dimensions ....................................................................................5
Software.......................................................................................5
Minimum Hardware Requirements ..................................................................5
Windows Requirements........................................................................... 5
Data Interface ..................................................................................5
Electrical ......................................................................................5
Operating Environment ...........................................................................5
AT A GLANCE ................................................................................5
WHATS INCLUDED ............................................................................6
UNPACKING YOUR SCANNER ..................................................................6
LINK YOUR SENSE 3D SCANNER TO YOUR CUBIFY ACCOUNT ......................................6
DOWNLOAD YOUR SENSE SOFTWARE...........................................................7
ACTIVATE YOUR SENSE 3D SCANNER ...........................................................7
SCANNING YOUR FIRST PERSON OR OBJECT ....................................................8
Scan Tool Bar ..................................................................................8
Scan Settings...................................................................................9
Edit Tools .....................................................................................9
Crop Tool Bar .................................................................................9
Crop Tool ....................................................................................9
Erase / Solidify................................................................................9
Enhance Tools ...............................................................................10
Share Tool ..................................................................................10
Edit Settings................................................................................. 10
.......................................................4
2
1
INTRODUCTION
COPYRIGHT INFORMATION
© 2013 by 3D Systems, Inc. All rights reserved. This document is subject to change without notice. This document is copyrighted
and contains proprietary information that is the property of 3D Systems, Inc. Cubify, 3D Systems and the 3D Systems logo are
registered trademarks, and Sense is a trademark, of 3D Systems, Inc. Use of the Cubify.com website constitutes acceptance of
its Terms of Service and Privacy Policy.
FCC NOTICE
This equipment has been tested and found to comply with the limits for a class “A” digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at their expense.
COMPLIANCE
This equipment conforms with International Electric Committee (IEC) 60950-1 and (IEC) 60825-1 and meets the requirements of
the applicable EC directives.
WARRANTY
3D Systems warrants that the Sense 3D scanner will be free from defects in materials and workmanship, during the applicable
warranty period, when used under the normal conditions described in the documentation provided to you, including the respective
User Guide. 3D Systems will promptly repair or replace the Scanner, if required, to make it free of defects during the warranty
period. This warranty excludes repairs required during the warranty period because of abnormal use or conditions (such as
riots, oods, misuse, neglect or improper service by anyone except 3D Systems or its authorized service provider). The warranty
period for the Scanner is twelve (12) months and shall start the date Your Scanner is purchased. For consumers who are
covered by consumer protection laws or regulations in their country of purchase or, if different, their country of residence, the
benets conferred by our standard warranty are in addition to, and operate concurrently with, all rights and remedies conveyed by
such consumer protection laws and regulations, including but not limited to these additional rights.
THIS WARRANTY IS THE ONLY WARRANTY PROVIDED FOR THE SENSE 3D SCANNER. TO THE MAXIMUM EXTENT
PERMITTED BY LAW, 3D SYSTEMS EXPRESSLY DISCLAIMS ALL OTHER WARRANTIES FOR THE SENSE 3D SCANNER
AND EACH OF ITS COMPONENTS, WHETHER THOSE WARRANTIES ARE EXPRESS, IMPLIED OR STATUTORY,
INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR INTENDED OR PARTICULAR PURPOSES.
LIMITATION OF LIABILITY
3D SYSTEMS WILL NOT BE RESPONSIBLE FOR CONSEQUENTIAL, EXEMPLARY OR INCIDENTAL DAMAGES (SUCH AS
LOSS OF PROFIT OR EMPLOYEE’S TIME) REGARDLESS OF THE REASON. IN NO EVENT SHALL THE LIABILITY AND/OR
OBLIGATIONS OF 3D SYSTEMS ARISING OUT OF THE PURCHASE, LEASE, LICENSE AND/OR USE OF THE EQUIPMENT
BY YOU OR OTHERS EXCEED THE PURCHASE PRICE OF THE SENSE 3D SCANNER.
3
2 IMPORTANT SAFETY INFORMATION
CAUTION: Indicates something may happen that could cause loss of data, damage to equipment, or could
!
cause personal injury.
SAFETY GUIDELINES
• Follow all safety rules in this section and observe all cautions and warnings in this guide.
• To avoid damage to the laser projector, do not open the Sense 3D Scanner casing. Doing so will void your warranty.
• It is important that the scanner operates in the temperature ranges 5 °C and 40 °C for optimal use. Higher or lower temperatures may alter the scanner’s performance resulting in the scanner malfunctioning.
• The sensor is a class 1 laser product, certied by an external party to adhere to IEC 60825 safety requirements. The Sensor
is compliant with part 1 of the IEC 60825 publications - “Safety of laser products.”
CAUTION: Use of controls or adjustments or performance of procedures other than those specied herein
!
may result in hazardous radiation exposure.
3 SENSE 3D SCANNER FEATURES AND PROPERTIES
Sense 3D Scanner gives users the ability to observe a scene in three dimensions and then translates the observations into
multiple depth images. It then takes combines those depth frames into a 3D model made up of thousands of connected triangles,
called a mesh.
SENSE 3D SCANNER FEATURES
• Field of view 57.5 x 45
• VGA depth map (640 x 480)
• USB 2.0
• Color
• Standard off the shelf components
• OpenNI compliant
SENSE 3D SCANNER PROPERTIES
Scan Volume (Width x Height x Depth)
• Min: 0.2m x 0.2m x 0.2m; Max: 3m x 3m x 3m
Operating Range: Min: 0.35m; Max: 3m
Field of View
• Horizontal: 45
• Vertical: 57.5
• Diagonal: 69
Depth Image Size: 240(w) x 320(h) pixels
Spatial x/y Resolution @ 0.5m: 0.9mm
Depth Resolution @ 0.5m: 1mm
o
o
o
4
4 SPECIFICATIONS AND REQUIREMENTS FOR YOUR
SENSE 3D SCANNER
DIMENSIONS
• 17.8 cm x 12.9 cm x 3.3 cm
SOFTWARE
• Complimentary software for Windows.
MINIMUM HARDWARE REQUIREMENTS
• Intel Pentium or equivalent processor: 2 GHz or faster
• RAM: 2GB minimum
• 1280 x 1024 minimum screen resolution
• 4 GB available hard disk space
5”
(12.9 cm)
SUPPORTED OPERATING SYSTEMS
• Windows 7® (32-bit or 64-bit)
• Windows 8® (32-bit or 64-bit)
DATA INTERFACE
• USB 2.0
• USB Cable (connection to computer)
ELECTRICAL
• Maximum Power Consumption: 2.25 Watts
OPERATING ENVIRONMENT
• Room Temperature: 10 – 40° C
7”
(17.8 cm)
5 AT A GLANCE
D
E
A
B
C
1”
(3.3 cm)
Depth Image CMOS
A
B
Color Image CMOS
Infrared Laser Projector
C
Comfort-Grip Handle
D
Tripod Connector
E
USB Connector (not shown)
5
6 WHATS INCLUDED
The Sense 3D Scanner
Quick Start Guide
7 UNPACKING YOUR SCANNER
• Remove your scanner and the quick reference guide from the box.
• Connect scanner’s USB cable to your computer USB port.
LINK YOUR SCANNER TO YOUR CUBIFY ACCOUNT
8
• Creating an account on Cubify.com is easy and gives you access to all of the great designs and collections that will
drive and inspire your creativity. Click on “Sign up” and join Cubify today to discover, create and share all things
3D. If you have an existing account, log on to Cubify.com to register your scanner and to download your Sense
Software.
• Let’s activate your scanner by clicking on the Sense 3D scanner and selecting the Activate tab .
•
• Enter your serial number; you will nd it on the bottom
of your scanner. Click Activate, a 4-digit activation
pin code will display and also, sent to you in an
email. Make sure the email doesn’t get caught in your
spam lter! Jot down your pin number; it will be used
to activate your Sense 3D Scanner. Your scanner is
now registered to your account in Cubify.
6
9
DOWNLOAD YOUR SENSE SOFTWARE
Return to the Sense 3D Scanner screen and download the Sense
software to your computer.
• Click on the Download Software for Windows and follow
the instructions in the software prompts. After software is
downloaded, you can now unlock your scanner.
•
10
ACTIVATE YOUR SENSE 3D SCANNER
NOTE: If the scanner is not connected to your computer, a message will state “Device not connected.”
After downloading your Sense Software, a “Sense” software
shortcut was created on your desktop.
• Plug your scanner’s USB connector into the USB port on your
computer and click on you Sense icon to open the software.
• If you have never activated your 4-digit pin code, click on Get
activation code from Cubify.com and retrieve your code from
“My Devices” in your account.
• If you have your 4-digit activation pin code, click on “I have an
activation code. You can also retrieve your pin code from your
Cubify email.
• Enter the code and click on “Activate scanner.”
•
7
11
7SCANNING YOUR FIRST PERSON OR OBJECT
Choose what you would like to scan. If scanning a person, you have a choice of scanning the person’s head or their
full body. Click Person and select your choice.
If you want to scan an object, click on the Object and choose the appropriate size for your object to begin your scan.
• Small objects: less than 16”
• Medium object: less than 40”
• Large objects: less than 80”
Scan Tool Bar: The tool bar located at the top of the screen provides options to set your Settings (A) for the current scan,
Home (B) lets you return the view to the initial position or Start Over (C), delete the scan so that you can start the it over.
3. Click on Start Scan, a countdown of
approximately 3 seconds will begin to allow you
to get in place to start your scan.
4. Hold the scanner approximately 15” away from
your subject and ensure that the image is placed
center on your software screen.
5. Slowly and steadily, move the scanner around the subject while viewing the image on the screen. Keep in mind, the
image must be center on the software screen. If you would like to pause the scan, click on the Scan/Pause button.
Click again, to resume the scan. Once you are satised, click Next to process your scan.
A B C
8
Scan Settings
• Orientation- toggle between landscape and portrait scan view
orientation.
• Resolution- determines the density of the scan data acquired; higher
resolution will yield denser scans but can slow down the capture
speed.
• Object Size- determines the size of the scan volume; you can set this
according to the size of the object you are scanning.
• Prompt on Startup: you can toggle the object selection screen
on or off at start up.
• Color- Toggle the acquisition of color from the scanner; when this is
off, scanning speed is higher,
• Frame Rate- toggles the on-screen display of frames per second;
useful for gauging your computer’s capability.
• Target Range- toggles the display of the cross-hairs on your screen;
it can be useful for keeping the scanner pointed at the center of the
object being scanned.
• Range Indicator- Provides visual guidance if you get to close or
too fat to the object being scanned.
Edit Tools
Crop Tool Bar: The tool bar located at the top of the screen provides options when editing your current scan. Undo (A)
erases the last change done on the scan; Settings (B) shows the settings for the current work ow; Home (C) lets you
return the view to the initial position or Start Over (D), delete the scan so that you can start over.
Crop Tool
• Once the scan is completed, clicking Next will take
you to the Crop screen. If you need to crop your scan,
use the cursor to drag a window around the part of the
scan that you wish to keep. When you are nished,
click on the Crop button to remove the part of the scan
that you wanted to delete. If an error occurred while
cropping, simply click Undo (arrow button) and your
scan will return to its original state. Click Next to go to
the Edit screen.
Erase / Solidify Tools
• Use the Erase tool to remove unwanted portions of your scan. Move the cursor over the area that you want to
erase and let go of your mouse button; the unwanted portion will be removed.
• The Solidify tool will make your scan print-ready as a closed, watertight model.
A B C D
9
Enhance Tools
• To soften jagged edges on your scan, click on the Smooth tool.
• To remove unwanted areas, click on the Trim tool and drag the cursor over the area you want to trim away; the area
will disappear.
• To improve the look of the scan, click on the Touch Up tool and drag the cursor over the area you wish to improve;
the selected area will magically improve its appearance. The tool always removes the smaller of the two pieces and
deletes the smaller mass.
Share Tool
Click on Save to save your scan to your computer; you can
save it as a stl., ply or an obj. These le formats will work on
any 3D modeling printer. If you have a 3D printer available
on your network, you can choose your printer and open your
saved le in the printer’s client software.
• Upload your scan to Share and Cloud Print on Cubify.
com.
• If you have the Cube Software installed, the software
will open automatically showing your scan on the
Cube’s automated print pad allowing you to print
directly to your Cube.
Edit Setting
• Maximize Resolution- increases the resolution of your scan before
proceeding to the Edit step.
• Resolution- toggles display of the color on the scan.
• Boundaries- toggles highlighting the boundaries on the display.
• Edges- toggles display the edges of each triangle in your scan.
10
11
3D Systems, Inc.
333 Three D Systems Circle | Rock Hill, SC | 29730
Cubify.com
©2013 3D Systems, Inc. All rights reserved.
pn 391235, Rev. A
Loading...
