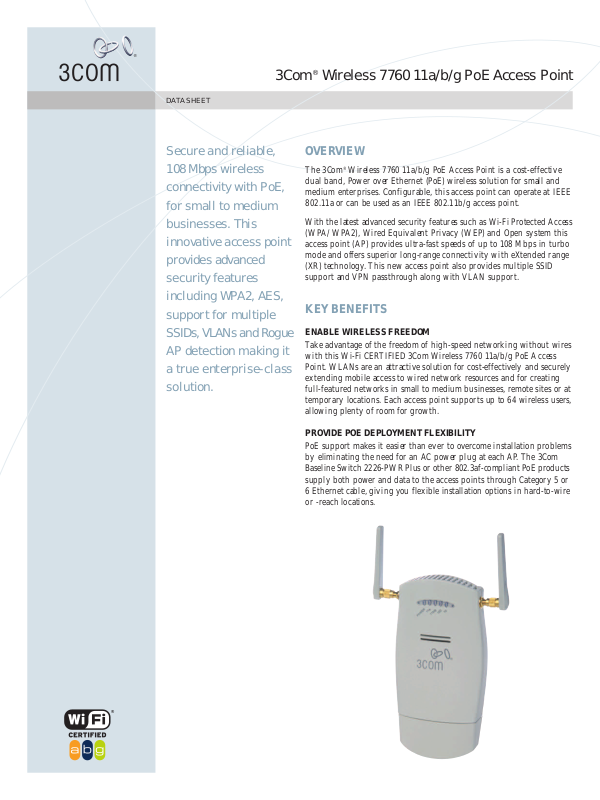

3Com®Wireless 7760 11a/b/g PoE Access Point

Secure and reliable, 108 Mbps wireless connectivity with PoE, for small to medium businesses. This innovative access point provides advanced security features including WPA2, AES, support for multiple SSIDs, VLANs and Rogue AP detection making it a true enterprise-class solution.

OVERVIEW

The 3Com®Wireless 7760 11a/b/g PoE Access Point is a cost-effective dual band, Power over Ethernet (PoE) wireless solution for small and

edium enterprises. Configurable, this access point can operate at IEEE

802.11a or can be used as an IEEE 802.11b/g access point. With the latest advanced security features such as Wi-Fi Protected Access

(WPA/ WPA2), Wired Equivalent Privacy (WEP) and Open system this access point (AP) provides ultra-fast speeds of up to 108 Mbps in turbo mode and offers superior long-range connectivity with eXtended range (XR) technology. This new access point also provides multiple SSID support and VPN passthrough along with VLAN support.

KEY BENEFITS

ENABLE WIRELESS FREEDOM

Take advantage of the freedom of high-speed networking without wires with this Wi-Fi CERTIFIED 3Com Wireless 7760 11a/b/g PoE Access Point. WLANs are an attractive solution for cost-effectively and securely extending mobile access to wired network resources and for creating full-featured networks in small to medium businesses, remote sites or at temporary locations. Each access point supports upto 64 wireless users, allowing plenty of room for growth.

PROVIDE POE DEPLOYMENT FLEXIBILITY

PoE support makes it easier than ever to overcome installation problems by eliminating the need for an AC power plug at each AP. The 3Com Baseline Switch 2226-PWR Plus or other 802.3af-compliant PoE products

y both power and data to the access points through Category 5 or

suppl 6 Ethernet cable, giving you flexible installation options in hard-to-wire or -reach locations.

Page 2

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

KEY BENEFITS

(CONTINUED)

SECURE AND PROTECT WIRELESS COMMUNICATIONS

Com delivers enterprise-class security features to small and medium

3 businesses. To shield wireless communications at the source, WPA2 with T KIP/A ES encrypt ion provides the latest, toughest standards-based security—WEP encryption supports legacy 802.11b wireless clients.

or additionalprotection, this access point supports IEEE 802.1X and

F MAC address access control, authentication, and authorization through backend RADIUS servers.

PROVIDE FLEXIBLE SECURITY AND ACCESS CONTROL

You can configure and store up to four SSIDs with different security profiles for groups of users. IEEE 802.1Q-compliant VLAN support works with the multiple SSID feature to control access to network resources and segment user traffic.

SOLVE COMPLEX CONNECTIVITY PROBLEMS

The Wireless Distribution System bridging feature solves complex wireless connectivity problems. The access point supports both point-to-point and point-to-multipoint WDS links as well as repeater and client bridge modes for flexible network deployment.

DELIVER ENTERPRISE-CLASS FEATURES

3Com delivers superior business value by offering enterprise-class solutions without the complexity. 3Com also backs each product with global sales, service and support along with technology, financial and operational strength.

FEATURES AND BENEFITS

FLEXIBLE HIGH-SPEED CONNECTIVITY

Configurable radio support Supports and offers IEEE 802.11a or IEEE 802.11b/g. High-speed access 802.11a and 802.11b/g standard supports speeds up to 108 Mbps in

Wi-Fi a/b/g CERTIFIED Helps ensure interoperability with Wi-Fi CERTIFIED products from other

ROBUST SECURITY FEATURES

Encryption: WPA/WPA2, AES, TKIP Toughest industry-standard algorithms help keep wireless transmissions and WEP private.

Multiple security profiles Store up to eight different security settings; up to four security profiles

Multiple SSID support with SSIDs can be bridged together or isolated. SSID isolation

Access control Screens device MAC addresses to ensure that only trusted clients gain

802.1Q VLAN support Groups users according to data or traffic requirements to segment traffic

RADIUS server MAC-based and Centralizes wireless security through existing network RADIUS servers.

802.1X AAA support Rogue AP detection and logging Identifies and logs unauthorized, potentially harmful APs for remedial

SuperG mode.

vendors.

can run at any time.

access to the WLAN.

flow based on business priorities.

action.

Page 3

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

Non

-PoE

itc

3CRWX120695A Wirel

ess LAN Swit

ch WX1200

120695A

1200

Ethernet Dat

a and

wer

3Com

rel

ess

7760

a/b/

g PoE

Acc

ess

int

ACC

ESS

INT

TO HUB

/SWI

TCH

Data and po

wer

Ethernet

3Com Baseline

Switch 2226-PWR

3Com

rel

ess

11a/b/

g P

Acc

ess

Point

Data and po

wer

Data onl

Fas

t Ethernet swit

3Com Po

wer ov

er Ethernet

Multiport Midspan

Solution

3Com

rel

ess

a/b/

g P

Acc

ess

int

FEATURES AND BENEFITS (CONTINUED)

INSTALLATION AND MANAGEMENT CONVENIENCE

WDS bridge and repeater Multiple APs can function as bridges supporting point-to-point or multiconfiguration point modes; repeater mode extends wireless coverage.

PoE support Expands installation options by eliminating the need for power adapters

Access Point Discovery program Automatically discovers AP devices to simplify configuration and management

SNMP support Enables the AP to be centrally managed by popular standards-based

Auto configuration Copies settings from compatible APs on the WLAN, simplifying and

SNMP support Enables the AP to be centrally managed by popular standards-based

Syslog support Enables the AP to be centrally monitored by sending data to the network

Web browser-based administration Familiar browser interface lets you configure and manage APs from

Auto firmware update Automatically checks an FTP server for available firmware updates.

and AC outlets for APs.

(PCs with Windows-based operating systems only).

network management applications.

speeding setup.

network management applications such as SNMP v1 and v2c.

Syslog server.

anywhere on the network.

PoE Support

Choose from several power options to match your installation needs. First, the PoE access point can be powered with the supplied PoE adapter.

You can also power the access point using an 802.3af-compliant PoE switch. The switch provides both data and power through the Ethernet cable.

The mid-span solution distributes power to the PoE access point over existing switch connections, seamlessly extending network connectivity into hard to wire locations.

Page 4

WPA2clients

ID1 = WPA2

Legacy WE

clients

ID2 = WE

3Com

Wir

eles

s 77

a/b/

g P

oE A

ess

WPA2clients

Legacy WEP clients

ID1

ID1 = VLAN1

ID2 = VLAN2

VLAN1

VLAN2

ID1

ID2

3Com Swit

ch 4

400

Wired deskt

ops

VLAN2

Wired deskt

ops

3Com

Wir

ele

7760

a/b/

g PoE

Acc

ess

Point

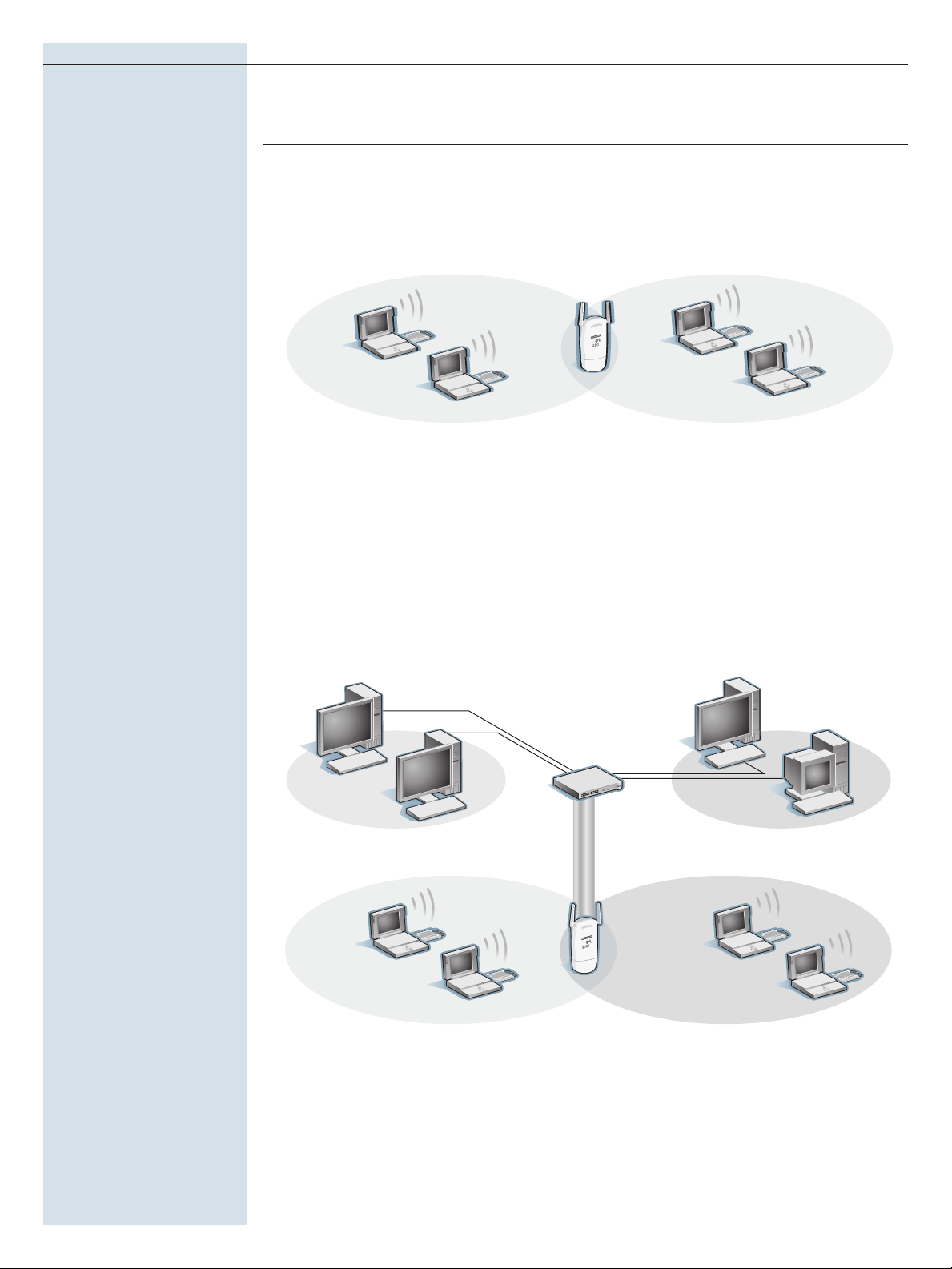

Multiple SSID Support

ultiple SSID support enables many flexible configur ations,

ncluding simultaneous multiple client security schemes.

ou no longer need to dumb down your wirel ess netw ork to

Y support a few legacy WEP devices.

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

Multiple SSID and VLAN Support

With the 3Com Wireless 7760 11a/b/g PoE Access Point, a single Ethernet link supports multiple VLAN traffic tunnels.

Page 5

Wire

d de

Wir

skt

3Com

Wir

ele

7760

11a/b/

g PoE Acc

ess

Poin

in PTP mode

3Com

Wir

7760

a/b/

g PoE

Acces

Poin

in PTP

ode

3Co

ffic

eCo

ect

Switch

3Co

fficeCo

nne

Swit

Wired

deskt

ops

Wired

deskt

ops

WDS

3Com

Wir

ele

7760

a/b/

g PoE

Acc

ess

Point

in P

TMP m

ode

3Com

Wir

ele

7760

11a/b/

g PoE Access

Point

in P

TMP m

ode

3Com

Wir

ele

7760

a/b/

g PoE

Acc

ess

Point

in P

TMP m

ode

3Com

OfficeCo

ect

Switch

3Com

OfficeConnec

Switch 8

3Com

OfficeConnec

Switch

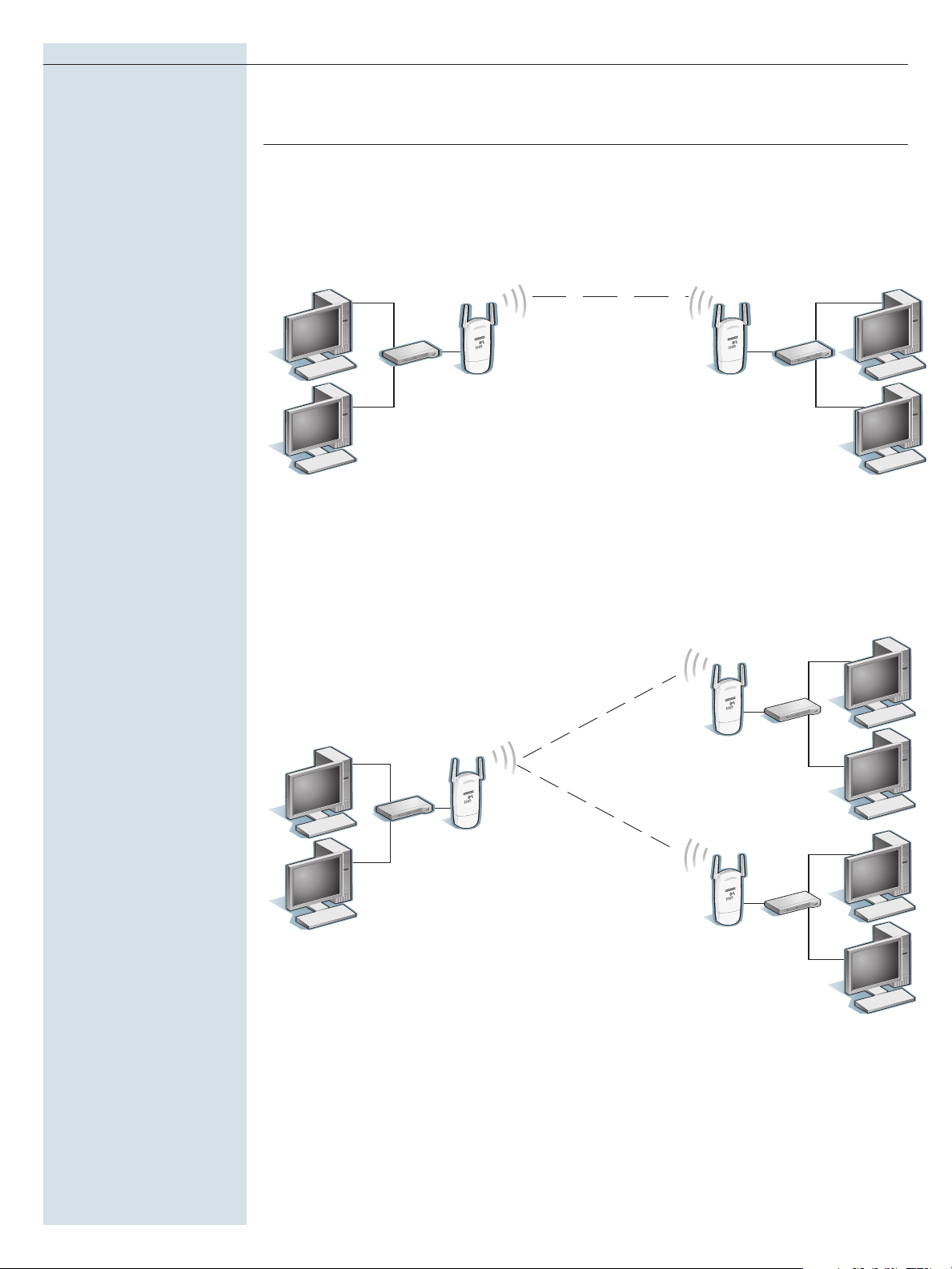

Point-to-Point WDS Link

ith the 3Com Wireless 7760 11a/b/g PoE Access Point,

W you can connect wired LANs with a wireless WDS link. The APs act as wireless bridges, forwarding traffic between LANs.

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

Point-to-Multipoint WDS Link

The 3Com Wireless 7760 11a/b/g PoE Access Point can function as a wireless bridge in either point-to-point (PTP) or point-to-multipoint (PTMP) modes for installation flexibility.

Page 6

Wire

d de

Wir

ss clie

nts

3Com

Wir

ele

7760

a/b/

g PoE

Access Poin

3Com

Wir

7760

a/b/

g PoE

Acc

Poin

in R

epeater

mode

3Co

ffic

eCo

ect

Switch 8

Wired

deskt

ops

Dev

ice wi

Ether

net

port

3Com

Wir

ele

7760

a/b/

g PoE

Acc

ess

Point

in Client mode

3Com

Wir

ele

7760

a/b/

g PoE

Access

Point

3Com

OfficeCo

ect

Switch

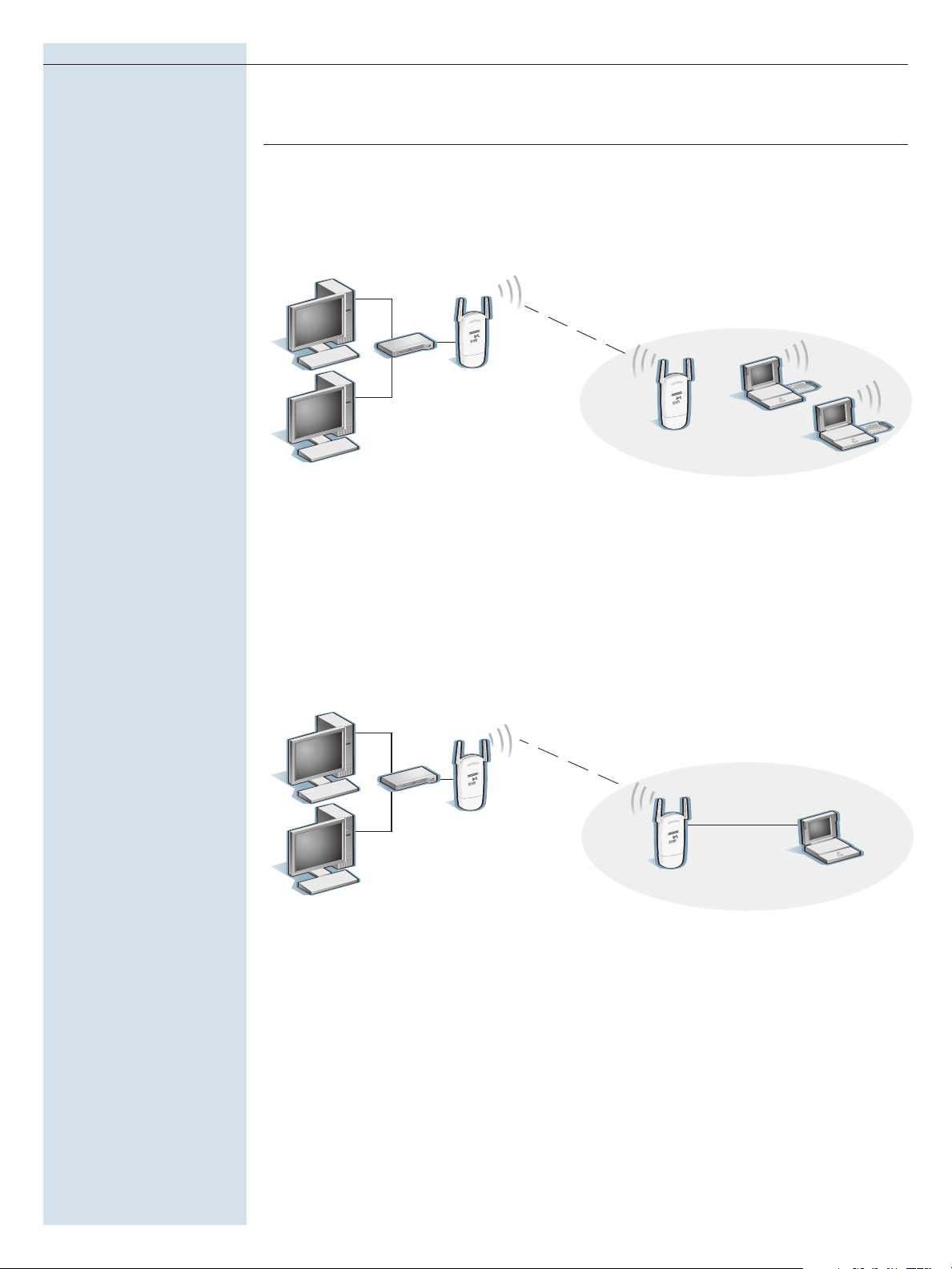

Wireless Repeater Mode

he 3Com Wireless 7760 11a/b/g PoE Access Point can

lso extend the range of WLANs by acting as a wireless

epeater, forwarding traffic between associated wireless

r workstations and another AP connected to the wired LAN.

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

Client Bridge Mode

The 3Com Wireless7760 11a/b/g PoE Access Point can transform an Ethernet deviceinto a wireless device to expand connectivity options.

Page 7

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

SPECIFICATIONS

MINIMUM SYSTEM REQUIREMENTS

Computer with an Ethernet 10BASE-T, 10/100, or 10/100/1000 interface configured for Internet communication

Operating system that supports an Ethernet connection with an IP stack (Installation CD Discovery Application requires Windows XP, or Windows

2000) PCs and laptops require 802.11a or

802.11b/g adapter cards for wireless access

MEDIA INTERFACES

RJ-45, IEEE 802.11a, 802.11b, 802.11g One 10BASE-T/100BASE-TX IEEE

802.3af-compatible PoE port with auto-negotiation

DATA RATES

802.11g/a: 54, 48, 36, 24, 18, 12, 9,

6 Mbps with automatic fallback

02.11b

: 11, 5.5, 2, 1 Mbps with

automatic fallback

FREQUENCY BAND

802.11a: 5 GHz; 802.11b/g: 2.4 GHz

WIRELESS TRANSMIT POWER

18 dBM

USERS SUPPORTED

Up to 64 simultaneous 802.11b/g wireless users for optimal throughput

OPERATING RANGE

802.11a: up to 50 meters (164 feet)

transmit and receive

802.11b/g: up to 100 meters (328 feet)

transmit and receive Unobstructed range maximum: 457

meters (1,499 feet)

OPERATING CHANNELS:

Channel availability depends on local country regulations.Wireless LAN system administrator must choose correct country of operation. Channels are then automatically configured

y with specified country’

to compl

regulations.

MODULA

DSSS (Dir

TION TECHNIQUE

ect Sequence Spr

ead

Spectrum) OFDM (Orthogonal Frequency

Division Multiplexing)

MEDIA A

CSMA/CA

CCESS PROTOCOL

ONSUMPTION

WER C

6W maximum (from PoE port)

TRANSMIT POWER SETTINGS

Based on the regulatory domain set by the system administrator

, not to

exceed the following:

802.11a

6 Mbps: 9 Mbps:

+18 dBm

≥

+18 dBm

≥

12 Mbps: ≥+18 dBm 18 Mbps: ≥+18 dBm 24 Mbps: ≥+18 dBm 36 Mbps: ≥+18 dBm 48 Mbps: ≥+16 dBm

+16 dBm

54 Mbps:

≥

802.11b/g

1–11 Mbps: ≥+18 dBm 12 Mbps: ≥+18 dBm 18 Mbps: ≥+18 dBm 24 Mbps: ≥+18 dBm 36 Mbps: ≥+18 dBm 48 Mbps: ≥+16 dBm 54 Mbps: ≥+16 dBm

RECEIVE SENSITIVITY

802.11a

6 Mbps: ≤-87 dBm 9 Mbps: ≤-86 dBm 12 Mbps: ≤-84 dBm 18 Mbps: ≤-82 dBm 24 Mbps: ≤-79 dBm 36 Mbps: ≤-75 dBm 48 Mbps: ≤-72 dBm 54 Mbps: ≤-71 dBm

802.11b/g

1 Mbps: ≤-95 dBm 2 Mbps: ≤-92 dBm

5.5 Mbps: ≤

-91dBm 6 Mbps: ≤-89 dBm 9 Mbps: ≤-88 dBm 11 Mbps: ≤

-88 dBm 12 Mbps: ≤-86 dBm 18 Mbps: ≤-84 dBm 24 Mbps: ≤-81 dBm 36 Mbps: ≤ 48 Mbps: ≤

-77 dBm

-73 dBm 54 Mbps: ≤-72 dBm

STANDARDS CONFORMANCE

IEEE 802.11a, 802.11b, 802.11g,

802.11i, 802.3, 802.3af, 802.1X; WEP, AES, WPA, WPA2, WMM, and Wi-Fi

CERTIFIED

ANTENNA

2 removable 2dB gain antennas with R-SMA connector

SECURITY

WPA2 AES and TKIP encryption; 64/128/152-bit WEP encryption;

802.1X with EAP-TLS, EAP-TTLS, and PEAP; WPA-PSK authentication; MAC address authentication and filtering;

802.1Q VLAN; multiple SSID; RADIUS client authentication, authorization, and accounting

NETWORKING PROTOCOLS

, Brid

TCP/IP

ging Pr

otocol, DHCP,

HTTP, FTP

PERFORMANCE

Dynamic rate shifting Packet bursting Clear channel connect

802.11a/b/g Su

MANA

SNMP v1 and v2c su Remote mana

GEMENT

perG mode

pport

ent with Web browser over SSL or HTTPS; command line interface over SSH v2 or Telnet

LEDS

Power, 10/100 Mbps, 802.11a, 11b, or 11g activity

WER SUPPL

PoE adapter: 48VDC, 400 ma

Page 8

3COM®WIRELESS 7760 11A/B/G POE ACCESS POINT

SPECIFICATIONS

(CONTINUED)

DIMENSIONS AND WEIGHT

Height: 16.5 cm (6.5 in) Width: 8.25 cm (3.25 in) Depth: 3.2 cm (1.25 in) Weight: 198 g (7.0 oz)

REGULATORY/AGENCY APPROVALS

afety

UL/CSA 60950 EN/IEC 60950 NOM-019- SCFI AS/NZS 60950

EMC/EMI

FCC 15 Subpart C IC RSS-210 EN 300 328 EN 301 893 EN 301 489-1, -17 EN 60601

ENVIRONMENTAL RANGES

perating temperature:

-10 to 40°C

(14 to 104°F)

torage temperature:

-40 to 70°C

(-40 to 158°F)

umidity:

10 to 95% non-condensing

PACKAGE CONTENTS

3Com Wireless 7760 11a/b/g PoE Access Point

Two external dual-band 2.4/5.15GHz antennas with R-SMA connectors

Mounting hardware PoE injector Quick Installation Guide Support and Safety sheet Warranty sheet CD-Rom with drivers and documentation

WARRANTY AND OTHER SERVICES

Three-year Hardware Warranty. Limited Software Warranty for 90 days

Advance Hardware Replacement with Next Business Day shipment in most regions.

90 days of telephone technical support Refer to

www.3com.com/warranty

for details.

ORDERING INFORMATION

PRODUCT DESCRIPTION MODEL N0 3COM SKU

3Com Wireless 7760 11a/b/g PoE Access Point WL-561 3CRWE776075

Managed Wireless LAN Access Point Antenna Options

3Com 6/8dBi Dual-Band Omni Antenna 3CWE591 3Com 3/4dBi Dual-Band Ceiling Mount Antenna 3CWE592 3Com 4/6dBi Dual-Band Hallway Antenna 3CWE597

Antenna Cables

3Com Ultra Low Loss 6-Foot Antenna Cable 3CWE580 3Com Ultra Low Loss 20-Foot Antenna Cable 3CWE581 3Com Ultra Low Loss 50-Foot Antenna Cable 3CWE582 3Com RSMA to SMA 6” Antenna Cable 3CWE586

3Com Wireless LAN-Related Products

3Com Power over Ethernet Single-Port Midspan Solution 3CNJPSE 3Com Power over Ethernet Multiport Midspan Solution (24 Ports) 3CNJPSE24 3Com Switch 5500-EI PWR 28-port 3C17171-91 3Com Switch 5500-EI PWR 52-port 3C17172-91 3Com Switch 4500 PWR 26-Port 3CR17571-91 3Com Switch 4500 PWR 50-Port 3CR17572-91 3Com Baseline Switch 2226-PWR Plus 3C16490 3Com OfficeConnect®Managed Switch 9 3CR16708-91

3Com Global Services

3Com Wireless LAN Site Survey, Network Health Check, Installation Services, and ExpressSMMaintenance www.3com.com/services_quote 3Com University Courses www.3com.com/3comu

Visit www.3com.com for more information about 3Com secure converged network solutions.

3Com Corporation, Corporate Headquarters, 350 Campus Drive, Marlborough, MA 01752-3064 3Com is publicly traded on NASDAQ under the symbol COMS.

Copyright © 2006 3Com Corporation. All rights reserved. 3Com, the 3Com logo, and OfficeConnect are registered trademarks, and Express is a service mark, of 3Com Corporation. All other company and product names may be trademarks of their respective companies. Wireless speed and performance depend on number

ysical conditions, and other electronic devices in the area. While every effort is made to ensure the information given is accurate, 3Com does not

, ph

of user accept liability for any errors or mistakes which may arise. All specifications are subject to change without notice. 400989-006 10/06
