1 Remove everything from the box.

2 Remove the tape and

packing material.

3 Peel off the tape beneath the cover

and remove the insert.

4 Slide the paper support into

its three slots on the back of the printer.

Connect the Printer

Install Ink Cartridges

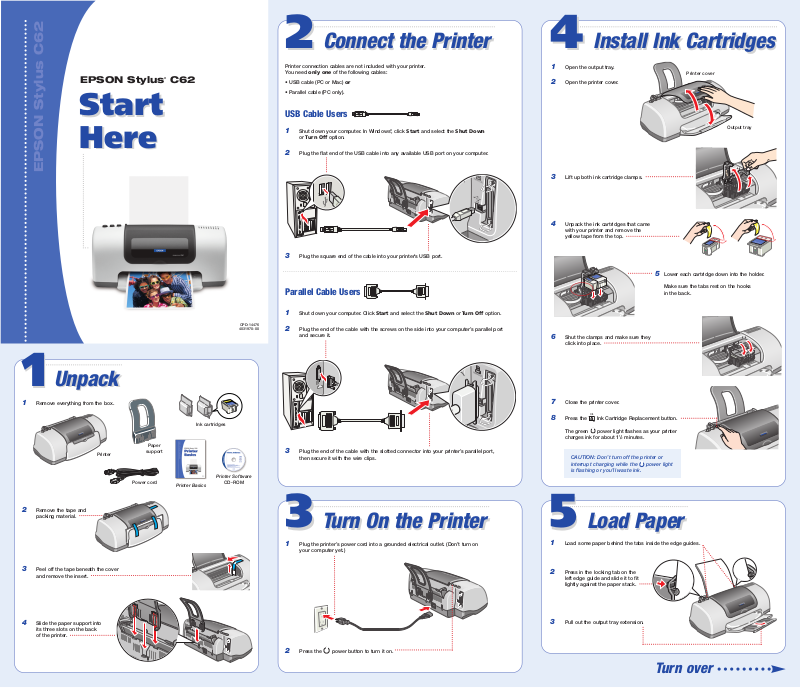

EPSON Stylus®C62

Start

Here

EPSON Stylus C62

Printer connection cables are not included with your printer. You need only one of the following cables:

• USB cable (PC or Mac) or

• Parallel cable (PC only).

USB Cable Users

1 Shut down your computer. In Windows

or Turn O ff option.

2 Plug the flat end of the USB cable into any available USB port on your computer.

, click Start and select the Shut Down

1 Open the output tray.

Printer cover

2 Open the printer cover.

Output tray

3 Lift up both ink cartridge clamps.

CPD-14476

4031970-00

3 Plug the square end of the cable into your printer’s USB port.

Parallel Cable Users

1 Shut down your computer. Click Start and select the Shut Down or Turn Off option.

2 Plug the end of the cable with the screws on the side into your computer’s parallel port

and secure it.

4 Unpack the ink cartridges that came

with your printer and remove the yellow tape from the top.

5 Lower each cartridge down into the holder.

Make sure the tabs rest on the hooks in the back.

6 Shut the clamps and make sure they

click into place.

Unpack

Printer

Paper

support

Power cord

Ink cartridges

Printer Basics

Printer Software

CD-ROM

3 Plug the end of the cable with the slotted connector into your printer’s parallel port,

then secure it with the wire clips.

Turn On the Printer

7 Close the printer cover.

8 Press the Ink Cartridge Replacement button.

The green power light flashes as your printer charges ink for about 11/2minutes.

CAUTION: Don’t turn off the printer or interrupt charging while the power light is flashing or you’ll waste ink.

Load Paper

1 Plug the printer’s power cord into a grounded electrical outlet. (Don’t turn on

your computer yet.)

2 Press the power button to turn it on.

1 Load some paper behind the tabs inside the edge guides.

2 Press in the locking tab on the

left edge guide and slide it to fit lightly against the paper stack.

3 Pull out the output tray extension.

Turn over

Macintosh OS 8.5.1 to 9.x

If you’re using Macintosh®OS X, see “Installing Your Printer Software” in the Printer Basics book for installation instructions.

1 Turn on your Macintosh. (Make sure your

printer is still on.)

2 Put the EPSON CD-ROM in your CD-ROM

or DVD drive.

3 Select EPSON on your desktop, if necessary.

4 Select EPSON in the window that opens.

5 Read and agree to the license agreement

to continue the installation.

6 Click Install Printer Driver and follow the

on-screen instructions to install the driver and restart your Macintosh.

7 After your Macintosh restarts, register your printer

with EPSON as instructed.

8 Open the Chooser in the Apple

menu.

9 Select C62 Series.

10 Select your USB port.

11 Turn on background printing.

12 Close the Chooser.

13 Select EPSON in the window on your desktop again.

You see the Main Menu.

14 Click Install EPSON Software Film Factory to

install it on your system. Follow the on-screen instructions, then return to the Main Menu.

15 Click Install Printer Movies and Manual

to install the EPSON Printer Information Center on your desktop. It includes helpful printer animations and an additional manual.

16 Click Share Photos Online to add a link to the

EPSON PhotoCenter on your desktop.

17 When you’re finished, click Exit. Remove the CD-ROM

and keep it in case you need to reinstall any software later.

You’re ready to print! See the details in section 7.

Install Software

Windows

The installation works differently depending on the version of the Windows operating system you’re using.

If you’re using Windows 2000 or Windows 95, see “Installing Your Printer Software” in the Printer Basics book for installation instructions.

If you’re using Windows XP, Me, or 98, carefully follow the appropriate steps below.

Windows XP

1 Turn on your computer. (Make sure your printer

is connected and turned on first.)

2 Wait for Windows to detect your printer connection

and display this screen:

Note: If this screen doesn’t appear, make sure your printer is turned on and connected.

3 Put the EPSON

CD-ROM in your CD-ROM or DVD drive and wait a few seconds for the CD-ROM to be recognized.

4 Your printer software installs automatically

and various messages appear on the screen. At the final Found New Hardware Wizard screen, click Finish.

5 Now go to “Completing Windows Installation”

in the next column.

Windows Me and 98

1 Turn on your computer. (Make sure your printer is connected and turned on first.)

2 Wait for Windows Me or 98 to detect your printer

connection and display a screen like this:

DON’T CLICK ANY BUTTONS ON THE SCREEN YET.

Note: If this screen doesn’t appear, make sure your printer is turned on and connected.

3 Put the EPSON CD-ROM in your CD-ROM

or DVD drive and wait a few seconds for the CD-ROM to be recognized.

4 Click Next on the Add

New Hardware Wizard screen.

Windows Me and 98 (continued)

5 Installation proceeds automatically. Click Finish

when installation halts, then go to step 6.

Click the Search for option,

then click Next.

Click CD-ROM drive, then click Next.

At this screen, click Next.

Installation proceeds automatically. When installation halts, click Finish and go to step 6.

6 Your computer detects your printer connection

a second time and you see a screen like this:

Click Next, then click Finish.

Installation proceeds automatically.

Click Next at the next four screens, then click

Finish. Installation proceeds automatically.

7 At the final Add New Hardware Wizard

screen, click Finish.

8 Now go to “Completing Windows Installation” below.

Completing Windows Installation

1 After a moment, you see a license agreement screen.

Read and agree to the license agreement to continue the installation.

2 At the Options Menu, click Print a Test Page to check

your installation. (If the page doesn’t print correctly, see your Printer Basics book for a solution.)

3 Click Install EPSON Software

to install it on your system. Follow the on-screen instructions, then return to the Options Menu.

4 Click Install Printer Movies and Manual

to install the EPSON Printer Information Center on your desktop. It includes helpful printer animations and an additional manual.

5 Click Share Photos Online to add a link to the

EPSON PhotoCenterSMon your desktop.

6 When you’re finished, click Exit.

7 When you see the registration screen, register your printer with EPSON as instructed.

Remove the CD-ROM and keep it in case you need to reinstall any software later.

Film Factory

Now you’re ready to print. For instructions, use these resources:

• Your Printer Basics book

Learn about loading paper, printing, maintaining your printer, solving problems, and contacting EPSON.

• EPSON Printer Information Center on your desktop

Click Print Show to view helpful animations that show you how to load paper, print, and perform other tasks.

Click Reference Guide to view detailed information about your printer.

Continued in second column

You’re ready to print! See section 7.
