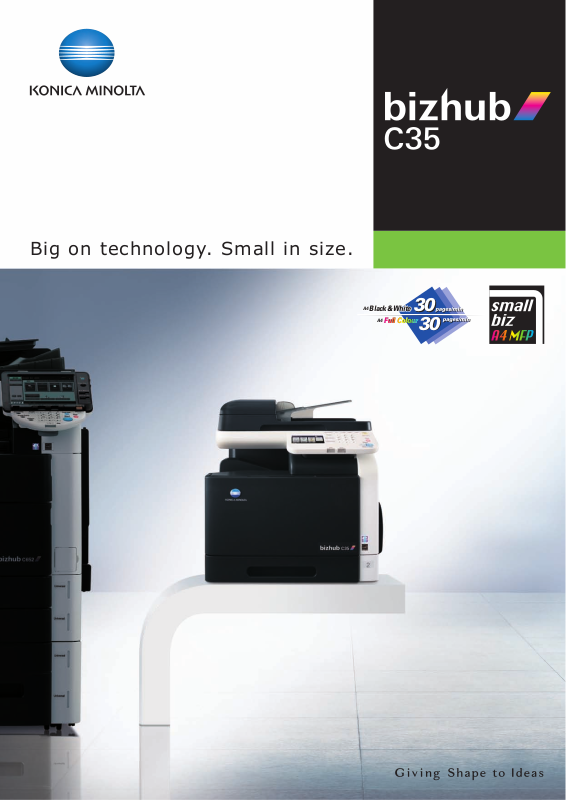

Big on technology. Small in size.

A4

A4

Black & White

Bl

White

A4

A4

Full Colour

Full Colour

30

30

30

30

The small bizhub that changes
your office in big ways.

Headquarters

Back

bizhubC35

office

Shop

bizhubC35

bizhubC35

Executive

Suite

A4B/Wprinter

A4B/Wprinter

Work

group

A compact solution that enhances business efficiency and reduces TCO.

Large offices or offices with multiple rooms often have the inconveniences of having A3 colour MFPs located either
far away or in the next room. Introducing the bizhub C35, an A4 colour MFP with the performance and productivity
similar to most A3 colour MFPs in a compact A4 printer size. The C35 is just the right size to be placed within arm’s
reach for enhanced business efficiency. In addition, for office networks that include a black & white MFP and a
colour printer, or a colour printer and a fax, the bizhub C35 brings them all together in a single unit. This sort of
efficient consolidation helps to reduce TCO (Total Cost of Ownership).

colourMFP B/WMFP

The bizhub C35 is also the
suitable size and function
for franchises and satellite
offices.

A4B/Wprinter A4B/Wprinter A4B/Wprinter

A total height of

only 550mm!

A3 machines are

approximately 900mm

when placed on a desktop

It can even be placed on a desktop!

2 bizhub C35

Konica Minolta’s Solutions of i include our extensive
lineup of MFPs, printers, and software applications, were
designed for you, the individual.

http://www.solutions-of-i.com

Standard Features

*

FAX

COPY

*Reverse Automatic Document Feeder

RADF

NETWORK

SCAN

IPv6

AUTOMATIC

DUPLEX

Emperon

NETWORK

PRINT

UNIVERSAL

PRINTER
DRIVER

UNIVERSAL

DESIGN

All-in-one design with standard faxing,
scanning and duplex printing functions

The bizhub C35 has all the essential features needed as a
distributed MFP for large offices. In addition to standard Super
G3 faxing, network printing, and network scanning and copying
functions, the C35 also provides a host of other standard
features including a variety of security functions, RADF (Reverse
Automatic Document Feeder), duplex printing, and a 120GB
HDD. It is also suitable in size and function as a main machine
for franchises and satellite offices.

Outstanding productivity comparable with our
high-end machines

Whether in colour or black & white, the C35 offers high-speed
outputs of 30 pages per minute. It also provides 100%
for duplex printing. The C35’s multi-access feature allows
simultaneous scanning and printing for increased efficiency.
Furthermore, the 1,350-sheet
the downtime needed for paper replacements, and the standard
60~210g/m

2

paper cassette accommodates a large variety of paper

2

large-capacity paper supply reduces

weights, even for duplex printing projects.

1

Excludes mixed colour and black & white documents.

2

1,350 sheets max., when using two optional PF-P08 paper cassettes.

1

productivity

Newly developed ASIC for high quality documents

Equipped with a new ASIC (application-specific integrated circuit)
which offers the latest image processing algorithms, the bizhub
C35 inherits the image enhancement technologies proven on
Konica Minolta’s A3 MFPs. This represents our ongoing pursuit to
provide beautiful business documents and reproduction of
characters. In addition, the C35’s printer controller is equipped with
Konica Minolta’s genuine Emperon Print System, which includes
PS mode and PCL mode, providing high level outputs that are
consistently on par with our higher-end machines.

Large 4.3-inch full colour LCD touch-screen display

bizhub C35 is extremely simple to operate with an easy-to-see
32,000-colour high-resolution LCD display, easy-to-use large
buttons, and icons that are recognisable at a glance.

Enhanced integration with high-end bizhub
series machines

In addition to centralised management made possible with
PageScope Enterprise Suite software, a variety of user
authentication systems including IC card authentication*,
external-server authentication and MFP authentication are also
available to the bizhub C35. Moreover, numerous functions,
including reliable security and high-level networking allow
seamless operations with our high-end machines. In addition, an
easy to see and use control panel and Universal Design make C35
more user-friendly in a variety of ways. With seamless operations,
C35 can be used as an extension to
your existing office network of A3
MFPs without inconvenience.

Universal Printer Driver can be shared with other devices

* Optional authentication unit is require.

bizhub C35 is supported by Konica Minolta’s state-of-the-art
Universal Printer Driver (UPD) allowing it to be shared with other
Konica Minolta MFPs and printers from a single interface. With the
UPD, you can even print from your laptop PC while away on
business at a branch office, or in an office with multiple bizhubs
without having to access a new driver. Furthermore, the UPD’s
basic functions are compatible
with a variety of third-party
networked MFPs and printers, to
minimise the hassle of changing
drivers for each brand.

* The UPD must be downloaded

from the Konica Minolta website
(free of charge).

* Applicable functions with the UPD

will vary according to device.

The C35’s small footprint conserves
office floor space*.

* Optional Desk (DK-P01) is

required for floor set-up

Environmental Friendly

To lessen the burden on the environment, bizhub C35 uses Simitri HD toner with biomass*, an
advanced version of Simitri toner with biomass* which Konica Minolta has been producing since
2000 using plant-based resources. In addition, Konica Minolta has newly developed an ozone-free
charge roller, reduced the number of parts, and utilised recycled materials. Furthermore, by reducing
energy consumption and clearing the new international standard values set by the Energy Star
program (Tier 2), the C35 offers both ecology and economy through reduced CO

*: Biomass is a renewable organic resource made up of biological materials and excludes fossil fuels.

2

emissions.

A3 MFP

49%

Smaller Footprint

bizhub C35

Drum

Newly
developed
ozone-free
charge roller

3bizhub C35

bizhub C35 Functions

Copy Functions

•

Text, Photo, Text/Photo modes •Auto density adjustment •Auto paper selection (Original must be

specified) •Auto zoom selection (Original must be specified) •Mixed originals (Letter and Legal only)

•

Image rotation •Program registration (up to 15) •2-in-1/4-in-1 copy •Interrupt mode •Slightly reduced

copy •Margin setting (position/size) •Card Shot •Separate Scan

Print Functions

•

Document, Photo, DTP, Web, CAD modes •Edge Enhancement •Poster mode (2x2, 3x3, 4x4 PS only)

•

N-in-1, N x N 2/4/6/9/16 in 1 (2x2, 3x3, 4x4 PCL only) •Booklet •Multiple protocol compatibility •Stamp
(Watermark) •Overlay •Cover sheet •180° rotation •Blank page control (PCL only) •Margin setting
(position/size)

•

Printing •Support for new function in latest PDF version 1.7 •Save in HDD

Copy/Print Functions

•

Scanning Functions

•

Send (with restrictions) •Scan to E-mail •E-mail subject/E-mail body text •Scan to SMB •Scan to FTP

•

only) •Windows WIA Scan •WS-Scan •Compact PDF •File type (TIFF/ PDF/JPEG/XPS) •Save in HDD

•

ICC profiles download •Toner Save Mode •My Tab •Black Overprint •Auto Trapping •PPML-Variable Data

Multi-job •Duplex copy/print •Enlarge/reduce/zoom •Sort •Group •Auto tray switch •Proof copy/print

Auto Colour Selection •Mixed original scanning (Letter and Legal only) •Separate Scan •Multi-Method

E-mail notification of Scan to SMB/FTP URL •Scan to WebDAV •Scan to USB •TWAIN Scan (Raw mode

Print status notification (Application) •PDF/TIFF/JPEG/XPS Direct Print •USB Direct Print

Fax Functions

•

G3 Fax •Text, Photo, Text/Photo modes •2-sided transmission •Memory transmission •Timer
transmission •Memory RX (print as needed) •Memory reception (save when printing fails) •Fax forwarding
(Temporary Forward Transmission not supported) •Polling reception •Sequential multiple station
transmission •F-code •ECM OFF •V.34 OFF •Transmission report •Internet Fax (Simple mode only)

•

PC Fax •Cover sheet (PC Fax) •Acquiring address information from MFP (PC Fax)

Scanning/Fax Functions

•

One-touch registration (up to 2,000) •Program transmission (up to 400) •LDAP search (One registered
server only)

Security & Management Functions

•

Built-in Authentication •Non-Contact IC Card Authentication (Optional authentication unit is required)

•

ID & Print (Optional authentication unit is required) •External Server Authentication •NDS authentication
over TCP/IP •Department management (Account Name, Password) (PageScope Web Connection only)

•

Secure Print (Win/Mac OSX only) •Copy Protect (PC print (PCL) only)

•

Scan to E-mail SMTP authentication, POP3 before SMTP •SMTP over SSL/Start TLS •Encrypted PDF

•

S/MIME •IEEE 802.1X support •IP Filtering •SSL/TLS Protocol •Overwrite all data in the HDD •HDD
data encryption •Confidential transmission •Password transmission/reception (F-code) •Automatic fax
destination verification and transmission (CSI: Called Subscriber ID) •Fax number confirmation •ISO15408

Other Functions

•

•

Help

Status Notifier
(Windows Vista)
100Base-TX/10Base-T), USB 2.0, USB Host
capacity (1,350 sheets)
Tray (100 sheets)

•

B/W Printing When Colour Toner Runs Out

•

CPU (800MHz) •HDD (120GB)

•

Paper capacity: 1st tray (250 sheets) •2nd tray (Optional) •Multiple Bypass

•

Multiple Bypass Tray paper weight support (210g/m2) •Auto Duplex

•

Emperon

•

bEST •LCD (Colour 96.7 x 55.5mm) •Maximum total

•

IPv6 Protocol •DPWS supported

•Interface: Ethernet (1000Base-T/

Type Desk top Full-Colour Printer/Copier/Scanner
Colour Support Full-Colour
Copy Resolution Scan 600dpi x 60 0dpi
Print 600dpi x 600dpi
Gradation 256 colour shades per pixel (8-bit)
Memory Capacity 1.5GB (Std/Max)
HDD 120GB (shared print, copy, scan and fax)
Original Type

Sheets, Books, Objects
Max. Original Size
Output Size Tray 1 (Standard) A4, A5, B5, A6, B6, 16K
(Multiple Bypass Tray) 4" x 6", 5.5" x 8.5", 8.5" x 11", 8.5" x 14"
Tray 2 (First Cassette) A4, A5, B5, A6, B6, 16K
(Standard) (Universal Tray) 4" x 6", 5.5" x 8.5", 8.5" x 11", 8.5" x 14"
Tray 3 and 4 A4, B5

(Optional) (Universal Tray)
Image Loss Copy
Print
Warm-Up Time (23°C, std. voltage)

First Copy Time

Copy Speed Colour A4: 30 ppm

Copy Magnification
Scaling Up 1:1.154 / 1.224 / 1.294 / 1.414 / 1.545 / 1.631 / 2.000
Scaling Down 1:0.866 / 0.816 / 0.785 / 0.707 / 0.647 / 0.607 / 0.500
Preset 3 types
Zoom Flatbed 25 to 400%, 0.1% increments
ADF 25 to 200%, 0.1% increments
Paper Capacity Standard 100-sheet multiple bypass tray, 250-sheet universal tray
(80g/m
Paper Weight 60-210 g/m
Multiple Copy 1
Power Requirements 220-240V (50-60Hz)
Max. Power Consumption
Dimensions
Weight 39kg (86lb)
Space Requirements

Max. A4 or 8.5" x 14"

(Second and Third Cassette)

[W] ✕ [D]

1

A4/full size/using the first tray/scanning from the original glass surface.

1 Colour

B/W

B/W A4: 30 ppm

Fixed Same Magnification 1:1±1.0% or less

2

paper) Max.

[W] ✕ [D] ✕ [H]

8.5" x 11", 8.5" x 14"

Max. 4.0mm for Top/bottom/right/left edge
Max. 4.2mm for Top/bottom/right/left edge
45 sec. or less
(May vary depending on the operating environment and usage.)

12.0 sec.

10.1 sec.

1,350 sheets (total, with options)

1.3kW or less
555mm ✕ 508mm ✕ 550mm (21-3/4" x 20" x 21-3/4")

1,068mm

-

999 sheets

2

✕

954mm (42" ✕

37-1/2"

)

Printer Specifications (Standard)

Type Embedded
CPU MV78100 (800MHz)
Memory Shared with the copier
Print Speed Same as Copy Speed (when using the same original)
HDD 120 GB (Shared with the copier)
Print Resolution 60 0dpi x 600dpi
PDL PostScript3 Emulation, PCL5e/c/PCL6, XPS
PDF Direct Printing, JPEG/TIFF/XPS Direct Print
Protocol TCP/IP, EtherTalk, IPX/SPX, UPD, IPv6
Support OS PCL6
Server 2003 64bit, Windows Vista/ Vista 64bit, Windows Server
2008/Server 2008 64bit, Windows 7 (Not certified by WHQL)
PS3
Server 2003 64bit, Windows Vista/Vista 64bit, Windows Server
2008/Server 2008 64bit, Mac OSX (10.2.8/10.3.9/10.4/10.5),
LINUX, Windows 7 (Not certified by WHQL)
XPS Windows Vista, Windows Server 2008,
Windows 7 (Not certified by WHQL
Fonts PCL 80 fonts
PS 137 fonts
Interface
USB 2.0 (High Speed)

Windows 2000, Windows XP/XP 64bit, Windows Server 2003/

Windows 2000, Windows XP/XP 64bit, Windows Server 2003/

)

Ethernet (10Base-T/100Base-TX/1000Base-T),

Scanning Specifications (Standard)bizhub C35 General Specifications

Type Full -Colour Scanner
Interface Ethernet (10Base-T/100Base-TX/1000Base-T), USB Host
Driver
Protocol TCP/IP (FTP, SMB, SMTP, WebDAV, WS-Scan)
Scanning Speed (300dpi) B&W /Colour A4: 30/30ppm
Scanning Size Flatbed Scan
ADF Scan Max. 215.9 x 1,000mm
(Only fax is possible for sizes exceeding 355.6mm in length)
Output Format (Single Page/Multi-Page)
Scanning Resolution

Main Function Scan to E-mail, Scan to FTP, Scan to SMB, Scan to HDD,
Scan to WebDAV, Scan to USB, WS-Scan, Windows WIA Scan

Fax Specifications

Communication Super G3
Compatible Lines Public Switch Telephone Network, PBX
Line Density Std.:

Modem Speed 2.4
Compression
Sending Paper Size Flatbed Scan Max.
ADF Scan Max. 215.9 x 1,000mm
Recording Paper Size
Transmission Speed Less than 3 sec. (A4, V.34, 33.6kbps, JBIG)
Scanning Speed
Number of Abbr. Dials 2,000
Number of Program Dials 400
Number of Group Dials 10 0
Sequential Multiple Station Transmission 500

(Standard)

A4: 30ppm

System Options Dimensions

Working Table WT-P01

Paper Feed Unit
PF-P08

Equipped with a paper
drawer that supplies
500 sheets.

* A maximum of two
optional PF-P08
paper feed units may
be added.

Desk DK-P01

Network TWAIN Driver, WIA (1.0/2.0) Driver (for Windows only)

Max. A4/Legal

TIFF, PDF, Compact PDF, Encrypted PDF, JPEG*, XPS Page Setting
150dpi x 150dpi, 200dpi x 200dpi, 300dpi x 300dpi, 600dpi x 600dpi
(Network TWAIN: 150dpi, 300dpi, 600dpi, 1200dpi, 2400dpi, 4800dpi)

JPEG is single page only.

*

✕

100dpi (8 dot/mm ✕ 3.85 line/mm)

200
Fine: 200✕200dpi (8 dot/mm ✕7.7 line/mm)
Super Fine: 400✕400dpi (16 dot/mm ✕15.4 line/mm)

33.6kbps

to

MH/ MR/MMR /JBIG

A4/Legal

A4/Legal

Max.

2

2

2

1

Excluding Super Fine. 2Maximum values include Scan to XX.

934

555

150

530 254

550

Multiple Bypass
Tray opened

1,068

150

818

783

Right door opened

(STD/Fine/Super Fine)

(Long Length Record Max.1,000mm - following the page division)

1

508

Maximum (with the control
panel in the centre position)

525

288

100

867
884

954

70

48

776233

1,009

Product appearance, configuration and/or specifications
are subject to change without notice.

KONICA MINOLTA, the KONICA MINOLTA logo and symbol mark,
and “Giving Shape to Ideas” are registered trademarks or
trademarks of KONICA MINOLTA HOLDINGS, INC.
bizhub, bizhub PRO, bizhub PRESS, Magicolor, PagePro,
PageScope, Simitri, Simitri HD, Simitri HD+, Simitri with Biomass,
Emperon, S.E.A.D., S.E.A.D.II, Printgroove and Konica Minolta
Optimised Print Services and their respective logos are registered
trademarks or trademarks of KONICA MINOLTA BUSINESS
TECHNOLOGIES, INC.
All other brands and product names are registered trademarks or
trademarks of their respective companies or organisations.

Ecology & Environment

KONICA MINOLTA products are designed with the environment in mind.

• Energy Star

• Blue Angel Mark (BAM)

• RoHS Compliance

Requirements for safe use

•

Please read and follow the instruction manual to ensure safe operation.

•

Only operate using appropriate power supply and voltage.

•

Connecting the earth wire to an inappropriate place may cause explosion or electric shock. Please connect accordingly (Taiwan and the Philippines only).

ISO15408 (EAL Level 3) Certification

These products comply with the security

• WEEE Compliance

• Eco-friendly Toners

• Production at ISO Certified Factories

requirements of ISO15408 (EAL Level 3).
*

The ISO 15408 certification applies only to IT security

capabilities. This certification is NOT a product guarantee.

From consulting, system design, to operations, Konica Minolta offers
total support to optimise your office output environment.

http://www.biz.konicaminolta.com/services/ops

9251-3186-31 O1203(E)-D1 Printed in Japan
