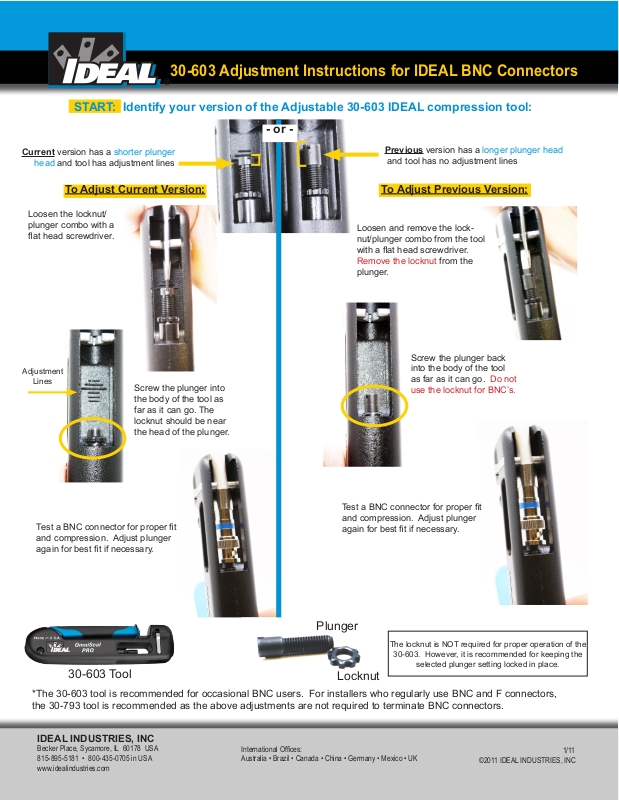

30-603 Adjustment Instructions for IDEAL BNC Connectors
START: Identify your version of the Adjustable 30-603 IDEAL compression tool:
- or -
Current version has a shorter plunger
head and tool has adjustment lines
To Adjust Current Version:
Loosen the locknut/
plunger combo with a
at head screwdriver.
Adjustment
Lines
Screw the plunger into
the body of the tool as
far as it can go. The
locknut should be near
the head of the plunger.
Previous version has a longer plunger head
and tool has no adjustment lines
To Adjust Previous Version:
Loosen and remove the locknut/plunger combo from the tool
with a at head screwdriver.
Remove the locknut from the
plunger.
Screw the plunger back
into the body of the tool
as far as it can go. Do not
use the locknut for BNC’s.
Test a BNC connector for proper t
Test a BNC connector for proper t
and compression. Adjust plunger
again for best t if necessary.
and compression. Adjust plunger
again for best t if necessary.
Plunger
The locknut is NOT required for proper operation of the
30-603. However, it is recommended for keeping the
selected plunger setting locked in place.
30-603 Tool
*The 30-603 tool is recommended for occasional BNC users. For installers who regularly use BNC and F connectors,
the 30-793 tool is recommended as the above adjustments are not required to terminate BNC connectors.
IDEAL INDUSTRIES, INC
Becker Place, Sycamore, IL 60178 USA
815-895-5181 • 800-435-0705 in USA
www.idealindustries.com
International Ofces:
Australia • Brazil • Canada • China • Germany • Mexico • UK
Locknut
