of communication program into PC and
Hamry 3567, 580 01 Havl. Brod, Czech Rep.
tel + 420 569 433 620 fax + 420 569 422 144
1-cube@1-cube.com www.1-cube.com

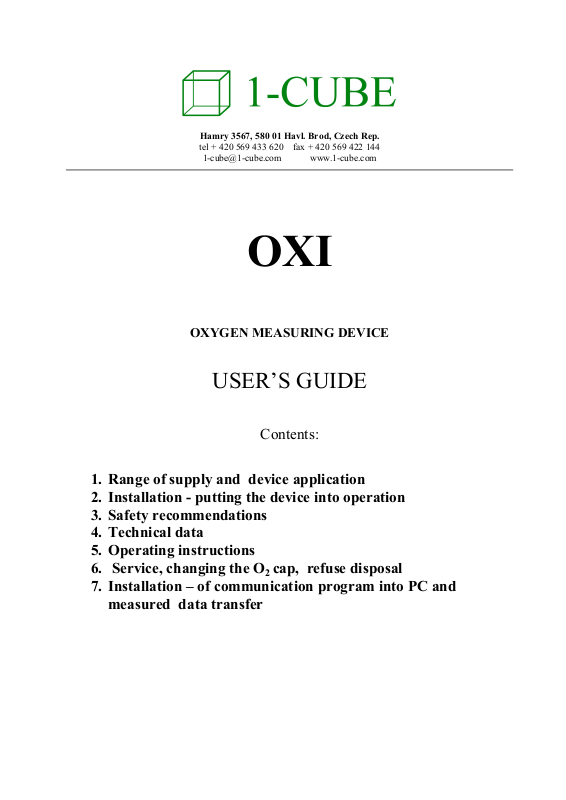

OXI
OXYGEN MEASURING DEVICE
USER’S GUIDE
Contents:
1. Range of supply and device application
2. Installation - putting the device into operation
3. Safety recommendations
4. Technical data
5. Operating instructions
6. Service, changing the O2 cap, refuse disposal
7. Installation –
measured data transfer
1. Range of supply and device application
Standard range of supply:
O2 measuring device type OXI- 1 pc
Connecting hoses lenght 1 m- 2 pcs
Rechargeable adapter 24 V DC/200 mA – 1 pc
Optional accesories:
DVD with SerialWatcher programme to display the measured data in PC- 1pc
cable RS485/USB FTDI USB-RS485-WE-1800-BT for connection to PC - 1 pc
USB-RS485 ModBus Converter- 1 pc
Sampler ICAS1 – for glass bottles and adapter ICAS1- for plastic bottles.
Sampler ICAS2-for sampling of hopped wort from fermenting tank
Adapter for easi and reliable connection of oximeter to the sampling point on the piping (technology)
Reduction for hoses with different diameters
OXI holder
Note: accessories is not part of the supply - only on customer’s demand
Measuring device for measurement of O2 content in beverages and gases especially in beer, soft drinks and wine.
Check the possibility for O2 measurement in other beverages and gases with manfacturer.
It is portable device that can be firmly built-in with the help of the supplied holder.
It is equipped with the internal memory with capacity of 450 measured values. Measured values can be transferred
into PC with the help of RS485/USB adapter and then exported to Excell for further processing. Measurement period
can be easily adjusted.
Note: Adapted only for industrial application
2. Installation - putting the device into operation
2.1 TAKING OF SAMPLES:
The device is ready for measurement at the moment of delivery.
Before the measurement connect the device by fixing of inlet hose with the connection (4) on oximeter (see pic.2) to
the sampling point. In case it is not possible to connect the inlet hose to the sampling point please use the
corresponding reduction – attach the corresponding hose to the reduction to take safely the sample. The inlet hose
(3) must be secured at the sampling point not to fall out during taking of sample.
Connect the reduction (1) with the help of the outlet hose (5) and place it to the drain. Hold the device in a horizontal
position during filling the measuring chamber (see pic.2) – connection (1) is oriented up. Measured liquid goes
through the inlet hoses into the measuring chamber (3) where O2 content is measured with measuring electrode (5).
Then the measured liquid goes out of the chamber through the outlet hose. Adjust the flow rate by control valve (2)
in the way to avoid bubles creation.
2.2 CLEANING OF THE DEVICE:
Connect the device by fixing of inlet hose with the connection (4) on oximeter (see pic.2) to the water cock. In case
it is not possible to connect the inlet hose to the water cock please use the corresponding reduction – attach the
corresponding hose to the reduction. The inlet hose on the water cock (3) must be secured not to fall out during
rinsing. Place the outlet hose into the drain and open the control valve (2). Wash water goes through inlet hose to
the measuring chamber (3) and then it goes out of the chamber through the outlet hose to the drain. Once the
cleaning is over switch off the water cock. Disconnect the device from the water cock and let the water go out from
the measuring chamber.
Clean the external surface with soft flannel moistened with water. After this handling the device is ready for next
measurement.
.
3.0 SAFETY RECOMMENDATIONS
Measuring device of O2 content may be operated only by person who became completely acquainted with its
function within the framework of the training, or who became thoroughly acquainted with the user’s guide of this
device.
Measuring device OXI can be used only for determination of O2 content in the range of measured values determined
by technical conditions. Never connect the measuring device to the withdrawal spots where measured parameters are
over measuring capacity of the device.
Check device before each measurement. Do not use visibly damaged device and contact the qualified service
personnel who provides service for delivered device.
Warning! It is forbidden to use the device for pressure higher than 600 kPa and for temperature higher than +80
degrees Celsius. It could cause device destruction and staff injury.
4.0 TECHNICAL DATA
Measuring range: 10 ppb to 10 000 ppb
O2 Detection line: 3 ppb
Measuring range: - 10 to 80 degrees Celsius (temperature of measured sample)
Working pressure: 0,5 to + 6 bar
Protection: IP 54 (with threaded cover of connector)
Interface : RS485-USB
Dimensions : 310x170x100 mm (LxWxH mm)
Weight : 2 kg
5.0 OPERATING INSTRUCTIONS
5.1.1 TAKING OF SAMPLES:
Measuring device for measurement of O2 content in beverages and gases especially in beer, wine, soft drinks,
saturated and non-saturated beverages in cylindro-conical fermenters, tanks, at-line, KEG casks, glass and plastic
bottles etc.
Check the possibility for O2 measurement in other beverages and gases with manfacturer.
Check device before each measurement. Do not use visibly damaged device.
Notice! Remove sludge from the sampling point before connecting the device. Remove sludge of the sedimented
yeast to fill inside the chamber only beer without sedimented yeast!!!!
Before the measurement connect the device by fixing of inlet hose with the connection (4) on oximeter (see pic.2) to
the sampling point. In case it is not possible to connect the inlet hose to the sampling point please use the
corresponding reduction – attach the corresponding hose to the reduction to take safely the sample. The inlet hose
(3) must be secured at the sampling point not to fall out during taking of sample.
Connect the reduction (1) with the help of the outlet hose and place it to the drain. Hold the device in a horizontal
position during filling the measuring chamber (see pic.2) – connection (1) is oriented up. Measured liquid goes
through inlet hoses to the measuring chamber (3) where O2 content is measured with measuring electrode (5). Then
the measured liquid goes out of the chamber through the outlet hose. Adjust the flow rate by control valve (2) in the
way to avoid bubles creation.
Further follow the procedure described in 5.2.3. Measurement of O2 content
Use sampler ICAS2 to take sample of hopped wort from the fermenting tank. Slide the sampler ICAS 2 on
oximeter body and connect the supplied short hose into the reduction (1) on oximeter (see pic. 3). Dip the free
side of the supplied hose leading into the reduction (4) of oximeter into the hopped wort and suck it into the
measuring chamber using the syringe (supplied with ICAS2).
Further follow the procedure described in 5.2.3. Measurement of O2 content
5.1.2 CLEANING OF THE DEVICE:
Connect the device by fixing of inlet hose with the connection (4) on oximeter (see pic.2) to the water cock. In case
it is not possible to connect the inlet hose to the water cock please use the corresponding reduction – attach the
corresponding hose to the reduction. The inlet hose on the water cock (3) must be secured not to fall out during
rinsing. Place the outlet hose into the drain and open the control valve (2). Wash water goes through inlet hose to
the measuring chamber (3) and then it goes out of the chamber through the outlet hose to the drain. Once the
cleaning is over switch off the water cock. Disconnect the device from the water cock and let the water go out from
the measuring chamber.
Clean the external surface with soft flannel moistened with water. After this handling the device is ready for next
measurement.
5.2 CONTROL OF THE ELECTRONICS
The device (i.e. switch-on, shutdown, measurement, saving of the measured sample in the memory) is controlled
with the help of the membrane keyboard and the device display.
Pic. 1 Keyboard with display
key key key key key key ENTER Display
mínus - plus + rotation OFF ON
5.2.1 SWITCH-ON AND SHUTDOWN OF THE DEVICE
Press the key ON– to switch on the device. Press the key OFF – to switch off the device (hold the key untill the the
device is switched off)
The device is automatically switched of after particular time of standstill of device – the text: „ENT.mer.“
is displayed .
5.2.2 CHARGING OF THE DEVICE
Fixed type of the device (without battery) has to be permanently connected to the network trough the adapter 24
V DC/200 mA, which is connected with oximeter.
The information below is valid only for the portable type of oximeter supplied with the rechargeable batteries.
If the battery voltage is under 16,5 V low then after the switch-on the device the text „Recharge battery“ appears
on the display for a second. It is possible to work with the device for another 30 minutes. If the device is not
recharged during this time then the text „Low voltage“ appears on the display and the device is shut down.
If you want to monitor how the battery is charged while working with the device (when it doesn’t measure O2) – then
press the rotation key - the text „battery)“ appears on the first line of display and current voltage on the second
line of display. Unscrew the connector cover and put the opposite connector of the adaptor in to charge the device.
Warning: wach the right orientation (bump in the adapter connector into the adapter slot. Boss and slot are
marked with coloured dot). Adaptor can be plugged in el. socket 230V, 50Hz now. During charging of the device
the led BAT is shining.
Notice: In case the connectors will not be put in the right way they will be damaged. This type of damage is
not accepted by manufacturer under warranty.
The device can be charged only by the supplied adaptor (output voltage of adapter is 24 V DC/200 mA). Average
charging takes about 8 hrs. I n case of need the period can be shortened but the running period and the accumulator
life-time will be shortened too. Once the charging of the device is over unplug the adaptor and the opposite
connector of the adaptor from the connector on the device. At the end screw fully the connector cover on the device.
5.2.3 O2 CONTENT MEASUREMENT
Follow the paragraphs 5.1.1. then further:
1) Press the key ON to switch on the device. The text „1-CUBE“ with the program version appears on the display for
a moment. Then the following text appears: „ENT.meas.“
„+ view.“
2) Press the key ENTER. The already measured value of O2 appears on the display - on the first line in ppb,
on the second line in ppm for example: „ppb 1253“
„ppm 1,253“
The displayed values are saved in ppb units.
Press the key ENTER to finish the measurement, the text: „ENT.meas.“
„+ view.“
And the device is ready for next measurement
5.2.4 SCANNING MEMORY OF THE MEASURED VALUES O
The measured values of O2 are saved in the device memory even after its shutdown. The capacity of memory is 450
of measured values.
1) Press the key ON to switch on the device. The text „1-CUBE“ with the program version appears on the display for
a moment. Then the following text appears„ENT.meas.“
„+ view.“
2) Press the key plus (+).There is text „memory“ on the first line and the measured values of O2 in ppb appear
one by one from the oldest value to the newest ones on the second line. After the last saved value the numbers start
to appear 65535 (free capacity of the memory). Press the key ENTER to stop scanning memory Then the
following text appears„ENT.meas.“
„+ view.“
Notice. Once there is the full storage, the memory will be automatically deleted.
Then the following text appears:
„memory“
„deleting“
And all the saved values are overwritten with number 65535 (free capacity of the memory).
2
5.2.5 DELETING OF O2 MEASURED VALUES FROM MEMORY
The measured values can be deleted from memory any time. The memory capacity will be completely recovered
(450 values) and newly measured values will be saved in sequence from beginning of the memory.
1) Press the key ON to switch on the device. The text „1-CUBE“ with the program version appears on the display for
a moment. Then the following text appears: „ENT.meas.“
„+ view.“
2) Press the key mínus (-).Then the following text appears „memory“
And all the saved values are overwritten with number 65535 (free capacity of the memory).
„deleting“

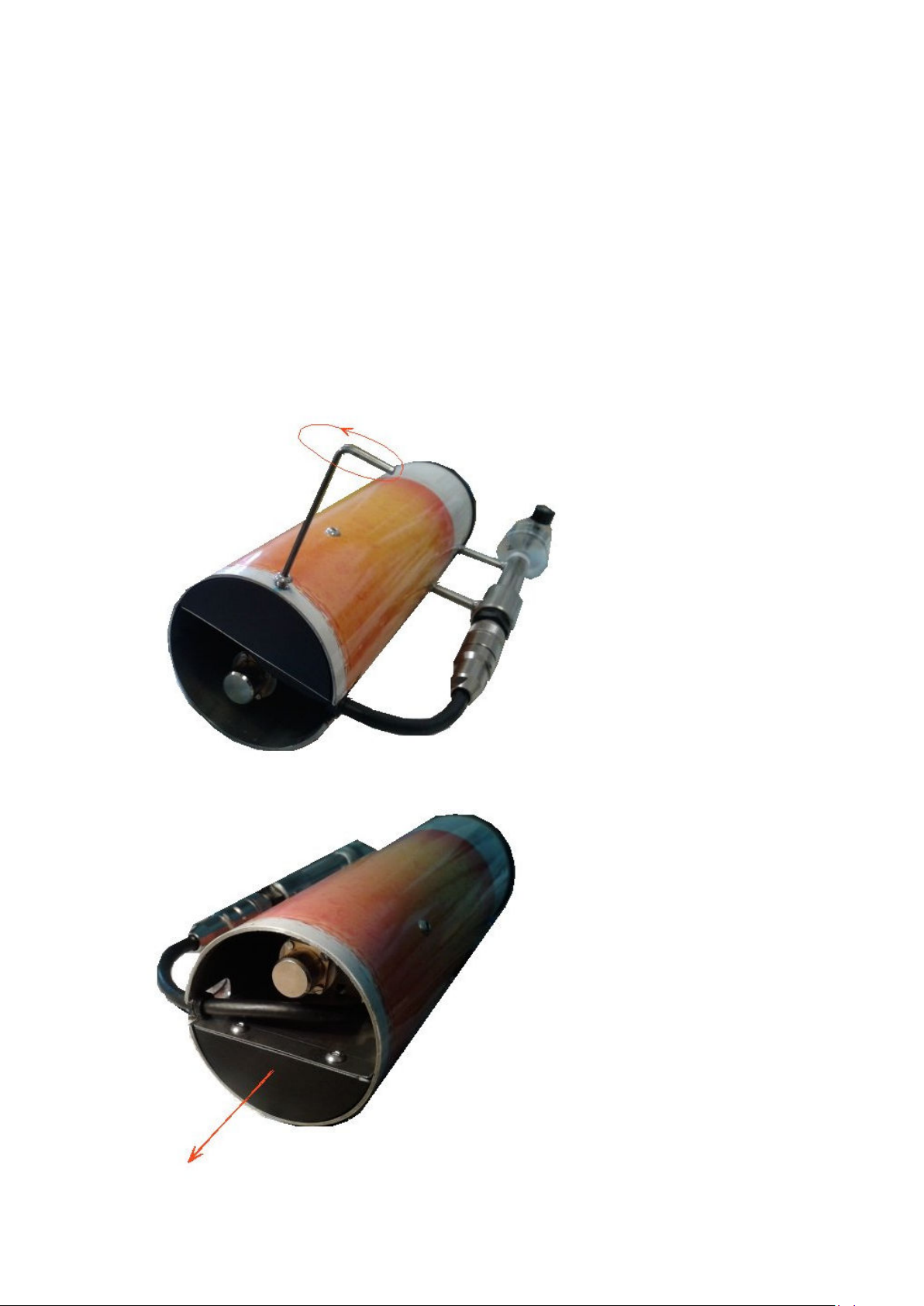

5.2.6 REPLACEMENT OF BATTERIES
1)
unscrew as shown below
2)

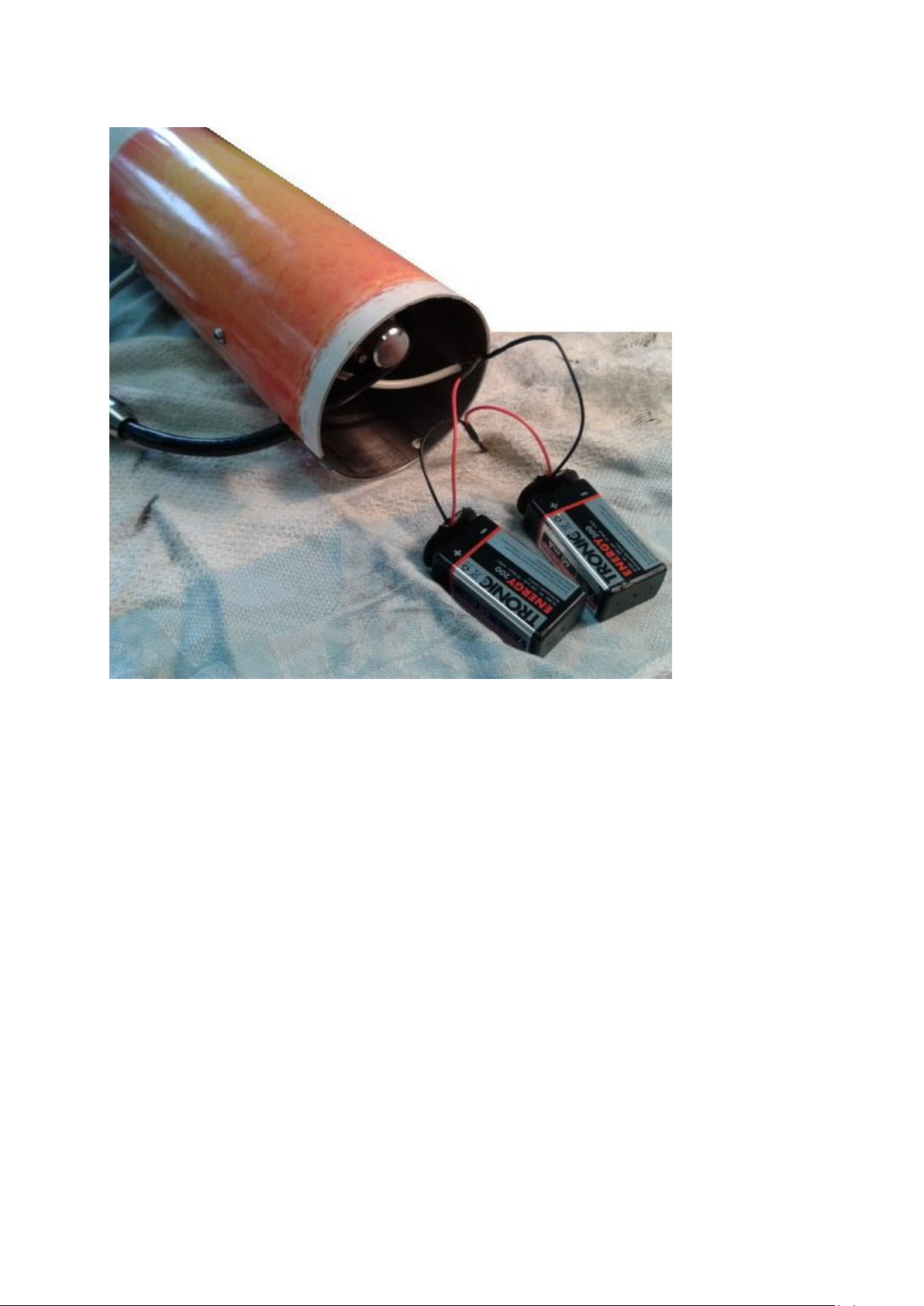

Pull the element out and replace batteries as shown below
3)
Replace batteries as shown below
6.0 SERVICE
For service contact the manufacturer: 1-CUBE, Hamry 3567, 580 01 Havl.Brod, Czech Rep.
tel. 00 420- 569 433 620
fax.00 420-569 422 144
1-cube@1-cube.com
At the end of the apparatus life we recommend to follow the Waste Act.
The electronic parts has to be destroyed separately by a company dealing with electronic waste disposal.Take the
metallic parts made of iron, brass, plastic elements and packing material to the separated collection as a secondary
raw material. You can also order the apparatus liquidation at the above mentioned company.

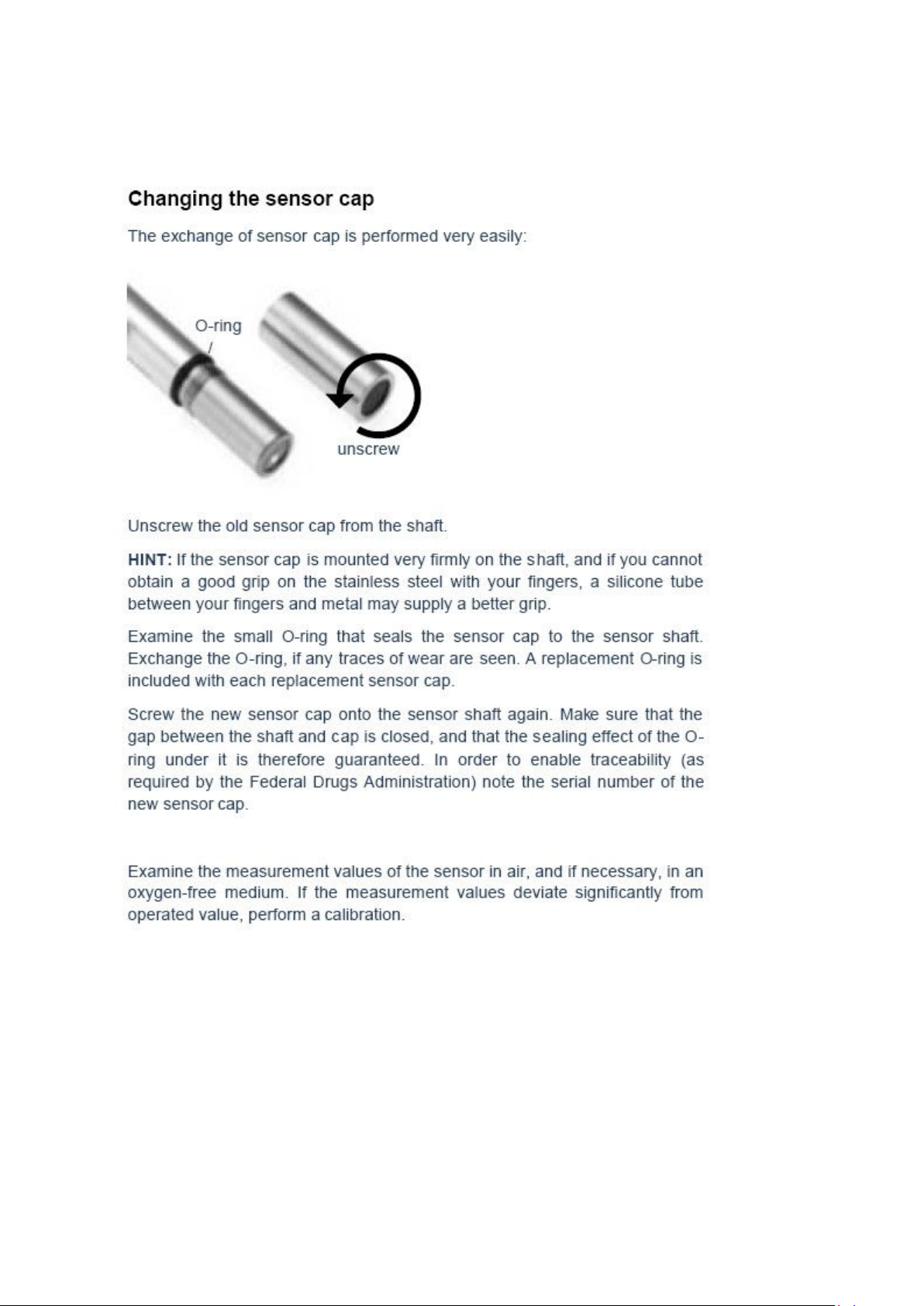

6.1 CHANGING THE O2-SENSOR CAP
Loosen the connector (7) and unscrew O2cap (5) from the measuring chamber (3) (see pic. 2).
/

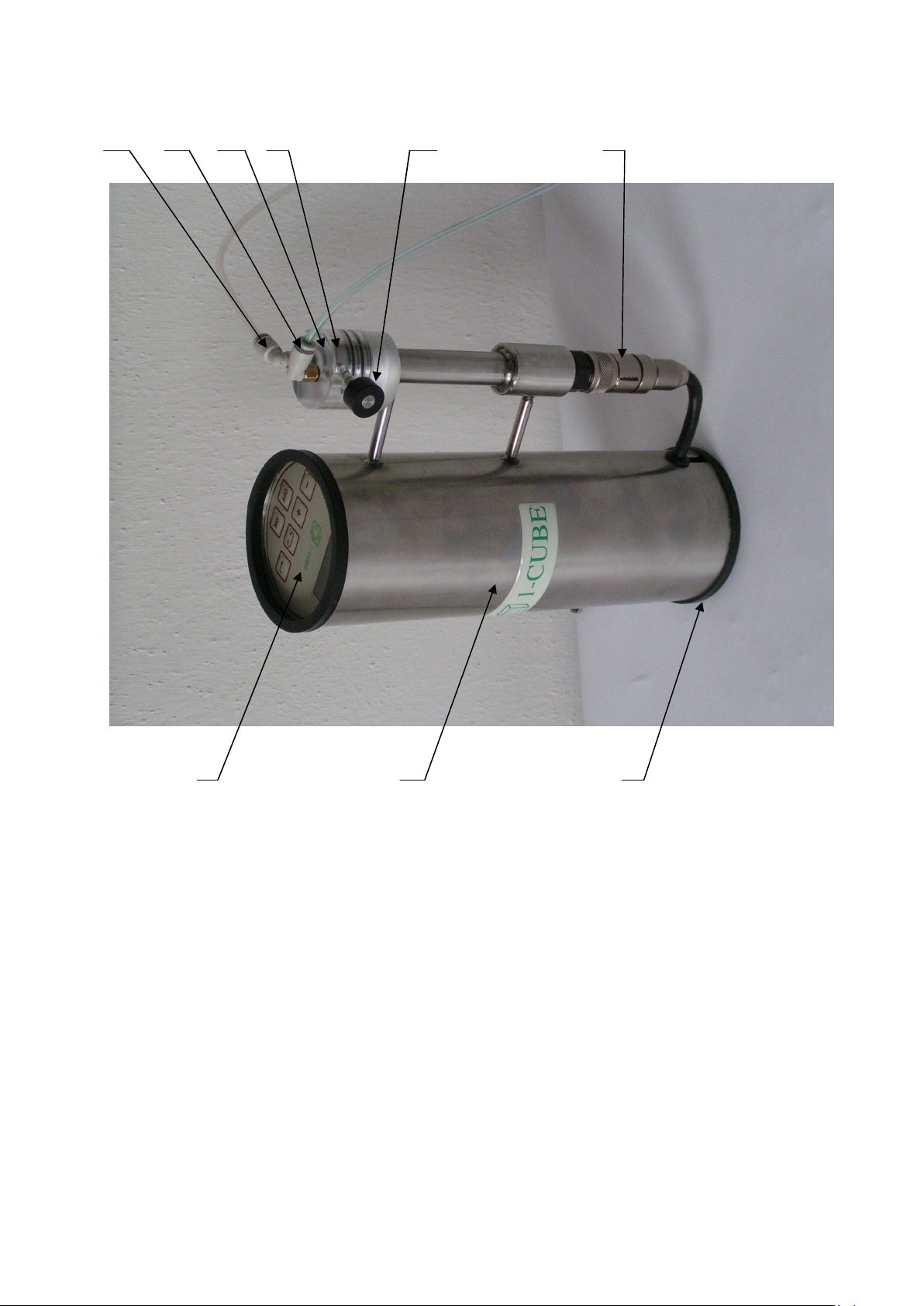

Pic. 2 Oximeter set
4 1 3 5 2 7
6 8 9
Legend: 1. Outlet hose reduction 2. Control valve 3. Measuring chamber
4. Intlet hose reduction 5. O2-Electrode
6. Keyboard with display see pic. 1 7. O2-Electrode Connector
8. Oximeter body with microcomputer 9. Connector input see pic. 4

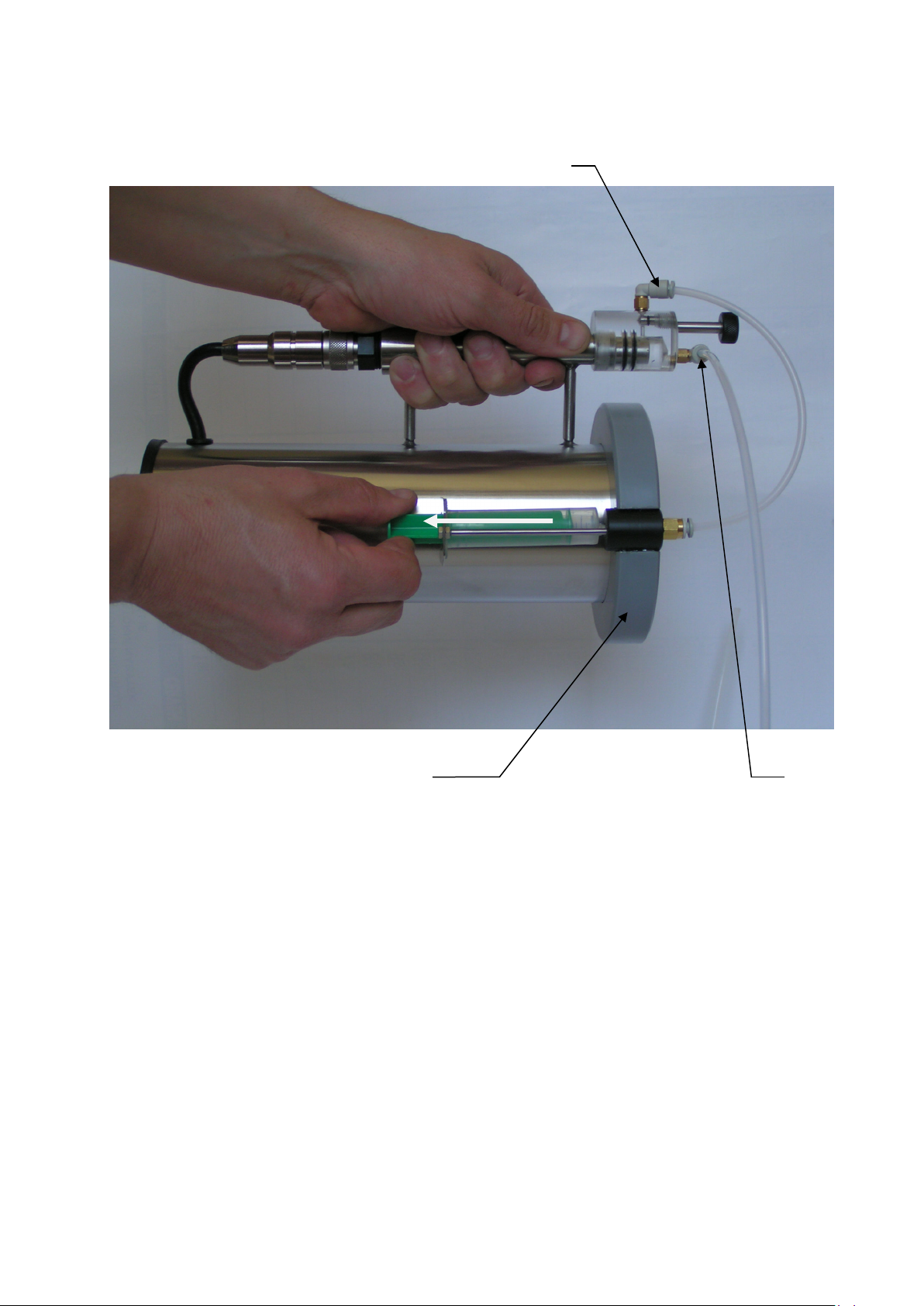

Pic. 3 Set – Oxi hopped wort measurement
1
ICAS 2 4
Legend: 1. Outlet hose reduction
4. Intlet hose reduction

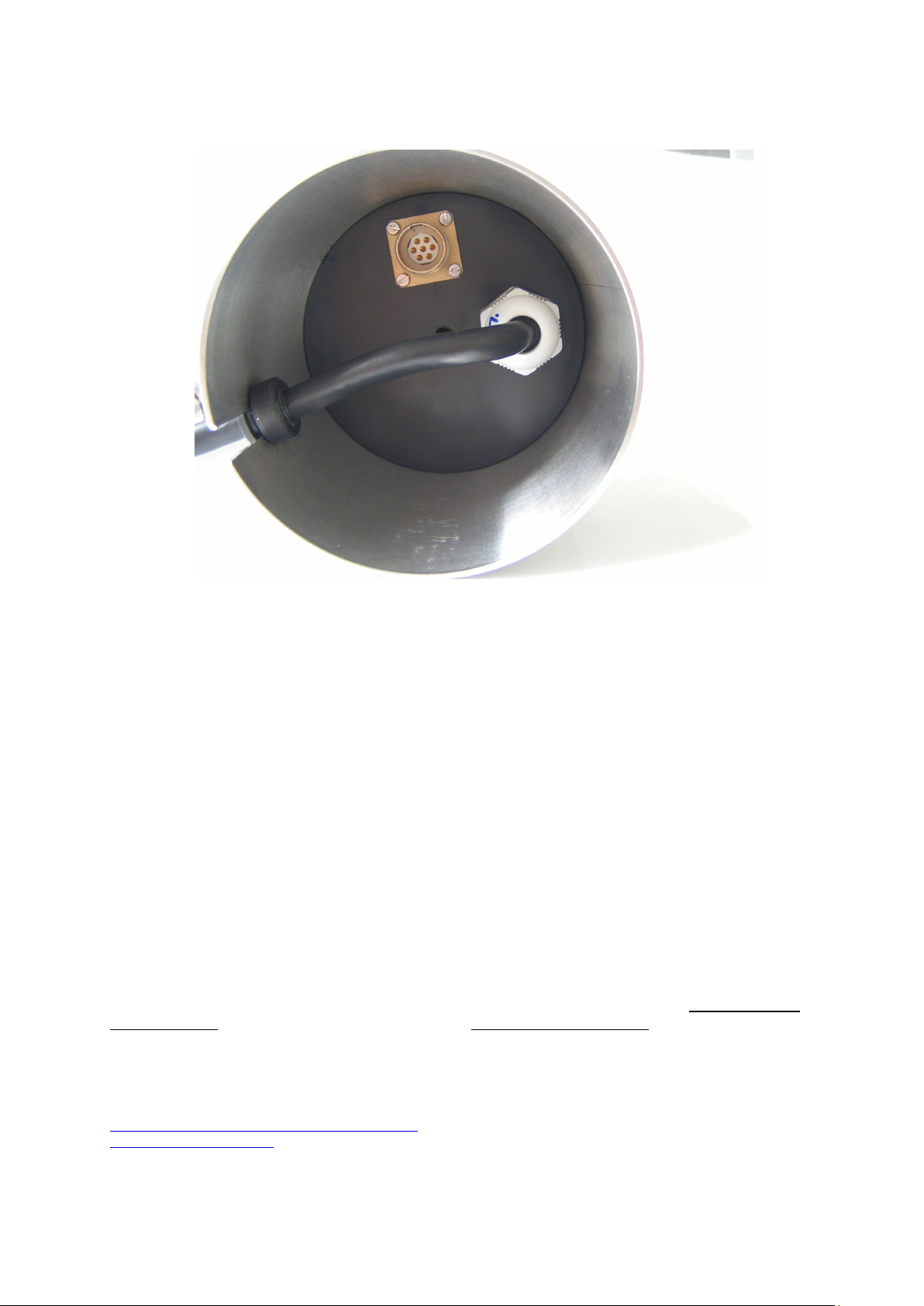

Pic. 4 Connector input for connection of the charging adapter and the measured data
transfer into PC
6.2 O
OXI COMFORT TYPE)
Possibility of data transfer through comunnicating cable into PC. Before the first data transfer from the device into
PC, install program SerialWatcher from our supplied CD.
1) Connect the shut-off device OXI comfort with the help of cable FTDI USB-RS485-WE-1800-BT (supplied
with the device OXI comfort) with USB port of your PC.
2) Run the program SerialWatcher in your PC and set the corresponding COM port (f.e..COM 5), speed of transfer
9600 and Display ASCII.
3) Press the key ON to switch on the device OXI comfort . The text „1-CUBE“ with the program version appears on
the display for a moment. Then the following text appears: „memory“
4) Press the key plus (+).There is text „memory“ on the first line and the measured O2 values appear one by one
from the oldest to the newest ones on the second line.
At the same time these values are displayed in SerialWatcher program Windows in column one by one from the
oldest value to the newest ones. These values can be saved as file txt under any chosen name.
Notice. The measured values are displayed in ppb in SerialWatcher program.
6.3 Calibration
The device is calibrated at 2 points (0ppb and air). Calibration is run from PC with program Hamilton Device
Manager 1.0.0.. The program can be uploaded for free at www.hamiltoncompany.com. It is necessary to have
connector USB-RS485 ModBus Converter.
MEASURED VALUES TRANSFER FROM THE MEMORY INTO PC (ONLY
2
„view“
User’s Guide - Movie Links:
http://www.youtube.com/watch?v=1tLYJnsVIDw
http://youtu.be/I6Vy4xH4ZDQ
Loading...
