Caution : You must read this before you proceed
TABLE
CAUTION : This Table is NOT a TOY.
Keep your child / children at bay during the assembly process.
For moving the Table and to prevent damage to the Table, two adults are
needed to execute this action.

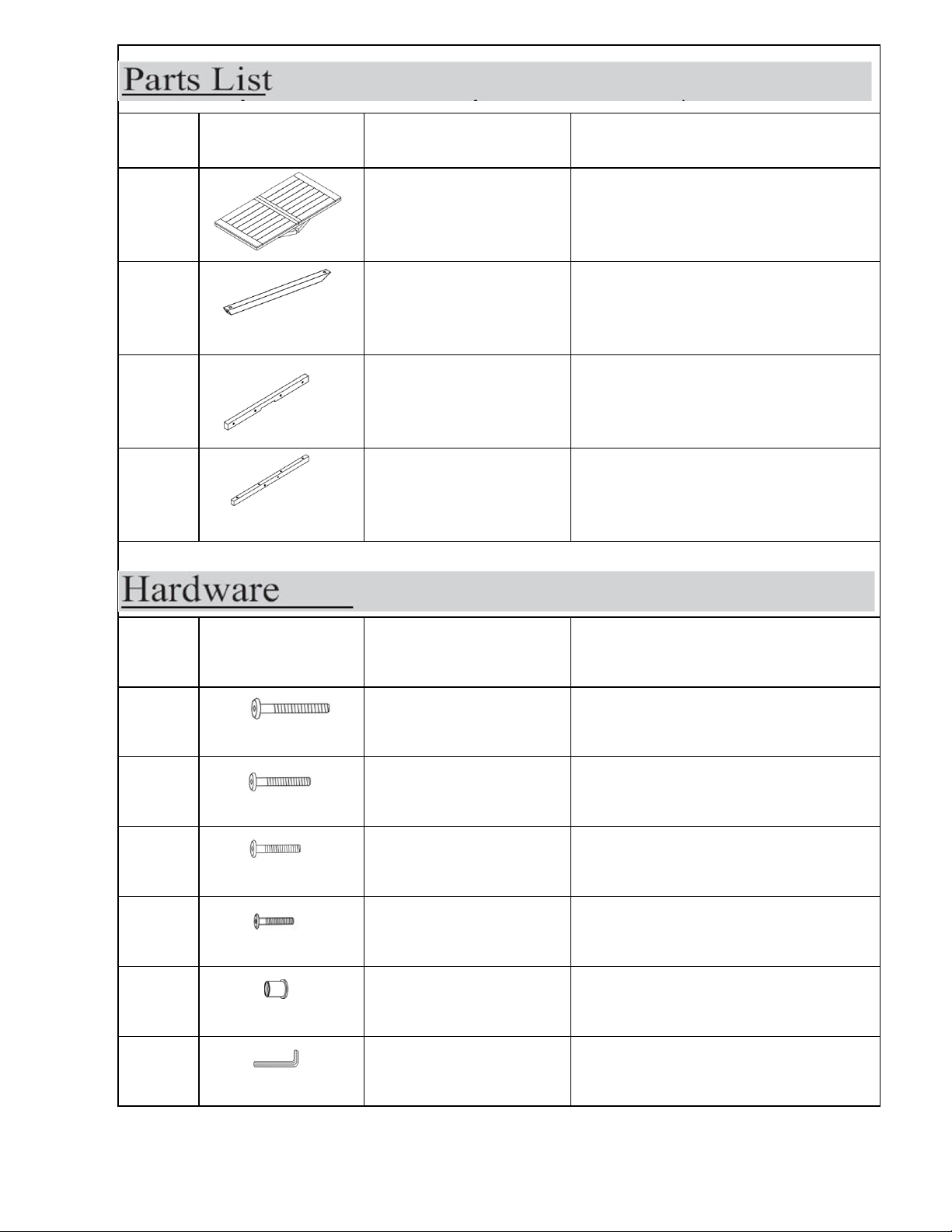

Label Picture Description QTY
A Table 1
B Leg Support Bar 2
C Middle Support Bar 1
D Side Support Bar 2
Label Picture Description QTY
①
②
③
④
Long Bolt (M6x50mm) 13
Medium Bolt 1
(M6x45mm)
Medium Bolt 2
(M6x40mm)
Short Bolt (M6x30mm) 5
Sleeve Nut (6x13mm) 11
Allen Key 2
7
5
Before Beginning Assembly:
OVERVIEW
Table
FRONT FACING
Leg Support Bar
This Table has multiple parts and may require up to some 30 minutes to assemble. To give
you an overview of the Table parts, the above picture is to help you put the various parts into
perspective. Please read through the instructions below to familiarise yourself with the parts
and steps before assembly.

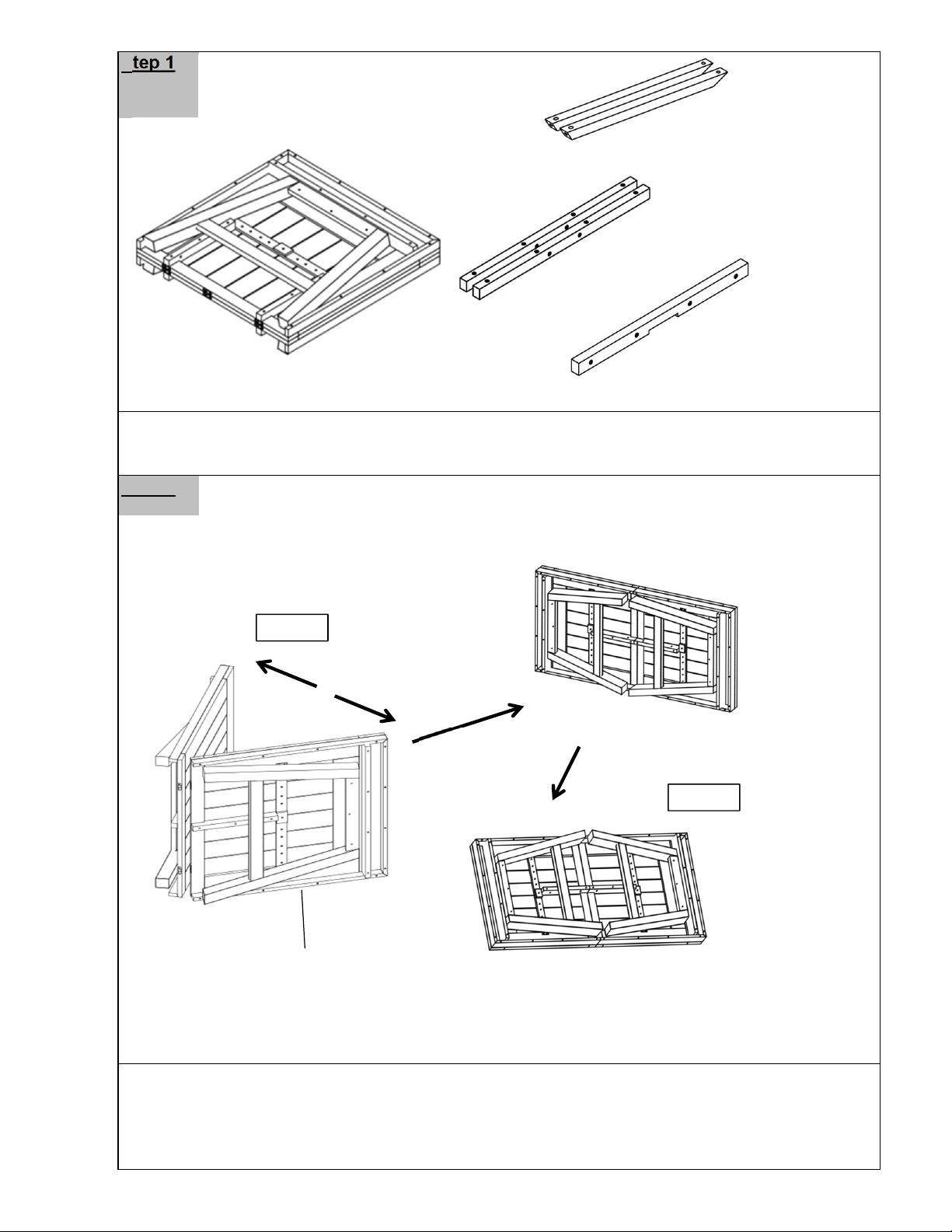

Step 1
Unpack and place all parts on a clean, non-marring surface.
Step 2
Step 2.1
Step 2.2
A
2.1) With the assistance of an adult helper, unfold the Table(A) as shown.
Note: When unfolding the Table(A), you must hold the Legs against the Table(A)
2.2) Then lay the Table(A) facedown onto a clean, flat surface to avoid any scratches or
damage to the product.
Step 3
o
Step 3.2
n
Step 3.1
o
k
3.1) Lift legs upwards and outwards until they are flush with the base of the Table, as shown
in the above picture.
3.2) Insert 3 Medium Bolts 1 (k) and Sleeve nut (n) through the mounting position of the
Legs and affix the Legs using Allen Key(o)
Only loosely tighten the Bolts.
Repeat the same process with the other Legs.

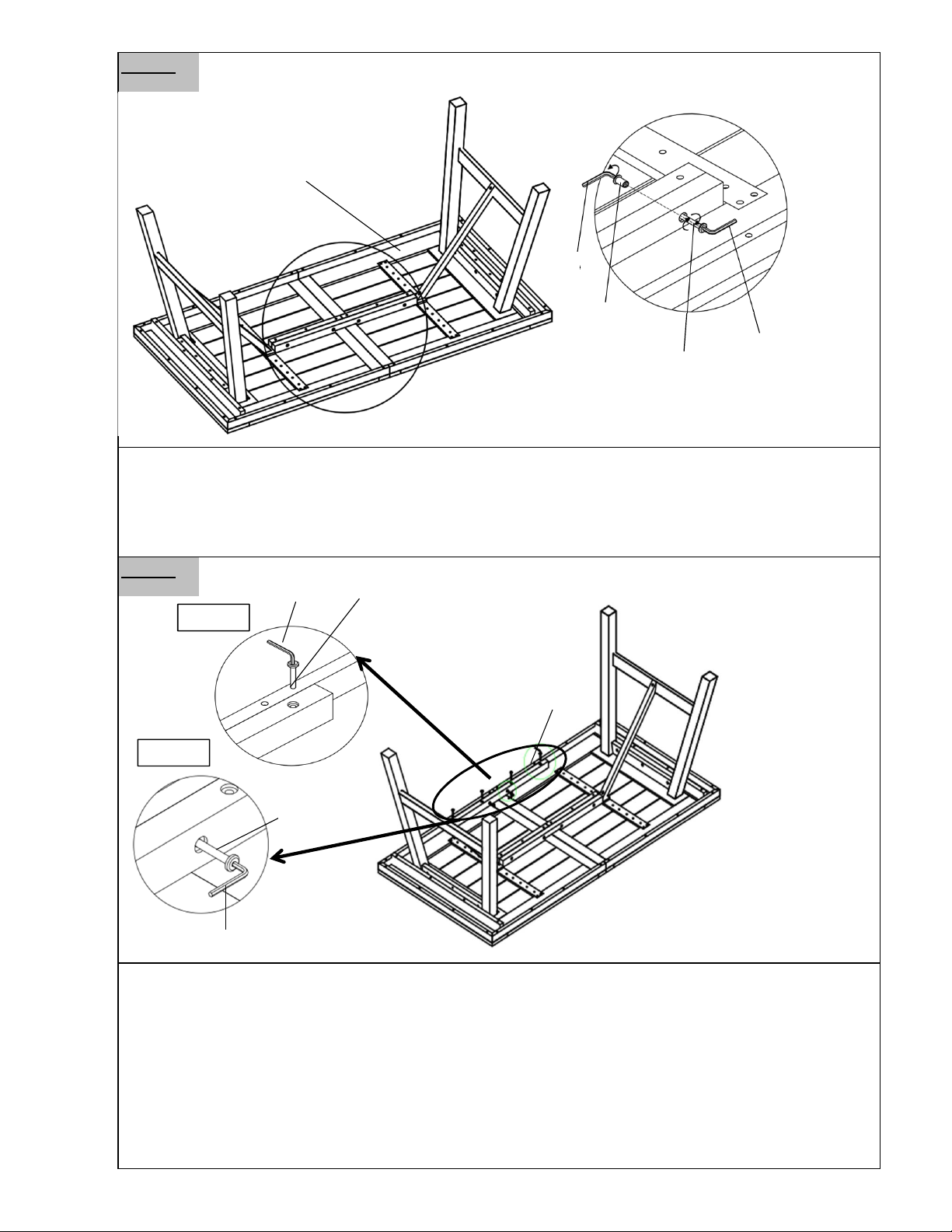

Step 4
Step 4.1
B
m
o
Step 4.2
A
m
Position Leg Support Bar(B) as shown in picture above.
4.1) Secure Leg Support Bar(B) to Legs using Short Bolt(m) with Allen Key(o).
4.2) Secure Leg Support Bar(B) and Table(A) using Short Bolt(m) with Allen Key(o).
Only loosely tighten the Bolts.
Repeat the same process with the other Leg Support Bar(B).
o
Step 5
o
o
l
o
C
n
j
Position Middle Support Bar(C) as shown in picture above.
Insert 4 Long Bolts(j) and Sleeve nut (n) through the mounting positions and affix the
Middle Support Bar(C) to Table(A) using the Allen Key (o)
Only loosely tighten the Bolts.
Step 6
o
Step 6.1
Step 6.2
Position Side Support Bar(D) as shown in picture above.
6.1) Insert 4 Long Bolts(①) through the vertical mounting positions of the Side Support
Bar(D) and affix using Allen Key(o)
6.2) Insert 2 Medium Bolts 2 (l) through the horizontal mounting positions of the Support
Bar(D) and affix using Allen Key(o)
Only loosely tighten the Bolts.
Repeat the same process with the other Side Support Bar(D).
Now, in a sequential manner, tighten all Bolts at all joints.
j
D
Step 7
Stand the Table right side up.
Your Table is ready for use.
This Table can only be used on a flat, level surface.
