Caution : You must read this before you proceed
BENCH
CAUTION : This Bench is NOT a TOY.
Keep your child / children at bay during the assembly process.
For moving the Bench and to prevent damage to the Chair, two adults may be needed to
execute this action.
1
Label Picture Description QTY
A Bench seat with legs 1
B Leg Support Bar 2
Label Picture Description QTY
①
Long Bolt (M6x45mm) 5
②
Short Bolt
(M6x30mm)
5
③
Allen Key 2
④
Sleeve Nut (6x13mm) 5
Before Beginning Assembly:
2
Step 1

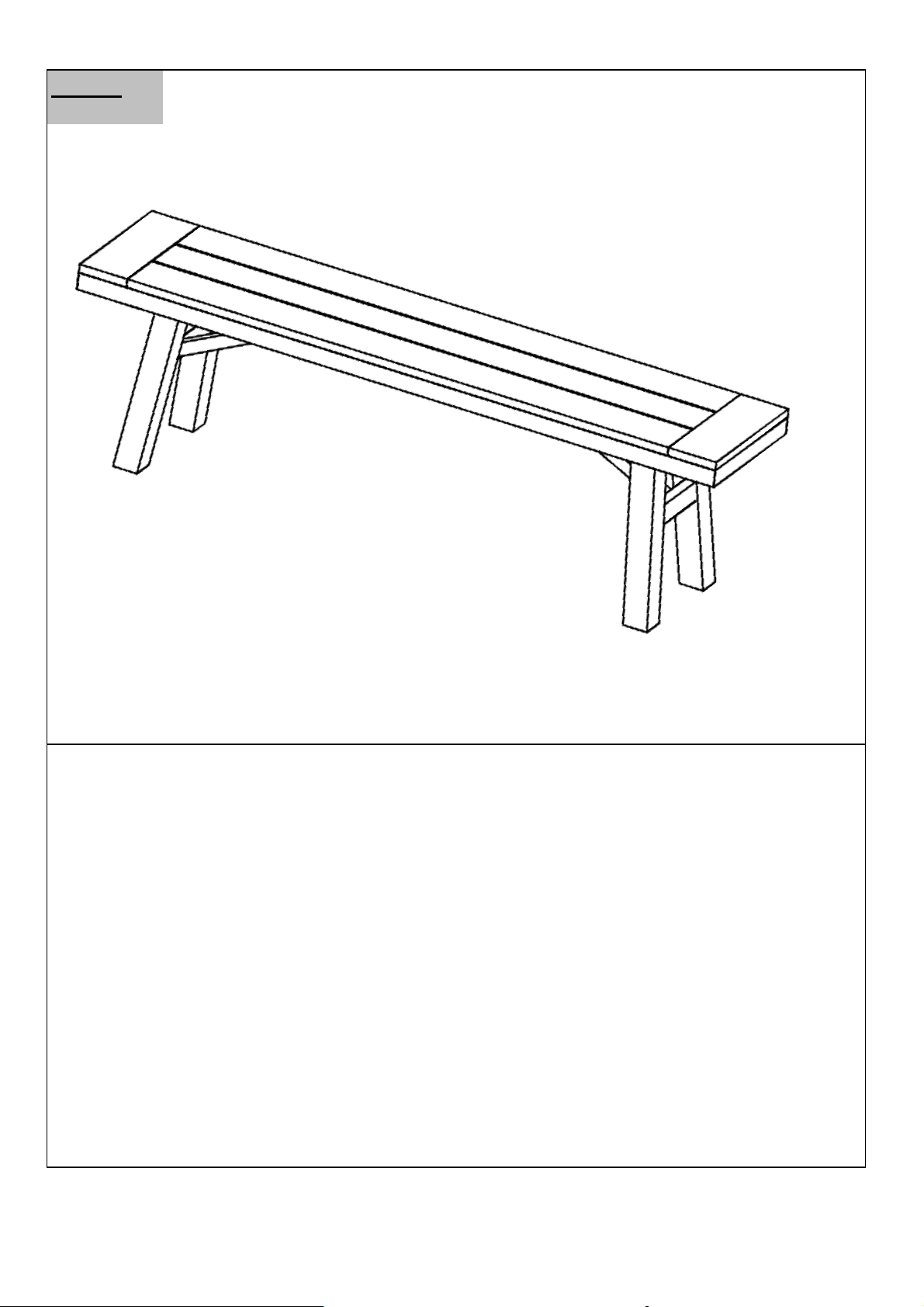

OVERVIEW
This Bench has multiple parts and may require up to some 30 minutes to
assemble. To give you an overview of the Bench parts, the above picture is
to help you put the various parts into perspective. Please read through the
instructions below to familiarise youself with the parts and steps before
assembly.
Unpack and place all parts on a clean, non-marring surface.
Bench Seat With Legs (A)
Leg Support Bar (B)
FRONT
Leg
3
Step 2
Step 3
Place the Bench (A) facedown, onto a clean, soft surface to avoid any scratches or
damage to the product.
2.1) Lift legs upwards and outwards until the braces are flush with the base of the
Bench, as shown in the above picture.
2.2) Insert 2 Long Bolts(①) and Sleeve Nut (m) through the mounting position of the
Leg using the Allen Key(③)
Only loosely tighten the Bolts.
Repeat the same process with the other Leg.
Position Leg Support Bar(B) as shown in picture above.
3.1) Secure Leg Support Bar(B) to Leg Connector using Short Bolt(②) with Allen
Key(③).
3.2) Secure Leg Support Bar(B) to Bench(A) using Short Bolt(②) with Allen Key(③).
Only loosely tighten the Bolts.
Repeat the same process with the other Leg Support Bar(B).
③
①
③
①
②
③
Step 3.1
②
③
Step 3.2
A
A
B
Step 2.1
Step 2.2
③
4
Step 4
Stand the Bench right side up.
Gently, sit into to the Bench. This would help to align all parts at all
joints and to protect wobble issue.
Then get off the Bench, in a sequential manner, tighten all Bolts until
fully locked into position.
Your Bench is ready for use.
This Bench can only be used on a flat, level surface.
