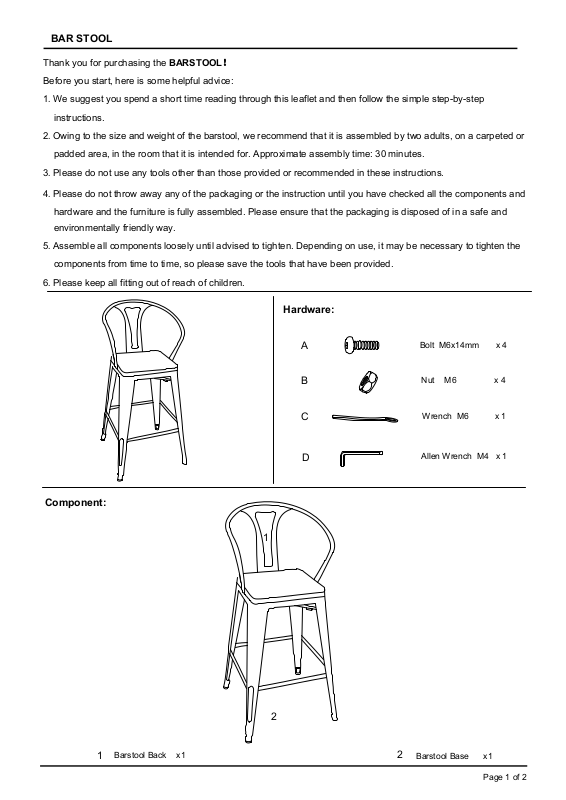

BAR STOOL
k you for purchasing the
Than
BARSTOOL！
Before you st
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the barstool, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all fitting out of reach of children.
art, here is some helpful advice:
Hardw
A
are:
Bolt M6x14mm
x 4
Component:
1
B
C
D
Nut M6
Wrench M6
Allen Wrench M4 x
x 4
x 1
1
Barstool Back
1
2
x1
Page 1 of 2
2
Barstool Base x
1
Page 2
RSTOOL
BA
STEP 1:
Put Ba
rstool Base (2) on a carpeted or padded area.
Attach Barstool Base (2) to Barstool Back (1) by using 4 pieces of
Bolt (A) and 4 pieces of Nut (B) as shown.
Use Wrench (C) and Allen Wrench (D) to tighten the Bolts (A) and Nut (B) until secure.
1
A
1
A
B
C
2
D
A
A
B
B
D
A
B
C
STEP 2:
Carefully
Ax4 Bx4
put the assembled barstool to the place you desired.
Cx1
Dx1
Hardware & Tool required
mbly is complete. Your barstool is ready to be used now!
Asse
Page 2 of 2
