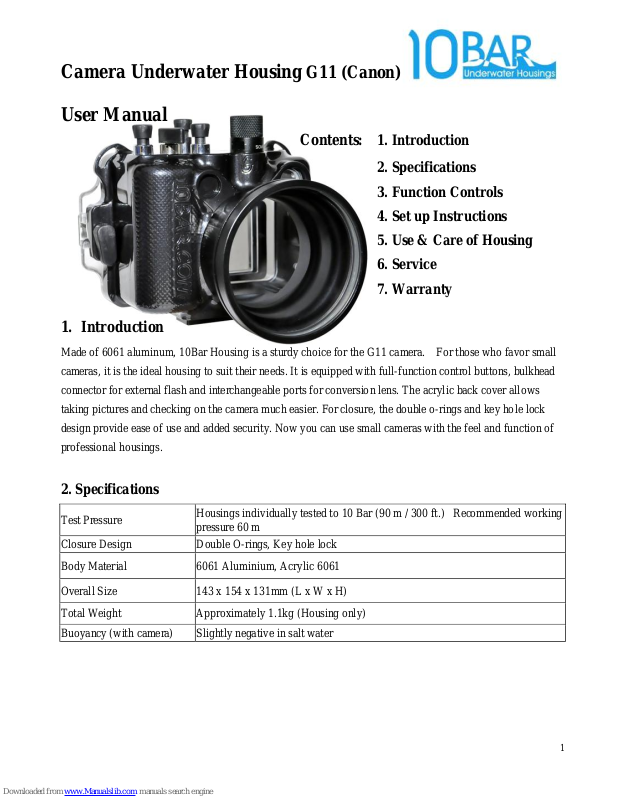

Camera Underwater Housing G11 (Canon)
User Manual
Contents: 1. Introduction
2. Specifications
3. Function Controls
4. Set up Instructions
5. Use & Care of Housing
6. Service
7. Warranty
1. Introduction
Made of 6061 aluminum, 10Bar Housing is a sturdy choice for the G11 camera. For those who favor small
cameras, it is the ideal housing to suit their needs. It is equipped with full-function control buttons, bulkhead
connector for external flash and interchangeable ports for conversion lens. The acrylic back cover allows
taking pictures and checking on the camera much easier. For closure, the double o-rings and key hole lock
design provide ease of use and added security. Now you can use small cameras with the feel and function of
professional housings.
2. Specifications
Test Pressure
Housings individually tested to 10 Bar (90 m / 300 ft.) Recommended working
pressure 60 m
Closure Design Double O-rings, Key hole lock
Body Material 6061 Aluminium, Acrylic 6061
Overall Size 143 x 154 x 131mm (L x W x H)
Total Weight Approximately 1.1kg (Housing only)
Buoyancy (with camera) Slightly negative in salt water
2
Accessories
Spare main O-rings ( included)
Silicone O-ring grease ( included)
Carrying bag ( included)
Red filter (optional)
Extension arm for strobe or video light (optional)
Macro and Wide Angle lens (optional)
Dome port and extension adaptor (optional)
Housing for 580EXII Flash (optional)
3. Function Controls
3.1 Buttons & Parts
(1) EXPOSURE COMPENSATION DIAL
(2) BULKHEAD
(3) MODE DIAL
(4) ISO SPEED DIAL
(5) ZOOM
(6) SHUTTER
(7) POWER ON/OFF
(8) (SHORTCUT) / (PRINT / SHARE)
(9) PLAYBACK
(10) (AE LOCK/FE LOCK) / (MICROPHONE) BUTTON /
(METERING LIGHT) / (JUMP) BUTTON /
(AF FRAME SELECTOR) / (SINGLE IMAGE ERASE) BUTTON
(11) FUNCTION. SET
(12) 4 WAY BUTTON
(13) CONTROL DIAL
(14) DISPLAY / MENU
3
(15) & (16) KEY HOLE LOCK
(17) HOUSING LID
3.2 Control Details
(1) EXPOSURE COMPENSATION DIAL - press down and turn to adjust the exposure compensation
(2) BULKHEAD – for connecting sync cord, unscrew the blank plug and install the sync cord. Always keep
the blank plug in place if sync cord is not installed.
(3) MODE DIAL - press down and turn to activate the required mode.
(4) ISO SPEED DIAL - press down and turn to adjust the ISO value.
(5) ZOOM - press to activate the zoom function
(6) SHUTTER - press to activate the shutter
(7) ON / OFF - align the white dot towards the lid, press and turn to on or off.
(8) (SHORTCUT) / (PRINT / SHARE) - press down to activate the function.
(9) PLAYBACK - press to activate.
(10) (AE LOCK/FE LOCK) / (MICROPHONE) BUTTON，(METERING LIGHT) / (JUMP)
BUTTON，(AF FRAME SELECTOR) / (SINGLE IMAGE ERASE) BUTTON - rotate until the white dot
is over the required button and press to activate.
(11) FUNCTION. SET- rotate until the white dot align and press.
(12) 4-Way BUTTON - rotate until the white dot align and press, when not in use rotate the white dot until
pointing downward to facilitate the ‘Function Set’ to be activated.
(13) CONTROL DIAL – Using the control Dial.
(14) DISPLAY / MENU - rotate until the white dot align and press.

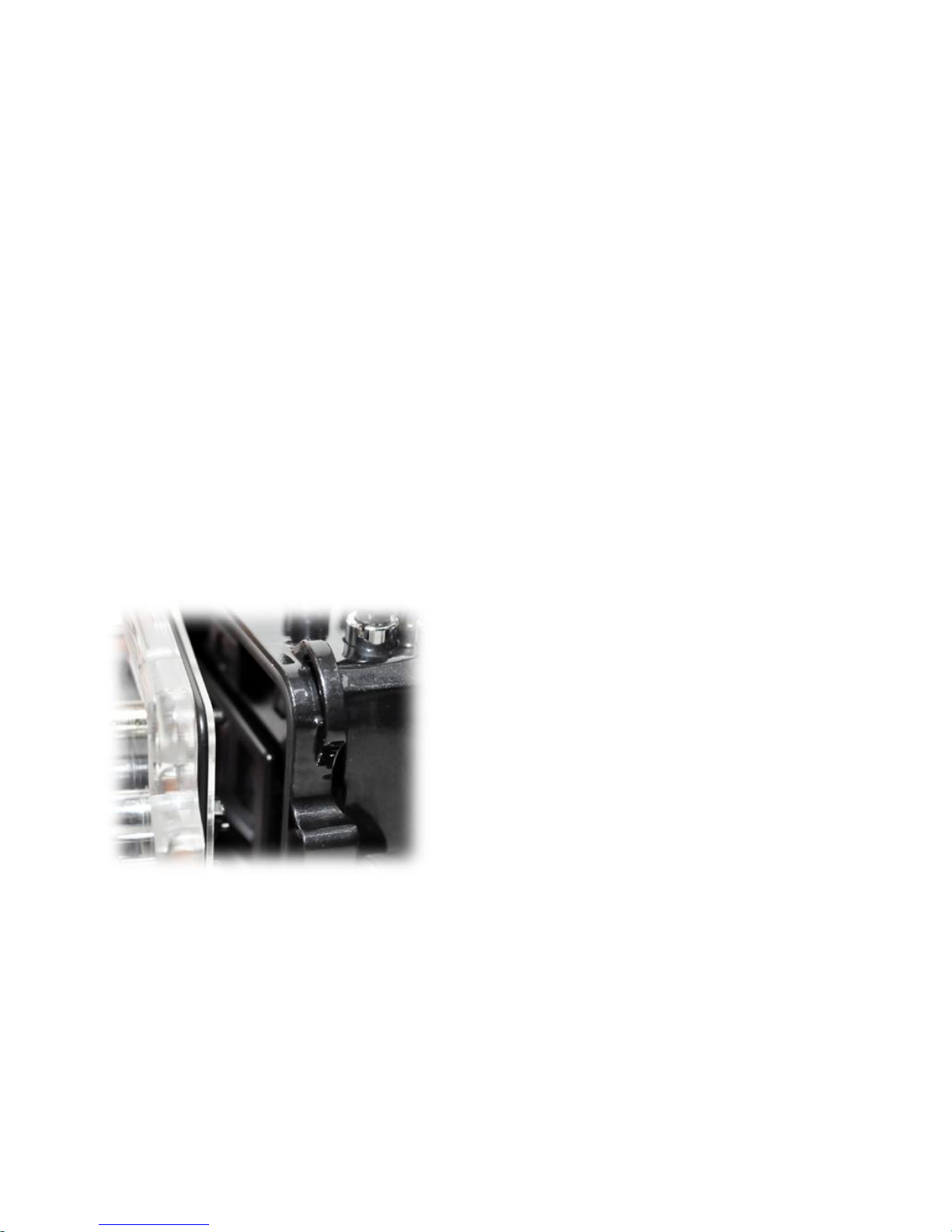

(15) & (16) KEY HOLE LOCK – press down and turn to lock and unlock
(17) HOUSING LID - monitor display
For the full list of camera functions and settings accessed by each control, please consult the Canon G11
camera instruction manual.
