FX710BGS
FX510BGS
NX583G0VBSR
NX583G0VBBB
NX583G0VBWW
Free-Standing Gas
Range
user manual
This manual is made with 100 % recycled paper.
imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product at
www.samsung.com/register
1-800-SAMSUNG (726-7864)
ENGLISH
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 1 2013-05-07 �� 6:24:09
features of your new
range
Enhanced convenience. Better cooking. Easy maintenance. Your new gas
range has been designed to bring you these benefits and more.
• Bigger is better
With a capacity of 5.8 cubic feet, your new range has more space than
many other leading brands in the United States and Canadian markets.
This means greater convenience for you when cooking for the holidays or
when entertaining.
• A cooktop with 5 burners
Power burners, simmer burners, as well as a center oval burner provide
flexible cooktop heat for a variety of cookware.
The center oval burner provides even heating over large areas, so it is
perfect for griddle cooking.
2_ features of your new range
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 2 2013-05-07 �� 6:24:10
important safety
instructions
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
All electrical and gas equipment with moving parts can be dangerous. Please read the
important safety instructions for this appliance in this manual. The instructions must be
followed to minimize the risk of injury, death, or property damage.
Save this manual. Please Do Not Discard.
SAFETY SYMBOLS
What the icons and signs in this user manual mean:
Means that death or serious personal injury is a risk.
WARNING
Means that there is a potential risk for personal injury or
CAUTION
CAUTION
property damage.
To reduce the risk of fire, explosion, electric shock, or
personal injury when using your gas range, follow these basic
safety precautions:
Do NOT attempt.
Do NOT disassemble.
IMPORTANT SAFETY INSTRUCTIONS
Do NOT touch.
Follow directions explicitly.
Unplug the power cord from the electrical outlet.
Make sure the range is plugged into an earth grounded
electrical outlet to prevent electric shock. An outlet equipped
with a Ground Fault Interrupter (GFI) is highly recommended.
Call the service center for help. see page 80.
Note
These warning icons are here to prevent injury to you and others.
Please observe them explicitly.
Do not discard this manual. Please keep it in a safe place for future reference.
important safety instructions _3
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 3 2013-05-07 �� 6:24:10
WARNING: If the information in this manual is not followed
exactly, a fire or explosion may result causing property
damage, personal injury or death.
– DO NOT store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
– WHAT TO DO IF YOU SMELL GAS:
• DO NOT try to light any appliance.
• DO NOT touch any electrical switch.
• DO NOT use any phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire
department.
– Installation and service must be performed by a qualified
installer, service agency, or the gas supplier.
ANTI-TIP DEVICE
WARNING
WARNING
ALL RANGES CAN TIP, RESULTIONG IN PERSONAL
INJURY.
TIPPING RANGES CAN CAUSE BURNS FROM SPILLS,
PERSONAL INJURY, AND/OR DEATH.
INSTALL AND CHECK THE ANTI-TIP BRACKET
FOLLOWING THE INSTRUCTIONS AND TEMPLATE
SUPPLIED WITH THE BRACKET.
4_ important safety instructions
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 4 2013-05-07 �� 6:24:10
To prevent accidental tipping of the range, attach an approved anti-tip device
to the floor. (See Installing the Anti-Tip Device in the Installation Instructions.)
Check for proper installation by carefully tipping the range forward. The anti-tip
device should engage and prevent the range from tipping over.
If the range is pulled out away from the wall for any reason, make sure the antitip device is reengaged after the range has been pushed back into place.
Follow the installation instructions found in the Installation Manual. Failure to
follow these instructions can result in death, serious personal injury, and / or
property damage.
DO NOT step / sit / lean on the door or drawer to prevent accidental tipping of
the range.
IMPORTANT SAFETY
PRECAUTIONS
Follow basic precautions when installing and using this range to reduce the risk
WARNING
of fire, electrical shock, injury, or death to persons, including:
Installation and Service
This range must be properly located and installed in accordance with the
installation instructions before it is used.
Professional installation is strongly recommended.
Due to the size and weight of the range, it is highly recommended that two or
more people move or install this appliance.
All ranges can tip over and cause severe injuries. Install the anti-tip device
packed with this range following the instructions found in the Installation
Instructions.
Never try to repair or replace this appliance on your own unless it is specifically
recommended in this manual. This appliance should be serviced only by a
qualified service technician.
Know the location of the gas shut-o valve and how to shut it o if necessary.
Properly remove or destroy the packaging materials after the appliance is
unpacked.
IMPORTANT SAFETY INSTRUCTIONS
Electrical/Mechanical
Unplug or disconnect power before servicing.
important safety instructions _5
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 5 2013-05-07 �� 6:24:10
Do not tamper with the controls.
Grates and griddles (if equipped) are heavy. They can be dangerous if dropped.
The inner portion of the split oven rack (if equipped) could drop down
accidentally if not assembled properly. Place the inner rack in the proper
position within the outer rack.

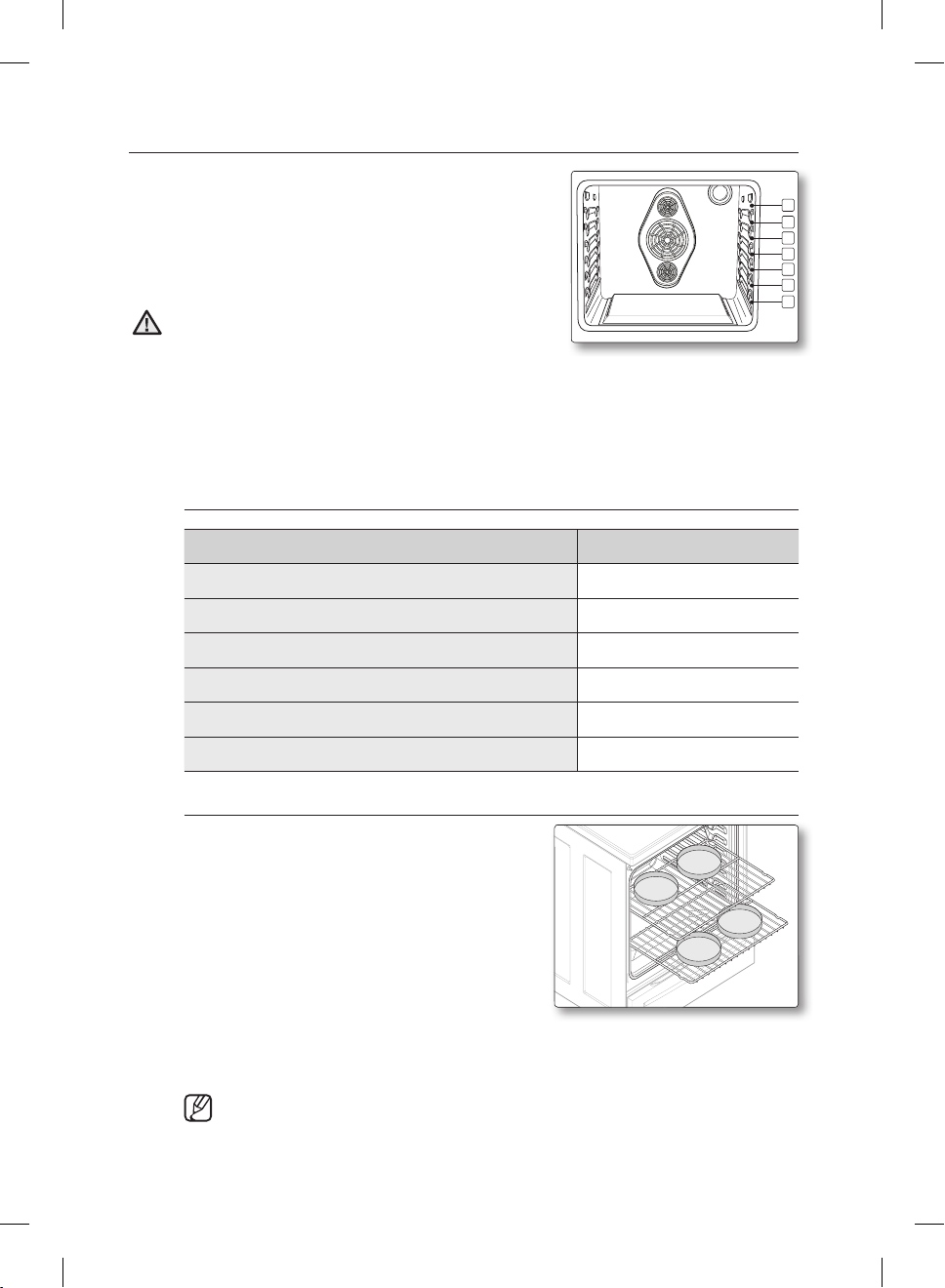

Always position the oven racks at the same level on each cavity side. Uneven
racks could cause food to slide to the lower side, posing a risk of burns.
Danger to Children
Do not store any object of interest to children on the cooktop or backguard
of the range. Children climbing on the range to reach items could be killed or
seriously injured.
The inner rack of the Split Rack can be dropped if it is not assembled properly.
Place the Inner rack in the proper place on the Outer rack. Always insert the
rack or split rack assembly (if equipped) on the same level of the oven cavity
side.
Keep children away from the door when opening or closing it as they may
bump themselves on the door or catch their fingers in the door.
Keep all packaging materials out of reach of children. Children may play with
them. Failure to dispose of plastic bags could result in suocation.
Do not leave children alone or unattended in an area where a range is in use.
They should never be allowed to sit or stand on any part of a range.
Do not let little children touch the range.
The cooktop grates and griddle (if equipped) are heavy and presents a risk of
injury if dropped on a foot. Teach children not to touch or play with grates or
griddle.
Teach children not to touch or play with the controls or any part of the range.
We recommend you utilize the control / door lockout feature to reduce the risk
of mis-use by children.
Before disposing of the range, cut o the power cord to prevent it from being
connected to a power source. Remove the door to prevent children and
animals from getting trapped.
Fire
Do not touch oven burners, drawer burners, or interior surfaces of the oven
during or immediately after cooking. Cooking surfaces, grates, cooktop burners
and caps, as well as oven walls may be hot even though they are dark in color.
Interior oven surfaces can become hot enough to cause burns. During and
after use, do not touch or let clothing or other flammable materials contact
oven burners, drawer burners, or interior surfaces of the oven until they have
had sucient time to cool.
6_ important safety instructions
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 6 2013-05-07 �� 6:24:10
Do not let a pot holder touch a hot heating element. Do not use a towel or
other bulky cloth as a pot holder.
Do not use your range to heat unopened food containers or to dry wet items or
clothing.
Keep oven vent ducts unobstructed. Clean vents frequently to avoid grease
buildup. See page 55. There can be slight popping sound during oven cooking.
This sound may occur during the normal oven burner cycling, when the oven
burner flame is extinguished.
Never use your range for any purposes but cooking. Doing so could result in
carbon monoxide poisoning and/or overheating of the oven.
Do not wear loose-fitting or hanging garments while using this appliance.
DO NOT STORE OR USE combustible materials, gasoline, or other flammable
vapors or liquids in the vicinity of this appliance. See “WHAT TO DO IF YOU
SMELL GAS” under the Gas Warnings.
Do not pour water into the cooktop well while cleaning the cooktop. This could
leak down into the range gas and electrical systems creating a risk of electrical
shock or high levels of Carbon Monoxide, due to corrosion of the gas valves or
ports.
Do not use water on a grease fire. Water might cause a grease fire to explode,
spreading the fire and creating a larger fire and health hazard. To put out a
grease fire, turn o the heat source and smother the fire with tight-fitting lid or
use a multipurpose dry chemical or foam-type fire extinguisher.
Never leave surface units unattended at high heat settings. Boilovers cause
smoke, and greasy spillovers could ignite.
Do not use a flame to check for gas leaks. Instead, use a brush to spread a
soapy water mixture around the area you are checking. If there is a gas leak,
you will see small bubbles in the soapy water mixture at the point of the leak.
Do not place portable appliances, or any other object other than cookware on
the cooktop. Damage or fire could occur if the cooktop is hot.
Do not attempt to operate this appliance if it is damaged, malfunctioning, or
has missing or broken parts.
Never place plastic, paper, or other items that could melt or burn near the oven
vents or any of the surface burners.
If the self-clean mode malfunctions, turn the oven o and disconnect the power
supply. Refer to pages 77 and 78 to contact a qualified service technician.
There can be slight popping sound during oven cooking.
IMPORTANT SAFETY INSTRUCTIONS
important safety instructions _7
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 7 2013-05-07 �� 6:24:10
Steam and Vapors
Use care when opening the oven door. Let hot air or steam escape before
removing or placing food in a hot oven.
Use only dry pot holders. Putting moist or damp pot holders on hot surfaces
may result in burns from steam.

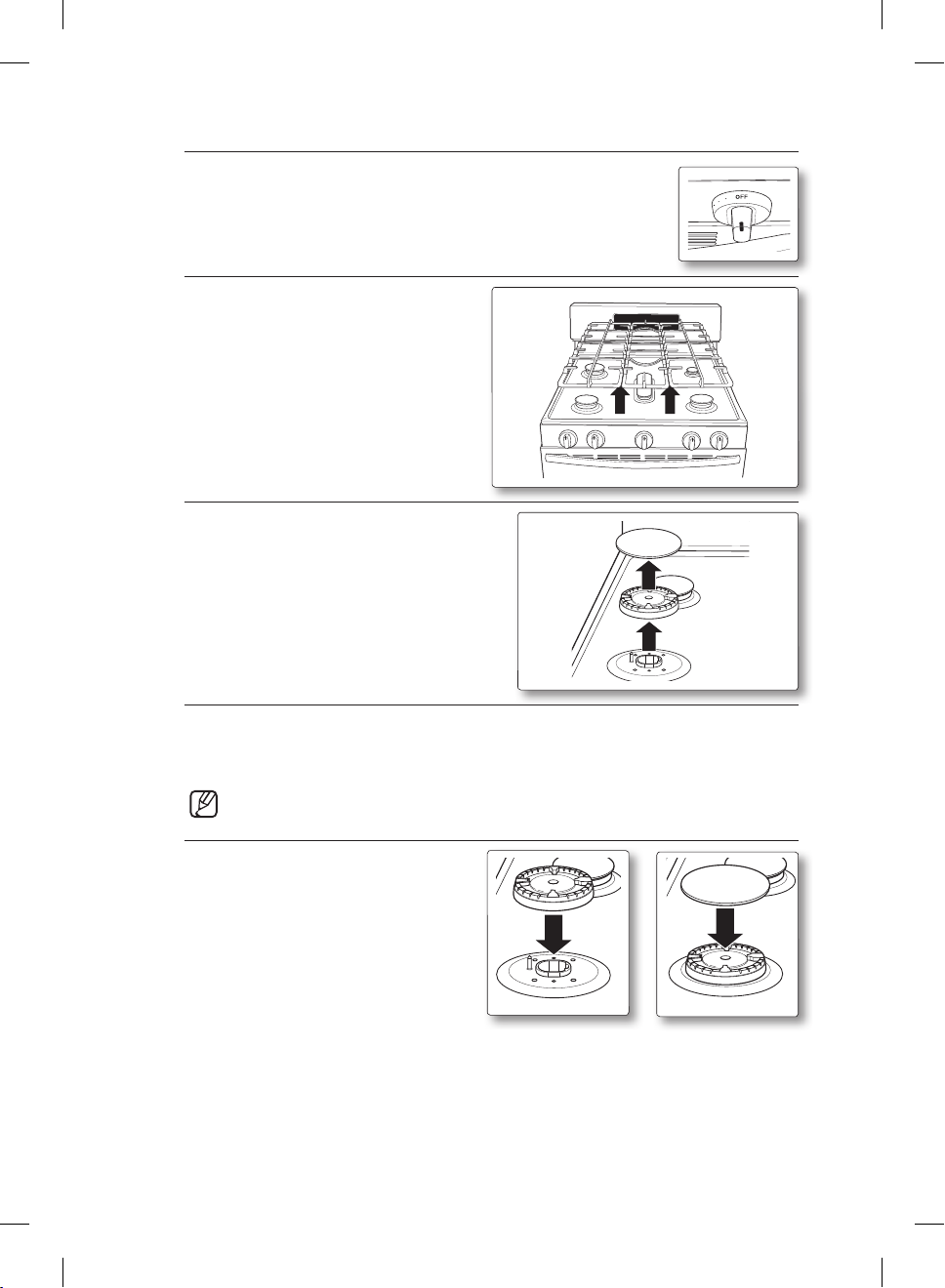

Surface Burner Warnings
– The burner spreader can be blocked by food or dust. Clean the spreader
if it appears blocked. If you clean the spreader with water, assemble it only
after it is completely dry. If the spreader is wet, it might prevent the burners
from igniting.
– Do not pour water on the cooktop for cleaning. It can get inside the range
and cause the parts inside to rust.
– Only ignite the cooktop burners with the burner caps in place. If the
burner caps are not in place, you can damage the controls or cause an
unintended large or dangerous flame.
– Heating of beverages can result in delayed eruptive boiling. To prevent
delayed eruptive boiling, ALWAYS allow heated beverages to stand at least
20 seconds after you have turned the burner o so that the temperature
in the liquid can stabilize. In the event of scalding, follow these FIRST AID
instructions:
• Immerse the scalded area in cold water for at least 10 minutes
• Cover with clean, dry dressing
• Do not apply any creams, oils or lotions
– The ‘Spark mark’ on the Dual burner spreader must be placed beside the
electrode when it is assembled to prevent an abnormal flame.
– After turning on a surface burner, check to make sure that the burner has
ignited. Adjust the level of the flame by turning the burner knob.
– When you set a burner to simmer, do not turn the burner knob quickly.
Watch the flame to make sure it stays on.
8_ important safety instructions
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 8 2013-05-07 �� 6:24:11
GAS WARNINGS
If the instructions in this manual are not followed exactly, a fire or explosion
WARNING
may result, causing death, personal injury, or property damage.
If you smell gas:
1. Close the valve and do not use the range.
2. DO NOT light a match, candle, or cigarette.
3. DO NOT turn on any gas or electric appliances.
4. DO NOT touch any electrical switches or plug a power cord into an outlet.
5. DO NOT use any phone in your building.
6. Clear the room, building, or area of all occupants.
7. Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
8. If you cannot reach your gas supplier, call the fire department.
Read instructions completely and carefully.
Installation of this range must conform with local codes or, in the absence of
local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest
edition. In Canada, installation must conform with the current Natural Gas
Installation Code, CAN/CGA-B149.1, or the current Propane Installation Code,
CAN/CGA-B149.2, and with local codes where applicable. This range has
been design-certified by ETL according to ANSI Z21.1, latest edition, and
Canadian Gas Association according to CAN/CGA-1.1, latest edition.
Do not install this range in a place which is exposed to a strong draft.
Installation and service must be performed by a qualified installer, service
agency, or gas supplier.
Have the installer show you the location of the gas shut-o valve and how to
shut it o.
Always use NEW flexible connectors when installing a gas appliance. Never
reuse old flexible connectors. The use of old flexible connectors can cause gas
leaks and personal injury.
Never use this appliance as a space heater to heat or warm the room. Doing
so may result in carbon monoxide poisoning and overheating of the oven.
Never block the oven vents (air openings). They provide the air inlet and
exhaust that are necessary for the oven to operate properly with correct
combustion.
IMPORTANT SAFETY INSTRUCTIONS
important safety instructions _9
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 9 2013-05-07 �� 6:24:11
STATE OF CALIFORNIA
PROPOSITION 65 WARNINGS
The California Safe Drinking Water and Toxic Enforcement Act requires the
Governor of California to publish a list of substances known to the state to
cause birth defects or other reproductive harm and requires businesses to
warn customers of potential exposure to such substances.
Gas appliances can cause minor exposure to three of these substances,
WARNING
namely, carbon monoxide, formaldehyde, and soot, caused primarily by the
incomplete combustion of natural gas or LP fuels. Properly adjusted burners,
indicated by a bluish rather than yellow flame, will minimize incomplete
combustion. Exposure to these substances can be minimized by venting with
an open window or by using a ventilation fan or hood.
IN THE COMMONWEALTH OF
MASSACHUSETTS
This product must be installed by a licensed plumber or gas fitter qualified or
licensed by the State of Massachusetts.
When using ball-type gas shut-o valves, you must use the T-handle type.
Multiple flexible gas lines must not be connected in series.
10_ important safety instructions
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 10 2013-05-07 �� 6:24:11
WARNING
ELECTRICAL WARNINGS
Comply with the following electrical instructions and requirements to avoid
death, personal injury from electric shock, and/or property damage from fire:
1. Plug into a grounded 3-prong outlet.
2. DO NOT remove the ground prong.
3. DO NOT use an adapter.
4. NEVER use an extension cord.
Use a dedicated 120-volt, 60-Hz, 20-amp, AC, fused electrical circuit for this
appliance. A time-delay fuse or circuit breaker is recommended. DO NOT plug
more than one appliance into this circuit.
The range is supplied with a 3-pronged grounded plug. This cord MUST be
plugged into a mating, grounded 3-prong outlet that meets all local codes and
ordinances. If you are unsure your electrical outlet is properly grounded, have it
checked by a licensed electrician.
If codes permit the use of a separate ground wire, we recommend that a
qualified electrician determine the proper path for this ground wire.
Electrical service to the range must conform to local codes. Barring local
codes, it should meet the latest ANSI/NFPA No. 70 – Latest Revision (for the
U.S.) or the Canadian Electrical Code CSA C22.1 – Latest Revisions.
It is the personal responsibility of the appliance owner to provide the correct
electrical service for this appliance.
NEVER connect the ground wire to plastic plumbing lines, gas lines, or hot
water pipes.
DO NOT modify the plug provided with the appliance.
DO NOT put a fuse in a neutral or ground circuit.
IMPORTANT SAFETY INSTRUCTIONS
important safety instructions _11
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 11 2013-05-07 �� 6:24:11
GROUNDING INSTRUCTIONS
Grounding a range with a cord connection:
This appliance must be Earth grounded. In the event of a malfunction or
breakdown, grounding will reduce the risk of electrical shock by providing a
path for the electric current. This appliance is equipped with a cord having a
grounding plug. The plug must be firmly plugged into an outlet that is properly
installed and grounded in accordance with the local codes and ordinances.
Improper connection of the grounding plug can result in a risk of electric shock.
WARNING
Check with a qualified electrician if you are not sure whether the appliance is
properly grounded.
NEVER modify the plug provided with the appliance. If it does not fit the
existing outlet, have a qualified electrician install a proper outlet.
INSTALLATION WARNINGS
Have your range installed and properly grounded by a qualified installer, in
accordance with the installation instructions. Any adjustment and service
should be performed only by qualified gas range installers or service
technicians.
Be sure your range is correctly installed and adjusted by a qualified service
technician or installer for the type of gas (natural or LP) you will use. For your
range to utilize LP gas, the installer must replace the 5 surface burner orifices
and 2 oven orifices with the provided LP orifice set, and reverse the GPR
adapter.
These adjustments must be made by a qualified service technician in
WARNING
accordance with the manufacturer’s instructions and all codes and
requirements of the authority having jurisdiction. Failure to follow these
instructions could result in serious injury or property damage. The qualified
agency performing this work assumes the gas conversion responsibility.
Do not attempt to repair or replace any part of your range unless it is
specifically recommended in this manual. All other service should be referred to
a qualified technician.
This appliance must be properly grounded. Plug your range into a 120volt grounded outlet that is only used for this appliance. Do not remove the
grounding (third) prong from the plug. Firmly plug the power cord into the wall
outlet. If you are not sure your electrical outlet is grounded, it is your personal
responsibility and obligation to have a properly grounded, three-prong outlet
installed in accordance with local and national codes. Do not use a damaged
power plug or loose wall outlet. Do not use an extension cord with this
appliance. In addition, do not use an adapter or otherwise defeat the grounding
plug. If you do not have a proper outlet or have any doubts about the outlet,
consult a licensed electrician.
12_ important safety instructions
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 12 2013-05-07 �� 6:24:11
Locate the range out of kitchen trac paths and drafty locations to prevent
poor air circulation.
This appliance should be positioned so that the power plug is easily accessible.
Do not install in an area exposed to dripping water or outside weather
conditions.
Remove all packaging materials from the range before operating it. These
materials can ignite, causing smoke and/or fire damage.
Install this appliance on a level and hard floor that can support its weight.
Synthetic flooring, like linoleum, must withstand 180 °F (82 °C) temperatures
without shrinking, warping, or discoloring. Never install the range directly over
interior kitchen carpeting unless a sheet of 0.25-inch plywood or a similar
insulator is placed between the range and carpeting.
Never block the vents (air openings) of the range. They provide the air inlet and
exhaust necessary for the range to operate properly with correct combustion.
Air openings are located behind the range, under the oven control panel, at
the top and bottom of the oven door, and under the lower warming or storage
drawer.
Large scratches on or sharp blows to the door glass can cause the glass
to break or shatter.
Make sure the wall coverings around the range can withstand heat, up to 200 °F
(93 °C), generated by the range.
Avoid placing cabinets above the range. This reduces the hazard caused by
reaching over the open flames of operating burners.
Do not put any combustible material or items around the range.
If cabinets are placed above the range, allow a minimum clearance of 40
in (102 cm) between the cooking surface and the bottom of unprotected
cabinets.
Install a ventilation hood or an externally vented Over The Range Microwave
Oven over the range cooktop that is as wide as the range, centered over
the range, and projects forward beyond the front of the cabinets. See the
Installation instructions
Remove all tape and packaging. Make sure the burners are properly seated
and level.
Remove any accessories from the oven and/or lower drawer.
Check to make sure no range parts have come loose during shipping.
IMPORTANT SAFETY INSTRUCTIONS
important safety instructions _13
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 13 2013-05-07 �� 6:24:11
SURFACE BURNER WARNINGS
Follow basic precautions when installing and using this range to reduce the risk
WARNING
of fire, electrical shock, injury, or death to persons, including:
Use proper pan sizes. Avoid pans that are unstable or warped. Select
cookware having flat bottoms large enough to cover the burner grates. To
avoid spillovers, make sure cookware is large enough to contain your food.
This will save cleaning time and prevent hazardous accumulations of food,
since heavy spattering or spillovers left on the range can ignite. Use pans with
handles that can be easily grasped and remain cool.
Do not use pots or pans larger than the grate on a grate. Using pots or pans
larger than a grate may cause the pots or pans to discolor or deform. It can
also cause units or the wall around the grate to ignite and may generate excess
carbon monoxide.
Always use the LITE position when igniting the top burners. Make sure the
burners have ignited.
If ignition fails, turn the knob to O and wait until the gas already emitted has
dissipated. If you keep the knob in the LITE position without proper ignition, the
emitted gas might cause an explosion.
Never leave the surface burners unattended at HIGH flame settings. Boilovers
cause smoking, and greasy spillovers can ignite.
Stand away from the range when frying.
Adjust the top burner flame size so it does not extend beyond the edge of the
cookware. Flames that extend past cookware edges can be hazardous.
To decrease spattering when cooking foods with lots of liquid, such as meat
sauce or stew, adjust the the flame to low and stir frequently.
Only use dry pot holders. Pot holders with moisture in them can release steam
and cause burns if they come in contact with hot surfaces.
Keep pot holders away from open flames when lifting cookware. Never use a
towel or bulky cloth in place of a pot holder.
Keep all plastic away from the surface burners or any open flame.
When using glass cookware, make sure it is designed for top-of-range cooking.
Always make sure cookware handles are turned to the side or rear of the
cooktop, but not over other surface burners. This will minimize the chance of
burns, spillovers, and the ignition of flammable materials that can be caused if
pots or pans are bumped accidently.
Do not wear loose or hanging garments when using the range. They could
ignite and burn you if they touch a surface burner.
Take care that your hands do not touch the burners when they are on. Turn o
the burners when you change a pan or pot.
14_ important safety instructions
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 14 2013-05-07 �� 6:24:11
Always heat frying oils slowly, and watch as they heat. If you are frying foods
at high heat, carefully watch during the cooking process. If a combination of
fats or oils are to be used during frying, they need to be stirred together before
heating.
Use a deep fryer thermometer whenever possible. This prevents overheating
the fryer beyond the smoking point.
Use as little oil as possible for shallow or deep-fat frying. Using too much oil
can cause spillovers when food is added.
Items should always be removed from the cooktop when they are done
cooking.
Never leave plastic items on the cooktop. Hot air from the vent can melt or
ignite plastic items or cause a building up of dangerous pressure in closed
plastic containers.
This cooktop is not designed to flame foods or cook with a wok or wok ring
attachment. If foods are flamed, they should only be flamed under a ventilation
hood that is on.
Always make sure foods being fried are thawed and dried. Moisture of any kind
can cause hot fat to bubble up and over the sides of the pan.
Never move a pan or deep-fat fryer full of hot fat. Always let it cool before
moving.
Always make sure the controls are OFF and the grates are cool before you
remove them to prevent any possibility of burning.
If the range is located near a window, NEVER hang long curtains or paper
blinds on that window. They could blow over the surface burners and ignite,
causing a fire hazard.
Grease is flammable and should be handled very carefully. Never try to
extinguish a grease fire with water.
If you smell gas, turn o the gas to the range and call a qualified service
technician. NEVER use an open flame to locate a leak.
Always turn o the surface burner controls before removing cookware. All
surface burner controls should be turned OFF when you are not cooking.
Always turn the burners o before you go to sleep or go out.
IMPORTANT SAFETY INSTRUCTIONS
important safety instructions _15
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 15 2013-05-07 �� 6:24:11
OVEN WARNINGS
NEVER cover any holes or passages in the bottom oven cover. NEVER cover
WARNING
an entire oven rack with aluminum foil or like material. Covering the bottom
cover and/or racks blocks airflow through the oven and could cause carbon
monoxide poisoning.
Do not use aluminum foil or foil liners anywhere in the oven. Misuse traps heat
and could cause a fire hazard or damage the range.
Always follow the manufacturer’s directions when using cooking or roasting
bags in the oven.
DO NOT clean the door gasket. The door gasket is essential for a good seal.
Care should be taken not to damage or move the gasket.
Do not strike the oven glass. Do not spray water onto the oven glass when the
oven is on or just after you have turned the oven o.
Stand away from the range when opening the door of a hot oven. The
escaping hot air and steam can cause burns.
Do not use the oven for storage. Stored items can be damaged or ignite.
Keep the oven free from grease buildup.
Reposition oven racks only when the oven is cool to prevent burning or
personal injury.
Do not heat unopened containers. Pressure in the container could build up,
resulting in an explosion and/or personal injury.
Only use glass cookware that is recommended for use in gas ovens.
This prevents fire flare-ups from stored grease buildup.
Do not broil meat too close to the burner flame. Trim excess fat from meat
before cooking. Meat fat can ignite, causing a fire hazard.
If a grease fire should occur in the oven, turn o the oven by pressing the
Clear/O pad. Keep the oven door closed to put out the fire.
Always bake and/or broil with the oven door closed. Broiling with the door
partially or fully open can damage the surface burner control knobs and even
the kitchen counter.
Keep the appliance area clear and free from combustible materials, gasoline,
and other flammable vapors and liquids.
Do not use the oven to dry paper, clothes, etc. Such items might catch fire if
overheated.
16_ important safety instructions
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 16 2013-05-07 �� 6:24:11
ELECTRIC WARMING DRAWER
OR LOWER STORAGE DRAWER
WARNINGS
The warming drawer is designed to keep hot cooked foods at serving
temperature. Always start with hot food. Cold or room-temperature foods
cannot be heated, warmed, or cooked in the warming drawer.
Do not touch the interior drawer surface or heating element. These surfaces
may be hot and could burn you.
Use care when opening the drawer. Escaping hot air and/or steam can cause
burns or personal injury.
Do not use aluminum foil to line the lower drawer. Aluminum foil will trap heat
and alter the warming performance of the drawer. It could also damage the
interior finish.
Never use the lower/warming drawer in the upper oven. Never put the lower/
warming drawer in the upper oven during a self-cleaning cycle.
Never leave jars or cans of fat drippings in or near the lower drawer.
Do not leave or store paper products, plastics, canned food, or combustible
materials in the drawer. Do not use the drawer to dry newspapers. They could
ignite. Plastic items could melt.
IMPORTANT SAFETY INSTRUCTIONS
important safety instructions _17
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 17 2013-05-07 �� 6:24:11
SELF-CLEANING OVEN WARNINGS
Follow basic precautions when installing and using this range to reduce the risk
WARNING
of fire, electrical shock, injury, or death to persons, including:
Do not leave children unattended near the range during a self-cleaning cycle.
The outside surfaces of the range get hot enough to burn if touched.
Stand away from the range when opening the oven door after a self-cleaning
cycle. The oven will be VERY HOT and the escaping hot air and steam can
cause burns.
Remove all racks and other utensils from the oven before starting a self clean
cycle. The oven racks may become damaged, and foreign objects could ignite
if left within the oven cavity.
Wipe o any excess spillage before using the self-cleaning operation.
Remove all cookware, oven probes, and any aluminum foil before using the
self-cleaning operation.
Never self-clean with the lower drawer or drawer pan placed in the oven.
If the self-cleaning operation malfunctions, turn o the oven, disconnect the
power supply, and contact a qualified service technician.
Do not use oven cleaners. Commercial oven cleaners or oven liners should
NEVER be used in or around any part of the oven. Residue from oven cleaners
will damage the inside of the oven during a self-cleaning operation.
Nickel oven shelves should be removed from the oven during a self-cleaning
cycle. Porcelain-coated oven shelves may be cleaned in the oven during a selfcleaning cycle.
PROPER COOKING OF MEAT AND
POULTRY
Make sure all meat and poultry is cooked thoroughly. Meat should always be
cooked to an internal temperature of 160 °F (71 °C). Poultry should always be
cooked to an internal temperature of 180 °F (82 °C). Cooking these foods to
these minimally safe temperatures can help protect you and your family from
food bourne illnesses.
SAVE THESE INSTRUCTIONS
18_ important safety instructions
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 18 2013-05-07 �� 6:24:11
contents
INTRODUCING YOUR NEW
RANGE
20
SURFACE COOKING
22
OPERATING THE OVEN
25
USING THE WARMING DRAWER
52
MAINTAINING YOUR APPLIANCE
54
TROUBLESHOOTING
20 Overview
CONTENTS
22 Lighting a gas surface burner
22 Manually lighting a gas surface burner
22 Flame size selection
23 Gas surface burners and control knobs
24 Cookware usage
24 Center burner grate
25 Oven control panels and displays
28 Setting the clock
29 Setting the (kitchen) timer on/o
30 Positioning the oven racks
31 Oven vent
31 Oven light
32 Baking
34 Convection baking and roasting
37 Timed cooking
39 Delay timed cooking
41 Broiling
43 (Keep) warm
44 Using the easy cook feature
46 Custom cooking
48 Sabbath function
50 Extra features
52 About the warming drawer (Model FX710BGS
only)
53 Turning the warming drawer on or o
54 Care and cleaning of the oven
57 Care and cleaning of the cooktop
61 Changing the oven light
62 Removing and replacing the oven door
64 Removing and replacing the warming drawer
(Model FX710BGS)
65 Removing and replacing the storage drawer
(Model FX510BGS / NX583G0VBSR /
NX583G0VBBB / NX583G0VBWW)
66 Self-cleaning oven
71 Troubleshooting
76 Troubleshooting and information codes
71
WARRANTY
77 Warranty
77
contents _19
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 19 2013-05-07 �� 6:24:11
introducing your new
range
OVERVIEW
MODEL FX710BGS
COOKTOP COMPONENTS
Heavy duty, continuous cast grates
- * Left burner grate
- * Center burner grate
- * Right burner grate
note: the left and right grates can be
used interchangeably.
* Cooktop burner caps
Cooktop burners
Cooktop burner heads (5)
Cooktop burner cups (5)
(not shown under burners)
Electrodes (5)
(not shown under burners)
* Cooktop burner control knobs (5)
- Left-front burner control
- Left-rear burner control
- Center burner control
- Right-rear burner control
- Right-front burner control
OVEN COMPONENTS
* Oven racks (2)
Split rack (1)
(as equipped)
Removable oven floor
Removable oven door
Flat surface
Concave line
Convex surface
Convex line
DISPLAY
OVEN VENT
(centered under oven
control panel)
WARMING DRAWER COMPONENTS
OVEN COMPONENTS
Oven rack position guide
Broil oven burner
* Oven light (1)
Convection fan (1)
Convection heater (not shown)
Bake oven burner
Removable warming drawer (1)
Full-extension roller guide rails (2)
Electric heating element
(not shown under drawer)
ADJUSTABLE LEVELING LEGS (4)
(not shown)
ANTI-TIP BRACKET KIT (1)
If you need an accessory marked with a *, you can buy it from the Samsung
Contact Center (1-800-726-7864).
20_ introducing your new range
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 20 2013-05-07 �� 6:24:13
MODEL FX510BGS, NX583G0VBSR, NX583G0VBBB, NX583G0VBWW
COOKTOP COMPONENTS
Heavy-duty continuous cast grates
- *Left burner grate
- *Center burner grate
- *Right burner grate
*Cooktop burner caps
Cooktop burners
Cooktop burner heads (5)
Cooktop burner cups (5)
(not shown under burners)
Electrodes (5)
(not shown under burners)
*Cooktop burner control knobs (5)
- Left-front burner control
- Left-rear burner control
- Center burner control
- Right-rear burner control
- Right-front burner control
OVEN COMPONENTS
*Oven racks (2)
DISPLAY
OVEN VENT
(centered under oven
control panel)
INTRODUCING YOUR NEW RANGE
Removable oven bottom
Removable oven door
STORAGE DRAWER COMPONENTS
Removable Storage drawer (1)
OVEN COMPONENTS
Oven rack position guide
Broil oven burner
*Oven light (1)
Convection fan (1)
Bake oven burner
ADJUSTABLE LEVELING LEGS (4)
(not shown)
ANTI-TIP BRACKET KIT (1)
If you need an accessory marked with a *, you can buy it from the Samsung
Contact Center (1-800-726-7864).
introducing your new range _21
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 21 2013-05-07 �� 6:24:13
surface cooking
BEFORE USING THE SURFACE BURNERS, make sure to follow all the safety
warnings and precautions listed on page 8. Failure to do so could result in product
WARNING
damage, personal injury, and/or death.
LIGHTING A GAS SURFACE BURNER
Make sure all surface burners are positioned and
assembled properly.
1. Push in and turn the control knob to the LITE
position. You will hear a “clicking” sound
indicating the electronic ignition system is
working properly.
2. After the surface burner lights, turn the control
knob to adjust the power setting of the surface
burner and turn o the electronic ignition
system.
We highly recommend using the left rear side burner for simmering tomato sauce
and right rear side burner for melting chocolate
MANUALLY LIGHTING A GAS SURFACE BURNER
If a power failure occurs, the surface burners can still be lit manually.
Use extreme caution when manually lighting a surface burner.
1. Hold a long gas grill lighter to the surface burner you want to light.
2. Push in and turn the control knob for that burner to the LITE position.
3. After the burner has lit, set the control knob and the burner to the desired setting.
FLAME SIZE SELECTION
Flames larger than the bottom of the cookware will not result in faster heating, but
could result in a fire hazard and/or personal injury.
WARNING
The flames on the burners should always stay under the cookware. The flames should
never extend beyond the bottom surface and/or up the sides of the cookware.
Always watch the flames when adjusting the heat setting with the control knob(s). The
flames should always match the size of the cookware being used.
22_ surface cooking
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 22 2013-05-07 �� 6:24:14
GAS SURFACE BURNERS AND CONTROL KNOBS
Your gas range cooktop has five gas burners. All sealed
cooktop burners are of an open-port design to provide you
easy assembly and accurate and dependable operation. The
dierent burner sizes ensure you have the proper heat source
for the desired cooking job.
The right rear side burner provides precise cooking performance for delicate foods and
foods that require low heat for long cooking times. The right rear side burner lets you use
the LO setting for a very low simmer setting.
The left rear side and center round burners are general-purpose burners that can
be used for most cooking. The HI to LO settings provide a wide range of cooking
temperatures to meet your cooking needs.
The right and left front side burners provide maximium output. These burners can also
be used as general-purpose burners, but they are designed to provide quick heat to
large cookware. The right and left front side burner spreads out the heat with a larger
circle of flames.
BURNER POSITION FUNCTION TYPE OF FOOD
RIGHT FRONT (RF) Quick heating Boiling Food
RIGHT REAR (RR) Low simmering Chocolate, Casseroles,
CENTER Using Griddle Pancakes, Hamburgers,
Fried Eggs, Hot
LEFT FRONT (LF) Quick heating Boiling Food
LEFT REAR (LR) General heating
Low simmering
Tomato Sauce*,
CENTER
LR
LF RF
Sauces
Sandwiches
General Food
Casseroles
RR
SURFACE COOKING
* Tomato sauce needs to be stirred during the low simmering
This provides better heat distribution for larger cookware (12 in [30.5 cm]) or larger pots
and pans.
The center oval burner can also be used for large pots and pans, but is designed to be
used with the center burner grate and/or the center griddle accessory (if equipped).
The oval burner also spreads out the heat more evenly over the large center cooking
area.
Each surface burner has a control knob with settings from HI to LO.
They also have a LITE setting that is only used to light the flame. The
electronic ignition system sparks when the control knob is in the LITE
position.
The surface burner indicator next to the control knob shows which
burner the knob controls.
surface cooking _23
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 23 2013-05-07 �� 6:24:14
COOKWARE USAGE
Using the correct cookware can prevent many problems, such as uneven cooking or
extended cooking times. Using the proper pans will reduce cooking times and cook food
more evenly. Look for the following pan characteristics:
• Flat bottom and straight sides.
• Tight-fitting lid.
• Weight of handle does not tilt pan.
• Pan is well-balanced.
• Pan size matches the amount of food being prepared and the size of the surface
burner.
• Made of material that conducts heat well.
• The pot/pan diameter matches the surface burner flame diameter.
What your cookware is made of determines how evenly and quickly heat is transferred
from the surface burner to the pan bottom.
ALUMINUM: Excellent heat conductor. Some types of food will cause the aluminum to
darken. (Anodized aluminum cookware resists staining and pitting.)
COPPER: Excellent heat conductor, but discolors easily.
STAINLESS STEEL: Slow heat conductor with uneven cooking results. Is durable, easy
to clean, and resists staining.
CAST-IRON: A poor conductor, but retains heat very well. Cooks evenly once cooking
temperature is reached.
ENAMELWARE: Heating characteristics will vary depending on base material.
GLASS: Slow heat conductor. Glass cookware is designed for two usages—top-of-
range cooking or oven use. Only use cookware where it is designated to be used.
CENTER BURNER GRATE
Samsung gas ranges come with a center burner grate. This grate fits over
the center oval burner. The center burner grate should not be used over
any other burners and no other center stovetop grates should be used
with this range.
Center burner grate
24_ surface cooking
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 24 2013-05-07 �� 6:24:14
operating the oven
OVEN CONTROL PANELS AND DISPLAYS
MODEL FX710BGS
2
3 4 5 7 91 6 8
10 11 12 13 14 15 16 17 18 19
MODEL FX510BGS
21 6 83 4 5
10 11 12 14 15 16 17
7 9
18 19
MODEL NX583G0VBSR / NX583G0VBBB / NX583G0VBWW
21
4 5
9
OPERATING THE OVEN
19
7
6
8
10 11 12 15 16
17 18
All oven operations are controlled with electronic touch pads. Use the following
pads to program and operate all oven cooking, cleaning, and timing functions. All
programmed settings and cooking statuses will show on the digital display.
operating the oven _25
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 25 2013-05-07 �� 6:24:15
Special feature, oven, and time controls
1
EASY COOK
Press to recall the Easy cook recipe setting of the upper oven.
CONVECTION
2
BAKE ( )
CONVECTION
ROAST (MODEL
3
FX710BGS /
FX510BGS)
4
BAKE
5
BROIL
6
START/SET
7
CLEAR/OFF
8
HOLD 3 SEC
9
NUMBER PADS
Activates the convection bake function. Use this function to
cook large amounts of baked goods on multiple shelves at
the same time.
Activates the convection roast function. Use this function to
cook large cuts of meat.
Touch this pad to activate the Bake function. Evenly cooks
food using the bottom oven burner.
Activates the Broil function. Cooks foods using the top
oven burner only.
Touch this pad to start the oven cooking, cleaning, and/or
timing functions.
Press to cancel all oven operations except the clock and
timer.
Deactivates the control panel touch pads to prevent the
oven from accidentally being turned on. It also locks the
oven door to prevent accidental tipping of the range. Touch
pads will not work and the oven door will stay locked until
this function is turned o.
Touch these pads to set the desired times, temperatures,
and preset oven functions.
Touch this pad to keep cooked foods warm after cooking.
10
(KEEP) WARM
This lowers the oven temperature and maintains it at 150 °F
to 200 °F (66 °C to 93 °C).
11
SELF CLEAN
Activates the self-cleaning oven function. Uses very high
heat to burn o internal oven soilage.

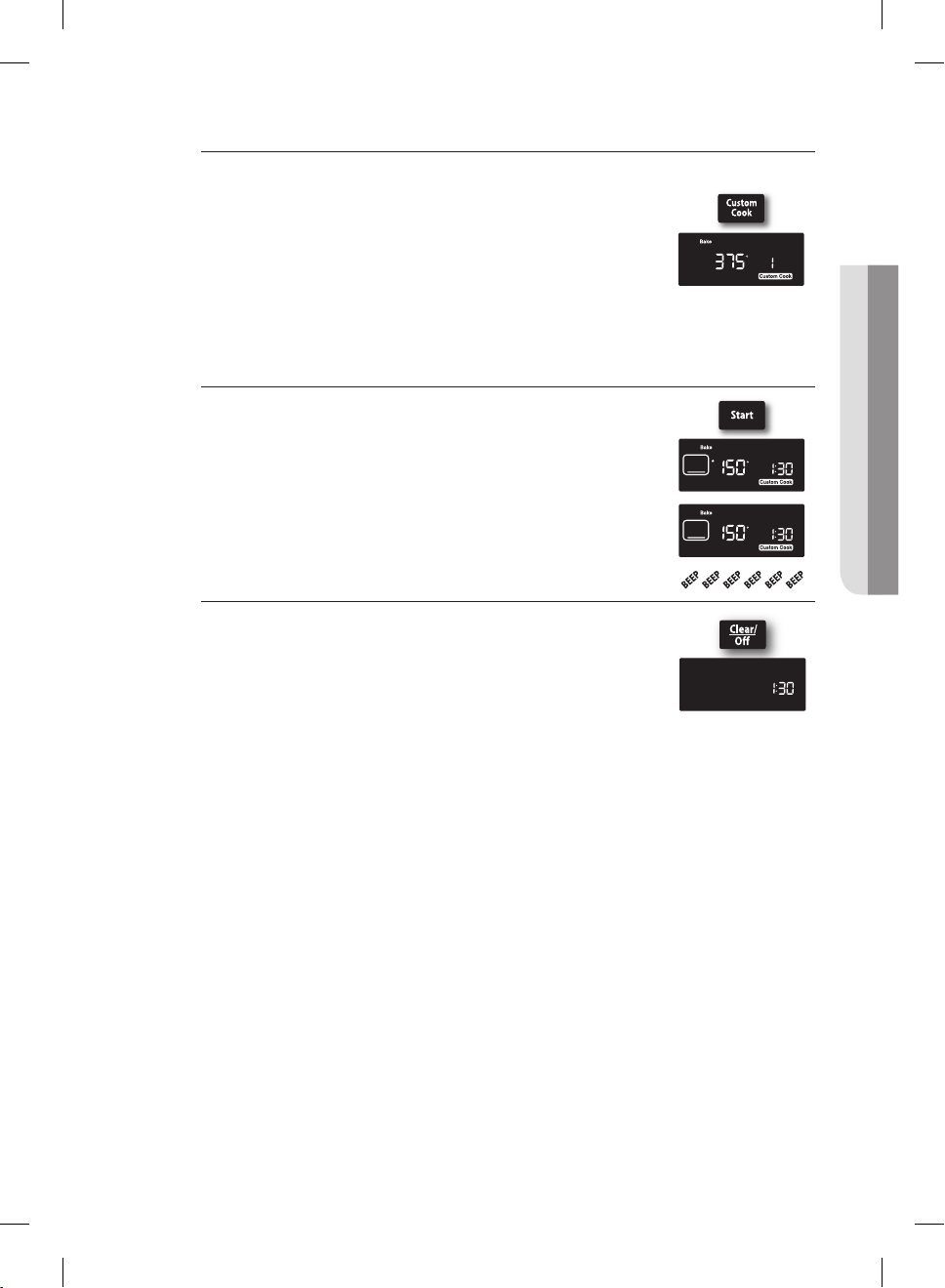

Activates the custom cook feature. This feature lets you
12
CUSTOM COOK
preprogram up to three frequently used cooking cycles so
they can be set and started with the touch of a button.
WARMING
13
DRAWER (MODEL
FX710BGS)
CONV.CONVERT
14
(MODEL FX710BGS
/ FX510BGS)
Touch this pad to activate the warming drawer. An electric
heating element under the drawer uses three settings to
keep cooked foods warm.
Touch this pad to change the bake mode to Convection
Bake.
26_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 26 2013-05-07 �� 6:24:15
15
COOKING TIME
Touch this pad, and then the desired amount of time you
want your food to cook. The oven will automatically shut o
when the time has elapsed.
(KITCHEN) TIMER
16
ON/OFF
Touch to select the timer feature. Activates a kitchen timer
for the desired amount of time.
Allows you to set the oven to start and stop automatically.
17
DELAY START
Use with Bake, Convection Bake, Convection Roast, Cook
Time, or Self Clean functions.
18
CLOCK Allows you to set the clock.
19
OVEN LIGHT Touch this pad to turn the oven light on or o.
MINIMUM AND MAXIMUM SETTINGS
All the features listed in the following chart have minimum and maximum temperature or
time settings.
FEATURE MINIMUM SETTING MAXIMUM SETTING
BAKE 150 °F (66 °C) 550 °F (288 °C)
BROIL Lo Hi
SELF-CLEAN 2 hours 4 hours
CONVECTION BAKE ( )
CONVECTION ROAST (MODEL
FX710BGS / FX510BGS)
150 °F (66 °C) 550 °F (288 °C)
150 °F (66 °C) 550 °F (288 °C)
OPERATING THE OVEN
(KEEP) WARM - 3 hours
WARMING DRAWER * - 3 hours
PROOF - 12 hours
If you set Conversion On for Convection Bake and/or Convection Roast, you can set
the minimum temperature to 175 °F (79 °C).
* Model FX710BGS only.
Always bake and/or broil with the oven door closed.
If you open the oven door while the oven is operating
and leave it open, the oven burner will stop in 5 minutes.
This is not a product failure. The oven will automatically
start again when you close the door.
Application mode : Conv. Bake, Conv. Roast, Bake,
Broil, Pizza, Slow Cook, Chicken Nuggets, Custom
Cook.
operating the oven _27
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 27 2013-05-07 �� 6:24:15
SETTING THE CLOCK
The clock must be set to the correct time of day for the automatic oven timing functions
to work properly. The clock can be adjusted to show a 12-hour or 24-hour display. The
12-hour display is the default setting.
The time of day cannot be changed during a timed cooking, delayed start, self-cleaning,
or Sabbath function operation.
How to set the clock
1. Press the CLOCK pad.
2. Enter the current time in hours and minutes using the
number pads (e.g., 1, 3, 0).
The display will show the time of day, and the Start
indicator will blink.
3. Press the START pad to set and start the clock.
The display will show the time of day, and the Start
indicator will turn o.
How to change between a 12-hour and 24-hour display
1. Press and hold the CLOCK and 0 pads for 3 seconds.
The display will show the present mode (e.g., 12Hr).
If one pad is pressed before the other, -- -- will appear
in the display.
Press the CLEAR/OFF pad and start again.
2. Press the 0 pad to toggle between the 12-hour and 24hour display setting.
12Hr or 24Hr will show in the display depending on your
selection.
3. Press the START pad to change the clock display mode.
28_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 28 2013-05-07 �� 6:24:16
SETTING THE (KITCHEN) TIMER ON/OFF
The kitchen timer serves as an extra timer that beeps when the set time has elapsed. It
does not start or stop cooking functions. The feature can be used at the same time as
any other oven functions. The timer can be set for any amount of time between 1 minute
and 9 hours and 99 minutes.
How to set the timer
1. Press the (KITCHEN) TIMER ON/OFF pad. Press the
pad once for hours/minutes, twice for seconds, and
three times to turn o or cancel the kitchen timer.
The display will show Timer, and -HR -the display.
2. Press the number pads to enter the amount of time you
want in minutes or hours and minutes (e.g., 1, 5).
The set time will show in the display.
3. Press the (KITCHEN) TIMER ON/OFF pad to start the
timer.
The display will show the remaining time. When time
has elapsed, the oven will beep and the display will
show End until you press the (KITCHEN) TIMER ON/
OFF pad. After the pad is pressed, the display will go
back to showing the time of day.
You can cancel the timer at any time by pressing the
(KITCHEN) TIMER ON/OFF pad.
min
will blink in
OPERATING THE OVEN
operating the oven _29
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 29 2013-05-07 �� 6:24:16
POSITIONING THE OVEN RACKS
The oven racks are removable and can be positioned in
any of the seven oven rack positions. Each oven rack
has a built-in stop to prevent it from accidentally being
pulled completely out. Proper positioning of the oven
racks will provide the best cooking results. The diagram
to the right shows the rack positions.
• Do not cover an oven rack with aluminum foil.
CAUTION
This will disturb the heat circulation, resulting in
poor baking.
• Do not place aluminum foil on the oven bottom because it could cause
damage.
• Arrange the oven racks only when the oven is cool.
• When placing an oven rack in the topmost rack position (position 7), make sure
the rack is stably situated on the embossed stop.
Oven rack positions
TYPE OF FOOD RACK POSITION
Hamburgers and steaks 6 or 7
Toasts 5 or 6
Biscuits, muffins, brownies, cookies 4
Bundt or pound cakes 3
7
6
5
4
3
2
1
Angel food cake, pies 2
Roasts (small or large), ham, turkeys 1 or 2
Baking layer cakes
• Centering the baking pans in the oven will
produce better cooking results.
• When baking multiple items, make sure to
leave a 1 to 1.5 in (2.5 to 3.8 cm) space
around each item.
• When baking on multiple racks, place the
oven racks in positions 2 and 5.
• When convection baking on multiple racks,
place the oven racks in positions 2 and 5.
• Place two pans in the rear of the top rack and the other two pans in the front
of the bottom rack.
Proper positioning of food items in the oven will help you achieve the best
cooking results.
30_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 30 2013-05-07 �� 6:24:16
To remove an oven rack:
1. Pull the rack straight out until it stops.
2. Lift the front of the oven rack and pull to
remove it from the oven.
To replace an oven rack:
1. Place the back edge of the rack on the
desired rack supports.
2. Lift the front of the rack and slide it into
the oven.
OVEN VENT
The oven vent is located under the oven
control panel. Do not block or place items in
front of the oven vent. Proper air circulation
prevents oven burner combustion problems
and ensures good cooking results. Since the
vent and area around the vent can become
hot, use care when placing items near the
oven vent. Hot steam could heat or melt items
placed in front of the oven vent.
OPERATING THE OVEN
Oven vent
OVEN LIGHT
The oven has a light that is located on the rear
oven wall in the upper right-rear corner. The
light can be turned on or o by touching the
OVEN LIGHT pad on the oven control panel.
The oven light allows you to check cooking
progress without opening the oven door.
Always use a 40-watt appliance bulb when
replacing the oven light.
See page 61 for light-changing instructions.
operating the oven _31
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 31 2013-05-07 �� 6:24:17
Oven light
BAKING
The Bake function lets you program the oven to bake at any temperature between 150 °F
(66 °C) and 550 °F (288 °C).
How to set the oven temperature
1. Position the oven rack in the desired location.
2. Press the BAKE pad. The oven will beep every time a
pad is pressed.
The default temperature, 350°, and the Start indicator
will blink on the display. If the default temperature is the
desired cooking temperature, skip to step 4.
3. Press the number pads for the desired cooking
temperature (for example, 3, 7, 5).
The selected cooking temperature and the Start
indicator will blink on the display.
4. Press the START pad.
The oven will automatically light and start preheating.
The display will show a blinking •, along with 150°,
Bake, and the bake element icon, until the oven
reaches 150°. Then, the display will just show the
actual oven temperature.
When the oven reaches the desired baking
temperature, it will beep 6 times.
5. Place the food in the oven and close the oven door.
Preheating is very important for good baking results.
6. When baking is complete, remove the item(s) from the
oven, close the oven door, and press the CLEAR/OFF
pad.
The oven will shut o, and the display will show the
time of day.
To change a programmed baking temperature, press the BAKE pad, enter the
new baking temperature, and then press the START pad. If the oven temperature
is higher than the new setting, the oven will beep 6 times, then show the new
setting. The oven will complete cooking at the new temperature.
32_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 32 2013-05-07 �� 6:24:17
If your baking results are not what you are used to, the
preset oven cooking temperature can be adjusted ±30 °F
(±17 °C) as follows:
1. Press and hold the BAKE and 0 pads for 3 seconds.
The display will show AdJ and 0.
2. Press the BAKE pad to toggle between + or –
temperature adjustments.
3. Press the number pads for the desired temperature
adjustment for example, (1, 0).
The display will show AdJ and 10.
4. Press the START pad.
The oven will beep twice, and the display will show the
time of day. The next time you bake, the oven will use
the new temperature setting.
This adjustment will not aect the broiling or the self-cleaning temperatures.
The adjustment will be retained in memory after a power failure.
OPERATING THE OVEN
operating the oven _33
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 33 2013-05-07 �� 6:24:18
CONVECTION BAKING AND ROASTING
The Convection Bake function lets you program the oven to
bake at any temperature between 150 °F (66 °C) and 550 °F
(288 °C). The Convection Roast function lets you program
the oven to roast at any temperature between 150 °F (66 °C)
and 550 °F (288 °C). The convection fan in the back of the
oven cavity circulates the hot air evenly throughout the oven
cavity. As a result, foods are evenly cooked and browned in
less time than with regular heat.
Convection baking
• Ideal for foods being cooked on multiple racks.
• Good for large quantities of baked foods.
• Provides good results with cookies, biscuits,
brownies, cupcakes, cream pus, sweet rolls,
angel food cake, and bread.
• Cookies have best cooking results when cooked
on flat cookie sheets.
• When convection baking on a single rack, place the oven rack in position
3 or 4.
When convection baking on multiple racks, place the oven racks in position 2
and 5.
The oven automatically adjusts the temperature for convection baking with
the Convection Auto Conversion feature. See page 51 for details.
Convection roasting (FX710BGS / FX510BGS)
• Good for larger tender cuts of meat, uncovered.
• Place a broil pan and grid under the meat or
poultry during convection roast for best results.
The pan catches grease spills and the grid
prevents grease spatters.
Meat and poultry are browned on all sides as if
they were cooked on a rotisserie. Heated air will be
circulated over, under, and around the food being roasted. The heated air seals in
juices quickly for a moist and tender interior while creating a rich, golden-brown
exterior.
See the “Recommended convection roasting guide” on page 36 for
recommended cooking times and temperatures.
34_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 34 2013-05-07 �� 6:24:18
How to set the oven for convection baking or roasting
The CONVECTION ROAST function is available on the FX710BGS and FX510BGS
only.
1. Position the oven rack in the desired location.
2. Press the CONVECTION BAKE ( ) or
CONVECTION ROAST pad. The oven will beep every
time a pad is pressed.
The default temperature, 350°, will blink on the display.
If the default temperature is the desired cooking
temperature, skip to step 4.
3. Press the number pads for the desired cooking
temperature (for example, 4, 2, 5).
The selected cooking temperature will blink on the
display.
4. Press the START pad.
The oven will automatically light and start preheating.
The display will show a blinking •, along with 150°,
Conv. Bake ( ), and the convection bake
element and fan icons, until the oven reaches 150°.
Then, the display will just show the actual oven
temperature.
When the oven reaches the desired baking or roasting
temperature, it will beep 6 times.
OPERATING THE OVEN
5. Place the food in the oven and close the oven door.
Preheating is very important for good baking results. All
roasting should be done on a broil pan and grid.
6. When baking or roasting is complete, remove the
item(s) from the oven, close the oven door, and press
the CLEAR/OFF pad.
The oven will shut o, and the display will show the
time of day.
To change a programmed baking or roasting temperature, press the
CONVECTION BAKE ( ) or CONVECTION ROAST pad, enter the new
cooking temperature, and then press the START pad.
If the oven temperature is above the new setting, the oven will beep 6 times, then
show the new setting. The oven will complete cooking at the new temperature.
operating the oven _35
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 35 2013-05-07 �� 6:24:18
Recommended convection roasting guide (FX710BGS /
FX510BGS)
The size, weight, thickness, roasting temperature setting, and your preference of
doneness will aect the roasting time.
The following guide is based on foods starting at refrigerator temperature.
Food
Beef
Pork
Poultry
Lamb
Minutes
Per Pound
Rib Roast
(3 to 5 lb)
Tenderloin
Roast
(2 to 3 lb)
(Bone-in or Boneless)
(3 to 5 lb)
Chops
(0.5- to 1-in
thick)
Chicken, Whole
(2.5 to 3.5 lb)
Turkey, Whole (Unstued *)
(10 to 16 lb)
Turkey, Whole (Unstued *)
(18 to 24 lb)
Turkey Breasts (4 to 6 lb) 18–23
Cornish Hen (1 to 1.5 lb) 50–75 total
Half Leg
(3 to 4 lb)
Whole Leg
(6 to 7 lb)
Medium 28–33
Well Done 30–38
Medium 35–45
Well Done 45–55
Roast
22–28
2 chops 30–40 total
4 chops 40–50 total
6 chops 45–55 total
26–30
10–16
8–15
Medium 25–30
Well Done 30–35
Medium 25–30
Well Done 30–35
Oven
Temperature
350 °F
(177 °C)
350 °F
(177 °C)
350 °F
(177 °C)
350 °F
(177 °C)
350 °F
(177 °C)
350 °F
(177 °C)
350 °F
(177 °C)
350 °F
(177 °C)
375 °F
(191 °C)
325 °F
(163 °C)
325 °F
(163 °C)
325 °F
(163 °C)
325 °F
(163 °C)
325 °F
(163 °C)
325 °F
(163 °C)
325 °F
(163 °C)
325 °F
(163 °C)
Internal
Temperature
160 °F
(71 °C)
170 °F
(77 °C)
160 °F
(71 °C)
170 °F
(77 °C)
170 °F
(77 °C)
170 °F
(77 °C)
170 °F
(77 °C)
170 °F
(77 °C)
180 °F
(82 °C)
180 °F
(82 °C)
180 °F
(82 °C)
170 °F
(77 °C)
180 °F
(82 °C)
160 °F
(71 °C)
170 °F
(77 °C)
160 °F
(71 °C)
170 °F
(77 °C)
* Stued turkey requires additional roasting time. The minimum safe
temperature for stung in poultry is 165 °F (74 °C).
36_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 36 2013-05-07 �� 6:24:19
TIMED COOKING
The Cook Time function lets you program the oven to cook food at a set temperature for
a desired length of time. At the end of the set time, the oven will automatically shut o.
Use caution when using the Cook Time or Delay Start functions. These functions
are best used when cooking cured or frozen meats and most fruits and vegetables.
CAUTION
Foods that can easily spoil, like milk, eggs, fish, poultry, and meats, should be
chilled in a refrigerator before they are placed in the oven. Even when chilled,
they should not stand for more than 1 hour before cooking begins and should be
removed promptly when cooking is completed. Eating spoiled food can result in
sickness from food poisoning.
How to set the oven for timed cooking
1. Position the oven rack in the desired location. Place the
food in the oven and close the oven door.
2. Press the BAKE pad.
The default temperature, 350°, will blink on the display.
If the default temperature is the desired cooking
temperature, skip to step 4.
3. Press the number pads for the desired cooking
temperature (for example, 3, 7, 5).
The selected cooking temperature will blink on the
display.
OPERATING THE OVEN
4. Press the COOKING TIME pad.
The display will show -HR --
min
.
5. Press the number pads for the desired cooking time.
The display will show the selected time, and the Start
indicator will blink. You can set the time to any length
between 1 minute and 9 hours and 99 minutes.
operating the oven _37
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 37 2013-05-07 �� 6:24:19
6. Press the START pad.
The oven will automatically light and start preheating.
The display will show a blinking •along with the default
or selected temperature, Bake, and the bake
element icon, until the oven reaches that temperature.
When the oven reaches the desired temperature, it will
beep 6 times. The oven will start cooking for the set
amount of time, and the remaining cooking time will be
displayed.
To see the time of day, press and hold the CLOCK
pad. When the CLOCK pad is released, the display
will go back to the remaining cooking time. When the
cooking time has elapsed, the oven will automatically
shut o and the display will show the time of day.
To change a programmed baking temperature, press the BAKE pad, enter
the new baking temperature, and press the START pad. If the oven temperature
is above the new setting, the oven will beep 6 times, then show the new setting.
The oven will complete cooking at the new temperature.
To change a programmed cooking time, press the COOKING TIME pad,
enter the new cooking time, and then press the START pad. The oven will
continue cooking for the remaining new set time.
Place food in the oven after preheating if the recipe calls for it. Preheating is
important for good baking results. After the oven has reached the desired
cooking temperature, it will beep 6 times.
38_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 38 2013-05-07 �� 6:24:19
DELAY TIMED COOKING
The Delay Start function lets you use the kitchen timer to automatically start and stop
another cooking program (Bake, Convection Bake, or Convection Roast). Delay Start
can be set before other cooking operations for up to 12 hours. The clock must be set to
the correct time of day for Delay Start to work properly.
Use caution when using the Cook Time or Delay Start functions. These functions
are best used when cooking cured or frozen meats and most fruits and vegetables.
CAUTION
Foods that can easily spoil, like milk, eggs, fish, poultry, and meats, should be
chilled in a refrigerator before they are placed in the oven. Even when chilled,
they should not stand for more than 1 hour before cooking begins and should be
removed promptly when cooking is completed. Eating spoiled food can result in
sickness from food poisoning.
How to set the oven for delay timed cooking
1. Position the oven rack in the desired location. Place the
food in the oven and close the oven door.
2. Press the pad for the desired cooking operation, e.g.,
BAKE.
The default temperature, 350°, and the Start indicator
will blink on the display. If the default temperature is the
desired cooking temperature, skip to step 4.
3. Press the number pads for the desired cooking
temperature (for example, 3, 7, 5).
The selected cooking temperature and the Start
indicator will blink on the display.
OPERATING THE OVEN
4. Press the COOKING TIME pad.
The display will show the selected cooking temperature,
Bake, and -HR --
min
.
(HR, min characters are not displayed on the
FX510BGS, NX583G0VBSR, NX583G0VBBB and
NX583G0VBWW model)
5. Press the number pads for the desired cooking time.
The display will show the selected cooking time, and
the Start indicator will blink. You can set the time to
any amount of time between 1 minute and 9 hours and
99 minutes.
operating the oven _39
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 39 2013-05-07 �� 6:24:20
6. Press the DELAY START pad.
The display will show Delay, and --:-- will blink.
7. Press the number pads for the time you want the oven
to turn on (for example, 4, 3, 0).
The Start indicator will blink under Delay and the
selected start time.
8. Press the START pad.
The oven will automatically turn on and beep when the
set start time is reached.
The oven will automatically light and start preheating.
When the oven reaches the desired cooking
temperature, it will beep 6 times.
The display will count down the set cooking time.
When the cooking time has elapsed, the oven will
automatically shut o and the display will show the time
of day.
To change a programmed starting time, press the DELAY START pad, enter
the new starting time, and then press the START pad. The oven will start cooking
at the new start time.
To change a programmed baking temperature, press the BAKE pad, enter the
new baking temperature, and then press the START pad. If the oven temperature
is above the new setting, the oven will beep 6 times, then show the new setting.
The oven will complete cooking at the new temperature.
To change a programmed cooking time, press the COOKING TIME pad,
enter the new cooking time, and then press the START pad. The oven will
continue cooking for the remaining new set time.
Place food in the oven after preheating if the recipe calls for it. Preheating is
important for good baking results. After the oven has reached the desired
cooking temperature, it will beep 6 times.
40_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 40 2013-05-07 �� 6:24:20
BROILING
The Broil function allows you to cook and brown foods using only a top heat source. The
oven door must remain closed during broiling. The meat or fish should always be placed
on a broiling grid in a broiling pan.
If a fire occurs during broiling, leave the oven door closed and turn o the
oven. If the fire continues, throw baking soda on the fire or use a foam-type fire
CAUTION
extinguisher. Do not put water or flour on the fire. Flour may explode and water
can cause a grease fire to spread. Both can cause personal injury and/or property
damage.
How to set the oven for broiling
1. Place the food on a broiling pan with insert grid. Place
the food and pan on the top oven rack, positioned as
recommended in the “Recommended broiling guide”
on page 42. Close the oven door.
2. Press the BROIL pad once for Hi and twice for Lo. The
oven will beep every time a pad is pressed.
The Start indicator will blink to the right of Hi or Lo
and Broil on the display. Use Lo to cook foods such
as poultry or thick cuts of meat thoroughly without
overbrowning them.
3. Press the START pad.
The oven will automatically light the top oven burner
and start cooking.
The display will show the selected broil setting (Hi or
Lo), the broil element icon, and Broil.
Broil on one side until food is browned; turn and cook
on the other side.
When cooking is completed, press the CLEAR/OFF
pad to shut o the oven or to cancel broiling at any
time. The display will show the time of day.
OPERATING THE OVEN
To change a programmed broiling setting, press the BROIL pad to toggle the
setting between Hi and Lo. Pressing the START pad will change the broil setting
and complete cooking at the new temperature.
operating the oven _41
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 41 2013-05-07 �� 6:24:20
Recommended broiling guide
The size, weight, thickness, broiling temperature setting, and your preference of
doneness will aect the broiling time. The following guide is based on meats and/
or fish starting at refrigerator temperature.
Food Quantity and/
Ground Beef
Well Done 1 lb (4 patties)
Beef Steaks
Medium 1-in thick 1 to
Well Done 6 12-14 6-8
Medium 1.5-in thick 2 to
Well Done 6 18-22 17-19
Chicken 1 whole cut-up
Fish Fillets 0.25- to 0.5-in
Ham Slices
(precooked)
Pork Chops
Well Done 2 (0.5-in thick) 6 8-11 4-6 Slash fat.
Lamb Chops
Medium 2 (1-in thick)
Well Done 6 10-16 7-11 Slash fat.
or Thickness
0.5- to 0.75-in
thick
1.5 lbs
2.5 lbs
2 to 2.5 lbs
Split lengthwise
2 breasts 5 15-20 7-12
thick
0.5-in thick 6 7-10 5-6 Increase time 5 to 10
about 10 to
12 oz
Rack
position*
6 or 7 7-10 5-7 Space evenly. Up to 8
1st
side
time
(min.)
6 10-12 5-7 Steaks less than 1-in
6 15-18 14-17
4 30-35 15-20 Broil skin-side-down
6 6-10 3-4 Handle and turn very
6 8-12 5-8
2nd
side
time
(min.)
Comments
patties may be broiled
at once.
thick cook through
before browning.
Pan frying is
recommended.
Slash fat.
first.
Spread open.
Brush with melted
butter before and
halfway through
broiling.
carefully.
Brush with lemon
butter before and
during cooking, if
desired.
minutes per side for
1.5-in thick or homecured ham.
* See illustration on page 30 for description of rack positions.
42_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 42 2013-05-07 �� 6:24:20
(KEEP) WARM
The Keep Warm function allows you to keep cooked foods warm at a low baking
temperature. The Keep Warm feature keeps cooked food warm for serving up to 3 hours
after cooking has finished. After 3 hours, the feature automatically shuts o the oven.
How to use the warm feature
1. Position the oven rack in the desired location. Place the
food in the oven and close the oven door.
2. Press the (KEEP) WARM pad.
The Start indicator will blink under the time of day and
Warm on the display.
3. Press the START pad.
The oven will automatically light and start preheating to
the Keep Warm temperature (approx. 170 °F [77 °C]).
The display will show the oven element icon, Warm,
and the time of day.
When warming is completed, press the CLEAR/OFF
pad to shut o the oven or to cancel Keep Warm at any
time. The display will show the time of day.
To program Keep Warm after a timed cooking function, press the (KEEP)
WARM pad after you program the timed cooking function. When Time Cook
is complete, the oven will beep 6 times and lower the oven temperature to the
Keep Warm setting. The oven will maintain that temperature until Keep Warm is
canceled.
OPERATING THE OVEN
operating the oven _43
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 43 2013-05-07 �� 6:24:20
USING THE EASY COOK FEATURE
Pizza
This pizza function is designed to produce a crisp and browned bottom while
keeping the topping moist.
How to set the Pizza function.
1. Press the PIZZA pad.
FX510BGS, NX583G0VBSR
NX583G0VBBB, NX583G0VBWW
FX710BGS
2. Press the START/SET pad to
begin pizza cooking.
FX510BGS, NX583G0VBSR
NX583G0VBBB, NX583G0VBWW
FX710BGS
• Use only 1 rack and place the rack in position 3 or 4 for the best results
when using the pizza feature.
• The default temperature is 400 °F. You may adjust the oven temperature
to fit your needs.
• Follow the package instructions for preheating and baking times.
Slow Cook (FX710BGS / FX510BGS)
The Slow Cook feature can be used to cook food more slowly at lower oven
temperatures. The extended cooking times allow better distribution of flavors in
many recipes. This feature is ideal for roasting beef, pork & poultry. Slow cooking
meats may cause the exterior of meats to become dark but nor burnt. This is
normal.
How to set the Slow Cook.
1. Press the SLOW COOK pad once for HI or
twice for LO.
2. Press the START/SET pad to begin slow
cooking.
FX510BGS FX710BGS
FX510BGS FX710BGS
• Use only 1 rack and place the rack in position 3 or 4 for the best results.
• Preheating the oven will not be necessary.
44_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 44 2013-05-07 �� 6:24:21

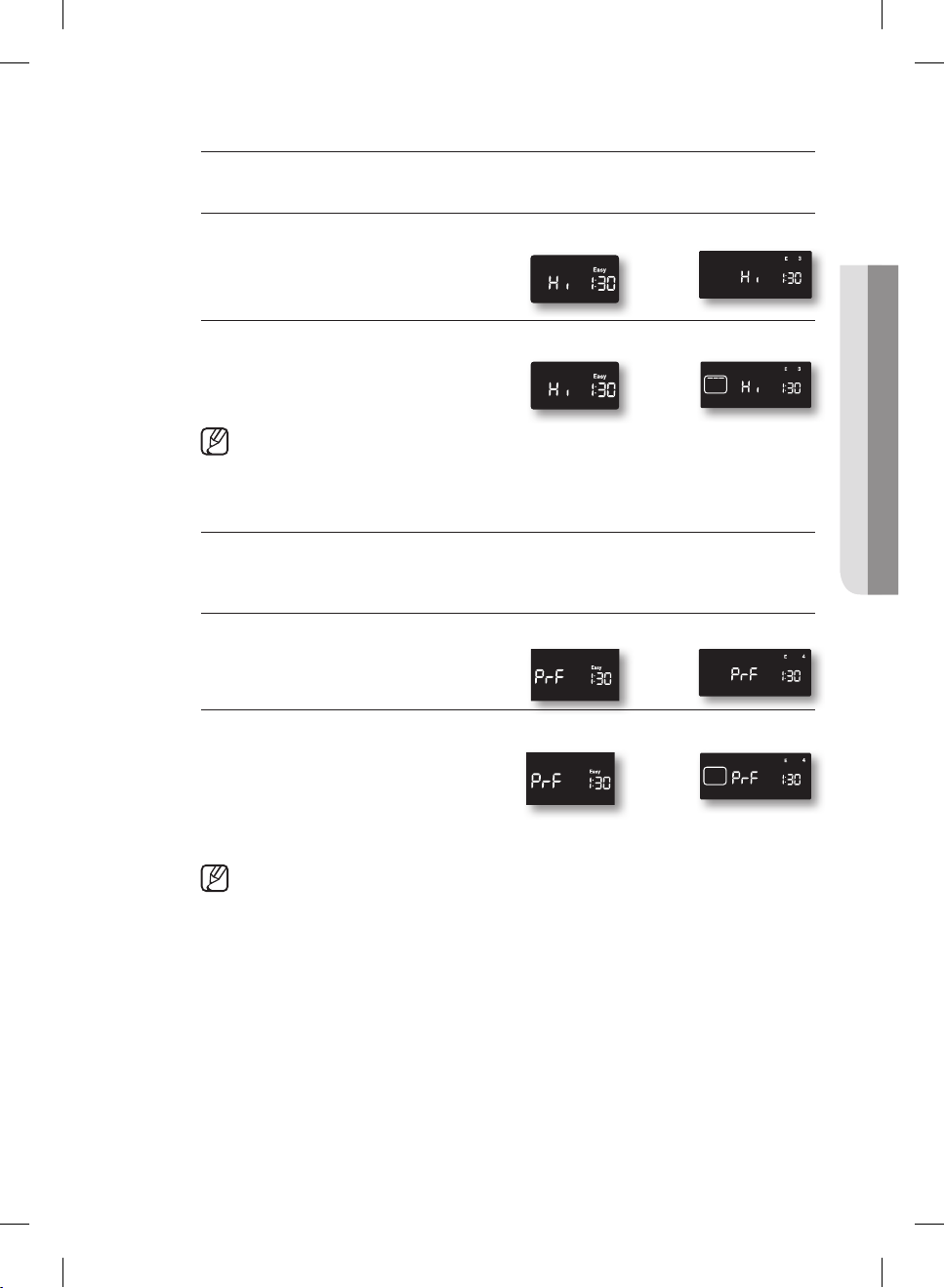

Chicken Nuggets
Use this function is to cook convenience style frozen chicken nuggets.
How to set the Chicken Nuggets function.
1. Press the CHICKEN
NUGGETS pad once for HI or
twice for LO. Use LO to cook
thick style foods.
FX510BGS, NX583G0VBSR
NX583G0VBBB, NX583G0VBWW
FX710BGS
OPERATING THE OVEN
2. Press the START/SET pad to
begin chicken nuggets cooking.
FX510BGS, NX583G0VBSR
NX583G0VBBB, NX583G0VBWW
FX710BGS
• When using this function, place the oven rack in position 5 of 6 for the
best result.
• Preheating the oven will not be necessary.
Proof
The proofing feature maintains a warm environment useful for rising yeastleavened products.
How to set the oven for proofing.
1. Enter the proofing mode.
Press the PROOF pad.
2. Start the proofing function.
Press the pad. The proofing
feature automatically provides
the optimum temperature
for the proof process, and
therefore does not have a temperature adjustment.
3. Press the CLEAR/OFF pad at any time to turn o the proofing feature.
• If you press the PROOF pad when the oven temperature is above 100˚F,
Hot will appear in the display. Because these functions produce the best
results when started while the oven is cool, we recommend that you wait
until the oven has cooled down and Hot disappears from the display.
• To avoid lowering the oven temperature and lengthening proofing time,
do not open the oven door unnecessarily.
• Check bread products early to avoid over-proofing.
• Do not use the proofing mode for warming food or keeping food hot.
The proofing oven temperature is not hot enough to hold foods at safe
temperatures. Use the warm feature.
• For best results, place the dough in a dish in the oven on rack 3 or 4 and
cover the dough with a cloth or with plastic wrap. (The plastic may need
to be anchored underneath the container so the oven fan will not blow it
o.)
FX510BGS, NX583G0VBSR
NX583G0VBBB, NX583G0VBWW
FX510BGS, NX583G0VBSR
NX583G0VBBB, NX583G0VBWW
FX710BGS
FX710BGS
operating the oven _45
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 45 2013-05-07 �� 6:24:22
CUSTOM COOKING
The Custom Cook function allows you to preprogram up to 3 dierent cooking functions
or favorite recipe settings so they can be recalled and started at a touch of a button. You
can use only Bake, Convection Bake, or Roast Convection as a Custom Cook selection.
You can not use any Delay Start functions as a Custom Cook selection.
How to set a custom cook selection.
1. Press the pad for the cooking operation you want to
store, e.g., BAKE. The oven will beep every time a pad
is pressed.
The default temperature 350° will blink on the display.
If the default temperature is the desired cooking
temperature, skip to step 3.
2. Press the number pads for the desired cooking
temperature (for example, 3, 7, 5).
The selected cooking temperature will blink on the
display.
3. Press the CUSTOM COOK pad the number of times
that corresponds to where you want to store the
operation and temperature:
1 time for recipe 1,
2 times for recipe 2,
3 times for recipe 3.
The corresponding number and the setting will show
in the display, and the Custom Cook and Start
indicators will blink under the selected Custom Cook
setting for that recipe.
4. Press the START pad.
The display will show the last set or used Custom Cook
temperature setting and the current time of day.
Press the START pad once to save the Custom Cook
setting or twice to save and start Custom Cook at the
selected setting.
46_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 46 2013-05-07 �� 6:24:22
How to use or recall a custom cook selection
1. Position the oven rack in the desired location.
2. Press the CUSTOM COOK pad the number of times
that corresponds to where the recipe setting is stored:
1 time for recipe 1,
2 times for recipe 2,
3 times for recipe 3.
The Custom Cook and Start indicators will blink
under the selected Custom Cook setting for that recipe
on the display.
3. Press the START pad.
A • will blink to the left of the default or actual
temperature until the selected temperature is reached.
The oven will beep 6 times. The default or actual
temperature, the cooking function, the cooking
function icon, and the time of day will be displayed.
When the oven reaches the desired cooking
temperature, it will beep 6 times.
4. Place the food in the oven and close the oven door.
Preheating is very important for good baking or roasting
results.
5. When cooking is complete, remove the item(s) from the
oven, close the oven door, and press the CLEAR/OFF
pad.
The oven will shut o and the display will show the time
of day.
OPERATING THE OVEN
operating the oven _47
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 47 2013-05-07 �� 6:24:22
SABBATH FUNCTION
(For use on the Jewish Sabbath and Holidays)
The Sabbath function can only be used with the Bake and Cook Time settings. The oven
will operate at the set temperature and stay on until the Sabbath function is cancelled
or the set Cook Time has elapsed. When Sabbath is selected, it overrides the preset
factory energy-saving features. All display lighting, oven signals, most control pads, and
the convection fan will be deactivated.
How to set the Sabbath function
1. Position the oven rack in the desired location. See page
30.
2. Press the BAKE pad. The oven will beep every time a
pad is pressed until the Sabbath function is activated.
The default temperature, 350°, will blink on the display.
If the default temperature is the desired cooking
temperature, skip to step 4 or step 6.
3. Press the number pads for the desired cooking
temperature (for example, 3, 7, 5).
The selected cooking temperature will blink on the
display.
4. Press the COOKING TIME pad.
The display will show -HR --
min
.
5. Press the number pads for the desired cooking time.
The START indicator will blink on the display. You can
set the time to any length of time between 1 minute
and 9 hours and 99 minutes.
6. Press the START pad.
48_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 48 2013-05-07 �� 6:24:23
7. Press and hold the CLOCK and TIMER ON/OFF pad
at the same time for 3 seconds.
The display will show SAb. The oven signals, display
LEDs, and all oven controls except the number, BAKE,
COOKING TIME, START, and CLEAR/OFF pads will
be deactivated.
In approximately 20 seconds, the control panel will
“click” and the oven will start the lighting and preheating
process. After the oven reaches the selected cooking
temperature, the oven will continue to cook at that
temperature until the Cook Time has elapsed or the
Sabbath function is cancelled.
The display will not count down the set cook time, but
the oven will shut o at the end of the set time.
How to change the temperature and cancel the Sabbath
function
To change a programmed baking temperature, press
the BAKE pad, enter the new baking temperature, and
press the START pad. In approximately 20 seconds, the
control panel will “click” and the oven will complete cooking
at the new temperature.
To only turn o the oven, press the CLEAR/OFF pad.
The display will still show SAb, and the oven signal and
LEDs will still be deactivated.
OPERATING THE OVEN
To cancel the Sabbath function, press and hold the
CLOCK and TIMER ON/OFF pad at the same time for 3
seconds. The display will show the time of day.
operating the oven _49
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 49 2013-05-07 �� 6:24:23
EXTRA FEATURES
12-Hour/3-Hour Energy-Saving
With this feature, should you forget and leave the oven
on, the control will automatically turn o the oven after 12
hours during baking functions or after 3 hours during a broil
function.
How to turn 12-hour energy-saving feature on or o.
1. Press the COOKING TIME and 0 pads at the same
time for 3 seconds.
The display will show 12 Hr (12 hours shut-o) or -- Hr
(no shut-o).
The default is 12 Hr.
2. Press the 0 pad to select ON (12 Hr) or OFF (-- Hr).
3. Press the START pad to save and start the feature
settings.
Fahrenheit or Centigrade Temperature Selection
The oven control can be programmed to display
temperatures in Fahrenheit or Centigrade.
The oven has been preset at the factory to display in
Fahrenheit.
How to change the display from Fahrenheit to Centigrade
or from Centigrade to Fahrenheit.
1. Press the BROIL and 0 pads at the same time for 3
seconds.
The display will show F (Fahrenheit) or C (Centigrade).
The default is F.
2. Press the 0 pad to select F or C. Pressing the 0 pad
toggles between F and C.
3. Press the START pad to save and set the temperature selection.
50_ operating the oven
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 50 2013-05-07 �� 6:24:24
Convection Auto Conversion Feature
When using convection bake, the convection auto
conversion feature will automatically convert entered
regular baking temperatures to convection baking
temperatures. This feature is activated so that the display
will show the actual converted (reduced) temperature.
How to enable or disable the auto conversion feature.
1. Press the CONVECTION BAKE and 0 pads at the
same time for 3 seconds.
The display will show Con On (enabled) or Con OFF
(disabled).
The default setting is Con OFF.
2. Press the 0 pad to select Con On or Con OFF.
3. Press the START pad to save and set the auto conversion feature.
Sound On/O
By using this feature, you can set the oven controls to operate silently.
How to turn the sound on or o.
1. Press the OVEN LIGHT and 0 pads at the same time
for 3 seconds.
The display will show Snd On (sound on) or Snd OFF
(sound o).
The default setting is Snd On.
2. Press the 0 pad to toggle between Snd On and Snd
OFF.
3. Press the START pad to save and set the audible
signal setting.
OPERATING THE OVEN
operating the oven _51
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 51 2013-05-07 �� 6:24:24
using the warming
drawer
ABOUT THE WARMING DRAWER (MODEL FX710BGS
ONLY)
The Warming Drawer lets you keep hot, cooked foods warm. Always start with hot food.
Do not use the warming drawer to heat or reheat cold food.
Allow approximately 25 minutes for the warming drawer to preheat.
Do not use plastic containers or plastic wrap in the warming drawer. The plastic will
melt upon direct contact with the drawer. Melted plastic may not be removable and
CAUTION
is not covered under the warranty.
• Do not line the warming drawer with aluminum foil. Foil is an excellent heat insulator
and will trap heat beneath it. This will upset the performance of the drawer and could
damage the interior finish.
• Do not put liquid or water in the warming drawer.
• All foods placed in the warming drawer should be covered with a lid or aluminum foil.
When warming pastries or breads, vent the cover to allow moisture to escape.
• Remove serving spoons, etc., before placing containers in the warming drawer.
• Food should be kept hot in its cooking container or transferred to a heat-safe serving
dish.
• The warming drawer cannot be used during a self-cleaning cycle.
• The warming drawer will shut o automatically after 3 hours.
52_ using the warming drawer
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 52 2013-05-07 �� 6:24:24
TURNING THE WARMING DRAWER ON OR OFF
1. Press the WARMING DRAWER pad once for low warming
temperature, twice for medium warming temperature, three
times for high warming temperature, or four times to shut o
the warming drawer.
Warming Drawer and the selected temperature light will show
in the display, and the warming drawer will start to heat.
2. To shut o the warming drawer, press the WARMING
DRAWER pad until the drawer shuts o.
Pressing the CLEAR/OFF pad does not turn o the warming
drawer.
Recommended settings
DRAWER SETTING TYPE OF FOOD*
LOW Soft rolls, empty dinner plates
USING THE WARMING DRAWER
MED
HIGH
* Dierent types of food may be placed in the warming drawer at the same time.
For best results, do not leave foods in the warming drawer for longer than 1
hour. Do not leave smaller quantities or heat-sensitive foods, such as eggs, for
longer than 30 minutes.
Roasts (beef, pork, lamb), casseroles, vegetables,
eggs, pastries, biscuits, hard rolls, gravies
Poultry, pork chops, hamburgers, pizza, bacon, fried
foods
using the warming drawer _53
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 53 2013-05-07 �� 6:24:24
maintaining your
appliance
• Always make sure the controls are OFF and all surfaces are cool before
WARNING
CARE AND CLEANING OF THE OVEN
The oven and surface burner control panels can be easily cleaned with a damp cloth
and/or glass cleaner. Heavily soiled areas can be cleaned with warm, soapy water.
removing and/or cleaning any of the range parts. This will prevent you from
getting burned.
• If the range is pulled out from the wall for any reason, make sure the anti-tip
device is reengaged after the range has been pushed back into place. Failure to
take this precaution could result in the range tipping and personal injury.
Never use steel wool or abrasive cleansers.
Protect the surface from sharp objects.
All of the above items can damage the surface.
Oven control panel
1. To lock the oven controls and the oven door, press and
hold the START/SET pad for 3 seconds. This prevents
accidental oven operation and appliance tipping.
The oven will beep and the display will show Loc, the
time of day, and the Lock icon.
2. Clean spatters with a damp cloth, glass cleaner, or
warm, soapy water.
3. To unlock the controls and the door, press and hold the
START/SET pad for 3 seconds.
To unlock just the controls, hold the door slightly open
while pressing and holding the START/SET pad for 3
seconds.
The oven will beep, and Loc and the Lock icon will
disappear from the display. Close the oven door, if you
are holding it open.
54_ maintaining your appliance
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 54 2013-05-07 �� 6:24:24
Stainless steel surfaces
Do not use a steel-wool pad or abrasive cleaners on stainless steel surfaces.
Abrasive pads and cleaners will scratch the surface and damage the surface
WARNING
finish.
To prevent any discolorations
and/or grease stains, we
recommend cleaning and
removing any spills, spots, and
grease from the range after each
use.
1. Wipe o any spills with a damp,
soft cloth.
2. Apply an approved stainless steel
cleaner to a damp, clean cloth or
paper towel. Clean a small area
carefully following the instructions
on the cleaner. Stainless steel
should always be cleaned with
the grain in the stainless steel, if
applicable.
3. Dry and bu with a clean, dry, soft
cloth.
4. Repeat steps 2 and 3 as necessary.
Do not spray any type of cleaner into the manifold panel holes. Within these
holes are ignition switches which carry the current that lights the surface
WARNING
burners. Spraying into them could damage the range.
Stainless steel
surfaces
MAINTAINING YOUR APPLIANCE
maintaining your appliance _55
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 55 2013-05-07 �� 6:24:26
Oven racks
To keep racks shiny and looking like new,
remove racks from the oven and clean by
hand in hot, soapy water with a plastic or
soap-filled scouring pad.
Do not leave the oven racks in the
oven during a self-cleaning cycle.
CAUTION
The extreme heat in the self-cleaning
Oven
Racks
cycle will permanently discolor the
oven racks and make them dicult
to slide.
If racks become dicult to slide, rub
the side rails with wax paper or a cloth
containing a small amount of cooking oil. This will help the racks slide more easily
in the tracks.
Oven door
Do not allow moisture to enter the
door or contact the door gasket
WARNING
during cleaning. Moisture entering
the door assembly and or getting
on the door gasket will damage the
gasket.
The oven door has multiple surfaces that
require dierent cleaning techniques. The
gasket on the inside surface of the oven
door should never be cleaned or moved to
clean other surfaces. The gasket is made
of woven material which is essential for a
good heat seal.
Handclean
gray
areas.
Do not
move
or clean
gasket.
The inside door surface outside of the gasket should be cleaned by hand with
hot, soapy water and a soapy plastic scouring pad. Rinse and dry thoroughly
with a clean, soft cloth. Do not get the gasket wet or allow moisture to get inside
the door assembly.
The inside door surface inside of the gasket and the inside door glass are
cleaned during the oven’s self-cleaning cycle.
The outside door surface is stainless steel and should be cleaned using the
instructions on page 55.
The outside glass surface can be cleaned with glass cleaner or warm, soapy
water with a thorough rinse. Do not let moisture get inside of the door assembly.
56_ maintaining your appliance
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 56 2013-05-07 �� 6:24:27

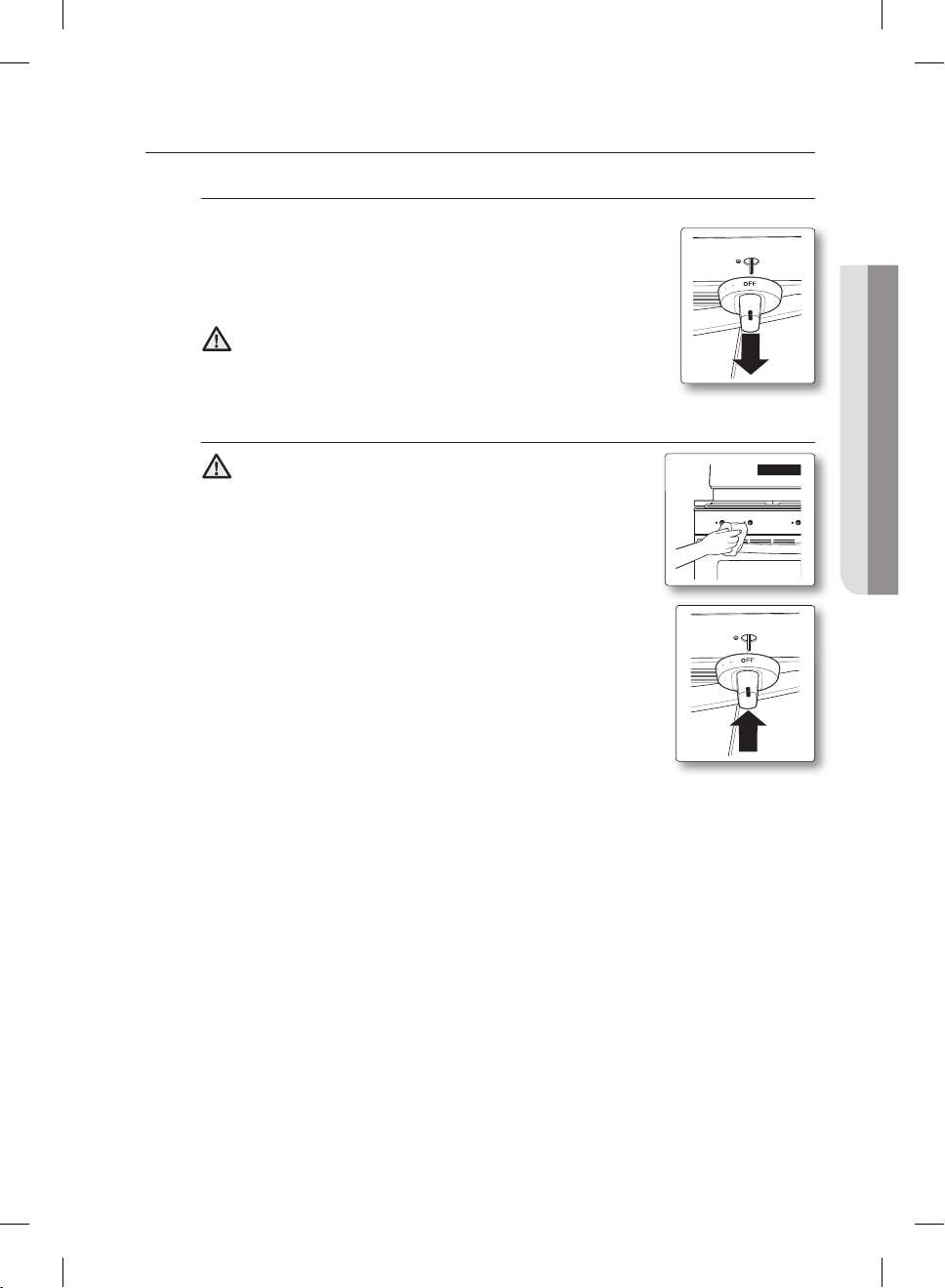

CARE AND CLEANING OF THE COOKTOP
Surface burner controls
1. Make sure all surface burner knobs are in the OFF
position.
2. Pull the control knobs straight o the surface burner
control valve stems.
Do not clean the control knobs in a dishwasher. They
are not dishwasher-safe.
CAUTION
3. Clean the control knobs in warm, soapy water. Rinse
and completely dry all surfaces (including back and
stem hole).
Do not use spray cleaners on the surface burner
control panel. Spray entering the valve holes could
WARNING
contact electrical components resulting in death,
personal injury, or product damage.
4. Clean stainless steel surfaces with stainless steel
cleaner on a damp, soft cloth.
See page 55.
5. Replace the control knobs in the OFF position by
pushing them straight onto the control valve stems.
MAINTAINING YOUR APPLIANCE
maintaining your appliance _57
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 57 2013-05-07 �� 6:24:27
Surface burner grates and assemblies
1. Turn o all controls and make sure all parts have cooled.
2. Lift o and remove the burner
grates from the cooktop. Make
note of the burner sizes and
locations of all the surface burners.
3. Lift o burner caps from top of the
burner heads.
4. Lift the burner heads o the valve
manifolds and starter electrodes.
5. Clean all removable burner parts in warm, soapy water. Do not use steel-wool
pads or abrasive cleaners on any burner part.
6. Rinse thoroughly and completely dry all parts before they are reassembled.
Starter electrodes are not removable and should only be wiped clean when
the controls are in the OFF position.
7. Set all burner heads on top of
the manifold valves in the same
location you removed them from.
The hole on the side of the burner
heads goes over the electrodes.
The burner heads are correctly
installed when they are flat on the
top of the manifold valves.
8. Set all burner caps on top of the
burner heads.
These also need to be flat on top of the burner heads to ensure proper and
safe operation.
58_ maintaining your appliance
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 58 2013-05-07 �� 6:24:28
Precise simmer burner (RR) cap should be set on top of the Right-rear
burner.
Check the cap type before placing the cap on the Precise simmer burner (RR).
Dual Burner-Inside (RF)
[Model FX710BGS]
Convex surface Flat surface
Convex line Concave line
9. Replace burner grates on top of the range
cooktop.
Precise Simmer Burner (RR)
MAINTAINING YOUR APPLIANCE
10. Push in and turn each surface burner control knob to the
LITE position, let each burner light, and then set each control
knob back to a burner setting to make sure each burner
operates properly.
maintaining your appliance _59
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 59 2013-05-07 �� 6:24:28

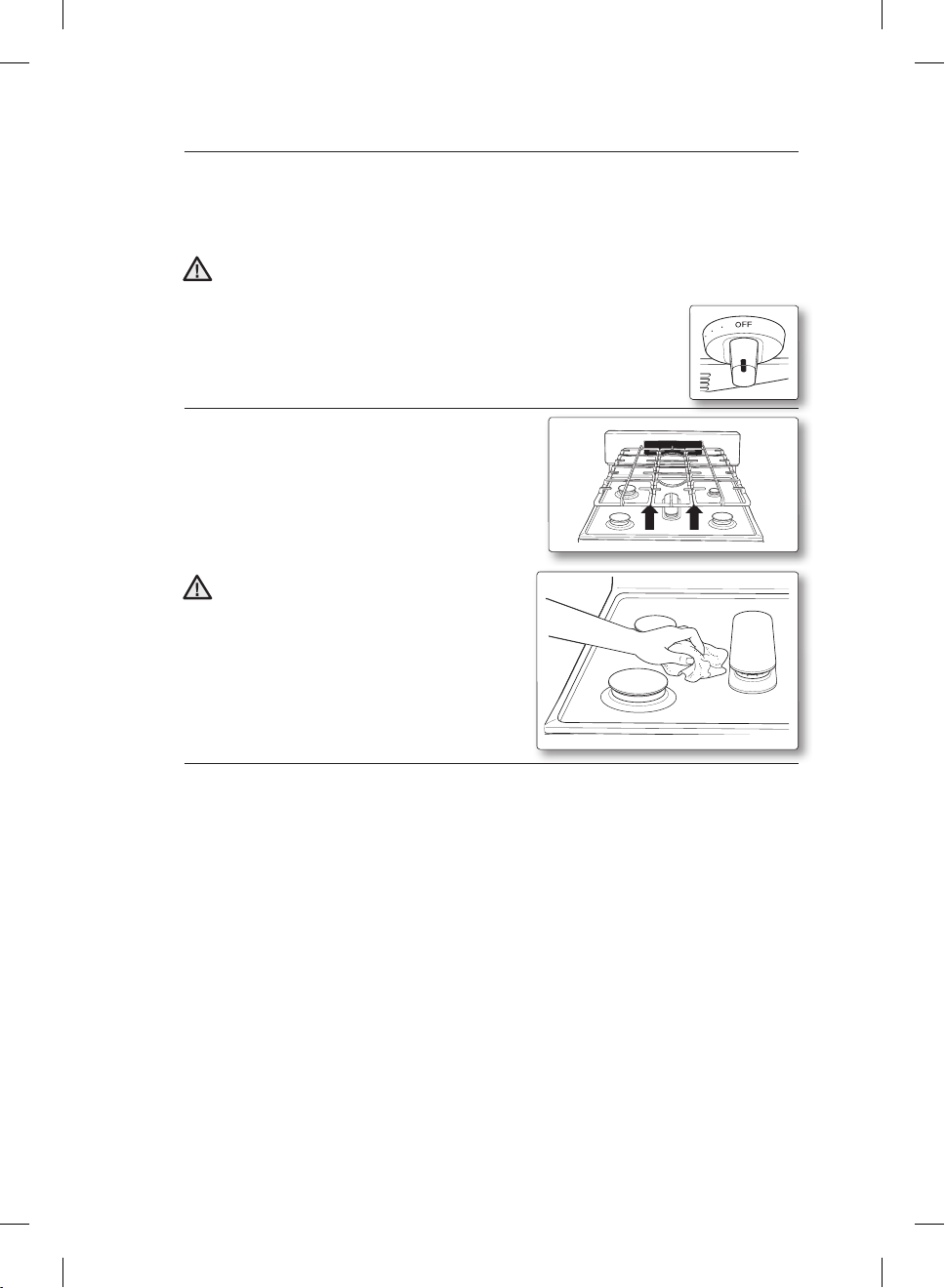

Cooktop surface
The cooktop surface is a porcelain-enamel surface. To prevent this surface from
becoming dull, wipe up and clean spills as they happen. Foods with a lot of acid
(tomatoes, sauerkraut, fruit juices, etc.) or foods with high sugar content can
cause dull spots if allowed to set.
Do not use a steel-wool pad or abrasive cleaners on porcelain-enamel
surfaces. Abrasive pads and cleaners will scratch and damage the surface.
WARNING
1. Make sure all surface burners are OFF.
2. When surfaces have cooled, remove the
burner grates.
Do not remove or lift the cooktop during
cleaning. Doing so could damage
WARNING
the gas lines leading to the surface
burner manifolds, causing poor and/or
dangerous operation.
3. Clean the cooktop surface with warm, soapy water and a soft, damp cloth. If
spill goes under a surface burner, remove the surface burner cap and head to
access and clean the spill.
4. Rinse with clean water and dry and polish with a soft, dry cloth.
5. Reassemble burner components (if removed) and replace the burner grates.
60_ maintaining your appliance
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 60 2013-05-07 �� 6:24:28

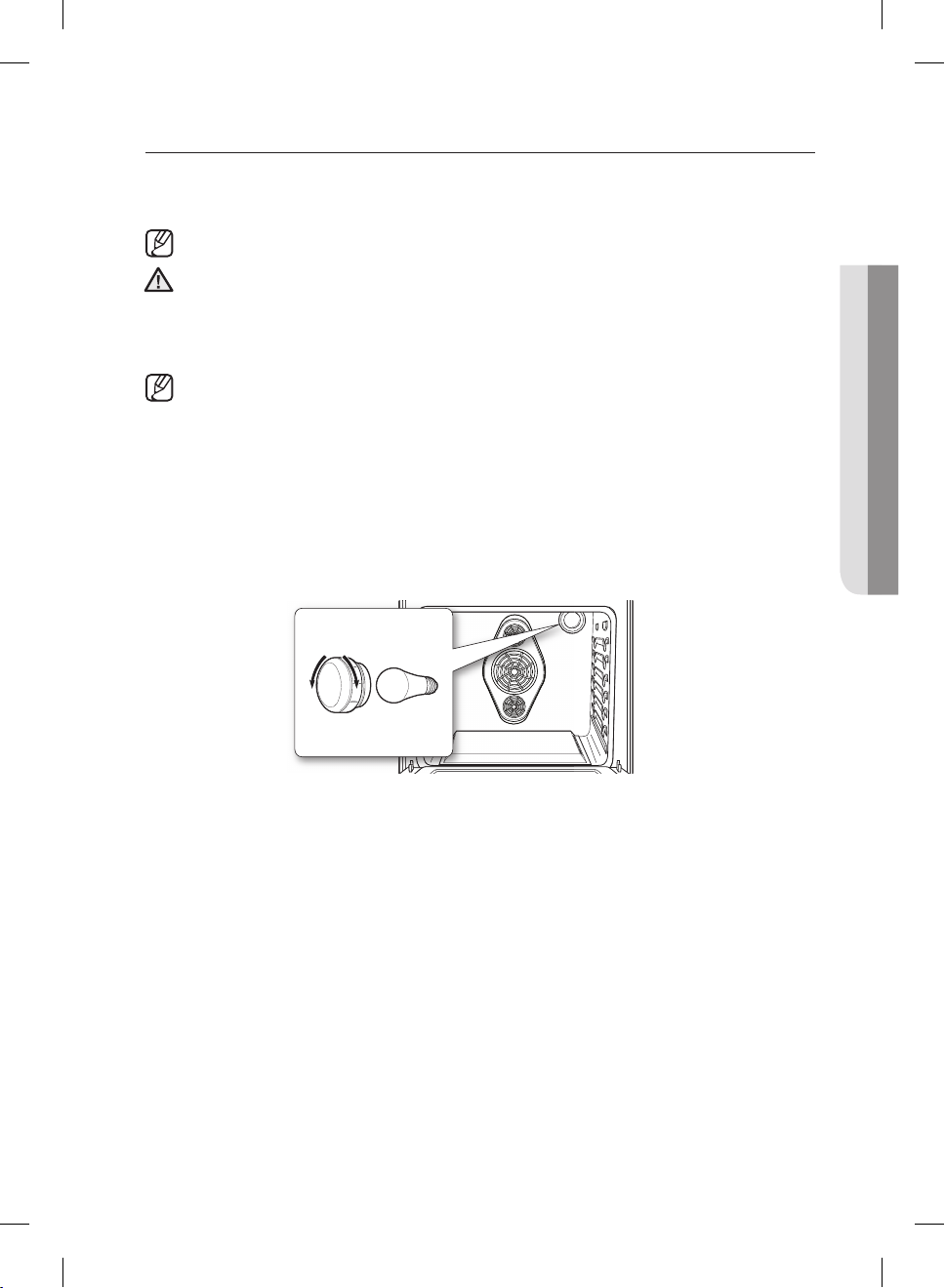

CHANGING THE OVEN LIGHT
The oven light is a standard 40-watt appliance bulb. It will automatically come on when
the oven door is opened. It can also be turned on and o when the oven door is closed
by pressing the OVEN LIGHT pad on the oven control panel.
The oven light will not work during a self-cleaning cycle.
Disconnect electrical power to the range before replacing the oven light. This will
prevent any personal injury due to electric shock.
WARNING
1. Make sure the oven and the light bulb are cool.
2. Open the oven door.
If the oven racks are in the way, they can be repositioned or removed before you
change the oven light.
3.
Turn the glass light cover in the rear upper-right corner counterclockwise to remove it.
4. Turn the bulb counterclockwise to remove it from its socket.
5. Replace the bulb with a new 40-watt appliance bulb. Turn the bulb clockwise until it
is seated securely in the socket.
6. Replace the glass light cover by turning it clockwise until it is seated securely.
7. Close the oven door and reconnect the electrical power to the range.
MAINTAINING YOUR APPLIANCE
Oven light cover and bulb
maintaining your appliance _61
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 61 2013-05-07 �� 6:24:29
REMOVING AND REPLACING THE OVEN DOOR
• The oven door is very heavy. Do not lift by the handle and be careful not to drop
WARNING
the door during removal. Improper handling could result in personal injury.
• Disconnect the electrical power to the range before removing the oven door.
This prevents the oven from accidentally being turned on while the door is
removed.
To remove the door
1. Completely open the oven door.
2. Unlock the two hinge locks. Pull each hinge
lock down towards the door frame to unlock
them so they look like the illustration to the
right.
3. Close the door to the removal position, approximately 5
degrees from vertical.
4. Firmly grasp both sides of the oven door and lift the
door up and out until the hinge arms clear the slots in
the bottom of the oven door.
5. Carefully place the door in a safe location.
Hinge
lock
62_ maintaining your appliance
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 62 2013-05-07 �� 6:24:30

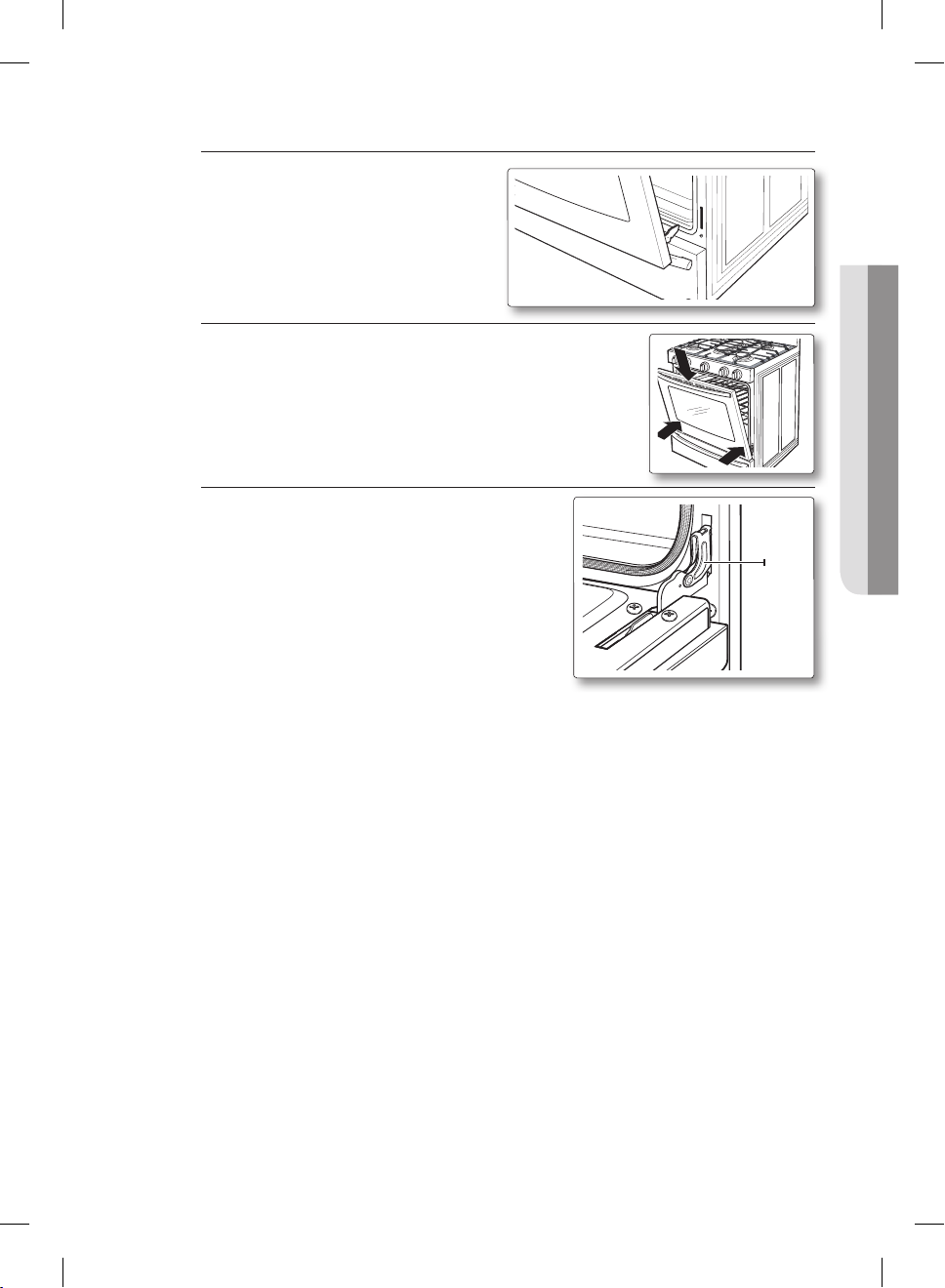

To replace the door
1. Make sure hinge arms are
unlocked and in the removal
position.
2. Firmly grasp both sides of the door.
3. While supporting the oven door, insert both door
hinge arms into the slots in the bottom sides of
the door frame. When the door is held at about 5
degrees, the hinge arms will slide in and down.
4. Completely open the oven door. If the
door will not fully open, the hinge arms are
not correctly inserted into the slots in the
bottom of the door.
5. Lock both hinge locks. Push each lock up
against the front frame of the oven cavity.
6. Close the door.
7. Reconnect power to the range.
Hinge
lock
MAINTAINING YOUR APPLIANCE
maintaining your appliance _63
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 63 2013-05-07 �� 6:24:30
REMOVING AND REPLACING THE WARMING DRAWER
(MODEL FX710BGS)
To remove and clean the warming drawer
1. Pull out the drawer until it stops.
2. Locate the locking clips near the
back of each full-extension roller
guide rail. Using two hands, push
down on the left clip and lift up on
the right clip to release the clips.
Pull the drawer the rest of the way
out.
3. Clean the drawer in warm, soapy water. Rinse and dry thoroughly.
To replace the warming drawer
1. Position the ends of the full-extension
roller guide rails in the side rails in the
drawer opening.
Left drawer locking
clip
Right drawer
locking clip
Right roller guide rail
2. Push in the drawer to close it and snap the locking
clips into place.
64_ maintaining your appliance
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 64 2013-05-07 �� 6:24:31

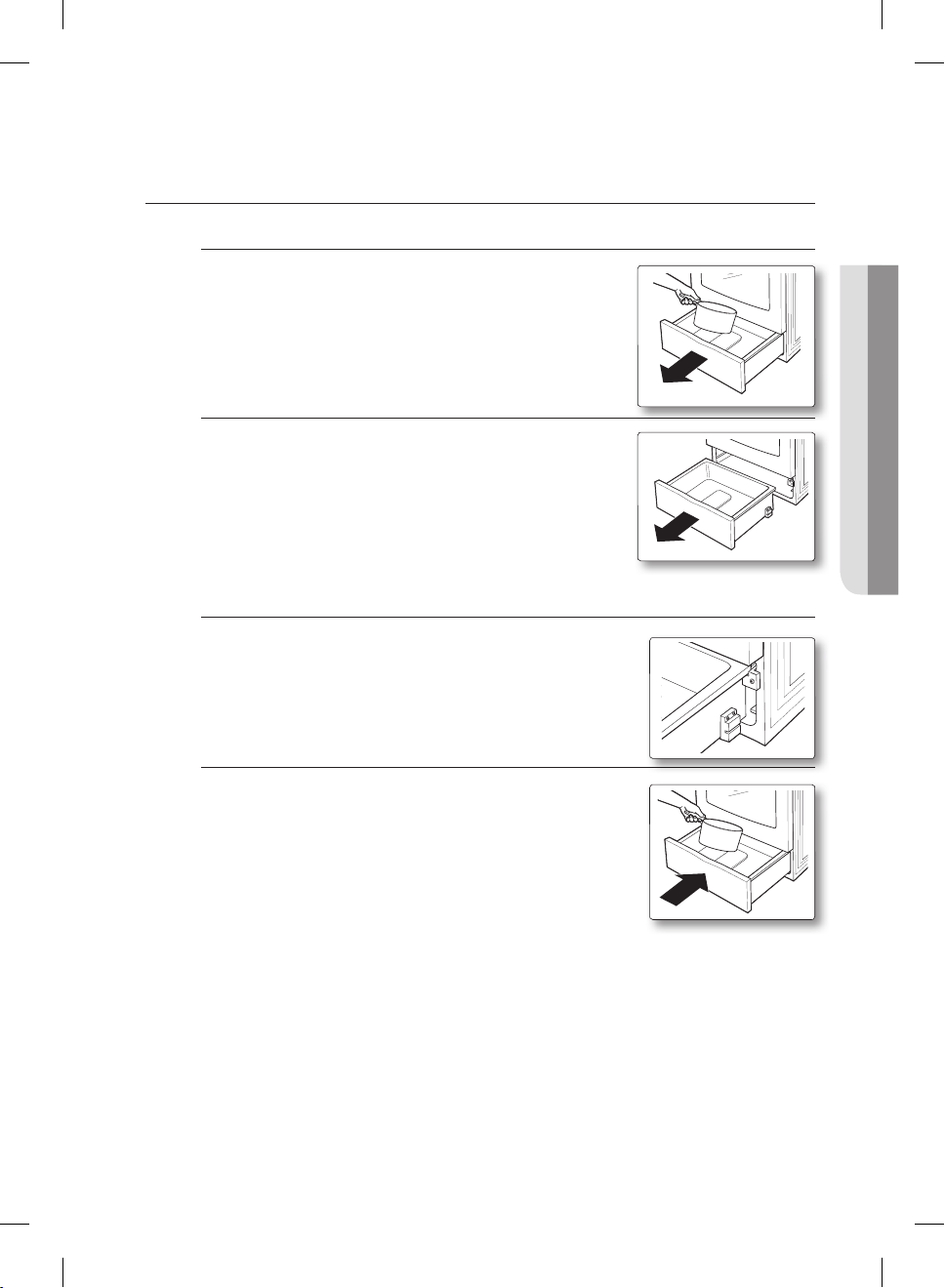

REMOVING AND REPLACING THE STORAGE DRAWER
(MODEL FX510BGS / NX583G0VBSR / NX583G0VBBB /
NX583G0VBWW)
To remove the storage drawer
1. Pull out the drawer and remove any stored content.
2. While supporting the drawer, pull it out until the
top of the drawer sides come out of the two nylon
drawer guides. Then, lift to remove the drawer.
3. Clean the drawer in warm, soapy water. Rinse and
dry thoroughly.
To replace the storage drawer
1. Place the top of both drawer sides in the openings on
the two nylon drawer guides and push in enough to
support the drawer.
2. Replace any stored content and push in the drawer
while slightly lifting the front to close it.
MAINTAINING YOUR APPLIANCE
maintaining your appliance _65
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 65 2013-05-07 �� 6:24:32
SELF-CLEANING OVEN
The self-cleaning oven uses high temperatures (well above cooking temperatures) to
burn o left over grease and residue completely or reduce them to a finely powdered ash
that can be wiped away with a damp cloth.
Failure to follow these precautions could result in damage to the oven, fire, and/or
personal injury.
WARNING
• Do not leave small children unattended near the range during a self-cleaning
cycle. The outside surfaces of the range can get extremely hot.
• Some birds are extremely sensitive to fumes from a self-cleaning oven. Relocate
birds to a well-ventilated room away from the range.
• Do not line the oven, oven racks, or oven bottom with aluminum foil. Doing so
will result in poor heat distribution, produce poor baking results, and cause
permanent damage to the oven interior. The aluminum foil will melt onto and
adhere to the interior oven surfaces.
• Do not force the oven door open during the self cleaning cycle. It will damage
the automatic door-locking system. The door automatically locks when the selfcleaning cycle is started and stays locked until the cycle is cancelled and the
oven temperature is below 350 °F.
• Be careful opening the oven door after a self-cleaning cycle. The oven will still
be VERY HOT and hot air and steam might escape when the door is opened.
66_ maintaining your appliance
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 66 2013-05-07 �� 6:24:32
Before a self-cleaning cycle
Remove the racks. Leaving the
oven racks in the oven during a
self-cleaning cycle will discolor the
oven racks and make them dicult
to slide in and out of position.
• Make sure the door lock feature is
turned o and the oven is cool. If
they are not, the self-cleaning cycle
will not start.
• On model FX710BGS, make sure
the warming drawer is turned o.
Self-clean will not start when the drawer is on.
Do NOT use the surface burners while the oven is operating in the self clean
mode.
WARNING
• A blinking Lock icon indicates the oven door is in the
process of being locked.
• When the Lock icon is on, the oven door is locked.
• When Loc is shown in the display, it indicates the door
lock feature is on. Press and hold the START/SET pad
for 3 seconds to unlock the oven controls.
MAINTAINING YOUR APPLIANCE
maintaining your appliance _67
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 67 2013-05-07 �� 6:24:32
How to set the oven for self-cleaning
1. Make sure the oven door is completely closed.
2. Press the SELF CLEAN pad on the oven control panel.
Press the pad once for a 2-hour cleaning cycle, twice
for a 3-hour cleaning cycle, or three times for a 4-hour
cleaning cycle.
Pressing the pad a fourth time will reselect the 2-hour
default time.
The display will show Clean, and the Start indicator
will blink under the selected cleaning cycle time.
3. Press the START pad to start the cycle.
The display will show Clean and the selected cleaning
cycle time, and the Lock icon will blink until the door is
locked. Then the Lock icon will stay on until the cycle is
over and the oven temperature is below 350 °F (177 °C).
The oven temperature will rise and hold the preset
self-clean temperature for the duration of the selected
cleaning cycle. The display will count down the cleaning
cycle in minutes and hours.
When the time elapses, the oven will turn o and beep
6 times. End will show in the display and the Lock icon
will blink. When the oven temperature falls below 350 °F
(177 °C), the door unlocks and the Lock icon turns o.
4. Press the CLEAR/OFF pad.
The display will go back to showing the time of day.
68_ maintaining your appliance
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 68 2013-05-07 �� 6:24:33
How to delay the start of self-cleaning
1. Make sure the oven door is completely closed.
2. Press the SELF CLEAN pad on the oven control panel.
Press the pad once for a 2-hour cleaning cycle, twice
for a 3-hour cleaning cycle, or three times for a 4-hour
cleaning cycle.
The display will show Clean, and the Start indicator
will blink under the selected cleaning cycle time.
3. Press the DELAY START pad.
The display will show Delay and --:--.
4. Press the number pads to set the time you want the
oven to turn on, e.g., 4, 3, 0.
The Start indicator will blink under the selected delay
start time and Delay on the display.
5. Press the START pad.
The display will show the Delay Start time and the Lock
icon. The oven door lock will engage automatically.
When the start time is reached, the oven will turn on
automatically and start the programmed cleaning cycle.
MAINTAINING YOUR APPLIANCE
maintaining your appliance _69
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 69 2013-05-07 �� 6:24:33
How to cancel self-cleaning
You may find it necessary to stop or interrupt the self-cleaning cycle due to
excessive smoke or fire in the oven.
• Press the CLEAR/OFF pad.
The oven will turn o. The Lock icon will blink under
the current time of day on the display. When the oven
temperature falls below 350 °F (177 °C), the oven door
unlocks and the Lock icon turns o.
After self-cleaning
Be careful opening the oven door after a self-cleaning cycle. The oven is still
very hot when the door unlocks. Escaping hot air and/or steam could burn
CAUTION
you.
• The internal oven temperature must be below 350 °F for the automatic
door lock to disengage. The door lock must be disengaged before another
cooking function can be set.
• After the oven has cooled, wipe down the oven surfaces with a damp cloth to
remove any ash residue.
• Stubborn spots can be cleaned with a soap-filled steel-wool pad. Lime
deposits can be removed with a cloth soaked in vinegar. Rinse thoroughly
after cleaning.
• If the oven is not clean after one cycle, repeat the cycle. If the oven is still hot,
HOT will appear on the display until the oven is cool enough to start a new
cycle.
70_ maintaining your appliance
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 70 2013-05-07 �� 6:24:33
troubleshooting
TROUBLESHOOTING
Samsung works hard to ensure that you don’t have problems with your new gas range.
If you experience a problem, look first for a solution in the table below. If, after trying the
suggested solution, you’re still having trouble, call Samsung at 1-800-SAMSUNG (1800-726-7864).
PROBLEM POSSIBLE CAUSE SOLUTION
You smell gas. There is a gas leak.
The range is not level. The appliance has been installed
The oven control beeps
and displays an error
code.
All burners do not light. The power cord is not plugged
The surface burner knob is not in
the ‘o’ position, yet the burner
itself is not ignited.
improperly.
The leveling leg(s) is (are)
damaged or uneven.
The kitchen cabinets are not
properly aligned and make the
range appear to be not level.
You have a function error code.
See the “Troubleshooting and
information codes” chart on
page 76.
into the electrical outlet.
A fuse in your home may be
blown or the circuit breaker
tripped.
The gas supply is not properly
connected or turned on.
Clear the room, building, or area
of all occupants.
Immediately call your gas
supplier from a neighbor’s
phone. Do not call from your
phone. It is electrical and
could cause a spark that could
ignite the gas. Follow the gas
supplier’s instructions.
If you cannot reach your gas
supplier, call the fire department.
Make sure the floor is level,
strong, and stable. If the floor
sags or slopes, contact a
carpenter.
Check and level the range. (See
the Installation Instructions.)
Ensure that cabinets are square
and provide sucient room for
installation.
Press the CLEAR/OFF pad and
restart the oven. If the problem
persists, disconnect all power to
the range for at least 30 seconds
and then reconnect the power. If
this does not solve the problem,
call for service.
Make sure the electrical plug
is plugged into a live, properly
grounded outlet.
Replace the fuse or reset the
circuit breaker.
See the Installation Instructions
that came with your range.
TROUBLESHOOTING
troubleshooting _71
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 71 2013-05-07 �� 6:24:33
PROBLEM POSSIBLE CAUSE SOLUTION
Surface burners do not
light.
Surface burner clicks
during operation.
The burners do not burn
evenly.
Very large or yellow
surface burner flames.
Surface burners light
but oven burners do not
light.
Display goes blank.
Very large or yellow
oven burner flames.
Food does not bake or
roast properly in the
oven.
The control knob is not set
properly.
The burner caps are not in place.
The burner base is misaligned.
The control knob has been left in
the LITE position.
Surface burner components and
caps are not assembled correctly
and level.
Surface burners are dirty. Clean surface burner
Wrong orifice is assembled. Contact your installer. Check the
The oven door lock is turned on. The display will show the Lock
Gas Pressure Regulator shut o
switch is in the ‘o position.
The electrical outlet Ground Fault
Interrupter (GFI or GFCI) has been
tripped and needs to be reset.
Your digital control has been
damaged.
The oven burner air adjustment
shutters need to be adjusted.
Gas supply is not properly
connected or turned on.
Wrong cooking mode is selected. See page 25-26, 36, 42.
The oven racks have not been
positioned properly for the foods
being cooked.
Incorrect cookware or cookware
of improper size being used.
Oven thermostat needs adjustment.
There is aluminum foil on racks
and/or oven bottom.
Clock or timers not set correctly. See pages 28 and 29.
Push in the control knob and
turn it to the LITE position.
Clean the electrodes.
Put the burner cap on the burner
head. Align the burner base.
After the burner lights, turn the
control knob to a desired setting.
If the burner still clicks, contact a
service technician.
See page 58.
components. (See pages 58
and 59.)
burner orifice size and contact
your installer if you have the
wrong orifice. Check the LP gas
conversion.
icon. Hold the oven door open
and press the START/SET pad
for 3 seconds. The oven will
beep and the Lock icon will turn
o.
Call a qualified service
technician.
Replace fuse or reset circuit
breaker.
Call for a qualified service
technician.
See the Installation Instructions
that came with your range.
See page 30.
See page 24.
See page 33.
Remove foil.
72_ troubleshooting
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 72 2013-05-07 �� 6:24:34
PROBLEM POSSIBLE CAUSE SOLUTION
Food does not broil
properly in the oven.
Oven temperature is too
hot or cold.
Oven burner will not
shut o.
Oven light (lamp) will not
turn on.
Oven smokes
excessively during
broiling.
Oven controls not set properly. See page 41.
Oven door was not closed
during broiling.
The rack has not been properly
positioned.
Oven thermostat needs
adjustment.
The oven door lock is turned on. The display will show the Lock
The Sabbath function has been
activated.
The oven door lock is turned on. The display will show the Lock
The Sabbath function has been
activated.
Loose or burned-out bulb. See page 61.
The switch operating the oven
light needs to be replaced.
Meat or food not properly
prepared before broiling.
Improperly positioned top oven
rack.
Controls are not being set
properly.
Greasy buildup on oven
surfaces.
See page 27.
See broiling guide on page 42.
See page 33.
icon. Hold the oven door open
and press the START/SET pad
for 3 seconds. The oven will
beep and the Lock icon will turn
o.
SAb and the time of day will
show in the display. All other
controls and signals will be
deactivated. To turn o the oven
only, press the CLEAR/OFF pad.
To cancel the Sabbath function
and reactivate the controls and
signals, press and hold the
SABBATH pad for 3 seconds.
icon. Hold the oven door open
and press the START/SET pad
for 3 seconds. The oven will
beep and the Lock icon will turn
o.
SAb and the time of day will
show in the display. All other
controls and signals will be
deactivated. To cancel the
Sabbath function and reactivate
the light switch and other
controls, press and hold the
SABBATH pad for 3 seconds.
Call for a qualified service
technician.
Cut away excess fat and/or fatty
edges that may curl.
See broiling guide on page 42.
See page 41.
Regular cleaning is necessary
when broiling frequently.
TROUBLESHOOTING
troubleshooting _73
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 73 2013-05-07 �� 6:24:34
PROBLEM POSSIBLE CAUSE SOLUTION
Oven will not self-clean. The oven door lock is turned on. The display will show the Lock
The warming drawer is being
used.
The oven is too hot. Let the oven cool down and
The self-cleaning oven controls
are not properly set.
Crackling or popping
sound.
Excessive smoking
during a self-cleaning
cycle.
Oven door will not open
after a self-cleaning
cycle.
Oven not clean after a
self-cleaning cycle.
This is normal. This is the sound of the metal
This is the first time the oven has
been cleaned.
This is normal. The oven door will stay locked
A fine dust or ash is normal. This can be wiped clean with a
icon. Hold the oven door open
and press the START/SET pad
for 3 seconds. The oven will
beep and the Lock icon will turn
o.
Self-clean will not operate when
the warming drawer is on.
reset the controls. The self-clean
cycle will not lock the oven door
if the oven temperature is too
hot. The door must lock before
the self-clean cycle can start.
Reset the self-cleaning oven
controls. (See pages 68 and 69.)
heating and cooling during any
cooking or cleaning function.
This is normal. The oven will
always smoke more the first time
it is cleaned.
Wipe up all excessive soiling
before starting the self-cleaning
cycle.
If smoke persists, press the
CLEAR/OFF pad. Open the
windows to clear the smoke
from the room. After the oven
has cooled and unlocked, wipe
up excessive soil and reset the
oven for self-cleaning.
until the oven temperature drops
below 392 °F.
damp cloth.
Set the self-cleaning cycle for a
longer cleaning time. The cycle
was not long enough to burn o
the dirt buildup.
Extremely dirty ovens require
hand-cleaning of excessive
spillovers and food buildup
before starting a self-cleaning
cycle. Multiple self-cleaning
cycles may be necessary to
completely clean the oven.
74_ troubleshooting
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 74 2013-05-07 �� 6:24:34
PROBLEM POSSIBLE CAUSE SOLUTION
Steam or smoke coming
from under the control
panel.
Burning or oily odor
emitting from the vent.
Strong odor. This is temporary. The insulation around the inside
Oven racks are dicult
to slide.
Fan noise. This is normal. The convection fan runs until the
Convection fan is not
working.
Warming drawer
will not work (Model
FX710BGS).
Excessive condensation
in the warming drawer
(Model FX710BGS).
Warming drawer or
storage drawer does not
slide smoothly or drags.
This is normal. The oven vent is located there.
This is normal for a new oven
and will disappear within 1/2
hour of the first bake cycle.
The controls are not set properly. Reset the controls as described
The Self-Clean or Sabbath
function is being used.
The oven controls have been
locked.
There is a blown fuse or tripped
circuit breaker.
The temperature setting is too
high.
The foods being warmed are not
covered with a lid or aluminum foil.
You are trying to warm liquids. Liquid should not be warmed in
The drawer is not properly
aligned with the full-extension
roller guide rails or nylon drawer
guides.
The contents in the drawer are
too heavy.
More steam is visible when using
the convection functions or
when baking or roasting multiple
items at the same time.
To speed the process, set a selfcleaning cycle for a minimum of
3 hours. (See pages 68 and 69.)
of the oven emits an odor the
first few times the oven is used.
Apply a small amount of
vegetable oil to a paper towel
and wipe edges of the oven
racks with the paper towel.
Racks become dull and hard to
slide when they are left in the
oven during a self-clean cycle.
function is over or the door is
opened.
The fan starts automatically
when the oven meets the
preheat temperature.
on page 52 and 53.
The warming drawer will not
operate during either of these
operations. Try again after the
function is completed or cancelled.
Unlock the controls and try
again.
Replace blown fuse or reset
tripped circuit breaker.
See page 53.
Cover foods with a lid or
aluminum foil.
the drawer. Remove liquids.
Remove and replace the drawer.
(See page 64.)
Reduce the weight and/or
redistribute the contents in the
drawer.
TROUBLESHOOTING
troubleshooting _75
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 75 2013-05-07 �� 6:24:34

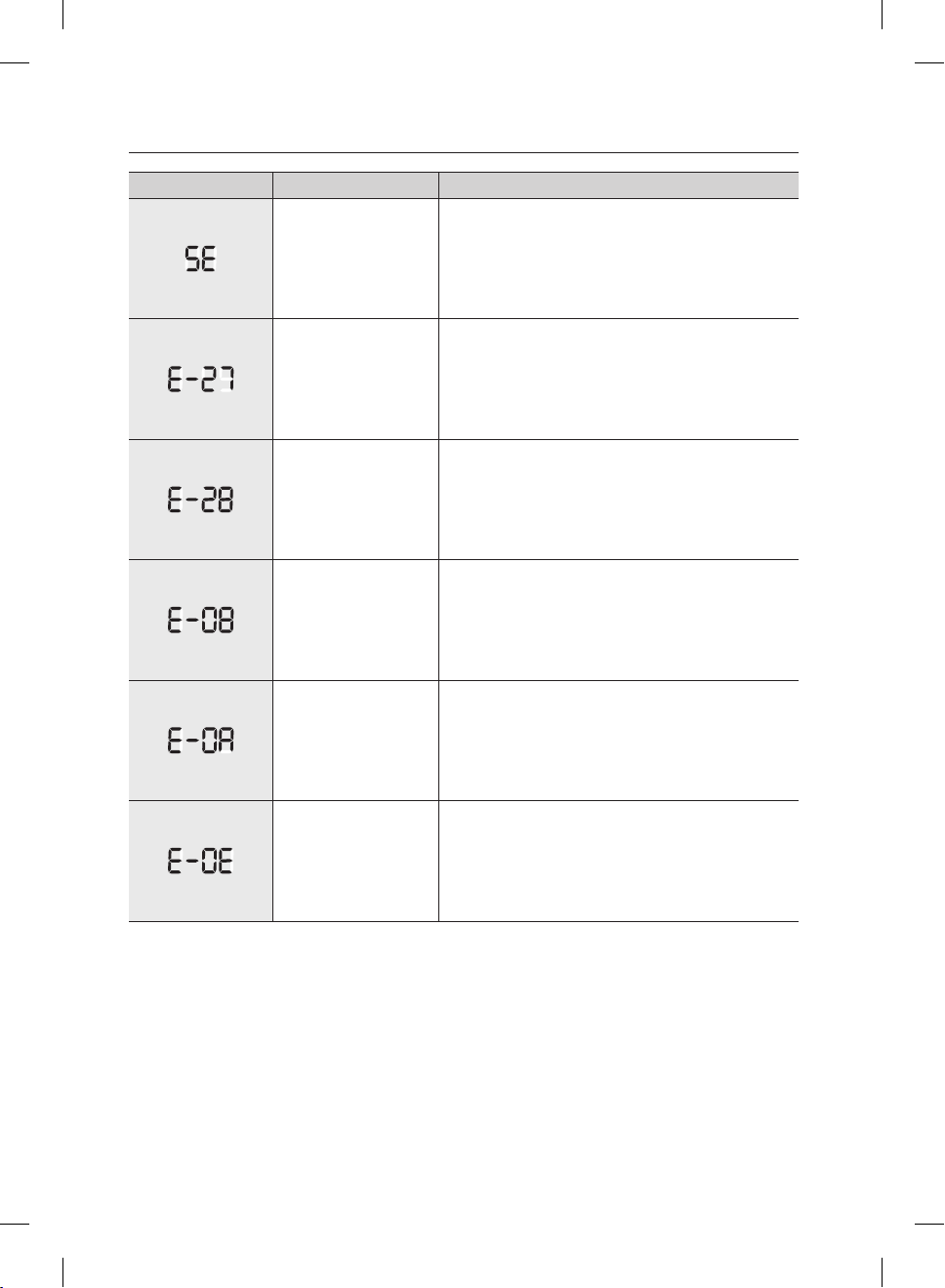

TROUBLESHOOTING AND INFORMATION CODES
CODE SYMBOL MEANING SOLUTION
Shorted Key. Press the CLEAR/OFF pad and restart the oven.
Oven sensor opened
problem.
Oven sensor shorted
problem.
Oven heating error. Press the CLEAR/OFF pad and restart the oven.
Oven overheating. Press the CLEAR/OFF pad and restart the oven.
Door locking error. Press the CLEAR/OFF pad and restart the oven.
For any codes not listed above, or if the suggested solution does not fix the problem, call
1-800-SAMSUNG (1-800-726-7864).
If the problem persists, disconnect all power to the
range for at least 30 seconds and then reconnect
the power.
If this does not solve the problem, call for service.
See the instructions below this chart.
Press the CLEAR/OFF pad and restart the oven.
If the problem persists, disconnect all power to the
range for at least 30 seconds and then reconnect
the power.
If this does not solve the problem, call for service.
See the instructions below this chart.
Press the CLEAR/OFF pad and restart the oven.
If the problem persists, disconnect all power to the
range for at least 30 seconds and then reconnect
the power.
If this does not solve the problem, call for service.
See the instructions below this chart.
If the problem persists, disconnect all power to the
range for at least 30 seconds and then reconnect
the power.
If this does not solve the problem, call for service.
See the instructions below this chart.
If the problem persists, disconnect all power to the
range for at least 30 seconds and then reconnect
the power.
If this does not solve the problem, call for service.
See the instructions below this chart.
If the problem persists, disconnect all power to the
range for at least 30 seconds and then reconnect
the power.
If this does not solve the problem, call for service.
See the instructions below this chart.
76_ troubleshooting
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 76 2013-05-07 �� 6:24:34
warranty
PLEASE DO NOT DISCARD.
SAMSUNG GAS RANGE
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA INC.
(SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by
SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) Year Parts and Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used
in the United States or Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem
determination and service procedures. Warranty service can only be performed by a SAMSUNG-authorized
service center, and any unauthorized service will void this warranty. The original dated bill of sale must be
presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. Samsung
will provide in-home service during the one (1) year warranty period at no charge subject to availability within the
contiguous United States or Canada. In-home service is not available in all areas. To receive in-home service,
product must be unobstructed and accessible to the service agent. If service is not available, Samsung may elect
to provide transportation of the product to and from an authorized service center.
SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new
or reconditioned parts or products if found to be defective during the limited warranty period specified above.
All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty shall not cover cases of incorrect electric current, voltage or supply, light bulbs, house
fuses, house wiring, cost of a service call for instructions, or fixing installation errors. Furthermore, damage to
the cooktop caused by the use of cleaners other than the recommended cleaners and pads and damage to the
cooktop caused by hardened spills of sugary materials or melted plastic that are not cleaned according to the
directions in the use and care guide are not covered. SAMSUNG does not warrant uninterrupted or error-free
operation of the product.
EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES OR CONDITIONS ON THIS PRODUCT EITHER
EXPRESS OR IMPLIED AND SAMSUNG DISCLAIMS ALL WARRANTIES AND CONDITIONS INCLUDING, BUT
NOT LIMITED TO, ANY IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY, INFRINGEMENT, OR
FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM,
OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE
BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE
TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER GENERAL, INDIRECT, SPECIAL, INCIDENTAL,
OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT,
REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST
SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG
AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL
RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY
AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS
PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE, AND STATES YOUR EXCLUSIVE REMEDY.
Some states or provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state or
province to province.
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 77 2013-05-07 �� 6:24:34
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
85 Challenger Road Ridgefield Park, NJ 07660
1-800-SAMSUNG (726-7864) and www.samsung.com
Samsung Electronics Canada Inc.,
Customer Service 55 Standish Court Mississauga, Ontario L5R 4B2 Canada
1-800-SAMSUNG (726-7864) and www.samsung.com/ca
REGISTRATION
Please register your product online at www.samsung.com/register.
QUESTIONS
For questions about features, operation/performance, parts, accessories, or service, call
1-800-726-7864, or visit our Web site at www.samsung.com, www.samsung.com/ca.
Model #____________________ Serial #____________________
Please attach your receipt (or a copy) to this manual. You may need it, along with
your model and serial number, when calling for assistance.
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 78 2013-05-07 �� 6:24:34
memo
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 79 2013-05-07 �� 6:24:34
Please be advised that the Samsung warranty does NOT cover service calls to explain
product operation, correct improper installation, or perform normal cleaning or maintenance.
CANADA 1-800-SAMSUNG (726-7864)
MEXICO 01-800-SAMSUNG (726-7864)
U.S.A
Consumer Electronics
U.S.A
Mobile Phones
1-800-SAMSUNG (726-7864)
1-800-SAMSUNG (726-7864)
www.samsung.com/ca (English)
www.samsung.com/ca_fr (French)
www.samsung.com
Code No.: DG68-00356A-06
(IB)FX710BGS,FX510BGS,NX583G0VB_DG68-00356A-06_EN.indd 80 2013-05-07 �� 6:24:35
Loading...
