AYP SDSP2245A Parts List

Size:
52.8 Kb
Download

SDSP2245A (1996)

Page 1 of 7

GEAR CASE



SDSP2245A (1996)



Page 2 of 7

GEAR CASE













Ref # Part Number

Qty Description

1

17490416

SCREW.1/4-20



2

137055

SUB= 137055X004

3

137053

SHIFTER

4

57072

SEAL

6

48373

KIT GEARCASE HALV

7

77881

BEARING

8

137051

SHAFT.WORM

9

137077

SHAFT.DRIVE.SD

10

57079

THRUST WASHER

11

131484

CLUTCH YOKE

12

700343

BUSHING.GEAR BOX

13

86447

PLUG PM

14

137050

GEAR.HELICAL

15

750436X

CLUTCH JAW

16

750369

SUB= 6066J

17

12000003

RING T

18

850848

HI PRO KEY

19

81585X004

SPRING BRKT

SDSP2245A (1996)

Page 3 of 7

ROTARY LAWN MOWER



SDSP2245A (1996)



Page 4 of 7

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

1

151721X479

LOWER HANDLE



2

132001

ROPE GUIDE

3

63601

SUB= 73800400

4

131959

BOLT.HANDLE.LM

5

151825

SUB= 147049

6

66426

SUB= 7192J

7

144929

SCREW.HXHD.WASH.

8

700417

"CONTROL, THROTTLE"

9

150117

MULCHER PLUG

10

130861

"CABLE,ENG ZONE CO"

11

145640X479

HANDLE.UP.DLX.CON SUBS/1

12

51793

HAIRPIN COTTER

13

136376

KNOB HANDLE

14

140539

SKIRT.REAR.22SD.

15

750097

TAPPING SCREW

16

151665X479

HDLE BRKT ASSY.RH

17

151667X479

HDLE BRKT ASSY LH

18

149741

SCREW 5/16-18X3/4

20

134612

SUB= 48283

21

54178

SUB= 73220600

22

700325X007

BRACKET.ADJ.9POS.

23

146630

SPACER.HEIGHT.ADJ

24

87584X004

"BRKT,DEFL PM"

25

700331X004

SPRING SELECTOR

26

87877

KNOB PM

27

85021X004

AXLE ARM

28

62335

"WASHER, BELLEVIL."

29

151611

BOLT.SHLD.W/PATCH

30

148443

WHEEL.8X2.RAD.GRN

31

52160

WASHER

32

85179

RETAINER CLIP PM

33

77400

HUB CAP

35

74100412

SCREW

36

150406

BOLT.ENG.3/8-16

37

851201X004

WASHER

38

63601

SUB= 73800400

39

132352X479

BAFFLE FRONT 22SD

40

143439

KIT HSG 22SD FWGD

41

150119X004

LATCH.BAIL.MULCH.

42

150118

MULCHER BAIL

43

851084

SCREW

44

850263

LOCKWASHER

45

851074

"WASHER,HARDEN"

46

141114

"BLADE.MULCH.22"""

47

851514

ADAPTOR.BLADE.LM

48

147286

ROD.HINGE.COMBI-C

49

147775

BRACKET.HINGE.W/F

51

145286

SUB= 152186

52

73510400

NUT

54

145282

GUARD.DISCH.22SD.

55

87677

HI PRO KEY PM

56

59708

SCREW

57

84596

ENGINE.PULLEY.FWG

58

213146

CABLE CLAMP

59

83816

SCREW PM

61

141846

DECAL DANGER E/S

62



REFER TO IMAGE

64

850724

SUB= 155890

SDSP2245A (1996)

Page 5 of 7

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

83976X479

"BAFFLE,REAR"



145658

MANUAL.GEN.SP.E.

145661

MANUAL.OP.GEN.SPN

151920

MAN.P.SDSP2245A

GCK2200

SUB= GCK3200A

SDSP2245A (1996)

Page 6 of 7

ROTARY LAWN MOWER

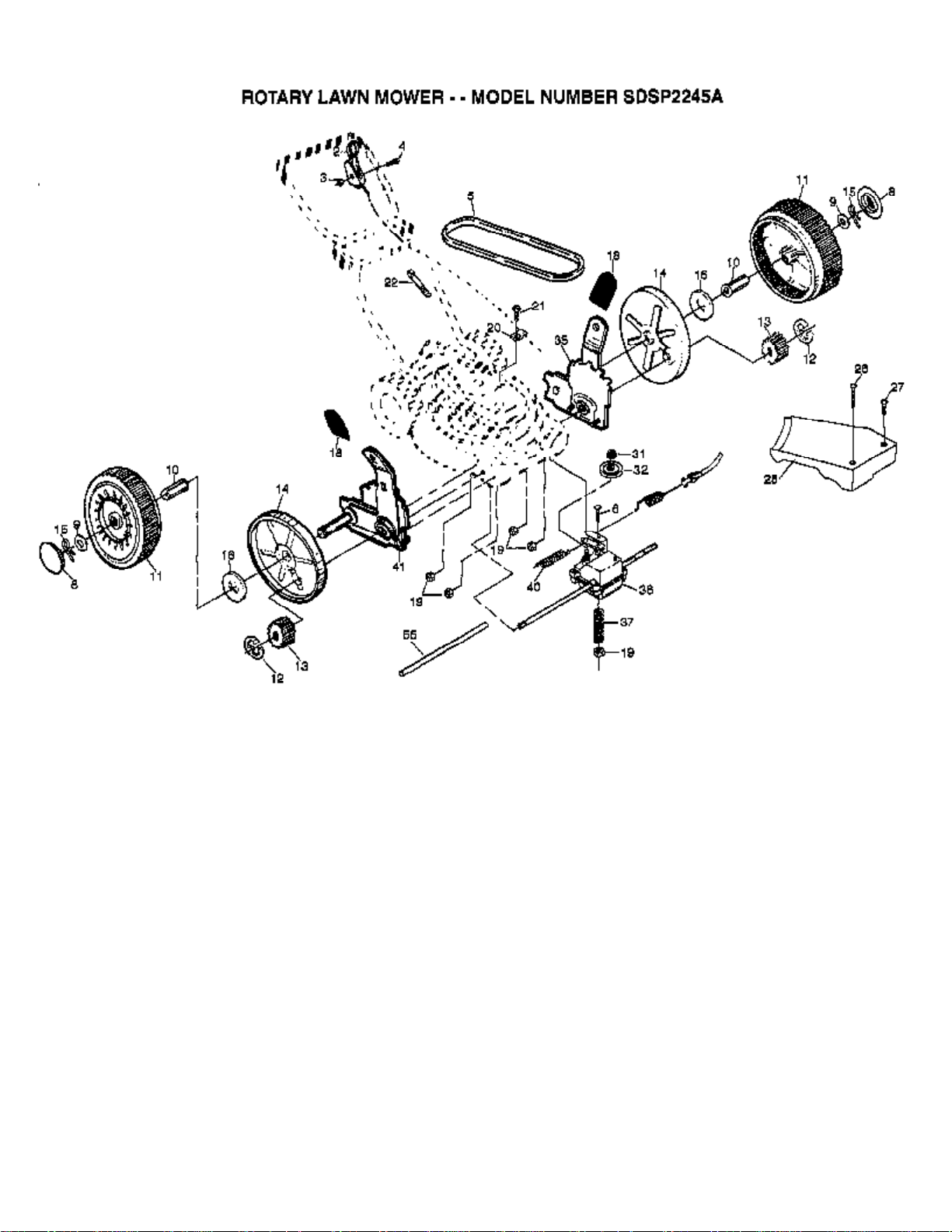

SDSP2245A (1996)



Page 7 of 7

ROTARY LAWN MOWER











Ref # Part Number

Qty Description

2

146323

CONTROL.DRV.56.25



3

63601

SUB= 73800400

4

144929

SCREW.HXHD.WASH.

5

137078

SUB= 157769

6

700875

BOLT.1/4-20X2.0

8

77400

HUB CAP

9

52160

WASHER

10

86960

BUSHING.ROUND

11

143427

WHEEL 8X2 RAD GRN

12

12000058

E-RING.7/16.RE.

13

137054

PINION.GEAR

14

88080

DUST SHROUD PM

15

85179

RETAINER CLIP PM

16

67725

WASHER FLUT

18

87877

KNOB PM

19

63601

SUB= 73800400

20

87930

GUIDE CLIP PM

21

750097

TAPPING SCREW

22

66426

SUB= 7192J

26

146072

SCREWL.SLOT.TORXT

27

149746

SCREW.SLOT.TORTX.

28

137080

COVER DRIVE BLK

31

132010

LOCKNUT

32

137052

PULLEY.DRIVEN

35

148484

SUB= 151228

36

702510

SUB= 48366

37

137090

SPRING.TENSION

40

75192

SPRING

41

148485

SUB= 151226

55

86012

DRV SHAFT TUBE PM



151812

DECAL.DRIVE COVER
