APC 3000VA, 2200 VA User Manual

User’s Manual
2200VA/3000VA 3U Rack Mount
®
APC Smart-UPS
230VAC/120VAC
English
990-1054A, 08/01
1: SAFETY INFORMATION
American Power Conversion Corporation (APC) is the leading national and international manufac­turer of state-of-the-art uninterruptible power supplies, redundant switches, power management soft­ware, and related equipment. APC products protect hardware, software, and data from the threat of power disturbances in business and government offices throughout the world.
The APC Uninterruptible Power Supply (UPS) is designed to prevent blackouts, brownouts, sags, and surges from reaching your computer and other valuable electronic equipment. The UPS filters out small utility line fluctuations and isolates your equipment from large disturbances by internally disconnecting from the utility line. The UPS provides continuous power from its internal battery until the utility line returns to safe levels.
Changes or modifications to this unit not expressly approved by the party respon­sible for compliance could void the warranty.
HANDLING SAFETY
The UPS requires two people for installation due to its weight. To lighten the UPS, you may remove the battery while you position or mount the UPS in the rack. Note that the battery module also is heavy and requires two people for removal and installation.
Refer to this manual for instructions on how to remove the battery.
<18 kg (<40 lb)
18–32 kg (40–70 lb)
32–55 kg (70–120 lb)
>55 kg (>120 lb)
This equipment is intended for installation in a temperature-controlled indoor area free of conductive contaminants. Refer to Specifications at the APC web site for the actual temperature range.
LIFE SUPPORT APPLICATION POLICY
As a general policy, APC does not recommend the use of any of its products in life support applica­tions where failure or malfunctions of the APC product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. APC does not recom­mend the use of any of its products in direct patient care. APC will not knowingly sell its products for use in such applications unless it receives in writing assurances satisfactory to APC that (a) the risks of injury or damage have been minimized, (b) the customer assumes all such risks, and (c) the liability of APC is adequately protected under the circumstances.
Examples of devices considered to be life support devices are neonatal oxygen and analyzers, nerve stimulators (whether used for anesthesia, pain relief, or other purposes), autotransfusion devices, blood pumps, defibrillators, arrhythmia detectors and alarms, pacemakers, hemodialysis systems, peritoneal dialysis systems, neonatal ventilator incubators, ventilators for both adults and infants,
1
anesthesia ventilators, infusion pumps, and any other device designated as “critical” by the U.S.F.D.A.
Hospital grade wiring devices and leakage current may be ordered as options on many APC UPS systems, APC does not claim that units with this modification are certified or listed as Hospital Grade by APC or any other organization. Therefore these units do not meet the requirements for use in direct patient care.
ELECTRICAL SAFETY
n To reduce the risk of fire, connect only to a circuit provided with a 30 Amp maximum branch
circuit overcurrent protection in accordance with the National Electrical Code ANSI/NFPA or country specific electrical code.
n Do not work alone under hazardous conditions.
n Check that the power cord(s), plug(s), and sockets are in good condition.
n To reduce the risk of electric shock when grounding, disconnect the equipment from the AC
power outlet before installing or connecting to other equipment. Reconnect the power cord only after all connections are made.
n Use one hand, whenever possible, to connect or disconnect signal cables to avoid a possible shock
from touching two surfaces with different electrical grounds.
n Connect the equipment to a three wire AC outlet (two poles plus ground). The receptacle must be
connected to appropriate branch circuit/mains protection (fuse or circuit breaker). Connection to any other type of receptacle may result in a shock hazard.
n In order to maintain compliance with the EMC directive, output cords attached to the UPS should
not exceed 10 meters in length.
DEENERGIZING SAFETY
n If the equipment has an internal energy source (battery), the output may be energized when the
unit is not connected to an AC power outlet.
n To deenergize pluggable equipment, press the OFF button for more than one second to
switch the equipment off. Disconnect the equipment from the AC power outlet. Unplug the bat-
tery connector. Push the button labeled
n Pluggable equipment includes a protective earth conductor that carries the leakage current from
the load devices (computer equipment). Total leakage current must not exceed 3.5 mA.
n To deenergize permanently wired equipment: set the power switch to standby .
n Set the AC circuit breaker to standby , and then disconnect the batteries (including any expan-
sion units). Finally, disconnect the AC power from the building power supply.
n Use of this equipment in life support applications where failure of this equipment can reasonably
be expected to cause the failure of the life support equipment or to significantly affect its safety or effectiveness is not recommended.
to deenergize the capacitors.
2
BATTERY SAFETY
This equipment contains potentially hazardous voltages that may cause personal injury if handled incorrectly.
This equipment must be installed and serviced only by qualified electrical service personnel.
n This equipment contains potentially hazardous voltages. Do not attempt to disassemble the unit.
The only exception is for equipment containing batteries. Battery replacement using the proce­dures below is permissible. Except for the battery, the unit contains no user serviceable parts. Re­pairs are to be performed only by factory trained service personnel.
n Do not dispose of batteries in a fire. The batteries may explode.
n Do not open or mutilate batteries. They contain an electrolyte that is toxic and harmful to the skin
and eyes.
n Do not connect the terminals of a battery or battery pack with a wire or other electrically conduc-
tive objects.
n To avoid personal injury due to energy hazard, remove wristwatches and jewelry such as rings
when replacing the batteries. Use tools with insulated handles.
n Replace batteries with the same number and type of batteries or battery packs as originally in-
stalled in the equipment.
BATTERY REPLACEMENT AND RECYCLING
See your dealer or visit the APC web site, www.apc.com/support, for information on replacement battery kits and battery recycling.
Be sure to return the spent battery to APC for recycling. Ship it to APC in the re­placement battery packing material.
3
2: INSTALLATION
The UPS has a “rack” design so it can be mounted in a 19-inch (46.5 cm) equipment rack. Hardware is provided.
UNPACKING
1. Inspect the UPS upon receipt. APC designed robust packaging for your product. However, acci­dents and damage may occur during shipment. Notify the carrier and dealer if there is damage.
The packaging is recyclable; save it for reuse or dispose of it properly.
2. Check the package contents. The shipping package contains the UPS (with batteries discon­nected), its front bezel (packaged separately), mounting rails, mounting cleats, hardware packet (necessary for rack mounting the UPS), and a literature kit containing cable(s), and product documentation.
The UPS is shipped with the front bezel removed (it is packaged separately within the main box). You will connect the plastic bezel (described later) during the installation
POSITIONING THE UPS
Place the rack and the UPS where they will be used. The UPS is heavy. Select a location sturdy enough to handle the weight.
procedure.
You must install the UPS in a protected area that is free of excessive dust and has adequate airflow. Ensure the air vents on the front and rear of the UPS are not blocked. Allow at least one inch of space on both sides.
Do not operate the UPS where the temperature and humidity are outside the specified limits. Refer to Specifications at the APC web site, www.apc.com
P
LACEMENT
.
INSTALLING THE SMART-UPS
To install the Smart-UPS, follow these basic steps. Details are provided on the following pages.
1. Install the mounting rails in the rack.
2. Remove the battery module.
3. Mount the UPS in the rack. Install the UPS at or near the bottom of the rack.
4. Reinstall the battery module.
4
5. Connect the battery and attach the front bezel.
6. Connect the equipment and power to the UPS.
7. Turn on the UPS.
I
NSTALLING THE MOUNTING RAILS IN THE RACK
Install the mounting rails in the rack. Directions are included with the rail kit. The UPS comes with standard 19-inch (46.5 cm) rack mounting rails, brackets, and cleats. The rack can have any of the common types of equipment mounting holes (square, round-threaded, or round-non-threaded). All necessary hardware is provided.
R
EMOVING THE BATTERY MODULE
The UPS is heavy. To lighten it, remove the battery module before mounting the unit in the rack.
Due to its weight, two people are required to remove the battery module.
The battery module is accessible from the front of the UPS (shown at left).
This procedure requires a Phillips screwdriver.
1. If the UPS has been in operation, locate the white
cord attached to the battery module connector plug . Grasp the cord and pull firmly toward you until the connector plug is disconnected.
DO NOT pull the battery module cables.
If the UPS has not been in operation, the battery will not yet be connected. The UPS ships with the battery disconnected.
2. Use a screwdriver to remove the two battery module mount screws located at the top corners of the face plate .
Set the screws aside in a safe place. You will re-
place them later.
5
OUNTING THE UPS IN THE RACK
M
Due to its weight, two people are required to install the UPS in the rack.
3. Locate the battery module handle at the top of the
battery face plate .
4. Be careful during this step—the battery module is heavy.
Pull the battery module handle toward you to slide the battery module out of the UPS.
DO NOT pull on the battery cables or the white cord.
R
EINSTALLING THE BATTERY MODULE
1. Supporting the UPS on both sides, carefully align the unit with the rails. Use the handles on the side of the UPS to support the unit.
2. Each side of the UPS has a cleat that must slide into the groove on the rails. Insert each cleat into its groove and slide the UPS into position.
3. Use the four ornamental screws supplied with the UPS to attach the mounting brackets to the rack post. Insert the screws into the top and bottom holes in the U-space.
1. Supporting the battery module on the bottom, align it with the opening and slide the battery module into the compartment.
2. Replace the two screws to secure the battery module face plate.
6
CONNECTING THE BATTERY AND ATTACHING THE FRONT BEZEL
1. Facing the front of the UPS, locate the battery
cables and the UPS battery connector jack to the right of the battery module.
2. To connect the battery connector plug to the
battery jack, push the plug into the jack so the metal pieces inside each part are touching. Press firmly to ensure a tight connection. You will hear a “snap” when the connector is seated properly.
3. Push the battery cables and white cord as close to
the UPS as possible.

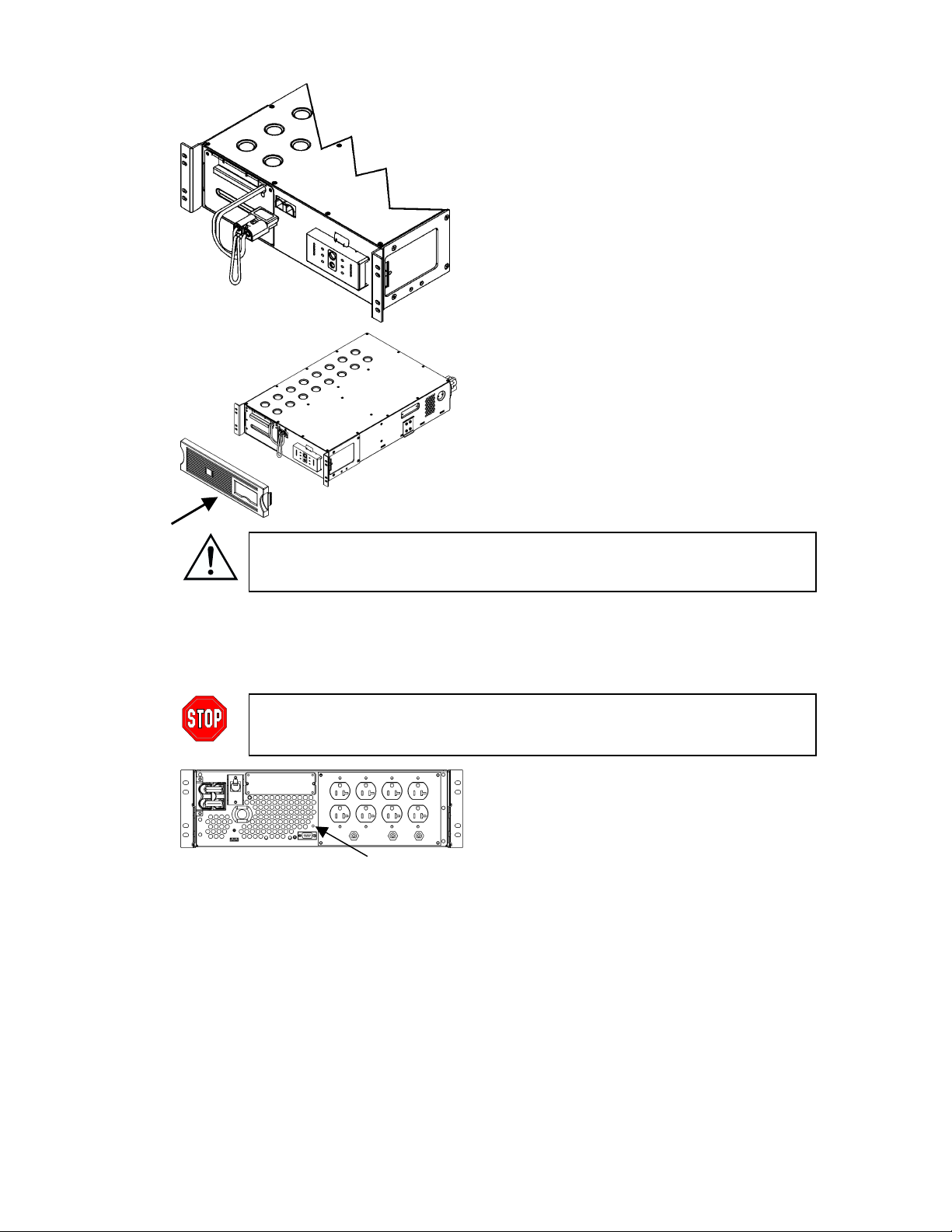

4. The UPS is shipped with the front bezel removed (it is packaged separately within the main box).
Unpack the bezel and hold it with the cutout sec­tion on the right. Align the tabs on the side of the bezel with the slots on the front of the UPS and gently snap it into place.
To connect an optional external battery pack(s) to the UPS, refer to the 3U Rack Mount External Battery Pack User’s Manual for instructions.
CONNECTING POWER AND EQUIPMENT TO THE UPS
1. On the back panel, plug the UPS into a two-pole, three-wire, grounding receptacle only. Avoid using extension cords and adapter plugs.
2. Connect equipment to the UPS.
Use the cable provided with your UPS to connect to the Computer Interface Port. DO NOT use a standard serial interface cable since it is incompatible with the UPS connector.
3. 120V Models only: Connect ground leads to the
TVSS screw on the back panel. The transient voltage surge suppression (TVSS) screw provides grounding through the UPS power cord ground
conductor.
To make the connection, loosen the screw and connect the surge suppression device’s ground lead. Tighten the screw to secure the lead.
7
4. Turn on all connected equipment (loads). To use the UPS as a master ON/OFF switch, be sure all connected loads are switched on. The loads will not be powered until the UPS is turned on.
5. Add any optional accessories. See the documentation accompanying the accessory for details.
URNING ON THE UPS
T
Make sure the battery is connected before turning on the UPS! Then, press the button on the front panel to power up your UPS. This will power up connected equipment. (Make sure connected loads are switched to their ON position).
The UPS charges its battery when it is connected to utility power. The battery charges fully during the first four hours of normal operation. Do not expect full run time during this initial charge period.
The unit performs a self-test automatically when turned on and every two weeks thereafter (by de­fault). Refer to details below on changing the default interval.
120V Models: Check the site wiring fault indicator (located on the rear panel, see Rear Panel, be- low). It lights up if the UPS is plugged into an improperly wired AC power outlet. Wiring faults de­tected include missing ground, hot-neutral polarity reversal, and overloaded neutral circuit.
If the UPS indicates a site wiring fault, get a qualified electrician to correct the building wiring.
ACCESSORIES
This UPS is equipped with an accessory slot. See the APC website, www.apc.com, for available ac­cessories.
If a standard accessory (such as an SNMP card) is installed on this UPS, see the Utility CD for user documentation.
For additional computer system security, install PowerChutePlus
®
Smart-UPS monitoring software.
It provides automatic unattended shutdown capabilities on most major network operating systems.
8
3: OPERATION
INDICATORS AND CONTROLS ON THE SMART-UPS
The APC Uninterruptible Power Supply (UPS) is designed to prevent blackouts, brownouts, sags and surges from reaching your computer and other valuable electronic equipment. The UPS filters out small utility line fluctuations and isolates your equipment from large disturbances by internally dis­connecting from the utility line. The UPS provides continuous power from its internal batteries until the utility line returns to safe levels.
The Smart-UPS has the power control and operating indicators located on the front panel. The rear panel has the input and output connectors.
SMART-UPS FRONT PANEL
The ON and OFF buttons are used to power the UPS and act as master controls for the connected equipment. (Make sure connected loads are switched to their ON position) The UPS remains on as long as it is attached to utility power.
O
PERATION
Power On
Power Off
Load
Press and release the button labeled, TEST, to supply power to the UPS and connected equipment. The equipment is immediately powered and the UPS performs a self-test.
The charger maintains battery charge when the UPS is plugged in and utility voltage is present.
Press and release the button labeled, 0, to turn off power to the UPS and connected equipment.
The five-LED display on the left of the front panel shows the percentage of available power used by the connected equipment (load). For example, if three LEDs are lit, the connected load is drawing between 50% and 67% of the UPS capacity. If all five LEDs are lit, the connected load is drawing between 85% and 100% of capacity. Thoroughly test your entire system to make sure that the UPS will not become overloaded. In the graphic to the left, the load capacity threshold is listed next to the LED (these are not shown on the actual UPS).
9
SELF-TEST
Automatic Self-Test
The UPS performs a self-test automatically when turned on, and every two weeks thereafter (by default). Refer to the User Configuration Items for details on changing the default interval.
Automatic self-test eases maintenance requirements by eliminating the need for periodic manual self-tests. During the self-test, the UPS briefly operates the connected equipment on-battery. If the UPS passes the self­test, it returns to on-line operation.
If the UPS fails the self-test, the UPS lights the replace battery LED and immediately returns to on-line operation. The connected equipment is not affected by a failed test. Recharge the battery for 24 hours and perform another self-test. If it fails, the battery must be replaced.
TILITY POWER
U
Manual Self-Test
Press and hold the button for a few seconds to initiate the self-test.
During normal operation, the UPS monitors the utility power and delivers power to the connected equipment. If your system is experiencing excessive periods of high or low voltage, have a certified electrician check your facility for electrical problems. If the problem continues, contact the utility company for further assistance.
On-Line
The on-line indicator illuminates when the UPS is supplying utility power to the connected equipment. If the indicator is not lit, the UPS is supplying battery power and the UPS sounds an alarm—four beeps every 30 sec­onds.
Utility Voltage
230V
120V
The UPS has a diagnostic feature that displays the utility voltage. Plug the UPS into the normal utility power.
Press and hold the
button to view the utility voltage bar graph dis­play. After a few seconds the five-LED display on the right of the front panel shows the utility input voltage. Refer to the figure at left for the voltage reading (values are not listed on the UPS).
The UPS starts a self-test as part of this procedure. The self-test does not affect the voltage display.
The display indicates the voltage is between the displayed value on the list and the next higher value. For example, with three LEDs lit, the input voltage for 120V models is between 114 and 124 Vac, and for 230V mod- els is between 229 and 248 Vac.
If no LEDs are lit and the UPS is plugged into a working AC power outlet, the line voltage is extremely low.
If all five LEDs are lit, the line voltage is extremely high and should be checked by an electrician.
10
Voltage Trim
Voltage Boost
B
ATTERY POWER
This LED illuminates to indicate the UPS is compensating for a high util­ity voltage.
This LED illuminates to indicate the UPS is compensating for a low utility voltage.
If the utility power fails, the UPS can provide power to the connected equipment from its internal battery for a finite period. The UPS sounds an alarm—four beeps every 30 seconds—while operating on-battery power. The alarm stops when the UPS returns to on-line operation.
On-Battery Power
Battery Charge
Overload
Replace Battery
When the on-battery power indicator is lit the UPS is supplying battery power to the connected equipment.
The five-LED display on the right of the front panel shows the present charge of the UPS battery as a percentage of the battery capacity. When all five LEDs are lit, the battery is fully charged. The LEDs extinguish, from top to bottom, as the battery capacity diminishes. Refer to the figure at left for the battery capacity threshold (it is not listed on the UPS).
As a low battery warning, any LEDs illuminated (for the given capacity) flash and the UPS beeps. The low battery warning default setting can be changed from the rear panel or through the optional PowerChute software. Refer to Default Settings in this manual.
The UPS emits a sustained alarm tone and the LED illuminates when an overload condition occurs (that is, when the connected equipment exceeds the specified “maximum load” as defined in Specifications at the APC web site). The alarm remains on until the overload is removed.
The UPS continues to supply power as long as it is on-line and the breaker does not trip; but, the UPS will not provide power from batteries in the event of a utility voltage interruption.
Disconnect nonessential equipment from the UPS to eliminate the over­load. If a continuous overload occurs while the UPS is on-battery, the unit turns off output in order to protect the UPS from possible damage.
Failure of a battery self-test causes the UPS to emit short beeps for one minute and the replace battery LED illuminates. LED flashes indicate the battery is disconnected. The UPS repeats the alarm every five hours. Per­form the self-test procedure after the battery has charged for 24 hours to confirm the replace battery condition. The alarm stops if the battery passes the self-test.
S
HUTDOWN MODE (VIA SOFTWARE OR AN ACCESSORY)
In shutdown mode, the UPS stops supplying power to the connected equipment, waiting for the re­turn of utility power. If there is no utility power present, external devices (such as servers) connected to the computer interface or the accessory slot can command the UPS to shut down. This normally is done to preserve battery capacity after the shutdown of protected servers. The UPS scrolls the front panel indicators sequentially in shutdown mode.
11
SMART-UPS REAR PANEL
The rear panel has the input and output connectors, computer interface port, and default setting but­tons for the low battery warning level and voltage sensitivity indicator.
ASIC CONNECTORS
B
Computer Interface Port
Use an APC supplied cable to connect to the Computer Interface Port. DO NOT use a standard serial interface cable since it is incompatible with the UPS connec­tor.
The UPS package contains a serial cable. Refer to the Software Installation In- struction Sheet included with the UPS.
Rear Connector
120V Models
230V Models
Power management software and interface kits can be used with the UPS. Use only interface kits supplied or approved by APC. If used, connect the interface cable to the 9-pin computer interface port. Secure the connector screws to complete the connection.
The UPS is shipped with the rear connector plug installed (as shown in the images above for 120V and 230V units). The image at the left shows the receptacle when the plug is removed.
To connect an optional external battery pack, this plug is removed and replaced with the battery pack connector. Refer to the 3U Rack Mount External Battery Pack User’s Manual for details.
120V Models
TVSS Screw
EFAULT SETTINGS
D
Voltage Sensitivity
The UPS features a transient voltage surge-suppression (TVSS) screw for connecting the ground lead on surge suppression de­vices, such as telephone and network line protectors.
The UPS detects line voltage distortions (such as spikes, notches, dips, and swells) as well as distortions caused by operation with inexpensive fuel-powered generators. By default, the UPS reacts to distortions by transferring to on-battery operation to protect the connected equipment. Where power quality is poor, the UPS may frequently transfer to on-battery operation.
If the connected equipment can operate normally under such con­ditions, reduce the sensitivity setting to conserve battery capacity and service life.
12
To reduce UPS sensitivity, press the voltage sensitivity button. Use a pointed object (such as a pen) to do so. Press the button once to set sensitivity to reduced. Press it again to set sensitivity to low. Press the button a third time to reset normal sensitivity. You also can change the sensitivity level through software.
normal
redu ced
low
Low Battery Warning Level
Brightly lit: UPS is set to normal sensitivity.
Dimly lit: UPS is set to reduced sensitivity.
Off: UPS is set to low sensitivity.
The low battery warning beeps to indicate low on-battery run time. It beeps periodically (approximately three times per minute) when less than seven minutes of run time remain. The beeps are continuous when only two minutes of run time remain.
This may not be enough time to shut down some protected com­puter systems. To change the warning interval default setting, press the voltage sensitivity button while pressing and holding the
front-panel
2 min.
5 min.
7 min.
120V Models
Site Wiring Fault Indicator
Brightly lit: Low battery warning interval is about two minutes.
Dimly lit: Low battery warning interval is about five minutes.
Off: Low battery warning interval is about seven minutes.
This indicator illuminates when the UPS is connected to an im­properly wired AC power outlet.
button.
If the UPS indicates a site wiring fault, get a qualified electrician to correct the building wiring.
CIRCUIT BREAKERS
Input Circuit Breaker
Output Circuit Breakers
One 40 Amp input circuit breaker is provided to the right of the rear connector plug and battery pack connector.
Three output circuit breakers are provided.
13
ON-BATTERY OPERATION
The Smart-UPS switches to battery operation automatically if the utility power fails. While running on-battery, an internal alarm sounds (periodic beeps).
Press the
button (front panel) to silence the UPS alarm (for the current alarm only). You can
change the audible indicator if you are using the PowerChute software.
If the utility power does not return, the UPS continues to supply power to the connected equipment until exhausted. The UPS will begin to beep continuously approximately two minutes before the UPS final low battery shutdown. If using a computer, you must manually save your files and power down before the UPS turns off, unless you are using PowerChute interface software that provides auto­matic, unattended shutdown.
D
ETERMINING ON-BATTERY RUN TIME
UPS battery life differs based on usage and environment. It is recommended that the battery/batteries are changed once every three years.
Although the following run times are “typical,” these numbers are subject to change. For the most recent and accurate sizing information, please consult the Size-UPS section of APC’s website at www.apc.com/sizing.
LOAD (VA) LOAD (WATTS) RUN TIME (MINUTES)
750 600 40m
1125 900 25m
1500 1200 16m
2200 1750 11m
2500* 2000* 9m
3000* 2400* 7m
*
Runtimes at these load levels are applicable to the SU3000RMXL3U only.
For non-power factor corrected loads, the power in watts may be limited by the maxi­mum VA rating.
14
4: USER CONFIGURATION ITEMS
NOTE: SETTING THESE ITEMS REQUIRES SOFTWARE OR OPTIONAL HARDWARE.
F
FUNCTION
Automatic Self­Test
ACTORY
DEFAULT
Every 14 days (336 hours)
USER SELECTABLE
CHOICES
Every 7 days (168 hours), On Startup Only, No Self-Test
ESCRIPTION
D
This function sets the interval at which the UPS will execute a self-test. Refer to your software manual for details.
UPS ID UPS_IDEN Up to eight char-
acters to define the UPS
Date of Last Bat­tery Replacement
Minimum Capac-
Manufacture Date
Date of Battery Replacement
0 percent 15, 50, 90 percent The UPS will charge its batteries to the ity Before Return from Shutdown
Use this field to uniquely identify the UPS for network management pur­poses.
Reset this date when you replace the battery module.
specified percentage before return from a shutdown.
Sensitivity Normal Reduced, Low Set lower than normal sensitivity to
avoid lowered battery capacity and service life in situations where the con­nected equipment can tolerate minor power disturbances.
Duration of Low Battery Warning
2 minutes 5, 7, 10 minutes This function sets the time before shut-
down at which the UPS issues a low battery warning. Set it higher than the default if the operating system needs more time for shutdown.
Alarm Delay After Line Fail
5 second delay 30 second delay,
At Low Battery
Set the alarm delay to avoid alarms for
minor power glitches. Condition, No Alarm
Shutdown Delay 20 seconds 0, 80, 300, 600
seconds
Synchronized Turn-on Delay
0 seconds 60, 180, 300 sec-
onds
15
This function sets the interval between
when the UPS receives a shutdown
command and when shutdown occurs.
The UPS will wait the specified time
after the return of utility power before
turn-on (for example, to avoid branch
circuit overload).
NOTE: SETTING THESE ITEMS REQUIRES SOFTWARE OR OPTIONAL HARDWARE.
FUNCTION
High Transfer Point
F
ACTORY
DEFAULT
120V Models 132 VAC
230V Models 253 VAC
USER SELECTABLE
CHOICES
120V Models 138, 135, 129 VAC
230V Models 264, 271, 280 VAC
ESCRIPTION
D
To avoid unnecessary battery usage, set the high transfer point higher if the utility voltage is chronically high and the connected equipment is known to work under this condition.
Low Transfer Point
120V Models 103 VAC
230V Models 196 VAC
120V Models 97, 100, 106 VAC
230V Models 188, 204, 208 VAC
Set the low transfer point lower if the utility voltage is chronically low and the connected equipment can tolerate this condition.
16
5: STORAGE AND MAINTENANCE
STORAGE
STORAGE CONDITIONS
Store the UPS covered and flat (rack mount orientation) in a cool, dry location, with its batteries fully charged. Disconnect any cables connected to the computer interface port to avoid unnecessary bat­tery drainage.
E
XTENDED STORAGE
At -15 to +30 °C (+5 to +86 °F), charge the UPS battery every six months. At +30 to +45 °C (+86 to +113 °F), charge the UPS battery every three months.
REPLACING THE BATTERY MODULE
This UPS has an easy to replace, hot-swappable battery module. Replacement is a safe procedure, isolated from electrical hazards. You may leave the UPS and connected equipment on for the follow­ing procedure. See your dealer or contact APC for information on replacement battery modules.
R
EMOVING THE FRONT BEZEL AND BATTERY MODULE
1. Remove the front bezel by reversing the instructions for attaching the front bezel found in the Installation section of this manual. Set the bezel aside – you will reinstall it later.
2. Following the instructions in the Installation section of this manual, disconnect the battery mod­ule connector plug, remove the battery face plate (set the screws aside, you will replace them when you install a new battery), and remove the battery by sliding it out of the UPS.
3. Return the battery module to APC for recycling.
Once the battery is disconnected, the loads are not protected from power outages.
REPLACING THE BATTERY MODULE AND FRONT BEZEL
1. Following the instructions in the Installation section of this manual, slide the new battery into place in the UPS, reattach the battery face plate (using the screws set aside in Step 2 above), and insert the battery module connector plug.
2. Replace the front bezel.
17
6: TRANSPORTING YOUR SMART-UPS
REMOVING THE UPS FROM THE RACK
Always DISCONNECT THE BATTERY before shipping the UPS to avoid damage during transport. (U.S. Federal Regulation requires that batteries are disconnected during shipment.) The battery may remain in the UPS; it does not have to be re­moved.
This requirement applies whether the UPS is shipped alone or installed in an equipment rack or system.
REMOVING THE FRONT BEZEL
1. Shut down any equipment attached to the UPS.
2. Disconnect the UPS from the power supply.
3. If you are using the original UPS packaging, you must transport the front bezel separate from the UPS.
Remove the front bezel. Use both hands and grasp the finger clips on either side of the bezel. Pull it toward you. The bezel will unsnap from the UPS.
EMOVING THE UPS FROM THE RACK
R
Due to its weight, removing the UPS from a rack requires two people.
1. Remove the four rack screws (two screws on each mounting bracket) that secure the UPS to the rack.
2. Grasp the battery module handle and pull it to­ward you to pull the UPS out far enough to sup­port the front of the UPS from the underside.
3. Use the handles on the sides of the UPS for addi­tional support. Continue to pull the UPS out of the rack while a second person supports the rear underside.
18
7: TROUBLESHOOTING
Use the chart below to solve minor UPS installation problems. Also refer to the APC web site. Con­tact APC for assistance with complex UPS problems.
P
ROBLEM AND POSSIBLE CAUSE SOLUTION
UPS WILL NOT TURN ON
ON button not pushed. Press the ON button once to power the UPS and the load.
UPS not connected to AC power supply.
UPS input circuit breaker tripped. Reduce the load on the UPS by unplugging equipment and re-
Very low or no utility voltage. Check the AC power supply to the UPS by plugging in a table
Rear Connector Plug not engaged Check the back of the unit to verify that the Rear Connector
Battery not connected properly. Check that both battery connectors are fully engaged.
UPS WILL NOT TURN OFF
Internal UPS fault. Do not attempt to use the UPS. Unplug the UPS and have it
UPS OPERATES ON-BATTERY ALTHOUGH NORMAL LINE VOLTAGE EXISTS
UPS input circuit breaker tripped. Reduce the load on the UPS by unplugging equipment and re-
Very high, low, or distorted line voltage. Inexpensive fuel powered generators can distort the voltage.
UPS BEEPS OCCASIONALLY
Normal UPS operation. None. The UPS is protecting the load (connected equipment).
UPS DOES NOT PROVIDE EXPECTED BACKUP TIME
The UPS battery is weak due to a recent outage or is near the end of its service life.
The UPS is overloaded. Check the UPS load display. Unplug unnecessary equipment,
FRONT PANEL INDICATORS FLASH SEQUENTIALLY
The UPS has been shut down re­motely through software or an op­tional accessory card.
Check that the power cable from the UPS to the utility power supply is securely connected.
setting the circuit breaker (on the back of UPS) by pressing the plunger in.
lamp. If the light is very dim, have the utility voltage checked.
Plug is fully engaged.
serviced immediately.
setting the circuit breaker (on the back of UPS) by pressing the plunger in.
Move the UPS to a different outlet on a different circuit. Test the input voltage with the utility voltage display. If acceptable to the connected equipment, reduce the UPS sensitivity.
Charge the battery. Batteries require recharging after extended outages. They wear faster when put into service often or when operated at elevated temperatures. If the battery is near the end of its service life, consider replacing the battery even if the re- place battery LED indicator is not yet lit.
such as printers.
None. The UPS will restart automatically when utility power returns.
19
PROBLEM AND POSSIBLE CAUSE SOLUTION
ALL INDICATORS ARE LIT AND THE UPS EMITS A CONSTANT BEEPING
Internal UPS fault. Do not attempt to use the UPS. Turn the UPS off and have it
serviced immediately.
ALL INDICATORS ARE OFF AND THE UPS IS PLUGGED INTO A WALL OUTLET
The UPS is shut down and the bat­tery is discharged from an extended
None. The UPS will return to normal operation when the power is restored and the battery has a sufficient charge.
outage.
THE REPLACE BATTERY LED IS LIT
Weak battery. Allow the battery to recharge for at least four hours. Then, per-
form a self-test. If the problem persists after recharging, replace the battery.
Replacement battery not connected
Check that the battery connector is fully engaged.
properly.
20
SERVICE
If the unit requires service, do not return it to the dealer. Instead, follow these steps:
1. Review the problems discussed in the Troubleshooting section of this manual to eliminate com­mon problems.
2. Verify that no circuit breakers are tripped. A tripped circuit breaker is the most common problem.
3. If the problem persists, call APC Customer Service or visit the APC website (www.apc.com
n Note the model number of the unit, the serial number, and the date purchased. If you call APC
Customer Service, a technician will ask you to describe the problem and try to solve it over the phone, if possible. If this is not possible the technician may arrange for the unit to be ser­viced or may issue a Returned Material Authorization Number (RMA#).
n If the unit is under warranty, repairs are free. If not, there is a repair charge.
n Procedures for servicing or returning your product may vary internationally. Please contact
the APC Customer Service office in the appropriate country (www.apc.com/support questions about warranty and RMA.
4. Pack the unit in its original packaging. If the original packing is not available, ask APC Customer Service about obtaining a new set.
Pack properly to avoid damage in transit. Never use Styrofoam beads for packaging. Damage sus­tained in transit is not covered under warranty.
Remove the rear connector plug to disconnect batteries when returning unit.
).
) for
Always DISCONNECT THE BATTERY before shipping in compliance with U.S. Department of Transportation (DOT) regulations.
5. Mark the RMA# on the outside of the package.
6. Return the unit by insured, prepaid carrier to the address given to you by Customer Service.
21
8: CONTACT, REGULATORY, AND WARRANTY INFORMATION
CONTACTING APC
Refer to the information provided at the APC Internet site:
http://www.apc.com/support/contact
REGULATORY AGENCY APPROVALS
230V MODELS
ME 61
N 394
This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take corrective actions.
120V MODELS
LISTED
42C2
LR63938
RADIO FREQUENCY INTERFERENCE
This equipment has been tested and found to comply with the limits for a Class A digital device, pur­suant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Shielded signal cables must be used with this product to ensure compliance with the Class A FCC limits.
22
DECLARATION OF CONFORMITY
LIMITED WARRANTY
American Power Conversion (APC) warrants its products to be free from defects in materials and workmanship for a period of two years from the date of purchase. Its obligation under this warranty is limited to repairing or replacing, at its own sole option, any such defective products. To obtain service under warranty you must obtain a Returned Material Authorization (RMA) number from customer support. Products must be returned with transportation charges prepaid and must be accompanied by a brief description of the problem encountered and proof of date and place of purchase. This warranty does not apply to equipment that has been damaged by acci­dent, negligence, or misapplication or has been altered or modified in any way. This warranty applies only to the original purchaser who must have properly registered the product within 10 days of purchase.
EXCEPT AS PROVIDED HEREIN, AMERICAN POWER CONVERSION MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Some states do not permit limitation or exclusion of implied warranties; there­fore, the aforesaid limitation(s) or exclusion(s) may not apply to the purchaser.
EXCEPT AS PROVIDED ABOVE, IN NO EVENT WILL APC BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OF THIS PRODUCT, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Specifically, APC is not li­able for any costs, such as lost profits or revenue, loss of equipment, loss of use of equipment, loss of software, loss of data, costs of substitutes, claims by third parties, or otherwise.
Entire contents copyright © 2001 by American Power Conversion Corporation. All rights reserved. Reproduc­tion in whole or in part without permission is prohibited.
APC, Smart-UPS, and PowerChute are registered trademarks of American Power Conversion Corporation. All other trademarks are the property of their respective owners.
23
Loading...
