Zektor MAS3 User Manual

0 (0)
ZEKTOR
Owner’s Manual
TM
MAS3
Multi-channel Audio Switch
www.zektor.com
Rev: 2 03/12/04
Read all instructions for prior to installation of your product.
Retain this User's Manual for future reference.
Adhere to all safety and operation instructions.
Before cleaning this product, unplug from the wall outlet. Do not use liquid cleaning products. Use a damp cloth for cleaning.
Do not use this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child, and serious damage to the product. Ensure that any attached cables cannot be tripped over.
This product is supplied with a UL Class 2 power supply as indicated on the product packaging. Use this product only with the supplied power supply. If you are unsure about the type of AC power in your home, consult your product dealer or a local power company.
Power cords should be routed so they will not be stepped on or rolled over.
If your product is not operating properly, do not attempt to service this product yourself. Refer to a qualified service personnel.
2

A MAS3 Overview

Operating the MAS3 is straight forward and simply a matter of plugging the MAS3’s power supply into an available A.C. outlet, and then plugging the MAS3’s power supply into the back of the MAS3.
To operate the MAS3 manually, press the power switch, located on the very left of the MAS3 to cy­cle power.
Press any one of the three channel switches to switch the MAS3 to the selected channel.
If the MAS3’s power is turned off, selecting any one of the three inputs will cause the MAS3 to power on and switch to the selected channel.
ZEKTOR
1
2
3
POWER TOGGLE CHANNEL 1CHANNEL 2CHANNEL 3
POWER TOGGLE. Pressing this button will cycle power from on to off, and off to on.
CHANNEL 1. Pressing this button will select channel 1 of the MAS3’s inputs, if power is off when
this button is pressed, then the MAS3 will power on, and select channel 1.
CHANNEL 2. Pressing this button will select channel 2 of the MAS3’s inputs, if power is off when
this button is pressed, then the MAS3 will power on, and select channel 2.
CHANNEL 3. Pressing this button will select channel 3 of the MAS3’s inputs, if power is off when
this button is pressed, then the MAS3 will power on, and select channel 3.
3

Using the MAS3 with a Remote Control

Remote operations of the MAS3 are accomplished through the use of just about any remote control. A remote control is not supplied with the MAS3, yet the versatile programming modes of the MAS3 allows the MAS3 to work with virtually any remote control. The next section mote Control" on page 5, describes how to setup your remote controller. After your remote control is programmed the following describes the pre-programmed functions of the MAS3.
There are 9 separate remote controlled commands understood by the MAS3. They are:
POWERTOGGLE.The MAS3 can be toggled from standby to power
on, and back to standby using a single button of the remote.
POWER
TV VCR
CBL /
SAT
DVD RCVR
12
4
5
89
7
PIP ENT
0
VOL
+
CH
+
__
3
6
SELECTIN1. Select input 1. If the MAS3 is in standby mode, it will
power on and then select input 1.
SELECTIN2. Select input 2. If the MAS3 is in standby mode, it will
power on and then select input 2.
SELECTIN3. Select input 3. If the MAS3 is in standby mode, it will
power on and then select input 3.
POWEROFF. The MAS3 can be set to standby mode by pressing a
single button of the remote. Once the MAS3 is in standby mode,
further presses of the P
mand is useful when using the “macro” feature of some program­mable remote controls, and is used when it is unknown whether the MAS3 is already in standby mode or not.
POWERON. The MAS3 can be powered on from standby by pressing
a single button of the remote. Once the MAS3 is power on, further presses of the P useful when using remote controls that allow “macro” programming,
where it is unknown whether the MAS3 is already power on or not.
SETDIMMODE. Toggles through three different bright/dim display
modes. They are: Bright all the time. Dim all the time. Bright for 4 sec onds after any keypress, and then automatically dim.
SELECT+. Select the next higher input. If input 3 is currently selected,
then this command will cause input 1 to be selected.
SELECT-. Select the next lower input. If input 1 is currently selected,
then this command will cause input 3 to be selected.
OWERON button will be ignored. This command is
OWEROFF button will be ignored. This com-
"Programming your Re-
-
4

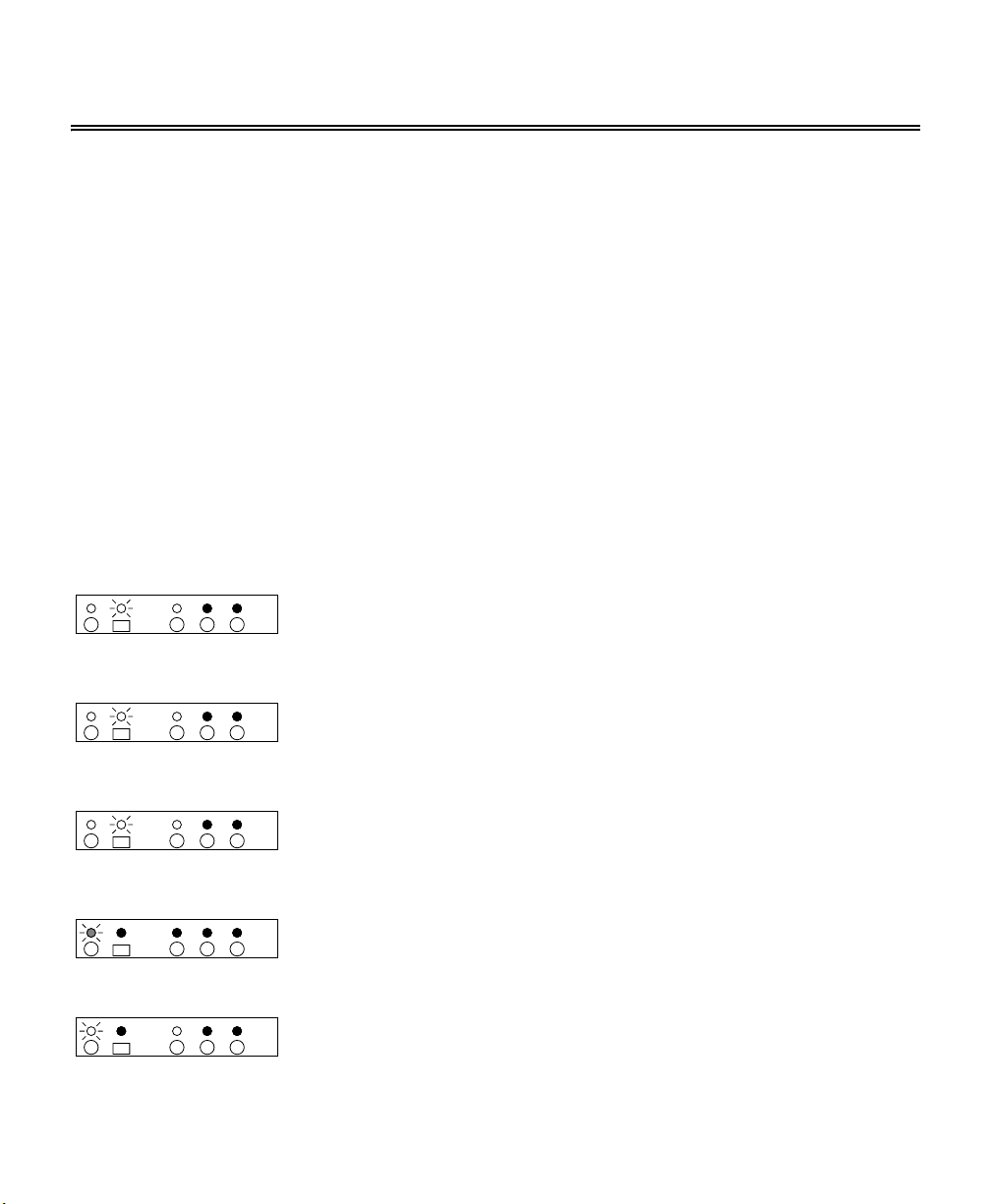

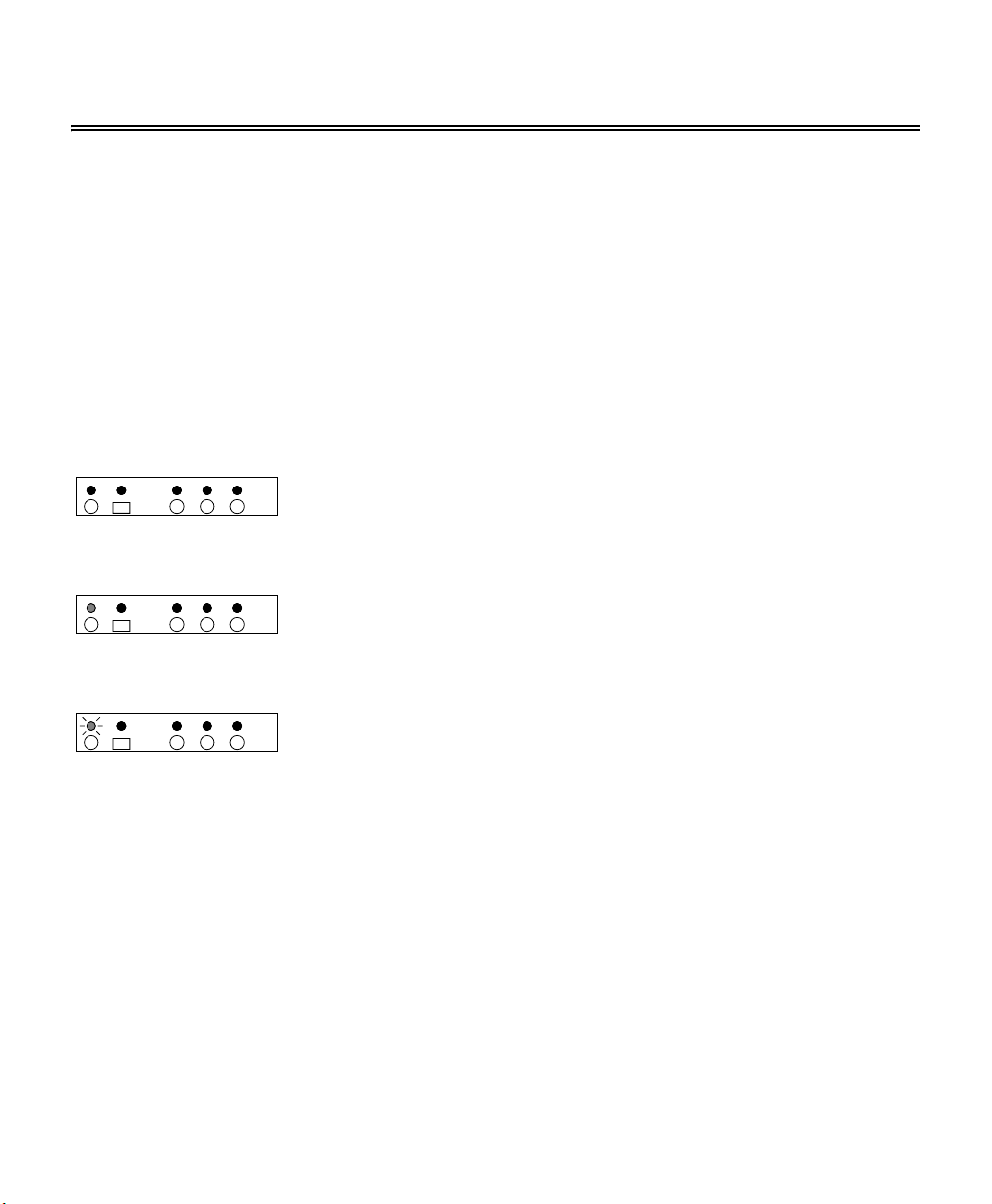

Programming your Remote Control

Setting up your Universal Remote Control

For remote control operations, the MAS3 requires either a Universal Remote control to be pro­grammed as one of eight pre-programmed devices, or alternatively, the MAS3 can be taught to use most existing remote controls.
The simplest way begin using the MAS3, is to program your Universal Remote control to act like a Symphonic TV. Once this is done you will be able to immediately start using your MAS3.
Check your remote’s user manual for instructions on programming your remote control.
The following table shows the Symphonic TV codes for a few different brands of Universal Remote Controllers:
Make Device Code
Sony TV 023
One For All TV 0476
Sanyo TV 303
GE / RCA TV 046
X10 TV 062
Zenith / Phillips /
Magnavox
TV 552
5
