Yokogawa FLXA21 User Manual

4 (1)

User’s

Manual Model FLXA21

2-Wire Analyzer

IM 12A01A02-01E

IM 12A01A02-01E

5th Edition

i

uIntroduction

Thank you for purchasing the FLXA21 2-Wire Analyzer.

Please read the following respective documents before installing and using the FLXA21.

nNotes on Handling User’s Manuals

Please hand over the user’s manuals to your end users so that they can keep the user’s manuals on hand for convenient reference.

Please read the information thoroughly before using the product.

The purpose of these user’s manuals is not to warrant that the product is well suited to any particular purpose but rather to describe the functional details of the product.

No part of the user’s manuals may be transferred or reproduced without prior written consent from YOKOGAWA.

YOKOGAWAreserves the right to make improvements in the user’s manuals and product at any time, without notice or obligation.

If you have any questions, or you find mistakes or omissions in the user’s manuals, please contact our sales representative or your local distributor.

nDrawing Conventions

Some drawings may be partially emphasized, simplified, or omitted, for the convenience of description.

Some screen images depicted in the user’s manual may have different display positions or character types (e.g., the upper / lower case). Also note that some of the images contained in this user’s manual are display examples.

n Composition of this User’s Manual

The model FLXA21 2-WireAnalyzer offers 4 kinds of measurements – pH/ORP (oxidationreduction potential), contacting conductivity (SC), inductive conductivity (ISC) or dissolved oxygen (DO) – with a respective sensor module.

The FLXA21 delivered has one specific kind of measurement depending on your order.

Contenets

pH/ORP

Contacting

Inductive

Dissolved

SENCOM

conductivity (SC)

conductivity (ISC)

oxygen (DO)

pH/ORP





Introduction and





Section 1





general description



















Wiring and installation





Section 2





Operation

Section 3

Section 6

Section 9

Section 12

Section 15

Commissioning

Section 4

Section 7

Section 10

Section 13

Section 16

Calibration

Section 5

Section 8

Section 11

Section 14

Section 17

Maintenance





Section 18





Troubleshooting





Section 19





Media No. IM 12A01A02-01E

5th Edition : Oct. 2013 (YK)

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

All Rights Reserved Copyright © 2010, Yokogawa Electric Corporation



ii

uSafety Precautions

nSafety, Protection, and Modification of the Product

In order to protect the system controlled by the product and the product itself and ensure safe operation, observe the safety precautions described in this user’s manual. We assume no liability for safety if users fail to observe these instructions when operating the product.

If this instrument is used in a manner not specified in this user’s manual, the protection provided by this instrument may be impaired.

If any protection or safety circuit is required for the system controlled by the product or for the product itself, prepare it separately.

Be sure to use the spare parts approved by Yokogawa Electric Corporation (hereafter simply referred to as YOKOGAWA) when replacing parts or consumables.

Modification of the product is strictly prohibited.

The following safety symbols are used on the product as well as in this manual.

WARNING

This symbol indicates that an operator must follow the instructions laid out in this manual in order to avoid the risks, for the human body, of injury, electric shock, or fatalities. The manual describes what special care the operator must take to avoid such risks.

CAUTION

This symbol indicates that the operator must refer to the instructions in this manual in order to prevent the instrument (hardware) or software from being damaged, or a system failure from occurring.

CAUTION

This symbol gives information essential for understanding the operations and functions.

NOTE

This symbol indicates information that complements the present topic.

This symbol indicates Protective Ground Terminal.

This symbol indicates Function Ground Terminal. Do not use this terminal as the protective

ground terminal.

n Warning and Disclaimer

The product is provided on an “as is” basis. YOKOGAWA shall have neither liability nor responsibility to any person or entity with respect to any direct or indirect loss or damage arising from using the product or any defect of the product that YOKOGAWA can not predict in advance.

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

iii

nFLXA21

The FLXA21 should only be used with equipment that meets the relevant IEC,American,

Canadian, and Japanese standards. Yokogawa accepts no responsibility for the misuse of this unit.

Don’t install “general purpose type” instruments in the hazardous area.

The Instrument is packed carefully with shock absorbing materials, nevertheless, the instrument may be damaged or broken if subjected to strong shock, such as if the instrument is dropped. Handle with care.

CAUTION

Electrostatic discharge

The FLXA21 contains devices that can be damaged by electrostatic discharge.

When servicing this equipment, please observe proper procedures to prevent such damage.

Replacement components should be shipped in conductive packaging. Repair work should be done at grounded workstations using grounded soldering irons and wrist straps to avoid electrostatic discharge.

CAUTION

Do not use an abrasive or organic solvent in cleaning the instrument.

Substitution of components may impair suitability for Division 2.

Do not remove or replace while circuit is live unless area is know to be non-hazardous.

Explosion Hazard – Do not disconnect equipment unless area is known to be nonhazardous.

Do not reset circuit breaker unless power has been removed from the equipment or the area is known to be non-hazardous.

This instrument is a EN61326-1 ClassAproduct, and it is designed for use in the industrial environment. Please use this instrument in the industrial environment only.

The HART communication may be influenced by strong electromagnetic field.

In this case another trial of the HART communication and/or operation with FLXA21 touch screen can be carried out.

How to dispose the batteries:

This is an explanation about the new EU Battery Directive(DIRECTIVE 2006/66/EC).This directive is only valid in the EU.

Batteries are included in this product.Batteries incorporated into this product cannot be removed by yourself.Dispose them together with this product.

When you dispose this product in the EU,contact your local Yokogawa Europe B.V.office.Do not dispose them as domestic household waste.

Battery type: Manganese dioxide lithium battery

Notice: The symbol means they shall be sorted out and collected as ordained in

ANNEX II in DIRECTIVE 2006/66/EC.

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

iv

For Explosion proof (Intrinsically safe type)

WARNING

Electrostatic charge may cause an explosion hazard.Avoid any actions that cause the generation of electrostatic charge, e.g., rubbing with a dry cloth. Because the enclosure of the FLXA21

2-Wire Analyzer, if it is mounted in an area where the use of category 1 G Zone 0 apparatus is required, it must be installed such, that, even in the event of rare incidents, ignition sources due to friction sparks are excluded.

Figure 1Warning label

n Warranty and service

Yokogawa products and parts are guaranteed free from defects in workmanship and material under normal use and service for a period of (typically) 12 months from the date of shipment from the manufacturer.

Individual sales organisations can deviate from the typical warranty period, and the conditions of sale relating to the original purchase order should be consulted. Damage caused by wear and tear, inadequate maintenance, corrosion, or by the effects of chemical processes are excluded from this warranty coverage.

In the event of warranty claim, the defective goods should be sent (freight paid) to the service department of the relevant sales organisation for repair or replacement (at Yokogawa discretion). The following information must be included in the letter accompanying the returned goods:

Part number, model code and serial number

Original purchase order and date

Length of time in service and a description of the process

Description of the fault, and the circumstances of failure

Process/environmental conditions that may be related to the failure of the device.

Astatement whether warranty or nonwarranty service is requested

Complete shipping and billing instructions for return of material, plus the name and phone number of a contact person who can be reached for further information.

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

v

Returned goods that have been in contact with process fluids must be decontaminated/ disinfected before shipment. Goods should carry a certificate to this effect, for the health and safety of our employees.

Material safety data sheets should also be included for all components of the processes to which the equipment has been exposed.

n Copyright and Trademark Notices

The copyrights of online manual contained in the CD-ROM are reserved.

The online manual is protected by the PDF security from modification, however, it can be output via a printer. Printing out the online manual is only allowed for the purpose of using the product. When using the printed information of the online manual, check if the version is the most recent one by referring to the CD-ROM’s version.

No part of the online manual may be transferred, sold, distributed (including delivery via a commercial PC network or the like), or registered or recorded on video tapes.

Adobe, Acrobat and Acrobat Reader are either registered trademarks or trademarks of Adobe

Systems Incorporated in the United States and/or other countries.

All other company and product names mentioned in this user’s manual are trademarks or registered trademarks of their respective companies.

We do not use TM or ® mark to indicate those trademarks or registered trademarks in this user’s manual.

FLXA21’s fonts

(c) Copyright 2000-2001 /efont/ The Electronic Font Open Laboratory. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

1.Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2.Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3.Neither the name of the team nor the names of its contributors may be used to endorse or promote products derived from this font without specific prior written permission.

THIS FONT IS PROVIDED BYTHE TEAMAND CONTRIBUTORS “AS IS”ANDANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITYAND FITNESS FORAPARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALLTHE TEAM OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSEDAND ONANYTHEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE)ARISING INANY WAY OUT OF THE USE OF THIS FONT, EVEN IFADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

Toc-1

Model FLXA21

2-Wire Analyzer

IM 12A01A02-01E 5th Edition

CONTENTS

u

Introduction

....................................................................................................

i

u

Safety Precautions........................................................................................

ii

1.

INTRODUCTION ..................................AND GENERAL DESCRIPTION

1-1



1.1

Instrument ...............................................................................................check

1-2



1.2

Screen ...............................................................................................operation

1-4



1.3

Passwords..........................................................................................................

1-8



1.4

Regulatory ....................................................................................Compliance

1-9

2.

WIRING AND ...................................................................INSTALLATION

2-1



2.1

Installation ...................................................................................................site

2-2



2.2

Removing ..............................................................................the wiring cover

2-2



2.3

Installing ................................................................................the cable glands

2-3



2.4

Wiring ...................................................................................the power supply

2-4





2.4.1 ...........................................................................................

Grounding

2-5





2.4.2 .........................................................

Connection of the power supply

2-6





2.4.3 ........................................................................................

Wiring cover

2-6



2.5

Sensor .....................................................................................................wiring

2-7

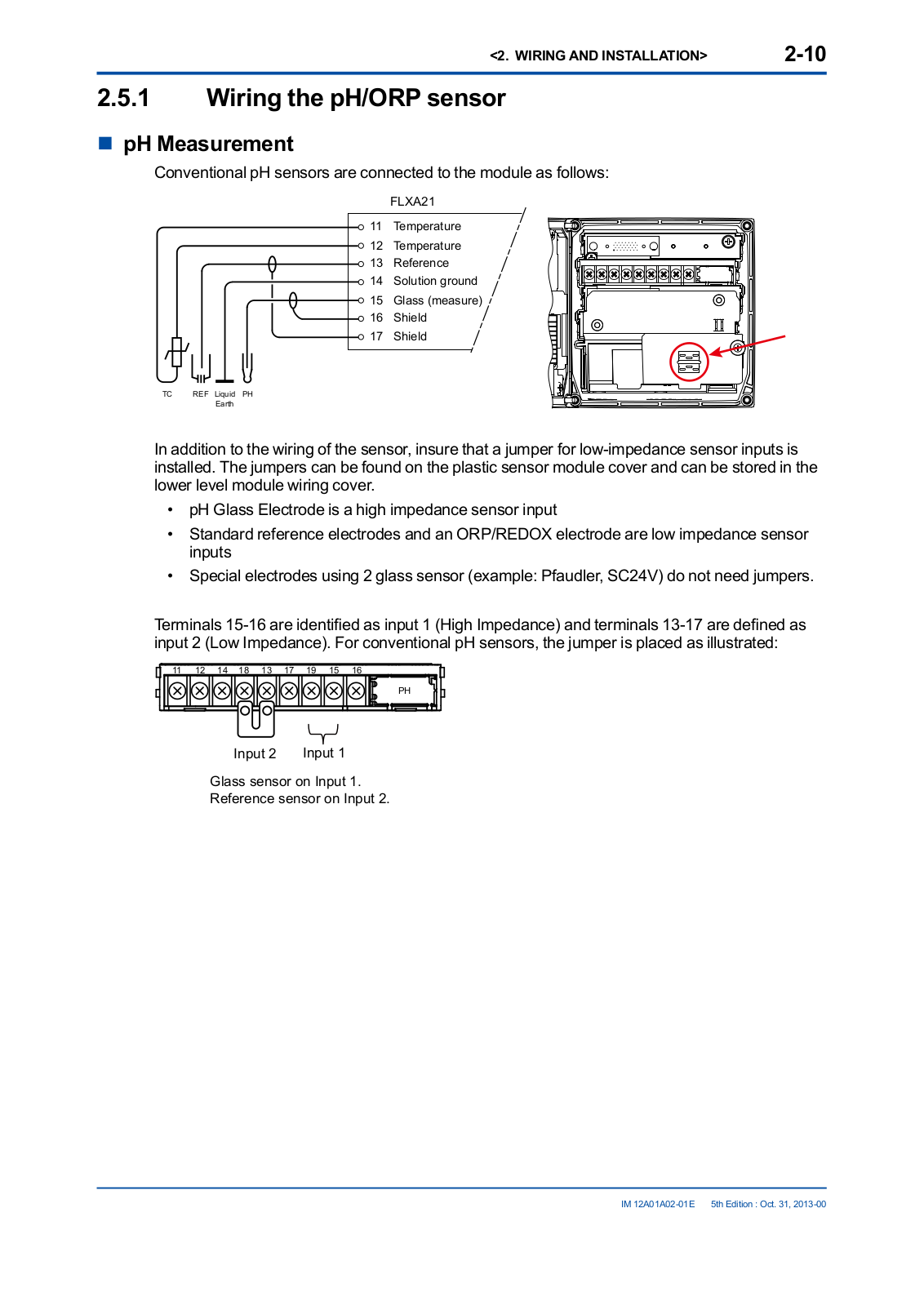

2.5.1 ...............................................................

Wiring the pH/ORP sensor

2-10





2.5.2 .................................................

Wiring the conductivity (SC) sensor

2-12





2.5.3 .................................

Wiring the inductive conductivity (ISC) sensor

2-12





2.5.4 ........................................

Wiring the dissolved oxygen (DO) sensor

2-13





2.5.5 ..............................................

Wiring the SENCOM pH/ORP sensor

2-13



2.6

Mounting ..........................................................................................methods

2-14



2.7

Operation..........................................................................................................

2-15

3.

OPERATION ..........................................................................OF pH/ORP

3-1



3.1

Change ...............................................................................................language

3-2



3.2

Quick ........................................................................................................setup

3-2



3.3

Home ..........................................display, Main display and Monitor display

3-4



3.4

Zooming ........................................................................................in on details

3-5



3.5

Trend .................................................................................................graphics

3-10



3.6

Instrument ................................................................................status screen

3-11

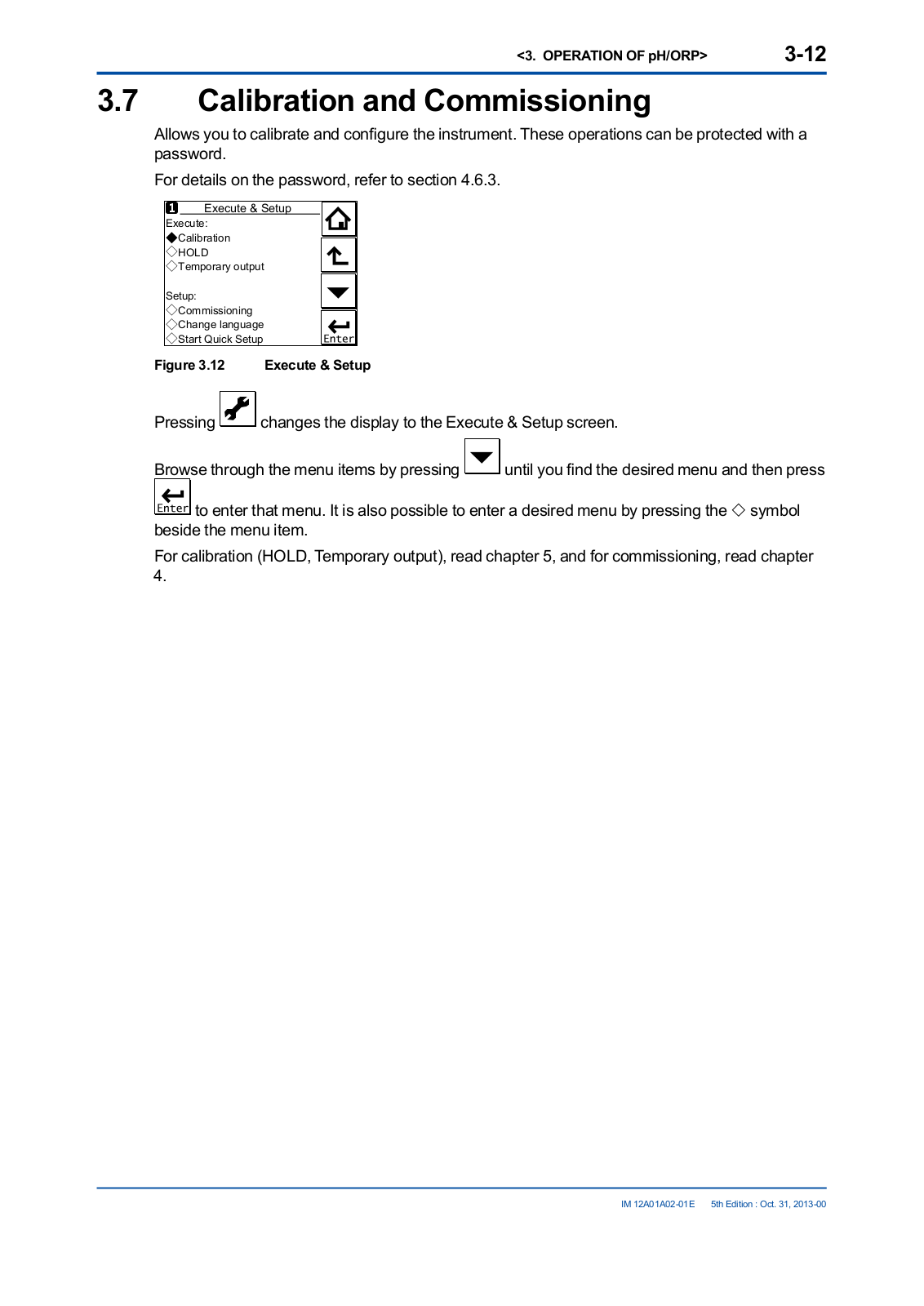

3.7

Calibration ....................................................................and Commissioning

3-12

4.

COMMISSIONING .................................................................OF pH/ORP

4-1



4.1

Sensor ......................................................................................................setup

4-3



4.2

Measurement ...........................................................................................setup

4-3

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00









Toc-2















4.2.1

Measurement.....................................................................................

4-3





4.2.2

Temperature settings..........................................................................

4-4





4.2.3

Temperature compensation................................................................

4-4





4.2.4

Calibration settings.............................................................................

4-5





4.2.5

Impedance settings............................................................................

4-8





4.2.6

Concentration.....................................................................................

4-8





4.2.7

Sensor diagnostic settings.................................................................

4-9



4.3

Output setup......................................................................................................

4-9



4.4

Error configuration..........................................................................................

4-11



4.5

Logbook configuration...................................................................................

4-13



4.6

Advanced setup...............................................................................................

4-13





4.6.1

Settings.............................................................................................

4-13





4.6.2

Tag....................................................................................................

4-14





4.6.3

Passwords........................................................................................

4-14





4.6.4

Date/Time.........................................................................................

4-14





4.6.5

Communication................................................................................

4-14





4.6.6

Factory setup....................................................................................

4-17



4.7

Display setup...................................................................................................

4-17





4.7.1

Main display (Dual display, Individual display).................................

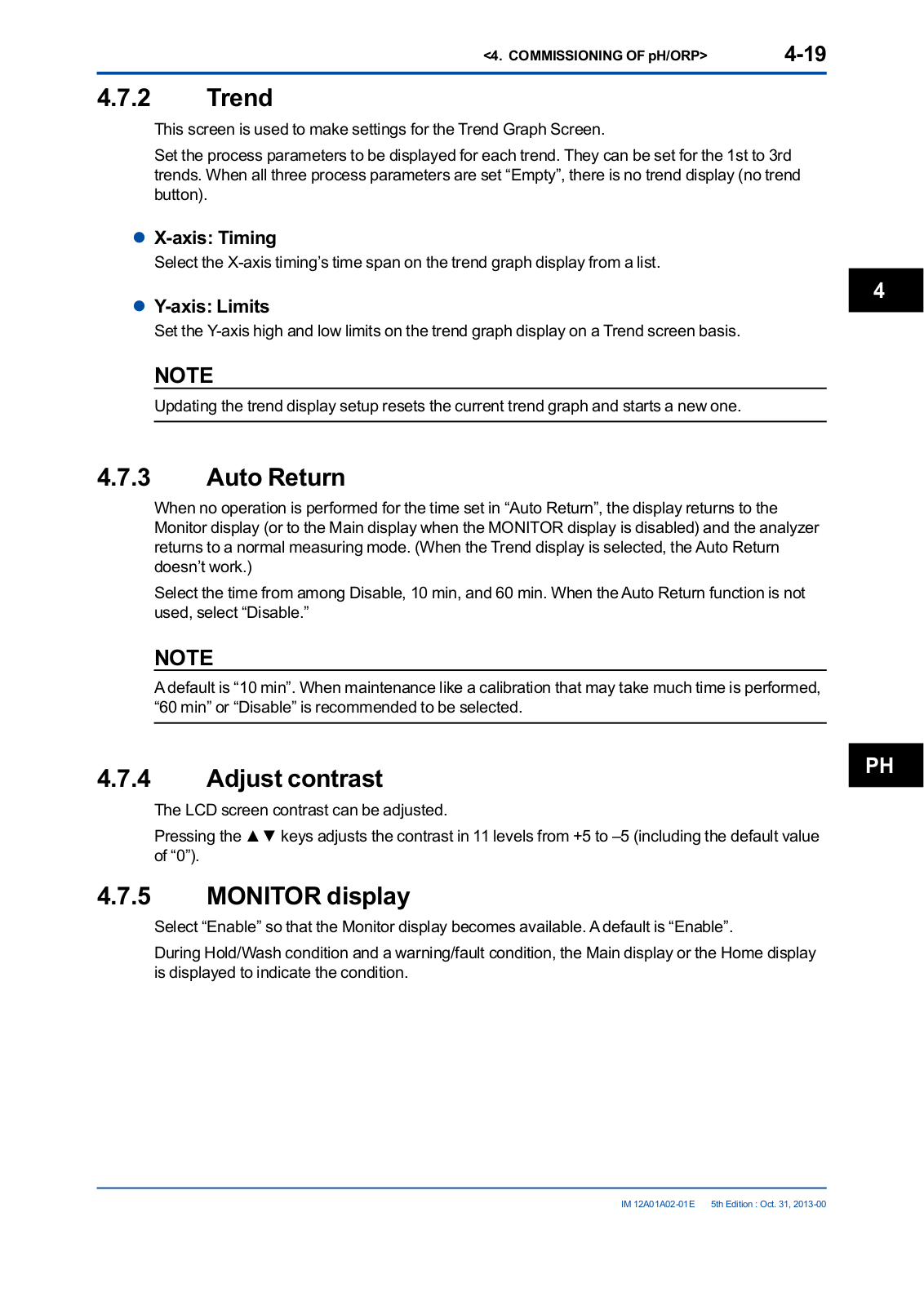

4-18





4.7.2

Trend.................................................................................................

4-19





4.7.3

Auto Return.......................................................................................

4-19





4.7.4

Adjust contrast..................................................................................

4-19





4.7.5

MONITOR display............................................................................

4-19



4.8

Calculated data setup.....................................................................................

4-20

5.

CALIBRATION OF pH/ORP.......................................................................

5-1



5.1

pH calibration.....................................................................................................

5-2





5.1.1

Manual calibration..............................................................................

5-2





5.1.2

Automatic calibration..........................................................................

5-3





5.1.3

Sample calibration..............................................................................

5-5



5.2

Temperature calibration....................................................................................

5-5



5.3

ORP calibration (rH calibration).......................................................................

5-5



5.4

HOLD...................................................................................................................



5-6



5.5

Temporary output..............................................................................................

5-6

6.

OPERATION OF SC (Conductivity).........................................................

6-1



6.1

Change language...............................................................................................

6-2



6.2

Quick setup........................................................................................................

6-2



6.3

Home display, Main display and Monitor display..........................................

6-4



6.4

Zooming in on details........................................................................................

6-5



6.5

Trend graphics.................................................................................................

6-10



6.6

Instrument status screen................................................................................

6-11



6.7

Calibration and Commissioning....................................................................

6-12

7.

COMMISSIONING OF SC (Conductivity)................................................

7-1

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00









Toc-3











7.1

Measurement setup...........................................................................................

7-3





7.1.1

Measurement.....................................................................................

7-3





7.1.2

Configure sensor................................................................................

7-3





7.1.3

Temperature settings..........................................................................

7-3

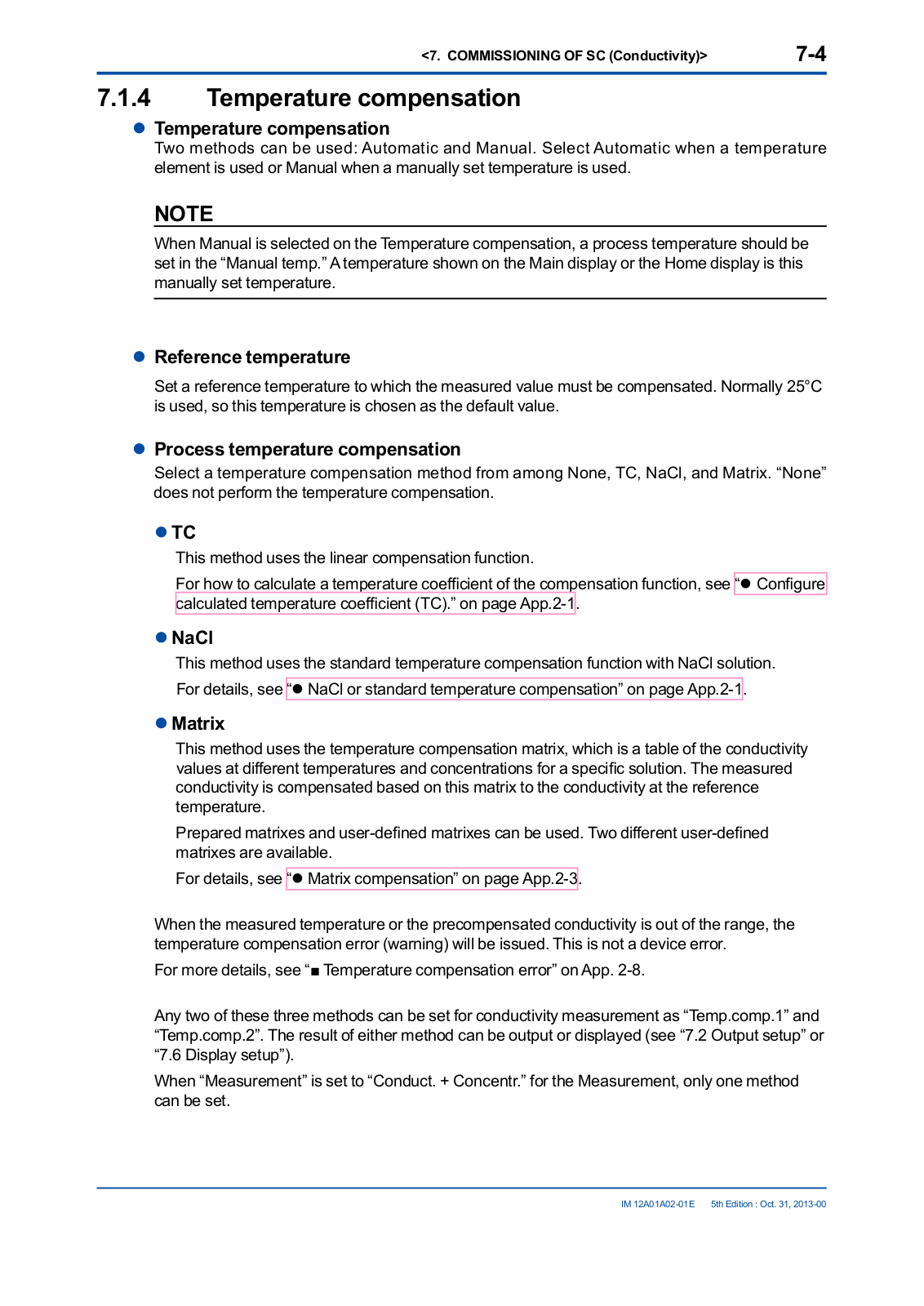

7.1.4

Temperature compensation................................................................

7-4





7.1.5

Calibration settings.............................................................................

7-5





7.1.6

Concentration.....................................................................................

7-5





7.1.7

Sensor diagnostic settings.................................................................

7-6



7.2

Output setup......................................................................................................

7-6



7.3

Error configuration............................................................................................

7-9



7.4

Logbook configuration...................................................................................

7-10



7.5

Advanced setup...............................................................................................

7-11





7.5.1

Settings.............................................................................................

7-11





7.5.2

Tag....................................................................................................

7-11





7.5.3

Passwords........................................................................................

7-12





7.5.4

Date/Time.........................................................................................

7-12





7.5.5

Communication................................................................................

7-12





7.5.6

Factory setup....................................................................................

7-13



7.6

Display setup...................................................................................................

7-13





7.6.1

Main display (Dual display, Individual display).................................

7-13





7.6.2

Trend.................................................................................................

7-14





7.6.3

Auto Return.......................................................................................

7-15





7.6.4

Adjust contrast..................................................................................

7-15





7.6.5

MONITOR display............................................................................

7-15



7.7

Calculated data setup.....................................................................................

7-15

8.

CALIBRATION OF SC (Conductivity)......................................................

8-1



8.1

Cell constant (manual)......................................................................................

8-2



8.2

Cell constant (automatic)..................................................................................

8-2



8.3

Air calibration.....................................................................................................

8-2



8.4

Sample................................................................................................................



8-3



8.5

Temperature coefficient....................................................................................

8-3



8.6

Temperature calibration....................................................................................

8-3



8.7

HOLD...................................................................................................................



8-4



8.8

Temporary output..............................................................................................

8-4

9.

OPERATION OF ISC (Induvtive Conductivity).......................................

9-1



9.1

Change language...............................................................................................

9-2



9.2

Quick setup........................................................................................................

9-2



9.3

Main display and Monitor display....................................................................

9-4



9.4

Zooming in on details........................................................................................

9-5



9.5

Trend graphics...................................................................................................

9-9



9.6

Instrument status screen................................................................................

9-11



9.7

Calibration and Commissioning....................................................................

9-11

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00









Toc-4





10. COMMISSIONING OF ISC (Inductive Conductivity)............................

10-1



10.1

Measurement setup.........................................................................................

10-2





10.1.1

Measurement...................................................................................

10-3





10.1.2

Configure sensor..............................................................................

10-3





10.1.3

Temperature settings........................................................................

10-3





10.1.4

Temperature compensation..............................................................

10-3





10.1.5

Calibration settings...........................................................................

10-4





10.1.6

Concentration...................................................................................

10-5





10.1.7

Sensor diagnostic settings...............................................................

10-6



10.2

Output setup....................................................................................................

10-6



10.3

Error configuration..........................................................................................

10-7



10.4

Logbook configuration...................................................................................

10-8



10.5

Advanced setup...............................................................................................

10-9





10.5.1

Settings.............................................................................................

10-9





10.5.2

Tag....................................................................................................

10-9





10.5.3

Passwords......................................................................................

10-10





10.5.4

Date/Time.......................................................................................

10-10





10.5.5

Communication..............................................................................

10-10





10.5.6

Factory setup..................................................................................

10-11



10.6

Display setup.................................................................................................

10-11





10.6.1

Main display....................................................................................

10-11





10.6.2

Trend...............................................................................................

10-11





10.6.3

Auto Return.....................................................................................

10-12





10.6.4

Adjust contrast................................................................................

10-12





10.6.5

MONITOR display..........................................................................

10-12

11.

CALIBRATION OF ISC (Inductive Conductivity)..................................

11-1



11.1

Cell constant (manual)....................................................................................

11-3



11.2

Cell constant (automatic)................................................................................

11-3



11.3

Air calibration...................................................................................................

11-3



11.4

Sample..............................................................................................................



11-4



11.5

Temperature coefficient..................................................................................

11-4



11.6

Temperature calibration..................................................................................

11-5



11.7

HOLD.................................................................................................................



11-5

12. OPERATION OF DO (Dissolved Oxygen)......................................................

12-1



12.1

Change language.............................................................................................

12-2



12.2

Quick setup......................................................................................................

12-2



12.3

Home display, Main display and Monitor display........................................

12-4



12.4

Zooming in on details......................................................................................

12-5



12.5

Trend graphics.................................................................................................

12-9



12.6

Instrument status screen..............................................................................

12-10



12.7

Calibration and Commissioning..................................................................

12-10

13. COMMISSIONING OF DO (Dissolved Oxygen)....................................

13-1

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00







Toc-5







13.1

Sensor setup....................................................................................................

13-2

13.2

Measurement setup.........................................................................................

13-3



13.2.1

Sensor setup....................................................................................

13-3



13.2.2

Temperature settings........................................................................

13-3



13.2.3

Temperature compensation..............................................................

13-3



13.2.4

Salinity compensation......................................................................

13-3



13.2.5

Pressure comp. (Measure)...............................................................

13-3



13.2.6

Calibration settings...........................................................................

13-4



13.2.7

Sensor diag. settings........................................................................

13-5

13.3

Output setup....................................................................................................

13-5

13.4

Error configuration..........................................................................................

13-7

13.5

Logbook configuration...................................................................................

13-8

13.6

Advanced setup...............................................................................................

13-9



13.6.1

Settings.............................................................................................

13-9



13.6.2

Tag....................................................................................................

13-9



13.6.3

Passwords......................................................................................

13-10



13.6.4

Date/Time.......................................................................................

13-10



13.6.5

Communication..............................................................................

13-10



13.6.6

Factory setup..................................................................................

13-12

13.7

Display setup.................................................................................................

13-12



13.7.1

Main display (Dual display, Individual display)...............................

13-12



13.7.2

Trend...............................................................................................

13-13



13.7.3

Auto Return.....................................................................................

13-14



13.7.4

Adjust contrast................................................................................

13-14



13.7.5

MONITOR display..........................................................................

13-14

13.8

Calculated data setup...................................................................................

13-14

14. CALIBRATION OF DO (Dissolved Oxygen).........................................................

14-1

14.1

Air calibration...................................................................................................

14-2

14.2

Water calibration..............................................................................................

14-2

14.3

Manual slope calibration.................................................................................

14-3

14.4

Temperature calibration..................................................................................

14-3

14.5

HOLD.................................................................................................................



14-4

14.6

Temporary output............................................................................................

14-4

15. OPERATION OF SENCOM pH/ORP.......................................................

15-1

15.1

Change language.............................................................................................

15-2

15.2

Quick setup......................................................................................................

15-2

15.3

Main display and Monitor display..................................................................

15-4

15.4

Zooming in on details......................................................................................

15-5

15.5

Trend graphics...............................................................................................

15-12

15.6

Instrument status screen..............................................................................

15-13

15.7

Calibration and Commissioning..................................................................

15-13

16. COMMISSIONING OF SENCOM pH/ORP.....................................................

16-1

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00









Toc-6











16.1

Sensor setup....................................................................................................

16-3



16.2

Measurement setup.........................................................................................

16-4





16.2.1

Measurement...................................................................................

16-4





16.2.2

Temperature settings........................................................................

16-4





16.2.3

Temperature compensation..............................................................

16-4





16.2.4

Calibration settings...........................................................................

16-6





16.2.5

Impedance settings..........................................................................

16-9





16.2.6

Concentration...................................................................................

16-9





16.2.7

Sensor diagnostic settings...............................................................

16-9



16.3

Output setup..................................................................................................

16-10



16.4

Error configuration........................................................................................

16-11



16.5

Logbook configuration.................................................................................

16-12



16.6

Advanced setup.............................................................................................

16-13





16.6.1

Settings...........................................................................................

16-13





16.6.2

Tag..................................................................................................

16-14





16.6.3

Passwords......................................................................................

16-14





16.6.4

Date/Time.......................................................................................

16-14





16.6.5

Communication..............................................................................

16-14





16.6.6

Factory setup..................................................................................

16-17



16.7

Display setup.................................................................................................

16-17





16.7.1

Main display....................................................................................

16-17





16.7.2

Trend...............................................................................................

16-18





16.7.3

Auto Return.....................................................................................

16-18





16.7.4

Adjust contrast................................................................................

16-18





16.7.5

MONITOR display..........................................................................

16-18

17. CALIBRATION OF SENCOM pH/ORP...................................................

17-1



17.1

pH calibration...................................................................................................

17-2





17.1.1

Manual calibration............................................................................

17-2





17.1.2

Automatic calibration........................................................................

17-3





17.1.3

Sample calibration............................................................................

17-5



17.2

Temperature calibration..................................................................................

17-5



17.3

ORP calibration (rH calibration).....................................................................

17-5



17.4

HOLD.................................................................................................................



17-6

18.

MAINTENANCE.......................................................................................



18-1

19.

TROUBLESHOOTING.............................................................................

19-1

Appendix 1

For pH/ORP..........................................................................

App.1-1

Appendix 2 For SC (Conductivity).........................................................

App.2-1

Appendix 3 For ISC (Inductive Conductivity)...............................................

App.3-1

Appendix 4 For DO (Dissolved Oxygen)...............................................

App.4-1

Customer Maintenance Parts List......................................

CMPL 12A01A02-01E

Revision Record.......................................................................................................



i

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

Yokogawa FLXA21 User Manual

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-1

1.INTRODUCTION AND GENERAL

DESCRIPTION

This manual describes how to use the FLXA21 with Yokogawa’s or other companies’sensors.

Please read carefully this manual and the instruction manual of the relevant sensor before using this instrument.

For the specifications of the FLXA21, please refer to the General Specifications (GS 12A01A0201E) in the attached CD-ROM.

The FLXA21 2-WireAnalyzer can perform 4 kinds of measurements – pH/ORP (oxidationreduction potential), contacting conductivity (SC), inductive conductivity (ISC) or dissolved oxygen (DO) – with the respective sensor module.

For the pH/ORP measurement, the FLXA21 can be connected to conventional analog pH/ORP sensors, and to Yokogawa’s digital sensor, FU20F pH/ORP SENCOM Sensor with the respective sensor module.

The FLXA21 can perform single or dual sensor measurement. For dual sensor measurement, the combination of two same type sensor inputs – pH/ORP and pH/ORP (analog sensor only),

SC and SC, and DO and DO –are available with two sensor modules.

When using with the pH/ORP SENCOM sensor, please refer to the section 15, 16 and 17 of this

manual for the operation, commissioning and calibration respectively.

LCD display (not provided in some models)





Wiring cover 1 (for the first module)





















































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































Wiring cover 2

(for the second module)

(Wiring cover 3 for power supply and grounding is under the wiring cover 2.)

Jumper holder (provided only for pH measurement)

Front panel Front view

Front view with the front panel opened

Reboot switch



(Do not use it)



2

1

ONON

Slide switch (for HART only)

Nameplate

The first module

(The second module if any is installed here.)

Terminal block for power supply

Cable entry holes Front view with all wiring covers removed

Figure 1.1

Parts names and descriptions

1

PH

SC

ISC

DO

SENCOM

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-2

1.1Instrument check

Upon delivery, unpack the instrument carefully and inspect it to ensure that it was not damaged during shipment. If damage is found, retain the original packing materials (including the outer box) and then immediately notify the carrier and the relevant Yokogawa sales office.

Checking the model and suffix code

Loosen four front panel screws of the FLXA21, open the panel to the left, and make sure the model and suffix code on the nameplate affixed to the back side of the front panel agrees with your order.

CAUTION

When you open the front panel, make sure the screws are completely out of the screw holes, and then open the front panel slowly in order not to damage the threaded parts on the housing. If the threaded parts are damaged and the screws cannot be tightened, the waterproof performance will deteriorate.

NOTE

Be careful not to lose the four front panel screws.

-D-P-S-AA-P1-NN-AN-L1N-NN



/UM/SCT/H6



S1.01



J312FA012

2012.01

Figure 1.2

Inside of the FLXA21 and example of nameplate

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-3





Checking the accessories

Make sure the accessories in Table 1.1 are included.

Table 1.1



Accessories











Product Name

Quantity

Remark



Cable glands

3 or 4 sets

In the case of the plastic housing.













4 sets when 2 sensors are used.













With a sleeve for grounding cable line.











3 sets

In the case of the stainless steel housing.













With rubber plug (1 pcs).



pH analyzer



Jumper

2 pcs/module











Grommet set

1 set/module





SENCOM



Grommet

1





pH analyzer











Option



Bracket

1 set

Option code /UM*, /U, /PM









Sun shade hood

1 set

Option code /H6, /H7, /H8









Tag plate

1

Option code /SCT









Adapter for conduit work

4 sets

Option code /CB4, /CD4, /CF4



Instruction Manual (CD)

1 copy





Startup Manual

1 copy





*:

The universal mounting kit (/UM) contains

the brackets for both /U and /PM options.

NOTE

Rule of The Serial Number is as follows.

The Serial Number is defined by nine (9) alphanumeric characters as follows.

X1X2Y3M4N5N6N7N8N9

e.g. 92NA07704







X1X2:

Production Site









Y3M4:

Year/Month code









N5N6N7N8N9:

Tracking number









Table 1.2

Production year code



























Year

Year code



Year

Year code

Year

Year code

Year

Year code

2010

K



2015

R

2020

W

2025

2

2011

L



2016

S

2021

X

2026

3

2012

M



2017

T

2022

Y

2027

4

2013

N



2018

U

2023

Z

2028

5

2014

P



2019

V

2024

1

2029

6

Table 1.3

Production month code



















Month

Month code

Month

Month code

Month

Month code

January

1

May

5

September

9

February

2

June

6

October

A

March

3

July

7

November

B

April

4

August

8

December

C

1

PH

SC

ISC

DO

SENCOM

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-4

1.2Screen operation

CAUTION

Press the touch screen only with your finger. Do not use a tool with a sharp tip (ex. pencil, ballpoint pen), a thin stick, a tool with a hard tip etc. to avoid scratches on the touch screen.

Press the center of the icon or character to avoid wrong operation.

The main screen operations are as follows.

When you press any of the following icons on the screen, the screen changes to the respective display or executes the respective function.









Returns to the main display (or home display).

Returns to the previous display.

Moves the cursor for selecting the menu item. Pressing the icon moves the cursor down to the next item. When the cursor is on the item at the very bottom, the cursor jumps back to the item at the top.

Confirms the input; for example, the selected menu item or setting value.

NOTE

When no operation is performed for 10 minutes or 60 minutes (depending on the setting of “Auto

Return”), the display except Trend display automatically changes to the Monitor display (or to the Main display or the Home display when the MONITOR display is disabled).

The figures in this section show the pH measurement for example.

Each display is different in details due to settings. Each display is only an example for some

settings.

n Monitor display

C10.38 A

pH B

Figure 1.3

Example of monitor display

Monitor display

The Monitor display appears upon startup when the MONITOR display is enabled.

When the measurement value (primary value) on the main or home display is pressed, the monitor display appears.

A:Measurement value

B:Unit

C:Sensor No.

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-5





n Main display



F

E

G





Tag:FLXA21–PH





DA

TEXT10.38_PH1 pH



B

25.0 °C

TEXT_TEMP1WASH



C

19 mV



HOLD



TEXT ORP1



J

4mA

PH1

20mA













K

H

L

M

Figure 1.4

Example of main display

1

Go to Home (Figure 1.6)

Go to Zoom (Figure 1.8)

Go to Infomation (Figure 1.10)

Go to Execute & Setup (Figure 1.11)

Main display

The Main display appears upon startup when one sensor is connected and the MONITOR display is disabled.

A:Measurement value: Primary value (large characters/user selectable)

B, C: Measurement value: Second and tertiary values (small characters)

D:Unit for the primary value

E:Tag No. (user programmable)

F:Sensor No. *

G:Sensor wellness indicator (More ■ indicate the better condition.)

H:Hold/Wash indicators (appear only during the Hold/Wash operations)

J:Analog output display and parameter * (ex.: PH1…PH=Parameter, 1=sensor number)

K:Additional text (set in alphanumeric characters/user programmable)

L:Function buttons (Home, Zoom, Status, Execute & Setup)

M:Fault/Warning indicators (indicated in blinking only during Fault/Warning status)

* When the parameter of which measurement value is indicated is selected as a process parameter, that is, mA output set on the Output setup (refer to the section 5.3, 8.2, 11.2, and

14.3), its Sensor No. is indicated as a white number in the black box, for example , and its mA output is indicated as a bar at the bottom. At the bar, a parameter symbol is indicated.

NOTE

PH

Measurement values on the display can be set independent of the process parameter.

C Calculated data





R(1) Redundant sys.





SC











Differential0.03pH



10.38pH



ISC

Sensor

Sensor

DO







1







1







Sensor







Sensor



4mA

Diff-pH

20mA

2

4mA

PH1

20mA

2

SENCOM

Figure 1.5



Example of calculated date and redundant system









IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-6





n Home display (when two sensors are connected)

F

Tag:FLXA21–PH

pH

D

B

25.0

°C

10.38

E

C

19

mV

A

G





H



Tag:FLXA21–PH

pH

K



24.9

°C



6.35









24

mV





J

4mA



PH1

20mA













Figure 1.6



Example of home display

Home display

The Home display appears upon startup when two sensors are connected and the MONITOR display is disabled.

(Home display is not available when only one sensor is connected)

A:Measurement value: Primary value (large characters/user selectable)

B, C: Measurement value: Secondary and tertiary values (small characters)

D:Unit for the primary value

E:Tag No. (user programmable)

F:Sensor No.

G:Sensor wellness indicator (More ■ indicate the better condition.)

H:Hold/Wash indicators (appear only during the Hold/Wash operations)

J:Analog output display and parameter (ex.: PH1…PH=Parameter, 1=sensor number)

K:Fault/Warning indicators (indicated in blinking only during Fault/Warning status)

C Calculated data

pH





0.03

Tag:FLXA21–PH

pH

24.9

°C

6.35



24

mV



4mA

Diff-pH

20mA

R(1) Redundant system

pH





10.38

Tag:FLXA21–PH

pH

25.0

°C

10.38

19

mV

4mA



PH1

20mA

Figure 1.7

Example of home display of calculated data and redundant system

n Zoom display

mA

HOLD

20





FAIL

12

WASH



4



15.00



Next

Next

Figure 1.8

Example zoom display

The zoom display appears when the Zoom button on the main display is pressed.

The Zoom display shows an easy-to-read graphical display of the output status. Pressing Next displays the contact state if communication is set to PH201G distributor. Pressing Next again displays the status information of the instrument.

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00





<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-7

















n Trend display























D F





1







C















Measurement value (pH)

B

Tag FLXA21-PH

pH1

12.00

9.10pH

Maximum value on this display





8.40



Current process value





5.60



































Minimum value on this display





































































2.50























































































































12:00

12:20

12:40







E































Time





















Maximum

A

G























Average





















































Minimum

Figure 1.9

Example of trend display

Trend display

The Trend display appears when the Trend button on the Zoom display is pressed.

A:X axis; Time axis (user programmable from 15 minutes to 14 days)

B:Y axis; Measurement value axis (user programmable)

C:Tag No.

D:Current measurement value with unit

E:Trend (maximum, minimum and average values during the display update time)

F:Icon (current measurement value, and maximum and minimum values until the display update)

G:Fault/Warning indicators (indicated in blinking only during Fault/Warning status)

n Information button

Diagnosis information on converters and sensors appears.

No malfunction detected.

Warning

When a warning icon appears, maintenance is required. Pressing this icon displays an

error message, and pressing the message displays the troubleshooting guidelines.

Fault

This icon indicates a malfunction. Pressing this icon displays an error message, and pressing the message displays the troubleshooting guidelines.

PH

SC

ISC

DO

SENCOM

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-8





For some errors concerned with setting, a message on the remedy can jump to the relevant setting directly.

Fault:















Problem with mA and Process















mA configuration error















parameter.











































Remedy Select a correct ‘Process parameter’ for mA in:

Commissioning >> Output setup

Figure 1.10 Example of jumping from remedy to setting

If neither a fault is detected nor warning is indicated, “Working properly” is displayed. If a fault is detected or warning is indicated, up to 3 messages appear.

n Execute & Setup

Allows you to calibrate and configure the instrument. These operations can be protected with a

password.

Execute & Setup

Execute:

Calibration

HOLD

Temporary output

Setup:

Commissioning

Change language

Start Quick Setup

Figure 1.11 Example of Execute & Setup display

1.3Passwords

Passwords can protect the FLXA21 from other persons’access except a right operator’s.

Execute &Setup

Execute:

Calibration/Wash

HOLD

Temporary output

Setup:

Comissioning

Change language

Start Quick Setup

Commissioning

Sensor setup

Measurement setup

Output setup

Error configuration

Logbook configuration

Advanced setup

Display setup

Calculated data setup

Advanced setup

Passwords

Settings

Execute:

Tag



Passwords

Commissioning:

Date/Time



Communication

Entering an empty password

Factory setup

results in disabling the



password check.

Figure 1.12 Example of passwords setting

Execute operation and Commissioning operation can be separately protected by each password. When the Execute password is set, execution of Calibration(/Wash), HOLD or Temporary output needs to enter the password to start each execution. When the Commissioning password is set, Commissioning and Start Quick Setup needs to enter the password to start the setting-up.

Refer to the section 4.6.3, 7.5.3, 10.5.3, 13.6.3 or 16.6.3 for details of setting passwords.

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-9

1.4Regulatory Compliance

Safety: EN61010-1 UL 61010-1

CAN/CSAC22.2 No.61010-1

EMC: EN61326-1 ClassA, Table 2 (For use in industrial locations) EN61326-2-3

AS/NZS CISPR11

Korea Electromagnetic Conformity Standard Installation altitude: 2000 m or less

Category based on IEC 61010: I (Note 1) Pollution degree based on IEC 61010: 2 (Note 2)

Note 1: Installation category, called over-voltage category, specifies impulse withstand voltage.

Equipment with “Category I” (ex. two-wire transmitter) is used for connection to circuits in which measures are taken to limit transient over-voltages to an appropriately low level.

Note 2: Pollution degree indicates the degree of existence of solid, liquid, gas or other inclusions which may reduce dielectric strength. Degree 2 is the normal indoor environment.

Explosion-proof (Intrinsically safe type and non-incendive) (for suffix code: -EA):

ATEX Intrinsically safe approval

Applicable standard



ExplosiveAtmospheres



EN 60079-0:2009

General requirements

EN 60079-11:2007

Equipment protection by intrinsic safety “i”

EN 60079-26:2007

Equipment with equipment protection level (EPL) Ga

EN 60529:1992

Degrees of protectionprovided by enclosures (IP Code)

Type of protection



II 1G Ex ia IIC Ga



Group: II



Category: 1G



T4: for ambient temperature:–20 to 55ºC

T6: for ambient temperature:–20 to 40ºC

Atmosphere pressure: 80 kPa (0.8 bar) to 110 kPa (1.1 bar)

Degree of Protection of the Enclosure: IP66

IECEx Intrinsically safe



Applicable standard



IEC 60079-0:2007

Part 0: General requirements

IEC 60079-11: 2006 Part 11: Equipment protection by intrinsic safety “i”

IEC 60079-26: 2006 Part 26: Construction, test and marking of Group II Zone 0



electrical apparatus

IEC 60529: 2001

Degrees of protection provided by enclosures (IP Code)

Type of protection



Ex ia IIC Ga



T4: for ambient temperature:–20 to 55ºC

T6: for ambient temperature:–20 to 40ºC

Atmosphere pressure: 80 kPa (0.8 bar) to 110 kPa (1.1 bar)

Degree of Protection of the Enclosure: IP66

FM Intrinsically safe and nonincentive approval

Applicable standard

FM-3600: 2011

Approval Standard for Electric Equipment for use in Hazardous



(Classified) Locations General Requirement

FM-3610: 2010

Approval Standard for Intrinsically Safe Apparatus and Associated



Apparatus for Use in Class I, II, and III, Division 1, Hazardous



(Classified) Locations

FM-3611: 2004

Nonincendive Electrical Equipment for Use in Class I and II, Division 2



and Class III, Divisions 1 and 2, Hazardous (Classified) Locations

FM-3810: 2005

Electrical Equipment for Measurement, Control and Laboratory Use

NEMA250:1991Enclosures for Electrical Equipment (1000 Volts Maximum)

ANSI/IEC 60529:2004

Degrees of protection provided by enclosures (IP Code)

ANSI/ISA60079-0 2009

Part 0: General Requirements

ANSI/ISA60079-11 2011

Part 11: Equipment protection by intrinsic safety “i”

1

PH

SC

ISC

DO

SENCOM

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00





<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-10















Type of protection











Class I, Division 1, GroupsA, B, C and D (Intrinsically Safe)





Class I, Division 2, GroupsA, B, C and D (Nonincendive)





Class I, Zone 0, in Hazardous (Classified) Locations (Intrinsically Safe)





Class I, Zone 2, Group IIC, in Hazardous (Classified) Locations (Nonincendive)





AEx ia IIC











For all protection type,









T4: for ambient temperature: -20 to 55°C





T6: for ambient temperature: -20 to 40°C





Atmosphere pressure: 80 kPa (0.8 bar) to 110 kPa (1.1 bar)





Degree of Protection of the Enclosure: NEMAType 4X and IP66



CSA Intrinsically safe and nonincendive approval





Applicable standard









CAN/CSAC22.2 No. 94-M1991 Special Purpose Enclosures





CAN/CSAC22.2 No. 157-92

Intrinsically Safe Equipment for Use in Hazardous Locations



C22.2 No213-M1987 Non-incendive Electrical Equipment for Use in Class I, Division 2





Hazardous Locations





CAN/CSA-E60079-0-07

Electrical apparatus for explosive gas atmospheres







- Part 0: General requirements





CAN/CSA-E60079-11-02

Electrical apparatus for explosive gas atmospheres







- Part 11: Intrinsic safety “i”





IEC 60529:2001

Degrees of protection provided by enclosures (IP Code)





Type of protection (C22.2)









Class I, Division 1, GroupsA, B, C and D (Intrinsically Safe)





Class I, Division 2, GroupsA, B, C and D (Nonincendive)





For all protection type,









T4: for ambient temperature: -20 to 55°C





T6: for ambient temperature: -20 to 40°C





Atmosphere pressure: 80 kPa (0.8 bar) to 110 kPa (1.1 bar)





Ambient Humidity: 0 to 100% (No condensation)





Degree of Protection of the Enclosure: Type 4X





Type of protection (E60079)









Ex ia IIC











T4: for ambient temperature: -20 to 55°C





T6: for ambient temperature: -20 to 40°C





Atmosphere pressure: 80 kPa (0.8 bar) to 110 kPa (1.1 bar)





Ambient Humidity: 0 to 100% (No condensation)





Degree of Protection of the Enclosure: IP66



Electrical Parameters (Ex ia)









Each housing assembly (base module) and each sensor module are respectively certificated.



Input parameters of sensor module meet output parameters of housing assembly.



Housing assembly











Input parameters

Supply and output circuit (terminals + and -):









Ui, Vmax

= 30 V









Ii, Imax

= 100 mA









Pi, Pmax

= 0.75 W









Ci

=13 nF









Li

= 0 mH









(Linear source)









Output parameters

Sensor module input circuit (CN2 or CN3 on Back board)









Uo Vt, Voc

= 13.65 V









Io, It, Isc

= 50 mA









Po

= 0.372 W









Co, Ca

= 80 nF









Lo, La

= 7.7mH





IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00





<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-11











pH/ORP Sensor module, SC Sensor module and DO Sensor module





Input parameters

Ui, Vmax

= 13.92 V









Ii, Imax

= 50 mA









Pi, Pmax

= 0.374 W









Ci

= 40 nF









Li

= 2.9 mH







Output parameters

Sensor input circuit(pH: terminals 11 through 19,









SC: terminals 11 though 16, DO: terminals 11 thourgh 18)









Uo Vt, Voc

= 11.76 V









Io, It, Isc

= 116.5 mA









Po

= 0.342 W









Co, Ca

= 100 nF









Lo, La

= 1.7mH





ISC Sensor module











Input parameters

Ui, Vmax

= 13.92 V









Ii, Imax

= 50 mA









Pi, Pmax

= 0.374 W









Ci

= 40 nF









Li

= 7.7 mH







Output parameters

Sensor input circuit (terminals 11 through 17)









Uo Vt, Voc

= 11.76 V









Io, It, Isc

= 60.6 mA









Po

= 0.178 W









Co, Ca

= 100 nF









Lo, La

= 8 mH





Model code as per certification unit

Housing assembly



Model code

Enclosure type (Housing)

Display

Explosion proof type



K9698NA

Plastic (Polycarbonate) (-P)

Without display (-N)

Intrinsically safe type



K9698PA





With LCD display (-D)





K9698QA

Stainless steel with



Without display (-N)





K9698RA

urethane coating (-U)



With LCD display (-D)





K9698QB

Stainless steel with epoxy



Without display (-N)





K9698RB

coating (-E)



With LCD display (-D)





K9698QC

Stainless steel (-S)



Without display (-N)





K9698RC





With LCD display (-D)



Sensor module











Model code

Sensor module type



Explosion proof type





K9698EA

pH/ORP module

Intrinsically safe type





K9698FA

SC module









K9698GA

ISC module









K9698HA

DO module







Control Drawing (ATEX and IECEx types)





Hazardous Location ← → Non Hazardous Location

Sensor 1



Measuring module 1

Supply +

+



Safety Barrier



Housing Assembly









Measuring module 2

Supply -

(Note 1)

Sensor 2

-













(*)



Note:The measuring module on this drawing means





the sensor module on this General Specifications.

Note: The measuring module on this drawing means the sensor module on this General Specifications.

1

PH

SC

ISC

DO

SENCOM

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-12





Electrical data are as follows;

Maximum Voltage (Ui) = 30V

Maximum Current (Ii) = 100mA

Maximum Power (Pi) = 0.75W

Internal Capacitance (Ci) = 13F

Internal Inductance (Li) = 0mH

Note 1: The output current must be limited by a resistor “R” such that Imaxout=Uz/R (linear source).

Note 2: Safety barrier certified by a notify body in EU asATEX should be used.

Note 3: When using non isolation barrier, connect (*) to IS earthing system.

Note 4: Sensor module 2 is installed when required.

When measuring inductive conductivity, only one module can be installed.

Control Drawing (FM type)

Following contents refer “DOC. No. IKE039-A12”

Class I, Division 1, Groups A, B, C, and D Class I, Zone 0 and 1, Group IIC

T4 for Ta = 55°C, T6 for Ta = 40°C

Hazardous Location ← → Non Hazardous Location 2 wire analyzer

Sensor 1

Measuring module 1

Supply +

+

Safety Barrier

Housing Assembly





Measuring module 2

Supply -

(Note 1)

Sensor 2

-







(Refer to Note 7)







Note:The measuring module on this drawing means



the sensor module on this General Specifications.

Electrical data are as follows;

Input Maximum Input Voltage (Ui) = 30V

Maximum Current (Ii) = 100mA

Maximum Power (Pi) = 0.75W

Internal Capacitance (Ci) = 13nF

Internal Inductance (Li) = 0mH

Sensor Input Circuit

Type of Measuring Module

pH, SC and DO

ISC

Maximum Voltage (Uo)

11.76 V

11.76 V

Maximum Current (Io)

116.5mA

60.6mA

Maximum Power (Po)

0.3424W

0.178W

External Capacitance (Ca, Co)

100nF

100nF

External Inductance (La, Lo)

1.7mH

8mH

Note 1: In any safety barrier used, the output current must be limited by a resistor “R” such that Imaxout=Uz/R.

Note 2: The safety barrier shall be FM Entity-Approved associated apparatus / barrier where :

Barrier Voc, Uo ≤ 30V;

Barrier Isc, Io ≤ 100 mA;

Barrier Po ≤ 0.75W;

Barrier Ca, Co ≥ 13 nF+Ccable;

Barrier La, Lo ≥ Lcable

Note 3: When using non isolation barrier connect (*1) to IS earthing system.

Note 4: pH and SC Sensor(s) are of a passive type to be regarded as ‘simple apparatus’same as 06ATEX0218X,

06ATEX0219, IECEx KEM 06.0052X, FM3028779, 06ATEX0220X, 06ATEX0221, IECEx KEM 06.0053X or the one

individually certified with relevant parameters.

Note 5: ISC Sensor(s) are ISC40S of 00ATEX1067X or the one individually certified with relevant parameters.

Note 6: DO Sensor(s) are of a passive type to be regarded as ‘simple apparatus’or the one individually certified with

relevant parameters.

Note 7: Measuring module 2 may not mounted.As for ISC module, only one can be mounted.

Note 8: Install per the National Electrical Code (NFPA70)

Note 9: WARNING - Potential electrostatic charging hazard Electrostatic charge may cause an explosion hazard.Avoid any

actions that cause the generation of electrostatic charge, e.g., rubbing with a dry cloth.

Note10: As an alternative to installing the FLXA21 in Division 2 using Class I, Division 2 wiring methods, the FLXA21 may

be installed in Division 2 using nonincendive field wiring in accordance with the National Electrical Code (NFPA

70) using the same parameters identified for intrinsically safe entity installations. TheAssociated Nonincendive

Apparatus shall have nonincendive field wiring connections which are FMApproved for use in the Class I, Division 2

location.

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-13





Control Drawing (CSA type)

Intrinsically Safe

Non-incendive





Group IIC, Zone 0

Class I, Division 2,





Class I, Division 1

Groups A, B, C, D



















Hazardous Location ← → Non Hazardous Location









2 wire analyzer

+

Sensor 1





Measuring module 1 Supply +















Safety Barrier









Housing Assembly





































Measuring module 2 Supply -







Refer to Note





















Sensor 2







-











7)

















































































(Refer to Note

(*1)















































































Not use safety barrier but











Note: The measuring module on this

CSA certified equipment

























drawing means the sensor module

use in Non-incendive















on this General Specifications.





Electrical parameters (Intrinsically safe) Housing Assembly

Supply and output circuit (terminals + and -)

Ui(Vmax)=30V, Ii(Imax)=100mA, Pi(Pmax)=0.75W, Ci=13nF, Li=0mH Measuring module input circuit (CN2 or CN3 on Back board)

Uo(Vt,Voc)=13.65V, Io(It,Isc)=50mA, Po=0.372W, Co(Ca)=80nF, Lo(La)=7.7mH pH module, SC module and DO module

Ui(Vmax)=13.92V, Ii(Imax)=50mA, Pi(Pmax)=0.374W, Ci=40nF, Li=2.9mH

Sensor input circuit (terminals 11 through 19)

Uo(Vt,Voc)=11.76V, Io(It,Isc)=116.5mA, Po=0.3424W, Co(Ca)=100nF, Lo(La)=1.7mH

ISC module

Ui(Vmax)=13.92V, Ii(Imax)=50mA, Pi(Pmax)=0.374W, Ci=40nF, Li=7.7mH

Sensor input circuit (terminals 11 through 17)

Uo(Vt,Voc)=11.76V, Io(It,Isc)=60.6mA, Po=0.178W, Co(Ca)=100nF, Lo(La)=8mH Installation requirements between housing assembly and safety barrier

Uo≤Ui Io≤Ii Po≤Pi Co≥Ci+Ccable Lo≥Li+Lcable

Voc≤Vmax Isc≤Imax Ca≥Ci+Ccable La≥Li+Lcable

Uo, Io, Po, Co, Lo, Voc, Isc, Ca and La are parameters of barrier. Electrical Parameters (Nonincendive)

Housing Assembly

Supply and output circuit (terminals + and -)

Ui(Vmax)=30V, Ci=13nF, Li=0mH

Measuring module input circuit (CN2 or CN3 on Back board) Uo(Vt,Voc)=13.65V, Io(It,Isc)=50mA, Co(Ca)=80nF, Lo(La)=7.7mH

pH module, SC module and DO module Ui(Vmax)=13.92V, Ci=40nF, Li=2.9mH

Sensor input circuit (terminals 11 through 19)

Uo(Vt,Voc)=11.76V, Io(It,Isc)=116.5mA, Co(Ca)=4uF, Lo(La)=4.5mH

ISC module

Ui(Vmax)=13.92V, Ci=40nF, Li=7.7mH

Sensor input circuit (terminals 11 through 17)

Uo(Vt,Voc)=11.76V, Io(It,Isc)=60.6mA, Co(Ca)=4uF, Lo(La)=19mH

Note for Intrinsically Safe Installation:

1:In any safety barrier used, the output current must be limited by a resistor “R” such that Io=Uo/R or Isc=Voc/R.

2:The safety barrier must be CSAcertified.

3:Input voltage of the safety barrier must be less than 250Vrms/Vdc

4:When using non isolation barrier connect (*1) to IS earthing system.

5:pH and SC Sensor(s) are of a passive type to be regarded as ‘simple apparatus’same as 06ATEX0218X, 06ATEX0219, IECEx KEM 06.0052X, FM3028779, 06ATEX0220X, 06ATEX0221, IECEx KEM 06.0053X or the one individually certified with relevant parameters.

6:ISC Sensor(s) are ISC40S of 00ATEX1067X or the one individually certified with relevant parameters.

7:DO Sensor(s) are of a passive type to be regarded as ‘simple apparatus’or the one individually certified with relevant parameters.

8:Measuring module 2 may not mounted. As for ISC module, only one can be mounted.

9:Installation should be in accordance with Canadian Electrical Code Part I and Local Electrical Code.

10:Do not alter drawing without authorization from CSA.

Note for Nonincendive Installation:

1:The parameter for sensor input circuit must be taken into account when installed.

2:Installation should be in accordance with Canadian Electrical Code Part I and Local Electrical Code.

3:Do not alter drawing without authorization from CSA.

1

PH

SC

ISC

DO

SENCOM

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-14





WARNING

Installation and wiring

The FLXA21 should only be used with equipment that meets the relevant IEC,American or

Canadian standards. Yokogawa accepts no responsibility for the misuse of this unit.

WARNING

Don’t install “general purpose type” instruments in the hazardous area.

CAUTION

The Instrument is packed carefully with shock absorbing materials, nevertheless, the instrument may be damaged or broken if subjected to strong shock, such as if the instrument is dropped. Handle with care.

CAUTION

This instrument is a Class A product, and it is designed for use in the industrial environment. Please use this instrument in the industrial environment only.

CAUTION

The HART communication may be influenced by strong electromagnetic field.

In this case another trial of the HART communication and/or operation with FLXA21 touch screen can be carried out.

WARNING

Do not use an abrasive or organic solvent in cleaning the instrument.

Do not modify the FLXA21.

Substitution of components may impair suitability for Division 2.

Do not remove or replace while circuit is live unless area is know to be non-hazardous. Explosion Hazard – Do not disconnect equipment unless area is known to be nonhazardous.

Do not reset circuit breaker unless power has been removed from the equipment or the area is known to be non-hazardous.

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<1. INTRODUCTION AND GENERAL DESCRIPTION>

1-15





WARNING

Electrostatic discharge

The FLXA21 contains devices that can be damaged by electrostatic discharge.

When servicing this equipment, please observe proper procedures to prevent such damage.

Replacement components should be shipped in conductive packaging. Repair work should be done at grounded workstations using grounded soldering irons and wrist straps to avoid electrostatic discharge.

1

PH

SC

ISC

DO

SENCOM

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<2. WIRING AND INSTALLATION>

2-1

2.WIRING AND INSTALLATION

Install the cable glands into the FLXA21 before installing it (see section 2.3.) Upon delivery, the cable glands are not installed.

WTB10 or BA10

FLXA21 2-Wire Analyzer

Case of Distributor

2

Terminal box *6

PH201G (Style B)



Sensor

WTB10 or BA10 Terminal box *6

Sensor

n n n n n n n n n *4





+

CMN



CMN







B

C

D



F



H













A





















(*3)

















Output 2 (1-5V DC)

n n n n n

n n n

n

*5



















*7



















Output 1 (1-5V DC)



































*1





L

N















+

*3

b

a

d

c



f



e

Power supply

















20 to 130V DC



















































or



























80 to 138V AC, 47 to 63Hz





*2



*2

HOLD

FAIL

WASH





(Stainless steel



(Plastic housing)



















Case of Distributor



housing)

















SDBT























+







+















B









H













A









F































Output 2 (1-5V DC) *7



























Output 1 (1-5V DC)















L

N





















+















Power supply























20 to 130V DC











1





















(*3)



2













or

























80 to 138V AC, 47 to 63Hz

*1: Use a 2-wire shielded cable with an outside diameter of 6 to 12 mm. *2: Connect the analyzer to gland. (Class D ground: 100 ohm or less)

The way of connecting the grounding cable varies depending on the plastic housing and stainless steel housing.

In the case of the plastic housing, connect the grounding cable to the terminal of the power module inside, and in the case of the stainless steel housing, connect the grounding cable to the terminal of the housing. Use a cable with an outside diameter of 3.4 to 7 mm for the grounding line of the plastic housing.

The minimum cross sectional area of the protective grounding cable should be 0.75 mm2. *3: This line is connected to a distributor or 24V DC power supply.

*4: Terminal numbers for each sensor module are shown below.

*5: Two modules of the same kind of measurement/sensor type can be installed. When measuring inductive conductivity or pH/ORP with the SENCOM sensor, only one module can be installed.

*6: The terminal box may be necessary depending on the sensor cable length and the distance between the analyzer and the sensor.

The SENCOM sensor is to be connected directly to the analyzer without a terminal box. *7: Two outputs, output 1 and output2, of PH201G or SDBT are same signals.

11

12

14

18

13

17

19

15

16

PH Module















PH

11

12

13

14

15

16

NC





SC Module

SC

11

12

13

17

14

16

15





ISC Module















ISC

11

12

16

15

13

14

17

18

NC

DO Module















DO

NC 82

83

84

NC

86

87





SENCOM Module















SENCOM

Figure 2.1

Wiring diagrams

PH

SC

ISC

DO

SENCOM

IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<2. WIRING AND INSTALLATION>

2-2

2.1Installation site

The FLXA21 is weatherproof and can be installed both inside and outside. It should, however, be installed as close as possible to the sensor to avoid long cable runs between the instrument and sensor. When the pH sensor is used, the cable length including the sensor cable should not exceed 20 meters (65.6 feet). 60 meters when using BA10 extension box and WF10 cable.

Select an installation site where the ambient temperature and humidity are within the limits of the instrument specifications (see chapter 2). If the instrument is installed outside and exposed to direct sunlight, a sun shade hood should be used.

Ambient Operating Temperature: -20 to +55 ºC

Storage Temperature:

-30 to +70 ºC

Humidity:

10 to 95% RH (Non-condensing)

Select an installation site that meets the following conditions.

Mechanical vibrations and shocks are negligible

No relay switch and power switch are installed close to the converter

There is space for cable connection beneath the cable glands

Not exposed to direct sunlight or severe weather conditions

Maintenance is possible

No corrosive atmosphere

2.2Removing the wiring cover

Before installing this instrument, open the front panel and remove the wiring covers, and then

install the cable glands.

Remove all the wiring covers. They are fixed at the places marked with ○ (circle) and (triangle)

in Figure 2.2. Be careful not to damage the pawls when removing the covers.

NOTE

Be careful not to lose the wiring cover screws.



































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































Wiring cover 1











Wiring cover 2





















Wiring cover 3















(for the first module)

(for the second module)













(for the power supply and grounding)

Figure 2.2















Wiring cover









































































































IM 12A01A02-01E 5th Edition : Oct. 31, 2013-00

<2. WIRING AND INSTALLATION>

2-3

2.3Installing the cable glands

The supplied cable glands are for cables with an outside diameter of 6 to 12 mm (0.24 to 0.47



inches). Unused cable entry holes must be sealed with cable glands including the supplied close



up plugs.







For sensor 1 cable



2

For sensor 1 cable (For sensor 2 cable)

(For sensor 2 cable)







(A hole is drilled, if specified.)

For power supply





























For power supply



































































































































































For grounding cable

Plastic Housing

Stainless Steel Housing

F0202.ai







Figure 2.3

Cable gland diagram





CAUTION

Be careful not to be injured by the sharp hole edges on the housing.

Install the supplied cable gland as shown in Figure 2.4. When using an adapter for conduit work, see Figure 2.5.

Cable gland nut



Cable gland nut



O-ring



Gaskets





Washer









Gable gland





Gable gland

Cable gland cap



Sleeve

Cable gland cap











(for grounding cable line







of the plastic housing)

Rubber plug













(without wiring)



Plastic Housing

Stainless Steel Housing

F0203.ai

Figure 2.4

Cable glands





The unused cable glands should be sealed with the supplied close up plug.

PH

SC

ISC

DO

SENCOM
