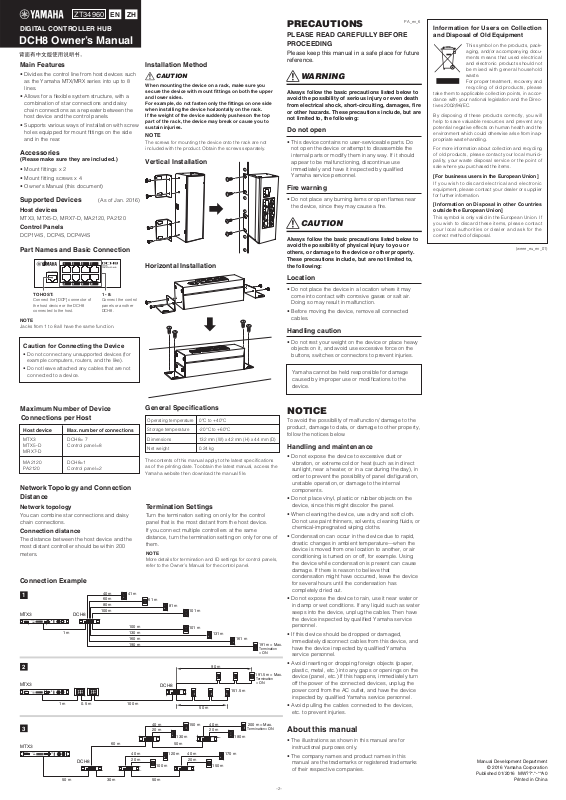

DIGITAL CONTROLLER HUB
DCH8 Owner’s Manual
Main Features
•Divides the control line from host devices such as the Yamaha MTX/MRX series into up to 8 lines.
•Allows for a flexible system structure, with a combination of star connections and daisy chain connections as a repeater between the host device and the control panels.
•Supports various ways of installation with screw holes equipped for mount fittings on the side and in the rear.
Accessories
(Please make sure they are included.)
•Mount fittings x 2
•Mount fitting screws x 4
•Owner's Manual (this document)
Supported Devices |
(As of Jan. 2016) |
Host devices
MTX3, MTX5-D, MRX7-D, MA2120, PA2120
Control Panels
DCP1V4S, DCP4S, DCP4V4S
Part Names and Basic Connection
Installation Method
CAUTION
When mounting the device on a rack, make sure you secure the device with mount fittings on both the upper and lower sides.
For example, do not fasten only the fittings on one side when installing the device horizontally on the rack.
If the weight of the device suddenly pushes on the top part of the rack, the device may break or cause you to sustain injuries.
NOTE
The screws for mounting the device onto the rack are not included with the product. Obtain the screws separately.
Vertical Installation
Horizontal Installation
TO HOST: |
1 - 8: |
Connect the [DCP] connector of |
Connect the control |
the host device or the DCH8 |
panels or another |
connected to the host. |
DCH8. |
NOTE
Jacks from 1 to 8 all have the same function.
Caution for Connecting the Device
•Do not connect any unsupported devices (for example computers, routers, and the like).
•Do not leave attached any cables that are not connected to a device.
PRECAUTIONS PA_en_6
PLEASE READ CAREFULLY BEFORE PROCEEDING
Please keep this manual in a safe place for future reference.
WARNING
Always follow the basic precautions listed below to avoid the possibility of serious injury or even death from electrical shock, short-circuiting, damages, fire or other hazards. These precautions include, but are not limited to, the following:
Do not open
•This device contains no user-serviceable parts. Do not open the device or attempt to disassemble the internal parts or modify them in any way. If it should appear to be malfunctioning, discontinue use immediately and have it inspected by qualified Yamaha service personnel.
Fire warning
•Do not place any burning items or open flames near the device, since they may cause a fire.
CAUTION
Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These precautions include, but are not limited to, the following:
Location
•Do not place the device in a location where it may come into contact with corrosive gases or salt air. Doing so may result in malfunction.
•Before moving the device, remove all connected cables.
Handling caution
•Do not rest your weight on the device or place heavy objects on it, and avoid use excessive force on the buttons, switches or connectors to prevent injuries.
Yamaha cannot be held responsible for damage caused by improper use or modifications to the device.
Information for Users on Collection and Disposal of Old Equipment
This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accor-
dance with your national legislation and the Directives 2002/96/EC.
By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.
For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.
[For business users in the European Union]
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.
[Information on Disposal in other Countries outside the European Union]
This symbol is only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.
(weee_eu_en_01)
Maximum Number of Device |
General Specifications |
|||
Connections per Host |
|
|
||
Operating temperature |
0°C to +40°C |
|||
|
|
|
|
|
Host device |
Max. number of connections |
|
Storage temperature |
-20°C to +60°C |
|
|
|
Dimensions |
132 mm (W) x 42 mm (H) x 44 mm (D) |
MTX3 |
DCH8= 7 |
|
||
MTX5-D |
Control panel=8 |
|
Net weight |
0.24 kg |
MRX7-D |
|
|
||
|
|
|
|
|
|
|
The contents of this manual apply to the latest specifications |
||
|
|
|
||
MA2120 |
DCH8=1 |
|
||
PA2120 |
Control panel=2 |
|
as of the printing date. To obtain the latest manual, access the |
|
|
|
|
Yamaha website then download the manual file. |
|
|
|
|
||
Network Topology and Connection
Distance
Network topology
You can combine star connections and daisy chain connections.
Connection distance
The distance between the host device and the most distant controller should be within 200 meters.
Termination Settings
Turn the termination setting on only for the control panel that is the most distant from the host device. If you connect multiple controllers at the same
distance, turn the termination setting on only for one of them.
NOTE
More details for termination and ID settings for control panels, refer to the Owner’s Manual for the control panel.
Connection Example
1 |
40 m |
41 m |
|
|
60 m |
|
61 m |
|
|
|
|
|
||
|
80 m |
|
81 m |
|
MTX3 |
100 m |
|
|
101 m |
DCH8 |
|
|
|
|
|
|
100 m |
|
101 m |
1 m |
|
130 m |
|
131 m |
|
|
160 m |
|
161 m |
|
|
190 m |
|
191 m = Max. |
|
|
|
|
Termination |
|
|
|
|
= ON |
2 |
|
|
|
90 m |
|
|
|
|
191.5 m = Max. |
|
|
|
|
Termination |
MTX3 |
|
|
DCH8 |
= ON |
|
|
|
||
|
|
|
|
151.5 m |
1 m |
0.5 m |
100 m |
|
50 m |
|
|
|
|
NOTICE
To avoid the possibility of malfunction/ damage to the product, damage to data, or damage to other property, follow the notices below.
Handling and maintenance
•Do not expose the device to excessive dust or vibration, or extreme cold or heat (such as in direct sunlight, near a heater, or in a car during the day), in order to prevent the possibility of panel disfiguration, unstable operation, or damage to the internal components.
•Do not place vinyl, plastic or rubber objects on the device, since this might discolor the panel.
•When cleaning the device, use a dry and soft cloth. Do not use paint thinners, solvents, cleaning fluids, or chemical-impregnated wiping cloths.
•Condensation can occur in the device due to rapid, drastic changes in ambient temperature—when the device is moved from one location to another, or air conditioning is turned on or off, for example. Using the device while condensation is present can cause damage. If there is reason to believe that condensation might have occurred, leave the device for several hours until the condensation has completely dried out.
•Do not expose the device to rain, use it near water or in damp or wet conditions. If any liquid such as water seeps into the device, unplug the cables. Then have the device inspected by qualified Yamaha service personnel.
•If this device should be dropped or damaged, immediately disconnect cables from this device, and have the device inspected by qualified Yamaha service personnel.
•Avoid inserting or dropping foreign objects (paper, plastic, metal, etc.) into any gaps or openings on the device (panel, etc.) If this happens, immediately turn off the power of the connected devices, unplug the power cord from the AC outlet, and have the device inspected by qualified Yamaha service personnel.
•Avoid pulling the cables connected to the devices, etc. to prevent injuries.
3 |
|
|
40 m |
150 m |
40 m |
|
200 m = Max. |
About this manual |
|
|
20 m |
|
20 m |
|
Termination= ON |
||
|
|
|
|
|
|
|
|
|
|
|
|
130 m |
|
|
180 m |
|
• The illustrations as shown in this manual are for |
|
|
60 m |
50 m |
|
|
|
|
|
MTX3 |
|
|
|
|
|
instructional purposes only. |
||
|
|
|
|
|
|
|
||
|
|
40 m |
120 m |
40 m |
|
170 m |
|
• The company names and product names in this |
|
DCH8 |
20 m |
|
20 m |
|
|
|
|
|
|
|
|
|
manual are the trademarks or registered trademarks |
|||
|
|
100 m |
|
150 m |
|
|
||
|
|
|
|
|
|
of their respective companies. |
||
|
|
|
|
|
|
|
|
50 m |
30 m |
50 m |
–2–
Manual Development Department
© 2016 Yamaha Corporation
Published 01/2016 MW??*.*-**A0
Printed in China
